When a leaking hose connection or mismatched thread size brings your irrigation or plumbing project to a halt, you need a fitting that simply works. These PVC barb hose tail end connector fittings are designed for DIYers, gardeners, and home plumbers who need a secure, drip-free transition between threaded pipe and flexible hose — without the hassle of specialist tools or adhesives.

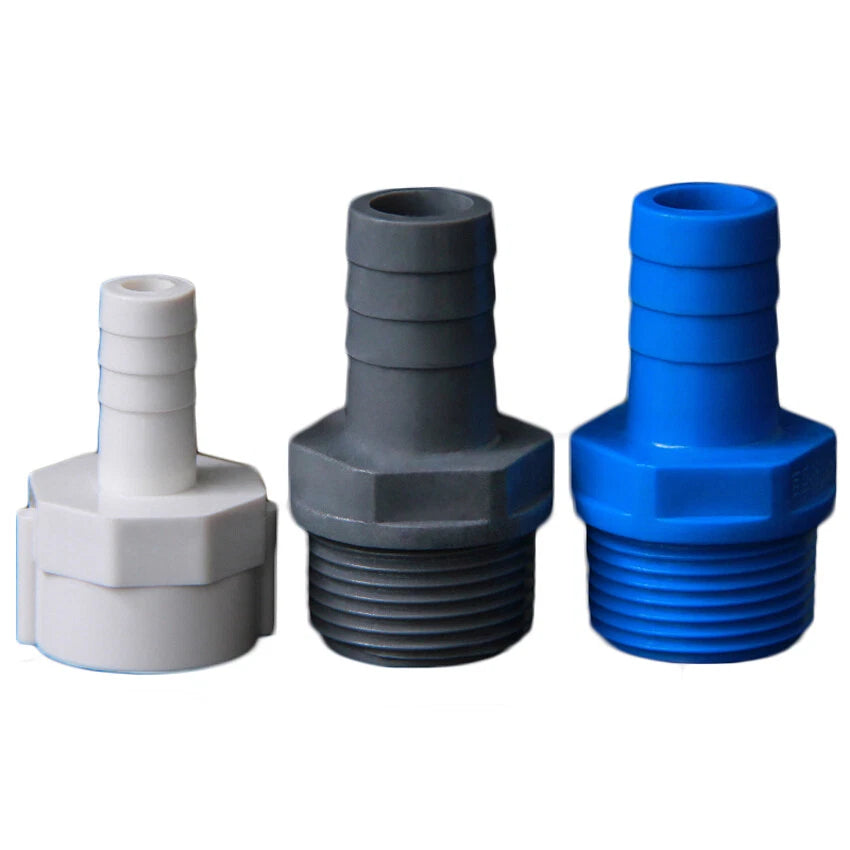

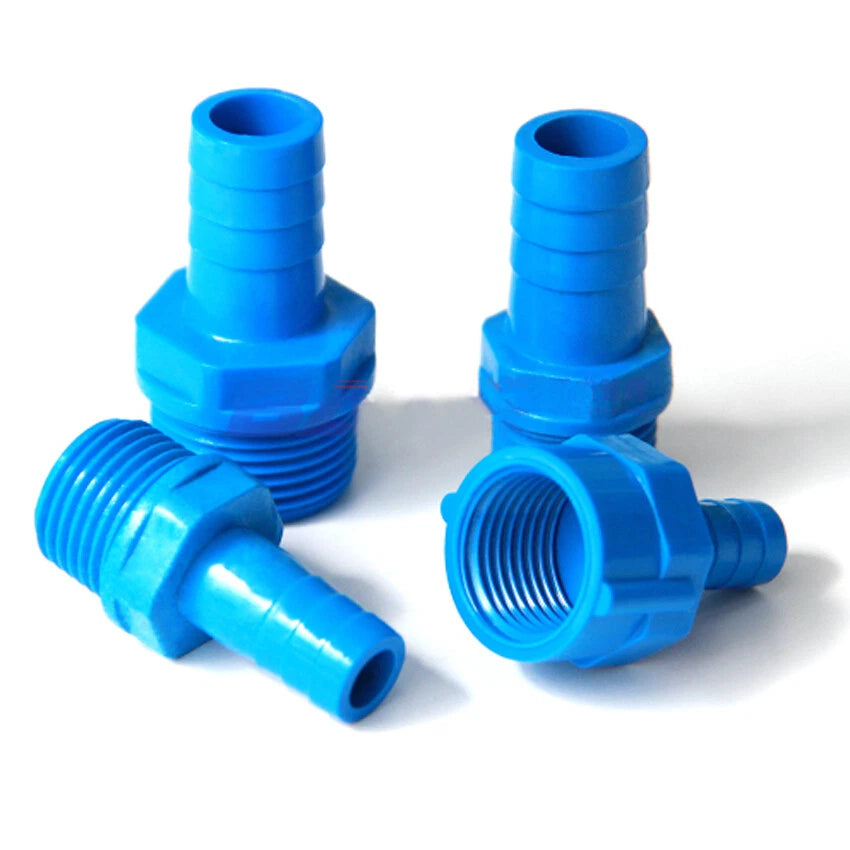

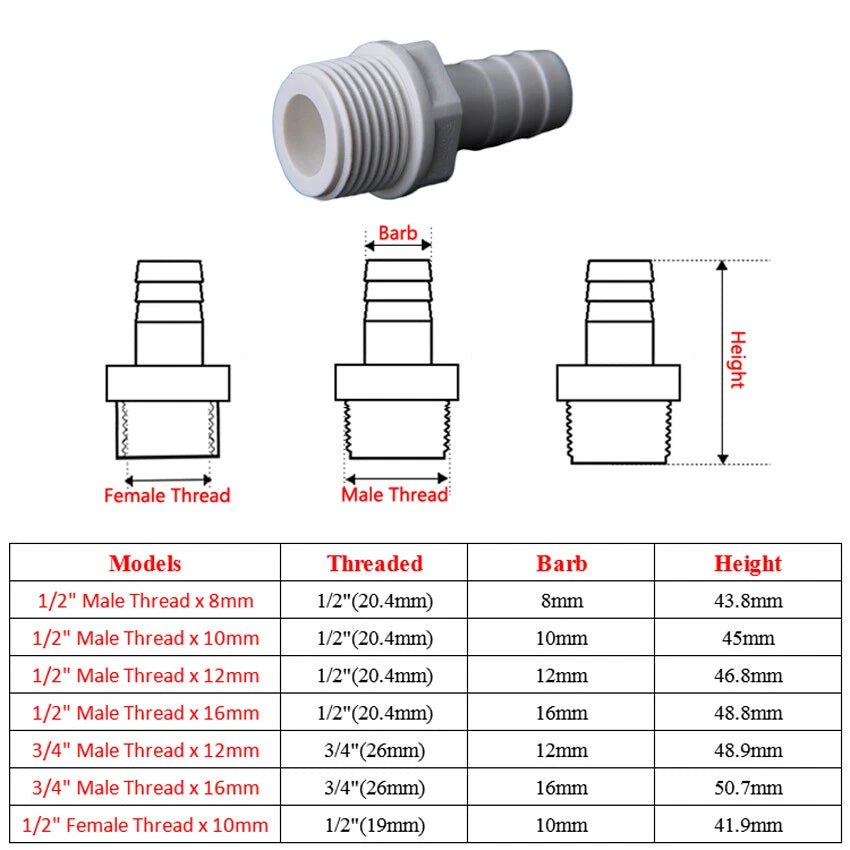

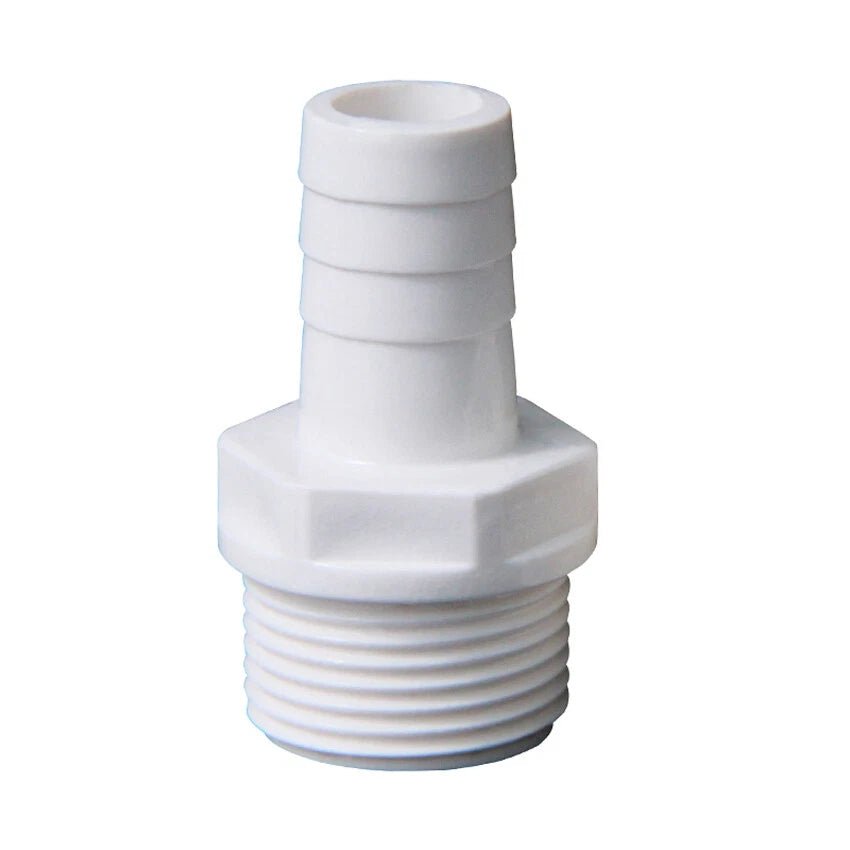

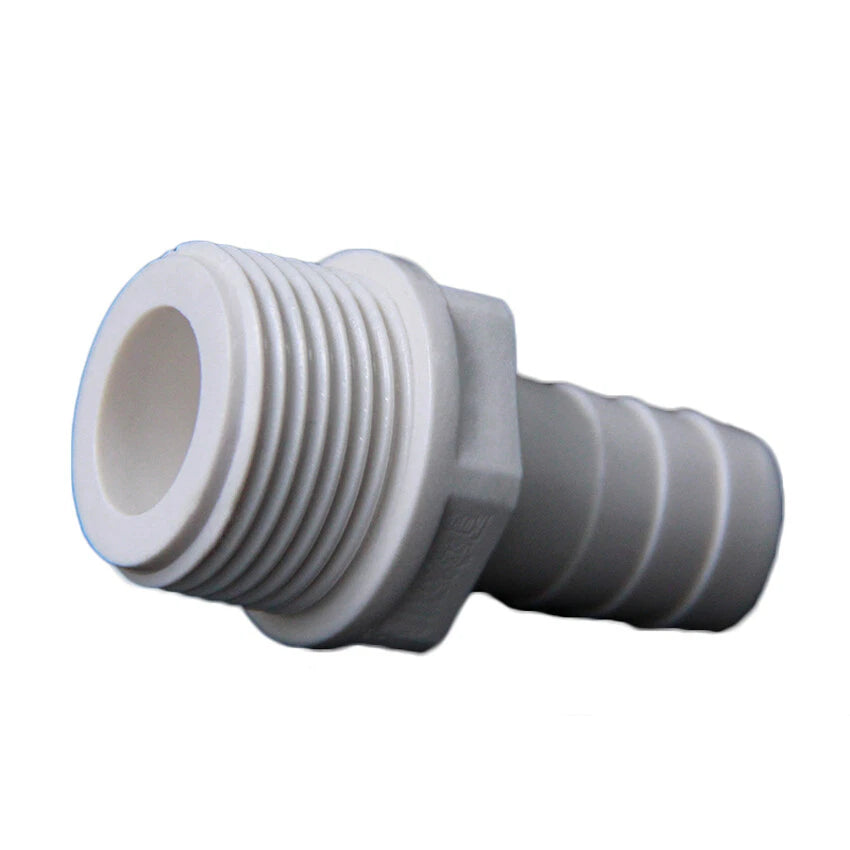

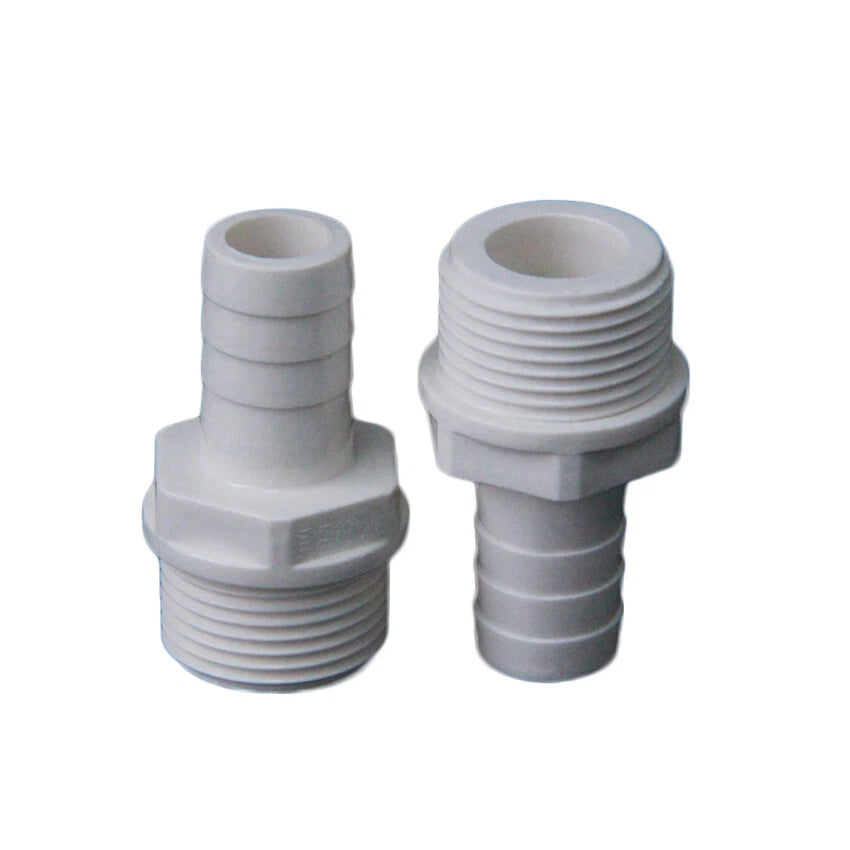

Each fitting is molded from rigid PVC, available in White, Blue, and Grey colorways to suit different system aesthetics or color-coded installations. The barb end accepts flexible hose with an inner diameter of 8 mm (5/16"), 10 mm (3/8"), 12 mm (1/2"), or 16 mm (5/8"), while the threaded end is available in 1/2" BSP or 3/4" BSP in both male and female configurations. Overall fitting length is typically 35–55 mm (1.4"–2.2") depending on the model selected.
These PVC barb hose tail connectors are ideal for drip irrigation system assembly, aquarium and pond water line connections, and residential cold-water plumbing repairs where a push-on hose-to-thread adapter is needed. Long-tail keywords like "1/2 inch male thread barb hose fitting" and "PVC female BSP to hose tail connector" describe exactly what this product delivers.
| Material | Rigid PVC (Polyvinyl Chloride) |
|---|---|
| Thread Standard | BSP (British Standard Pipe) |
| Thread Size | 1/2" BSP or 3/4" BSP (see variant options) |
| Thread Type | Male or Female (see variant options) |
| Barb Diameter | 8 mm (5/16"), 10 mm (3/8"), 12 mm (1/2"), or 16 mm (5/8") — see variant options |
| Colour | White / Blue / Grey (see variant options) |
| Overall Length | Typically 35–55 mm (1.4"–2.2") depending on model |
| Max. Working Pressure | See variant options / Contact us to confirm |
| Temperature Range | 0°C–60°C (32°F–140°F) — cold water applications only |
| Pack Quantity | 1 Pcs / 2 Pcs / 5 Pcs (see variant options) |
| Application | Irrigation, aquariums, ponds, cold-water plumbing |
Match the barb diameter to the inner diameter (ID) of your flexible hose. For example, if your hose has a 10 mm inner bore, select the 10 mm barb variant. A barb that is slightly larger than the hose ID creates a tighter, more leak-resistant seal. If you are unsure, measure the inside of your hose with a caliper before ordering.
These measurements refer to the BSP (British Standard Pipe) thread size on the threaded end of the fitting. A 1/2" BSP thread has an outer diameter of approximately 20.9 mm, while a 3/4" BSP thread measures approximately 26.4 mm OD. Check the thread size on your existing pipe, tap, or manifold before selecting a variant.
No. These fittings are manufactured from rigid PVC and are rated for cold water applications only, with a maximum recommended temperature of 60°C (140°F). For hot water, steam, or high-temperature fluid transfer, please use fittings made from CPVC, brass, or stainless steel.

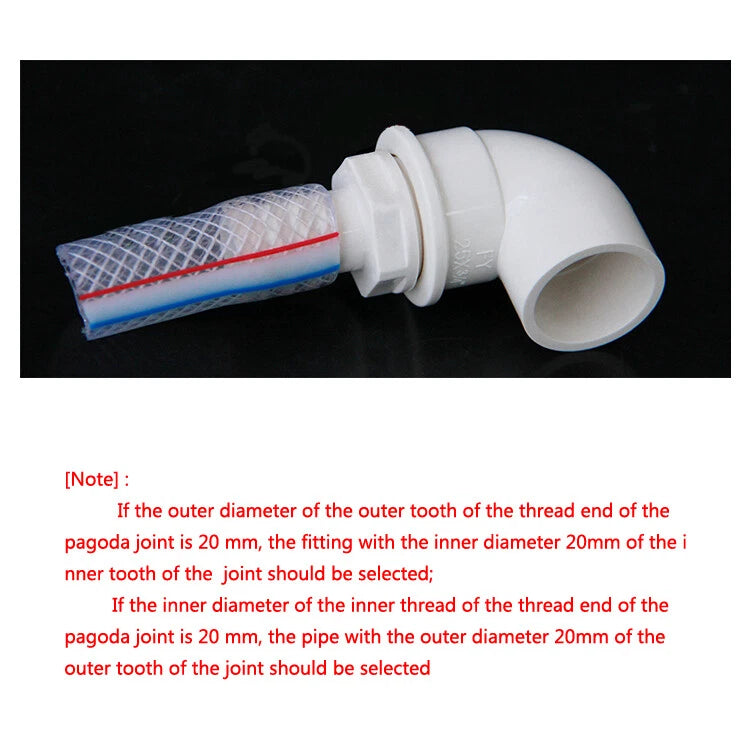

For temporary or low-pressure connections, the barbed profile alone may provide sufficient grip when the hose is pushed firmly over the barb. However, for permanent installations or any application where vibration or pressure fluctuations are present, we strongly recommend securing the hose with a stainless steel worm-drive hose clamp for a leak-free seal.
Yes. These PVC barb hose tail connectors are widely used in drip irrigation and garden watering systems. The 1/2" BSP male thread variants connect directly to standard tap adaptors, soaker hose manifolds, and irrigation timers. Select the barb size that matches your irrigation tubing's inner diameter (commonly 8 mm or 10 mm for drip lines).
A male thread fitting has external threads that screw into a female-threaded socket, valve, or manifold. A female thread fitting has internal threads that accept a male-threaded pipe or nipple. Check whether the mating component on your system has an external (male) or internal (female) thread to select the correct variant.
The White, Blue, and Grey variants are identical in material and performance. The colour options exist purely for aesthetic preference or to support colour-coded plumbing systems where different colours denote different circuits (e.g., cold water, irrigation zones). Choose the colour that best matches your existing pipework or system layout.
Yes. Rigid PVC is non-toxic, corrosion-resistant, and safe for use in aquarium and pond water circulation systems once fully cured and rinsed. These fittings are suitable for connecting flexible tubing to filter inlets, pump outlets, and water feature manifolds. Ensure the barb size matches your tubing's inner diameter for a watertight connection.
