PVC 90° Elbow Drainage Fittings — Reliable Direction Changes for Pipe Systems
When a drainage run hits a wall, floor joist, or structural obstacle, a poorly chosen elbow can crack under load, leak at the joint, or restrict flow enough to cause recurring blockages. Homeowners tackling bathroom rough-ins, kitchen drain extensions, or outdoor drainage upgrades need a fitting that holds its angle, seals cleanly, and matches the pipe already in the ground.

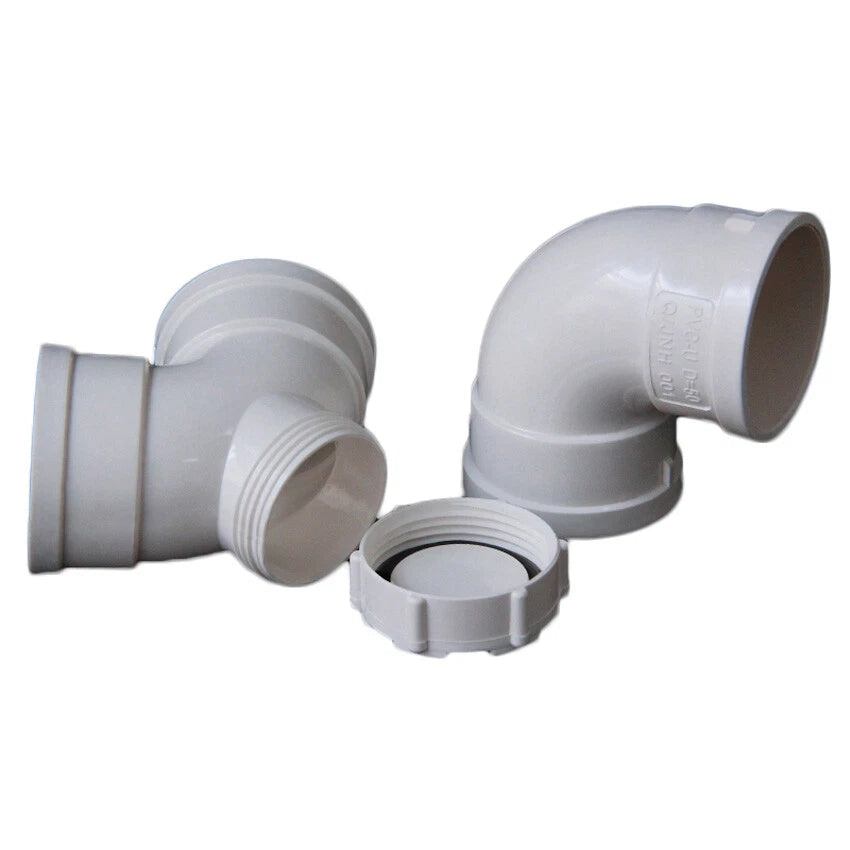

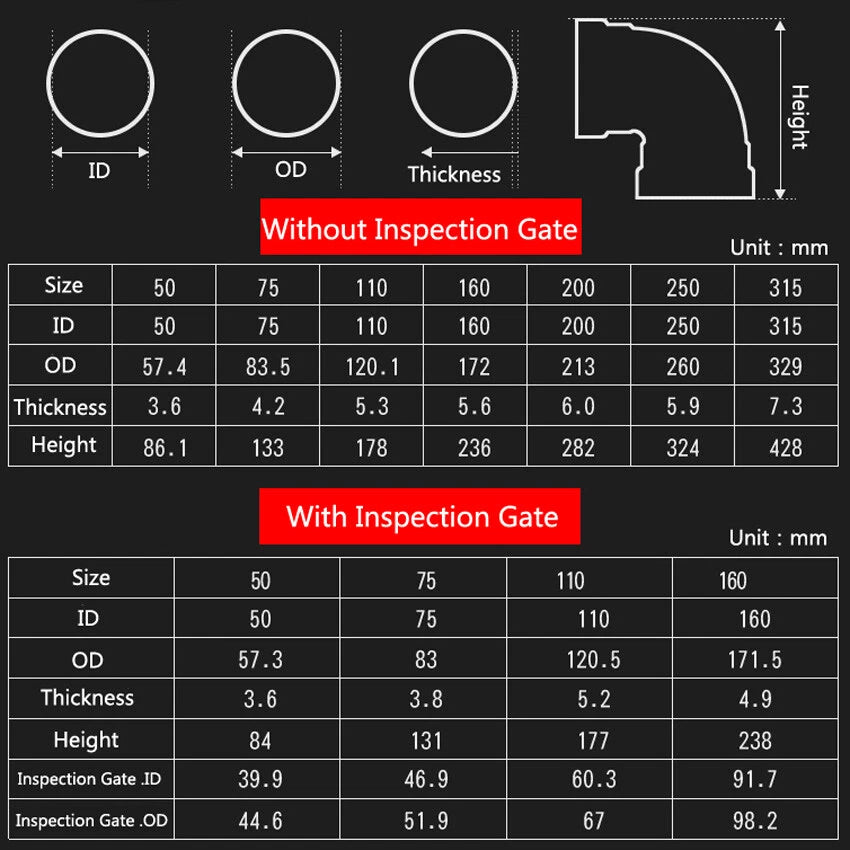

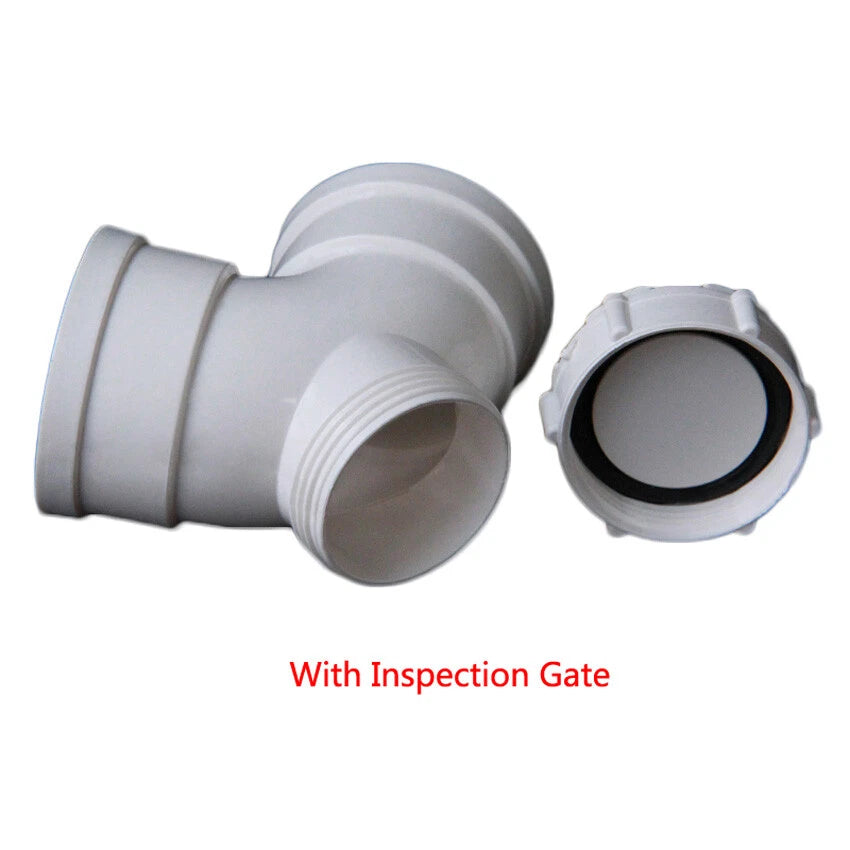

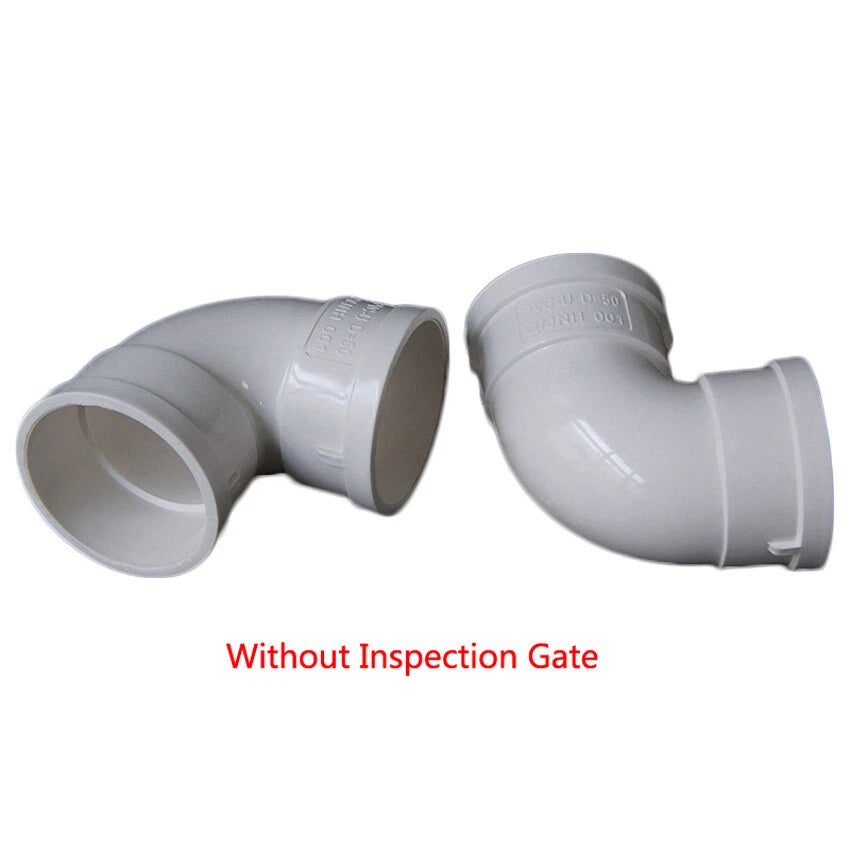

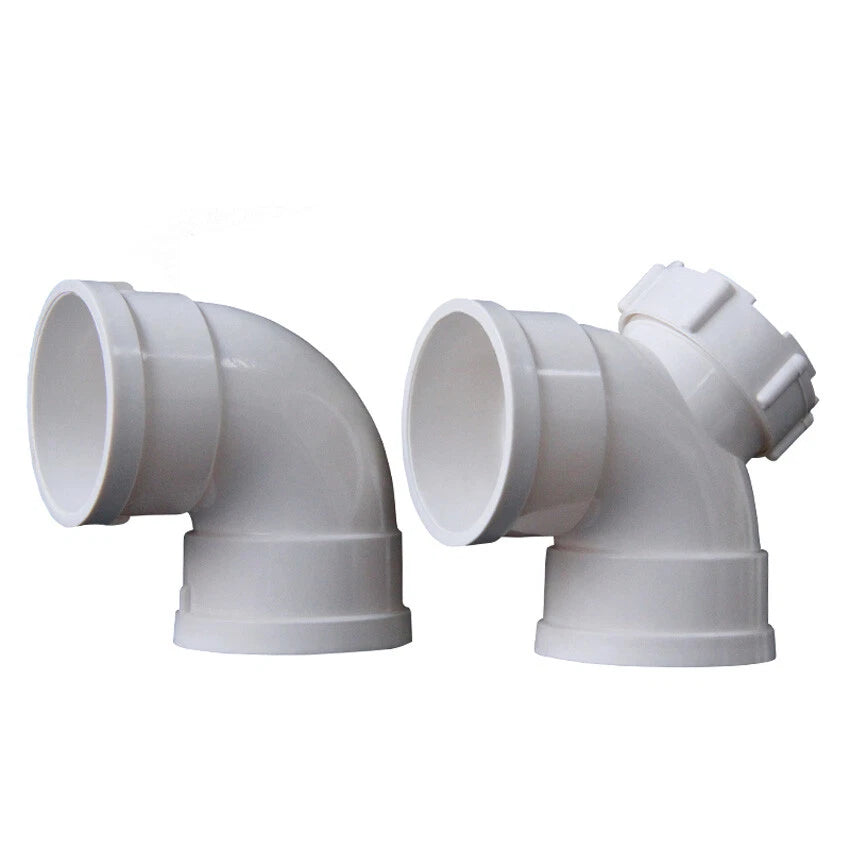

These PVC equal 90° elbow connectors are available in five pipe diameters — 50mm (~2"), 75mm (~3"), 110mm (~4"), 160mm (~6"), and 200mm (~8") — and are offered in both standard elbow and inspection gate configurations. The inspection gate variants include an access port that allows rodding or camera inspection without dismantling the run. Wall thickness is consistent with standard drainage-grade PVC pipe, and all sockets are sized for solvent-weld jointing.
Typical applications include residential soil and waste stacks, underground drainage laterals, rainwater downpipe offsets, and commercial drainage manifolds where a clean 90° direction change is required. The 110mm size is particularly suited to WC pan connectors and main soil pipe bends, while the 50mm and 75mm variants cover basin, bath, and sink waste lines.
