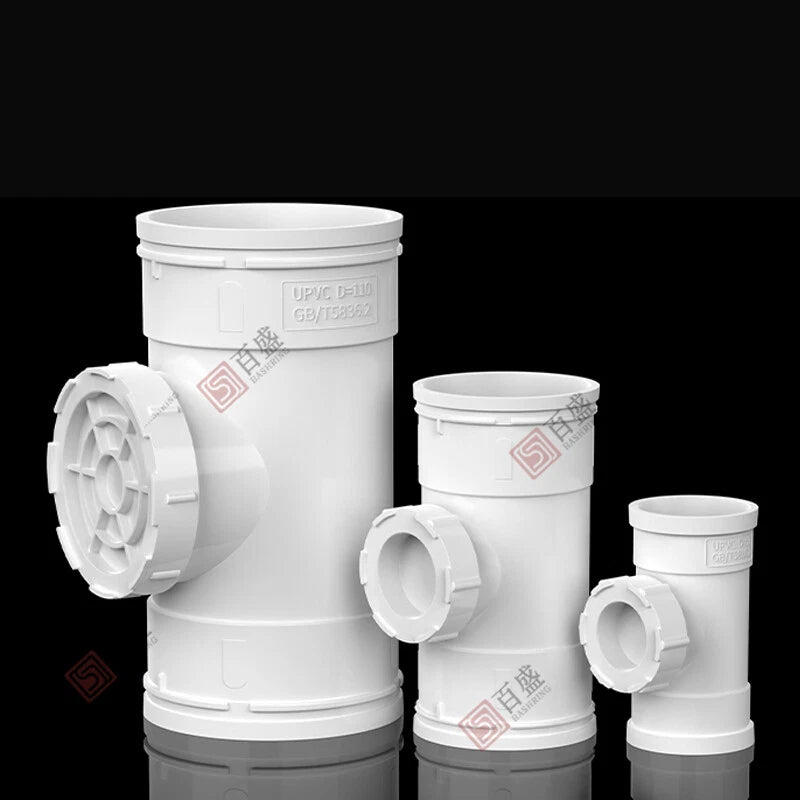

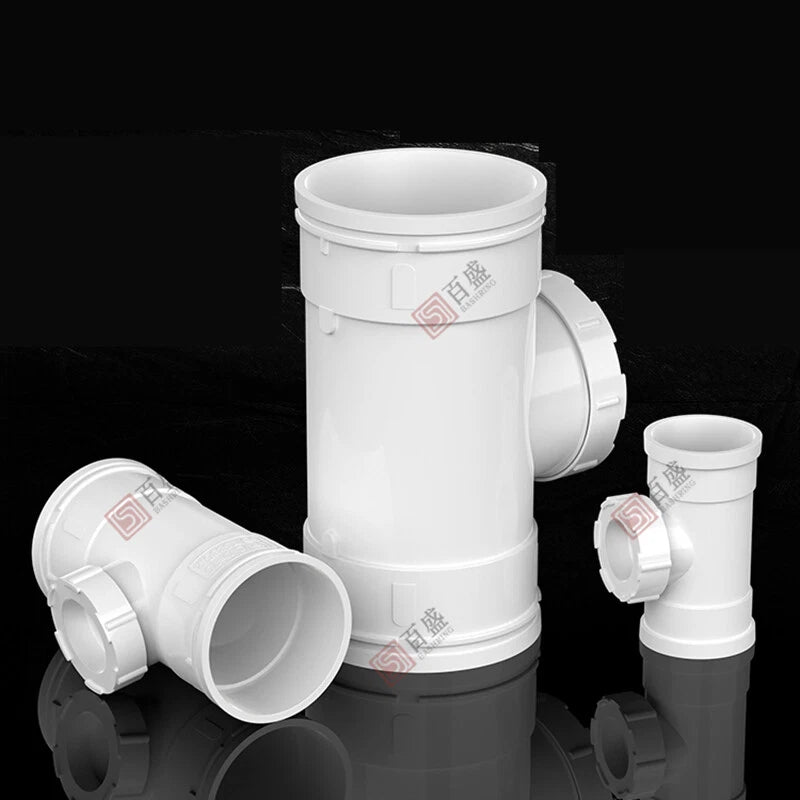

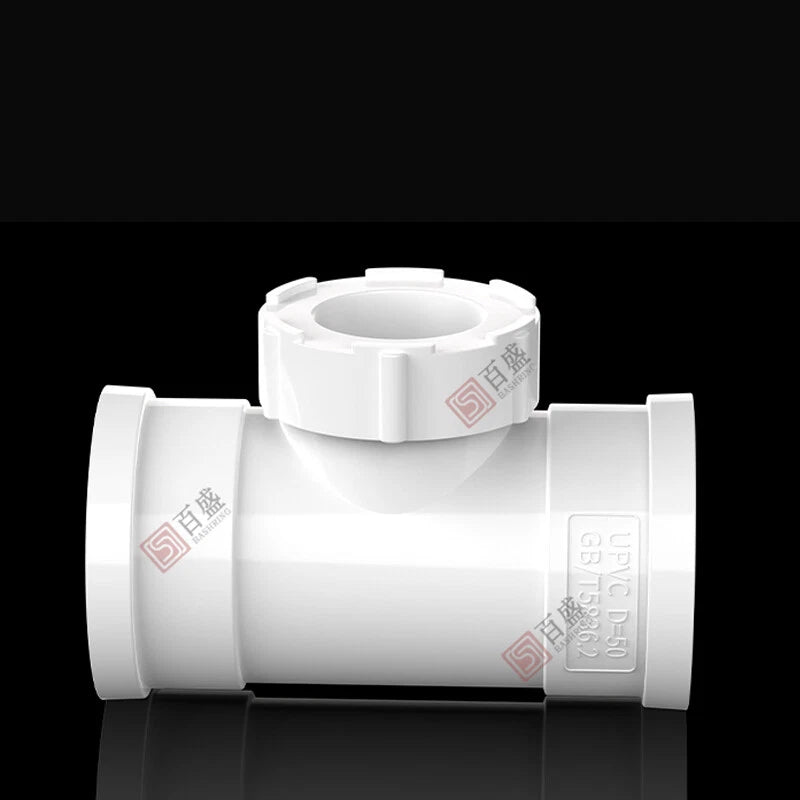

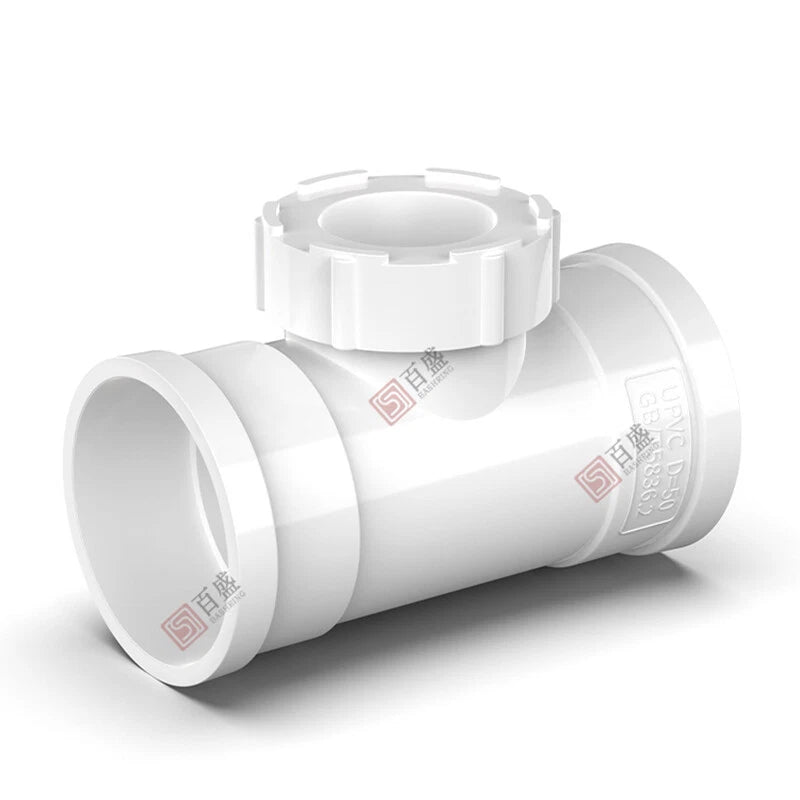

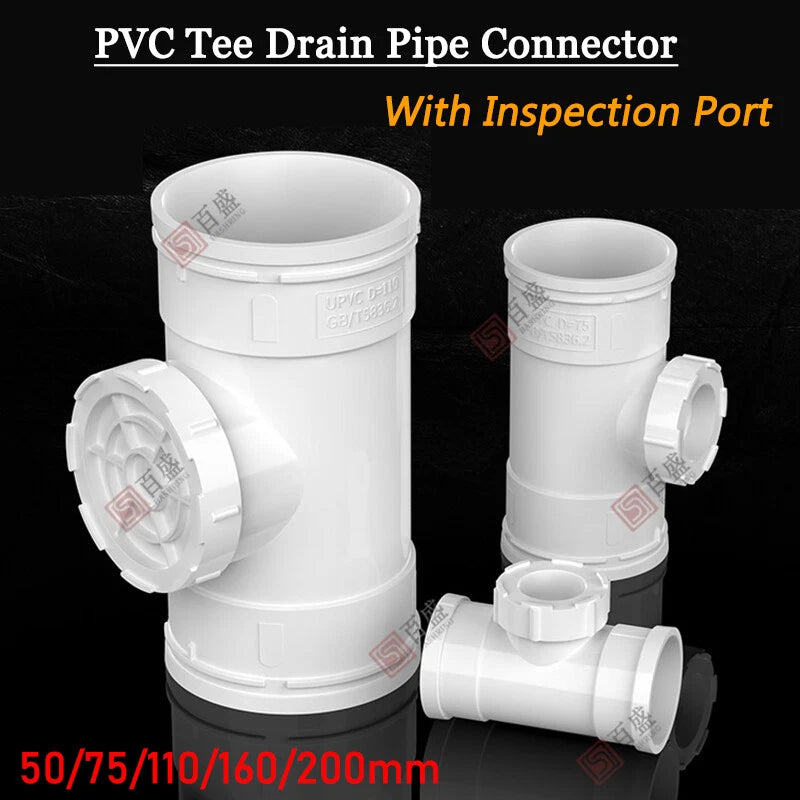

PVC Tee Drain Pipe Connector with Inspection Port — Reliable Access for Every Drain System

When a blocked drain turns a routine maintenance call into a costly excavation, the right fitting makes all the difference. This PVC tee drain pipe connector with inspection port is designed for plumbers, contractors, and serious DIYers who need dependable access points built directly into their drainage runs — without cutting into finished pipework later.

Each connector is molded from rigid PVC (polyvinyl chloride), offering a smooth internal bore and consistent wall thickness across all sizes. Available in five diameters — 50mm (approx. 2 in), 75mm (approx. 3 in), 110mm (approx. 4 in), 160mm (approx. 6 in), and 200mm (approx. 8 in) — these tee fittings accommodate the most common residential and commercial drain pipe sizes. The integrated inspection port accepts a standard screw cap for sealed, odor-free operation between service intervals.

Typical applications include underground soil and waste drain lines, horizontal drain runs beneath concrete slabs, stormwater drainage systems requiring periodic rodding access, and commercial kitchen or bathroom drain manifolds where inspection port tee fittings for PVC drain pipe are essential for code compliance and long-term serviceability.

🔗 Compatibility: Designed to fit standard PVC drain pipe systems. Confirm your pipe's outer diameter before ordering. Solvent-weld or push-fit connection method — see variant options for your size.

✅ Key Features of These PVC Tee Drain Pipe Connectors with Inspection Port

  • 🔍Integrated Inspection Port — Built-in access cap allows rodding and inspection without cutting into the pipe, saving time on maintenance and blockage clearance.
  • 📐Five Size Options (50mm–200mm) — Covers the full range of standard residential and commercial drain diameters from 50mm (2 in) up to 200mm (8 in) for versatile installation.
  • 🧱Rigid PVC Construction — Molded from durable PVC for resistance to common drain chemicals, root intrusion pressure, and long-term underground burial conditions.
  • 💧Smooth Internal Bore — Consistent internal diameter minimizes flow restriction and reduces debris accumulation at the tee junction.

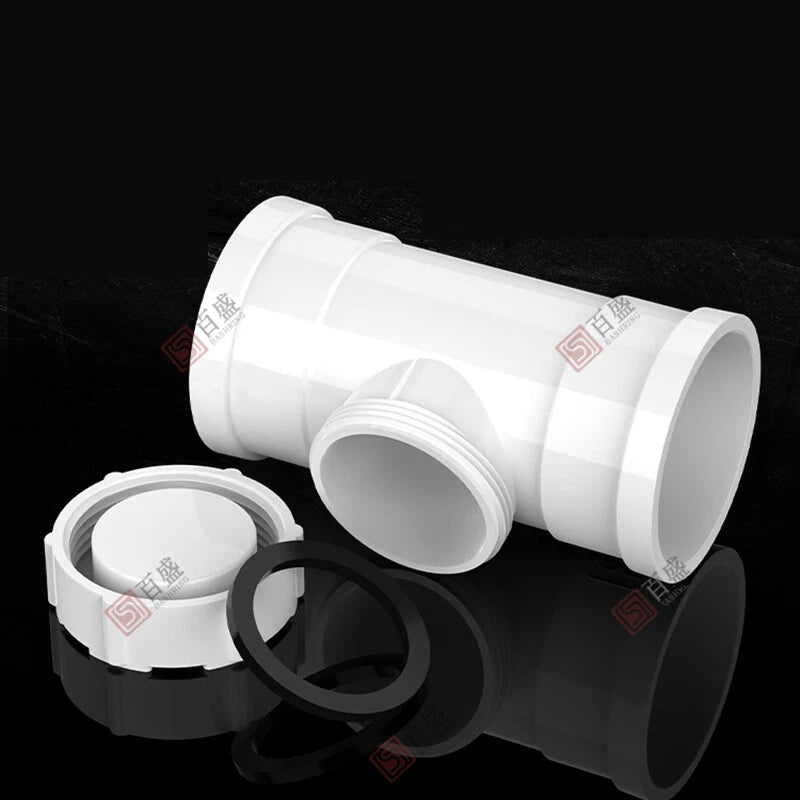

  • 🔒Sealed Cap Design — Screw-type inspection port cap provides an odor-tight seal between service intervals, maintaining system integrity.
  • 🏗️Suitable for Buried and Above-Ground Runs — Rated for both underground soil drain installations and exposed above-slab drain manifold configurations.

📐 Technical Specifications — PVC Tee Drain Pipe Connector

Material Rigid PVC (Polyvinyl Chloride)
Available Sizes 50mm / 75mm / 110mm / 160mm / 200mm
Approximate Inch Equivalents 2 in / 3 in / 4 in / 6 in / 8 in
Fitting Type Tee with Inspection Port
Connection Method See variant options
Wall Thickness See variant options
Inspection Port Cap Screw-type, included
Color White / Grey (see variant options)
Application Soil, waste, and stormwater drain systems
Installation Environment Underground burial and above-ground
Quantity per Order 1 Pc

❓ Frequently Asked Questions

How do I choose the right size for my drain pipe?

Measure the outer diameter (OD) of your existing drain pipe. Match it to the available sizes: 50mm (~2 in), 75mm (~3 in), 110mm (~4 in), 160mm (~6 in), or 200mm (~8 in). If you are unsure, check the pipe markings or consult your local plumbing code for standard drain sizes in your application.

Can this fitting be used for underground burial?

Yes. Rigid PVC is widely used for underground drain and soil pipe installations. The material resists moisture, common drain chemicals, and moderate soil pressure. Ensure proper bedding and backfill practices are followed per your local installation standards.

Is the inspection port cap included, and is it watertight?

Yes, a screw-type inspection port cap is included with each fitting. When properly tightened, it provides an odor-tight and water-resistant seal suitable for standard drain system operating pressures. It is not rated for pressurized water supply lines.

What is the chemical resistance of PVC drain fittings?

PVC offers good resistance to most household and commercial drain chemicals including diluted acids, alkalis, detergents, and common cleaning agents. It is not recommended for use with concentrated solvents or high-temperature discharge above approximately 60°C (140°F).

Is this compatible with both solvent-weld and push-fit pipe systems?

Connection compatibility depends on the specific variant. Please check the product variant details or contact us to confirm whether your size is available in solvent-weld, push-fit, or both configurations before purchasing.

Can I use this fitting for stormwater drainage as well as soil/waste?

Yes. This PVC tee connector with inspection port is suitable for stormwater drainage, soil and waste drain runs, and general surface water management systems. Verify that the selected size matches your stormwater pipe specification and that local codes permit PVC for your intended application.

How do I access the inspection port for rodding or blockage clearance?

Unscrew the inspection port cap by hand or with a strap wrench if it has been in service for an extended period. Insert a drain rod or inspection camera through the port opening to clear blockages or inspect the downstream pipe. Replace and hand-tighten the cap after servicing.
