When a straight run of pipe meets a wall, a beam, or a tight corner, DIY plumbers and contractors need a fitting they can trust to hold pressure without leaking. These PVC 45° elbow connectors are designed for homeowners, irrigation installers, and workshop builders who want a clean, solvent-weld joint that stays sealed for years — without the guesswork of mismatched fittings.

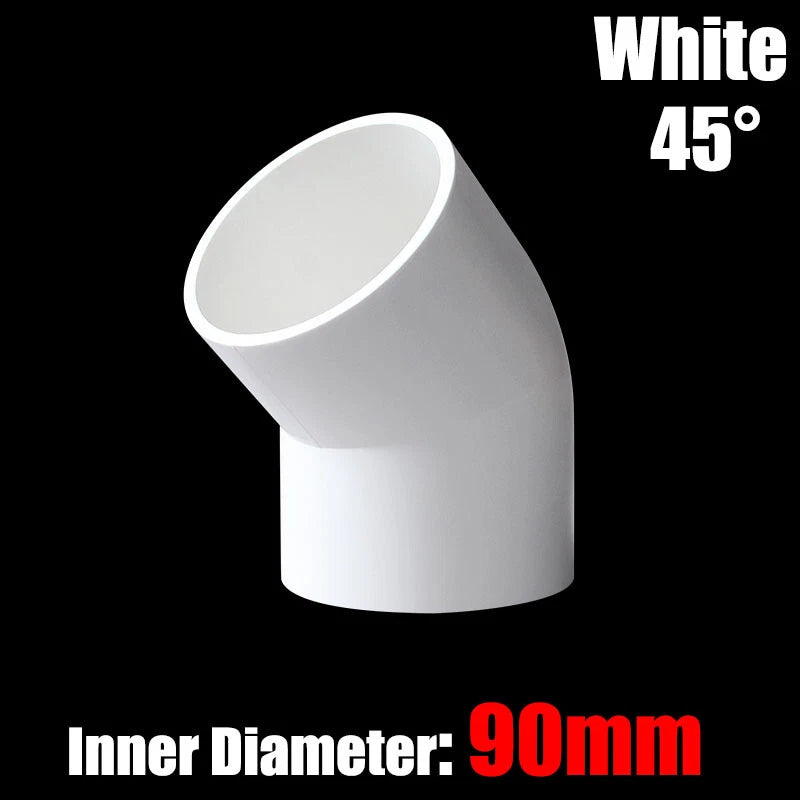

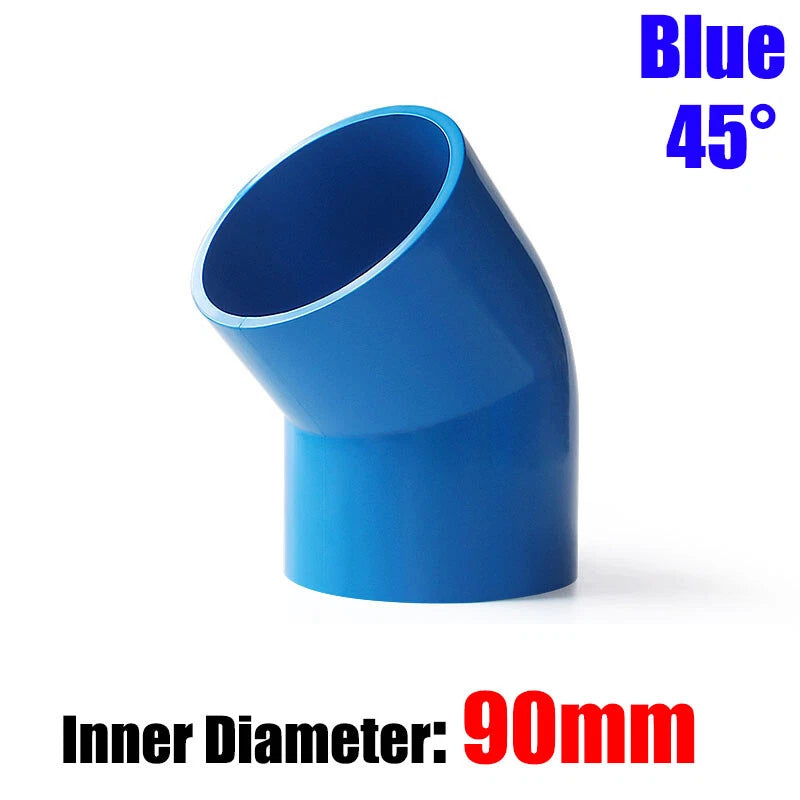

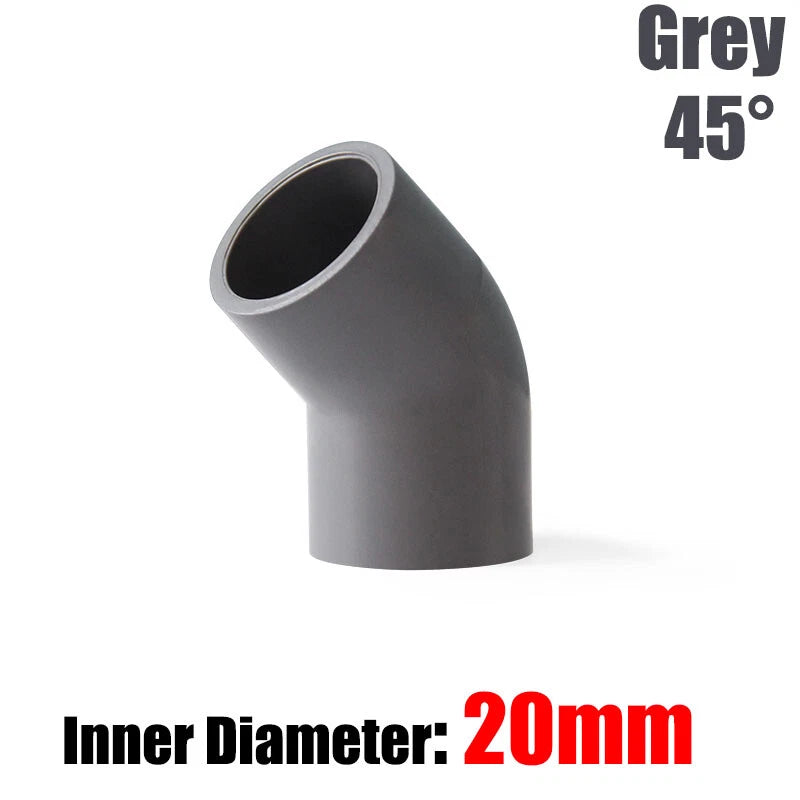

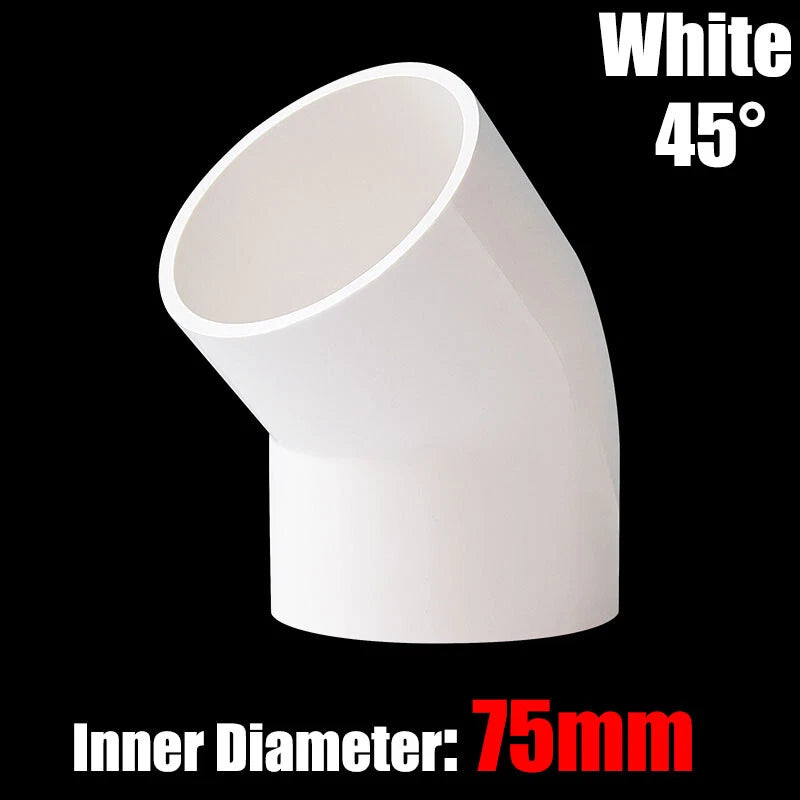

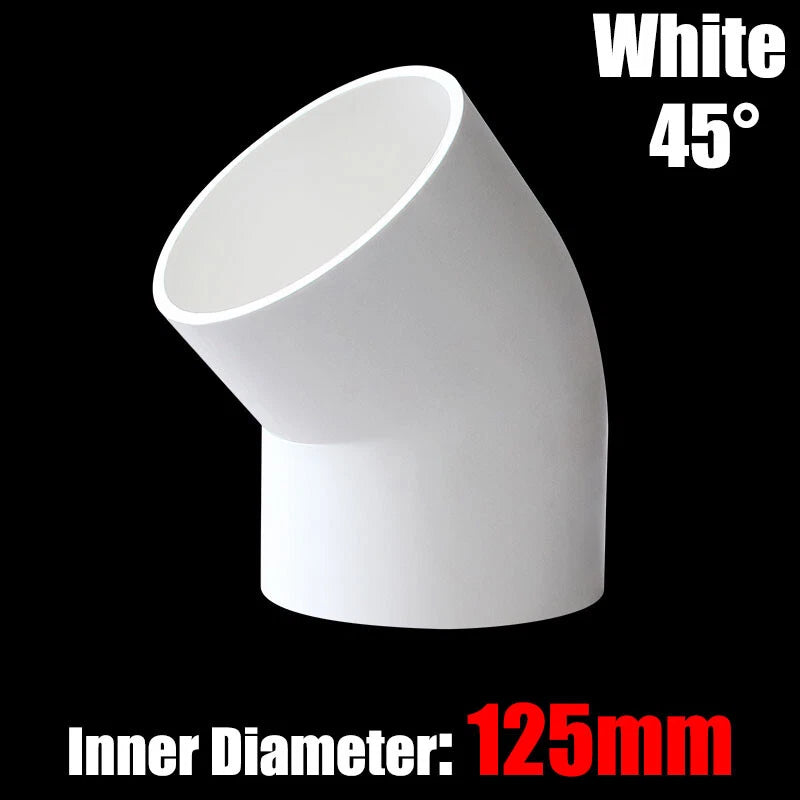

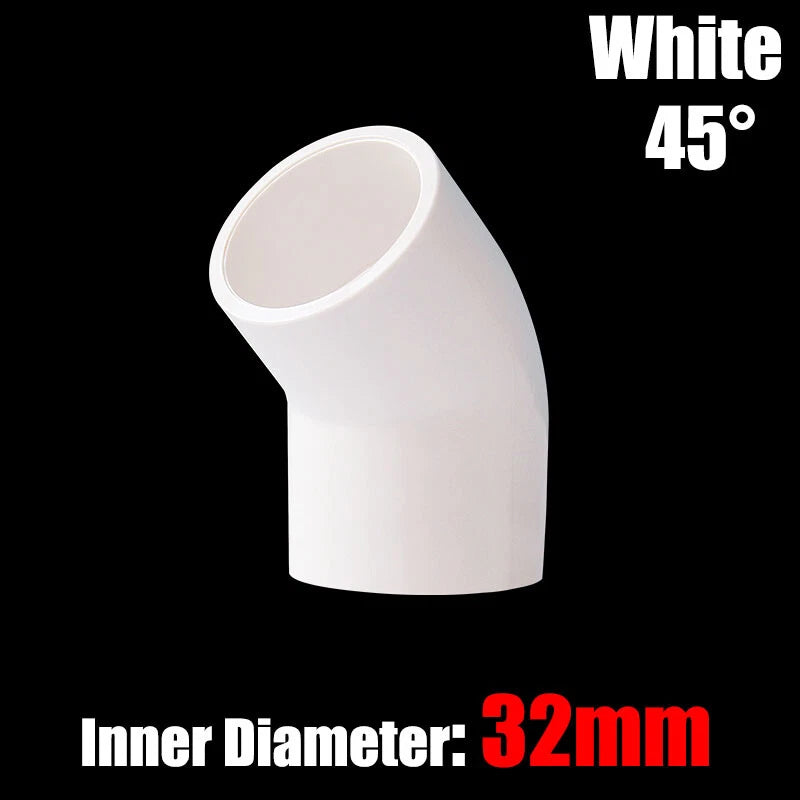

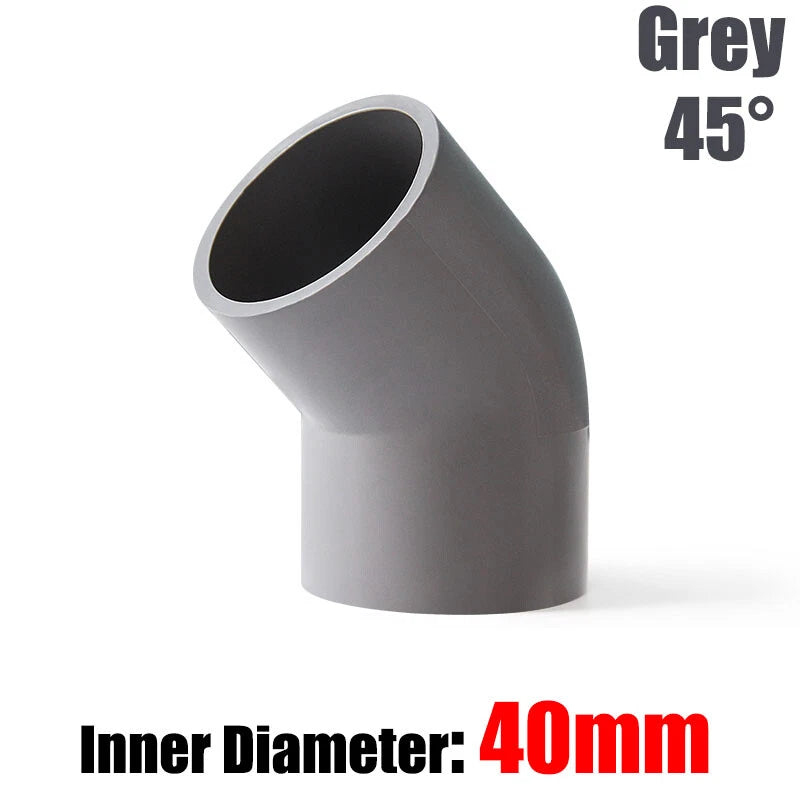

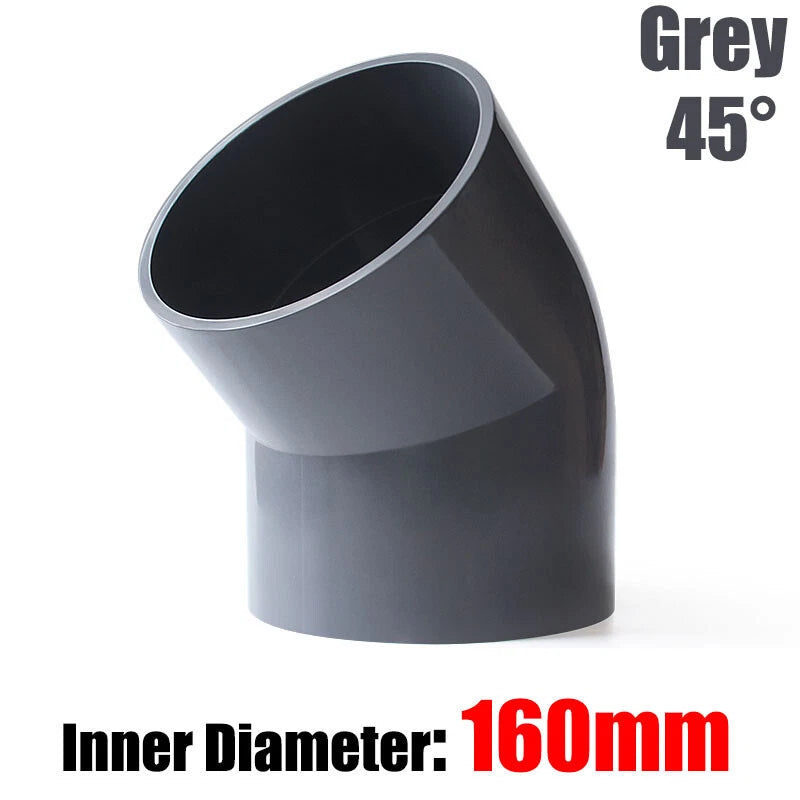

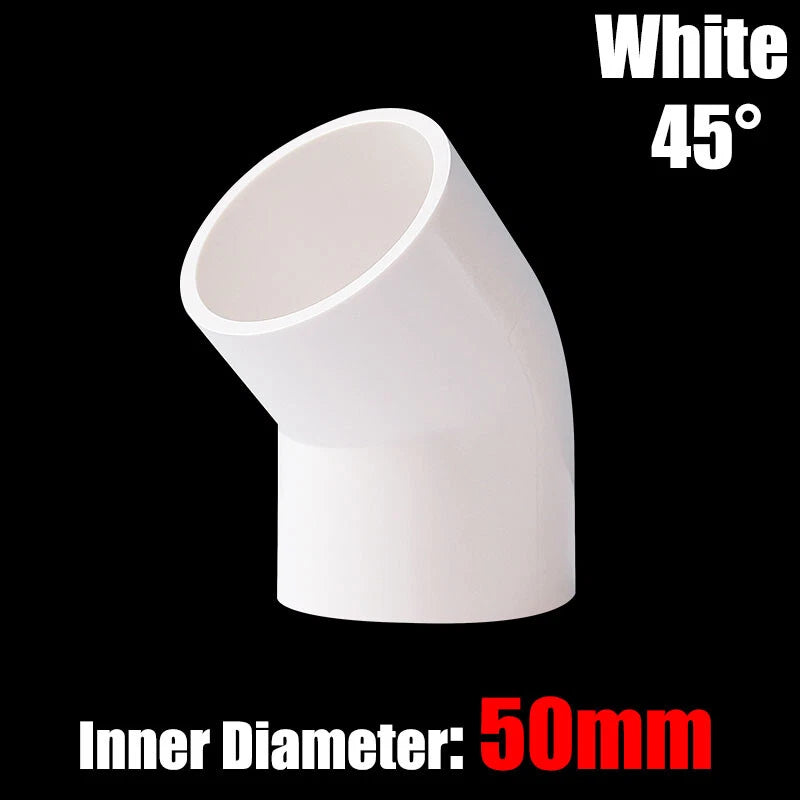

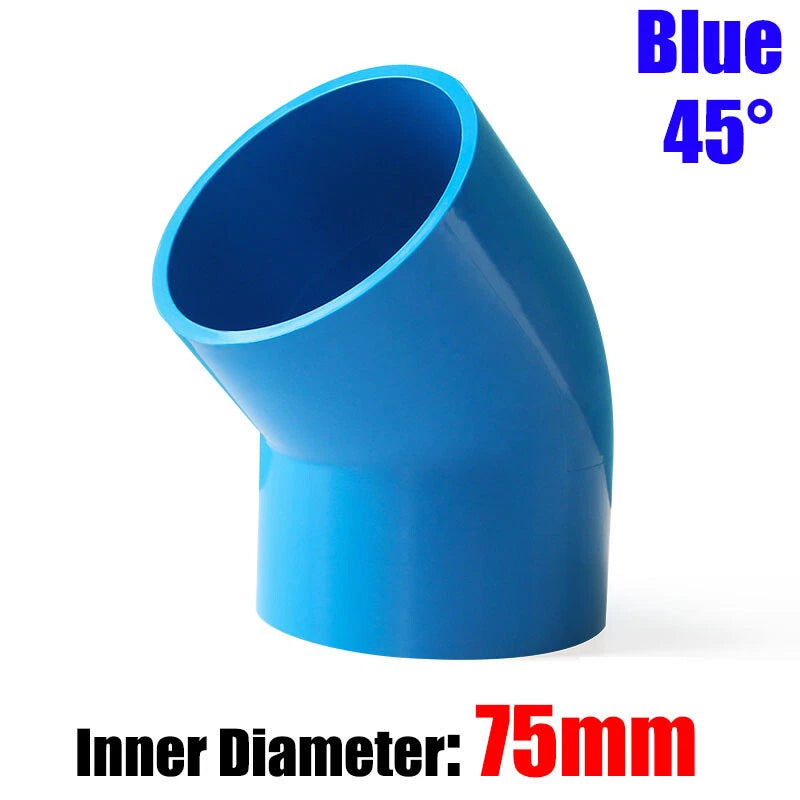

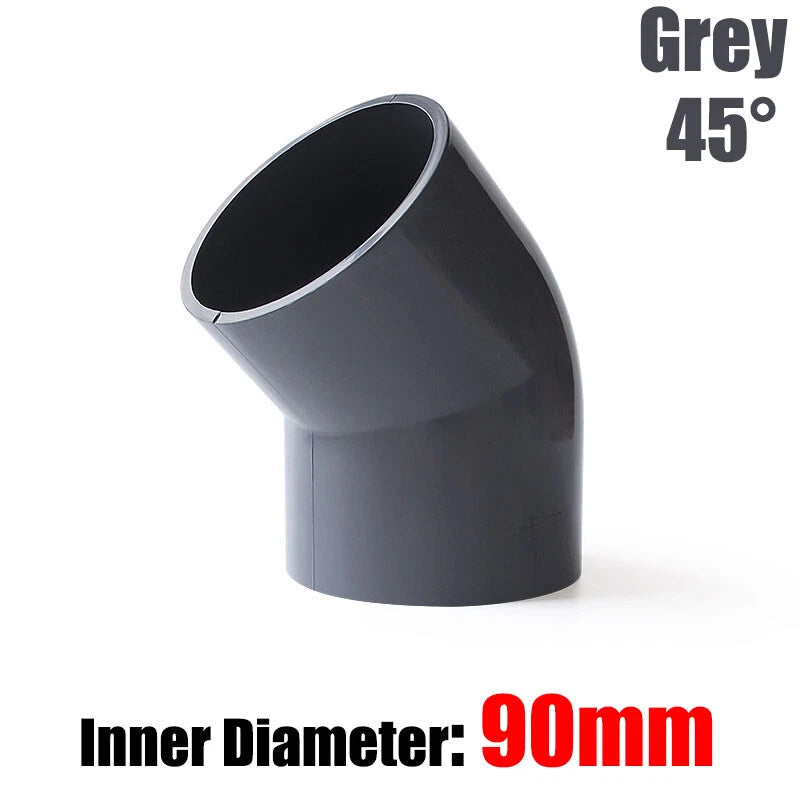

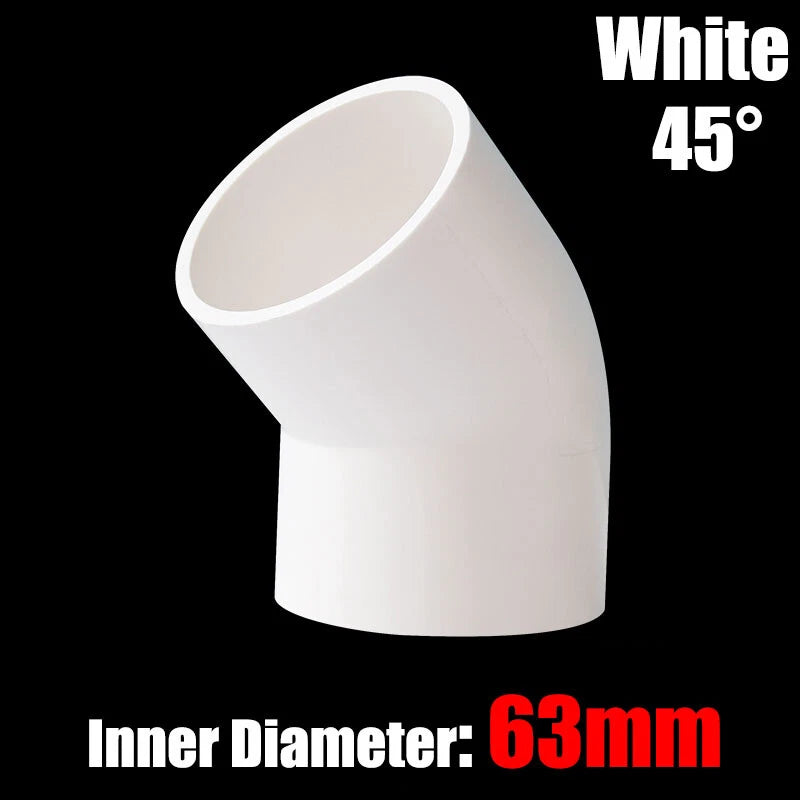

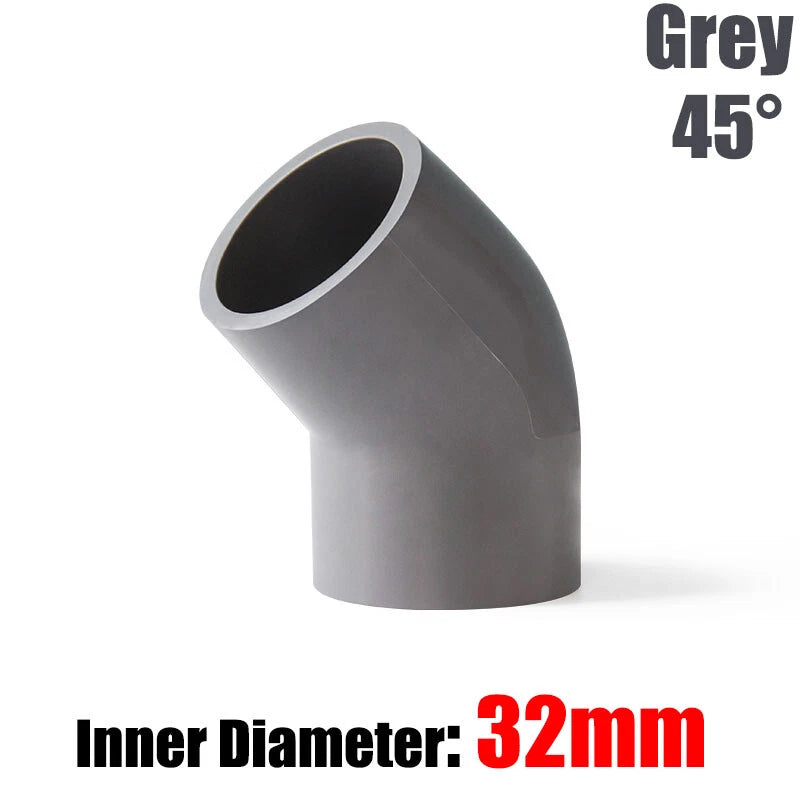

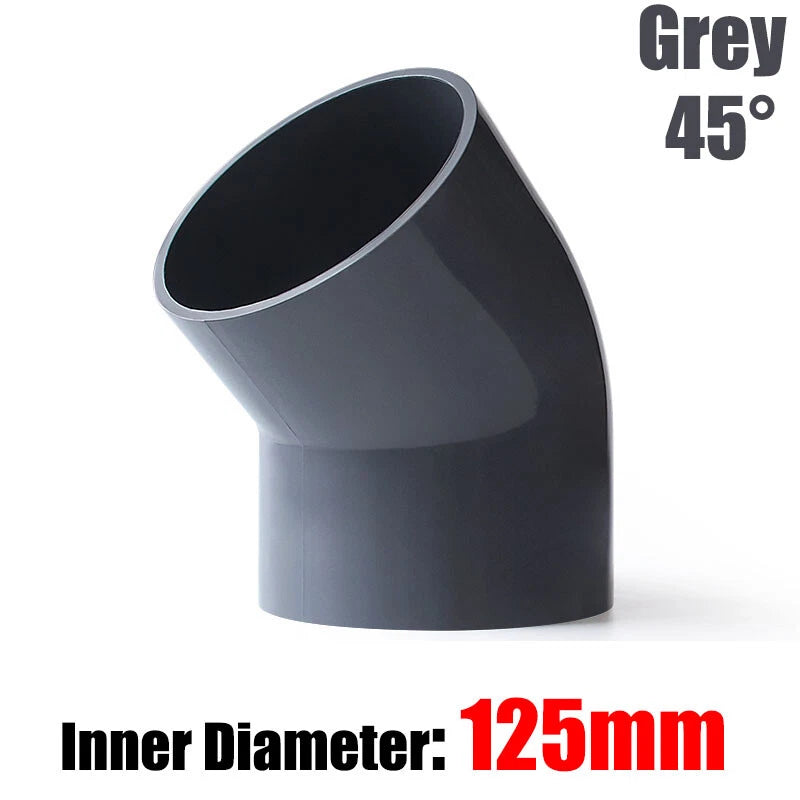

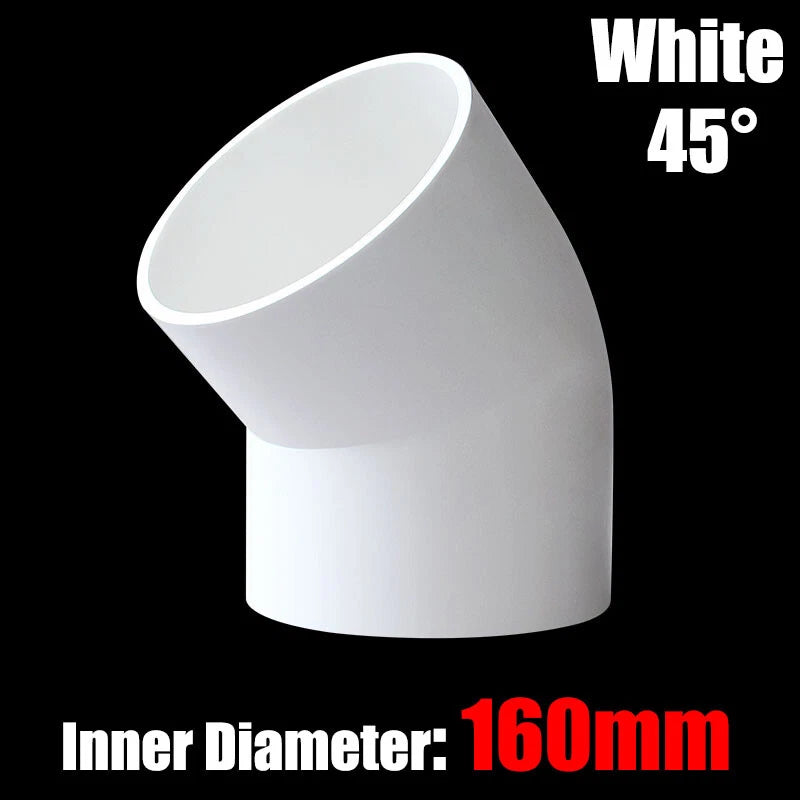

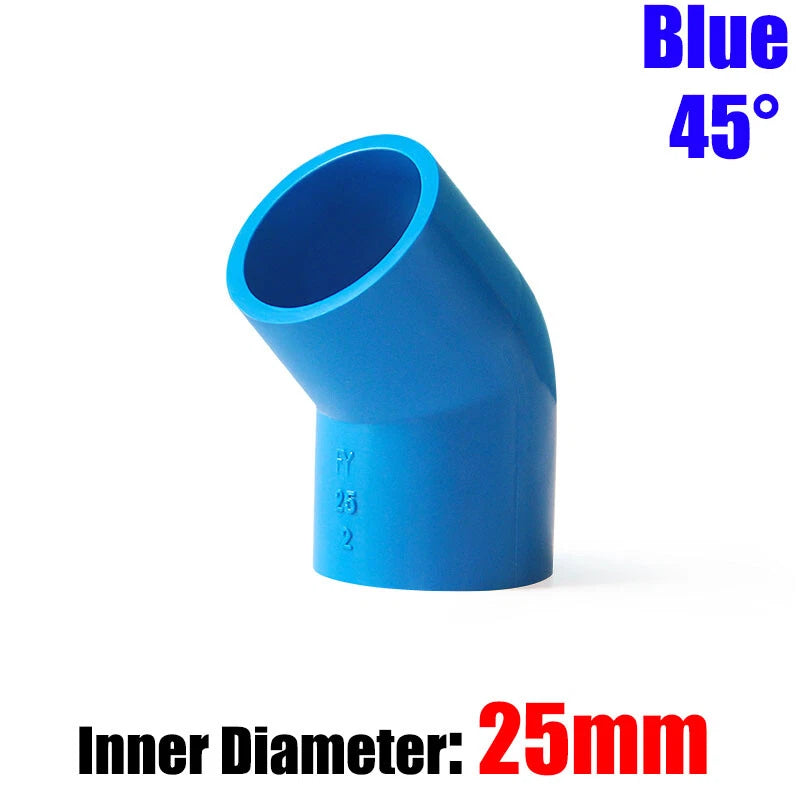

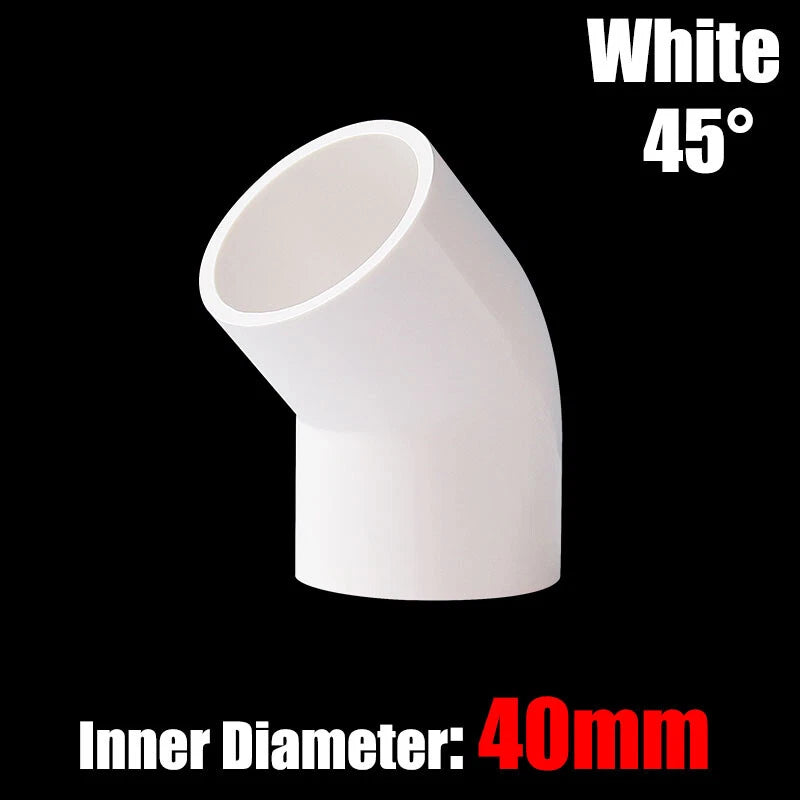

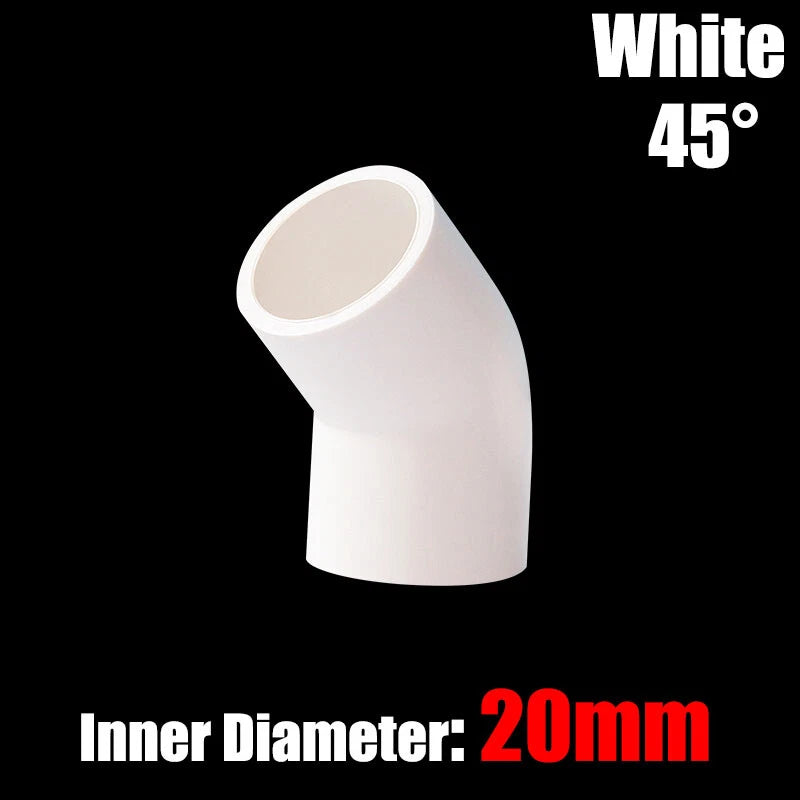

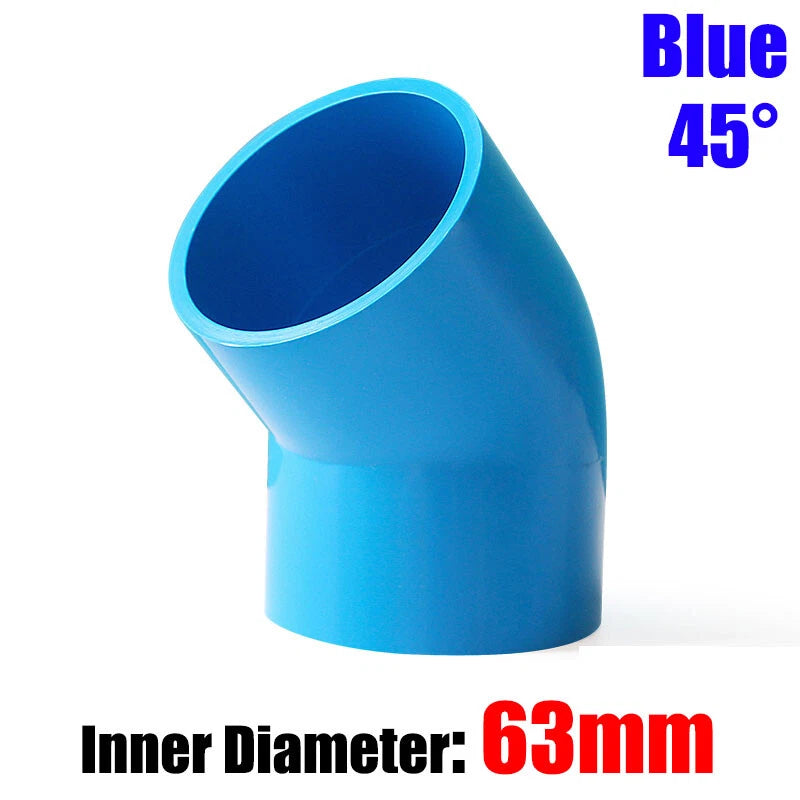

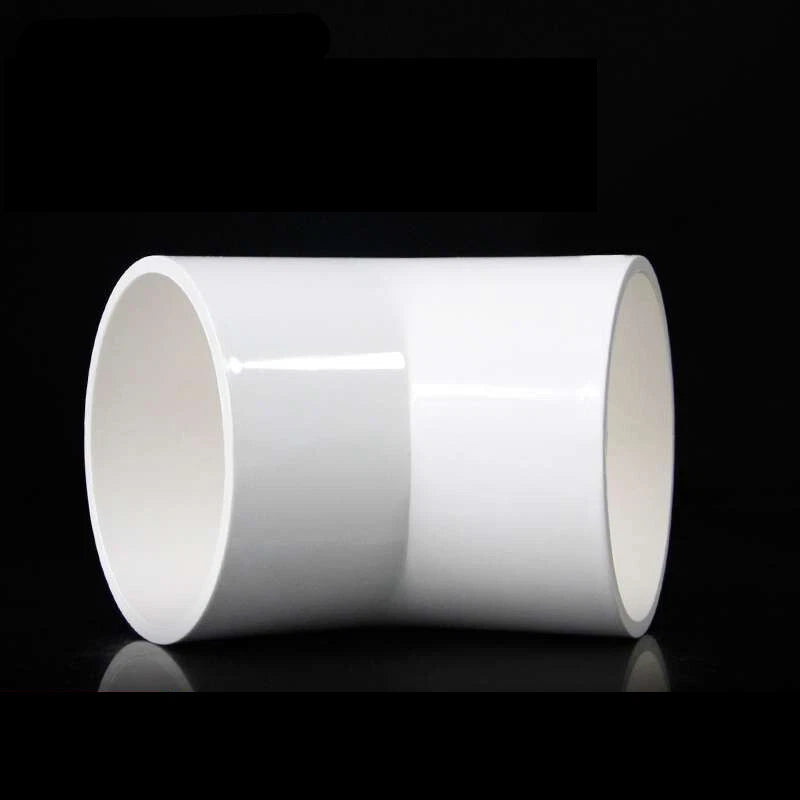

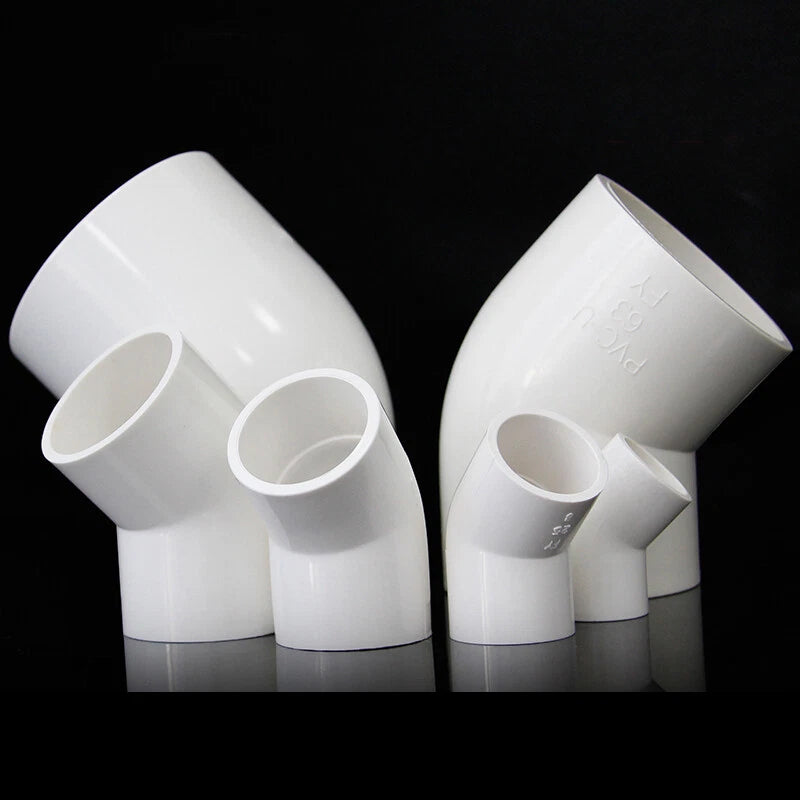

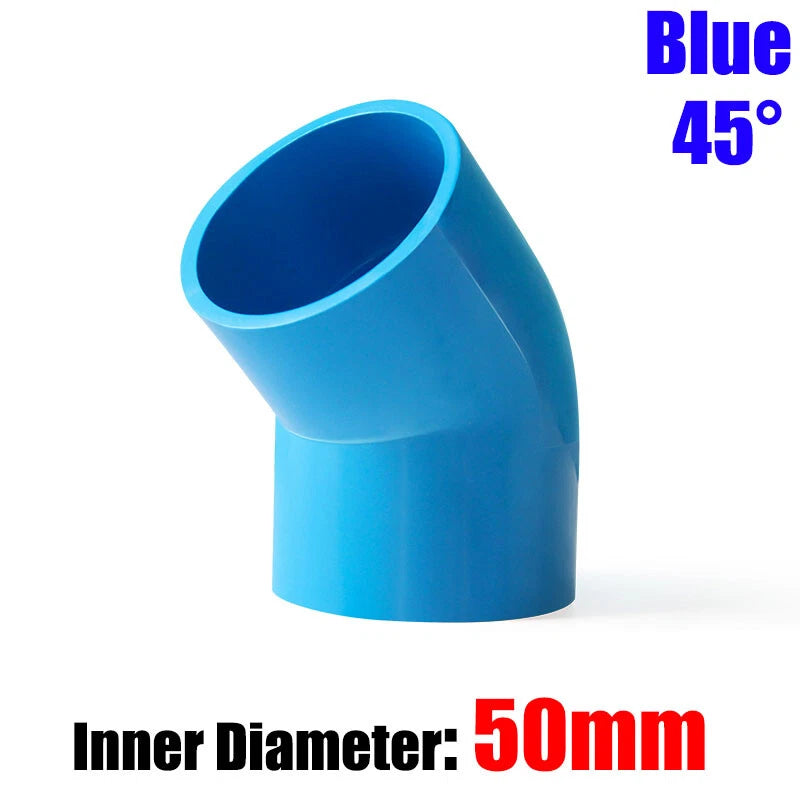

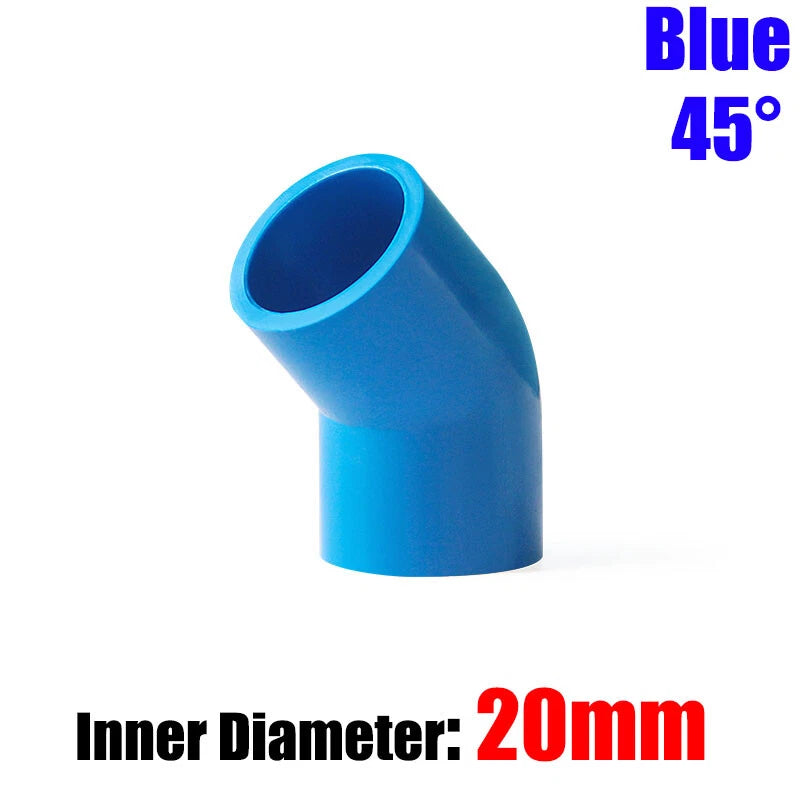

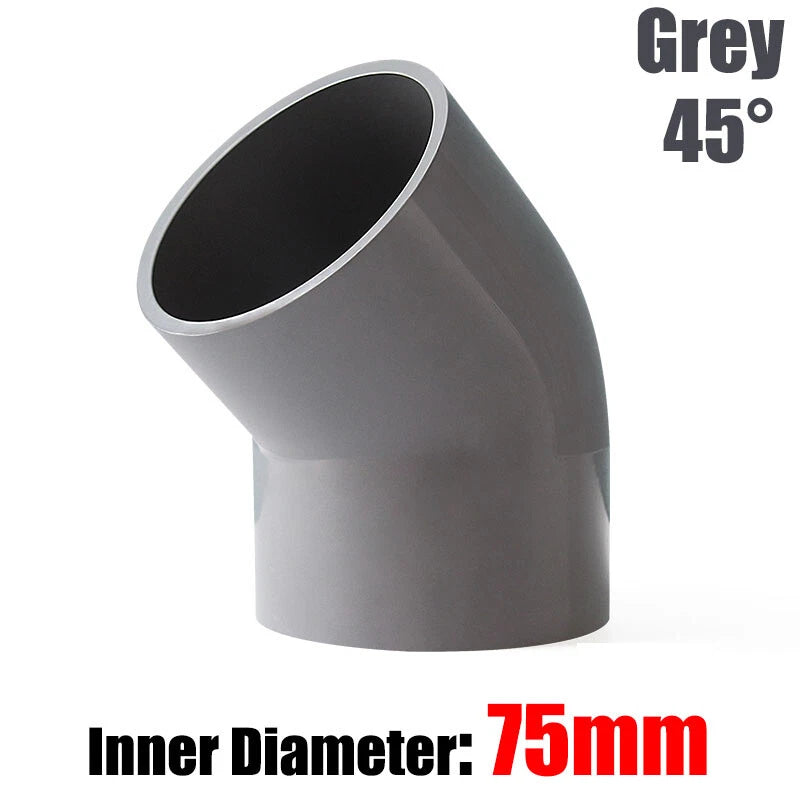

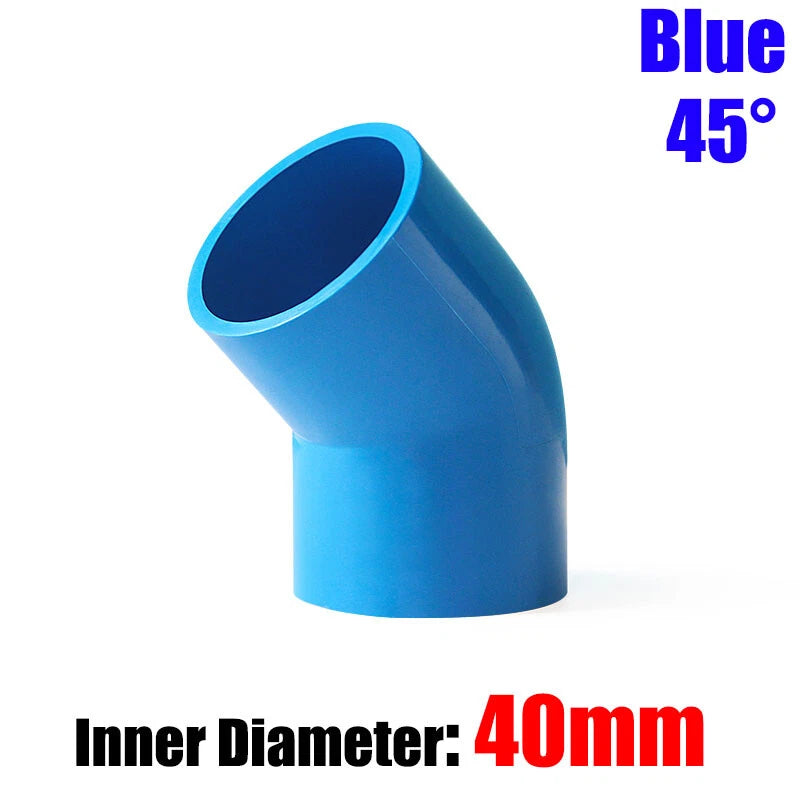

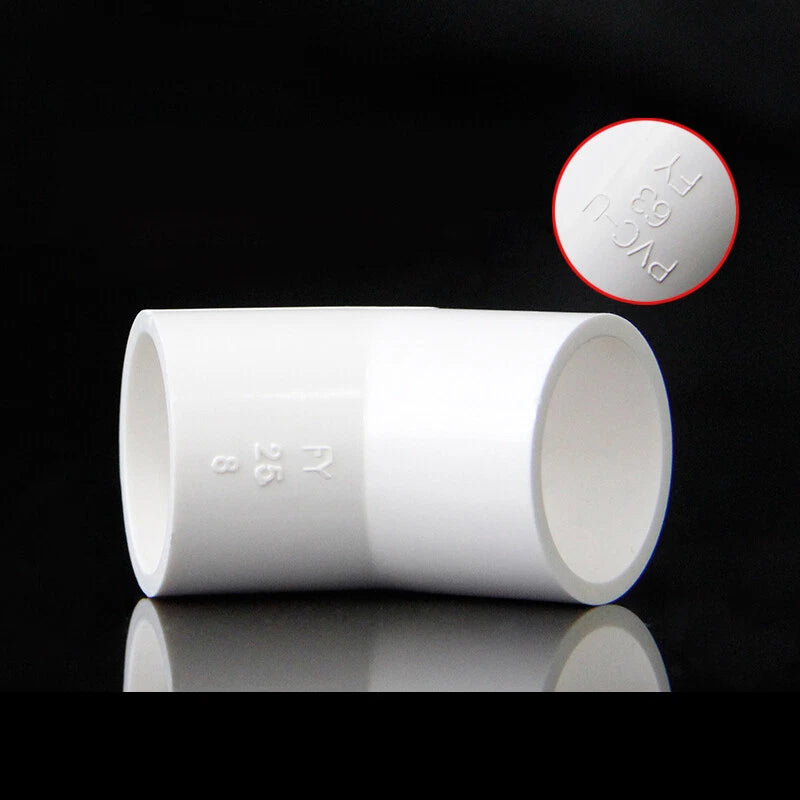

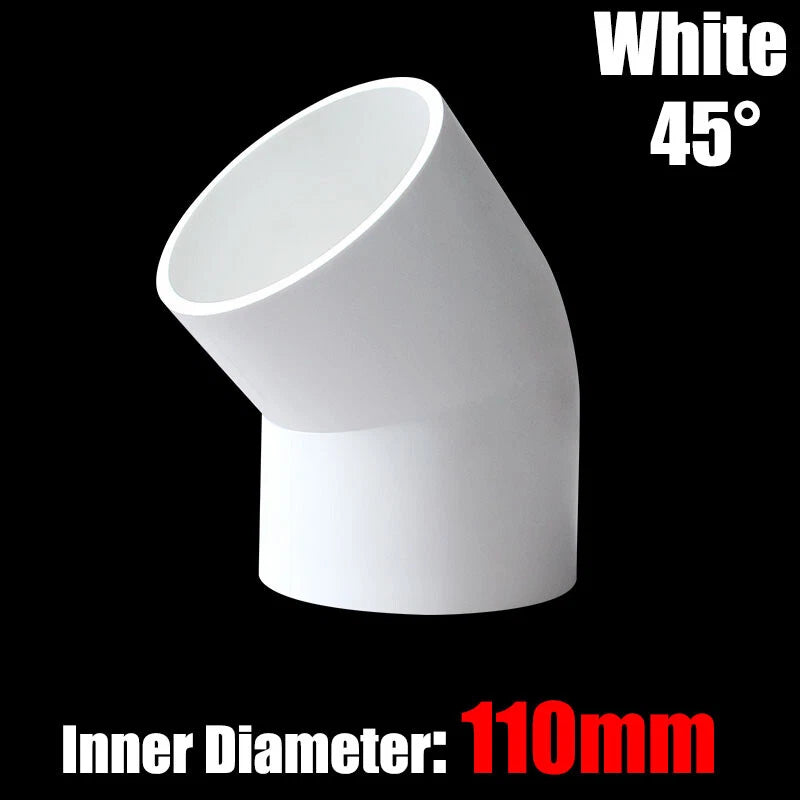

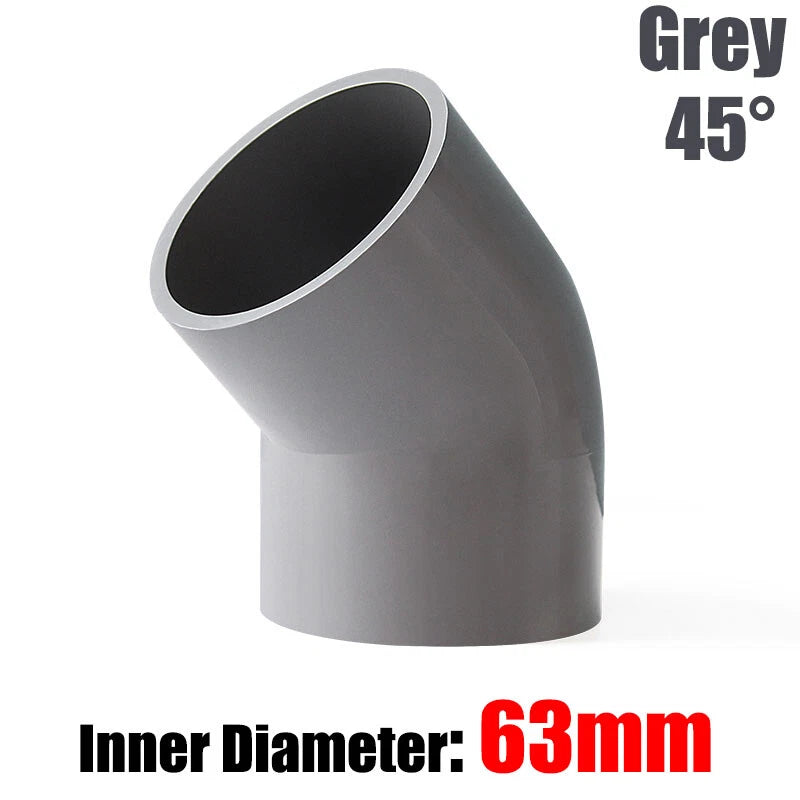

Each PVC 45° elbow connector is made from Polyvinyl Chloride (PVC) and is available in pipe diameters ranging from 20 mm (approx. 0.79 in) to 160 mm (approx. 6.30 in). The fittings feature a 45-degree bend angle and are offered in White, Blue, and Grey colour finishes to match common water supply and irrigation pipe systems. Wall thickness and socket depth are sized to standard water supply pipe dimensions for each diameter.
Typical use cases include residential cold-water supply line routing, garden drip-irrigation lateral offsets, and workshop compressed-air PVC distribution lines. Long-tail applications such as "PVC 45 degree elbow for irrigation", "solvent weld elbow connector 32mm", and "PVC pipe fitting 63mm 45 degree" are all covered within this single listing.
| Material | Polyvinyl Chloride (PVC) |
|---|---|
| Fitting Type | 45° Elbow (solvent-weld socket) |

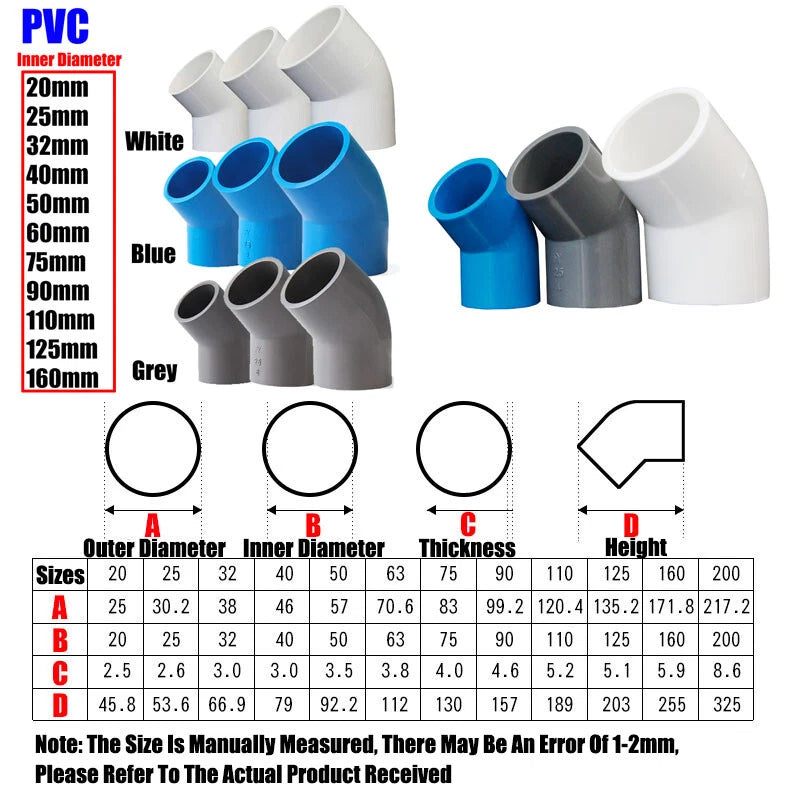

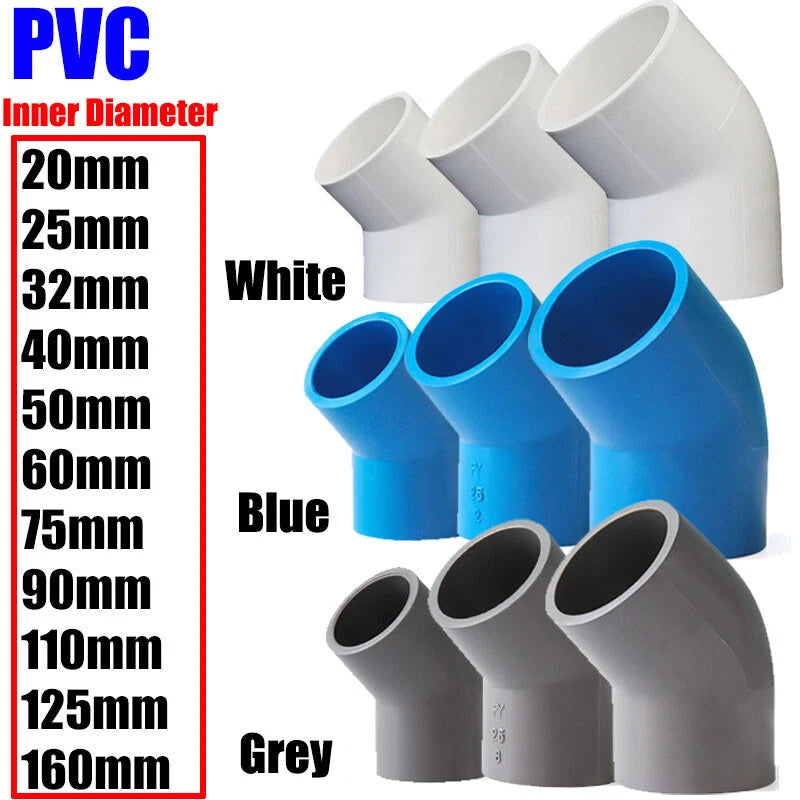

| Available Pipe Diameters | 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 75 mm, 90 mm, 110 mm, 125 mm, 160 mm |
| Bend Angle | 45° |
| Colour / Finish | White, Blue, Grey |
| Joint Method | Solvent cement (glue) — socket type |
| Wall Thickness | See variant options |
| Socket Depth | See variant options |
| Operating Temperature | Contact us to confirm |
| Packing Quantity | 1 / 2 / 3 / 4 / 5 / 8 / 10 / 15 / 20 / 25 / 30 Pcs |
Match the fitting diameter to the outside diameter (OD) of your existing PVC pipe. For example, a 20 mm fitting is designed for 20 mm nominal PVC pipe. If you are unsure, measure the outside diameter of your pipe with calipers and select the matching size from the variant options above.
These fittings are made from standard PVC, which is generally rated for cold-water supply applications. PVC is not recommended for continuous hot-water service (above approximately 60 °C / 140 °F). For hot-water lines, consider CPVC or other heat-rated fittings. Always verify compliance with your local plumbing code.
Working pressure varies by pipe diameter and wall thickness (schedule). Smaller diameters typically handle higher pressures than larger ones at the same wall thickness. Please contact us to confirm the pressure rating for your specific size, or refer to the pipe manufacturer's specifications for the matching pipe schedule.
PVC is inherently corrosion-resistant and unaffected by most common water supply chemicals, including chlorinated tap water. It is not suitable for use with certain solvents, concentrated acids, or aromatic hydrocarbons. For chemical compatibility questions specific to your application, please contact us before ordering.
Use a standard PVC solvent cement (also called PVC glue or solvent weld adhesive) rated for water supply pipe. Apply PVC primer to both the pipe end and the fitting socket, then apply solvent cement and push the pipe firmly into the socket with a slight twist. Allow the joint to cure per the cement manufacturer's instructions before pressurising the system.

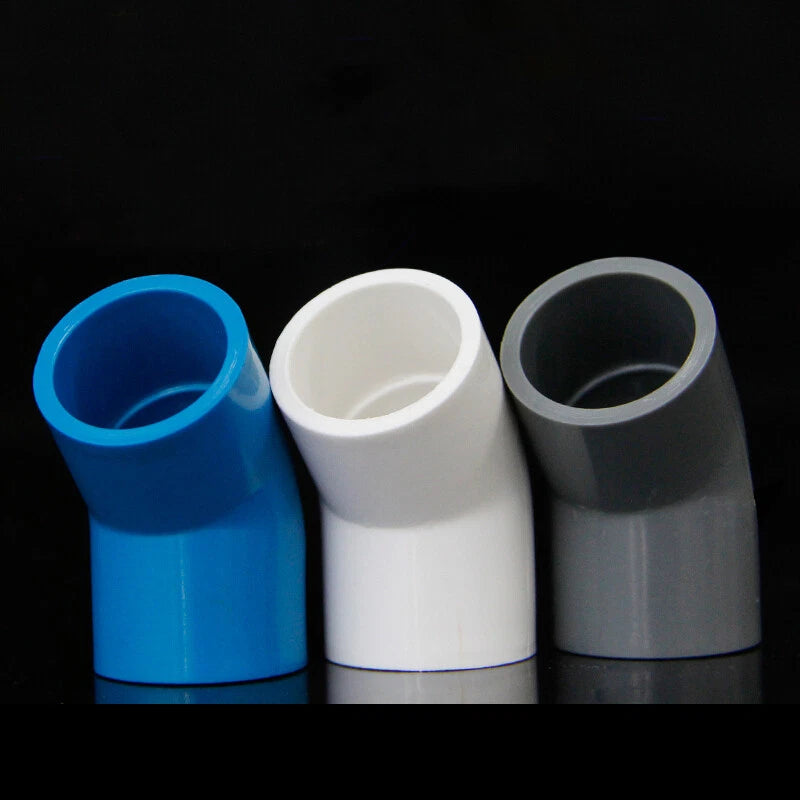

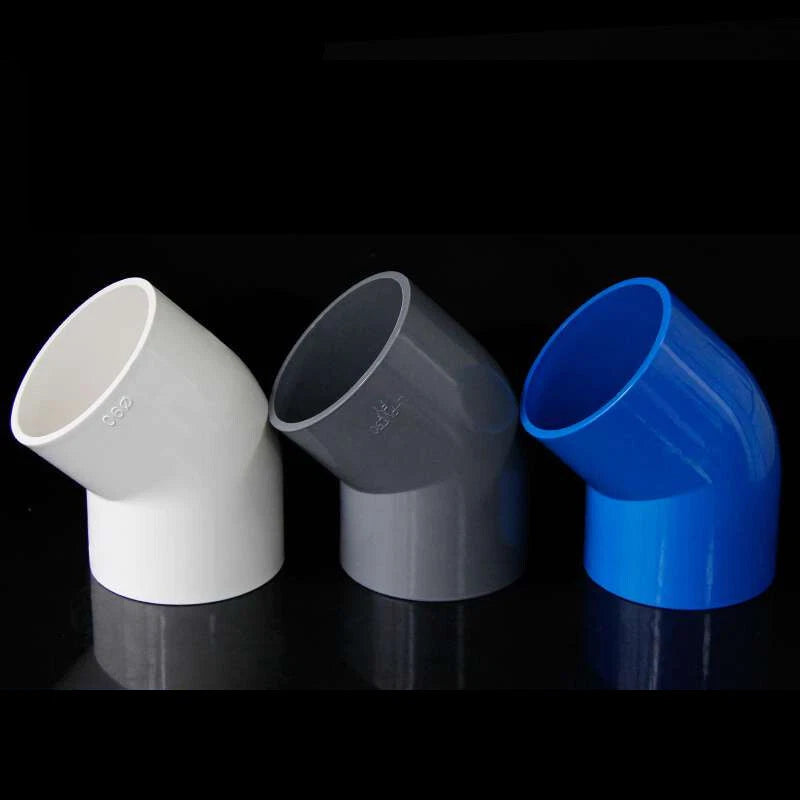

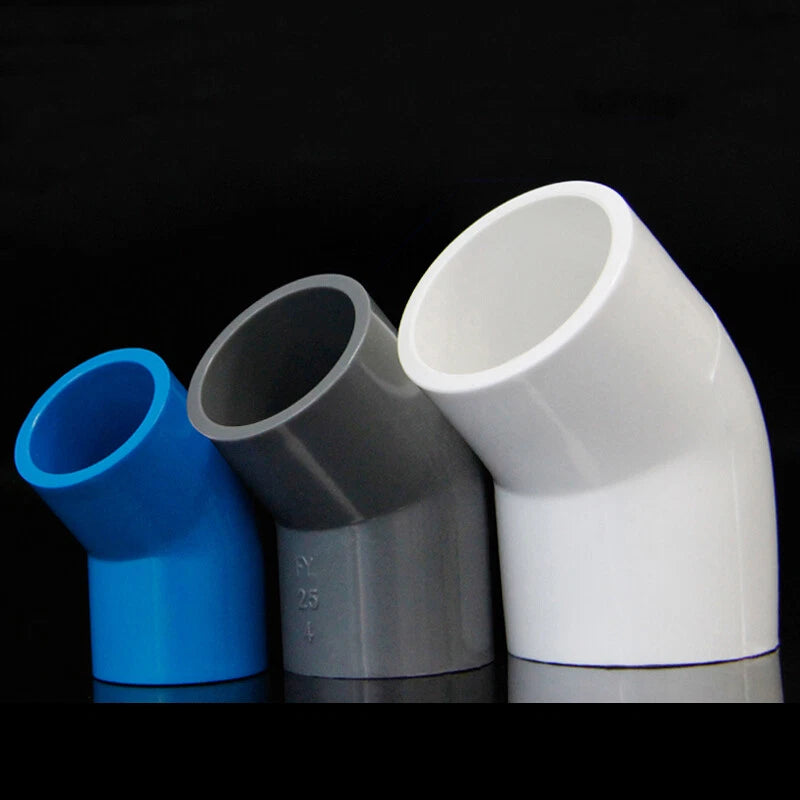

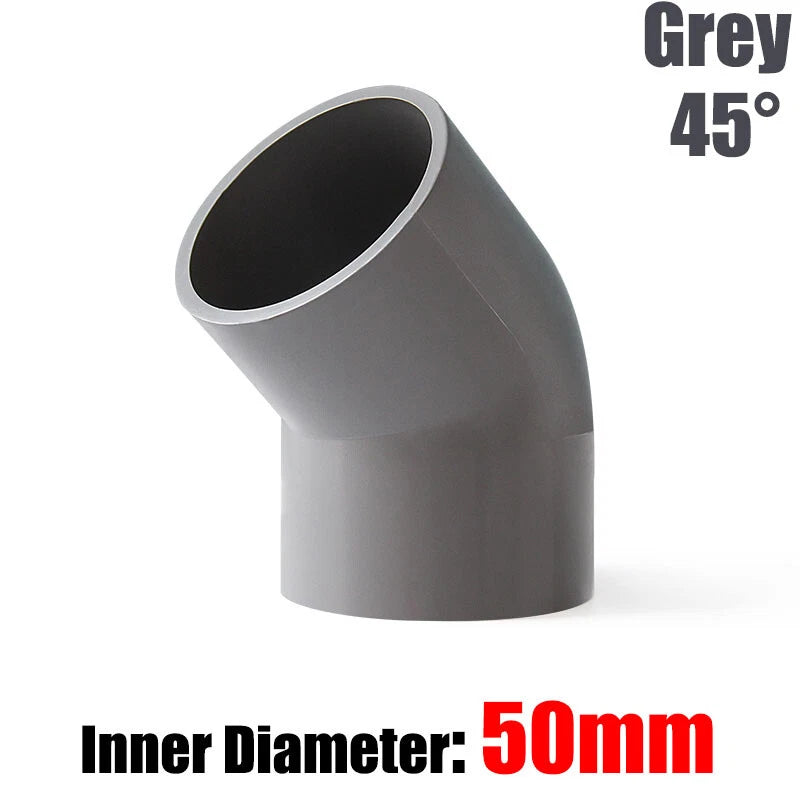

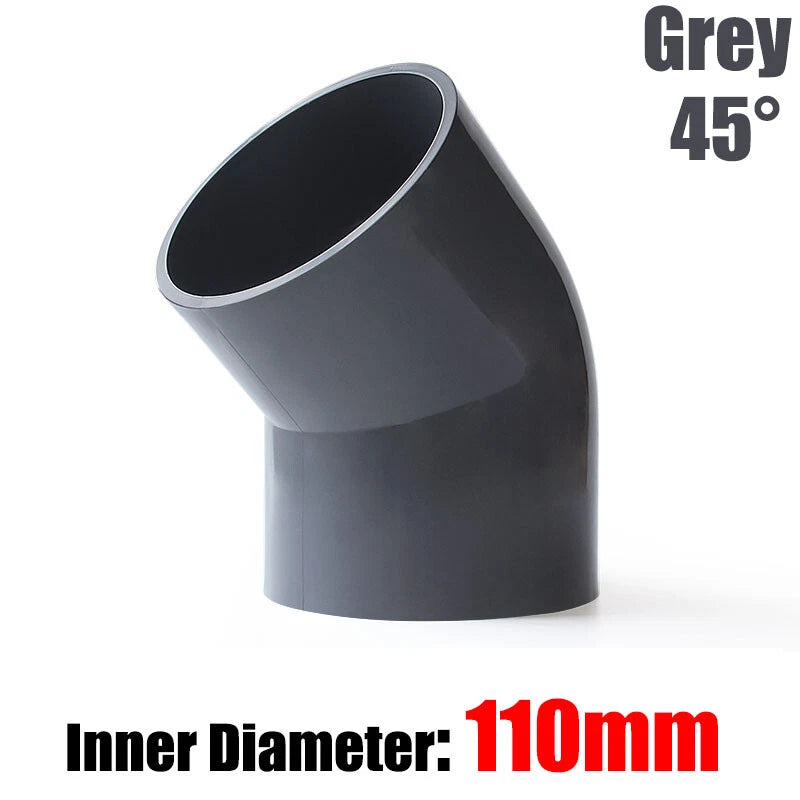

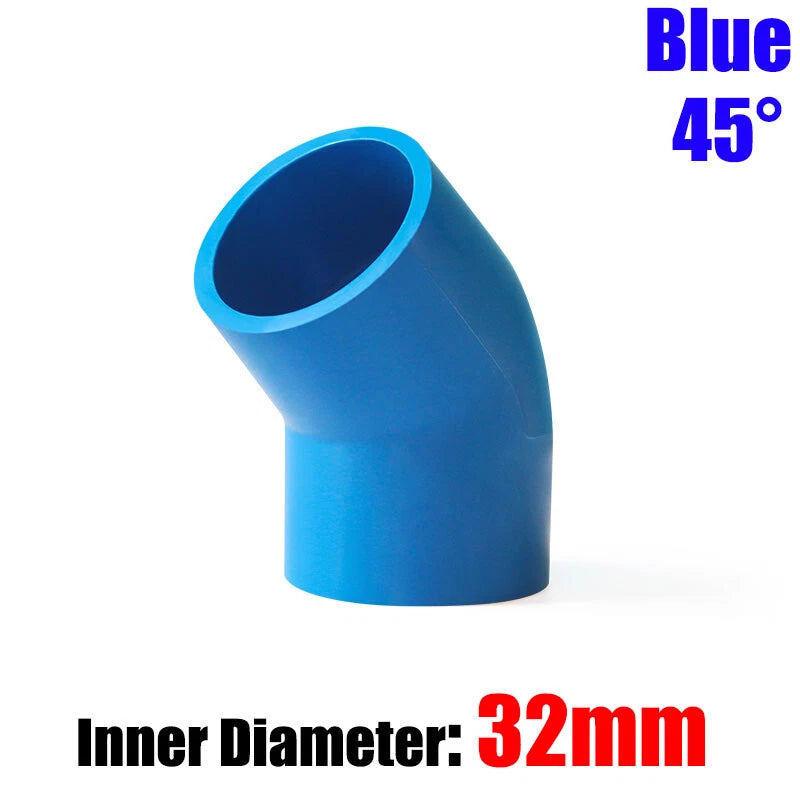

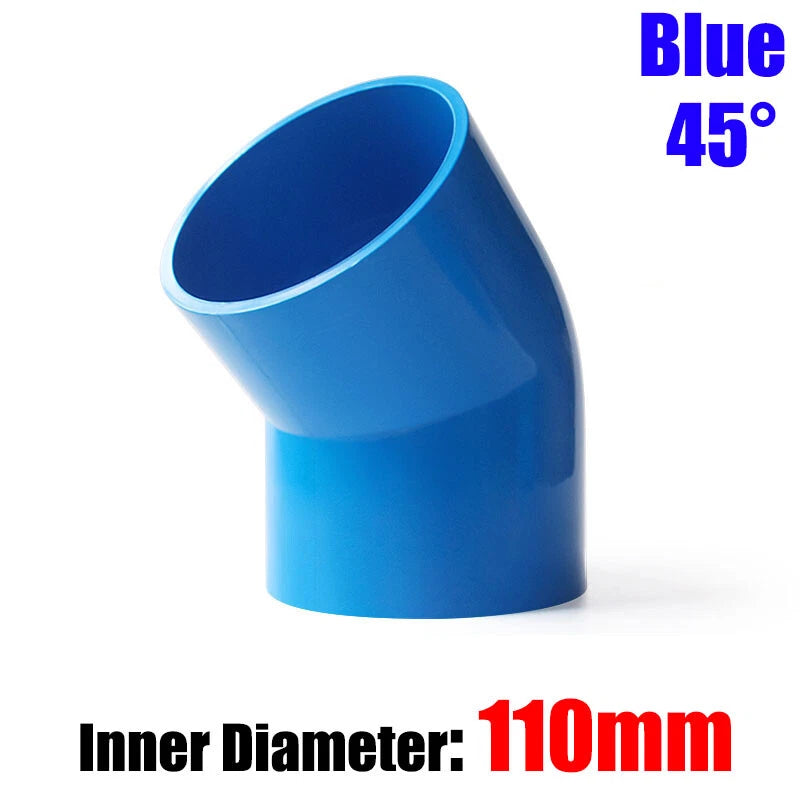

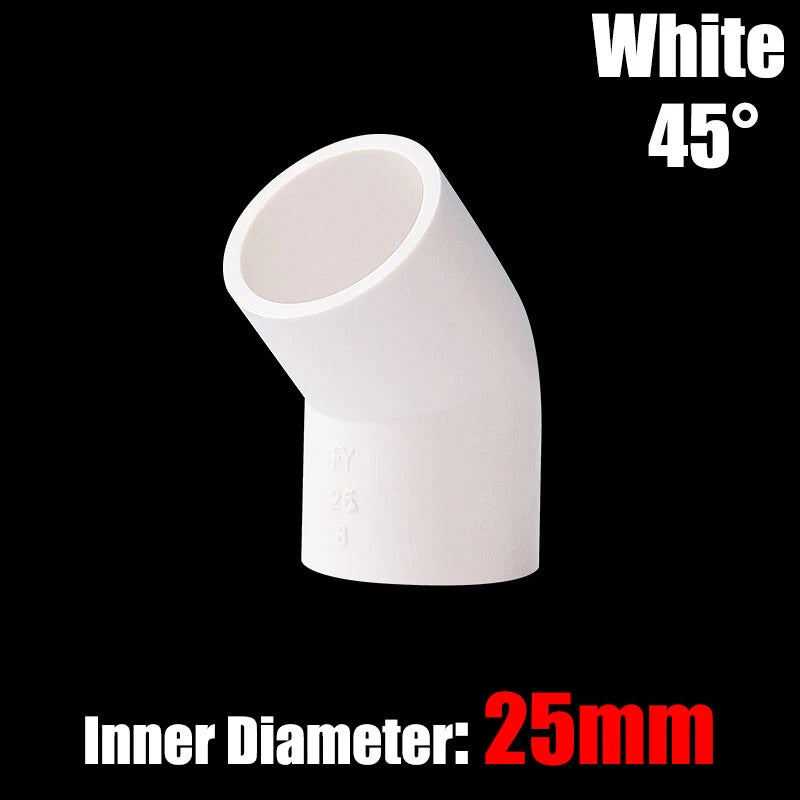

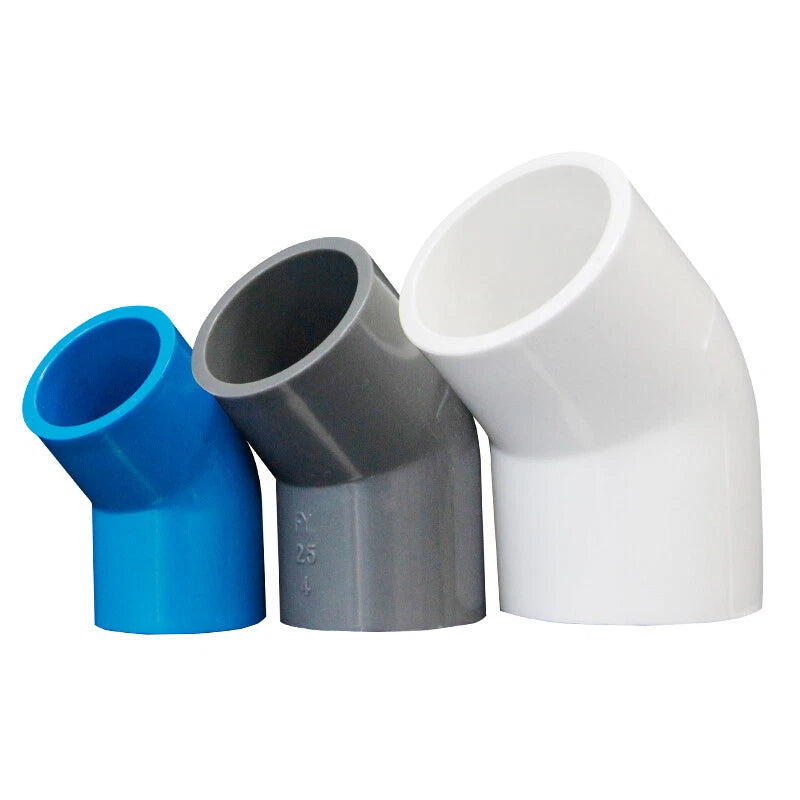

The colour difference is cosmetic and is commonly used for system identification: White is a general-purpose finish, Blue is often associated with cold-water supply lines, and Grey is frequently used for drainage or conduit applications. All three colours are made from the same PVC material and have equivalent mechanical properties.
Yes. Each size and colour combination is available in a 1 Pcs pack quantity. Simply select your desired size, colour, and "1 Pcs" from the Packing Quantity option above to order a single fitting for trial or repair use.
