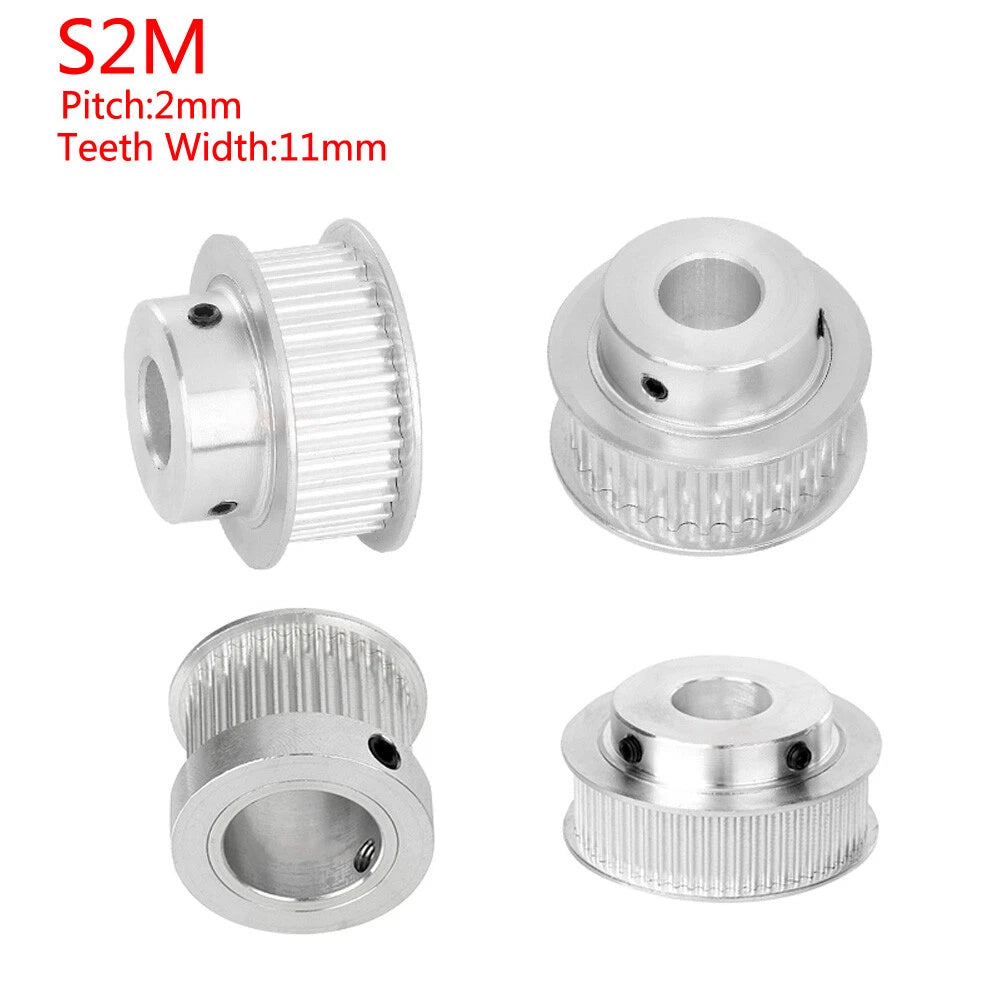

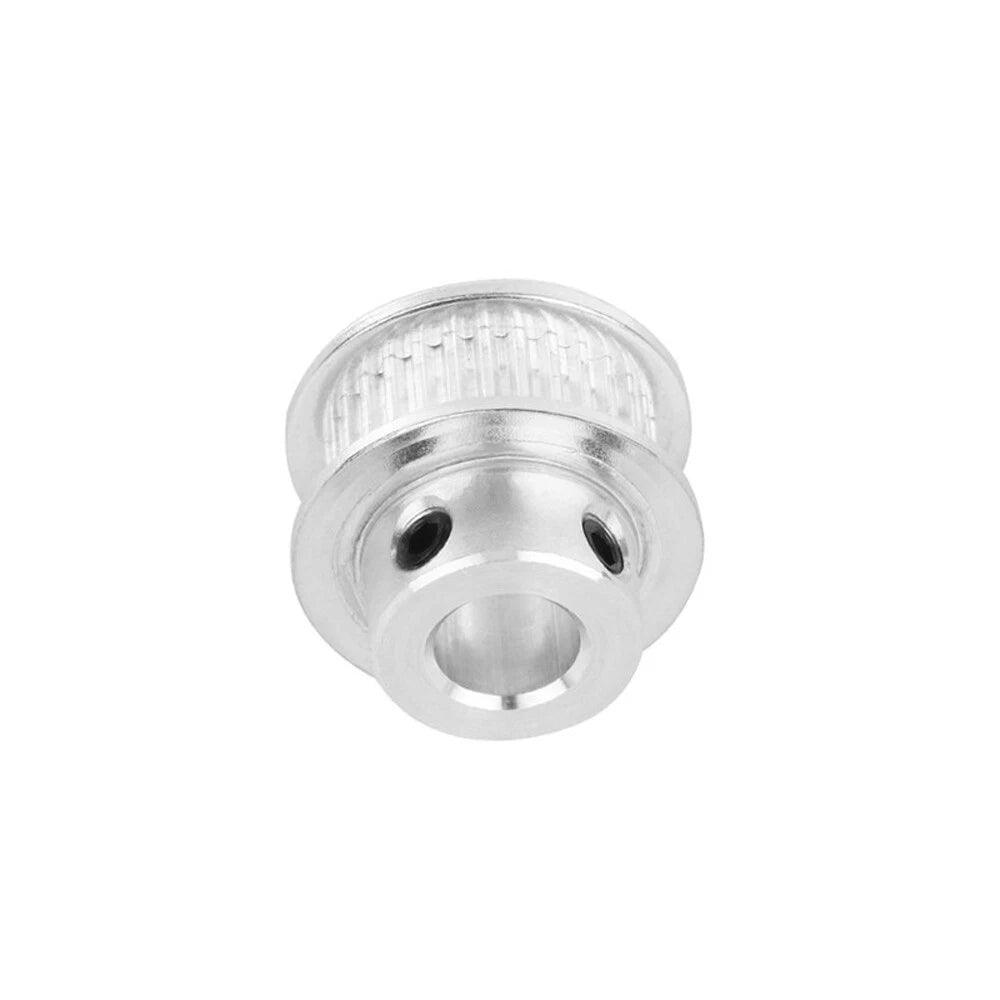

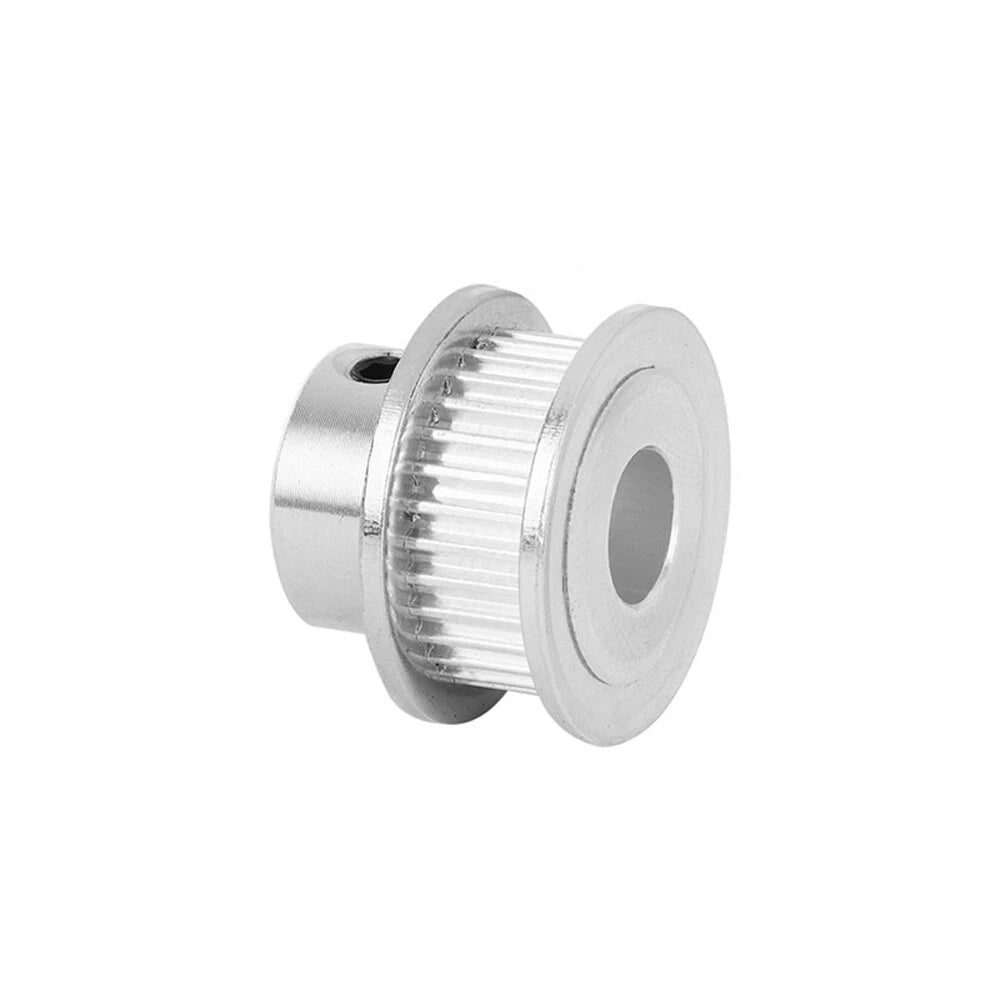

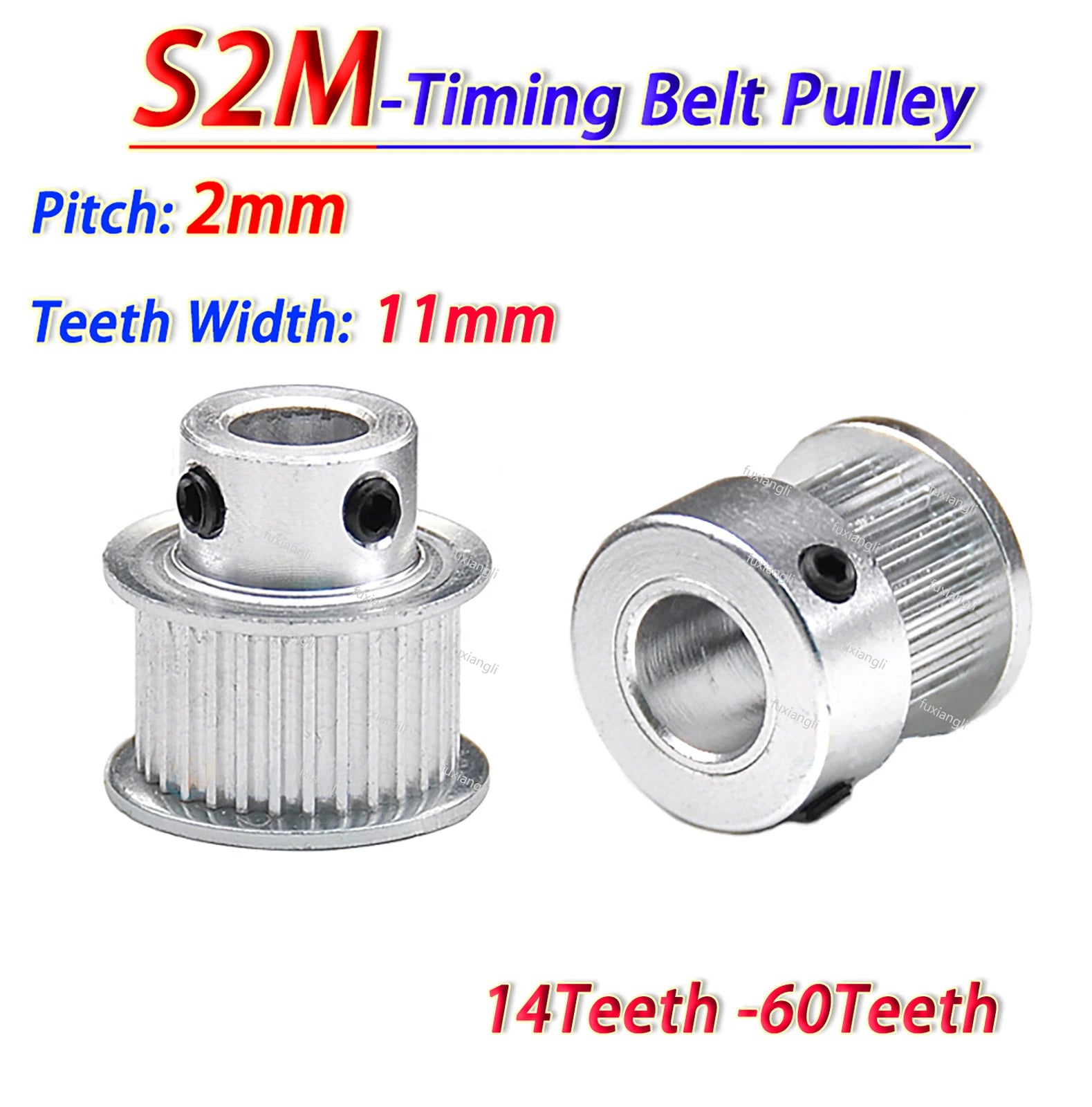

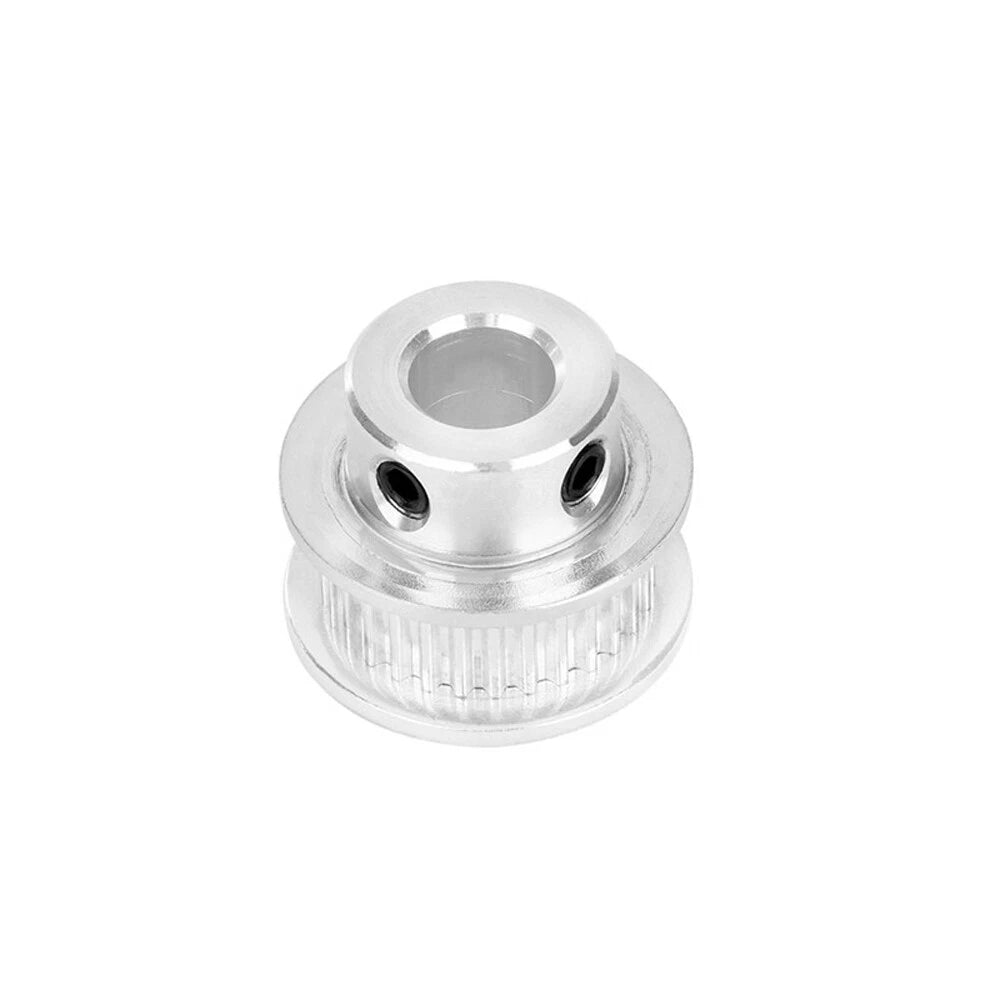

S2M Timing Belt Pulley — 2mm Pitch Step Drive Pulleys for Precise Motion Control

When your CNC router, 3D printer, or automation rig demands slip-free, repeatable motion, a mismatched or worn pulley is the last thing you need. These S2M timing belt pulleys are engineered for makers, small-workshop builders, and lab technicians who need reliable synchronous drive components without hunting through industrial catalogs. Whether you are replacing a worn-out pulley or designing a new drive system from scratch, this range covers the most common configurations in one place.

Each pulley is machined from aluminum alloy with a natural silver finish. The S2M profile features a 2mm pitch with a trapezoidal tooth form. Belt width compatibility is 11mm (approximately 0.43 in). Tooth counts span 14T through 60T, and bore diameters range from 3mm to 25mm (approximately 0.12 in to 0.98 in), covering both metric and fractional shaft sizes including 3.175mm (1/8 in), 6.35mm (1/4 in), and 12.7mm (1/2 in).

Typical use cases include desktop CNC machines requiring low-backlash X/Y axis drives, FDM 3D printer extruder and motion systems using S2M belts, small conveyor and pick-and-place automation in educational labs, and DIY robotics projects where compact synchronous drive is needed. Long-tail search terms that describe this product well include "S2M aluminum timing pulley 2mm pitch," "step drive pulley 11mm belt width," and "CNC timing pulley 14 to 60 teeth bore options."

⚙️ Compatibility: Designed for S2M open-end or closed-loop timing belts with 2mm pitch and 11mm width. Verify your shaft diameter before ordering — bore sizes range from 3mm to 25mm. K-type pulleys use a set-screw for shaft retention; BF-type pulleys include a step flange for lateral belt guidance.

✅ Key Features of These S2M Timing Belt Pulleys

🦷
Wide Tooth Range: 14T–60T

Twenty-eight tooth-count options let you dial in the exact gear ratio your drive system needs, from high-speed small pulleys to high-torque large pulleys.

🔩
Broad Bore Selection: 3–25mm

Covers metric shafts (3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 17, 18, 19, 20, 25mm) and fractional sizes (3.175mm, 6.35mm, 12.7mm) for maximum compatibility with stepper and servo motor shafts.

🏗️
Two Flange Types: K-type & BF-type

K-type (set-screw) suits standard shaft mounting; BF-type adds a step flange that keeps the belt tracking straight without a separate guide flange.

⚡
2mm Pitch S2M Profile

The S2M trapezoidal tooth profile delivers low-noise, synchronous power transmission with minimal backlash — ideal for position-critical motion axes.

📐
11mm Belt Width

Matched to standard 11mm S2M belts, balancing load capacity and compact footprint for desktop-scale machines and lightweight automation frames.

🔧
Aluminum Alloy Construction

Lightweight yet rigid aluminum body keeps rotational inertia low, supporting faster acceleration and deceleration cycles in servo and stepper-driven systems.

📐 Technical Specifications — S2M Timing Belt Pulleys

Belt Profile S2M (Trapezoidal)
Pitch 2mm
Belt Width Compatibility 11mm (approx. 0.43 in)
Number of Teeth 14T – 60T (see variant options)
Bore Diameter 3mm – 25mm (see variant options)
Flange Type K-type (set screw) / BF-type (step flange)
Material Aluminum alloy
Finish Natural silver (uncoated)
Outer Diameter See variant options
Hub Width See variant options
Shaft Retention (K-type) Set screw
Shaft Retention (BF-type) Step flange
Quantity per Order 1 piece

❓ Frequently Asked Questions

How do I choose the right number of teeth for my drive system?

The tooth count determines your drive ratio. Divide the driven pulley teeth by the driver pulley teeth to get the ratio. For example, a 20T driver paired with a 40T driven pulley gives a 2:1 reduction. For CNC and 3D printer motion axes, matching tooth counts on both ends gives a 1:1 ratio for direct belt-drive positioning.

What is the difference between K-type and BF-type pulleys?

K-type pulleys use a set screw threaded through the hub to clamp onto the shaft — simple and widely used for standard stepper motor shafts. BF-type pulleys feature a step flange machined into one side of the pulley body, which acts as a built-in belt guide to prevent lateral belt walk without needing a separate flange ring.

Which bore size should I select for a NEMA 17 stepper motor?

Standard NEMA 17 stepper motors have a 5mm output shaft. Select the 5mm bore option. If your motor has a D-shaft (flat on one side), the K-type set screw will engage the flat for a more secure grip. Always verify your motor's shaft diameter in its datasheet before ordering.

Are these pulleys compatible with GT2 or HTD belts?

No. These pulleys are specifically designed for S2M profile belts with a 2mm pitch and trapezoidal tooth form. GT2 belts use a curvilinear tooth profile and are not interchangeable with S2M pulleys. Always match the pulley profile to your belt profile for correct meshing and to avoid premature wear.

How do I install the set screw on a K-type pulley?

Slide the pulley onto the shaft and position it at the desired location. Use the appropriate hex key (typically M3 or M4 depending on the hub size) to tighten the set screw against the shaft. For D-shafts, align the flat with the set screw before tightening. Do not overtighten — snug is sufficient to prevent slipping under normal loads.

What belt tension is recommended for S2M pulleys in a CNC application?

S2M belts should be tensioned so the belt deflects approximately 1–2mm per 100mm of free span when pressed with moderate finger pressure. Over-tensioning increases bearing load and accelerates wear; under-tensioning causes tooth skipping under load. Adjust tension at the idler or motor mount and recheck after the first few hours of operation.

Can I use these pulleys for a 3D printer extruder drive?

Yes. S2M pulleys are commonly used in extruder and motion systems on FDM printers that use S2M belts. Select the tooth count that matches your existing belt loop length and the bore that fits your extruder motor shaft. The 16T–20T range is typical for direct-drive extruder applications, while larger tooth counts suit longer belt runs on X/Y gantries.

🛒 Select your Number of Teeth, Bore, and Type above, then add to cart.
