S5M Closed-Loop Rubber Timing Belt — Reliable Motion Control for CNC Routers, 3D Printers & Pulley Drives

When a skipped tooth or a stretched belt throws off your CNC cut or causes a 3D print layer shift, the root cause is almost always a worn or incorrectly sized drive belt. Makers, machine builders, and automation engineers who rely on precise, repeatable motion need a timing belt that holds its pitch under load — not one that stretches, slips, or fails mid-job.

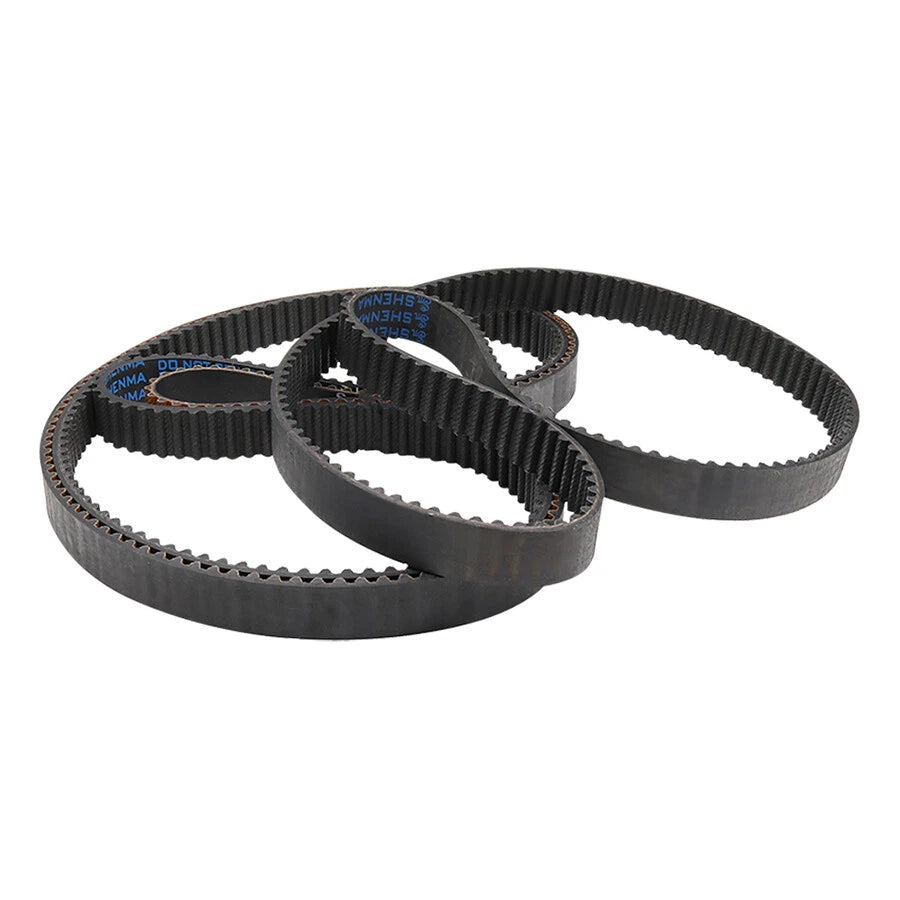

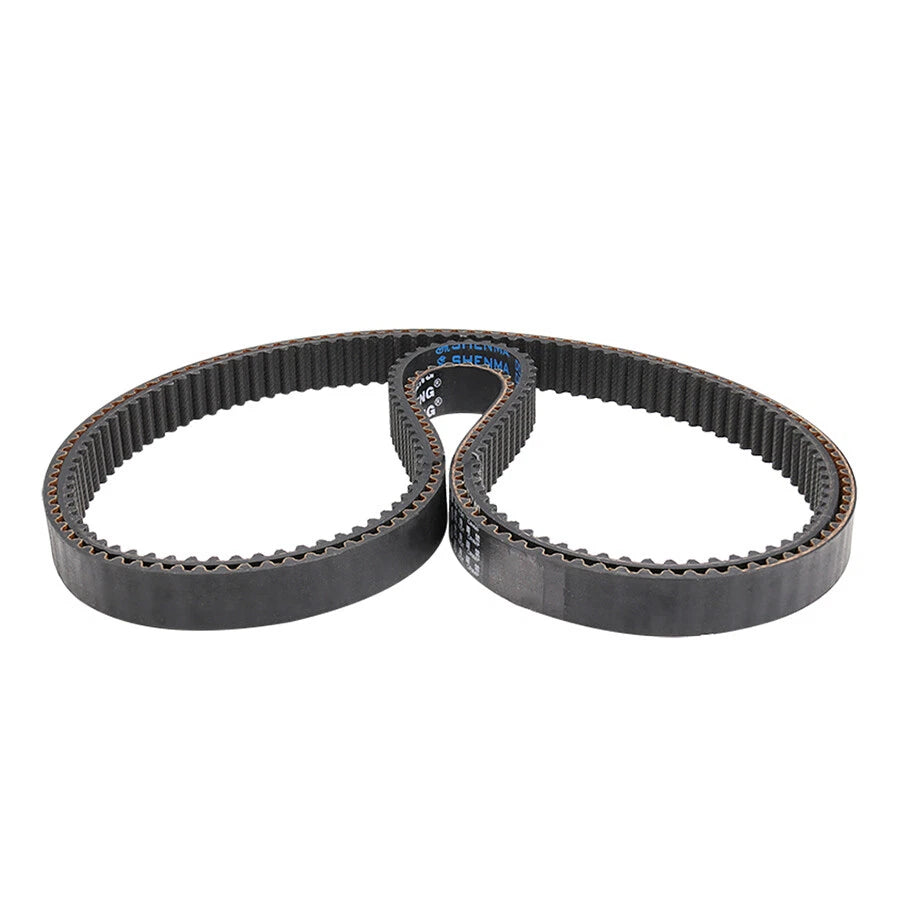

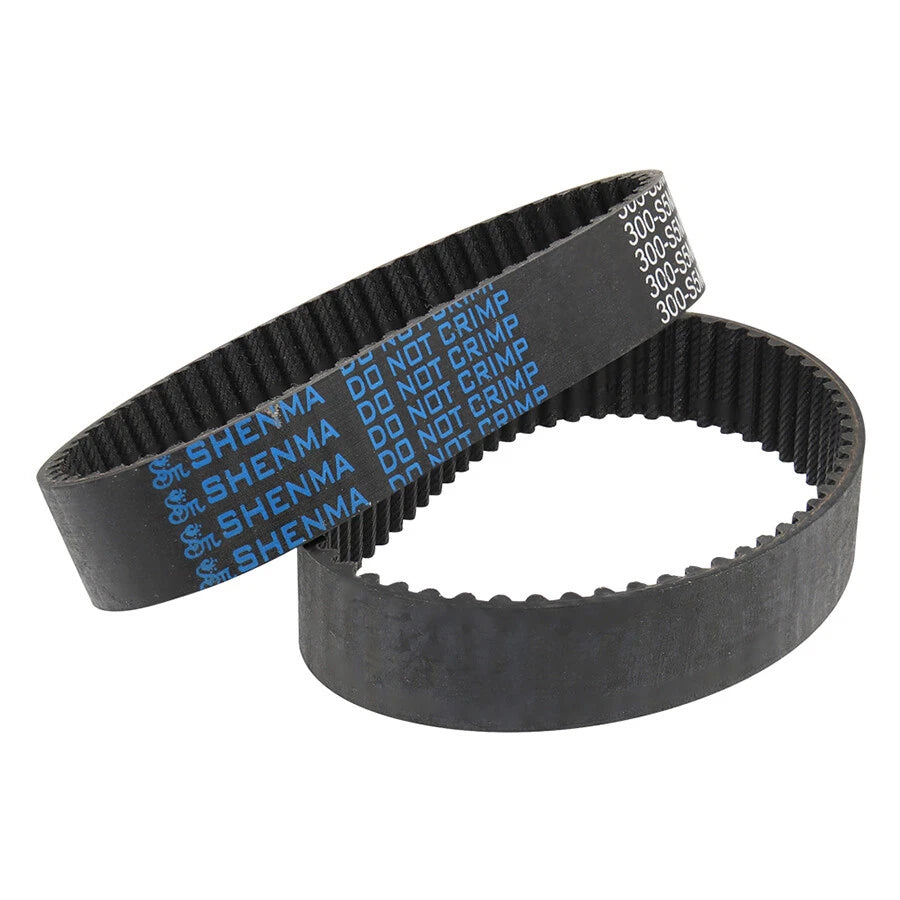

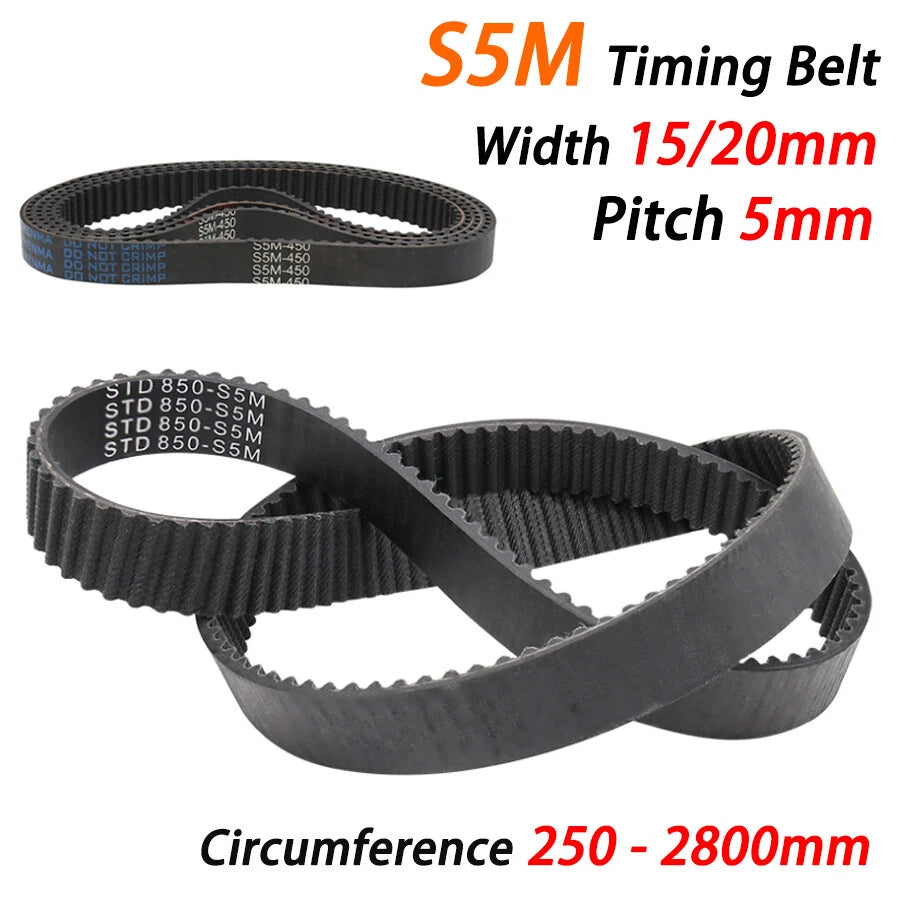

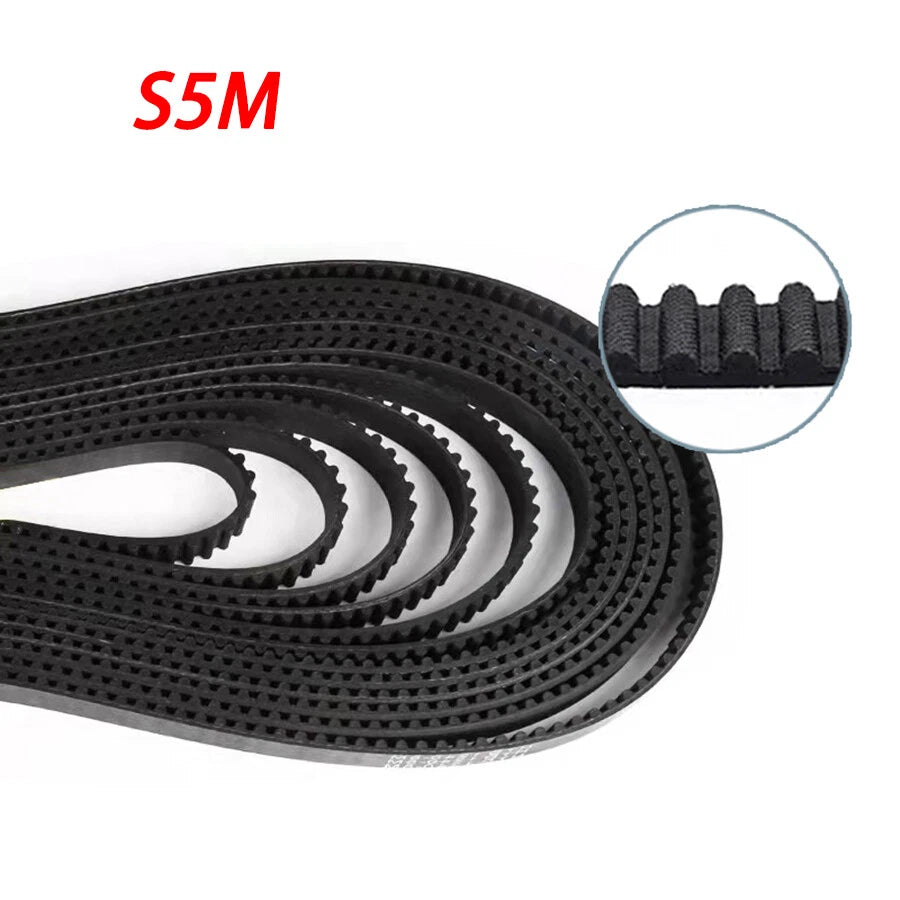

These S5M closed-loop rubber timing belts feature a 5mm tooth pitch and are available in two widths — 15mm and 20mm — with loop circumferences ranging from 250mm (≈9.8") to 2800mm (≈110.2"). Each belt is an endless closed loop with no joint or seam, constructed from rubber with internal fiber reinforcement for dimensional stability. The S5M tooth profile provides positive engagement with S5M-standard pulleys across the full circumference range.

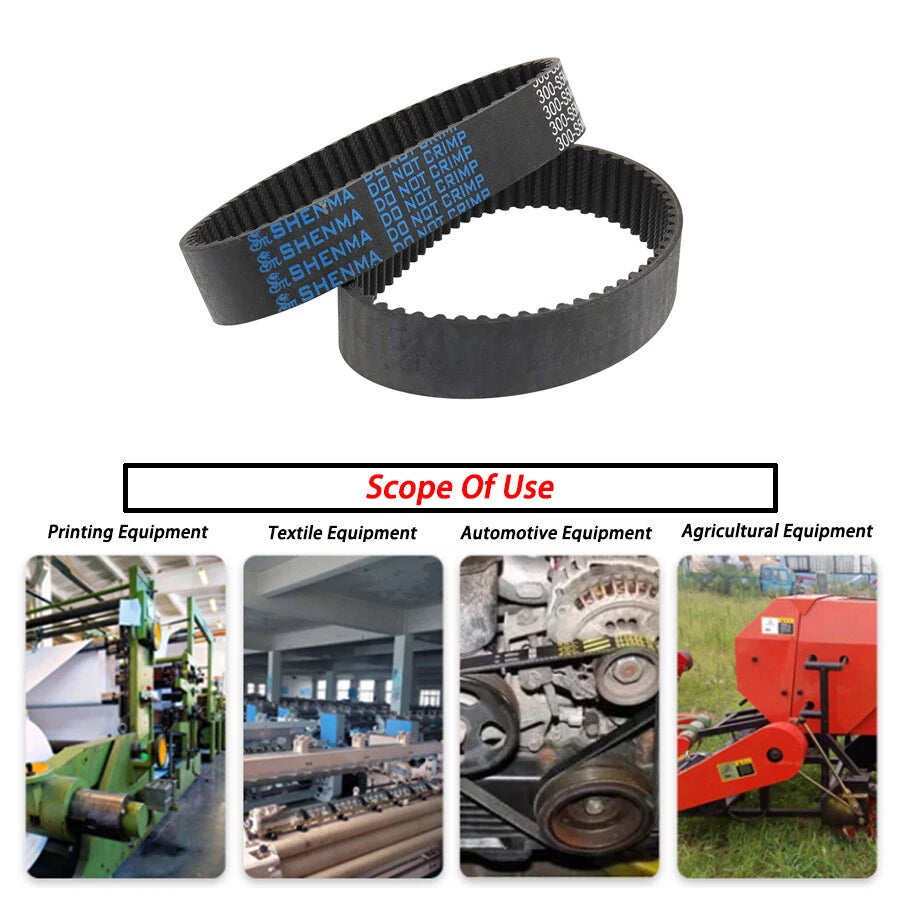

Typical applications include CNC router X/Y/Z axis drives, 3D printer CoreXY and Cartesian motion systems, laser cutter gantry drives, and light industrial conveyor or indexing pulley systems. The wide size selection makes it straightforward to find a replacement S5M timing belt for CNC machines or source the correct loop for a custom build without cutting or splicing.

ℹ️ Compatibility Note: These belts use the S5M tooth profile (5mm pitch). Verify your pulleys are specifically rated for S5M — not HTD 5M, which has a different tooth geometry and may not mesh correctly. Match belt width (15mm or 20mm) to your pulley's groove width before ordering.

✅ Key Features of These S5M Closed-Loop Rubber Timing Belts

  • 🔁Endless Closed-Loop Construction — No joint, splice, or weak point. The seamless loop design is required for pulley-drive and CNC motion applications where a joined belt would introduce runout or fail under cyclic load.
  • 📐5mm S5M Tooth Pitch — Positive tooth engagement eliminates slip under load, making these belts suitable as a replacement S5M timing belt for CNC routers, laser cutters, and 3D printer motion systems that demand repeatable positioning.

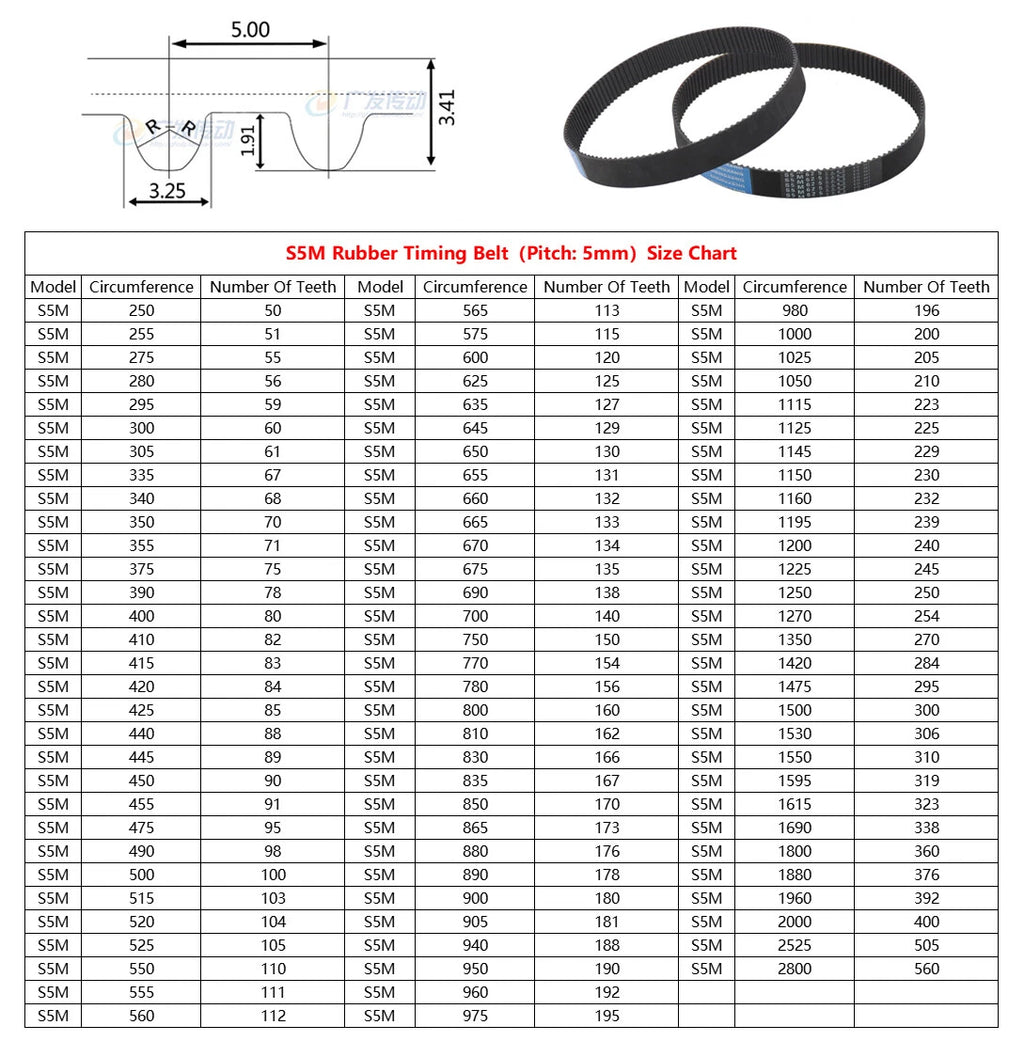

  • 📏Wide Size Range — 250mm to 2800mm Loop — With circumferences from 250mm (≈9.8") to 2800mm (≈110.2") and tooth counts from 50T to 560T, you can source the exact loop size for a replacement or new build without cutting or splicing.

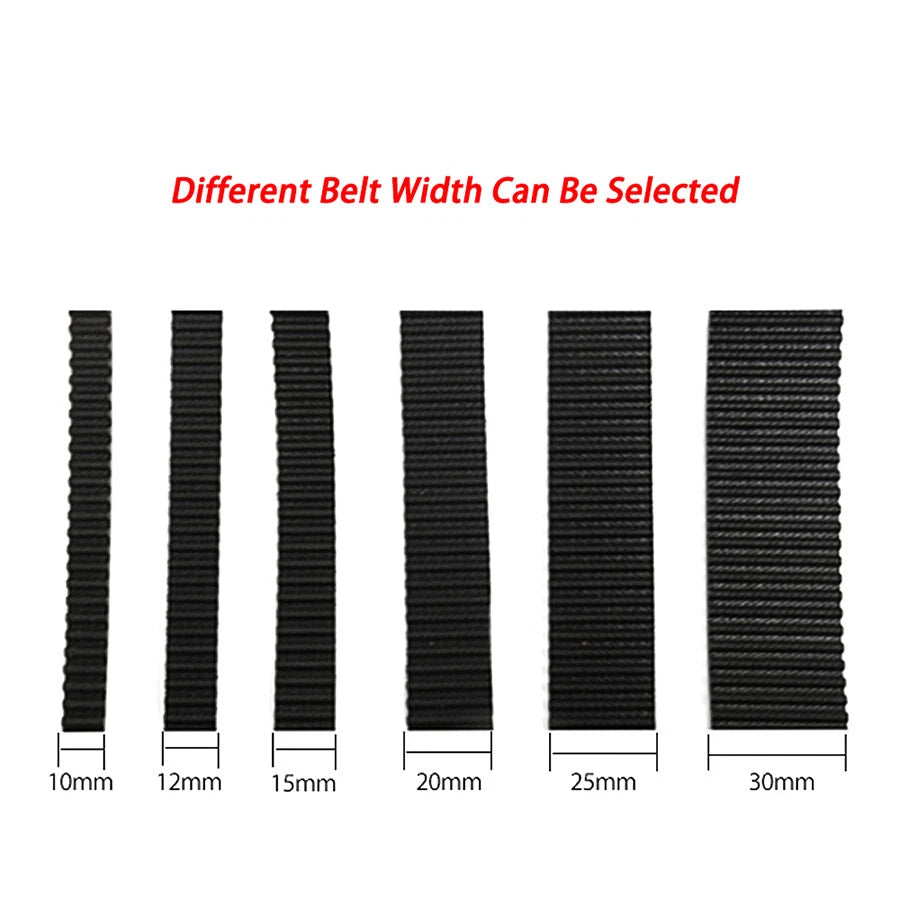

  • ↔️Two Width Options — 15mm & 20mm — The 15mm width suits lighter-duty axes and compact 3D printer drives; the 20mm width provides greater torque capacity for heavier gantries, spindle carriages, and industrial pulley drives.
  • 🧱Fiber-Reinforced Rubber Body — Internal cord reinforcement resists elongation under tension, maintaining consistent pitch spacing over the belt's service life — critical for accurate positioning in CNC and 3D printing applications.

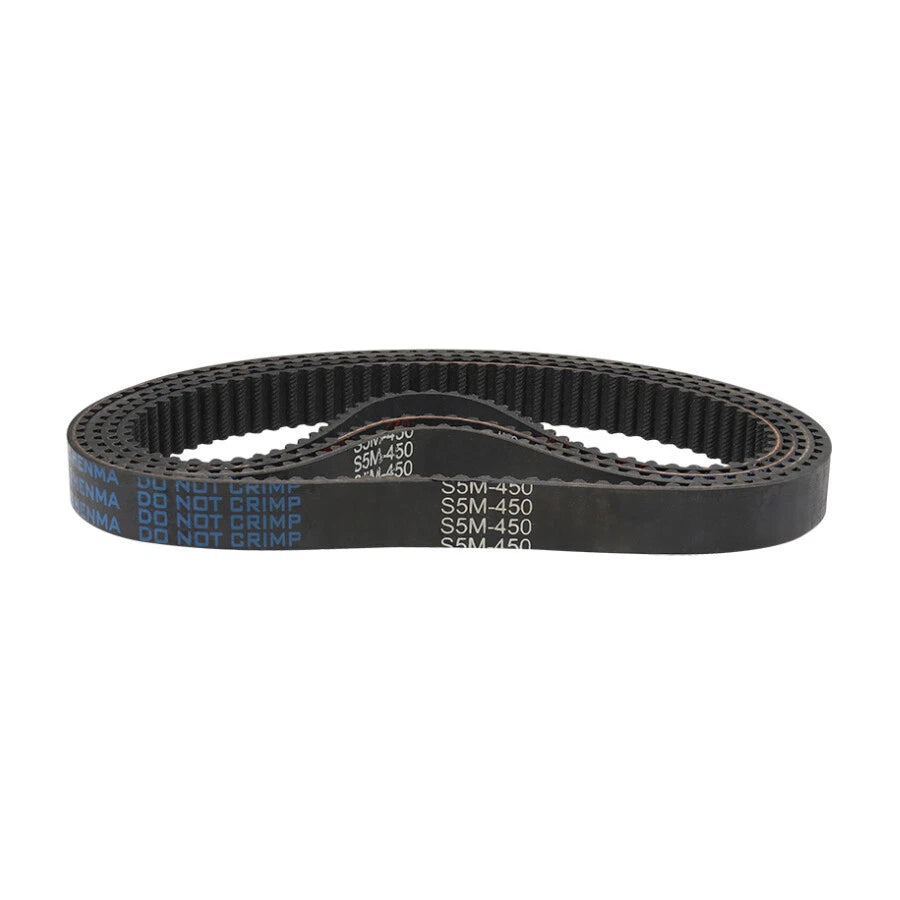

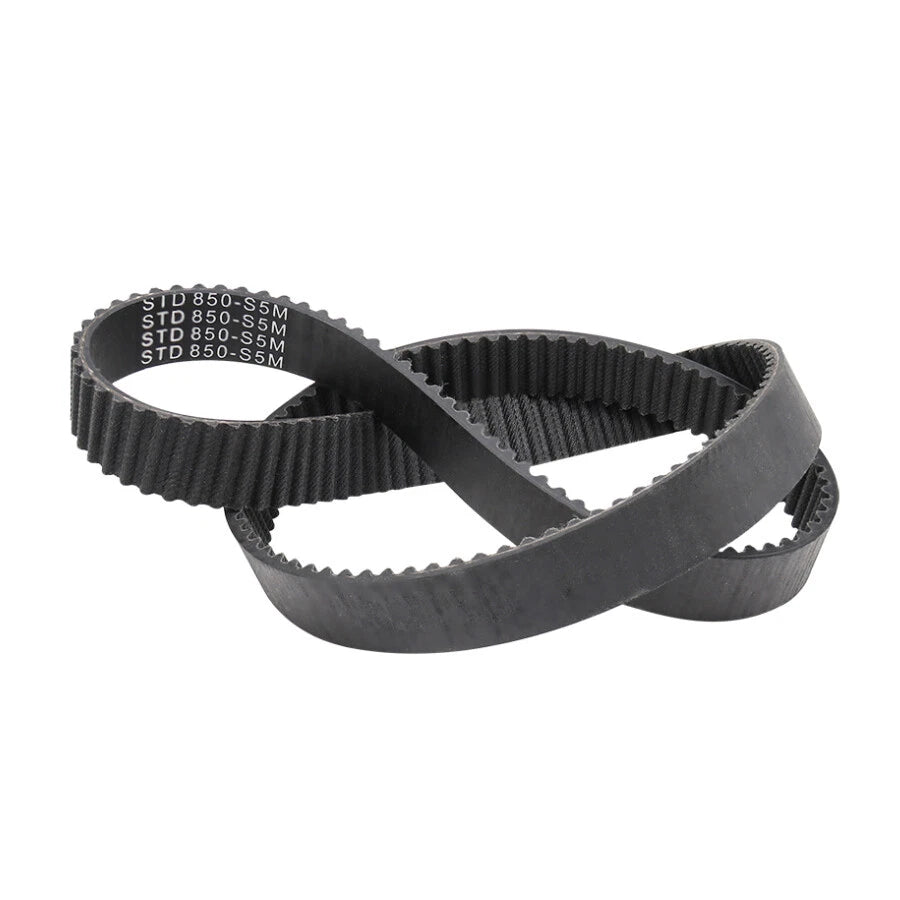

  • 🔧Drop-In Replacement Sizing — Loop circumference and tooth count are listed for every variant, so you can cross-reference your existing belt's markings (e.g., S5M-500) and order the exact match without measuring your machine.

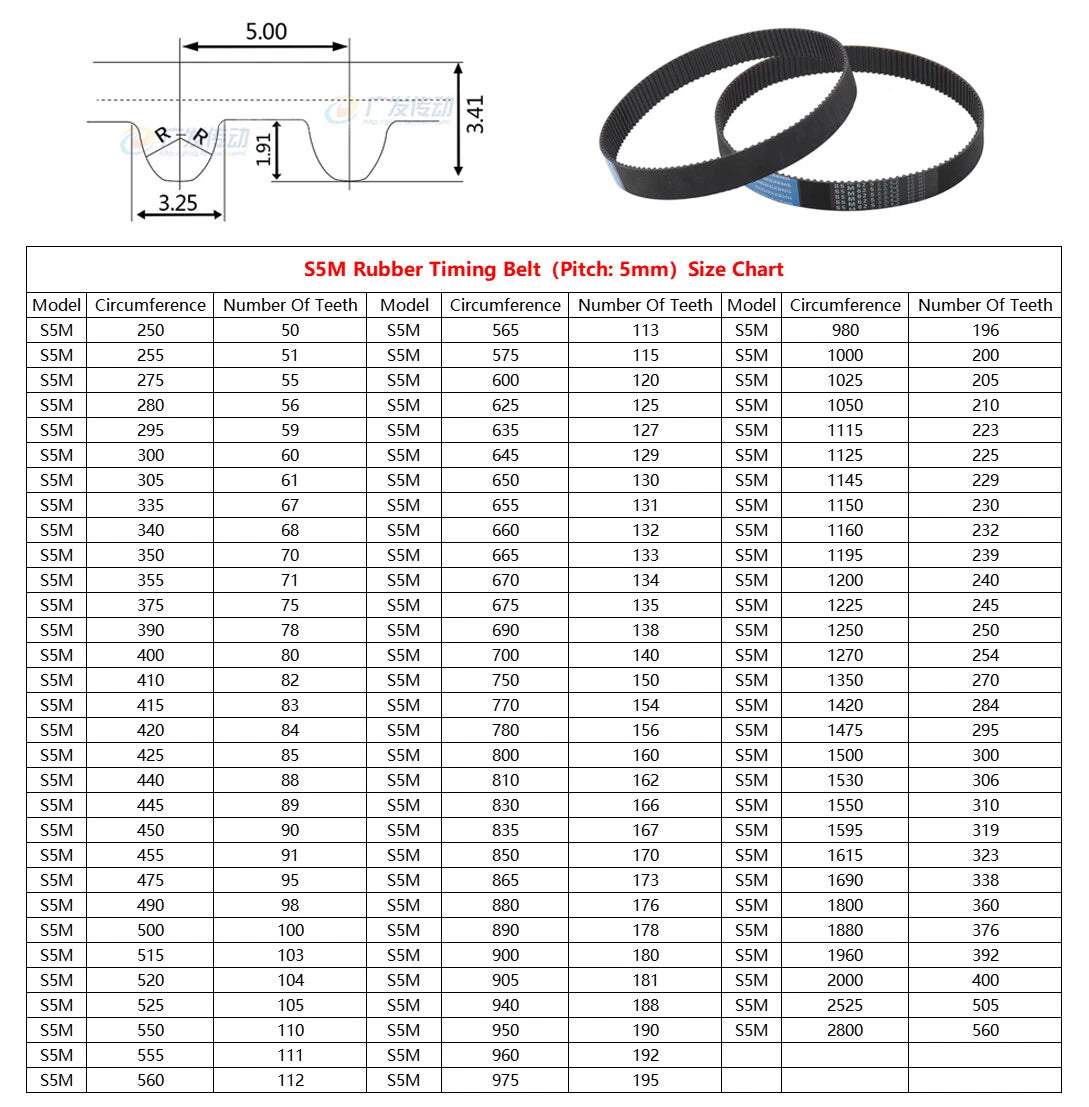

📐 Technical Specifications — S5M Closed-Loop Rubber Timing Belt

Belt Type S5M Closed-Loop (Endless) Timing Belt

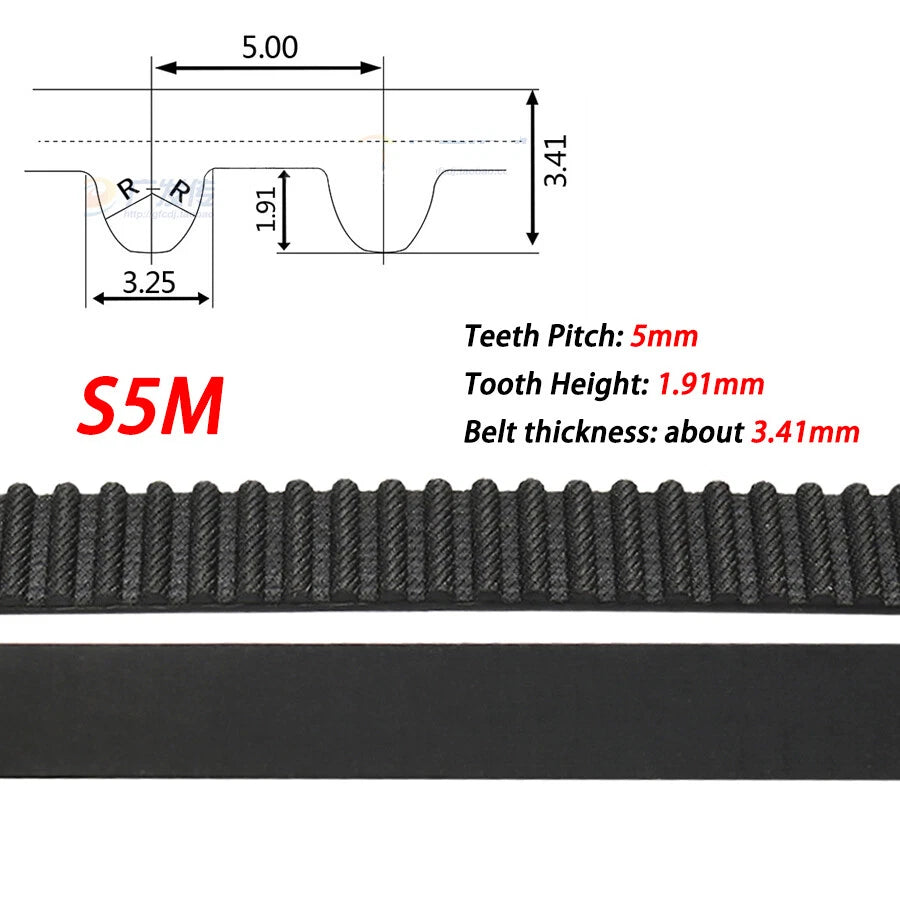

Tooth Pitch 5mm (S5M profile)
Available Widths 15mm / 20mm
Loop Circumference Range 250mm (≈9.8") – 2800mm (≈110.2")
Tooth Count Range 50T – 560T (varies by circumference)
Belt Material Rubber with internal fiber reinforcement
Construction Endless / seamless closed loop — no joint
Compatible Pulley Standard S5M (5mm pitch) — verify before ordering; not interchangeable with HTD 5M
Typical Applications CNC router axes, 3D printer motion systems, laser cutter gantries, light industrial pulley drives
Tensile Strength See variant options
Operating Temperature Range Contact us to confirm
Country of Origin Contact us to confirm
⚠️ Size Tip: The loop circumference listed (e.g., 500mm & 100T) is the total inner circumference of the closed loop — not the span between pulleys. Calculate your required loop size based on your pulley center-to-center distance and pulley pitch diameters before selecting a variant.

❓ Frequently Asked Questions

How do I choose the right loop circumference for my machine?

Measure the center-to-center distance between your two pulleys, then calculate: Loop ≈ 2 × C-to-C + (π × pulley pitch diameter). For example, a 300mm loop (≈11.8") with 60 teeth is typically used on compact CNC axes with 15T–20T pulleys. When in doubt, go slightly longer — you can adjust motor mount position to tension the belt.

What load or torque can an S5M timing belt handle?

S5M belts are generally rated for moderate-to-high torque transmission. The 20mm-wide variant typically handles greater load capacity than the 15mm version due to increased tooth engagement area. For specific load ratings, consult your machine's engineering specs or contact us to confirm suitability for your application.

Can this belt be used outdoors or in wet environments?

The rubber compound used in S5M belts generally offers moderate resistance to moisture and light oils. However, prolonged exposure to UV, harsh chemicals, or standing water may degrade the belt over time. For outdoor or wash-down environments, inspect the belt periodically and replace as needed.

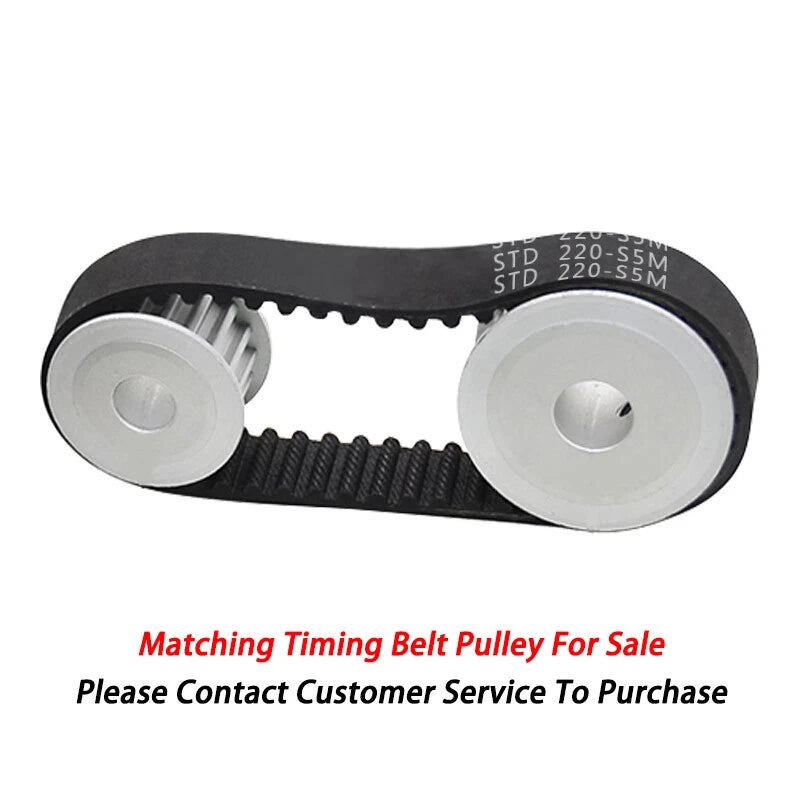

What pulley standard is compatible with S5M timing belts?

S5M belts use a 5mm pitch tooth profile and are compatible with S5M-standard pulleys. Note that S5M and HTD 5M have slightly different tooth profiles and are not always interchangeable. Always verify your pulley is specifically rated for S5M to ensure proper mesh and avoid premature wear or tooth skipping.

Which width should I choose — 15mm or 20mm?

Choose 15mm for lighter-duty CNC axes, 3D printer motion systems, and applications where weight and compactness matter. Choose 20mm when you need higher torque capacity, greater lateral stability, or are driving heavier gantries and spindle carriages. Always match the belt width to your pulley's belt groove width.

Is this a closed-loop (endless) belt or an open-ended belt?

This is a closed-loop (endless) timing belt — it has no seam or joint. The loop circumference listed (e.g., 500mm & 100T) is the total inner circumference of the belt. This design eliminates the weak point of a joined belt and is required for most pulley-drive and CNC motion applications.

How do I install and tension an S5M closed-loop timing belt?

Slip the belt over both pulleys before mounting the motor or idler. Adjust the motor mount or idler position to achieve light tension — the belt should not sag but should not be drum-tight. Over-tensioning causes premature bearing wear; under-tensioning causes tooth skipping. A slight deflection of 1–2mm under light finger pressure at midspan is generally a good starting point.
