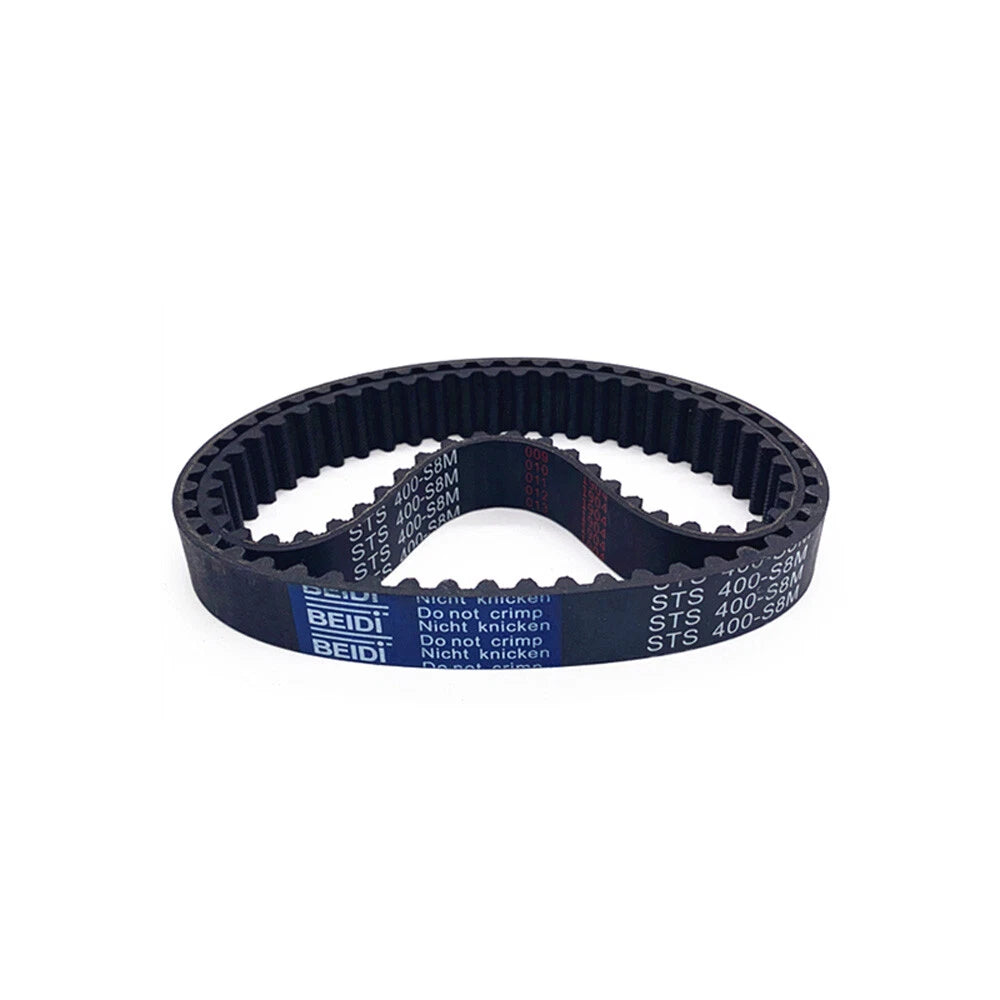

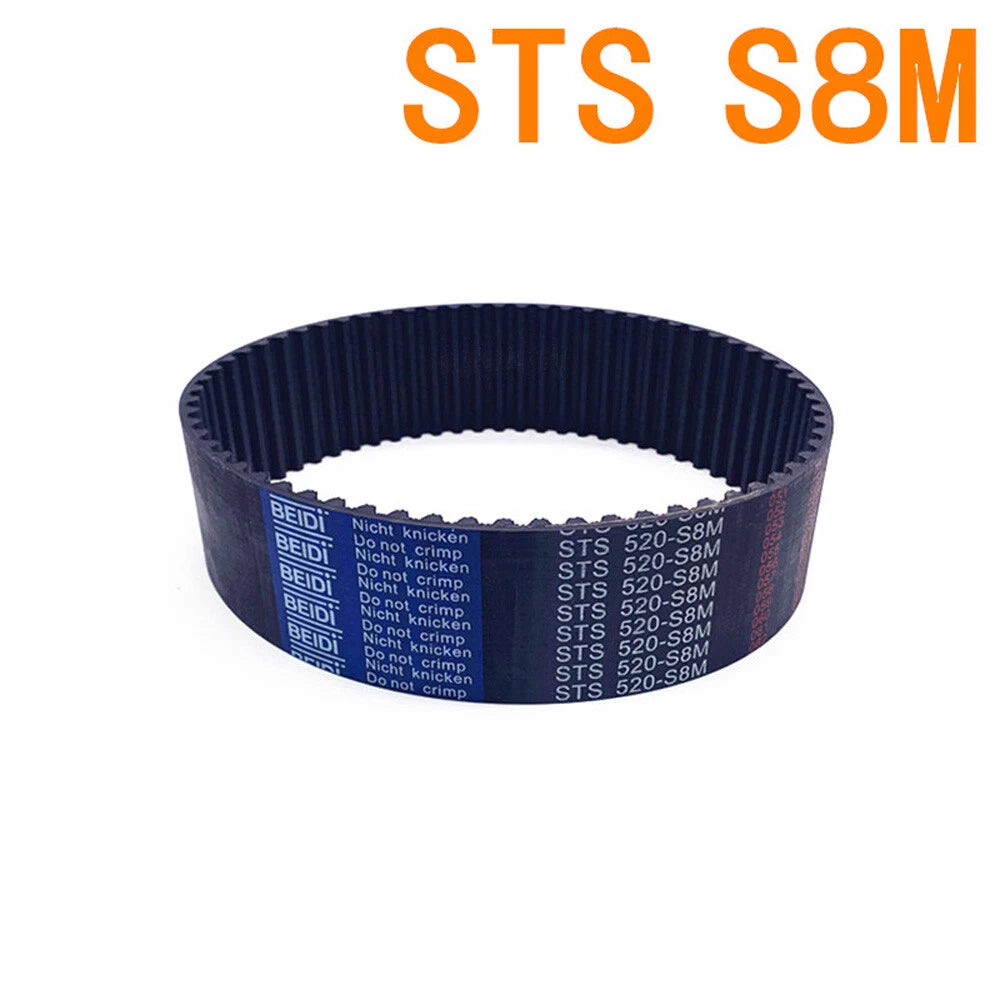

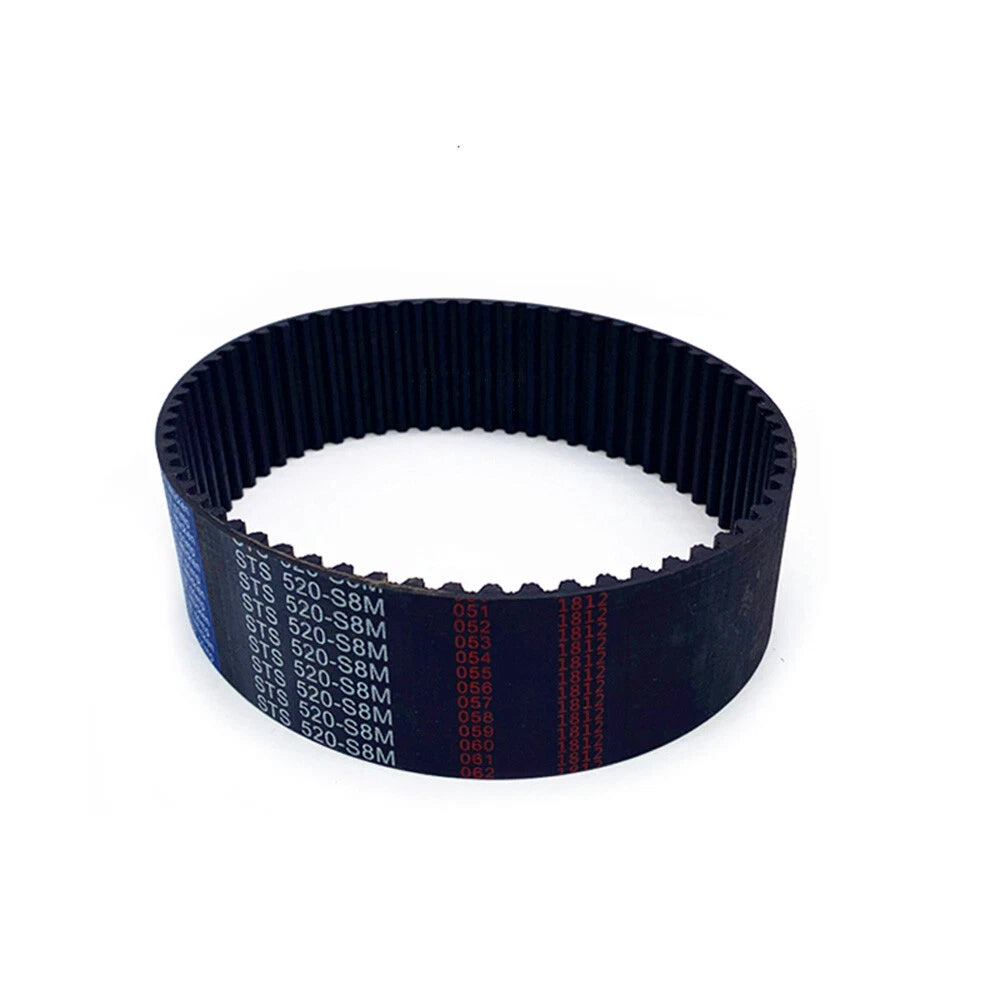

S8M Timing Belt 25mm Wide – 8mm Pitch Closed Loop Rubber Synchronous Belt for CNC & Industrial Drives

Roll over image to zoom in Click on image to zoom

S8M Timing Belt 25mm Wide – 8mm Pitch Closed Loop Rubber Synchronous Belt for CNC & Industrial Drives

Name: S8M Timing Belt 25mm Wide – 8mm Pitch Closed Loop Rubber Synchronous Belt for CNC & Industrial Drives
Brand: HomeDIYer
Price: 16.85 USD
Availability: InStock

HomeDIYer

No reviews

By HomeDIYer®

Types: 352-S8M

Perimeter: 352mm

Teeth number & Amount: 44 & 1Pcs

Price:

$16.85 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

S8M Closed-Loop Timing Belt 25mm Wide — Precision Synchronous Drive for CNC, Automation & Industrial Equipment

When a slipping or mismatched drive belt causes positioning errors on your CNC router, 3D printer, or conveyor system, the entire job is compromised. Engineers, machine builders, and repair technicians who need a reliable S8M closed-loop timing belt in an exact perimeter size — without waiting weeks for a custom order — will find this listing covers the widest range of in-stock sizes available.

Each belt is a single closed-loop unit with an 8mm pitch (distance between tooth centers) and a 25mm (≈1.0") belt width. The rubber body is reinforced with tensile cords for dimensional stability under load. Perimeter sizes range from 352mm (≈13.9") up to 4400mm (≈173.2"), with over 160 individual sizes available — select your exact perimeter from the variant dropdown above. Tooth count per belt is listed alongside each perimeter option for quick cross-reference.

Typical applications include CNC router X/Y axis drives, laser cutter gantry systems, automated conveyor belt replacements, rotary indexing tables, and light industrial power transmission where synchronous motion and repeatable positioning are required. The S8M profile is also widely used in packaging machinery and textile equipment drives.

ℹ️ Compatibility Notice: This belt uses the S8M curvilinear tooth profile (8mm pitch). It is not interchangeable with HTD 8M or GT2 8M pulleys, which share the same pitch but have different tooth geometries. Verify your pulley markings before ordering.

✅ Key Features of These S8M Closed-Loop Timing Belts

📐8mm Pitch, S8M Curvilinear Profile — Tooth geometry engineered for smooth engagement and reduced backlash in CNC synchronous belt drive systems.
📏25mm Belt Width — Wider contact surface distributes load across more tooth area, supporting moderate-to-high torque applications compared to narrower S8M variants.
🔄160+ Perimeter Sizes In Stock — From 352mm (≈13.9") to 4400mm (≈173.2"), covering the broadest range of closed-loop S8M replacement belt sizes for industrial and DIY machine builds.

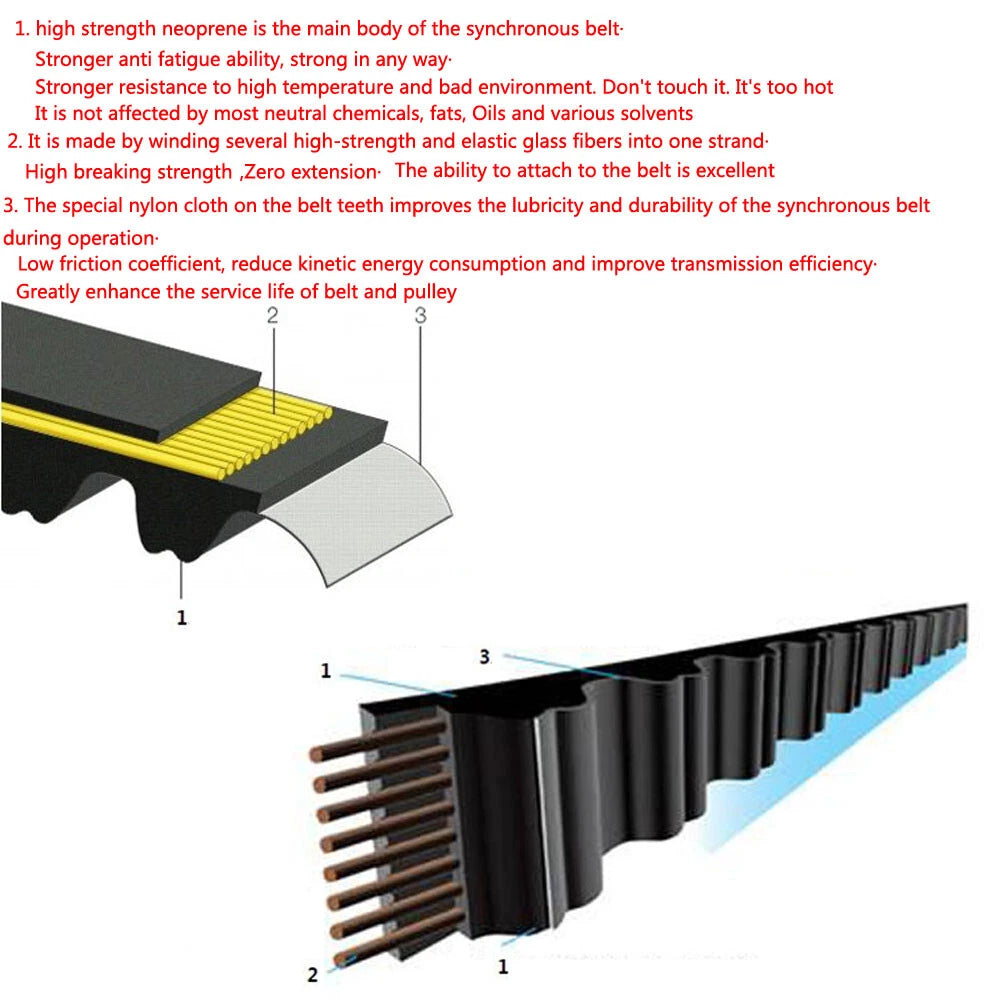

🧱Rubber Body with Tensile Cord Reinforcement — The rubber compound resists flex fatigue over extended duty cycles; internal cords maintain belt length stability under tension.
⚙️Closed-Loop Construction — No splicing or joining required; the belt arrives as a continuous loop ready to install on your drive system without additional hardware.
🚀Direct Replacement for CNC & Automation Drives — Dimensionally compatible with standard S8M pulleys used in router gantries, laser cutters, conveyor indexing drives, and rotary table systems.

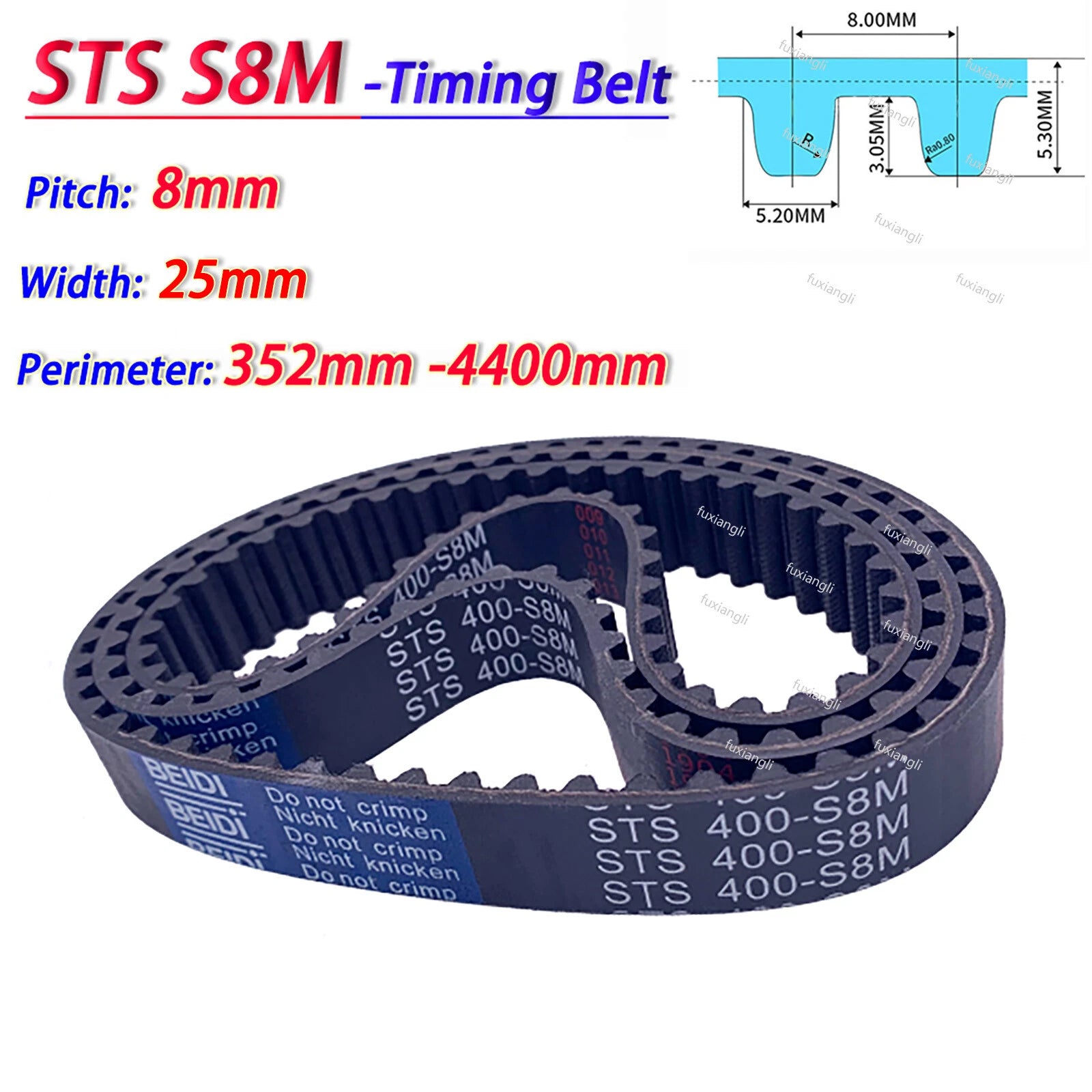

📐 Technical Specifications — S8M Timing Belt

Belt Type	Closed-Loop Synchronous Timing Belt
Tooth Profile	S8M (Curvilinear, ISO/DIN standard)
Pitch	8mm (0.315")
Belt Width	25mm (≈1.0")
Perimeter Range	352mm (≈13.9") – 4400mm (≈173.2")
Tooth Count Range	44 teeth (352mm) – 550 teeth (4400mm)
Body Material	Rubber (neoprene-based compound, typically)
Reinforcement	Tensile cord (fiberglass or steel — see variant options)
Quantity per Order	1 piece per variant
Compatible Pulley Profile	S8M only (not HTD 8M or GT2 8M)
Typical Applications	CNC routers, laser cutters, conveyors, indexing drives, industrial automation
Operating Temperature	Contact us to confirm
Max Recommended Speed	See variant options / Contact us to confirm

⚠️ Sizing Tip: The perimeter listed is the outer circumference of the belt loop. Confirm your required perimeter by measuring your existing belt or calculating from your pulley center-to-center distance. When in doubt, contact us with your machine model or drive specs.

❓ Frequently Asked Questions

How do I choose the right S8M belt perimeter size?

Measure the center-to-center distance between your two pulleys, then use the standard belt length formula: Belt Perimeter ≈ 2 × C-to-C + (π × pitch diameter of both pulleys / 2). For a quick reference: a 600mm perimeter belt is roughly 23.6", and a 1000mm belt is roughly 39.4". Always verify against your existing belt or machine documentation. If your exact size isn't listed, contact us — we may be able to source it.

What does the S8M designation mean?

"S" indicates a curvilinear (rounded) tooth profile, and "8M" means an 8mm pitch — the distance between the centers of adjacent teeth. The S8M profile generally provides smoother engagement and lower operating noise compared to older trapezoidal profiles at the same pitch.

What load or torque can an S8M 25mm belt typically handle?

Specific load ratings depend on the number of teeth in mesh, pulley diameter, and operating speed. Generally, S8M belts at 25mm width are suited for moderate-to-high torque applications in CNC routers, conveyor drives, and industrial automation. Consult your drive system's engineering specifications to confirm suitability for your load requirements.

Can this belt be used outdoors or in wet environments?

These belts are made from a rubber compound (typically neoprene-based) with internal cord reinforcement. They generally tolerate light moisture exposure but are not rated for continuous immersion or highly corrosive environments. For outdoor or washdown applications, verify the specific compound with us, or consider a polyurethane belt if prolonged water contact is expected.

Is this belt compatible with standard S8M pulleys and sprockets?

Yes — S8M timing belts follow the ISO/DIN curvilinear tooth standard and are designed to mesh with any S8M-profile pulley or sprocket of matching pitch. Important: Confirm your pulley's tooth profile is S8M and not HTD 8M or GT2 8M, which share the 8mm pitch but have different tooth geometries and are not interchangeable.

How do I convert the perimeter from mm to inches?

Divide the mm value by 25.4. Quick reference examples: 352mm ≈ 13.9", 600mm ≈ 23.6", 1000mm ≈ 39.4", 1500mm ≈ 59.1", 2000mm ≈ 78.7", 3000mm ≈ 118.1", 4400mm ≈ 173.2". All variant perimeters are listed in mm in the selector above.

What is the difference between S8M and HTD 8M belts?

Both have an 8mm pitch, but the tooth profiles differ. S8M uses a modified curvilinear profile, while HTD 8M uses a deeper, more rounded trapezoidal profile. They are not interchangeable — installing an S8M belt on an HTD 8M pulley (or vice versa) will cause poor mesh, accelerated wear, and potential drive failure. Always match the belt profile to your pulley profile.

🛒 Select your perimeter size above, then add to cart — ships from our US warehouse.
