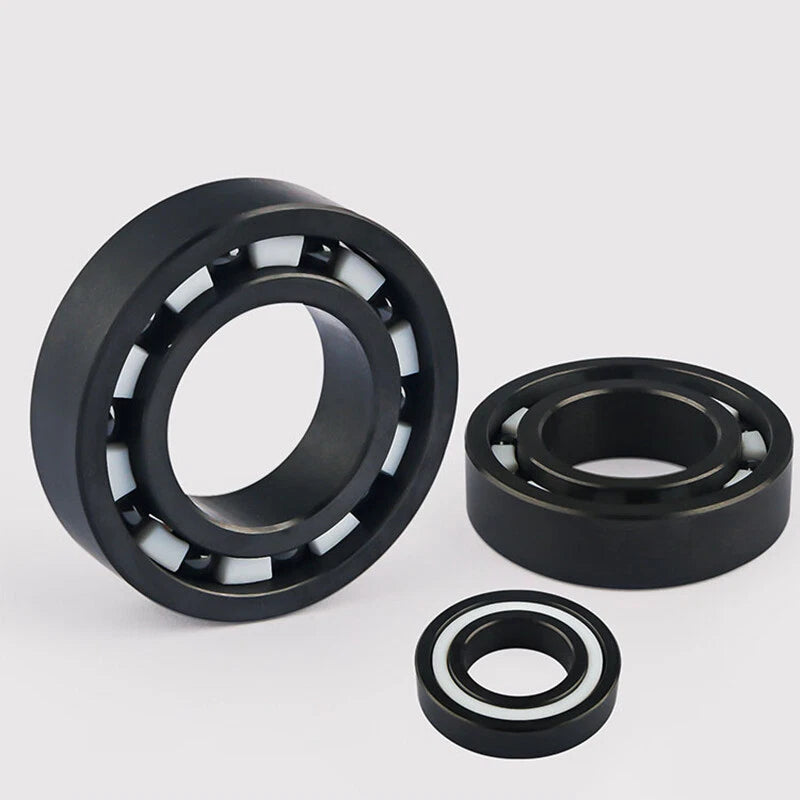

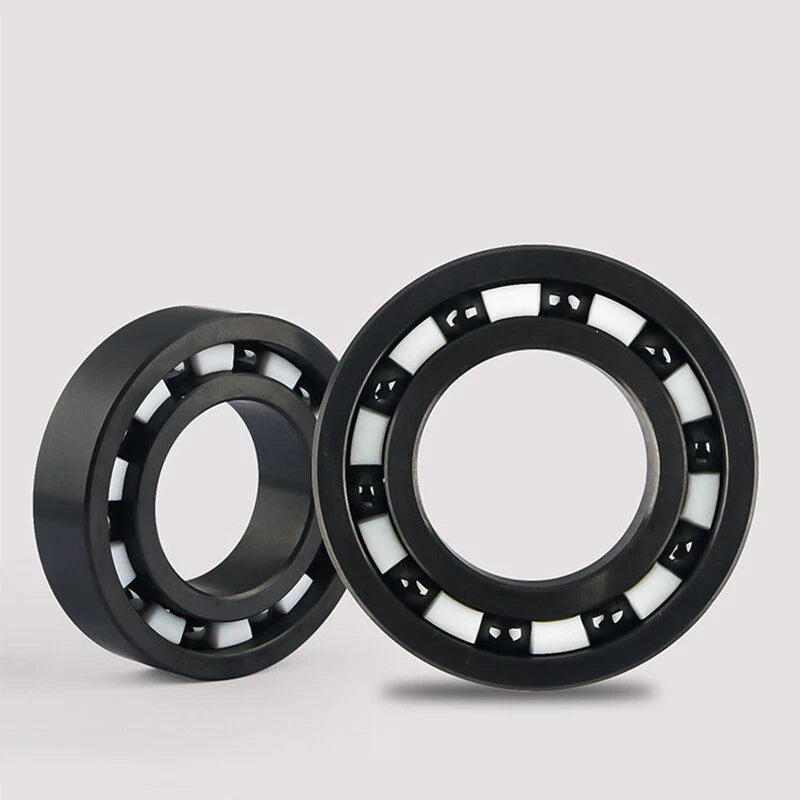

Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608
Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608
Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608
Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608
Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608
Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608
Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608
Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608
Roll over image to zoom in Click on image to zoom
Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608

Silicon Nitride Cage Ceramic Bearings Ball Bearings 603 604 605 606 607 608

HomeDIYer
No reviews

By HomeDIYer®

Price:
$54.33 USD
Stock:
In stock (500 units), ready to be shipped

Payment & Security

Ach Direct Debit Amazon American Express Apple Pay Bancontact BLIK Diners Club Discover EPS Google Pay iDEAL Wero JCB Maestro Mastercard Multibanco MobilePay PayPal Przelewy24 Shop Pay Twint Union Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Limited Offer — Spend More, Save More
Spend $55+
Save $5
Spend $100+
Save $10
Spend $200+
Save $25
✅ Discount applied automatically at checkout 🚚 Free shipping on orders over $89
HomeDIYer DIY Expert Support

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri  8:30 AM – 8:00 PM
WhatsApp
24-Hour Fast Ship
Arrives in 3–14 Days
Worldwide Shipping
30-Day Returns
1 tree planted with every purchase

Description

Silicon Nitride Ceramic Ball Bearings — Precision Performance for Demanding Applications

When standard steel bearings fail under heat, moisture, or chemical exposure, engineers and hobbyists working on RC vehicles, robotics, medical devices, and precision instruments need a more reliable solution. Silicon nitride ceramic ball bearings with a reinforced cage deliver the dimensional stability and low-friction rotation that steel simply cannot match in these environments.

These bearings feature silicon nitride (Si₃N₄) ceramic balls housed in a durable cage, available in two series: the 60x series (603, 604, 605, 606, 607, 608, 609) and the 69x series (693, 694, 695, 696, 697, 698, 699). Bore diameters range from 3 mm (0.118 in) to 9 mm (0.354 in), with outer diameters from 8 mm (0.315 in) to 24 mm (0.945 in) and widths from 3 mm to 7 mm — covering the most common miniature bearing footprints.

Typical use cases include high-speed spindles where reduced rotational mass matters, inline skate wheels and skateboard trucks requiring corrosion resistance, and laboratory or cleanroom equipment where non-magnetic, non-conductive bearings are specified. Available in packs of 1, 2, 5, or 10 pieces to suit both single-unit repairs and small-batch production runs.

⚙️ Compatibility: Drop-in replacement for standard 60x and 69x series steel bearings sharing the same bore × OD × width dimensions. Verify your application's speed rating and load requirements before substituting ceramic for steel in heavy-load industrial settings.

✅ Key Features of These Silicon Nitride Ceramic Ball Bearings

  • 🔬 Silicon Nitride (Si₃N₄) Ceramic Balls — Hardness exceeds that of steel, reducing wear and extending service life in high-cycle applications.
  • 🌡️ Wide Operating Temperature Range — Ceramic material maintains dimensional stability from approximately −40 °C to +120 °C (−40 °F to +248 °F), suitable for environments where steel bearings would expand or seize.
  • 💧 Corrosion and Chemical Resistance — Non-metallic balls resist rust, salt spray, and mild acids, making these bearings viable for wet or chemically active environments.
  • ⚡ Non-Conductive and Non-Magnetic — Ceramic balls do not conduct electricity or respond to magnetic fields, protecting sensitive electronics and meeting requirements for MRI-adjacent or ESD-sensitive equipment.
  • 🔄 Lower Rotational Friction — Smoother ball surface finish compared to standard steel reduces heat generation at high RPM, benefiting spindle motors, drones, and RC drivetrains.
  • 📦 Multi-Pack Options (1 / 2 / 5 / 10 Pcs) — Order the exact quantity needed for a single repair or a small production batch, with per-unit cost decreasing at higher pack sizes.

📐 Technical Specifications — Silicon Nitride Ceramic Ball Bearings

Ball Material Silicon Nitride (Si₃N₄) Ceramic
Bearing Series 60x series (603–609) and 69x series (693–699)
Bore Diameter (d) 3 mm – 9 mm (0.118 in – 0.354 in) — see variant options
Outer Diameter (D) 8 mm – 24 mm (0.315 in – 0.945 in) — see variant options
Width (B) 3 mm – 7 mm (0.118 in – 0.276 in) — see variant options
Cage Material See variant options
Operating Temperature Typically −40 °C to +120 °C (−40 °F to +248 °F)
Electrical Conductivity Non-conductive (ceramic balls)
Magnetic Properties Non-magnetic
Corrosion Resistance Resistant to rust, salt spray, and mild chemicals
Pack Size Options 1 Pcs / 2 Pcs / 5 Pcs / 10 Pcs
Lubrication See variant options / Contact us to confirm

❓ Frequently Asked Questions

How do I choose the correct bearing size for my application?

Match the bore diameter (d), outer diameter (D), and width (B) to your existing bearing or shaft/housing dimensions. The size designation in the product title follows the standard format: for example, 608 corresponds to 8 mm bore × 22 mm OD × 7 mm width. Measure your shaft diameter first, then confirm the OD fits your housing bore before ordering.

Are silicon nitride ceramic bearings stronger than steel bearings?

Silicon nitride ceramic is harder than bearing steel (approximately 1,500 HV vs. 700 HV for steel), which means the balls resist surface wear and indentation better under high-cycle or abrasive conditions. However, ceramic is more brittle than steel under sudden impact loads. These bearings are best suited for high-speed, light-to-moderate radial loads rather than heavy shock loading.

Do these bearings require lubrication?

Ceramic balls generate less heat than steel and can run with minimal lubrication in many applications. However, the cage and races still benefit from light grease or oil lubrication to reduce friction and protect the raceway surfaces. For dry or cleanroom environments, confirm the specific variant's lubrication state before installation.

Are these bearings compatible with my RC car, drone, or skateboard?

Yes — the 60x and 69x series are among the most common miniature bearing standards used in RC vehicles, drones, inline skates, and skateboards. As long as the bore, OD, and width match your existing bearing (check your manual or measure the old bearing), these are direct drop-in replacements. The 608 size (8×22×7 mm) is particularly common in skateboard and inline skate wheels.

What is the difference between the 60x series and the 69x series?

Both series share the same bore diameters (3–9 mm) but differ in outer diameter and width. The 69x series (693–699) has a smaller outer diameter and narrower width than the equivalent 60x bearing, making it suitable for space-constrained designs where a thinner cross-section is required. For example, a 693 measures 3×8×3 mm while a 603 measures 3×9×3 mm.

How do I know if my environment requires ceramic instead of steel bearings?

Consider ceramic bearings when your application involves: (1) exposure to moisture, salt, or mild chemicals where steel would corrode; (2) high rotational speeds where reduced mass and lower friction matter; (3) electrical isolation requirements, such as motor shafts where stray currents could damage steel bearings; or (4) non-magnetic requirements near sensitive instruments. For standard dry indoor mechanical applications with moderate loads, steel bearings remain a cost-effective choice.

🛒 Select your Size and Pack Size above, then add to cart.
