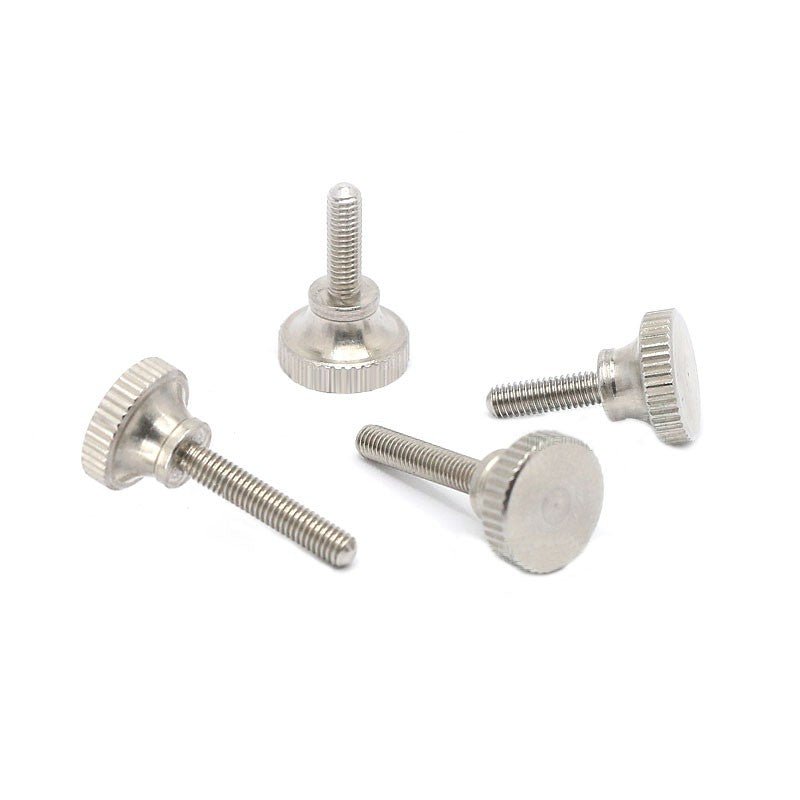

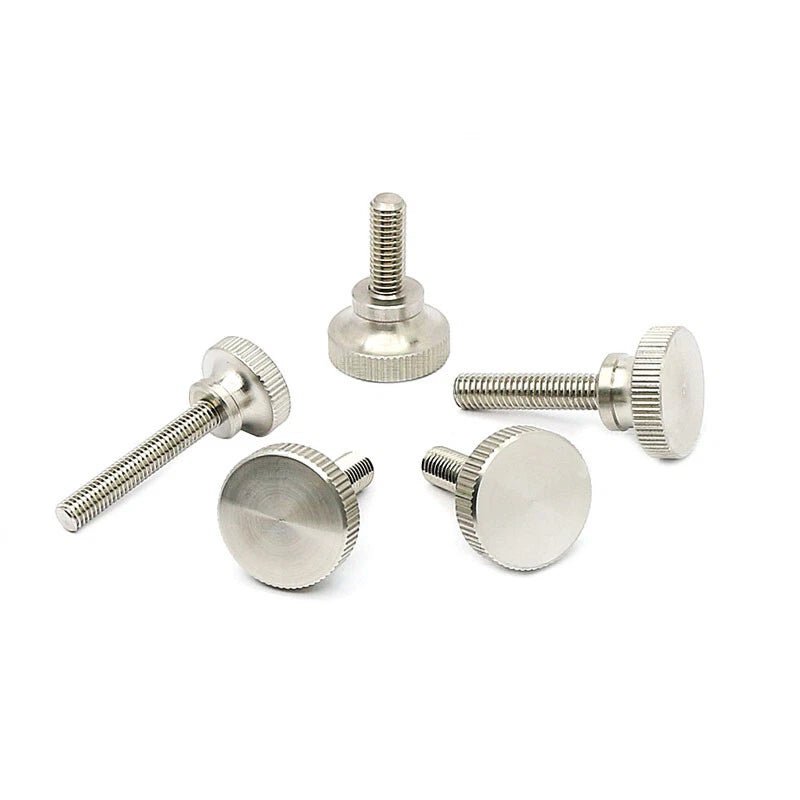

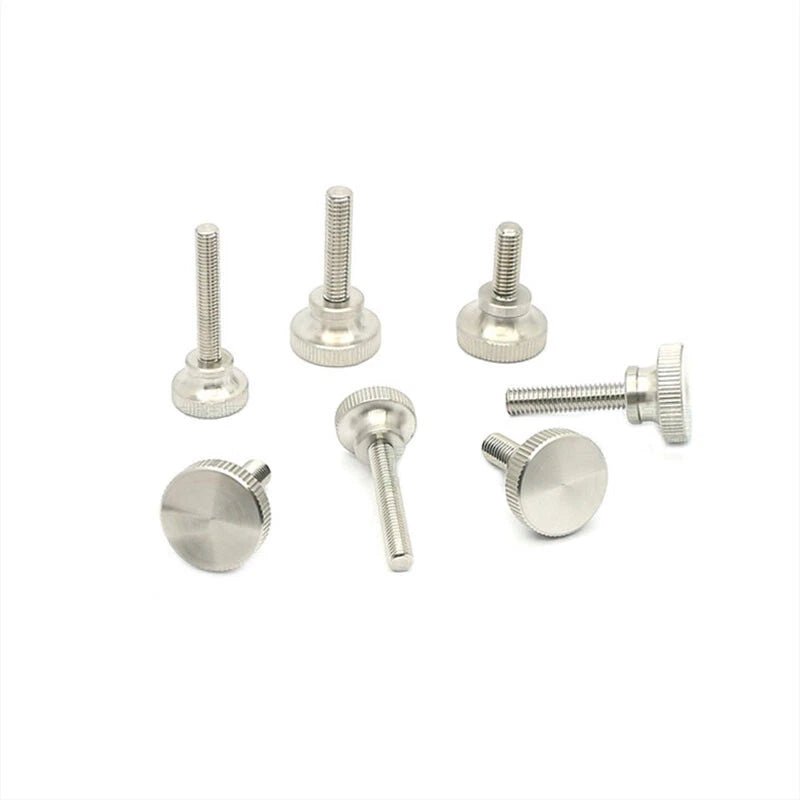

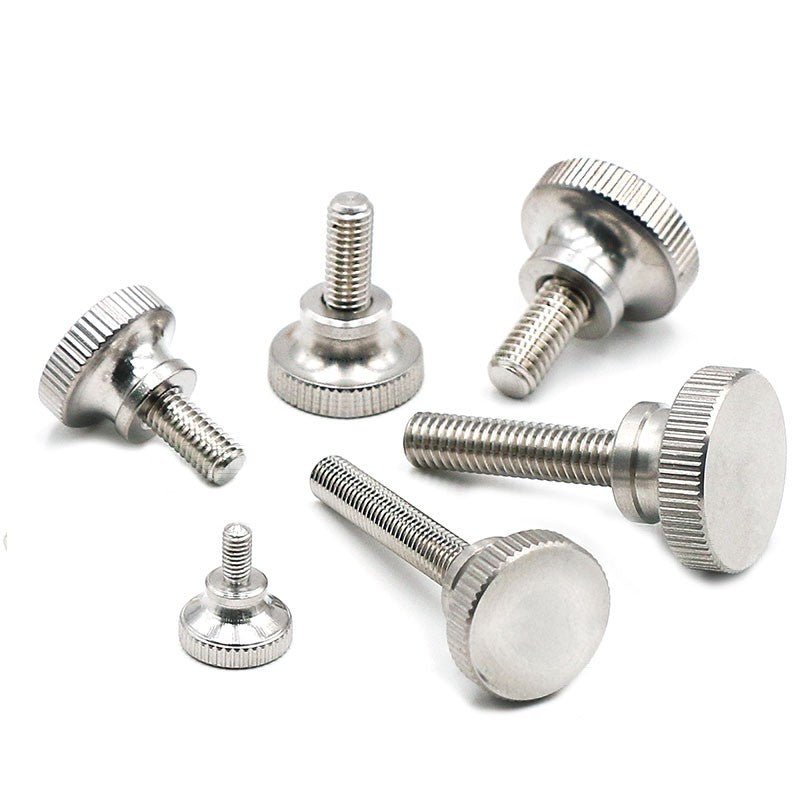

🔩 M2–M6 Stainless Steel Thumb Screws – High Head Knurled Hand Tighten Grip Knob Adjustment Screws
You’re adjusting a piece of machinery, securing a panel, or fine‑tuning electronic equipment – and you need a thumbscrew that’s easy to grip by hand, strong enough to hold, and won’t rust. These M2 to M6 stainless steel thumb screws feature a high, straight‑knurled head that gives you extra leverage and a non‑slip surface. The tall head design provides additional strength and stability, making them ideal for applications where a firm hand‑tightened fastener is required. Fully threaded for maximum grip, with length measured under the head. Perfect for mechanical equipment, electronic devices, furniture manufacturing, building structures, and automotive components.
✨ Key Features – High Head Knurled Thumb Screws (Stainless Steel)
- 🔘 High head with straight knurling – Tall profile for excellent hand grip; straight knurling increases friction for easy manual tightening and loosening.
- 🛡️ Stainless steel construction – Good corrosion resistance and heat resistance. Suitable for a variety of environments, indoor or light outdoor.
- 💪 High head design adds strength – Provides extra stability and can withstand higher preload forces compared to low‑profile thumbscrews.
- 📏 Wide metric range M2, M2.5, M3, M4, M5, M6 – Covers small electronics to light machinery and furniture.
- 📐 Fully threaded stud, length under head – Thread runs the entire length under the head for maximum grip in tapped holes or with nuts.
- 📏
Tool‑less hand operation – No screwdrivers or wrenches needed. Tighten and loosen by hand with ease.
- 🔧 Widely used – Mechanical equipment, electronic devices, furniture manufacturing, building structures, automotive components, and DIY projects.

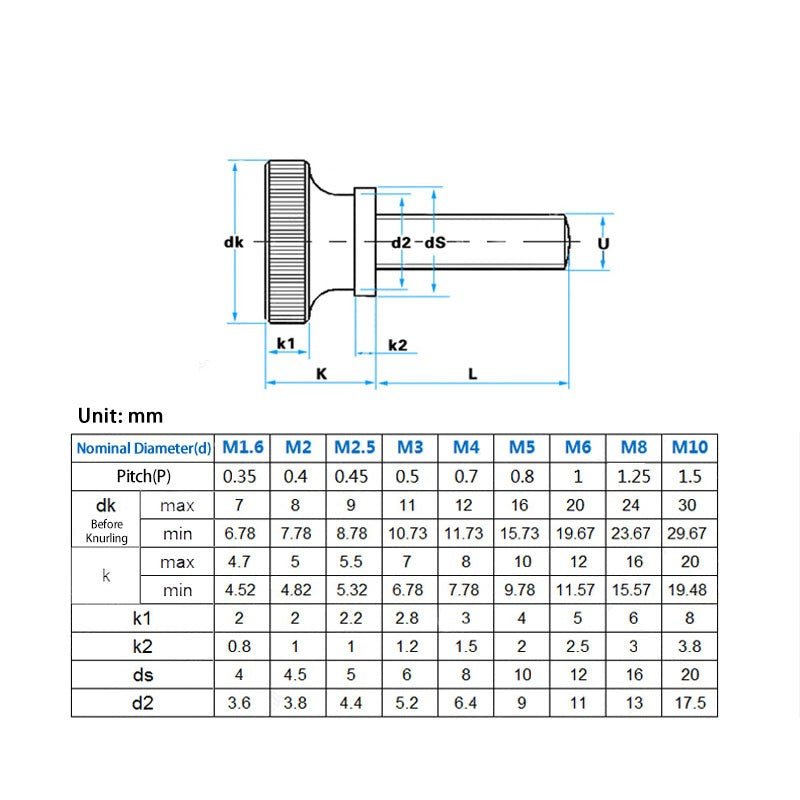

📏 Specifications – M2 to M6 High Head Knurled Thumb Screws (Stainless Steel)
| Thread Diameter (M) |
Thread Pitch (mm) |
Head Style |
Knurling Type |
Head Height (approx.) |
Head Diameter (approx.) |
Thread Length (mm, under head) * |
| 📐 Length measured from underside of head to tip. Fully threaded. Select exact size and length from dropdown. |
| M2 |
0.4 |
High cylindrical knurled |
Straight knurling |
~6‑8 mm |
~5‑6 mm |
4, 5, 6, 8, 10, 12, 15, 16, 18, 20, 25, 30
(exact availability varies) |
| M2.5 |
0.45 |
~7‑9 mm |
~6‑7 mm |
| M3 |
0.5 |
~8‑10 mm |
~7‑8 mm |
| M4 |
0.7 |
~9‑12 mm |
~8‑10 mm |
| M5 |
0.8 |
~10‑14 mm |
~10‑12 mm |
| M6 |
1.0 |
~12‑16 mm |
~12‑14 mm |
* Thread lengths are typical – exact availability may vary. Please select your required size and length from the dropdown. Avoid over‑tightening to prevent thread damage.
🛠️ Usage Recommendations & Applications
| Application Area |
Typical Use |
| Mechanical equipment |
Adjustable clamps, tool‑less access panels, fixture stops |
| Electronic devices |
Enclosure thumbscrews, PCB mounting, battery compartment fasteners |
| Furniture manufacturing |
Quick‑release drawer stops, adjustable legs, assembly knobs |
| Automotive components |
Dashboard trim fasteners, engine cover thumbscrews, interior panel clips |
| Building structures |
Temporary fasteners, scaffolding adjustment screws, access hatches |
❓ Frequently Asked Questions – Stainless Steel Thumb Screws
1. How do I measure the length of a high head thumb screw?
The length is measured from the underside of the head (where the knurling meets the shaft) to the tip of the threaded stud. The head itself is NOT included. For example, an “M4 x 10mm” screw has a 10mm long threaded shaft under the head. All our lengths follow this standard.
2. Are these screws fully threaded? What about longer lengths?
Yes – all M2 to M6 screws in this range are fully threaded from under the head to the tip, giving you maximum grip in tapped holes or when using a nut.
3. Will stainless steel rust? Can I use these outdoors?
Stainless steel (likely 304 grade) offers good corrosion resistance for indoor and light outdoor use. It will not rust under normal conditions. For continuous saltwater or harsh chemical environments, consider A4 (316) stainless thumb screws.
4. Do I need a nut or washer with these thumb screws?
If your equipment has a pre‑tapped metric hole of the same thread size, no nut is needed. For plain holes, use a standard metric nut of the same thread size (e.g., M5 nut for M5 screw). A flat washer is optional for load distribution.
5. What is the advantage of the high head design?
The taller head provides more surface area for your fingers, giving you better leverage and making it easier to apply torque by hand. It also adds extra strength to the screw, allowing it to handle higher preload forces without deforming.
6. How should I store and maintain these screws?
Store in a dry, clean environment to avoid corrosion. Periodically check the tightness of screws used in vibrating applications to ensure connection stability. Avoid over‑tightening to prevent thread damage.
