T10 Timing Belt — Reliable 10mm Pitch Closed-Loop Drive for Precision Motion Systems

When a slipping or mismatched drive belt causes positioning errors in your CNC router, 3D printer, or automated conveyor, the entire project stalls. Engineers, makers, and machine builders who need repeatable, backlash-free linear motion rely on a T10 timing belt with the correct pitch and width to keep every axis locked in sync.

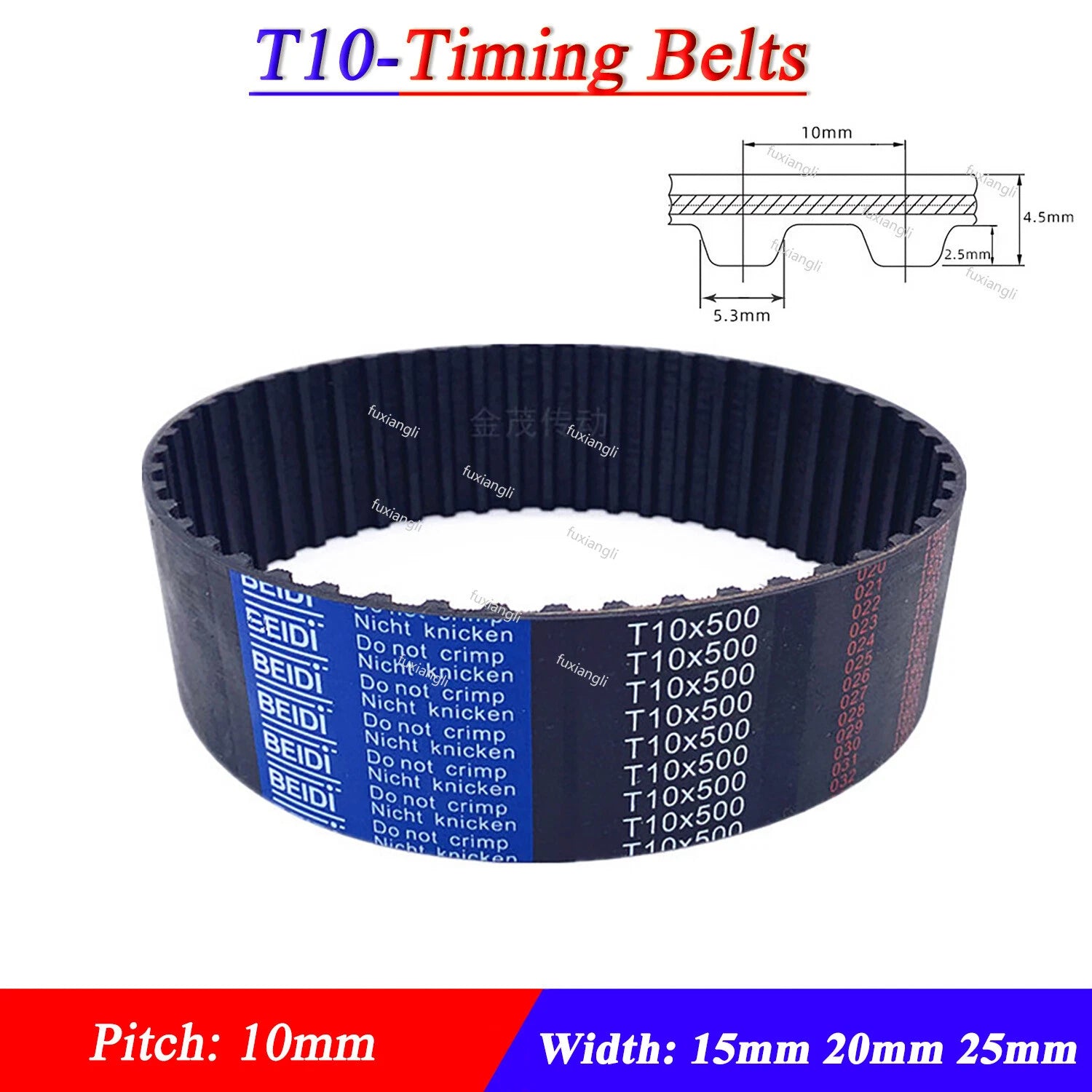

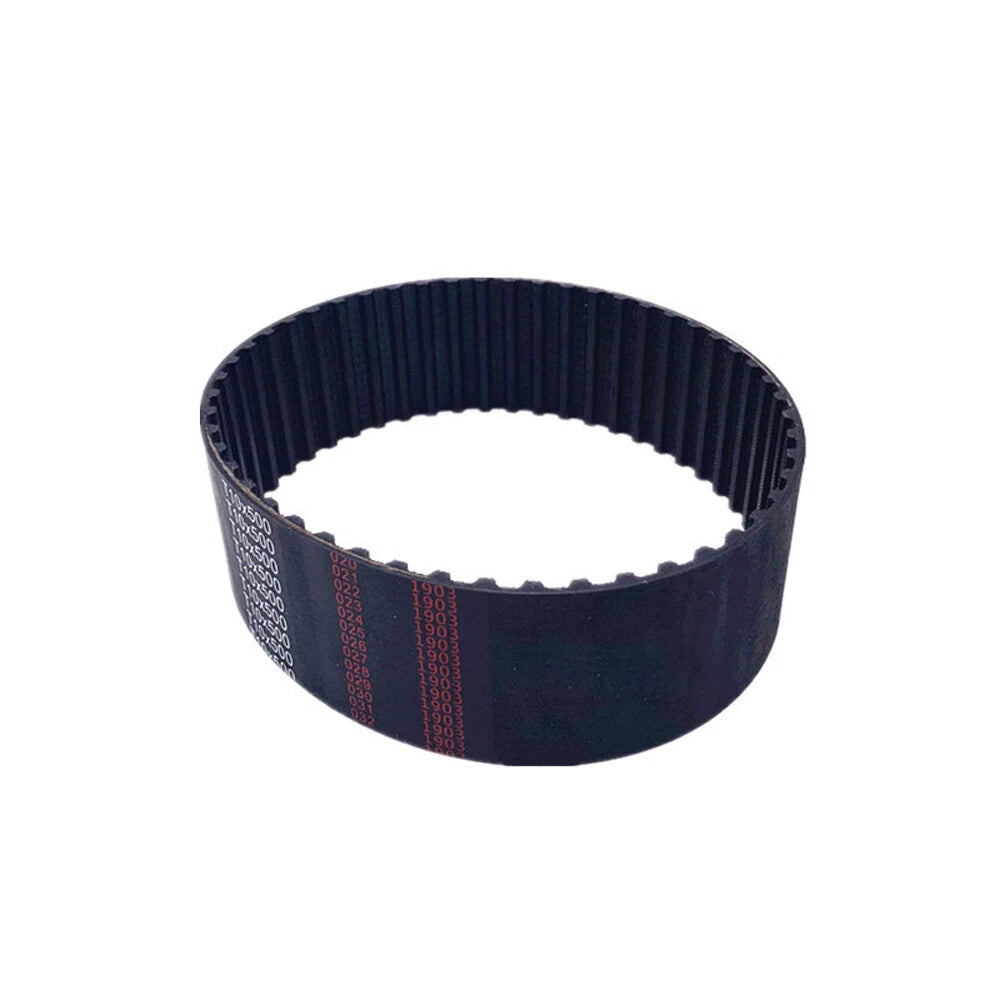

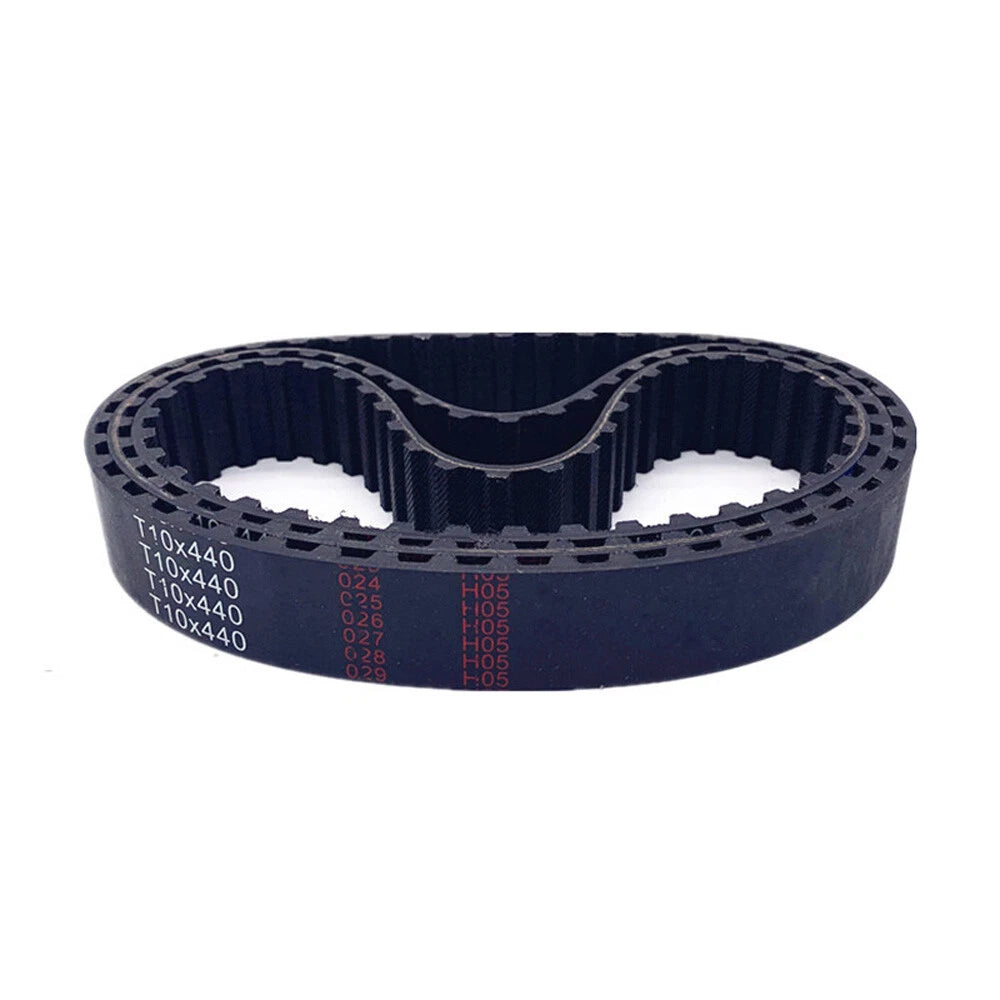

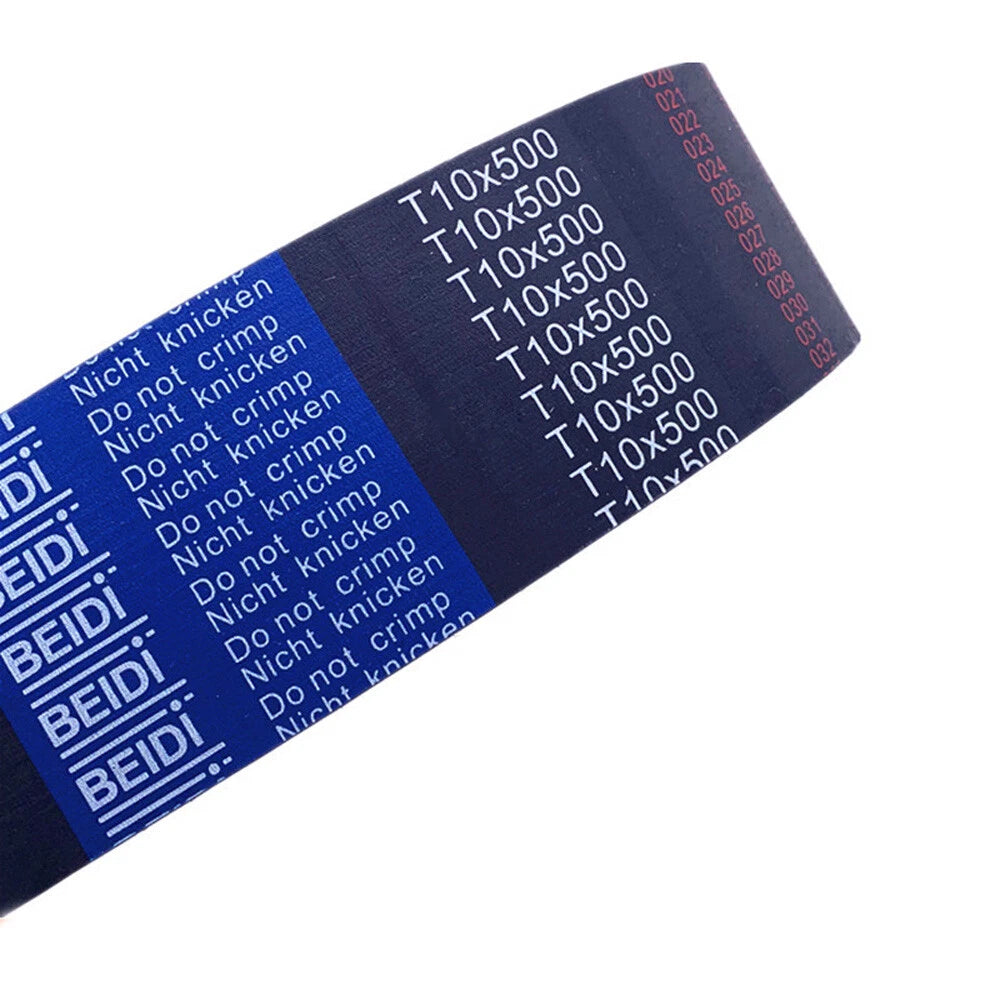

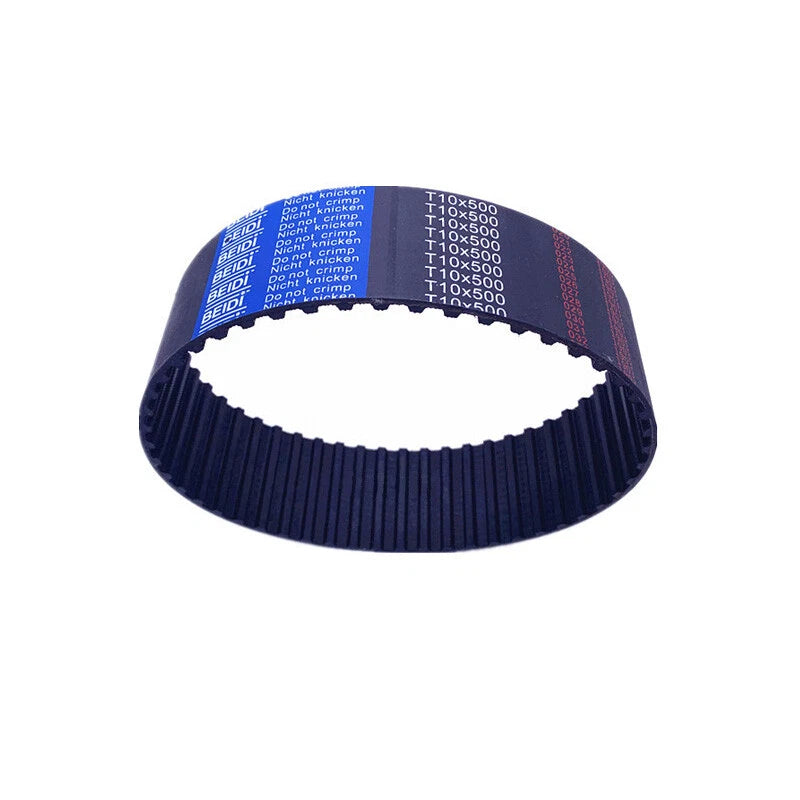

Each belt in this listing is a closed-loop (endless) rubber synchronous belt with a 10mm pitch (T10 tooth profile). Available in three widths — 15mm (≈0.59"), 20mm (≈0.79"), and 25mm (≈0.98") — and pitch lengths ranging from 560mm (≈22.0") to 2500mm (≈98.4"), sold individually (1 pc per order). The rubber compound is reinforced with a tensile cord for dimensional stability under load.

Typical use cases include replacement drives on desktop CNC machines and laser cutters, X/Y axis belts on FDM 3D printers, light-duty conveyor and indexing table drives, and timing drives on packaging or textile automation equipment where a closed-loop rubber synchronous belt with 10mm pitch is specified.

🔗 Compatibility: Fits all T10-profile pulleys (10mm pitch, trapezoidal tooth). Select the belt width that matches your pulley flange width. Not compatible with AT10, HTD, or GT2 pulleys.

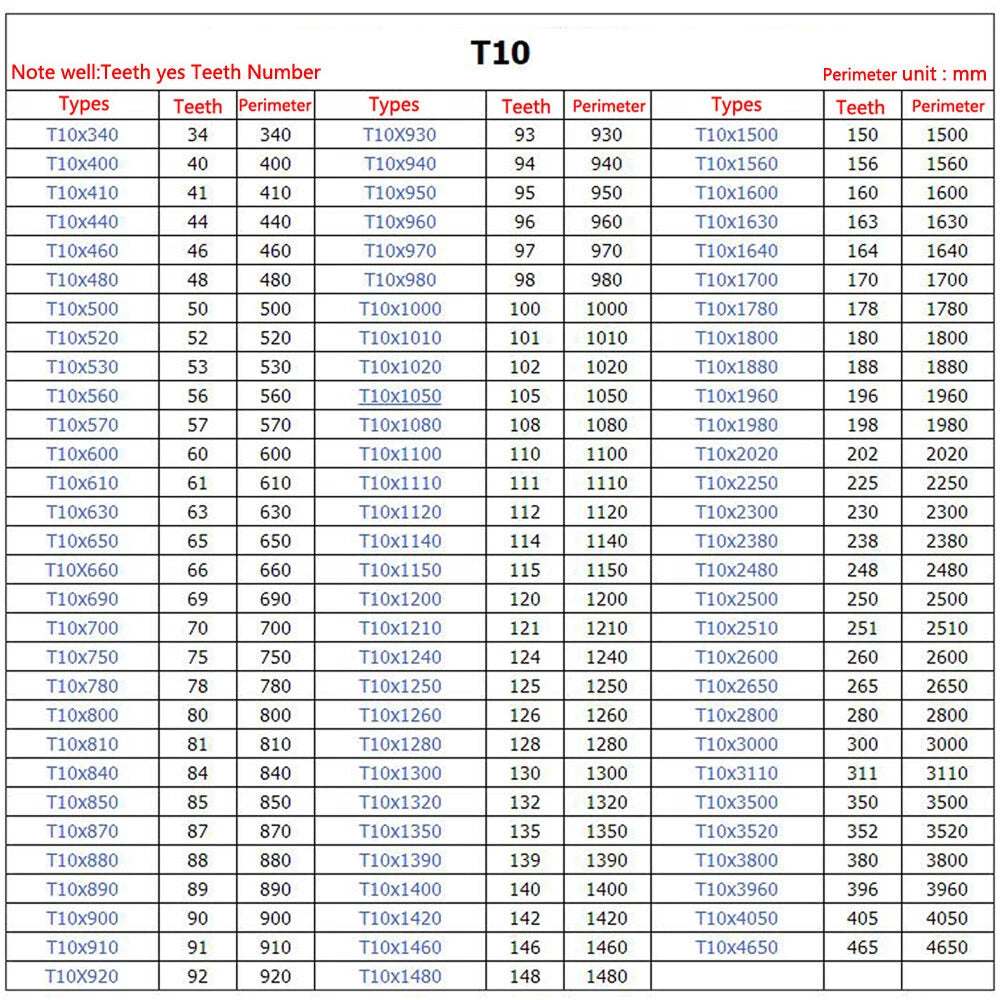

⚠️ Confirm before ordering: The number in the variant name (e.g., T10-800) is the belt's pitch circumference in mm, not the outer length. Measure your drive path or calculate from pulley center distance before selecting a size.

✅ Key Features of These T10 Closed-Loop Rubber Timing Belts

  • ⚙️10mm T10 Tooth Profile — Trapezoidal teeth mesh precisely with T10 pulleys, delivering slip-free power transmission for closed-loop motion control systems.
  • 📏Wide Length Selection — Pitch lengths from 560mm (≈22.0") to 2500mm (≈98.4") cover most desktop and light-industrial drive configurations without custom cutting.
  • ↔️Three Belt Widths Available — Choose 15mm, 20mm, or 25mm to match your pulley flange and torque requirement; wider belts handle higher lateral loads in conveyor and indexing applications.
  • 🔄Endless Closed-Loop Construction — No splice or joint means consistent tension distribution around the full circumference, reducing vibration and extending service life compared to joined belts.
  • 🧱Reinforced Rubber Compound — The rubber body is cord-reinforced for dimensional stability under cyclic loading, maintaining pitch accuracy over extended run times in 3D printer and CNC timing belt applications.
  • 🔧Drop-In Replacement Fit — Manufactured to T10 metric standard dimensions, making these a direct swap for worn or broken OEM belts on most T10-pulley-equipped machines without modification.

📐 Technical Specifications — T10 Closed-Loop Rubber Synchronous Belt

Belt Type Closed-loop (endless) synchronous timing belt
Tooth Profile T10 — trapezoidal metric
Pitch 10mm (0.394")
Tooth Height Typically 2.5mm (≈0.098")
Belt Width Options 15mm (≈0.59") / 20mm (≈0.79") / 25mm (≈0.98")
Pitch Length Range 560mm (≈22.0") – 2500mm (≈98.4")
Material Rubber with reinforcing tensile cord
Quantity per Order 1 piece
Pulley Compatibility T10-profile pulleys (10mm pitch) only
Color/Finish See variant options
Operating Temperature Contact us to confirm
Max Speed / Load Rating See variant options / Contact us to confirm

❓ Frequently Asked Questions

How do I choose the right T10 timing belt length?

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Length = 2 × C + π × (D1 + D2) / 2. The number in the belt name is the pitch circumference in mm — for example, T10-800 has an 800mm (≈31.5") pitch length. Always round up to the nearest available size and verify against your pulley tooth count. When in doubt, go one size longer — a slightly loose belt can be tensioned; a belt that's too short cannot be installed.

What load can a T10 rubber timing belt handle?

T10 belts are generally rated for moderate power transmission. Wider belts (25mm) typically carry higher torque than narrower ones (15mm). Exact load ratings depend on pulley diameter, speed, and operating conditions. For precise capacity data, contact us with your application details and we can help confirm suitability.

Can T10 timing belts be used outdoors or in wet environments?

The rubber compound generally provides good resistance to moisture and mild chemicals. However, prolonged UV exposure, contact with oils, or extreme temperatures may reduce service life. For harsh outdoor or chemical environments, contact us to confirm the compound specification before ordering.

What pulley standard is compatible with T10 timing belts?

T10 belts require T10-profile pulleys with a 10mm pitch trapezoidal tooth. They are not interchangeable with AT10, HTD 10mm, or GT2 pulleys — the tooth geometry differs. Always verify your pulley is labeled "T10" before ordering.

Which belt width should I choose — 15mm, 20mm, or 25mm?

Match the belt width to your pulley flange width. As a general guide: 15mm suits light-duty 3D printer axes and small CNC machines; 20mm works well for medium-duty automation and laser cutters; 25mm is preferred for higher-torque conveyor or industrial indexing drives. When in doubt, choose the width your pulley was designed for.

Are these closed-loop belts or open-ended?

These are closed-loop (endless) belts — a continuous loop with no joint or splice. This is required for most pulley-driven timing systems and eliminates the weak point of a joined belt. They cannot be cut and re-joined without specialized vulcanizing equipment.

What is the tooth pitch and profile of a T10 belt?

T10 denotes a trapezoidal tooth profile with a 10mm pitch (center-to-center distance between teeth). Tooth height is typically 2.5mm and the tooth base width is approximately 6mm. This profile provides reliable engagement across a wide range of pulley speeds and is a common metric standard in European and Asian machine designs.

🛒 Select your belt type (length) and width above, then add to cart — ships from our US warehouse.
