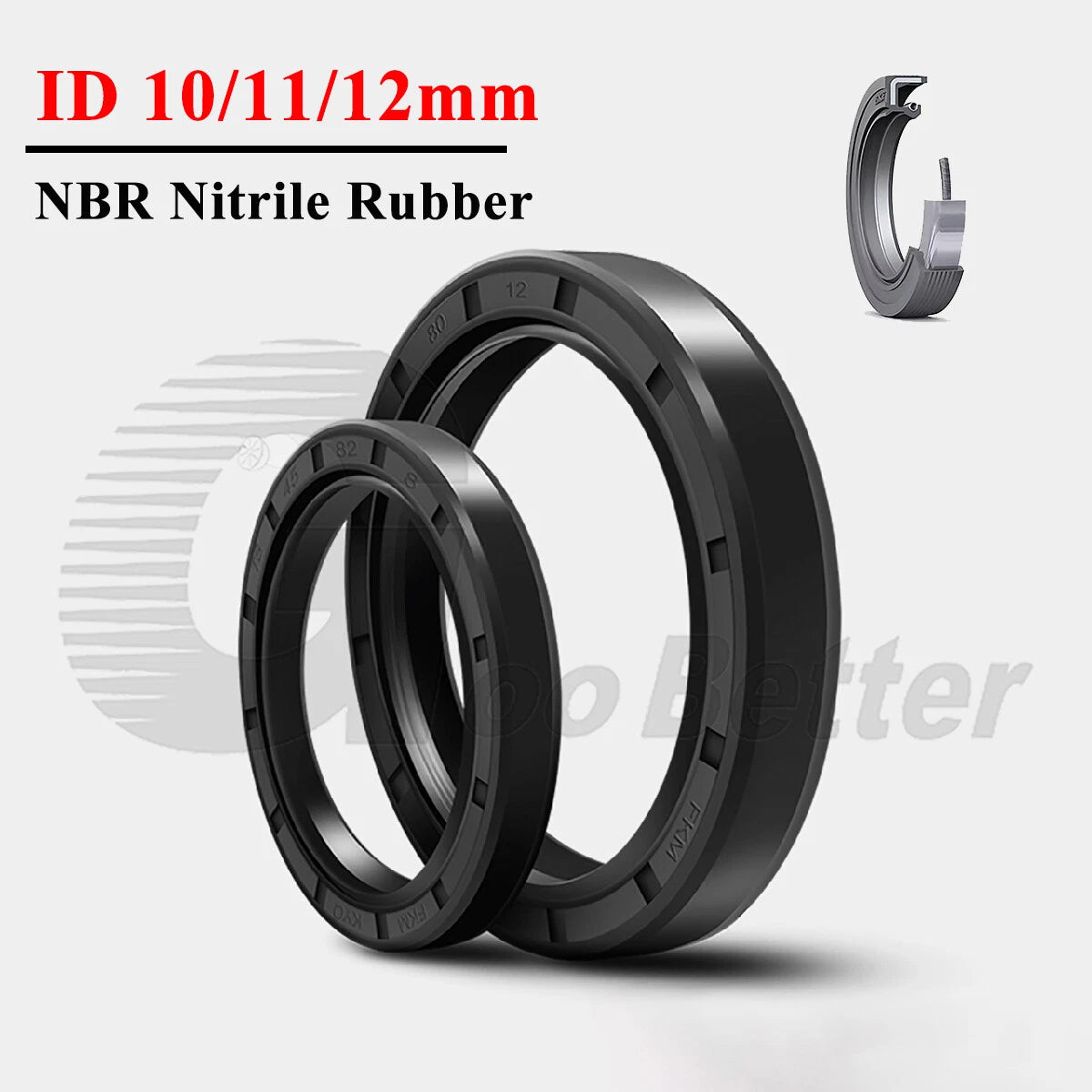

TC Oil Seal 10mm 11mm 12mm ID – NBR 70 Dual Lip Rotary Shaft Seal Ring

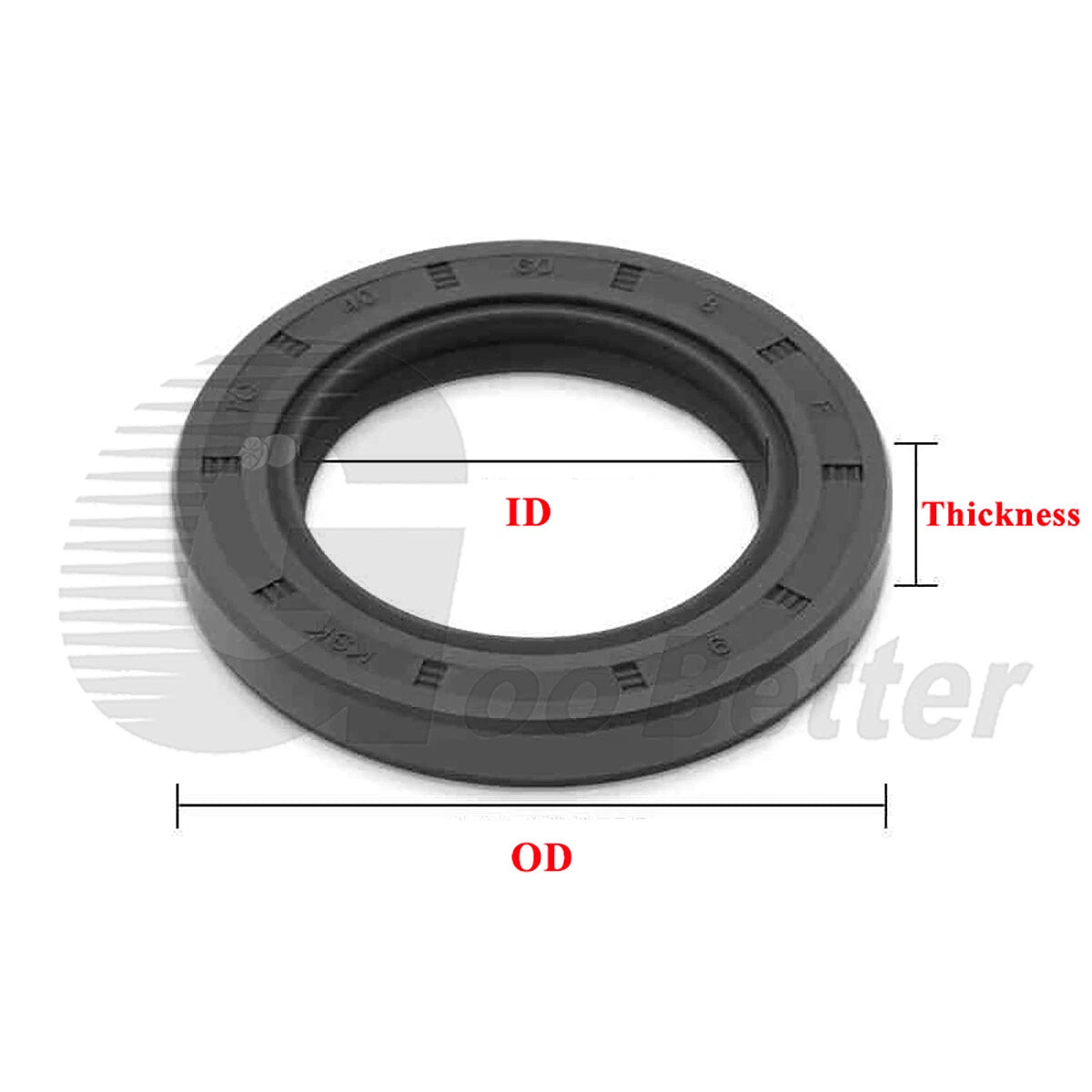

Measure your shaft's outer diameter — that becomes the seal's Inner Diameter (ID). Then check the housing bore for the Outer Diameter (OD), and measure the housing groove depth for the correct thickness. For example, a 10mm shaft typically pairs with a seal listed as 10 × OD × Thickness. When in doubt, go by the shaft diameter first, then match OD and thickness to your housing. A 10mm ID seal fits a 10mm shaft; a 12mm ID seal fits a 12mm shaft. Use calipers for accurate measurement — even a 0.5mm error can cause leaks or installation difficulty.

NBR stands for Nitrile Butadiene Rubber, and 70 refers to the Shore A hardness rating. A harder compound (70 vs. 60) generally provides better extrusion resistance under pressure. NBR 70 typically handles temperatures from approximately -40°F to +250°F (-40°C to +120°C) and offers good resistance to petroleum-based oils, hydraulic fluids, and greases. It is not recommended for use with phosphate ester fluids, ketones, or strong acids.

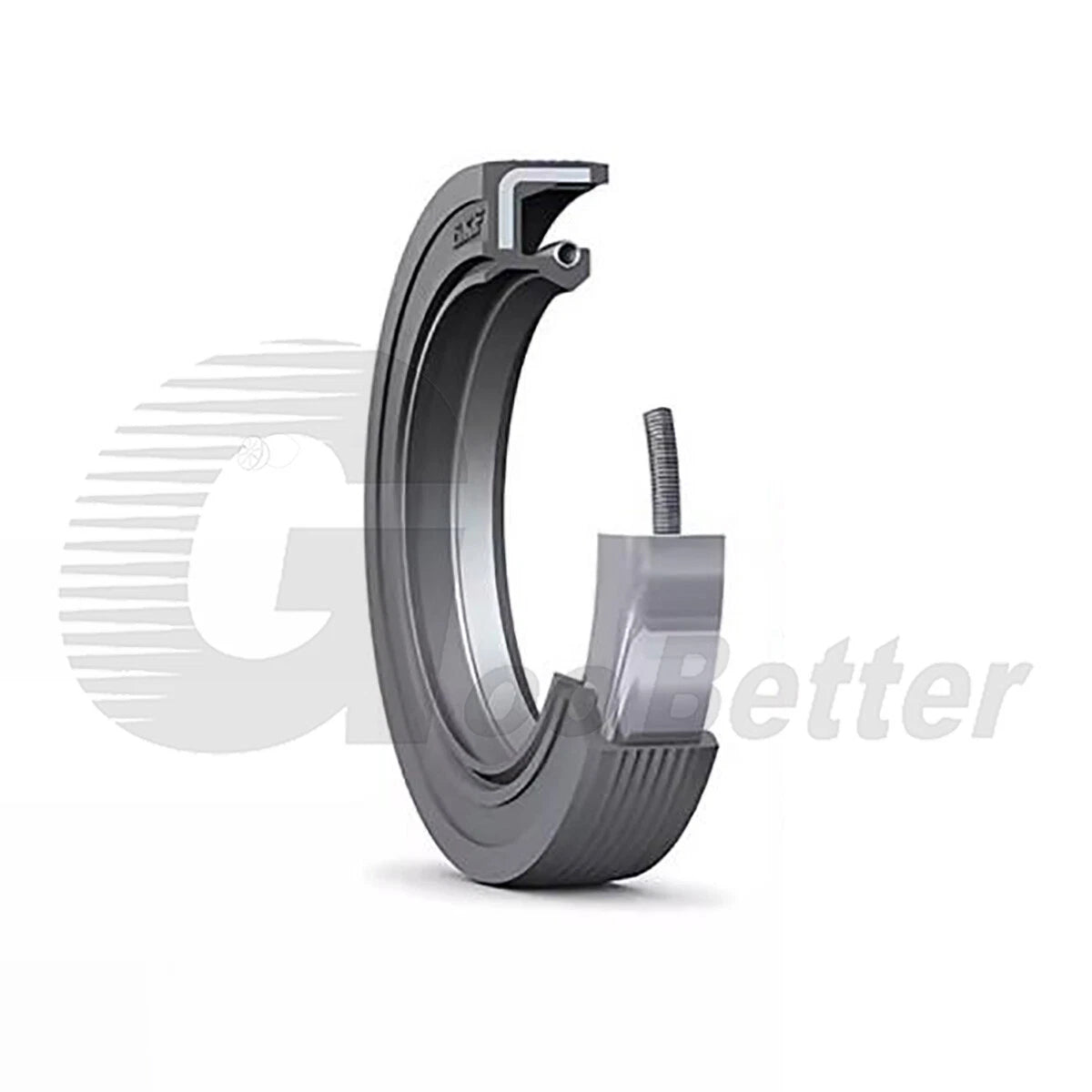

Yes. The dual-lip design includes a primary sealing lip to retain lubricant and a secondary dust/exclusion lip to block water, dirt, and contaminants from entering the bearing or gearbox. This makes TC seals generally suitable for outdoor equipment, agricultural machinery, lawn tractors, and applications exposed to moisture and debris — though prolonged submersion is not typically recommended for standard TC seals.

TC skeleton oil seals are designed for rotary shaft applications. Acceptable shaft surface speed typically ranges up to approximately 4–6 m/s for standard NBR seals, depending on shaft surface finish (Ra 0.2–0.8 µm is generally recommended) and lubrication conditions. For high-speed applications, confirm the specific speed rating with your equipment manual or contact us.

NBR 70 is generally compatible with mineral-based oils, hydraulic fluids (HM/HV type), gear oils, and greases. It is not recommended for use with phosphate ester-based fluids (e.g., Skydrol), ketones, or strong acids. If you use full-synthetic ester-based oils or specialty fluids, verify compatibility before installation, as some synthetics can cause NBR to swell or degrade over time.

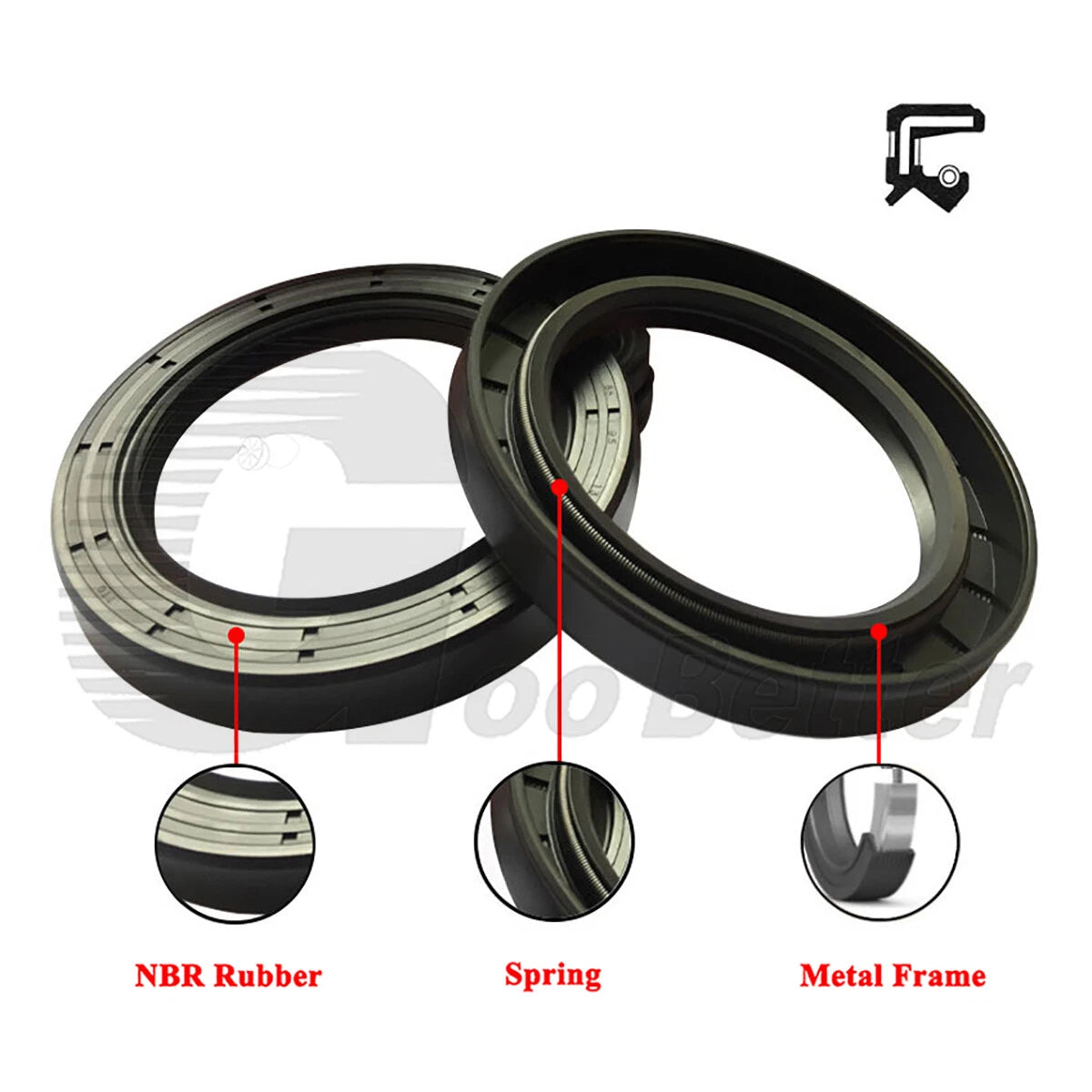

TC (Type C) seals feature a metal case with dual rubber lips — ideal for most general-purpose rotary shaft sealing where both oil retention and dust exclusion are needed. If your application only requires a single sealing function, a SC or SB type may suffice. For very high-pressure applications, a different seal design may be more appropriate. TC seals are the most common choice for electric motors, gearboxes, pumps, and wheel hubs in light to medium-duty equipment.

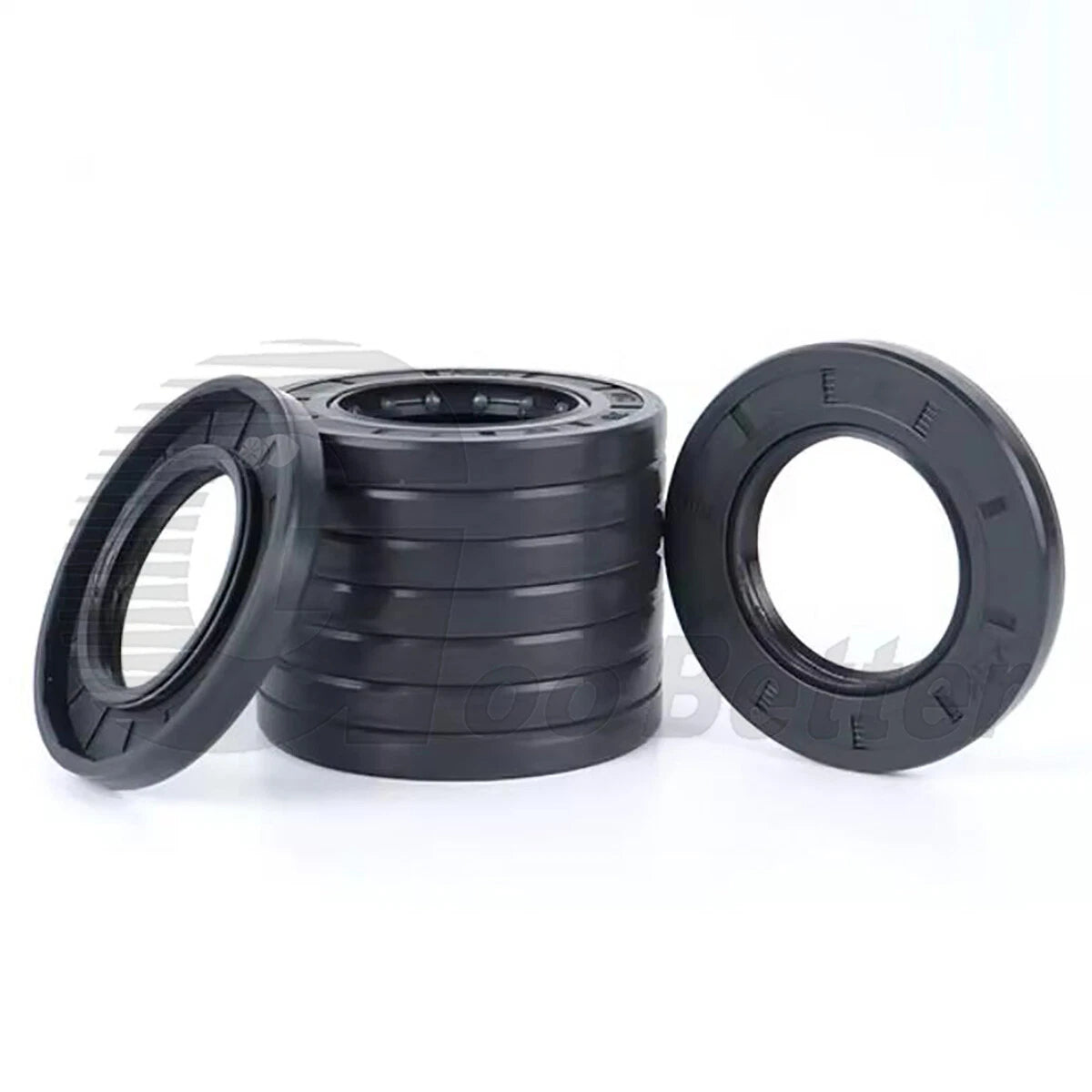

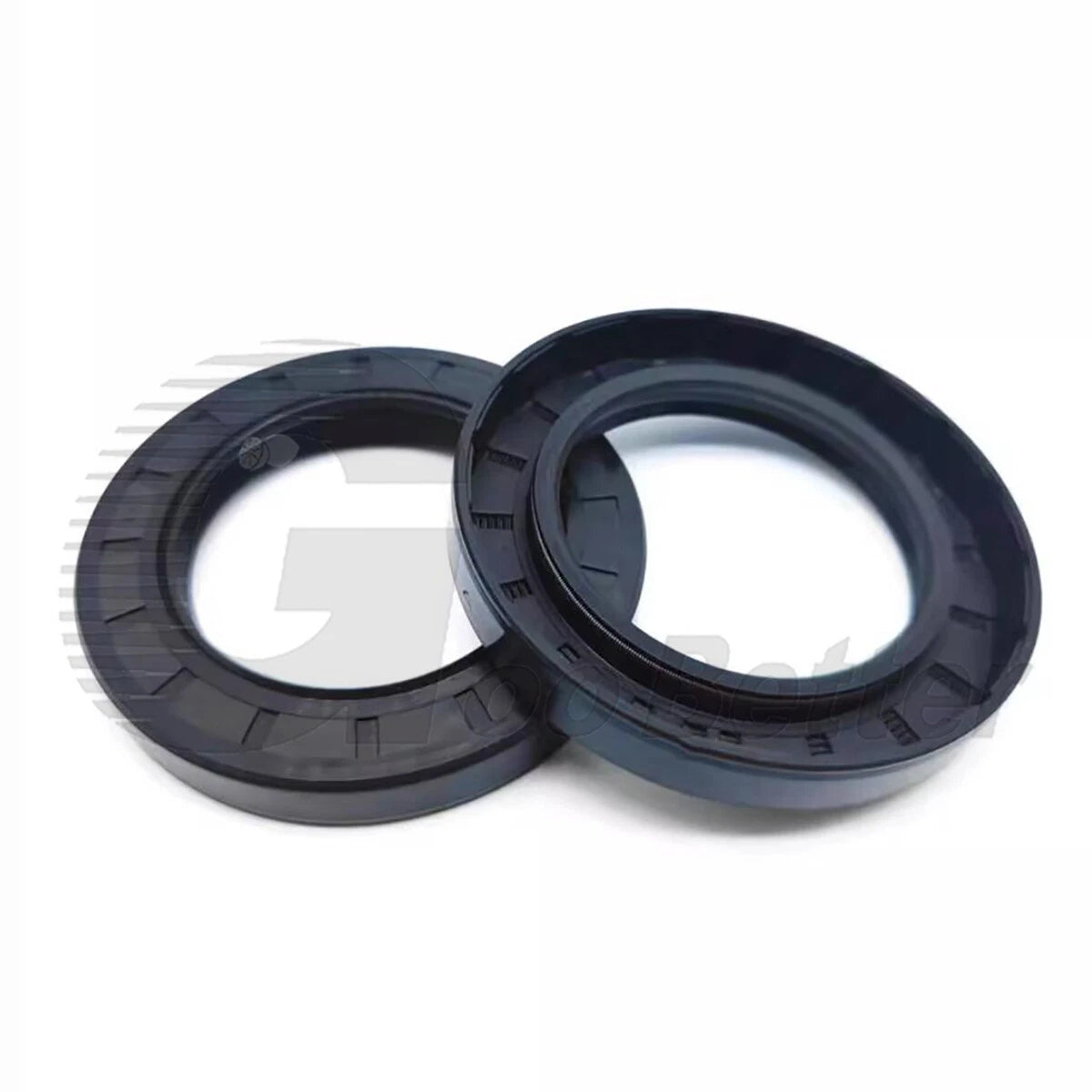

Both options contain the identical seal — same material, same dimensions, same quality. The 2 PCS pack is ideal for a single-machine repair or for trying a new size before committing to a larger quantity. The 10 PCS pack offers a lower per-unit cost and is suited for maintenance shops, fleet servicing, or keeping spare seals on hand for scheduled maintenance intervals.
