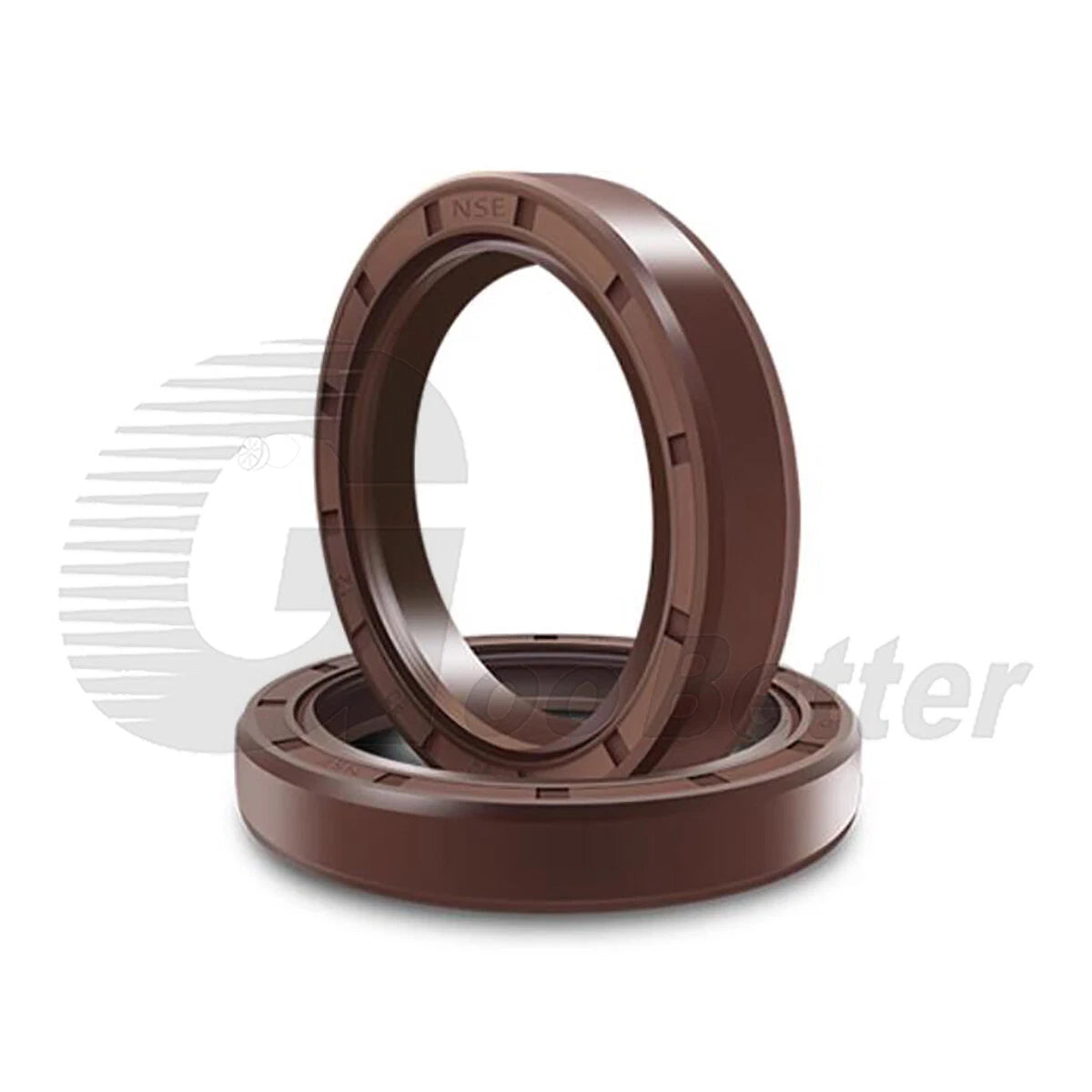

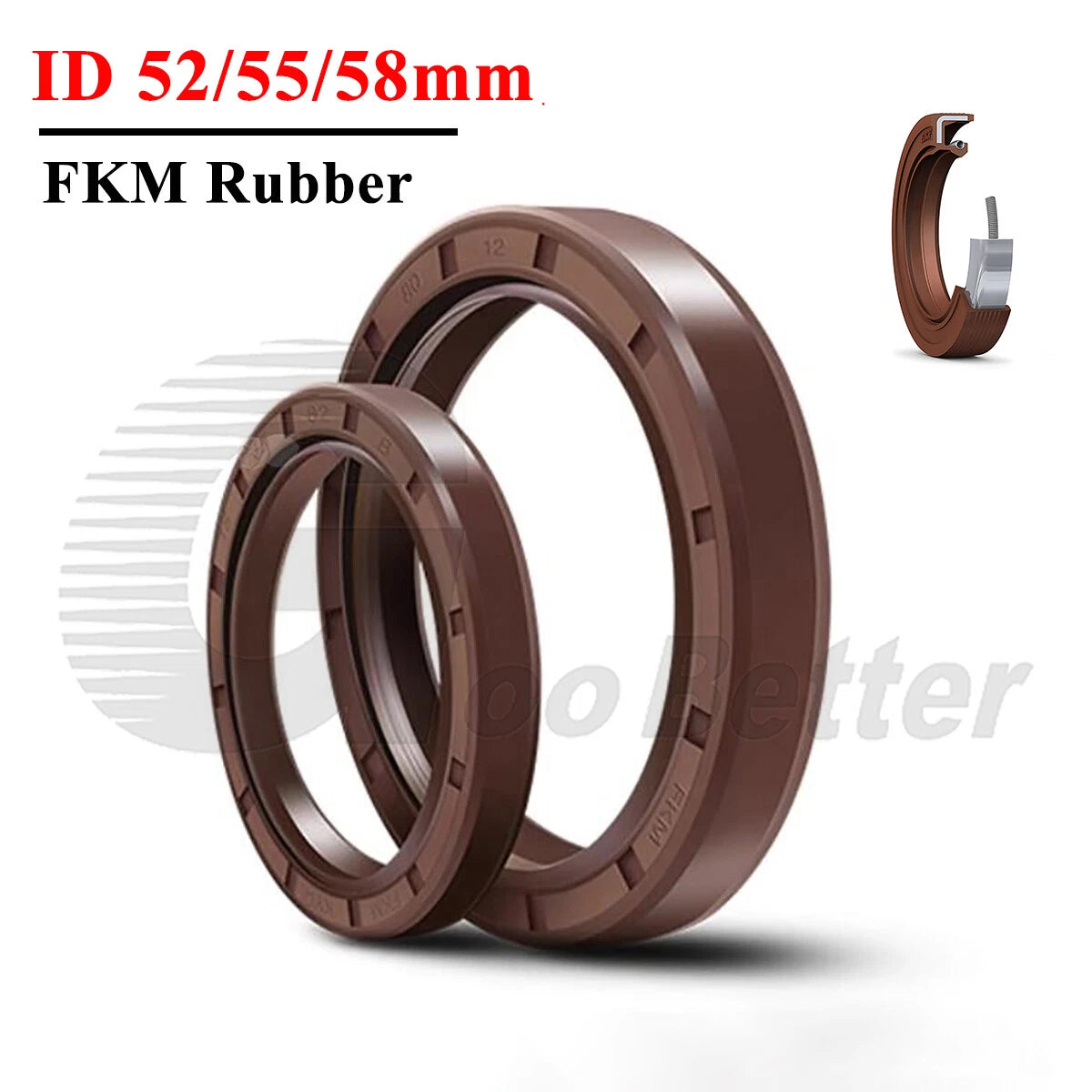

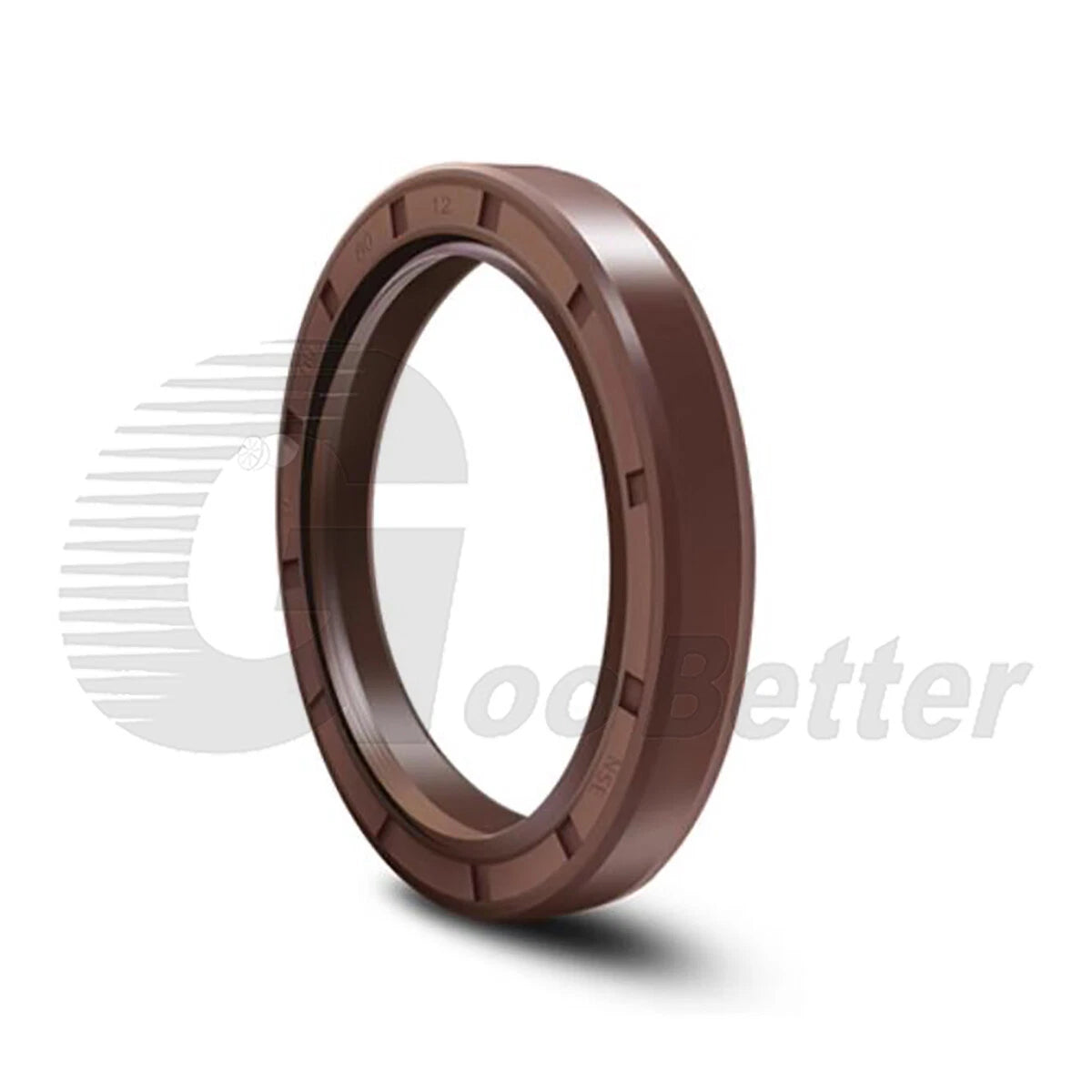

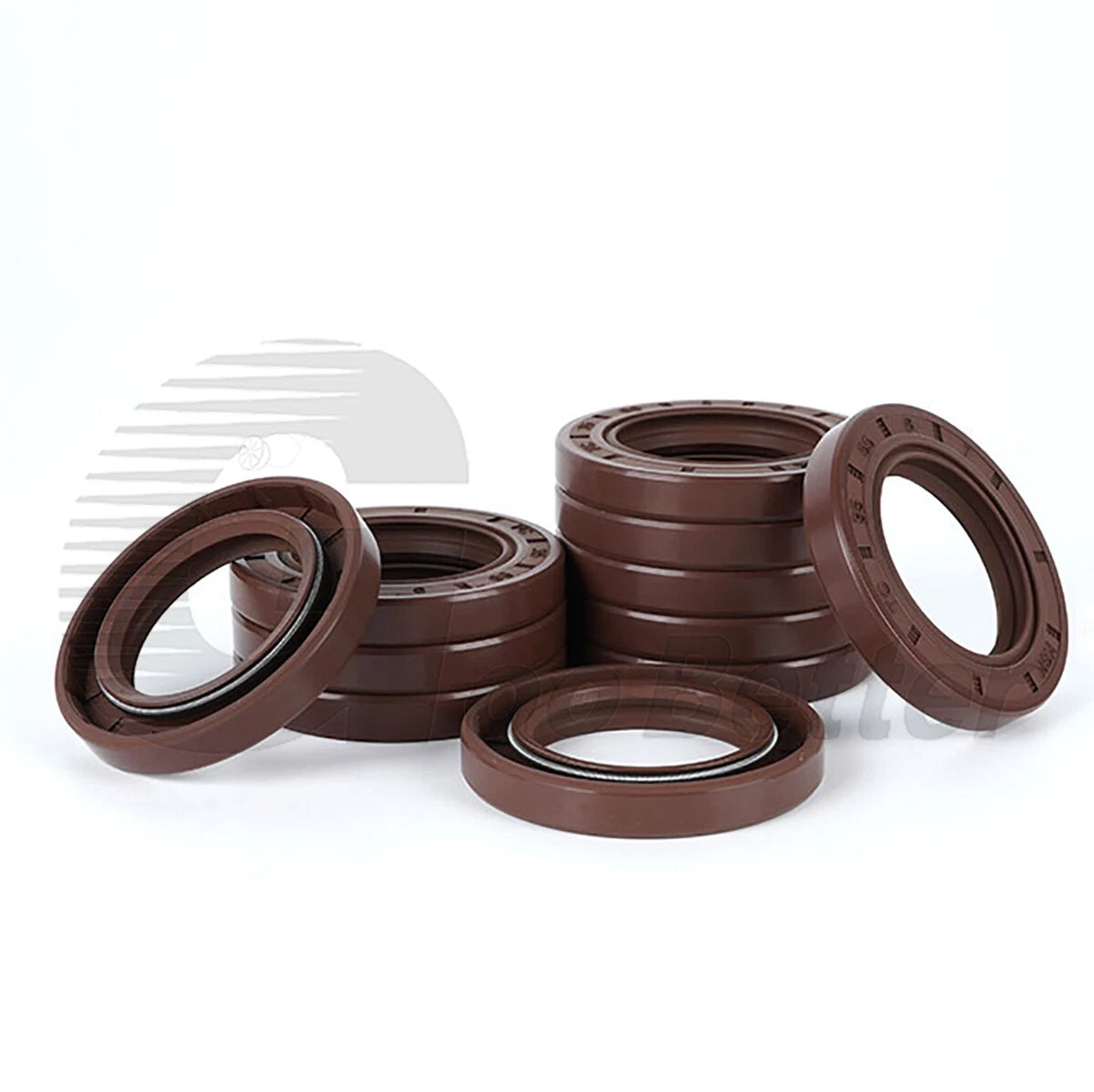

TC Skeleton Oil Seal ID 52-58mm FKM Rubber Dual Lip Rotary Shaft Seal Ring

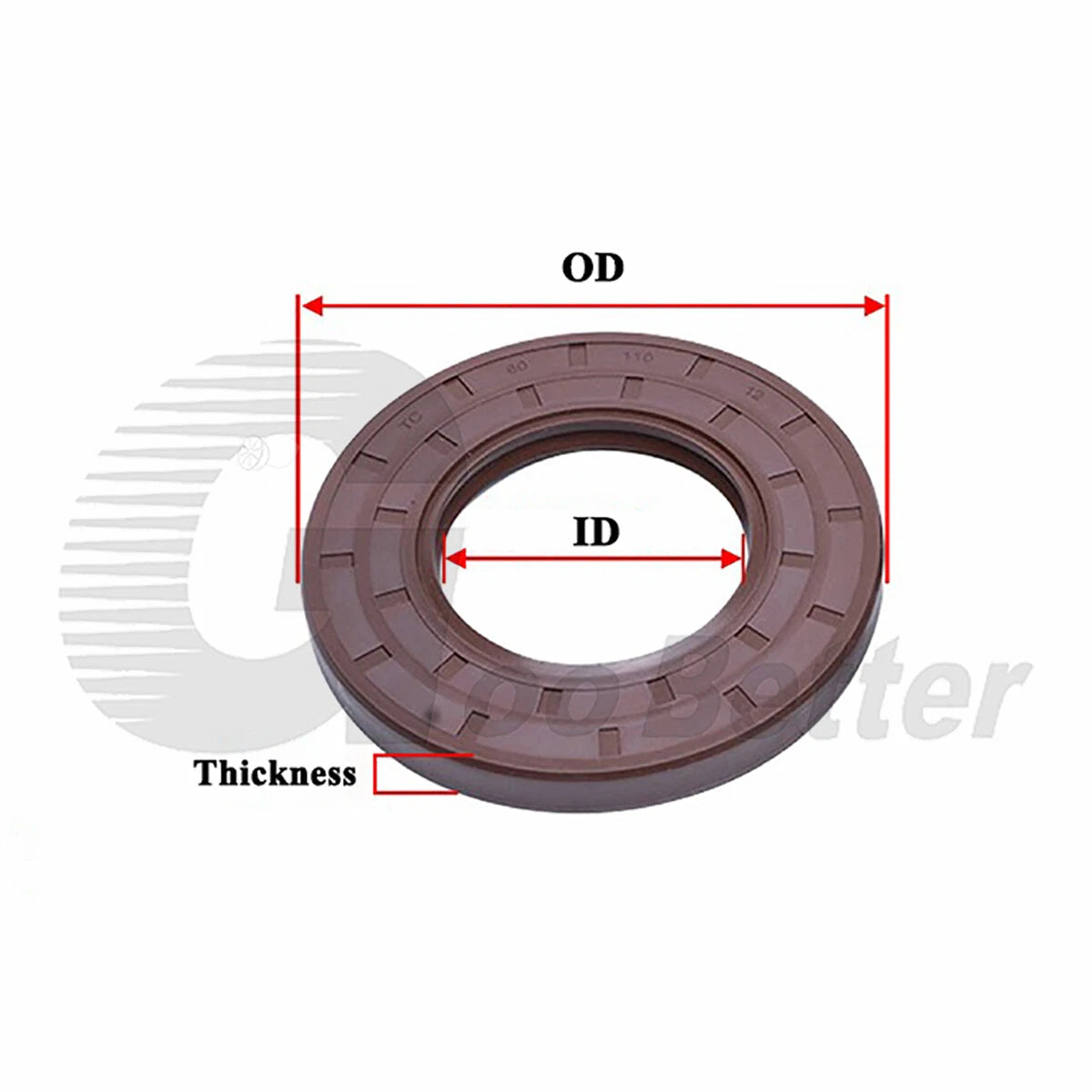

Measure the shaft diameter (ID), housing bore diameter (OD), and housing depth (thickness) with calipers. The ID must match your shaft closely — typically within 0.1–0.3mm tolerance. For example, a 55mm shaft needs a seal with ID 55mm. Cross-reference OD and thickness with your housing dimensions. When in doubt, consult your equipment's service manual or contact us with your measurements.

FKM (fluoroelastomer) rubber generally withstands continuous operating temperatures from -20°C (-4°F) to +200°C (+392°F). This makes it suitable for high-heat applications such as engine compartments, industrial gearboxes, and hydraulic systems where standard NBR seals would degrade prematurely.

Yes. The dual-lip TC design includes a secondary dust lip that blocks moisture, dirt, and debris from entering the bearing cavity. FKM rubber also offers good resistance to water and weathering, making these seals suitable for outdoor machinery, agricultural equipment, and marine-adjacent applications. For fully submerged or high-pressure water environments, contact us to confirm suitability.

FKM rubber is generally compatible with petroleum-based oils, synthetic lubricants, hydraulic fluids, fuels, and many industrial chemicals. It outperforms NBR in contact with aromatic hydrocarbons and high-temperature oils. For critical applications involving aggressive chemicals, verify compatibility with a fluid resistance chart or contact us before ordering.

Clean the housing bore and shaft thoroughly. Lightly lubricate the seal lip with the fluid being sealed. Press the seal squarely into the housing bore using a seal driver or a flat block — never hammer directly on the seal face. The seal should sit flush or slightly below the housing surface. Avoid nicking or rolling the lip during installation, as this will cause immediate leakage.

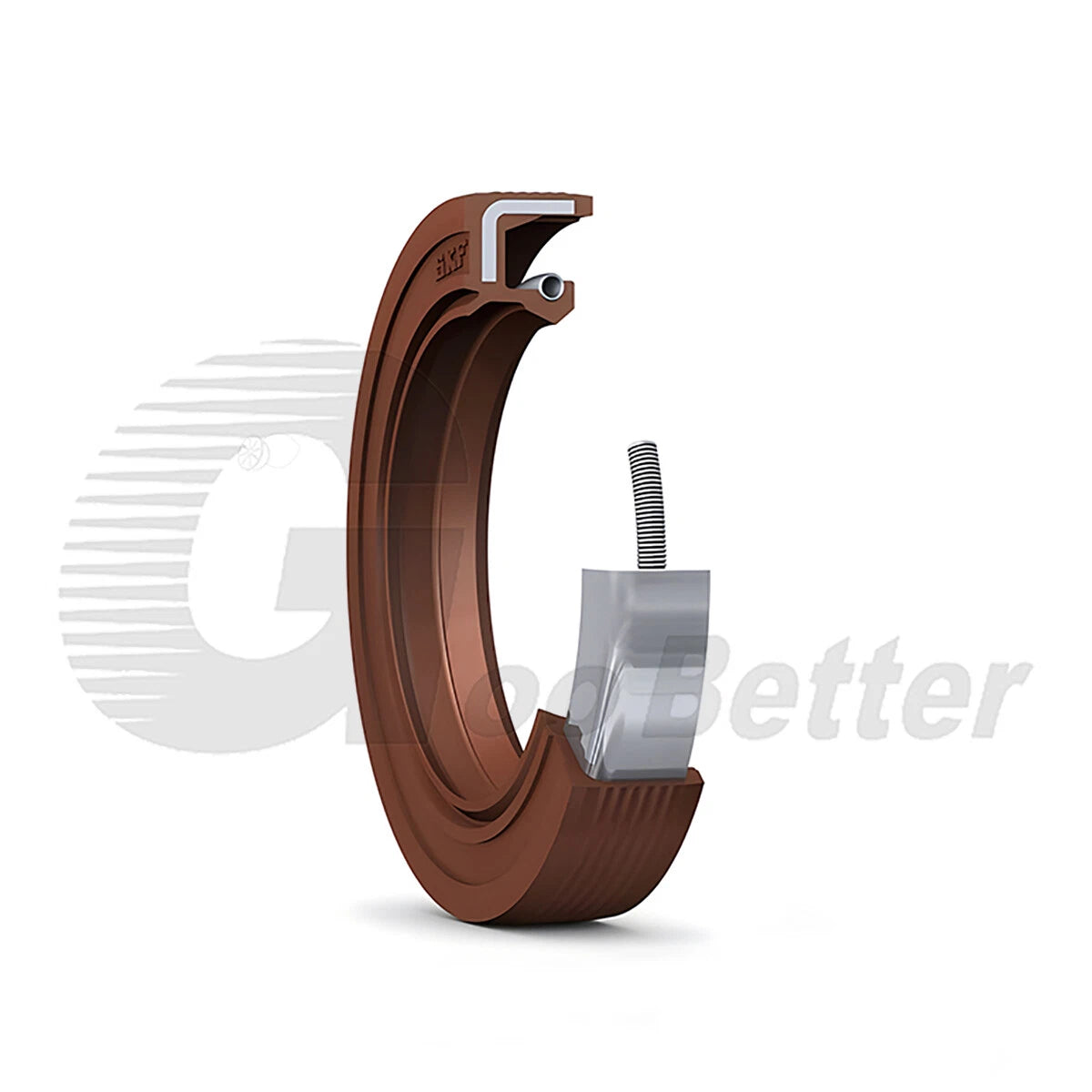

TC seals have two lips: a primary sealing lip that retains lubricant and a secondary dust lip that excludes contaminants. SC seals have only a single lip. TC seals are generally preferred for applications where both fluid retention and contamination exclusion are important — such as gearboxes, axles, and pumps. If your original seal is marked "TC," replace it with a TC-type seal.

TC skeleton oil seals are designed for rotary shaft applications and are typically rated for shaft surface speeds up to approximately 4–8 m/s depending on seal size and lubricant viscosity. For very high-speed applications, confirm the shaft surface finish (typically Ra 0.2–0.8 µm recommended) and ensure adequate lubrication at the seal lip to prevent premature wear.
