When a standard-width bearing isn't enough — whether you're rebuilding a gearbox, replacing a worn spindle bearing, or specifying components for a custom machine — the thickening deep groove ball bearings in the 62200–62217 series deliver the extra axial and radial capacity that the narrower 6200 series cannot. Engineers, maintenance technicians, and serious DIYers who need a drop-in upgrade with a wider cross-section will find the right model here.

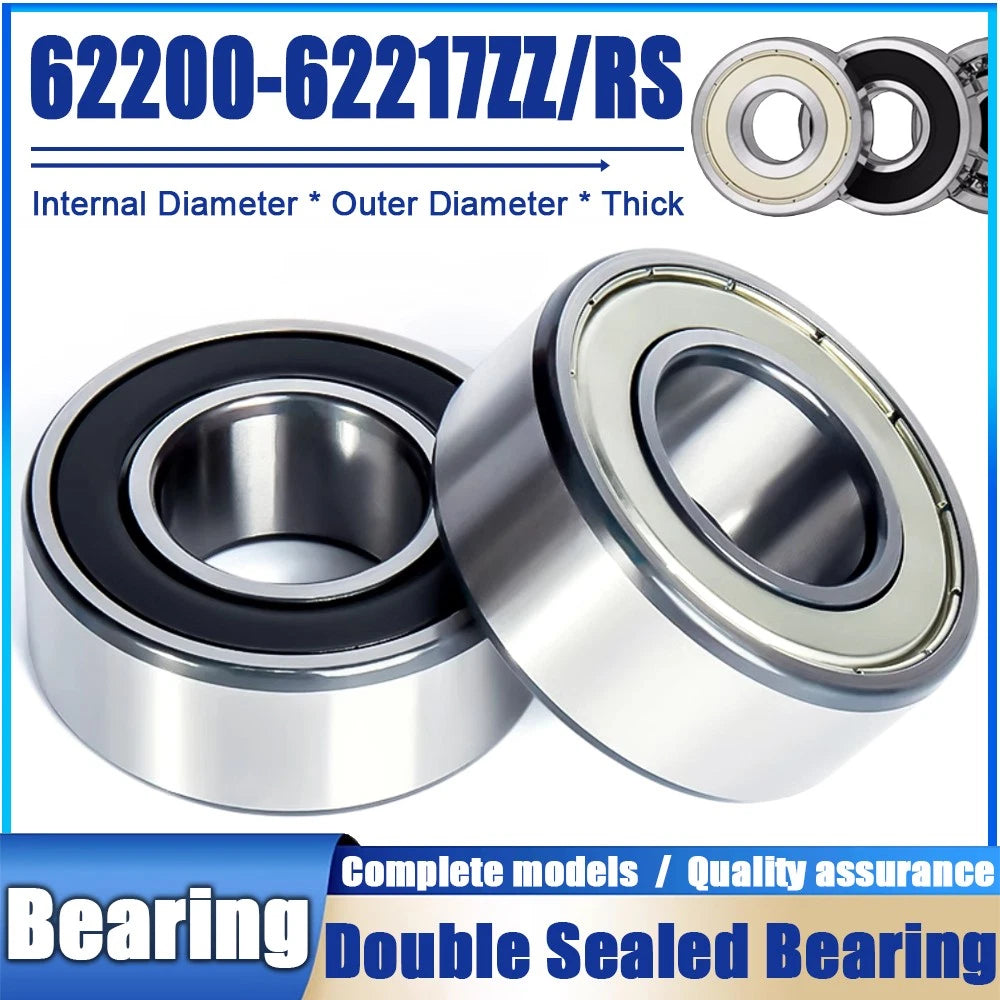

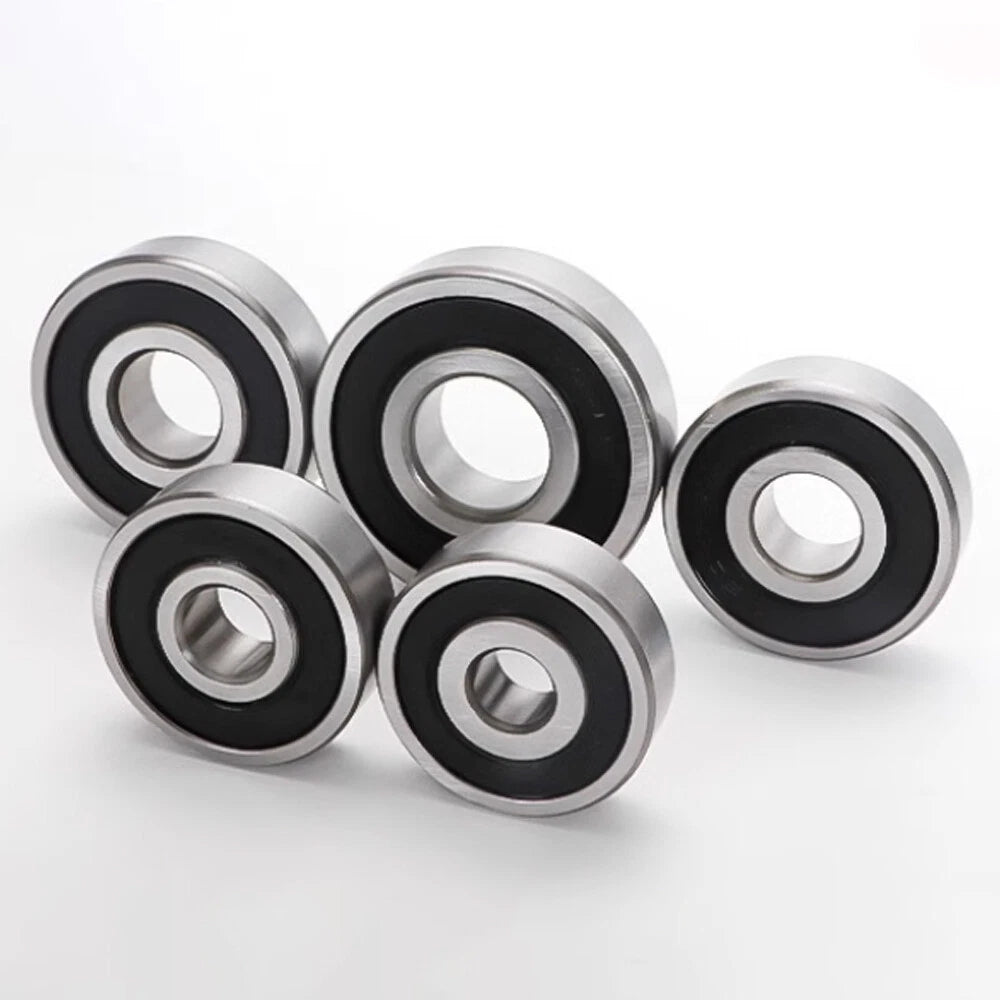

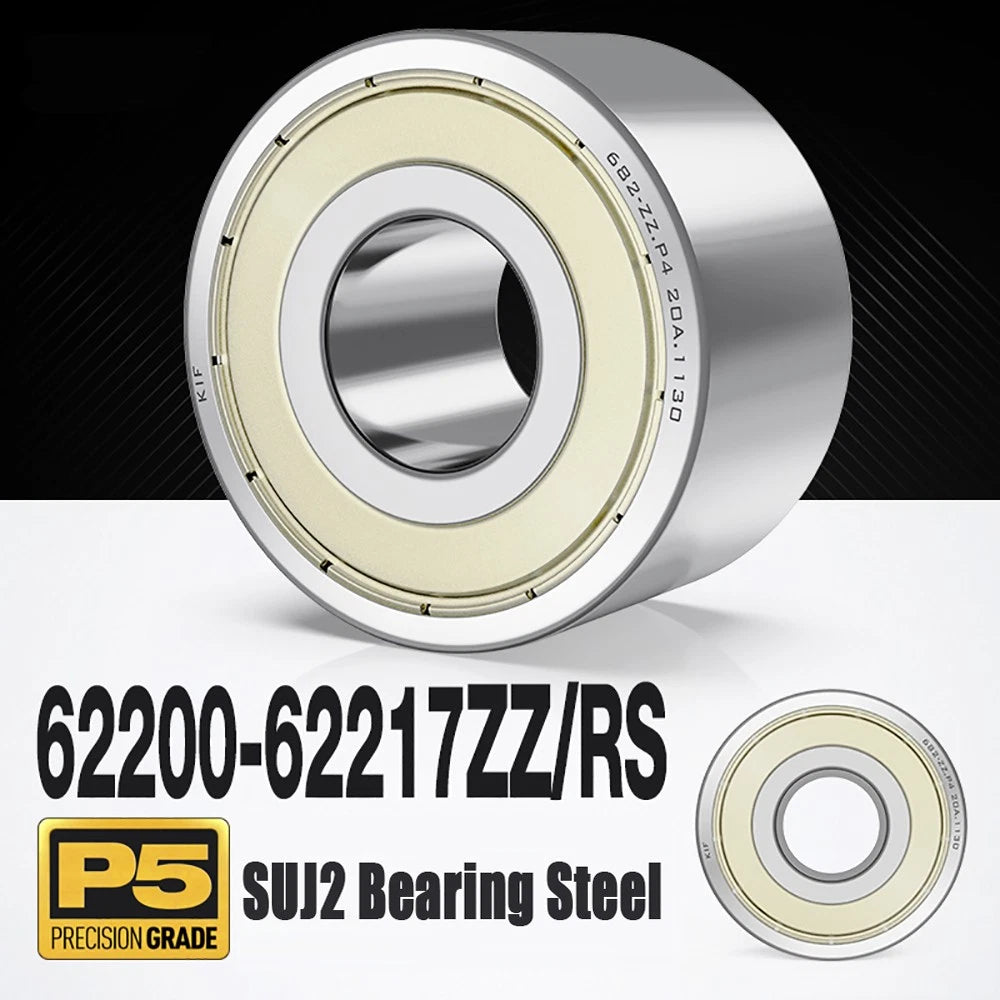

This listing covers the full 62200 through 62217 range, with bore diameters from 10 mm (0.394 in) to 85 mm (3.346 in), outer diameters from 30 mm (1.181 in) to 150 mm (5.906 in), and widths from 14 mm (0.551 in) to 31 mm (1.220 in). Each bearing is available in two seal configurations: ZZ (double-shielded steel covers for grease retention in dry environments) and 2RS (double-contact rubber seals for superior dust and moisture exclusion). Sold individually or in multi-piece packs — select your model and quantity above.
Typical applications include electric motor shaft support, agricultural equipment gearboxes, conveyor drive rollers, pump impeller shafts, and light industrial machine tool spindles — anywhere a thickening deep groove ball bearing with a wider body is required to handle combined radial and moderate thrust loads.
The thickened width (B dimension) increases the ball complement and contact area, raising both dynamic and static load ratings compared to standard 6200-series equivalents of the same bore.

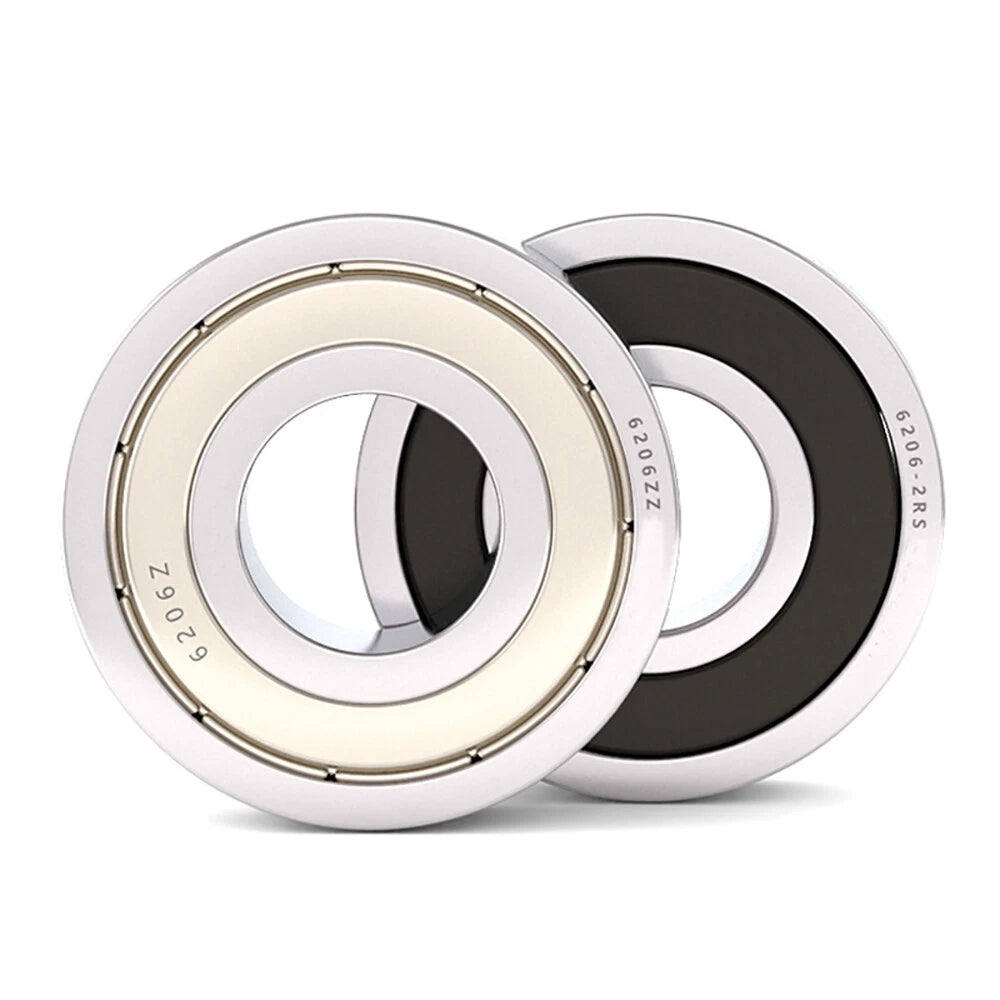

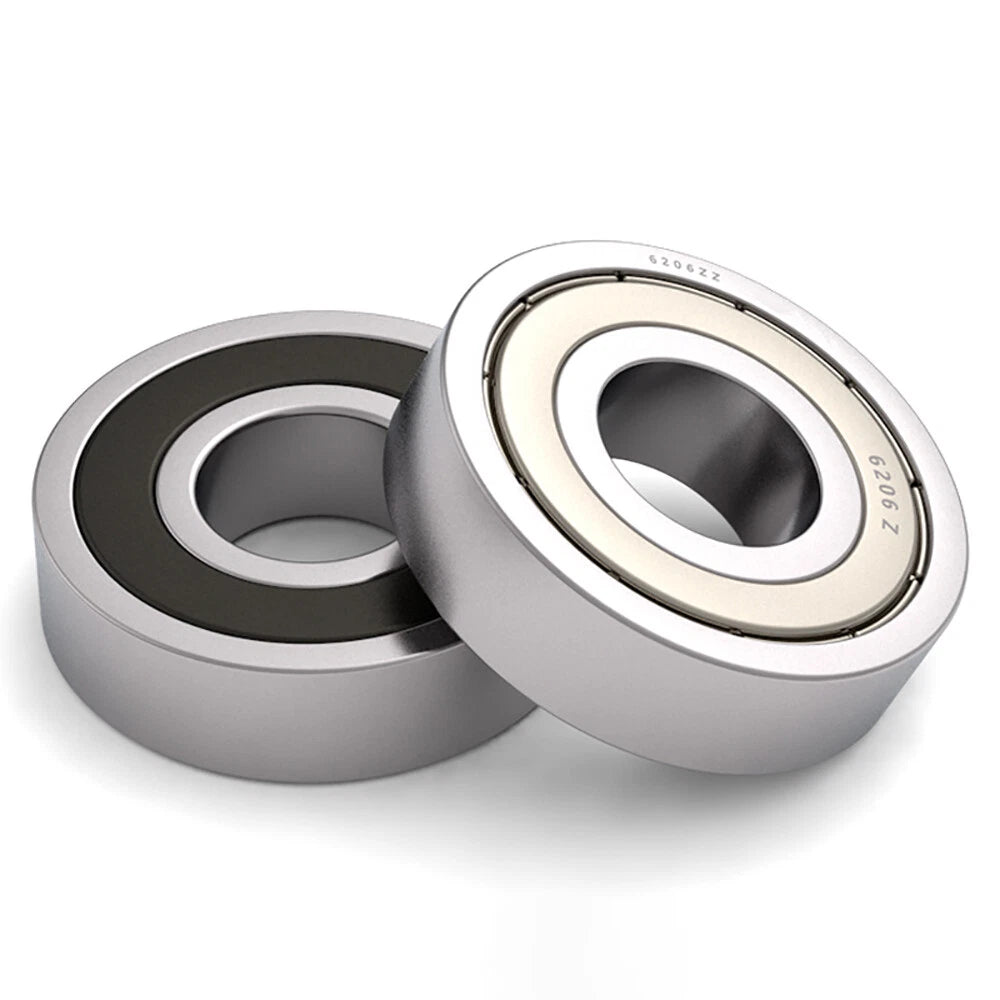

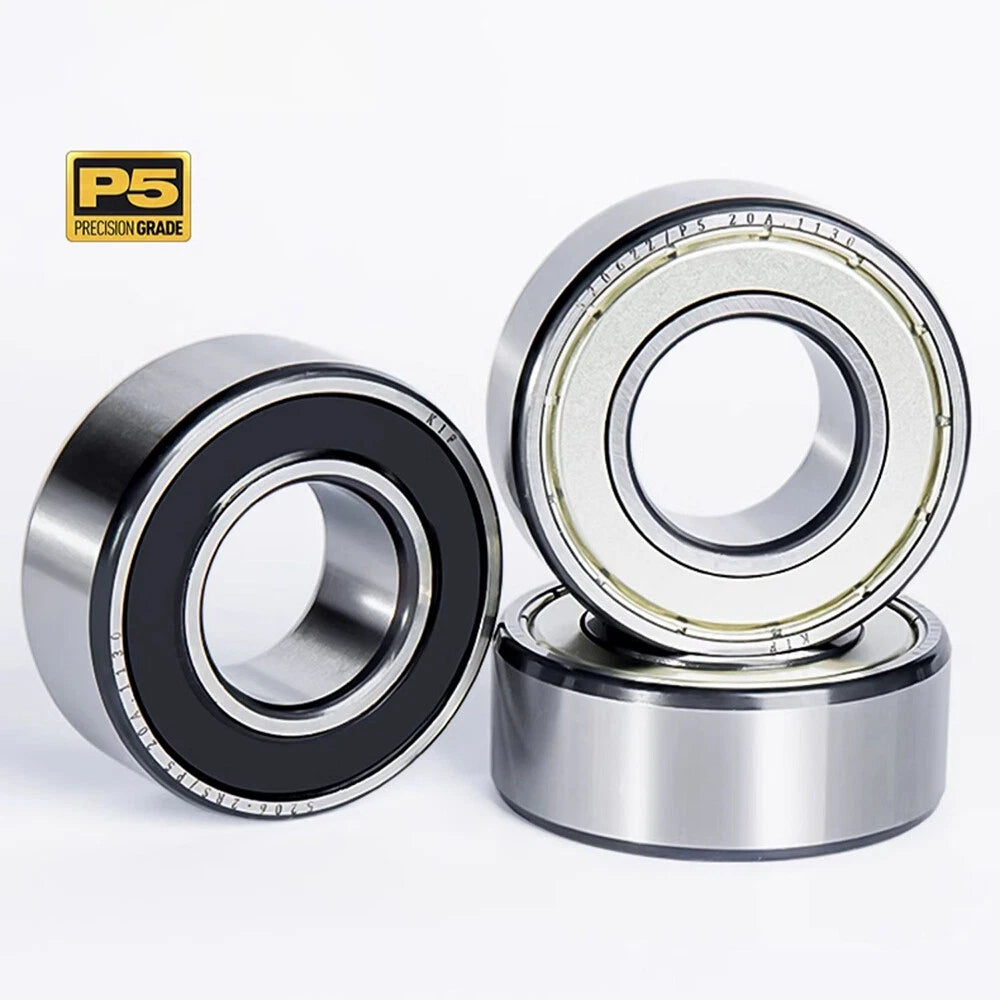

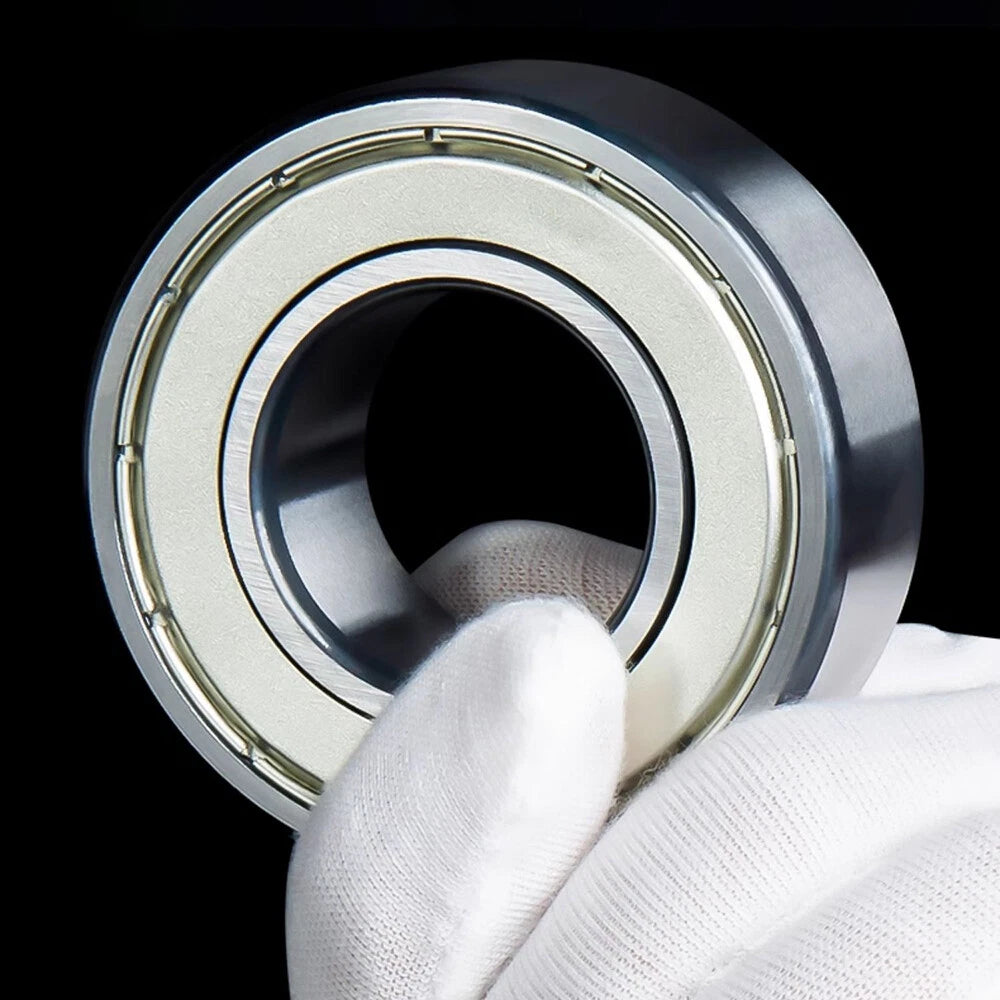

ZZ steel shields suit clean, grease-lubricated environments and allow slightly higher speed ratings. 2RS rubber contact seals provide a tighter barrier against contaminants — choose based on your operating environment.

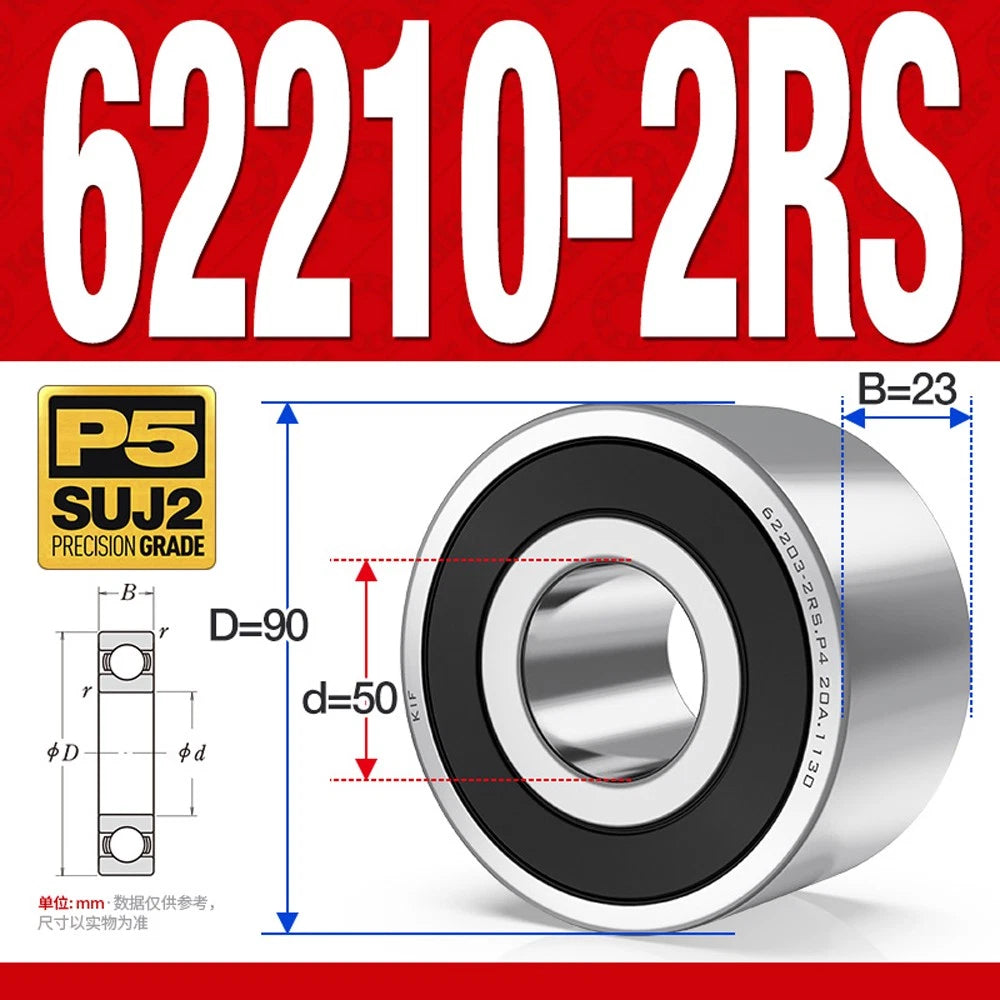

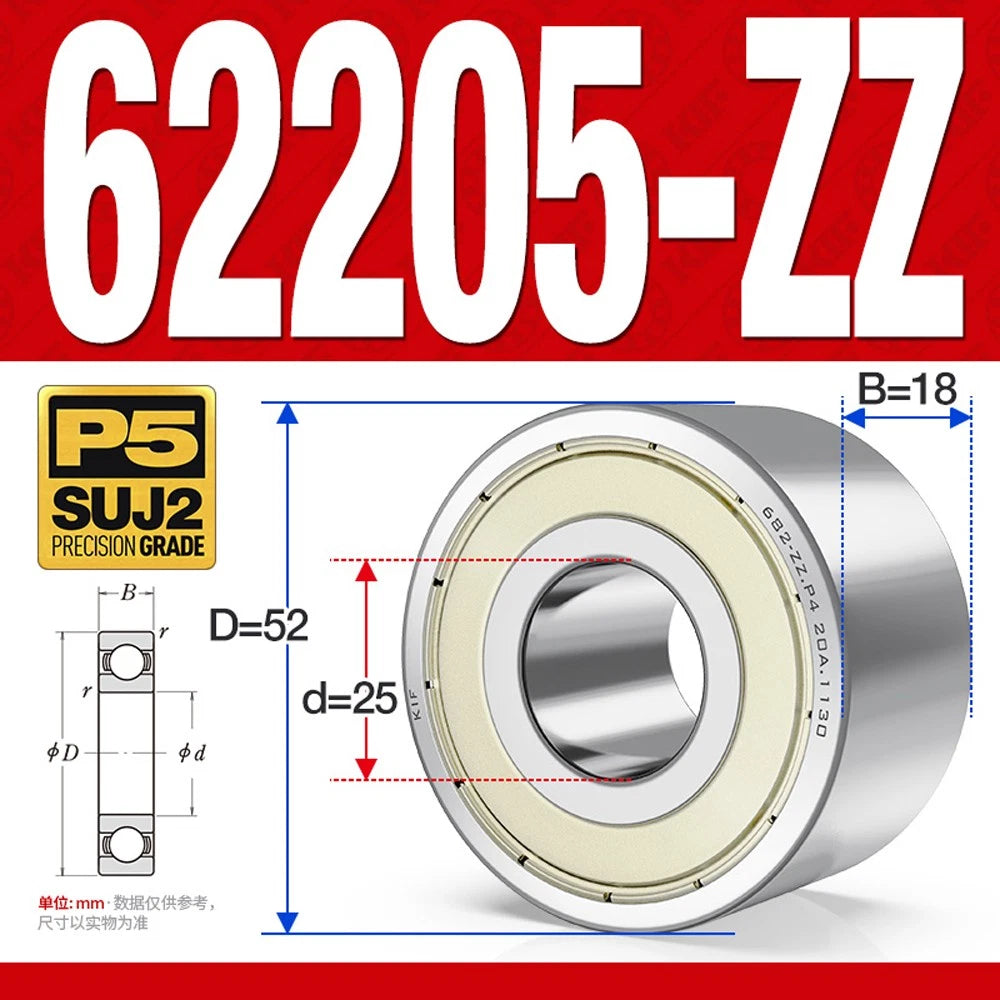

Bore sizes from 10 mm to 85 mm in a single listing. Select the exact model number (e.g., 62205-ZZ, 62210-2RS) directly from the variant dropdown — no need to search across multiple product pages.

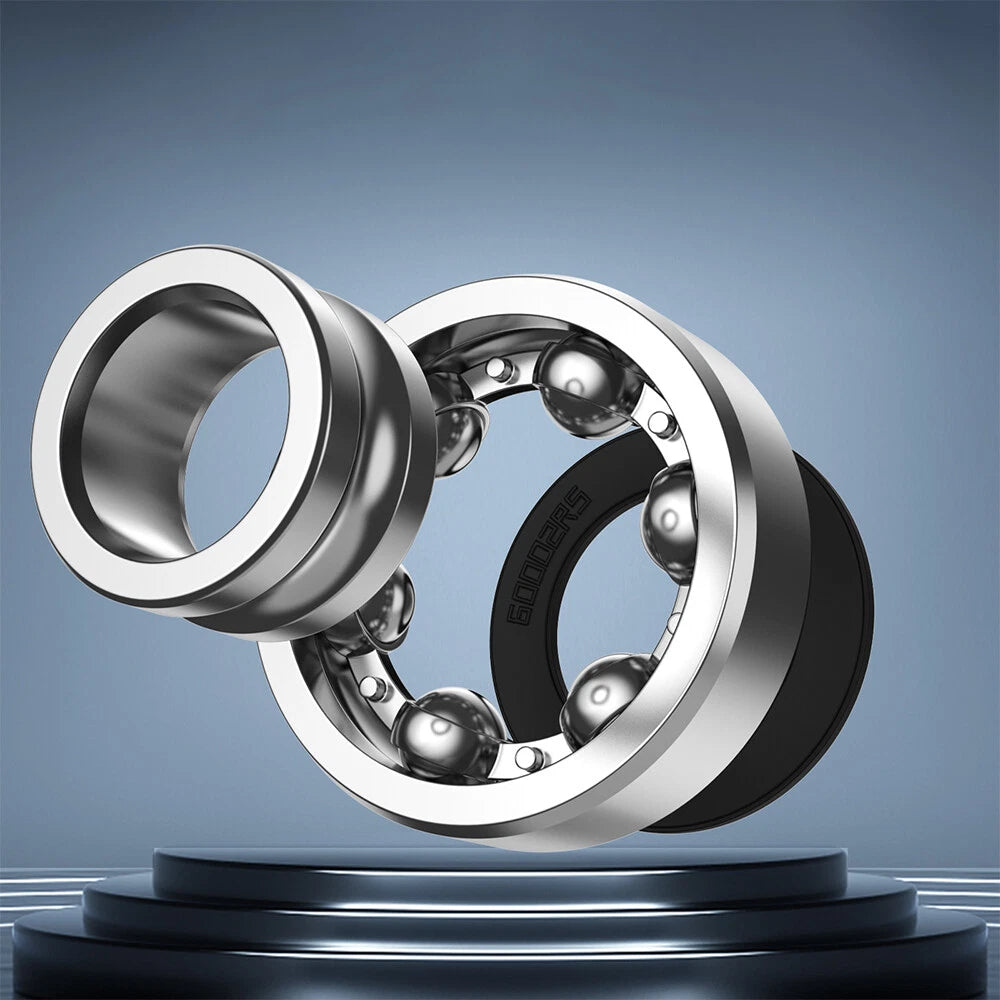

Deep groove geometry accommodates combined loading in both radial and axial directions, making these bearings versatile across rotating shaft applications in motors, pumps, and gearboxes.
Each bearing is factory-filled with grease and sealed — no additional lubrication is required before installation in most standard-duty applications.

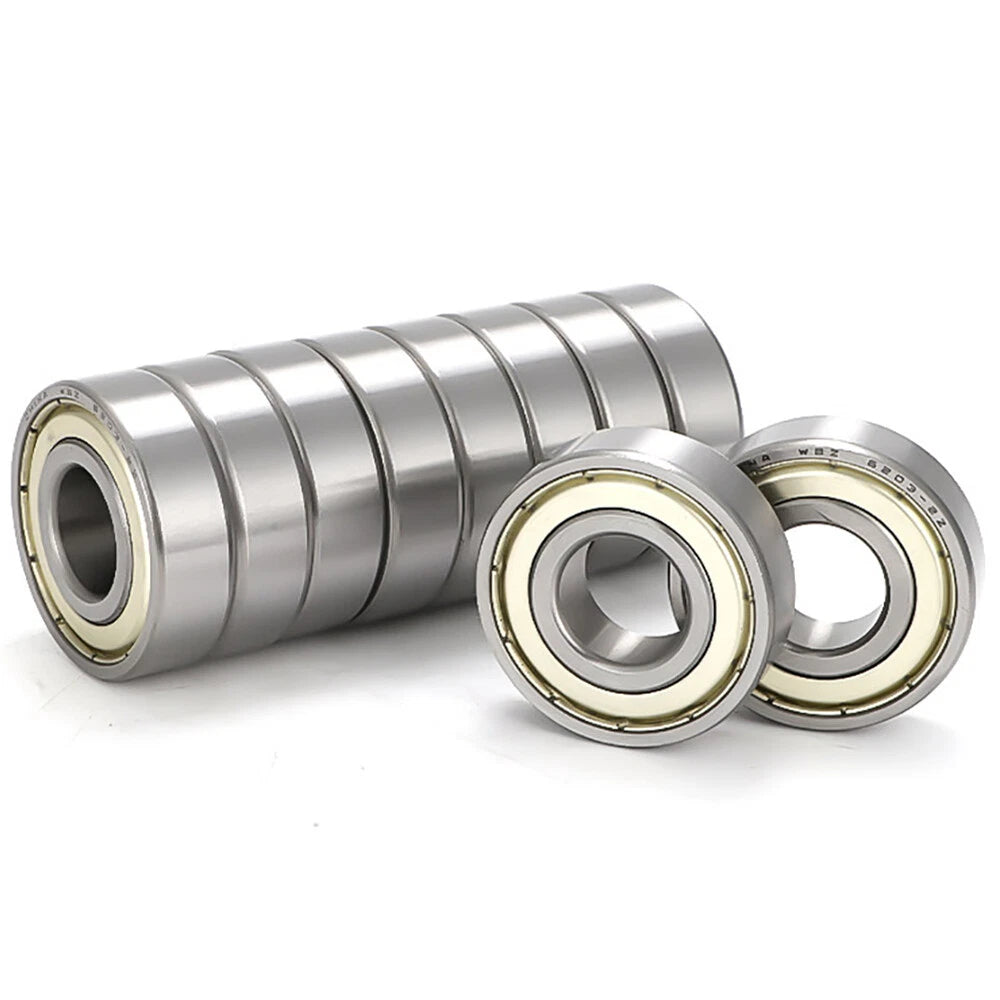

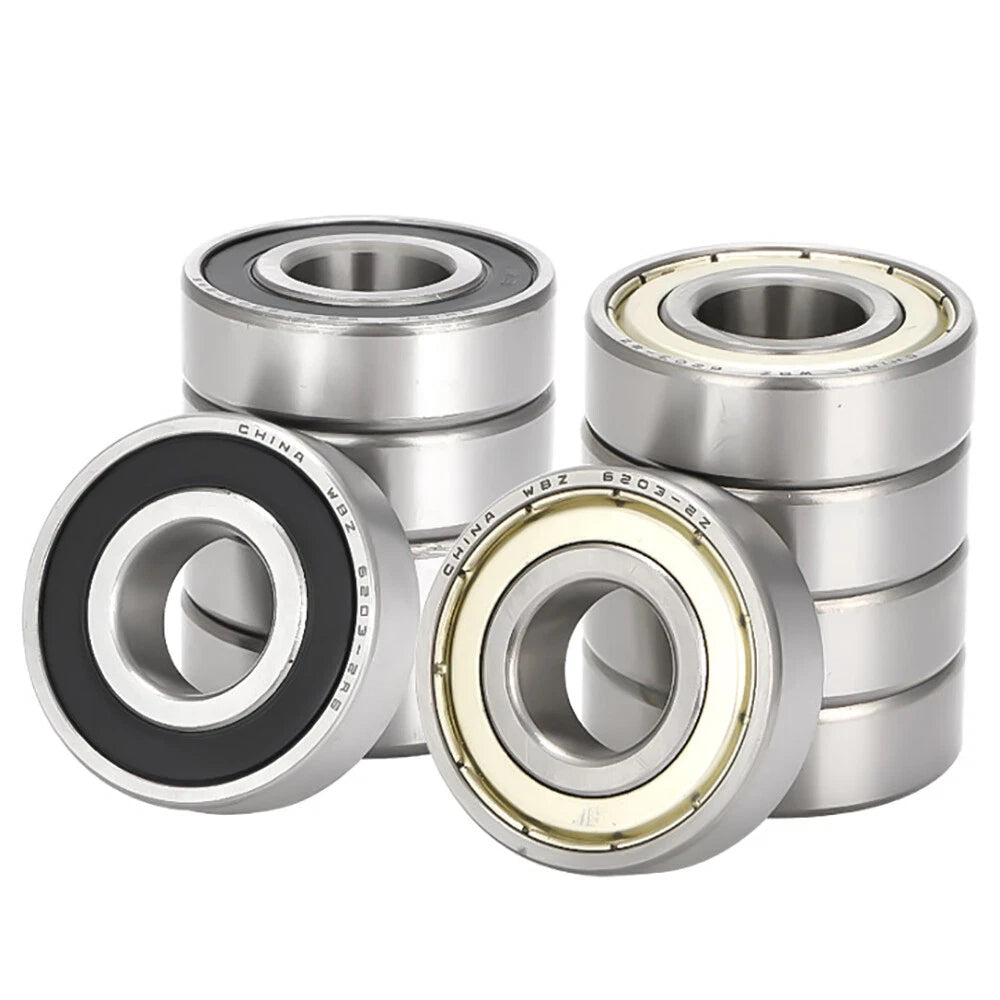

Available in 1, 2, 3, or 5-piece packs. Order a single replacement or stock up for maintenance kits — multi-piece pricing reflects a per-unit saving over single-piece orders.
| Series | 62200 / 62201 / 62202 / 62203 / 62204 / 62205 / 62206 / 62207 / 62208 / 62209 / 62210 / 62211 / 62212 / 62213 / 62214 / 62215 / 62216 / 62217 |
|---|---|
| Seal Type | ZZ (double steel shield) or 2RS (double rubber contact seal) — see variant options |

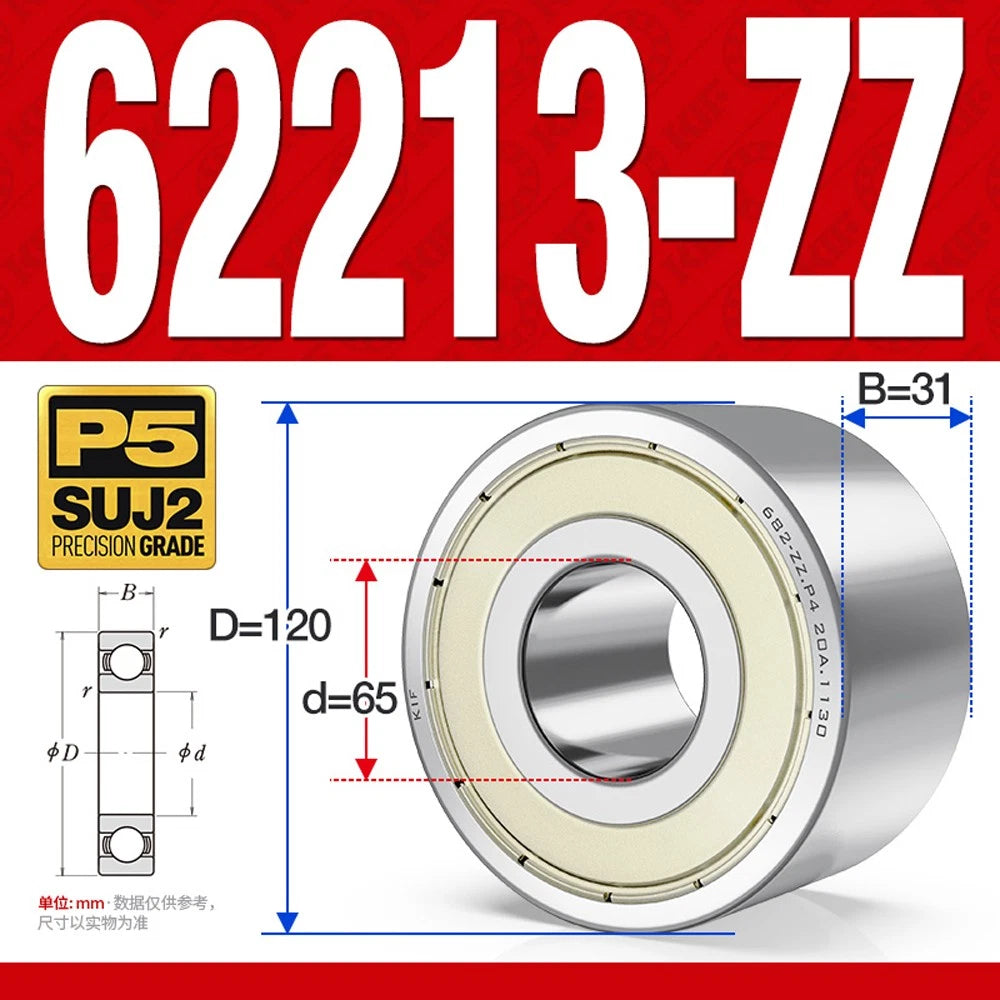

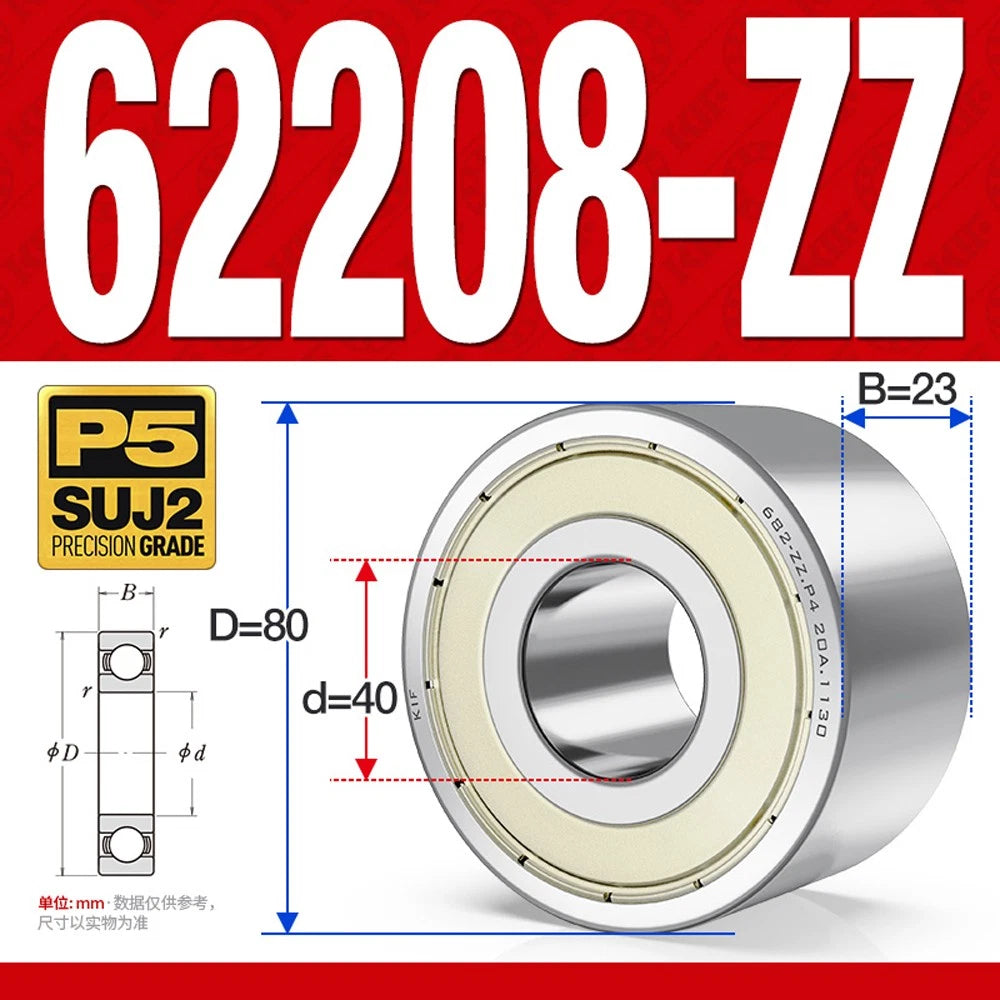

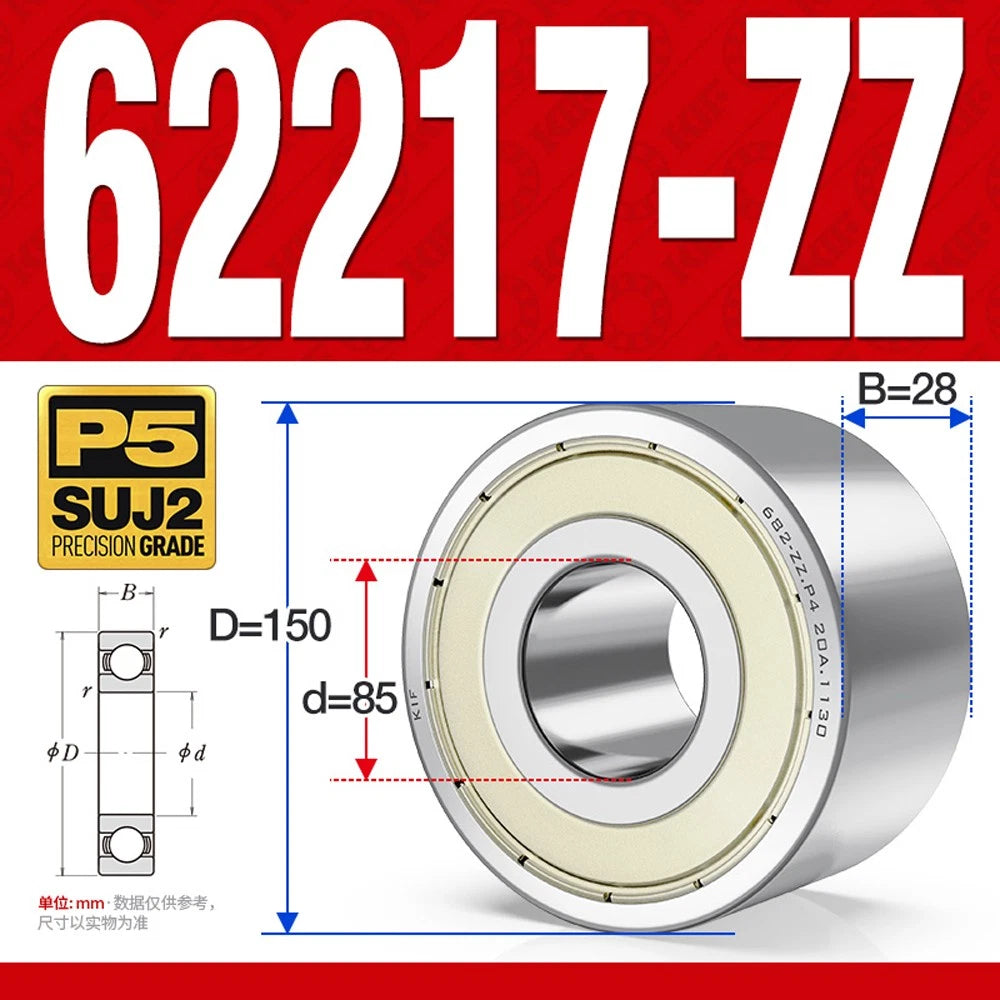

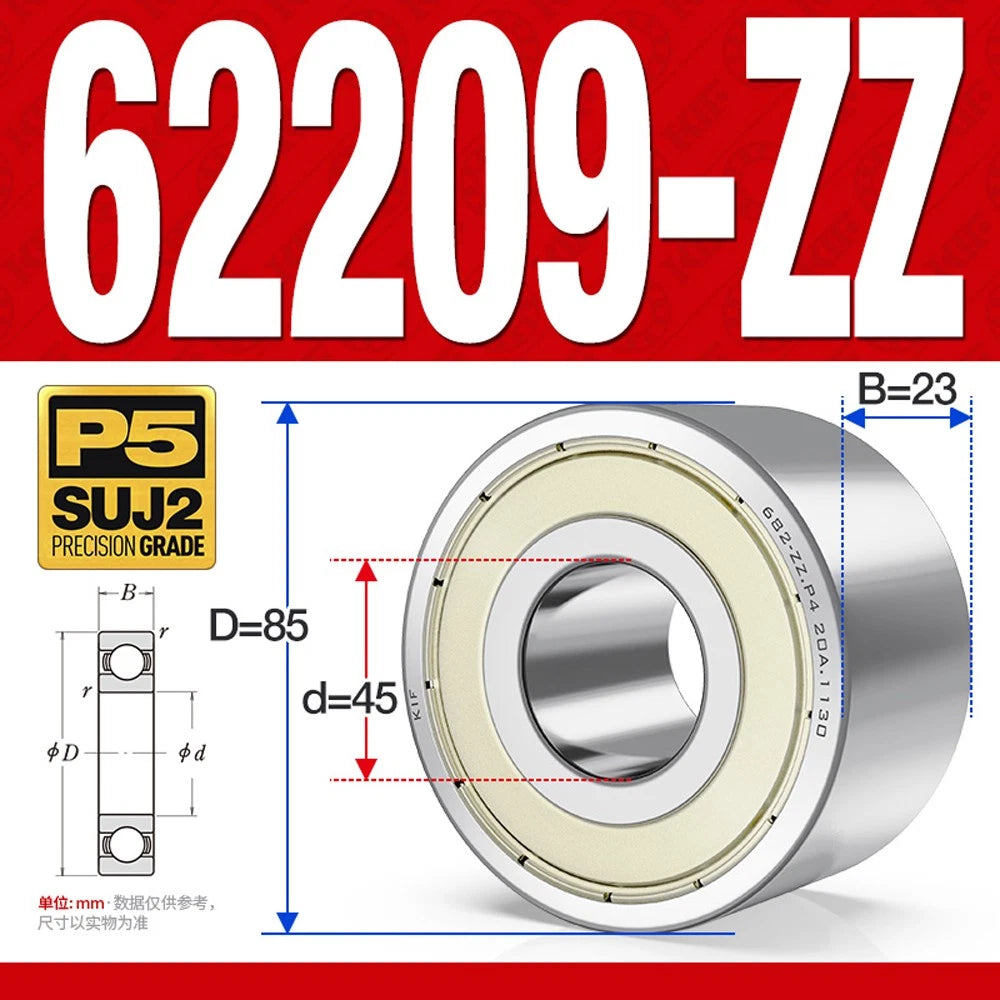

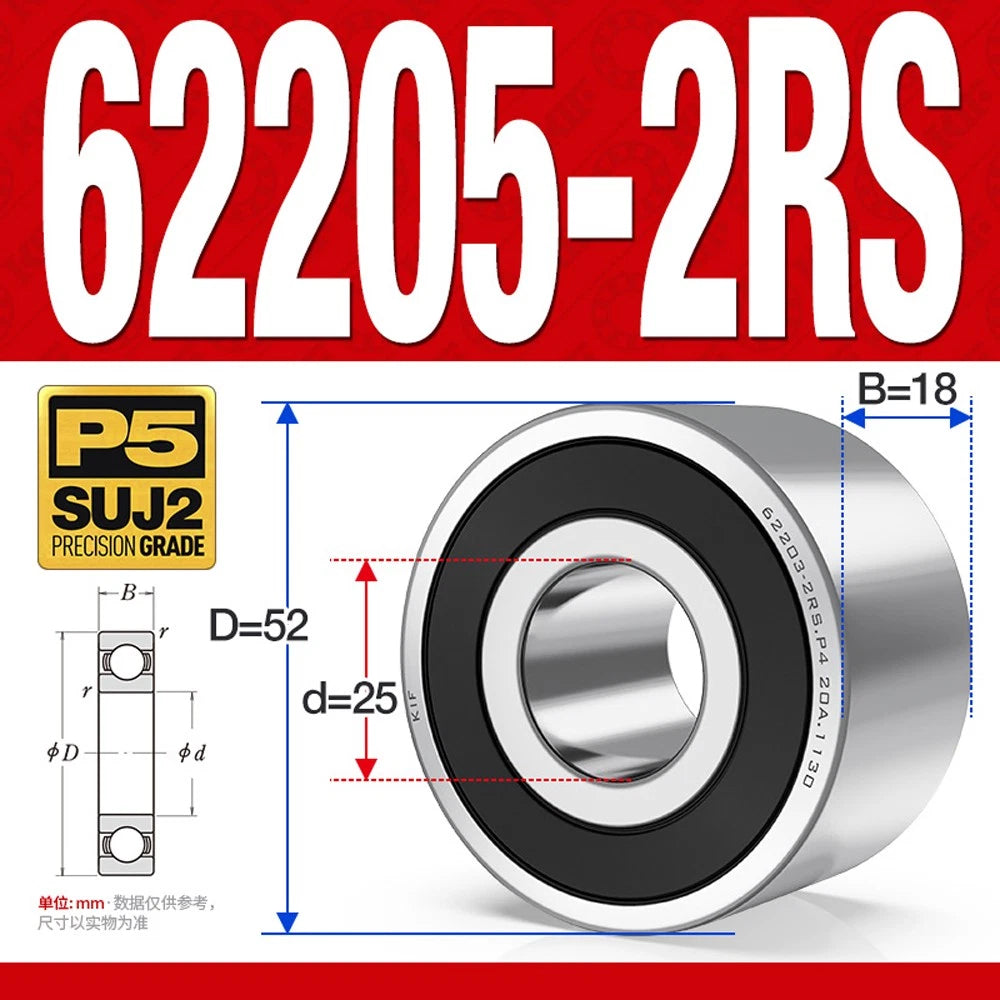

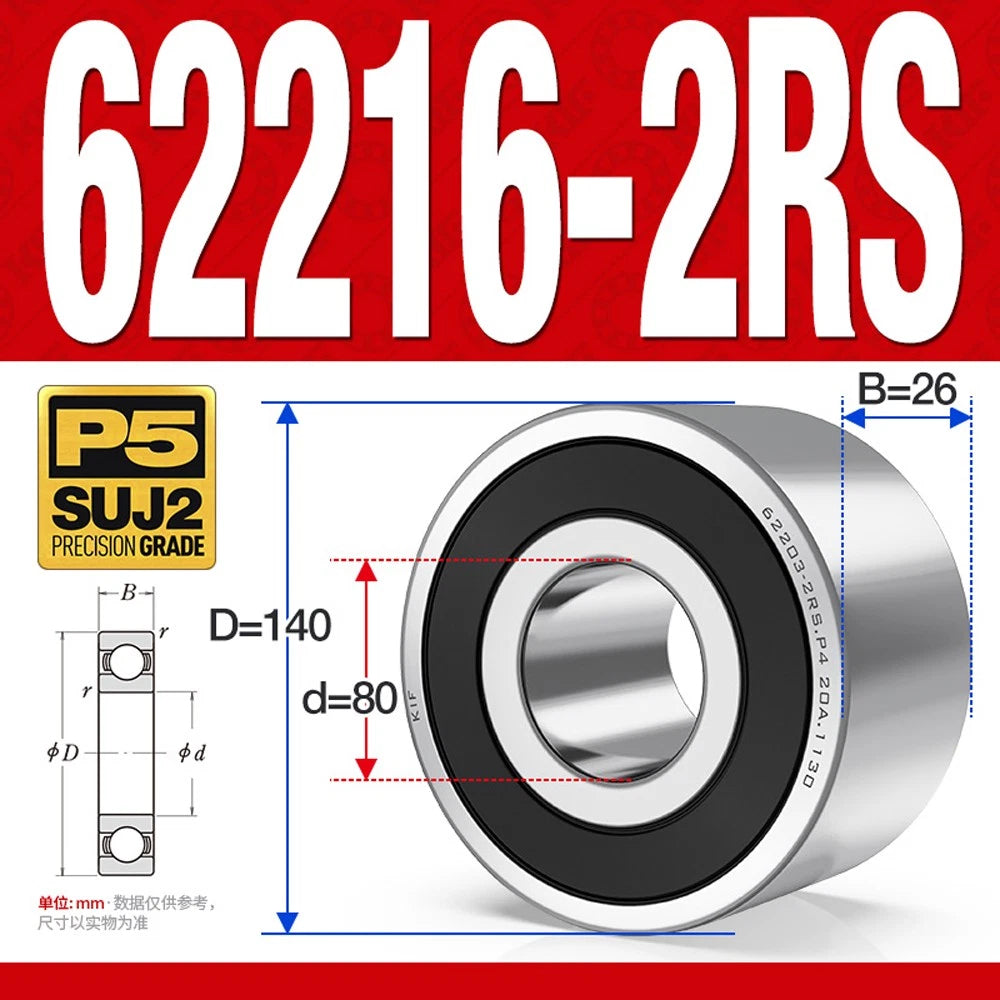

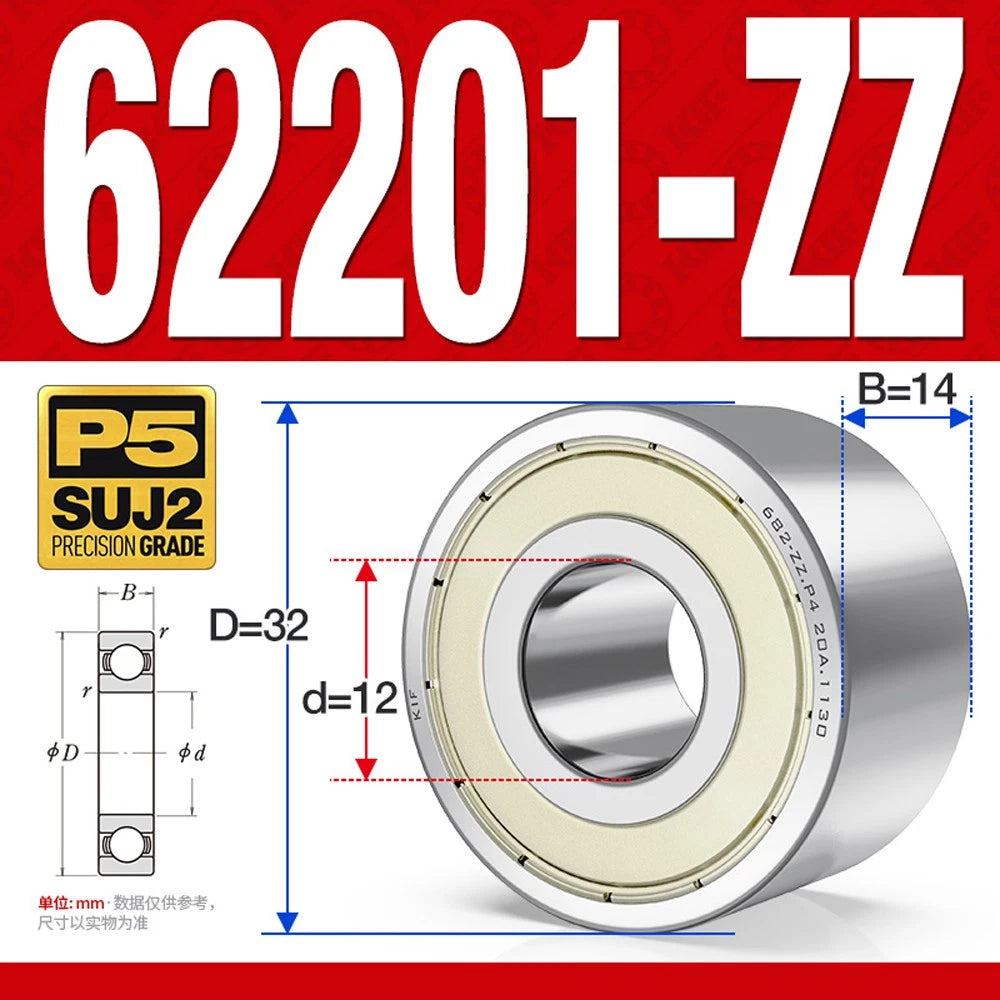

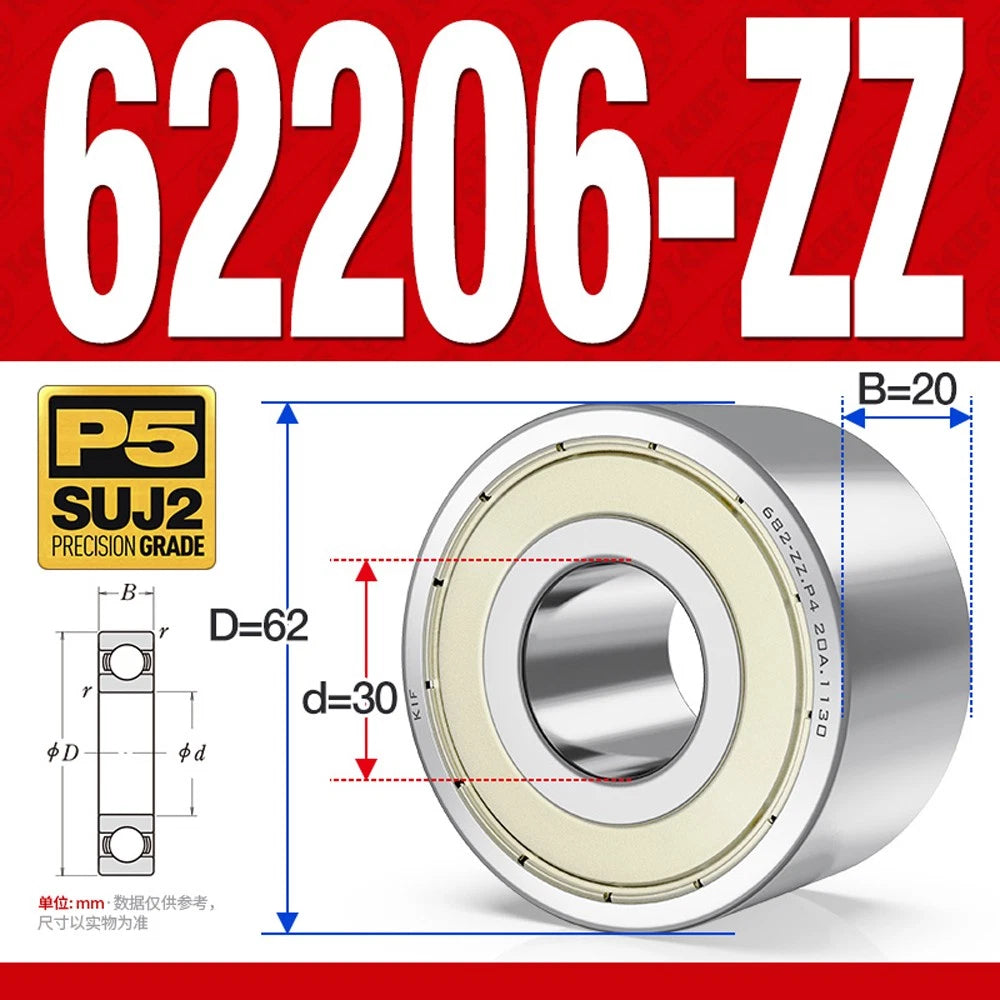

| Bore Diameter (d) | 10 mm – 85 mm (0.394 in – 3.346 in) — see variant options |
| Outer Diameter (D) | 30 mm – 150 mm (1.181 in – 5.906 in) — see variant options |
| Width (B) | 14 mm – 31 mm (0.551 in – 1.220 in) — see variant options |
| Bearing Type | Single-row deep groove ball bearing (thickening / wide series) |

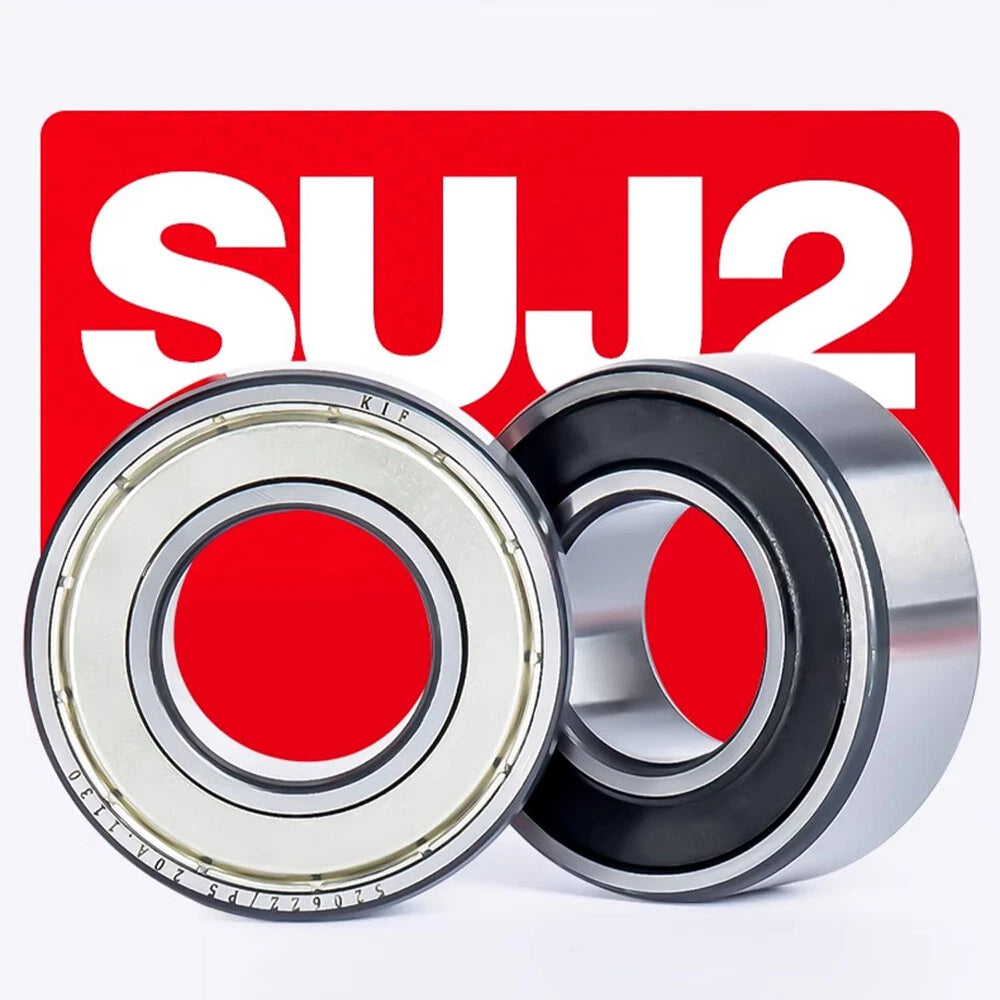

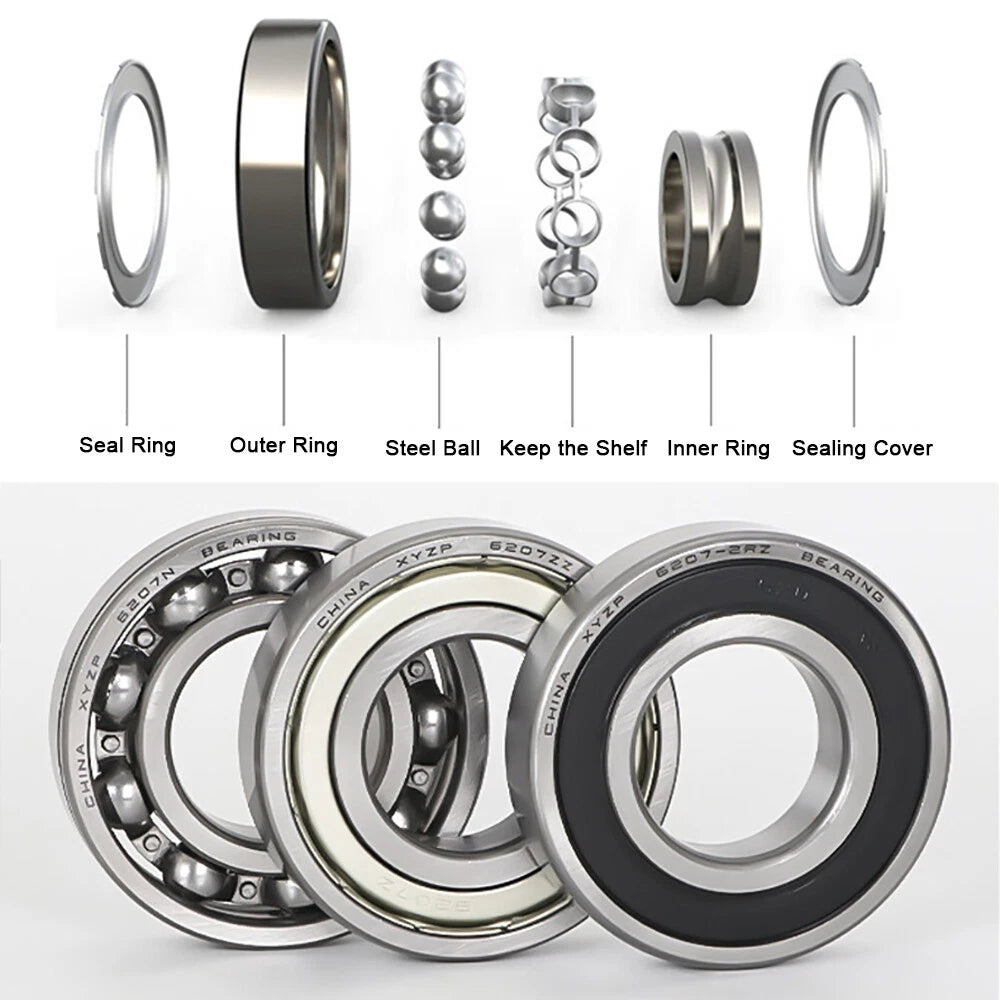

| Material | GCr15 bearing steel (inner ring, outer ring, balls); steel cage or pressed steel retainer |
| Lubrication | Factory pre-greased |
| Operating Temperature | –20 °C to +120 °C (ZZ); –20 °C to +110 °C (2RS) |
| Precision Grade | See variant options |
| Pack Quantity | 1 / 2 / 3 / 5 pcs — see variant options |
| Replaces Standard Series | 6200 series (same bore/OD, greater width) |
The 62200 series (also called the "thickening" or "wide" series) shares the same bore diameter and outer diameter as the 6200 series but has a greater width (B dimension). This wider cross-section accommodates more or larger balls, which increases the dynamic and static load ratings. If your application requires higher load capacity in the same bore/OD envelope, the 62200 series is the appropriate upgrade.

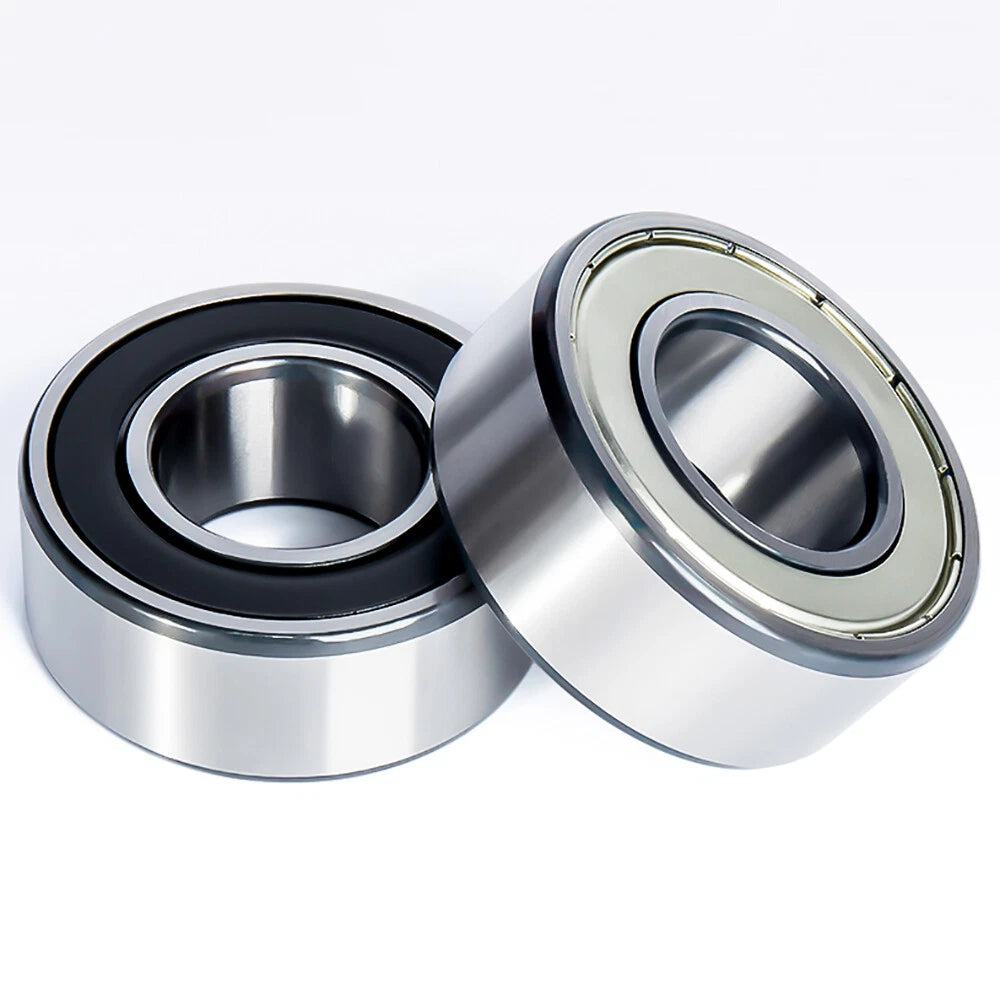

ZZ bearings use non-contact steel shields. They are suitable for clean, dry environments, allow slightly higher maximum speeds, and generate less friction. 2RS bearings use contact rubber seals that provide a tighter barrier against dust, moisture, and contaminants — making them the better choice for outdoor equipment, agricultural machinery, or any environment where contamination is a concern. If in doubt, 2RS is the more conservative and widely used option.

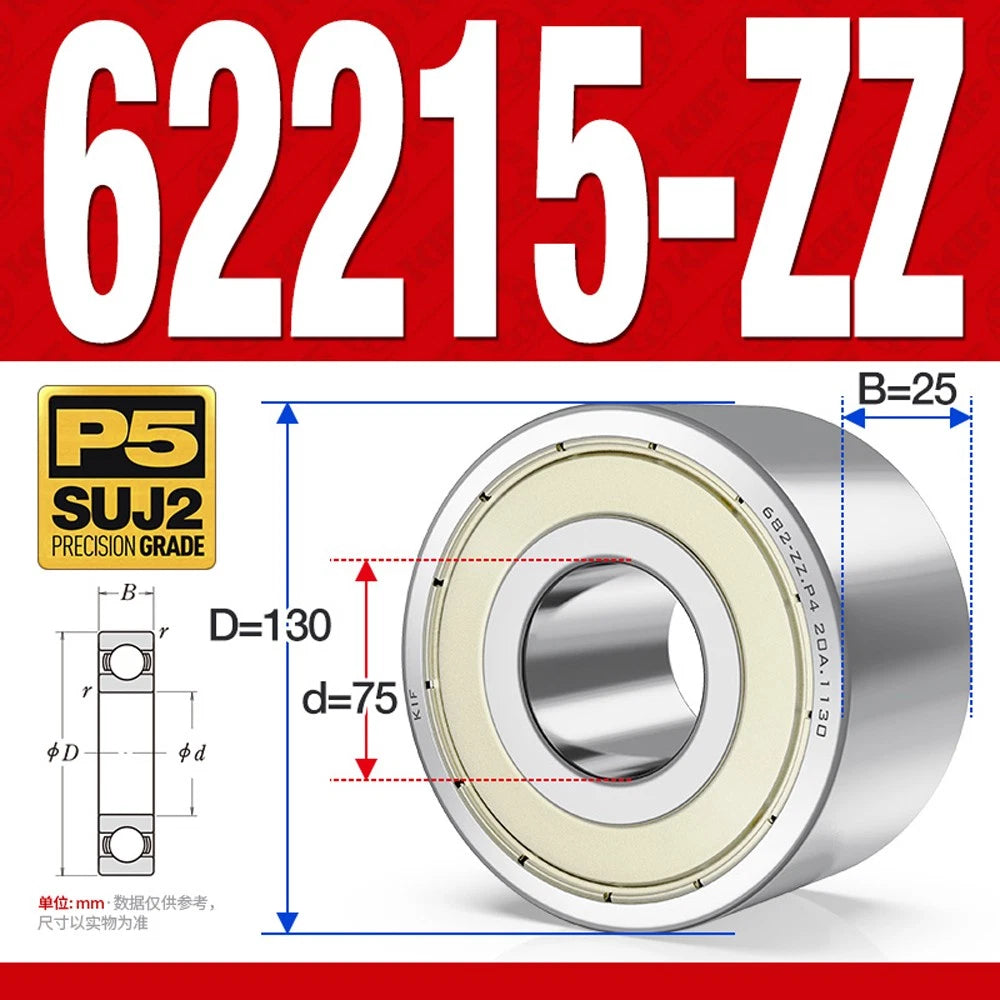

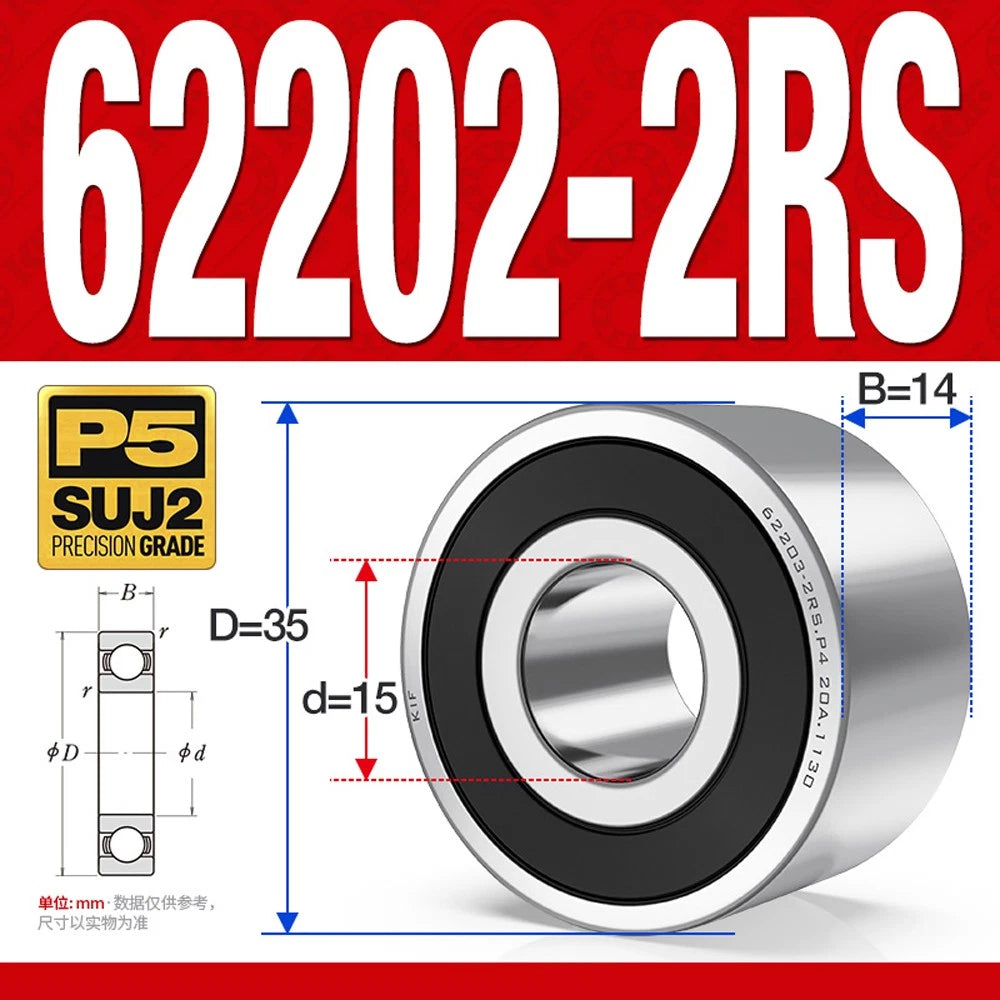

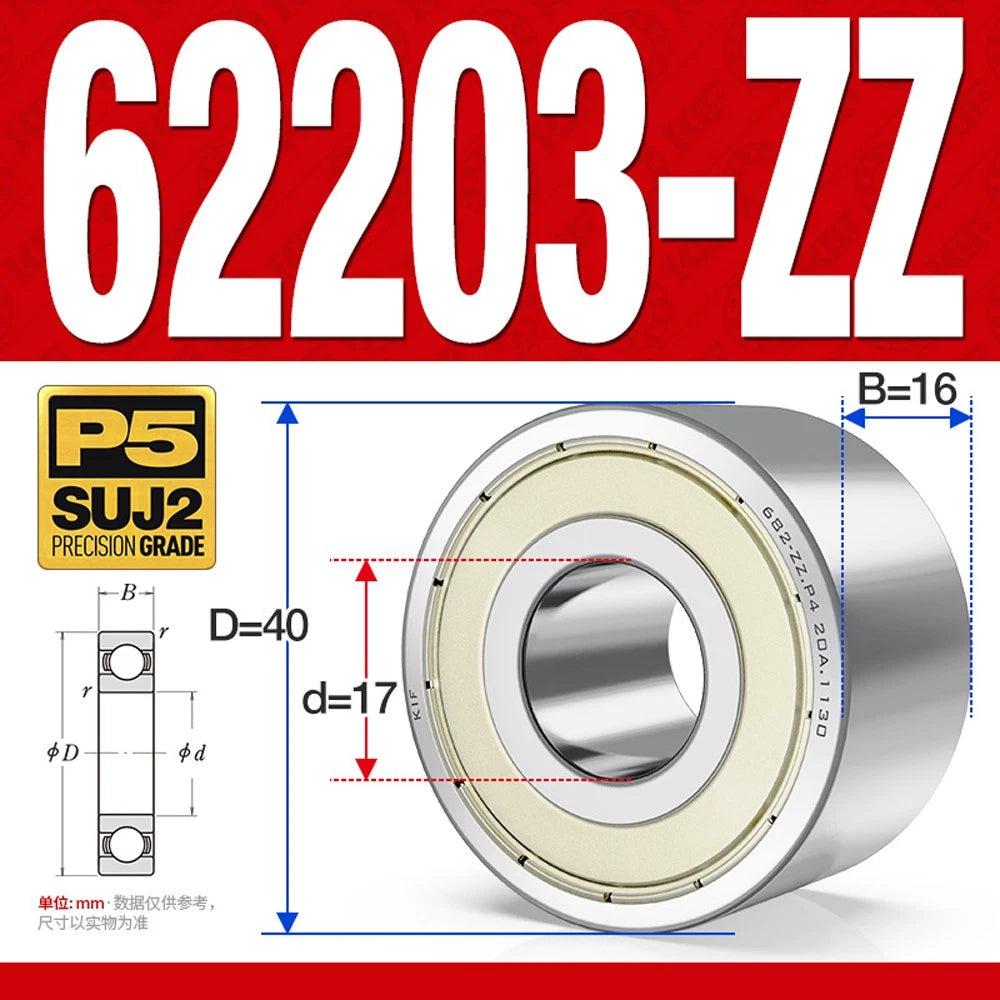

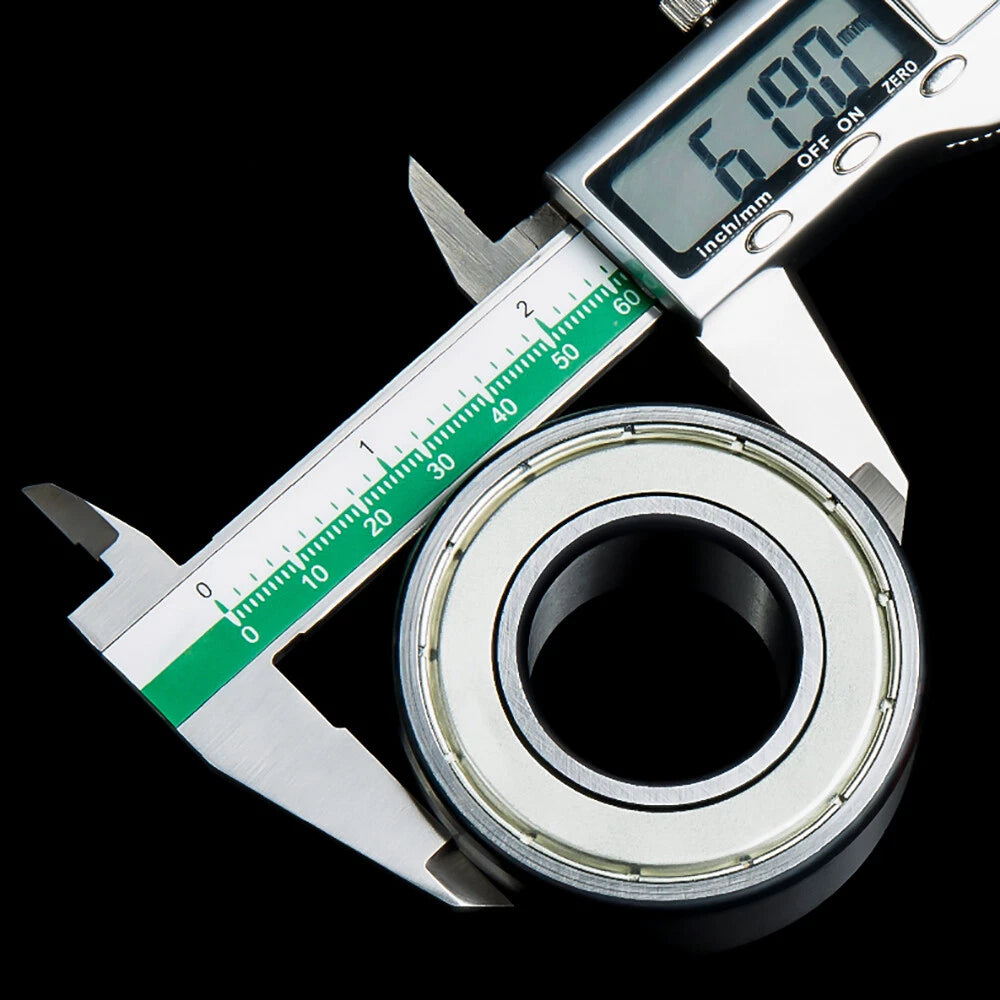

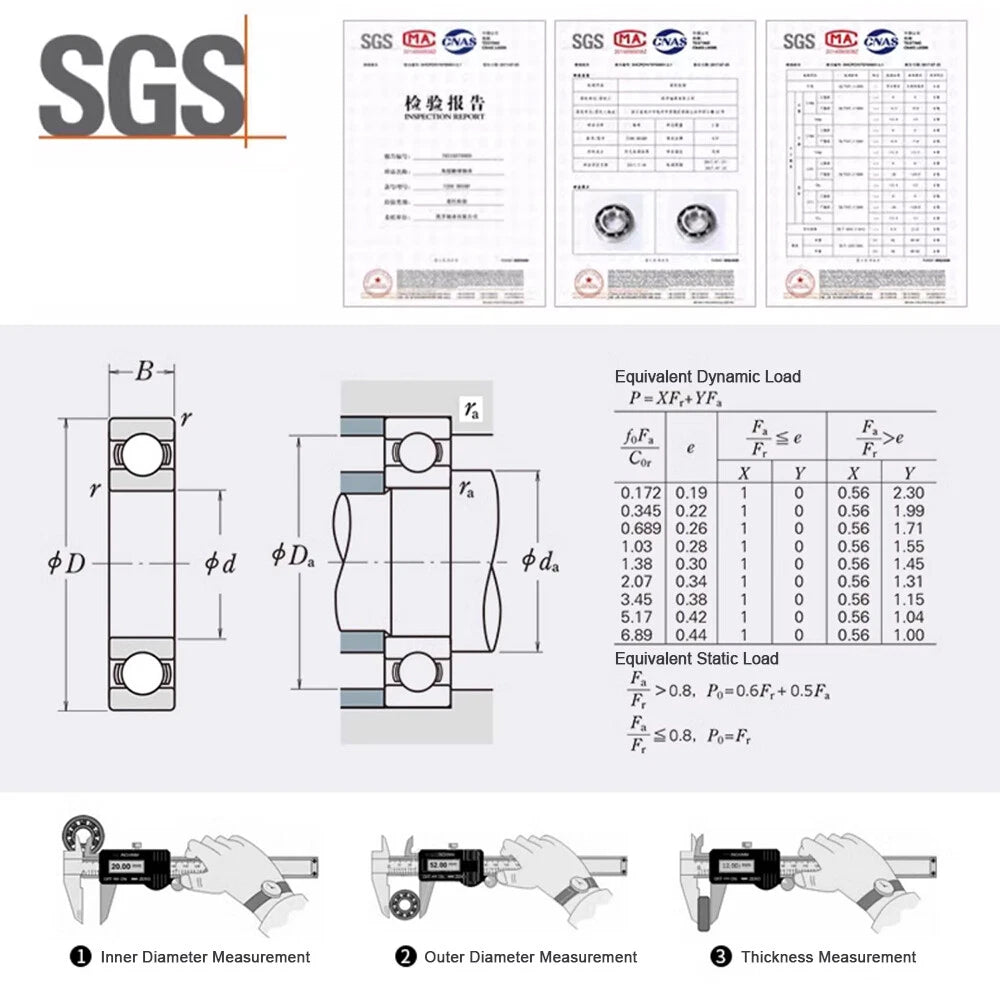

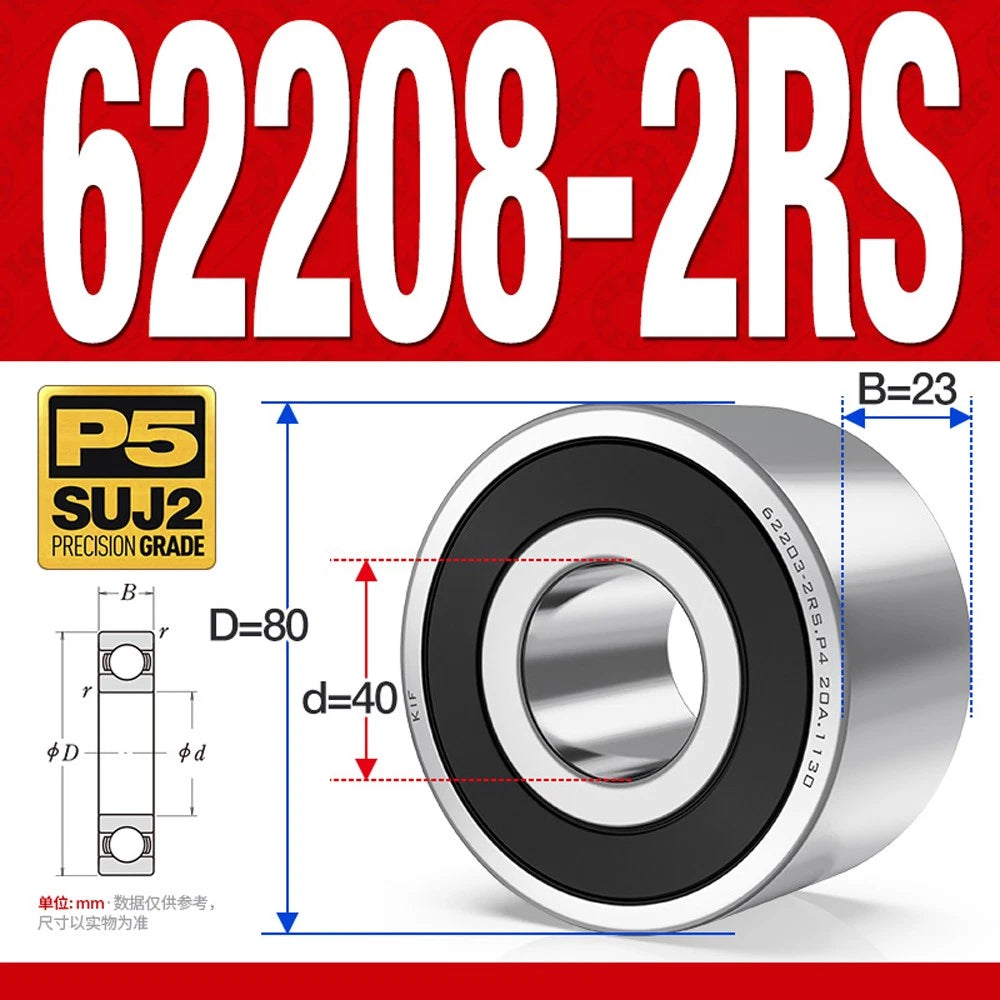

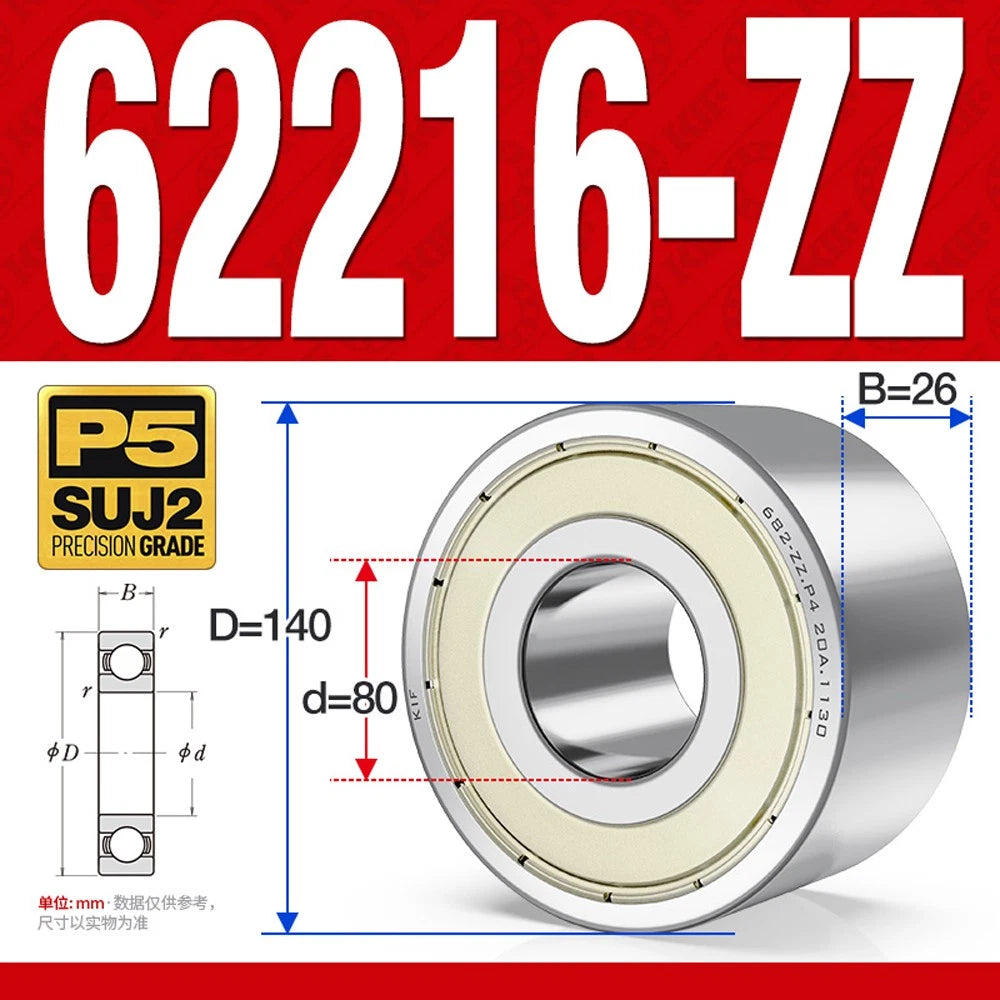

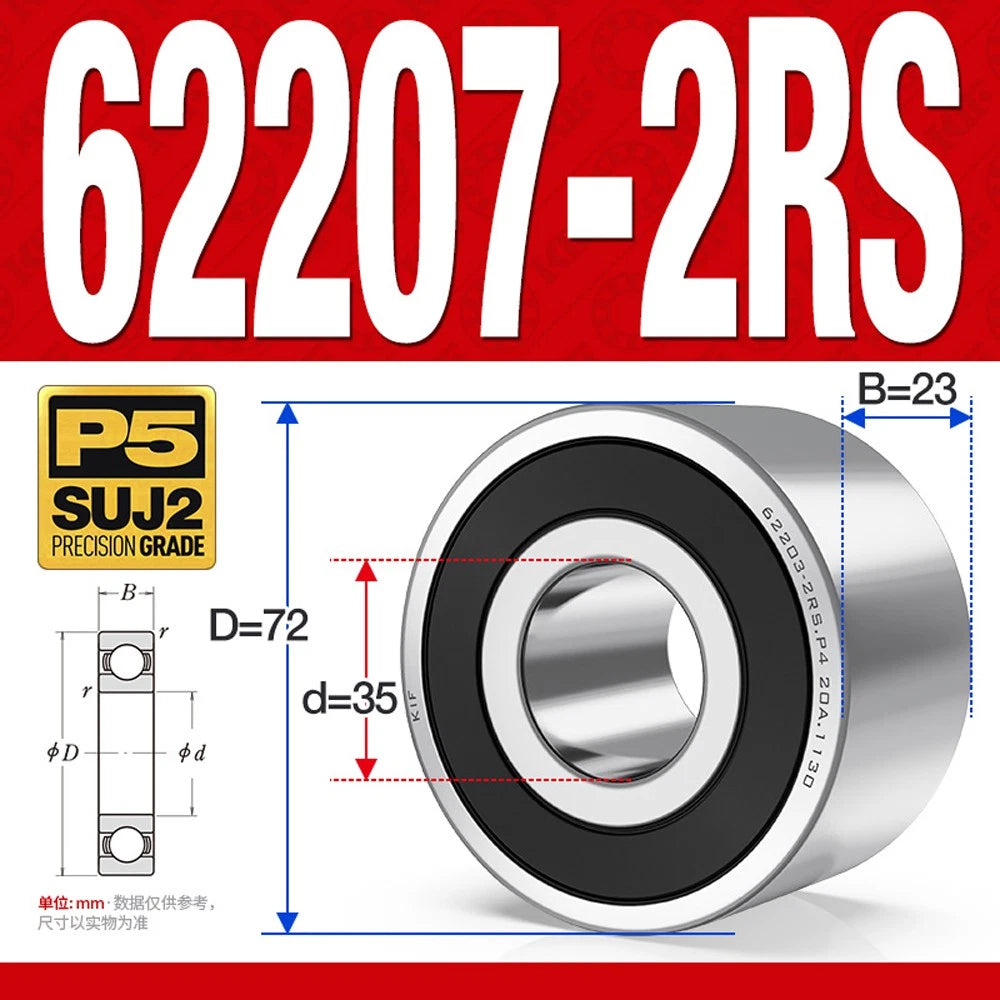

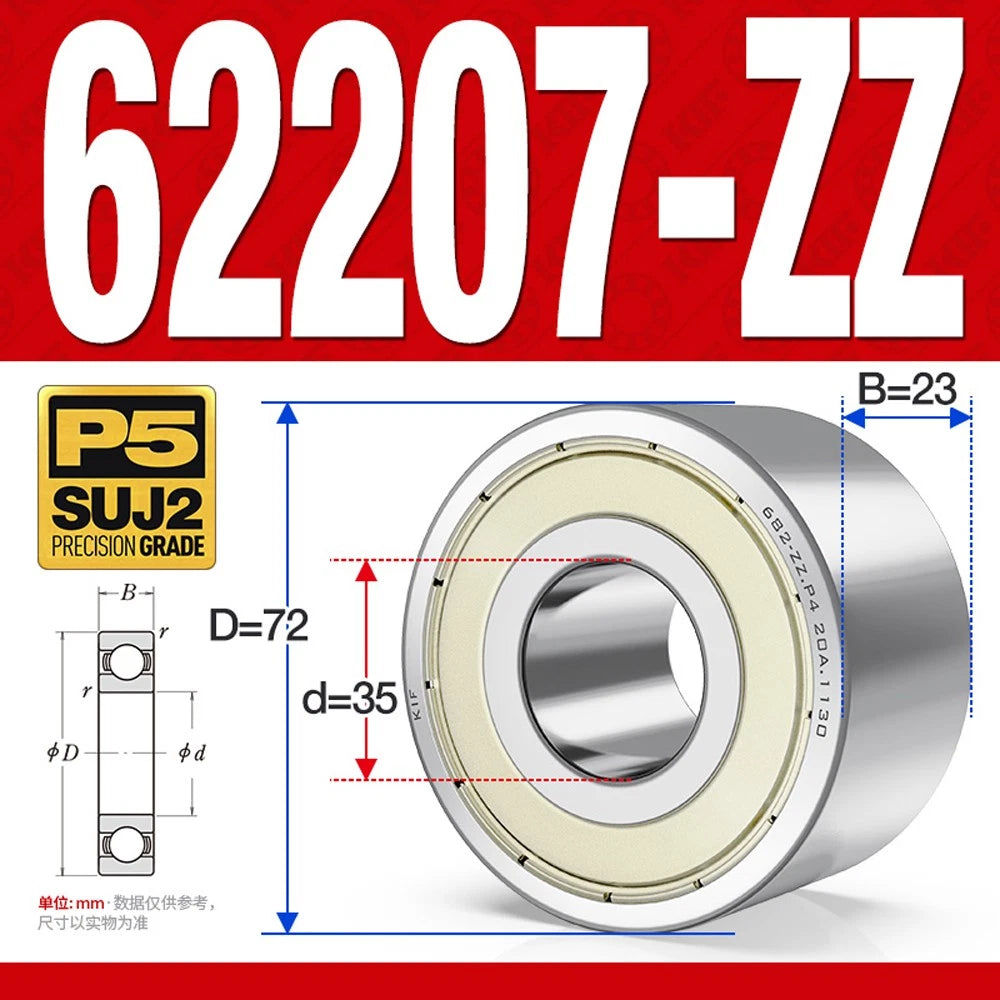

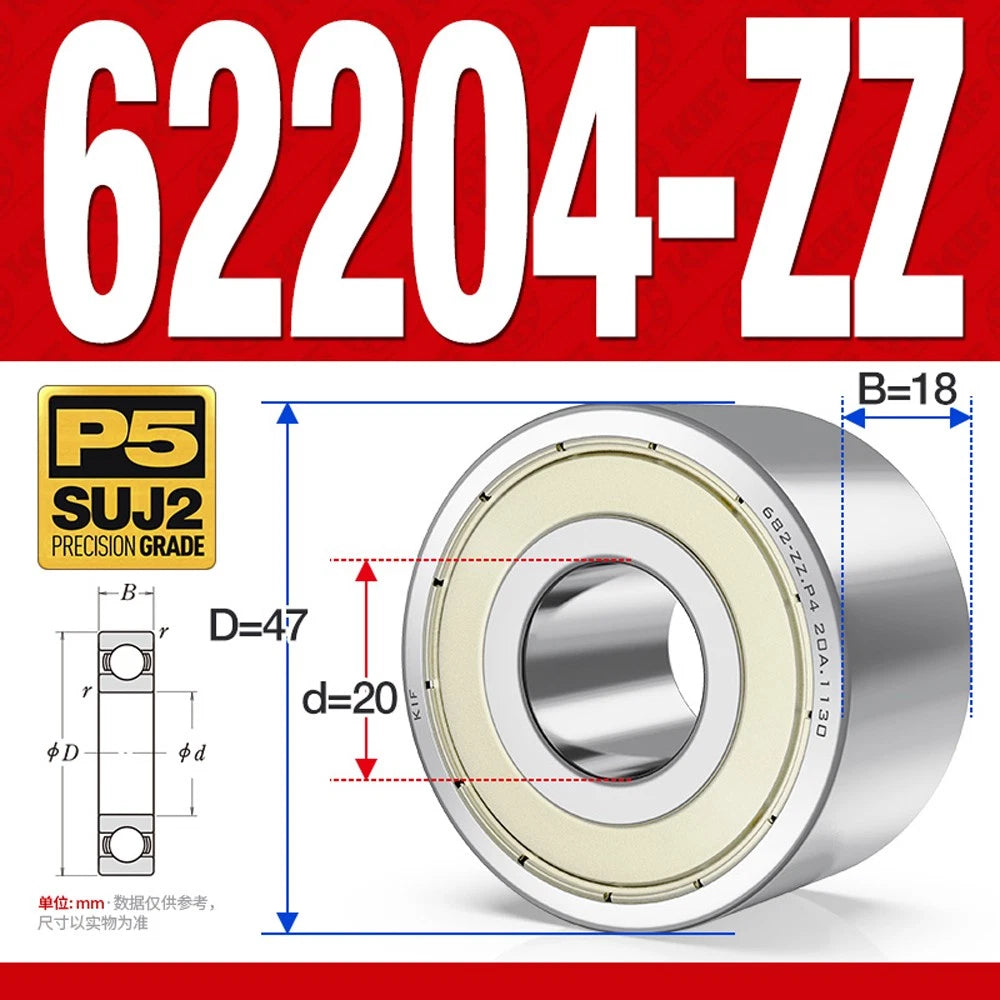

Check the existing bearing for a stamped or printed designation on the outer ring — for example, "62205-2RS" or "62207 ZZ". The number after "622" indicates the bore size code (00 = 10 mm, 01 = 12 mm, 02 = 15 mm, 03 = 17 mm, 04 = 20 mm, and from 05 onward multiply by 5 mm). If the marking is worn, measure the bore (d), outer diameter (D), and width (B) with calipers and match to the d×D×B dimensions listed in the variant selector.
The outer diameter (D) is the same as the 6200 series for each model number, so the bearing will fit the same housing bore. However, the greater width (B) means you must verify that your housing has sufficient axial depth and that shaft shoulders or snap-ring grooves do not interfere. Always confirm the B dimension against your housing drawing before ordering.
No. Both ZZ and 2RS variants are factory pre-greased and sealed. For most standard-duty applications, no additional lubrication is needed before installation. If your application involves extreme temperatures, very high speeds, or heavy contamination, consult the bearing manufacturer's specification sheet for re-lubrication intervals and grease type recommendations.
Maximum speed varies by model size and seal type. As a general guide, ZZ-shielded variants support higher speeds than 2RS-sealed variants due to lower seal friction. For precise speed ratings (reference speed and limiting speed), refer to the bearing manufacturer's datasheet for the specific model number. Contact us if you need speed rating data for a particular size.
Each variant in this listing represents a specific model number and quantity combination. To order multiple different models, add each variant to your cart separately. If you need a large mixed assortment or have a bulk procurement requirement, contact us to confirm availability and pricing.
