When you need to make quick adjustments without reaching for a wrench, standard hex bolts slow you down. Makers, woodworkers, and machine operators who build jigs, fixtures, and adjustable stops need a fastener they can tighten and release by hand — reliably, repeatedly, and without marring the workpiece. These plastic black clamping knob thumb screws are built for exactly that workflow.

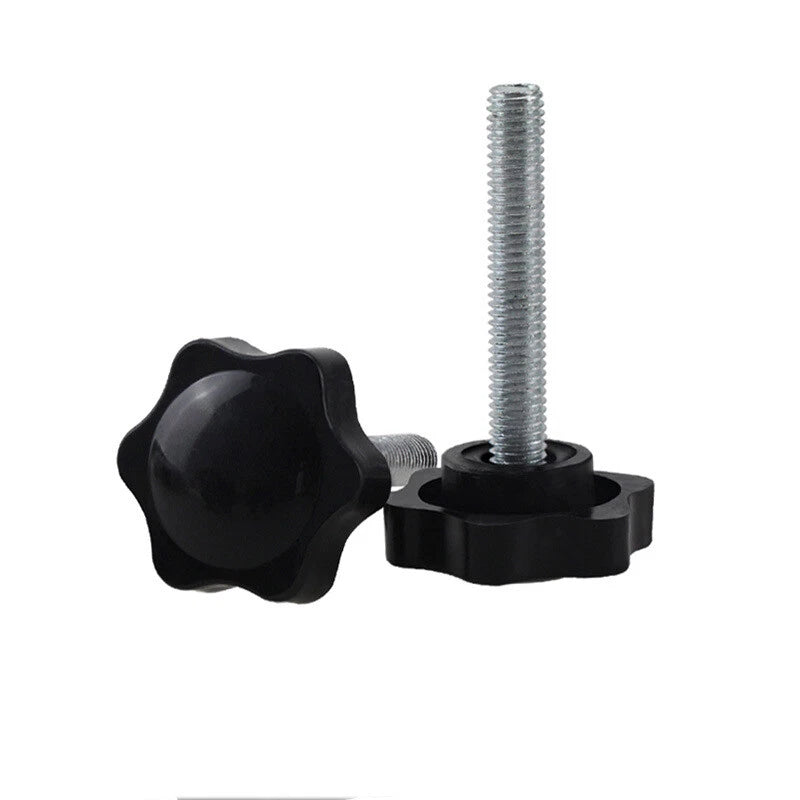

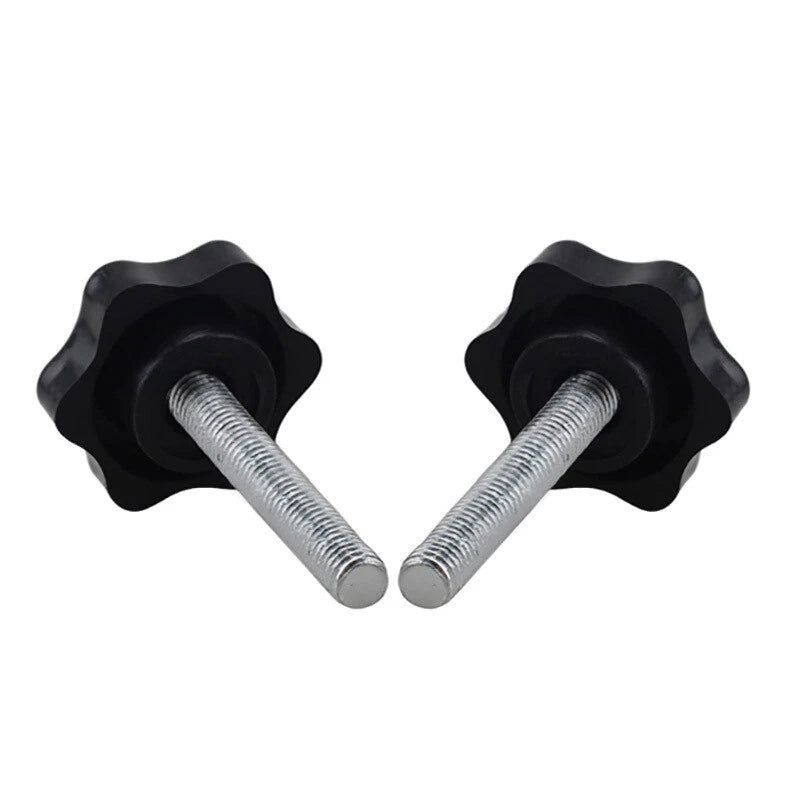

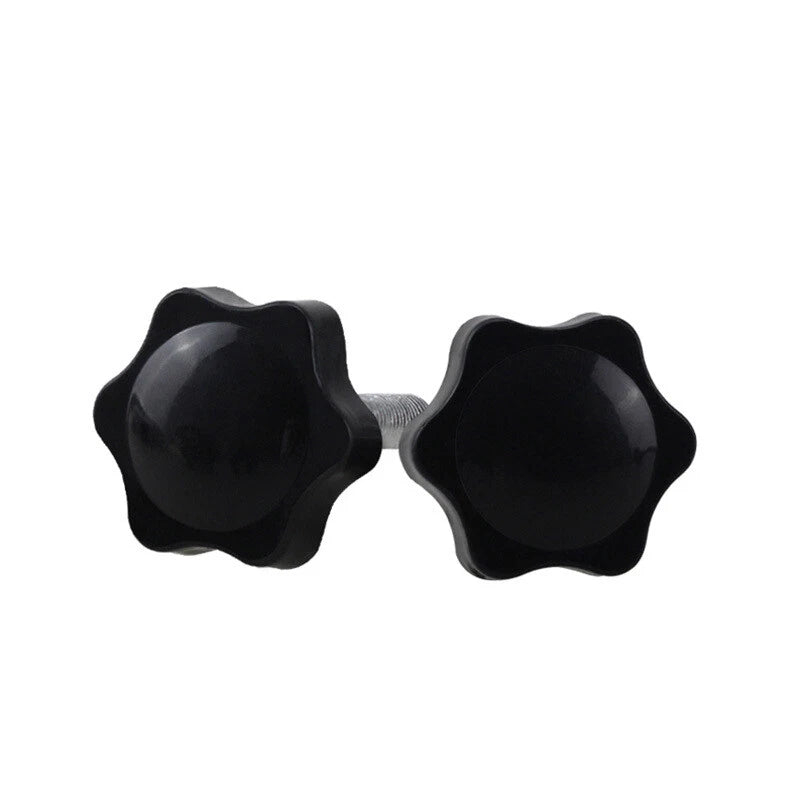

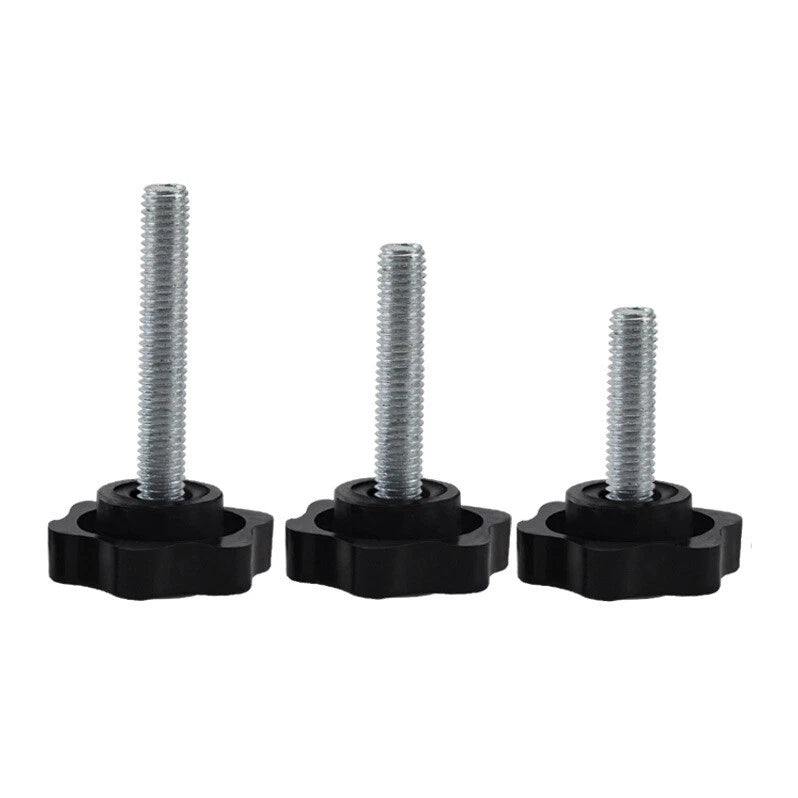

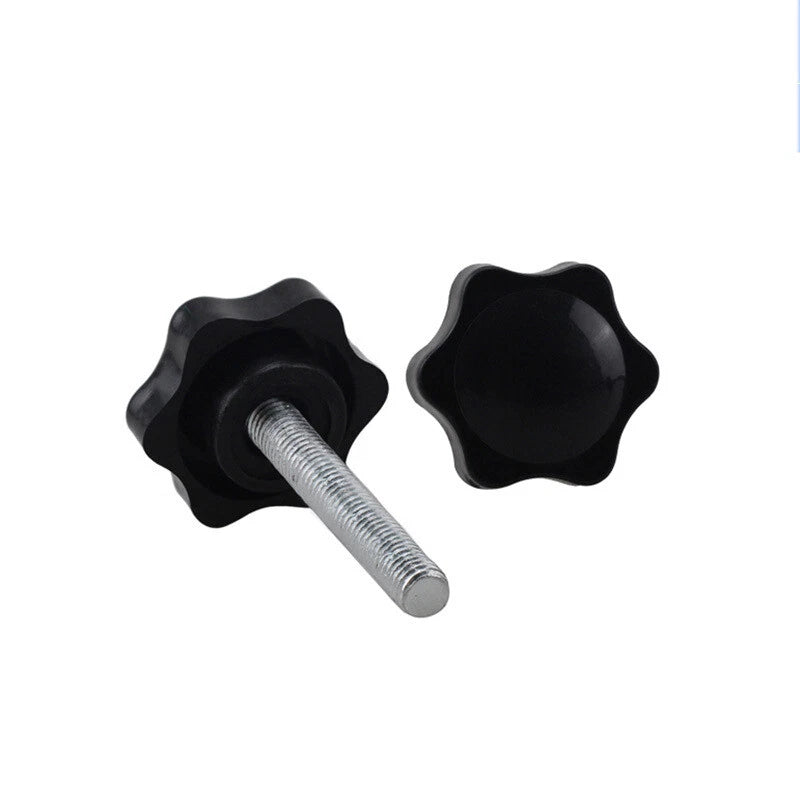

Each thumb screw consists of a ribbed black plastic knob head bonded to a carbon steel bolt shank. The knob diameter ranges from 25 mm (≈ 0.98 in) to 48 mm (≈ 1.89 in) depending on the variant, and the bolt shank covers metric thread sizes M4 through M10 with lengths from 10 mm (≈ 0.39 in) to 75 mm (≈ 2.95 in). The carbon steel shank provides the tensile strength needed for secure clamping, while the oversized plastic knob delivers the grip surface for comfortable hand-tightening.
Typical applications include woodworking jig clamping knobs for router tables and drill-press fences, machine tool fixture thumb screws for quick-release stops, and adjustable panel fasteners for enclosures and equipment guards where tool-free access is required. The metric thread sizing makes these a direct fit for M-series threaded inserts and T-nuts widely used in workshop builds.
| Thread Standard | Metric (ISO) |
|---|---|
| Thread Sizes Available | M4, M5, M6, M8, M10 |
| Shank Length Range | 10 mm – 75 mm (≈ 0.39 in – 2.95 in) |

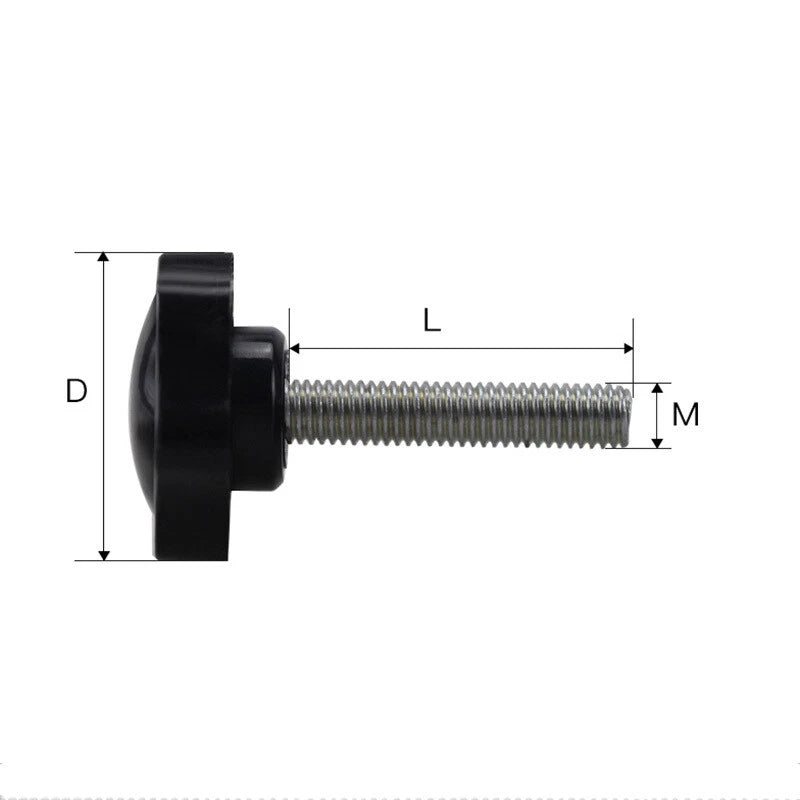

| Knob Diameter (D) | 25 mm / 32 mm / 38 mm / 48 mm (see variant options) |
| Knob Material | Plastic (ABS-type, black) |
| Bolt Shank Material | Carbon Steel |
| Finish / Color | Black knob; natural steel shank |
| Head Style | Round clamping knob (thumb screw) |
| Drive Style | Hand-tightened (no tool drive) |
| Thread Pitch | See variant options |
| Quantity per Order | 1 piece (sold individually) |
| Weight per Piece | See variant options |
Match the thread size (M4, M5, M6, M8, or M10) to your existing threaded hole or insert, then select a shank length that provides at least 1.5× the thread diameter of engagement for reliable clamping. Choose a knob diameter (D25, D32, D38, or D48) based on the torque you need and the clearance available around the fastener — larger knobs give more leverage for hand-tightening.
The carbon steel shank provides solid tensile strength suitable for workshop jigs, fixture plates, and adjustable stops. These are designed for hand-tightened clamping loads — not for high-torque structural connections. For applications requiring wrench-applied torque, a standard hex bolt is more appropriate.
The knob is molded from a rigid plastic (ABS-type) that handles the torsional stress of hand-tightening well under normal workshop conditions. Avoid using tools to over-torque the knob, as excessive force beyond hand-tight can stress the knob-to-shank bond. For heavy-duty clamping requiring tool torque, consider a metal knob variant instead.
The carbon steel shank is not inherently corrosion-resistant and may develop surface rust if exposed to moisture or outdoor conditions over time. For damp or outdoor environments, consider applying a light coat of oil or thread sealant to the shank, or look for stainless steel thumb screw alternatives. The plastic knob itself is unaffected by moisture.
These thumb screws are compatible with any standard metric threaded insert, T-nut, or tapped hole in the corresponding M4–M10 size. They are widely used with M6 and M8 T-nuts in MDF and plywood jig tables, as well as with threaded inserts in aluminum extrusion profiles (20-series and 30-series) where the thread size matches.
Yes — these are a popular choice for CNC router table hold-down jigs, drill-press fence stops, and miter gauge adjustments where you need to reposition and re-lock quickly without tools. Select the shank length that matches your T-slot or insert depth, and choose a knob diameter that clears any adjacent components.
Each order is for one (1) individual thumb screw. Select the exact size combination you need from the variant options above, and add the required quantity to your cart.
