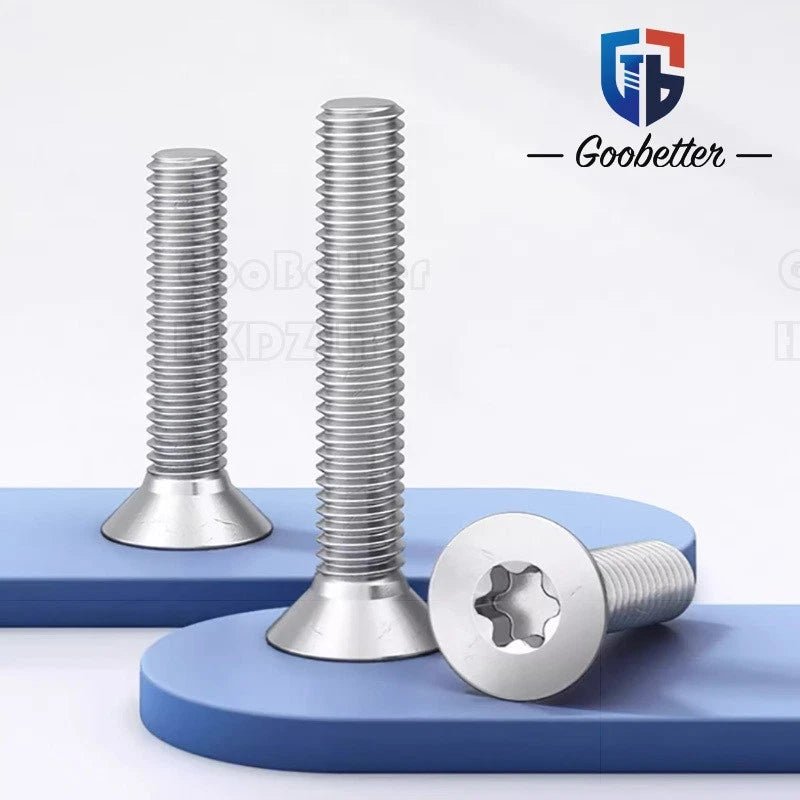

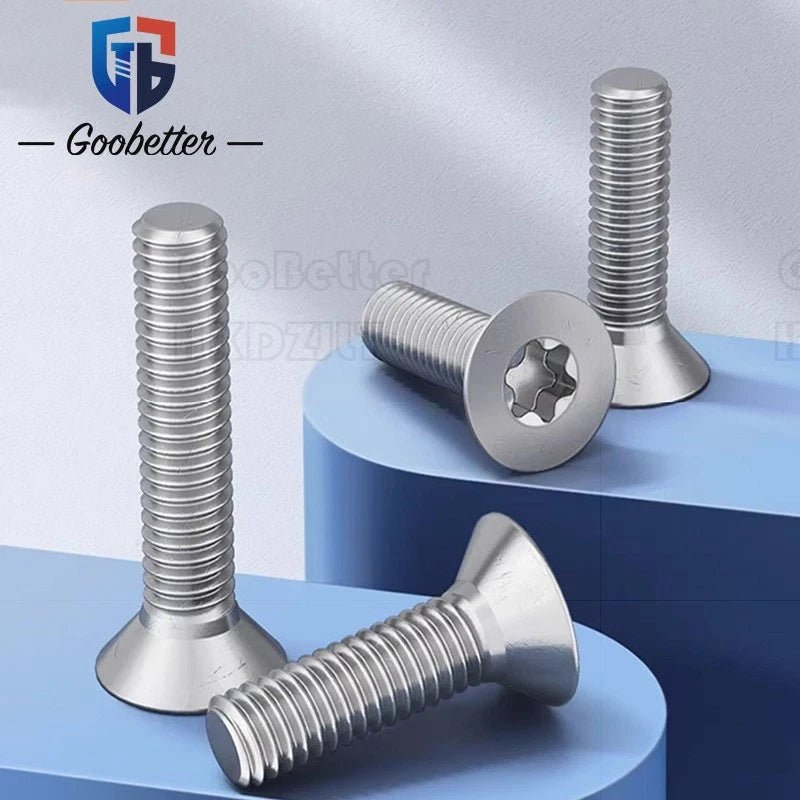

🔒 Product Overview: Tamper‑Proof Torx Countersunk Machine Screws – A2 Stainless Steel (M1.4 to M12)
When you need to secure panels, electronics, or public fixtures against unauthorized removal, these tamper‑proof Torx countersunk machine screws are the ideal solution. The pin‑in‑Torx (security Torx) drive features a center pin that prevents standard Torx bits from engaging – only special security Torx bits can drive them. Made from A2 (304) stainless steel, they offer excellent corrosion resistance, high strength, and good oxidation resistance. The 90° flat head sinks flush into countersunk holes for a smooth, professional finish. Fully threaded with standard coarse metric pitch, available in micro sizes M1.4, M1.6, M2, M2.5 all the way up to M12. Perfect for public kiosks, gaming machines, electronics, medical devices, and any application where tamper deterrence is required.
✨ Why Choose Tamper‑Proof Torx Countersunk Screws
-
Tamper‑proof Torx (pin‑in‑Torx) drive – The center pin prevents removal with standard Torx bits. Requires special security Torx bits for installation and removal, deterring casual tampering.
-
A2 stainless steel (304 grade) – Good corrosion and oxidation resistance, heat resistance, high strength, and high toughness. Suitable for indoor and outdoor use.
-
Countersunk flat head (90°) – Sits flush in tapered holes for a smooth, snag‑free finish. Ideal for panel mounting and security‑sensitive assemblies.
-
Wide metric range: M1.4, M1.6, M2, M2.5, M3, M4, M5, M6, M8, M10, M12 – From micro fasteners for electronics up to structural screws for heavy equipment.
-
Fully threaded, coarse metric pitch – Standard threads per size. Threads run the entire length for maximum grip.
-
Smooth, burr‑free workmanship – Clean threads and even force distribution. Anti‑corrosion and rust resistance for long service life.
-
Wide application range – Public electronics, gaming machines, medical devices, industrial control panels, automotive, furniture, and any tamper‑sensitive equipment.

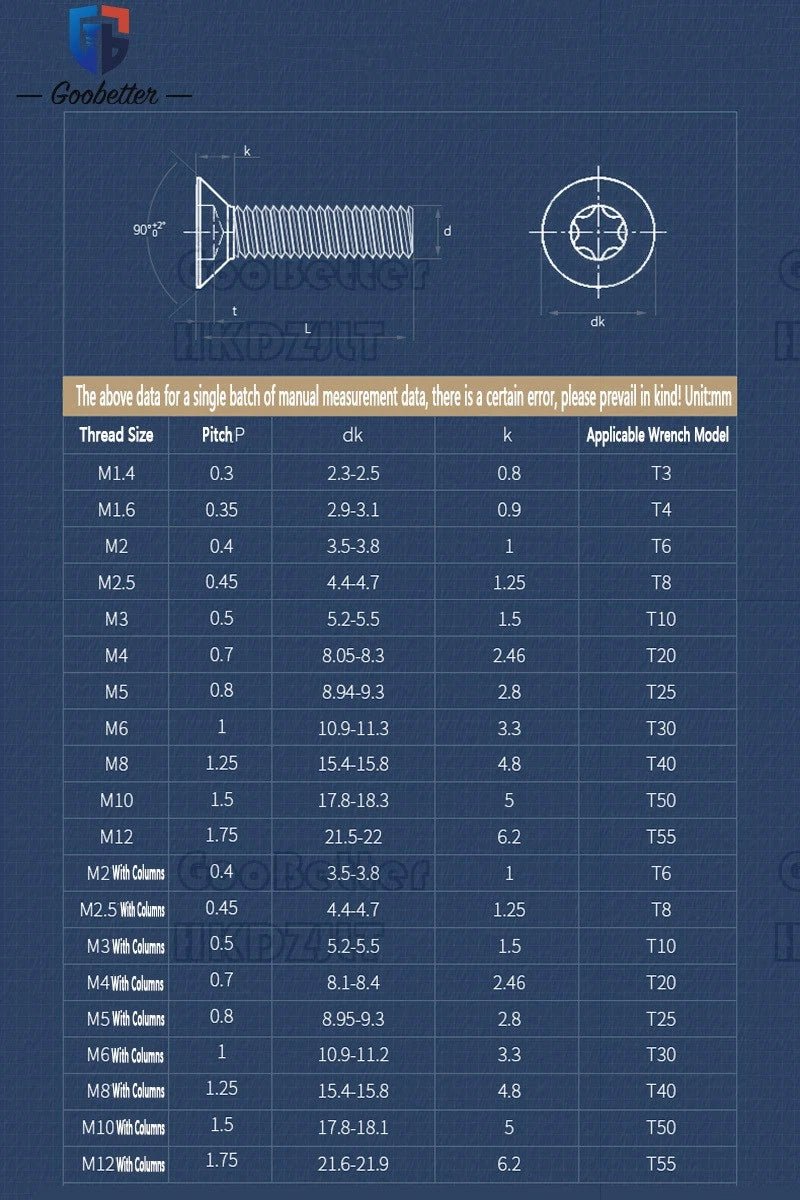

📏 Technical Specifications – Tamper‑Proof Torx Countersunk Screws (A2 Stainless)
| Specification |
Details |
| Product Type |
Tamper‑Proof Torx Countersunk Flat Head Machine Screws (Security Torx) |
| Material |
A2 Stainless Steel (304 / 18-8) |
| Drive Style |
Torx with center pin (tamper‑resistant / security Torx) |
| Head Style |
Countersunk flat head (90°) |
| System of Measurement |
Metric |
| Thread Sizes (Diameter) |
M1.4, M1.6, M2, M2.5, M3, M4, M5, M6, M8, M10, M12 |
| Thread Pitches (coarse) |
M1.4x0.3, M1.6x0.35, M2x0.4, M2.5x0.45, M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.25, M10x1.5, M12x1.75 |
| Thread Type |
Fully threaded |
| Length Measurement |
Length includes head (total screw length – standard for countersunk screws) |
| Length Options |
Select from product options (typical ranges: 4–100mm depending on diameter) |
| Finish |
Natural stainless (unplated, silver) |
📊 Stainless Steel Comparison – Which Grade to Choose?
| Grade |
Corrosion Resistance |
Best Use |
| 201 Stainless |
Poor – rusts with water |
Dry indoor environments only |
| 304 Stainless (A2) |
Good – resists corrosion & acid |
Outdoor, humid, general purpose (these screws) |
| 316 Stainless (A4) |
Excellent – with molybdenum for saltwater & chemicals |
Marine, coastal, high‑chloride areas |
❓ FAQs – Tamper‑Proof Torx Countersunk Screws
🔸 What makes these screws “tamper‑proof”?
These screws have a small center pin inside the Torx recess. A standard Torx driver will not fit because the pin blocks the center. You need a special security Torx (also called tamper‑resistant Torx or Torx TR) bit that has a hollow tip to accommodate the pin. This prevents unauthorized removal with common tools.
🔸 What security Torx bit size do I need for each screw diameter?
Typical security Torx sizes: M1.4–M2 use TR5-TR8, M2.5–M3 use TR10, M4 uses TR20, M5 uses TR25, M6 uses TR30, M8 uses TR40, M10 uses TR45, M12 uses TR50. Always check fit before applying torque. A good security Torx bit set (TR5–TR50) is recommended.
🔸 How is length measured for countersunk screws?
For countersunk screws, length is measured as total screw length including the head – from the top of the flat head to the tip. For example, an M5 x 20mm screw is 20mm long overall. This matches standard countersunk fastener measurement.
🔸 Will A2 (304) stainless steel rust outdoors or in coastal environments?
A2 stainless is highly resistant to moisture, rain, and humidity – perfect for most outdoor use. For direct saltwater immersion or heavy coastal spray, A4 (316) stainless is better, but for general outdoor equipment, furniture, and industrial use, 304 lasts for years without rust.
🔸 Can I use these screws with nuts, or are they self‑tapping?
These are standard machine screws – they require a matching metric nut or a pre‑tapped hole. They are not self‑tapping. For best corrosion resistance, pair them with A2 stainless nuts.
🔸 Why is stainless steel sometimes slightly magnetic?
A2 (304) stainless is austenitic and normally non‑magnetic. However, cold working (thread rolling, head forming) can transform some austenite into martensite, which is magnetic. A slight magnetic response is normal and does not affect corrosion resistance.
