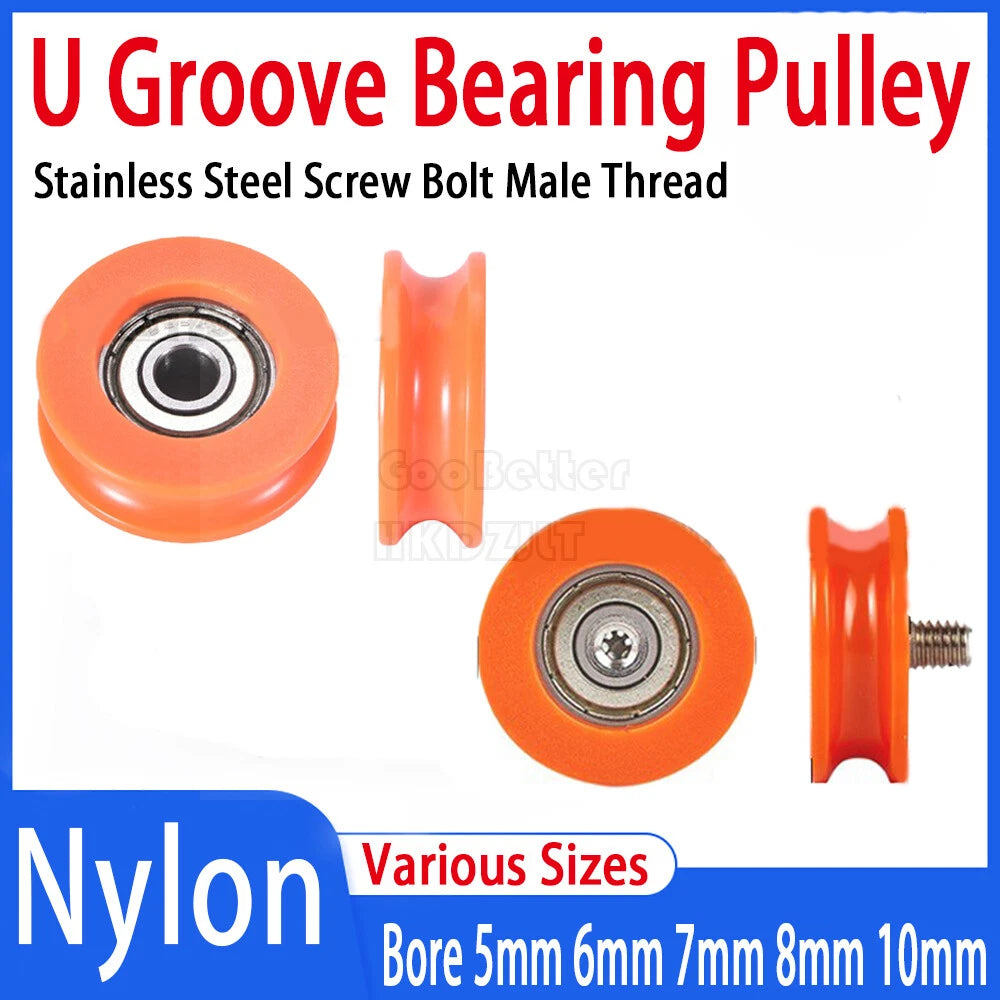

U Groove Nylon Bearing Pulley 625 — Smooth, Quiet Sliding Wheel for M5 & M6 Bolt Systems

When your linear motion system skips, squeaks, or wears unevenly, the culprit is often a low-grade guide wheel that can't hold its groove under load. Makers, CNC builders, and 3D printer enthusiasts who demand consistent, low-friction travel need a pulley that stays true across thousands of cycles — without adding noise or play to the carriage.

These U groove bearing pulleys are built around a 625 radial ball bearing (5mm bore) and overmolded with a durable nylon outer wheel. The U-shaped groove profile is precision-formed to guide round or V-profile rails, rods, and extrusion edges. Outer diameter is typically 15–16mm (approx. 0.59–0.63 in), groove width typically 4–6mm (approx. 0.16–0.24 in), and bore diameter 5mm (approx. 0.20 in) to accept M5 bolts directly; M6 variants include a stepped bushing or spacer collar for M6 bolt compatibility.

Typical use cases include: guiding carriages along aluminum extrusion edges in DIY CoreXY and Cartesian 3D printers; serving as idler tensioner pulleys in belt-driven CNC router gantries; and acting as low-noise sliding wheels in drawer slides, camera sliders, and light-duty linear actuators where a quiet nylon-on-rail interface is preferred over metal-on-metal contact.

🔩 Compatibility: Fits M5 bolts directly (5mm bore). M6 variants include collar/spacer for M6 bolt mounting. Compatible with 625-series bearing seats. Suitable for aluminum extrusion edges, round rods, and V-slot rail profiles.

✅ Key Features of These U Groove Nylon Bearing Pulleys

🎯 Precision U-Groove Profile

The machined U-groove channel keeps the pulley centered on rail edges and round rods, reducing lateral drift and carriage wobble during fast traversal moves.

⚙️ 625 Radial Ball Bearing Core

Each pulley is built around a standard 625 bearing (5×16×5mm) for smooth, low-friction rotation and long service life under repetitive cycling loads.

🔇 Nylon Outer Wheel — Quiet Operation

The nylon overmold absorbs vibration and runs quietly against aluminum extrusion edges, making these pulleys ideal for enclosed printers and workshop environments.

🔩 M5 & M6 Bolt Compatibility

Available in bore configurations for M5 bolts (direct fit) and M6 bolts (with collar or spacer), covering the two most common fastener sizes in DIY motion systems.

📦 Flexible Pack Quantities

Order 1, 2, 3, or 5 pieces per size to match your exact build requirements — whether you're replacing a single worn wheel or stocking spares for a full machine build.

🔄 Drop-In Replacement Geometry

Standard 625 bearing footprint means these pulleys fit existing carriage mounts and tensioner brackets designed for 625-series guide wheels without modification.

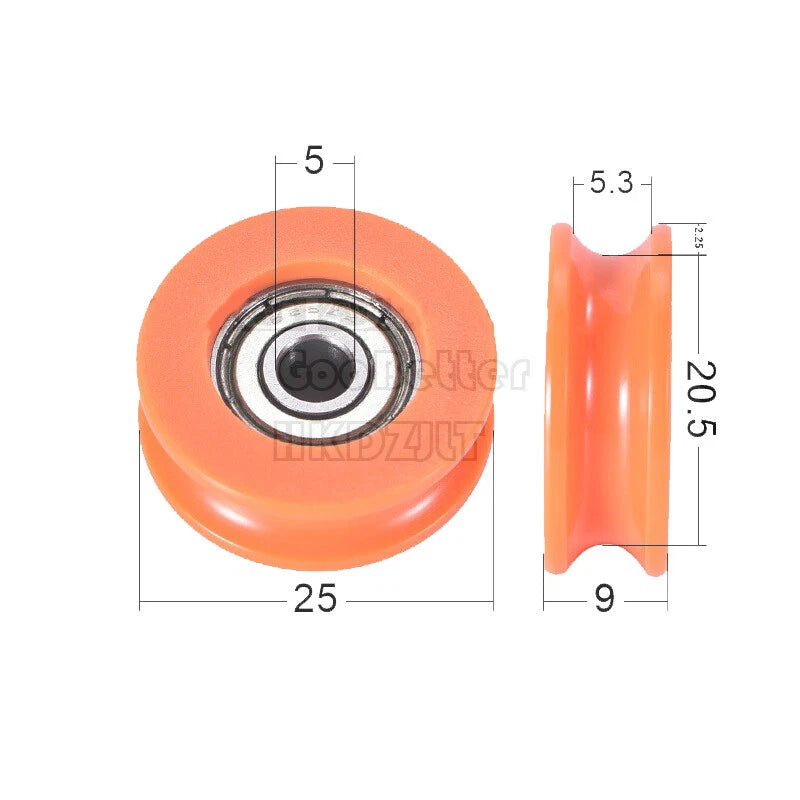

📐 Technical Specifications — U Groove Nylon Bearing Pulley

Bearing Model 625 (5×16×5mm)
Bore Diameter 5mm (0.20 in) — M5 direct fit; M6 variants include collar
Outer Diameter See variant options
Groove Width See variant options
Overall Width / Height See variant options
Material — Outer Wheel Nylon
Material — Inner Bearing Steel (625 radial ball bearing)
Bolt Compatibility M5 (direct); M6 (with spacer/collar, see size code)
Groove Profile U-groove
Finish Natural nylon (off-white / light gray)
Pack Quantity 1 / 2 / 3 / 5 PCS (select above)

❓ Frequently Asked Questions

How do I choose between the BSU5-25-9 and the BSU625 size variants?

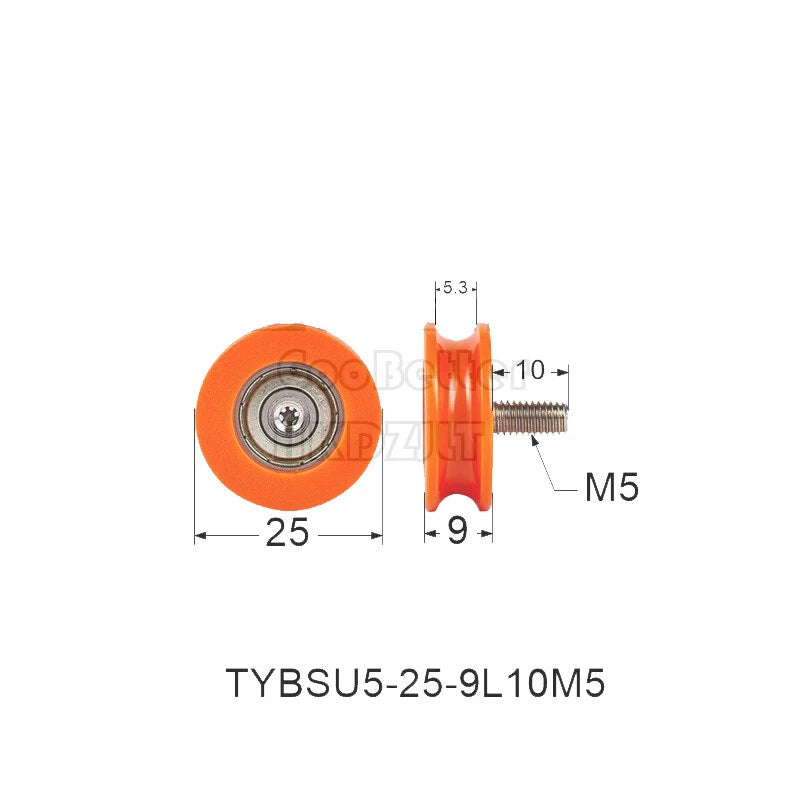

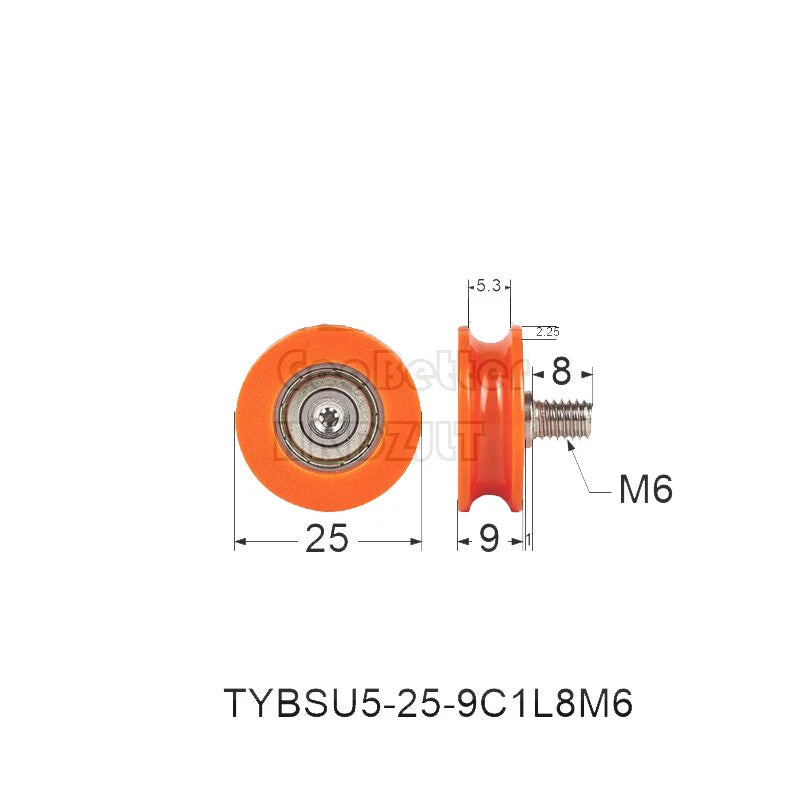

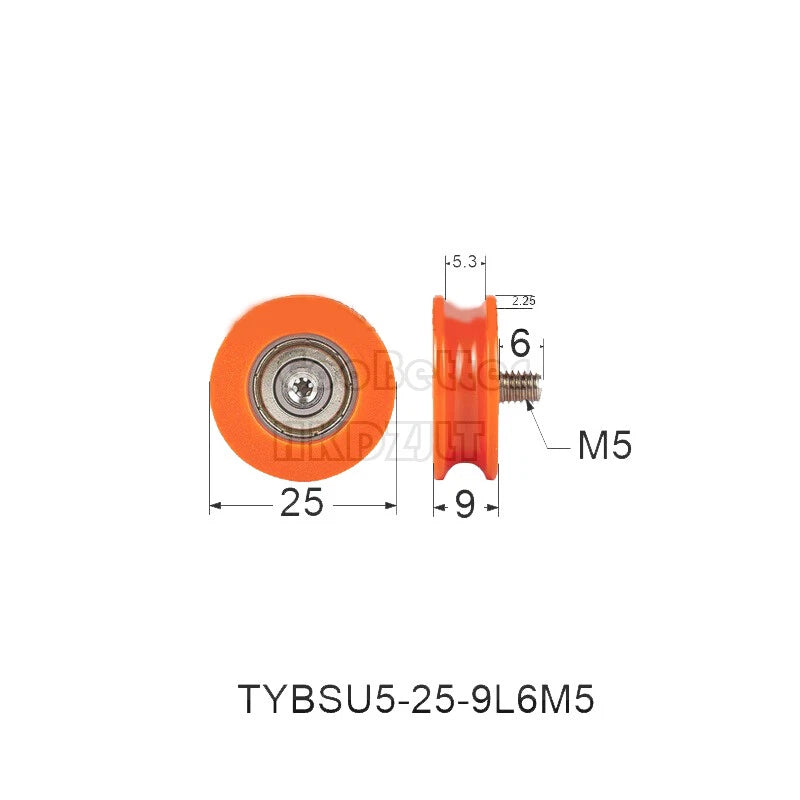

The BSU5-25-9 is designed for M5 bolt mounting with a direct 5mm bore — no spacer needed. The BSU625 variants (BSU625-25-9C0L6M5, BSU625-25-9C0L10M5, BSU625-25-9C1L8M6) include a collar or stepped spacer that adapts the 5mm bearing bore to accept an M6 bolt. The suffix codes indicate collar length and style: C0 = no collar step, C1 = one-step collar; L6/L8/L10 = collar length in mm; M5/M6 = target bolt size. Choose based on the bolt size used in your carriage or tensioner bracket.

What rail or rod profiles are compatible with the U groove?

The U-groove profile is designed to ride along the edge of aluminum extrusion profiles (such as 2020 or 2040 V-slot/T-slot), round rods, and similar convex-edge surfaces. It is not intended for flat belt teeth or GT2/HTD pulley tooth profiles — for those applications, a toothed idler pulley is required instead.

Is the nylon wheel strong enough for CNC router or 3D printer use?

Nylon offers a good balance of rigidity, wear resistance, and low friction for light-to-medium duty linear motion. It handles the repetitive cycling loads typical of 3D printer carriages and light CNC gantries well. For heavy-duty industrial cutting machines with high lateral forces, a metal-rimmed guide wheel may be more appropriate.

Will the bearing rust or corrode over time?

The 625 bearing uses standard steel races and balls with factory grease. In normal indoor workshop or printer enclosure environments, corrosion is not a concern. If used in humid or outdoor environments, consider applying a light bearing lubricant periodically to extend service life.

Can I use these as idler pulleys for timing belts?

These are smooth U-groove pulleys, not toothed idlers. They can be used as smooth-face belt tensioners where the belt wraps around the outer nylon surface (flat/smooth contact), but they will not mesh with GT2 or HTD belt teeth. For toothed idler applications, a matching toothed pulley is required.

How many pieces should I order for a typical 3D printer build?

A standard CoreXY or Cartesian 3D printer carriage typically uses 2–6 guide wheels depending on the design. We recommend ordering the 5 PCS pack for a full build to have spares on hand, or the 2–3 PCS pack for a single-axis replacement. Check your printer's BOM (bill of materials) for the exact count before ordering.

Are these pre-greased and ready to install?

Yes. The 625 bearing inside each pulley comes pre-greased from the factory and is ready to install. No additional lubrication is required before first use. For extended service intervals, a small amount of bearing grease can be applied through the seal gap after extended use.

🛒 Select your Size and Amount above, then add to cart.
