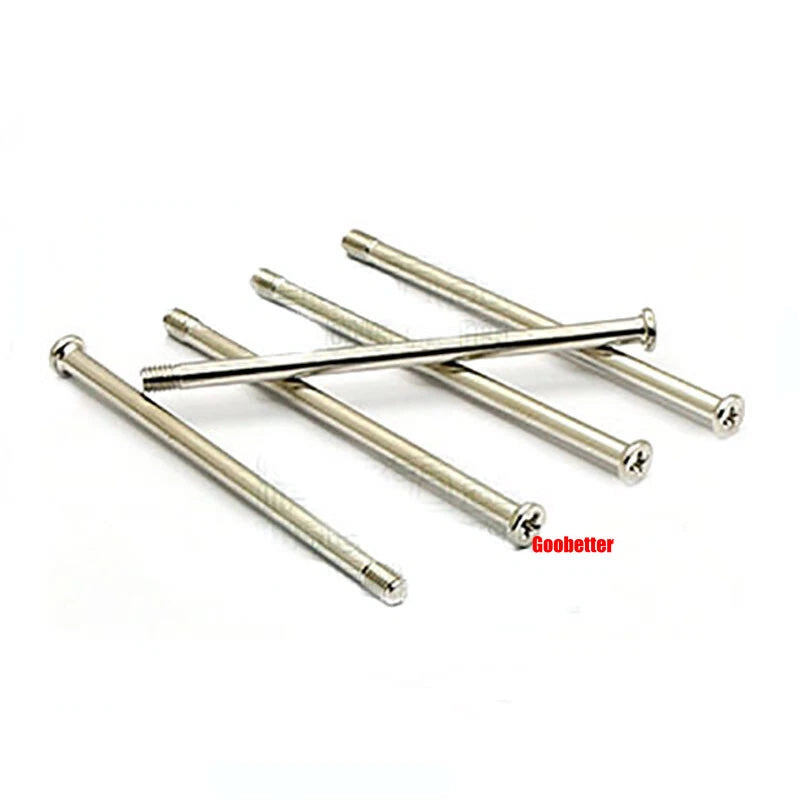

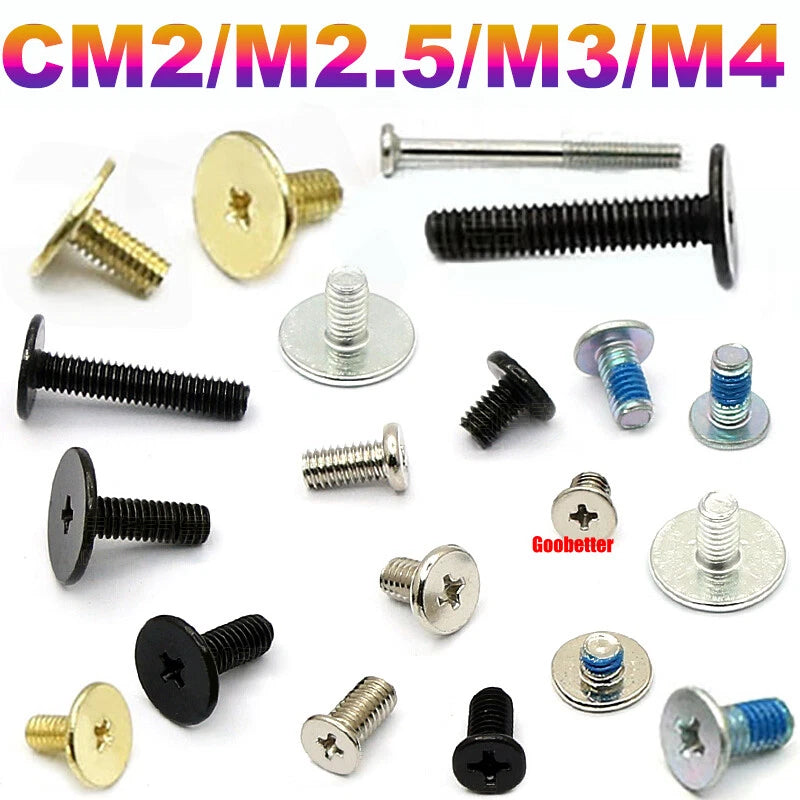

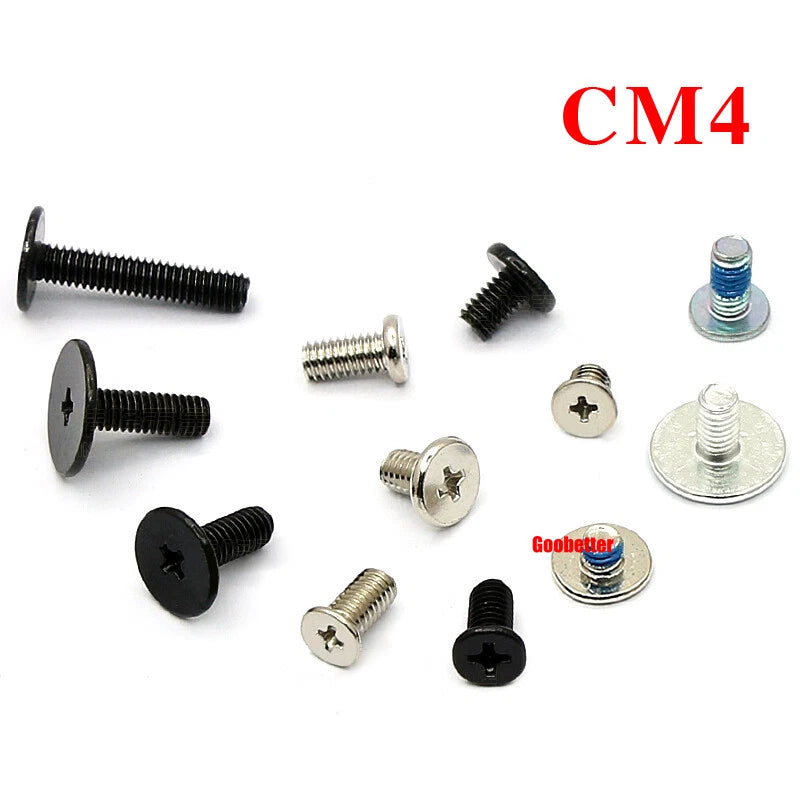

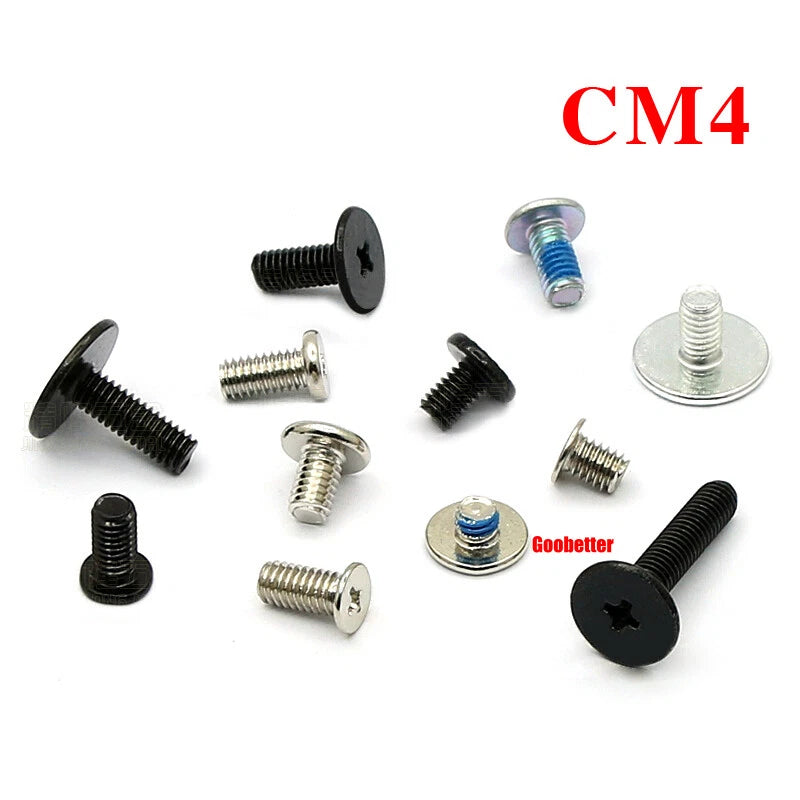

💻 Product Overview: CM2/CM2.5/CM3/CM4 Ultra Thin Wafer Flat Head Machine Screws – For Laptop & Computer Repair
When you're working on slim laptops, tablets, or compact electronics, standard screws often protrude too much or don't fit the tight clearances. These ultra‑thin wafer flat head Phillips machine screws (CM series) are specifically designed for such applications. The extremely low head height (as low as 0.4mm) and wide flat bearing surface allow for flush mounting without the need for a countersunk hole. Made from high‑quality carbon steel or 304 stainless steel with a choice of finishes (nickel, black zinc, white zinc, color zinc, bronze, or natural stainless), they offer corrosion resistance, high strength, and reliable fastening. Available in M2, M2.5, M3, and M4 metric diameters with thread lengths from 2mm to 50mm (measured under the head). Perfect for laptop bottom covers, computer cases, keyboards, and any slim device assembly.
✨ Why These Ultra Thin Wafer Head Screws Are a Laptop Repair Essential
-
Ultra‑thin wafer flat head – Head thickness from 0.4mm to 2mm, significantly thinner than standard pan or flat head screws. Allows flush mounting in ultra‑slim devices.
-
Wide bearing surface – Large head diameter (2.5mm–12.5mm) distributes clamping force evenly, protecting plastic and thin metal surfaces.
-
Metric sizes CM2, CM2.5, CM3, CM4 – Corresponding to M2, M2.5, M3, M4 thread diameters. The exact sizes used in many laptops, tablets, and small electronics.
-
Material options – carbon steel or 304 stainless steel – Carbon steel with plating offers strength and corrosion resistance. 304 stainless provides natural rust protection for harsh environments.
-
Multiple finish options – Nickel‑plated (bright silver), black zinc (dark matte), white zinc, color zinc, blue white zinc, bronze, natural 304 stainless, and anti‑loosening rubber coated versions available.
-
Phillips drive with flat tail – Cross recess works with precision PH0/PH00 bits. Flat tail (non‑self‑tapping) ensures consistent seating.
-
Fully threaded, coarse metric pitch – Standard threads: M2x0.4, M2.5x0.45, M3x0.5, M4x0.7. Threads run the entire length for maximum grip.
-
Wide application range – Laptop and computer repair, furniture assembly, electronic equipment, automotive, aerospace, machinery, and outdoor gear.

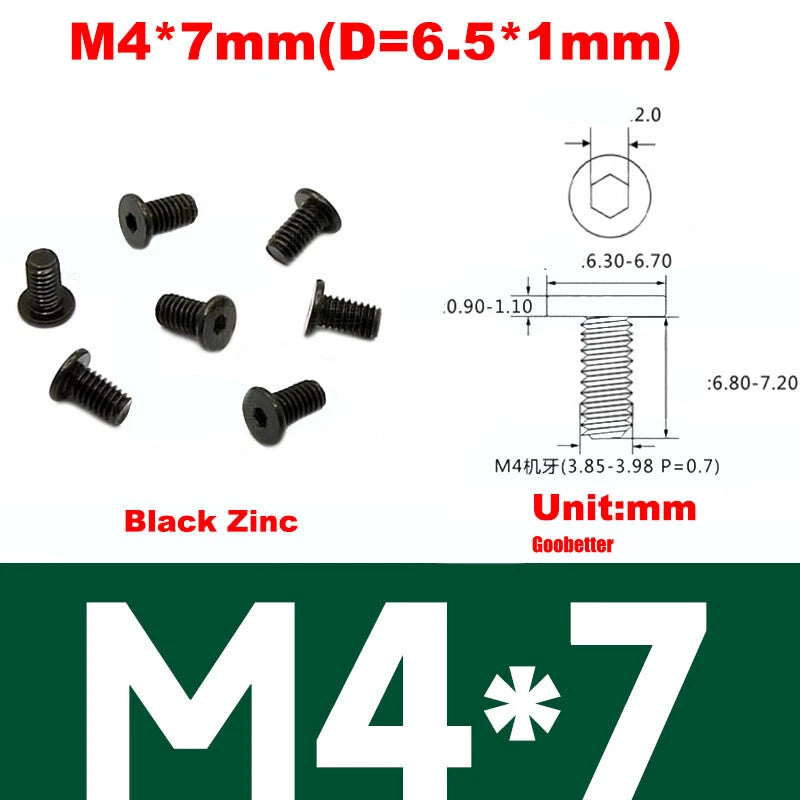

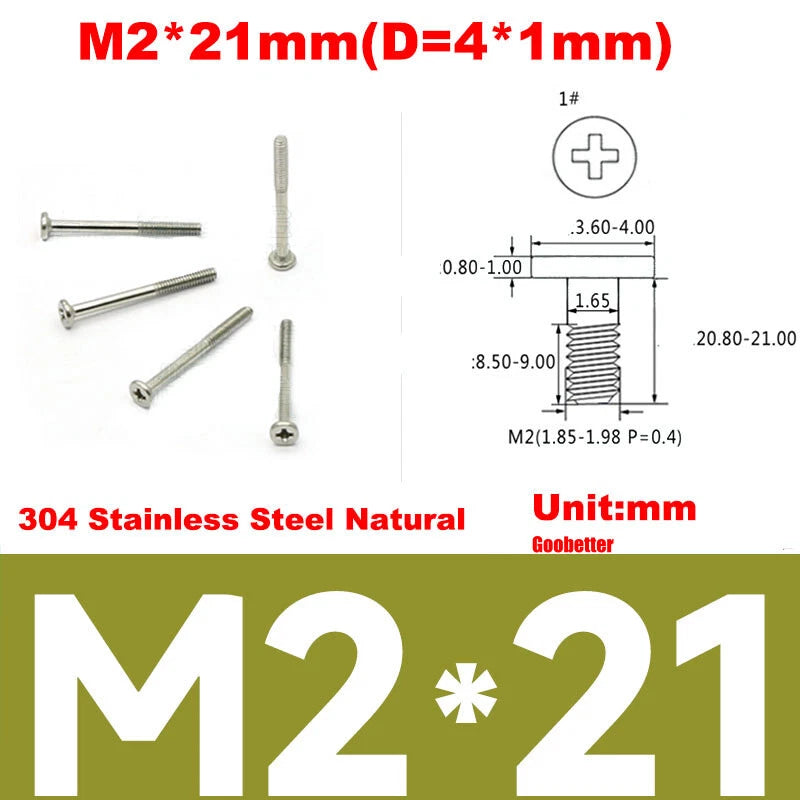

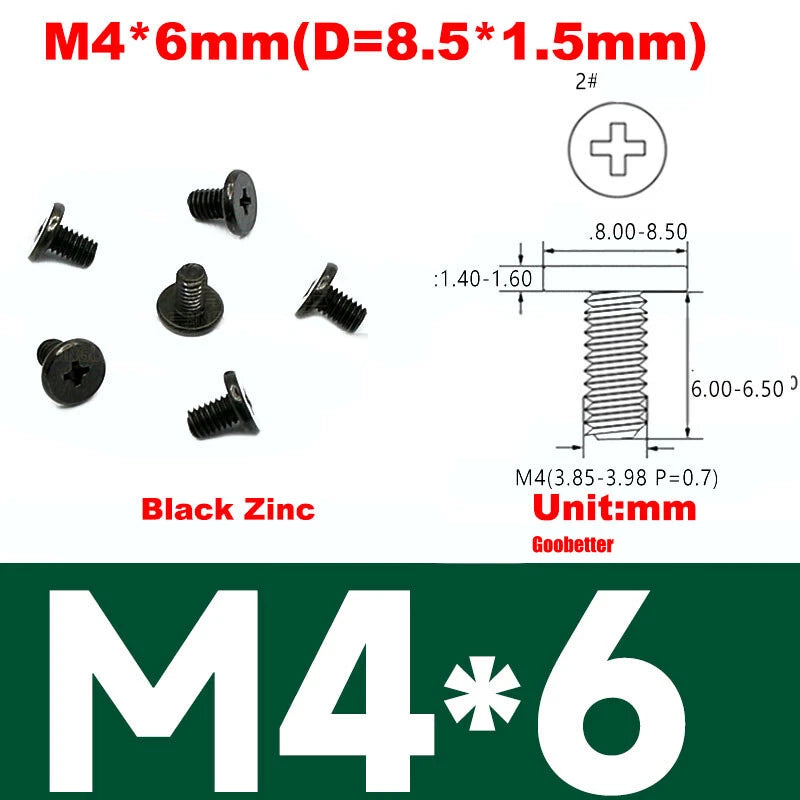

📏 Technical Specifications – CM Series Ultra Thin Wafer Head Screws
| Specification |
CM2 (M2) |
CM2.5 (M2.5) |
CM3 (M3) |
CM4 (M4) |
| Thread Diameter (d) |
2mm |
2.5mm |
3mm |
4mm |
| Thread Pitch (p) |
0.4mm |
0.45mm |
0.5mm |
0.7mm |
| Head Diameter (dk) range |
2.5 – 3.2mm |
3.0 – 4.5mm |
4.5 – 7.0mm |
7.0 – 12.5mm |
| Head Thickness (k) range |
0.4 – 0.8mm |
0.5 – 1.0mm |
0.6 – 1.5mm |
0.8 – 2.0mm |
| Material Options |
Carbon steel (various platings) or 304 stainless steel (natural) |
| Thread Length Range |
2mm – 50mm (under head) |
🎨 Available Finishes (Select from Options)
| Finish |
Description |

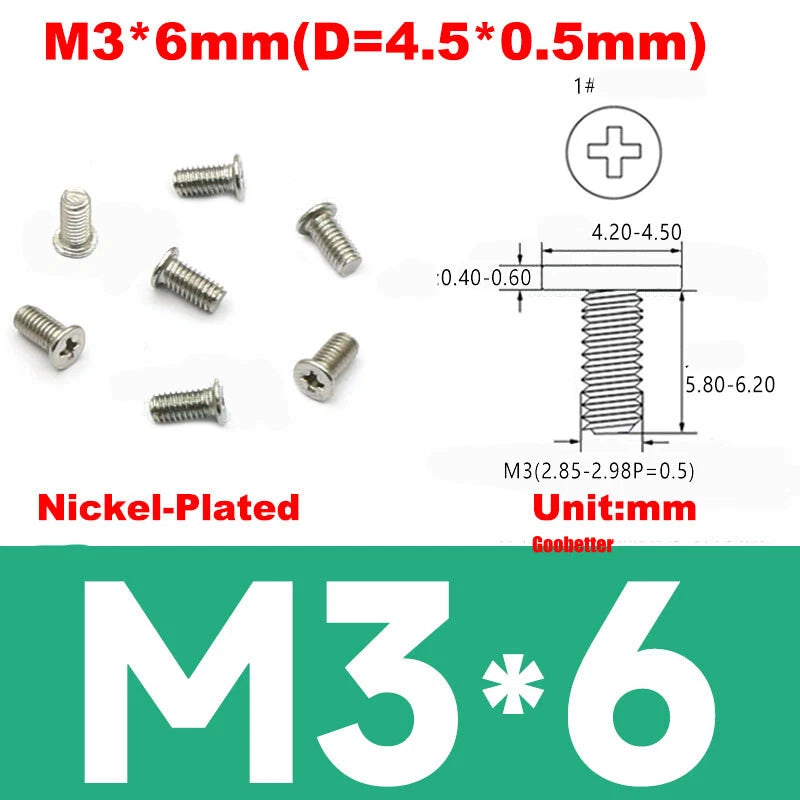

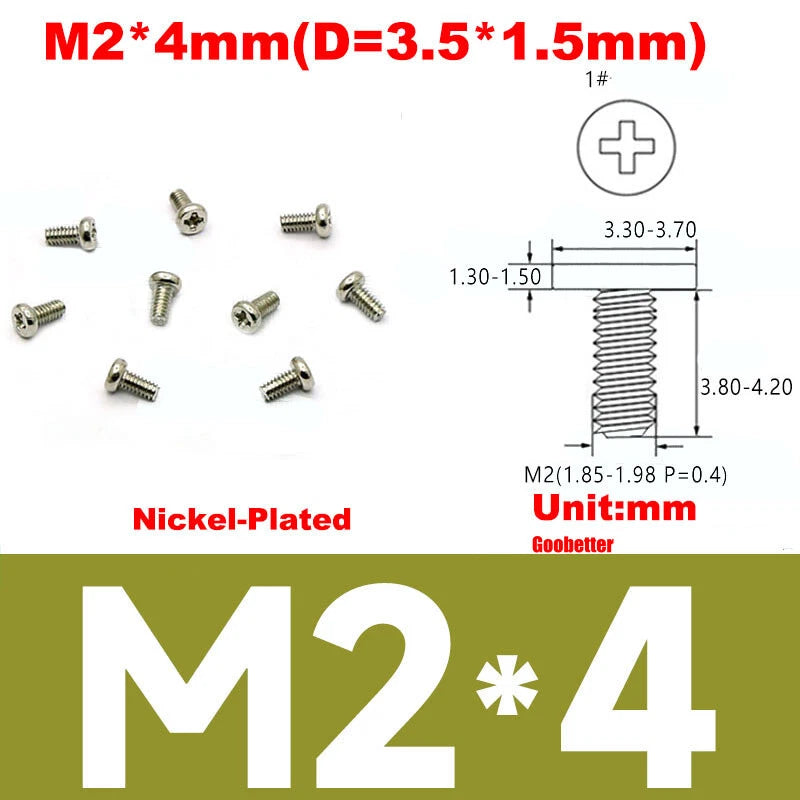

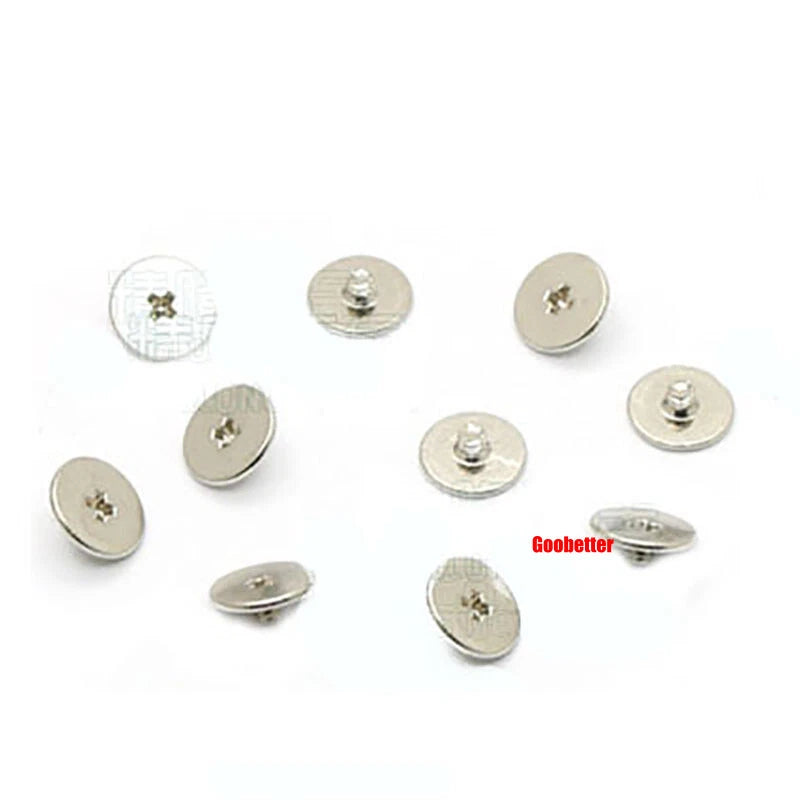

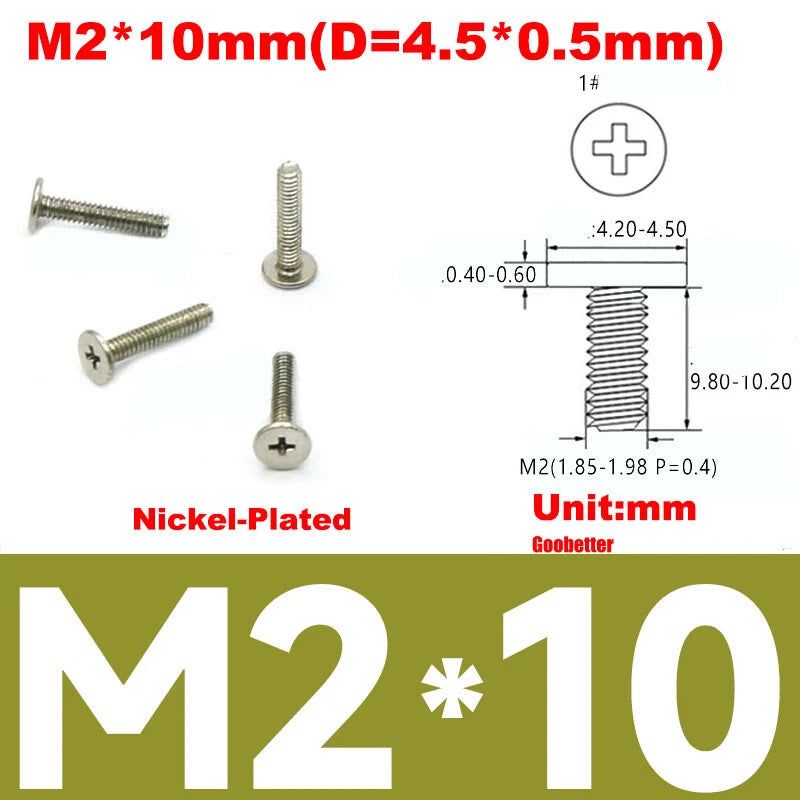

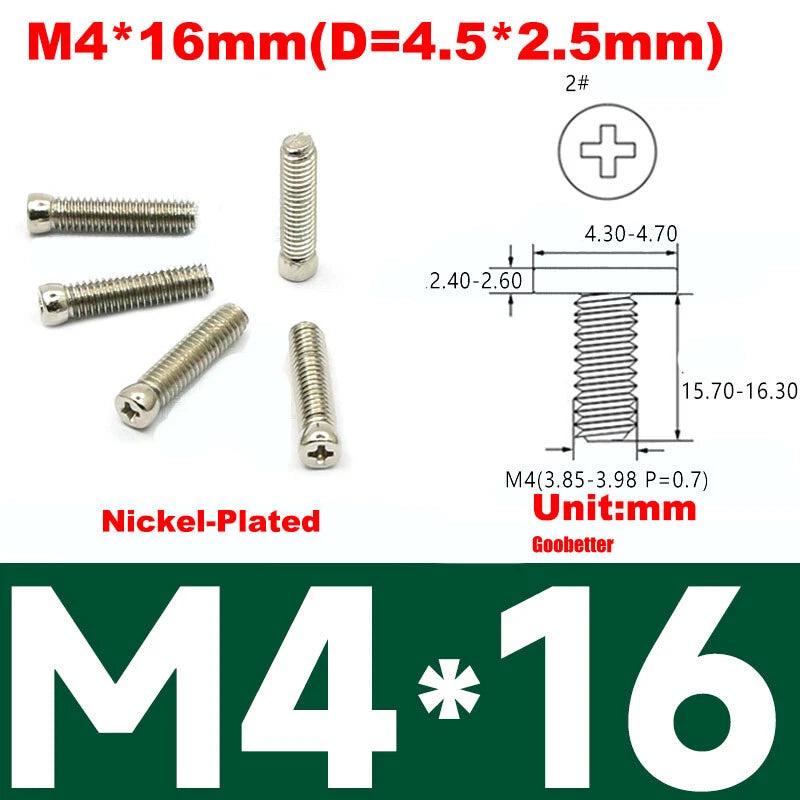

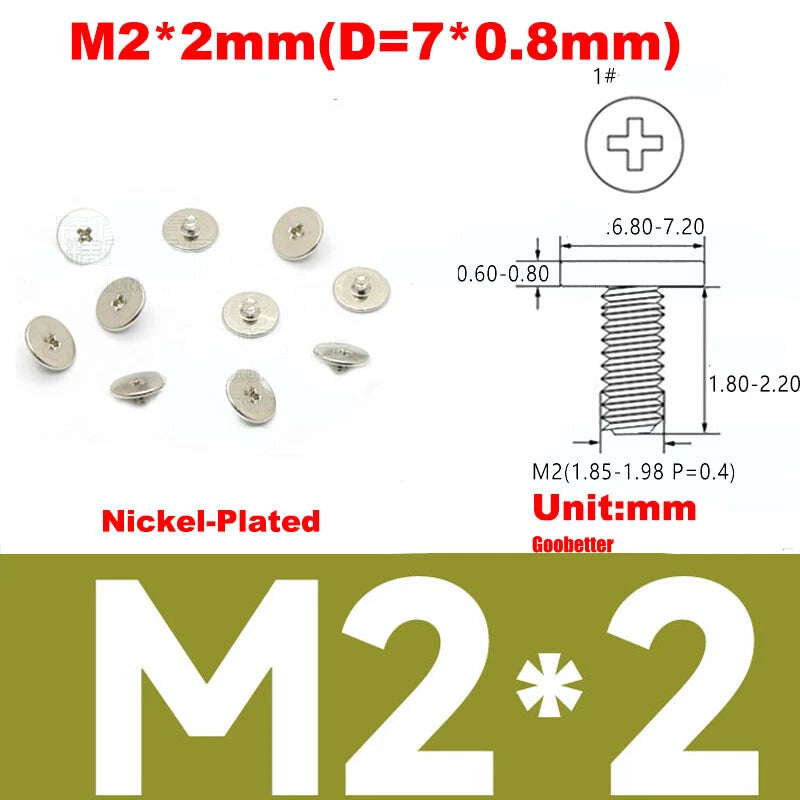

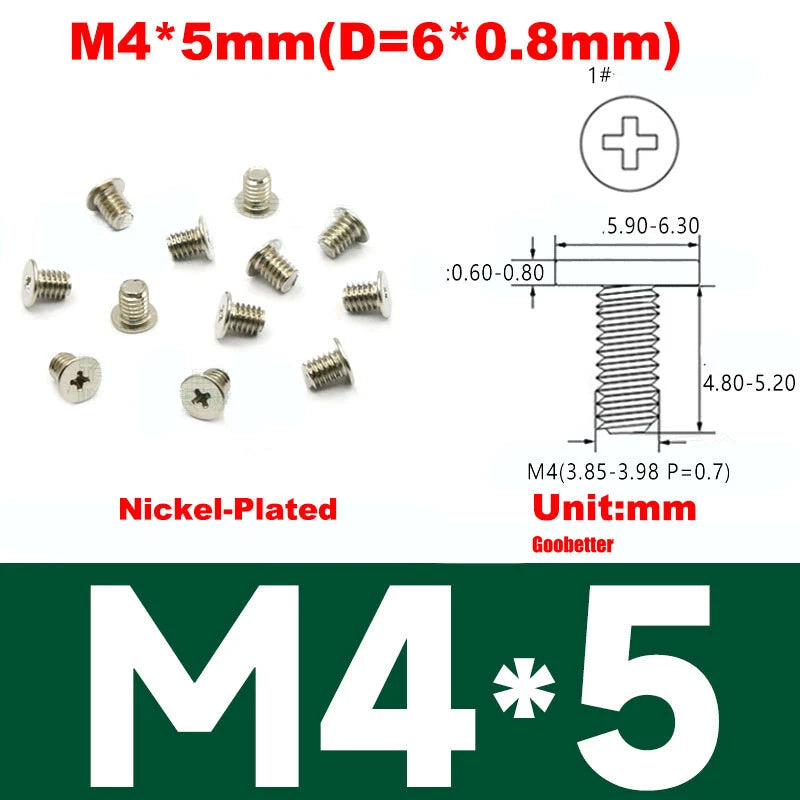

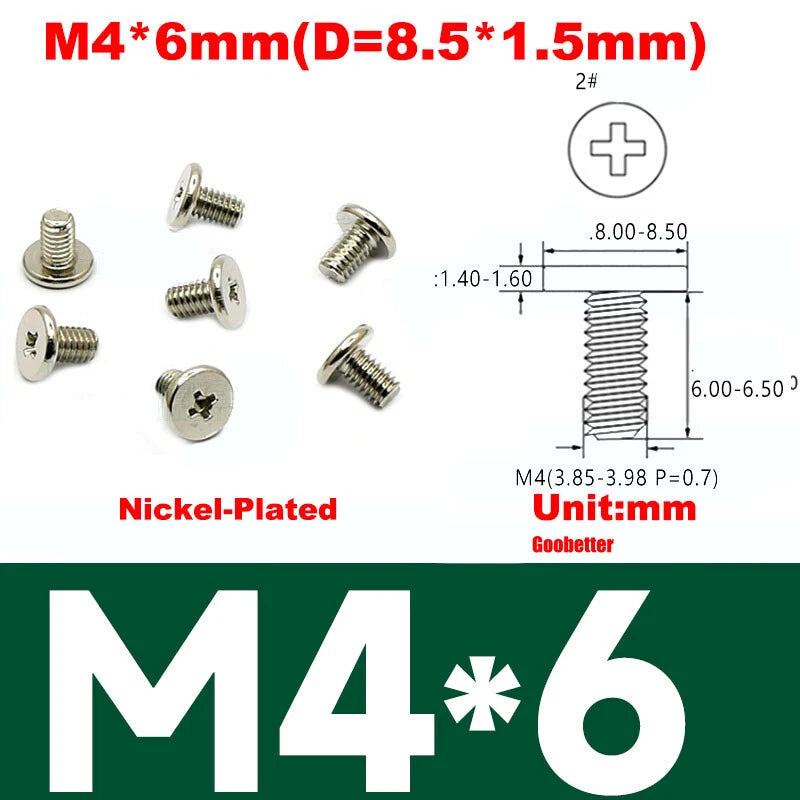

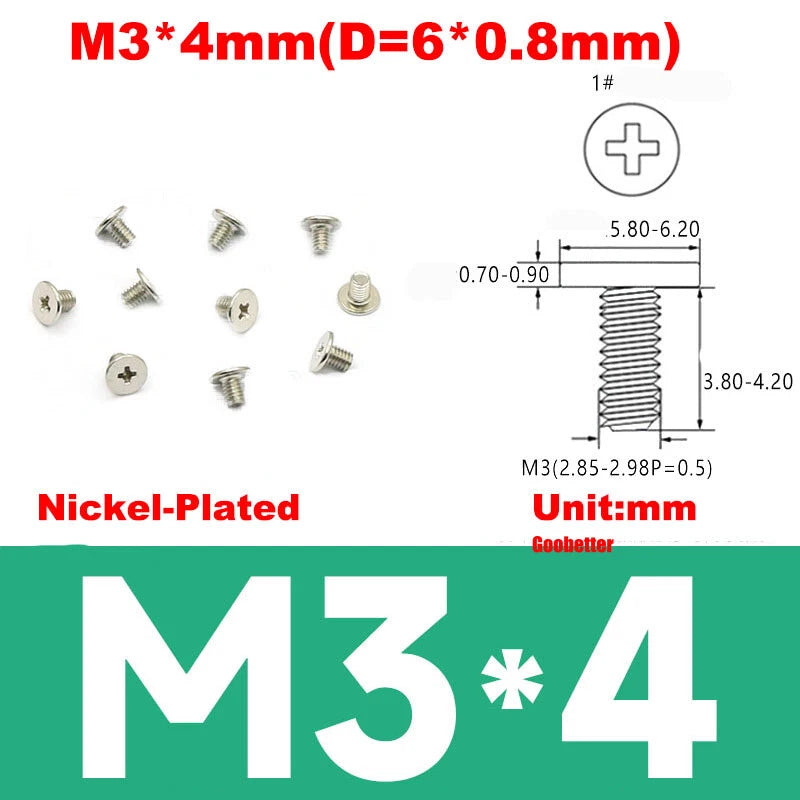

| Nickel‑Plated |
Bright silver, good corrosion resistance – standard for laptops |

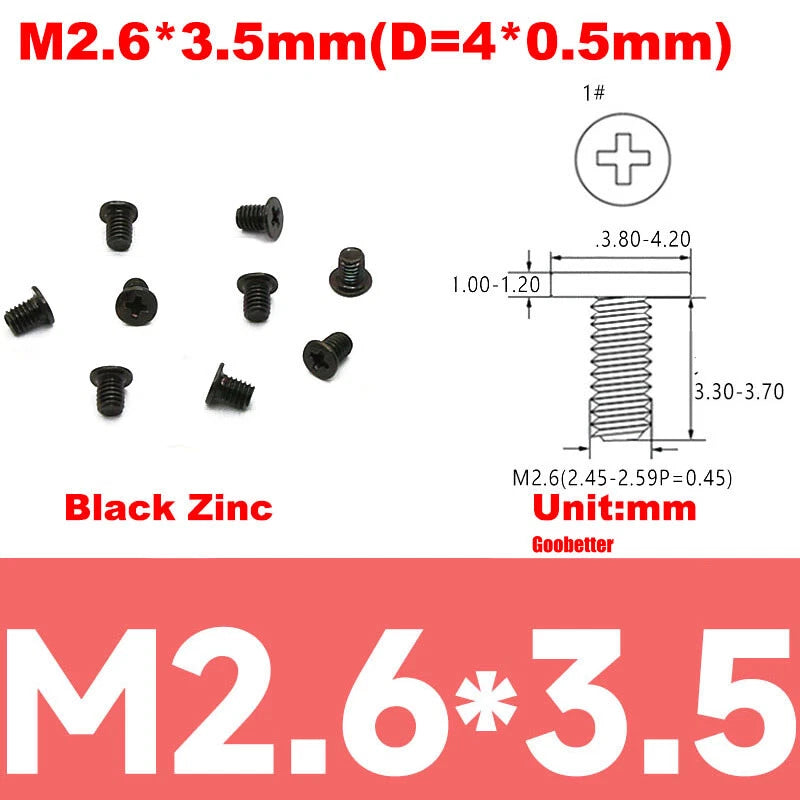

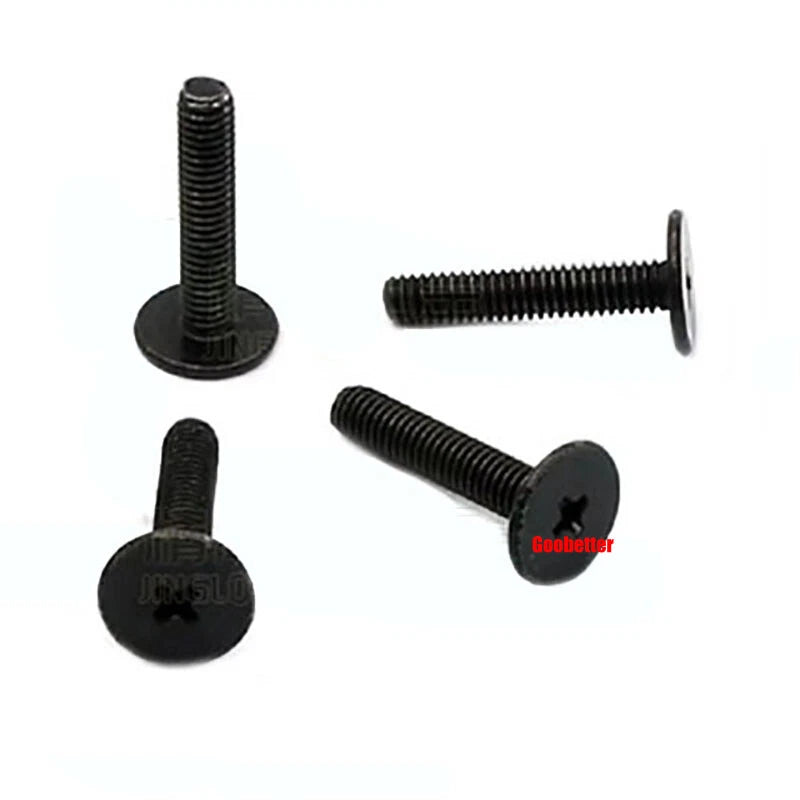

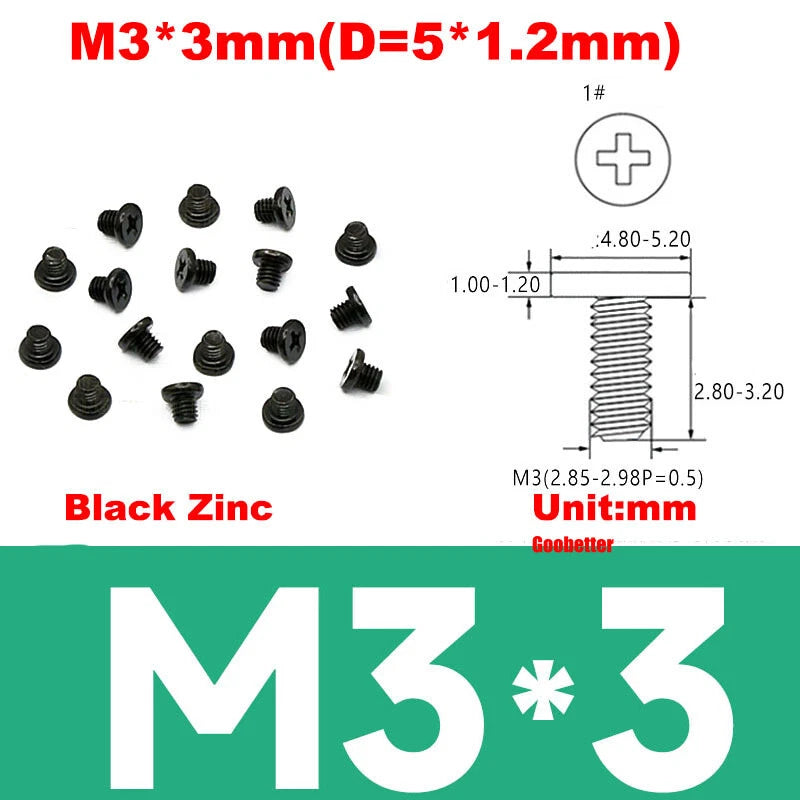

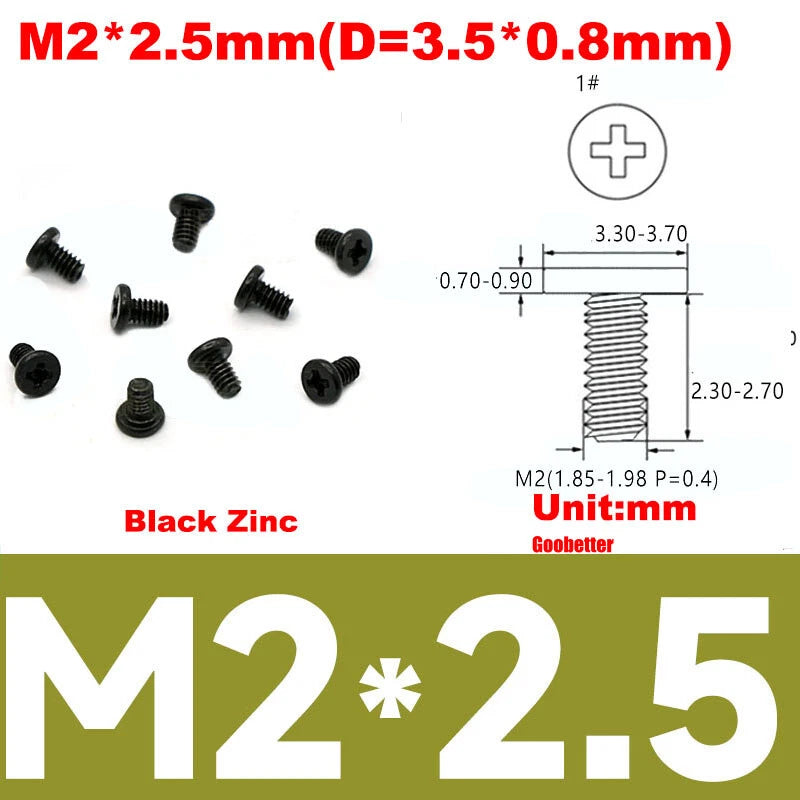

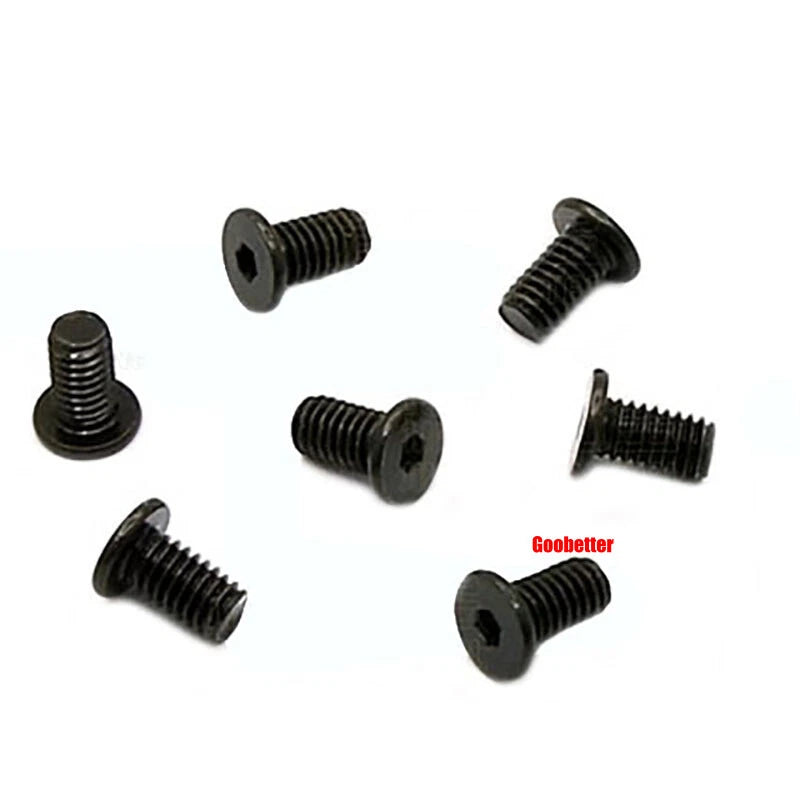

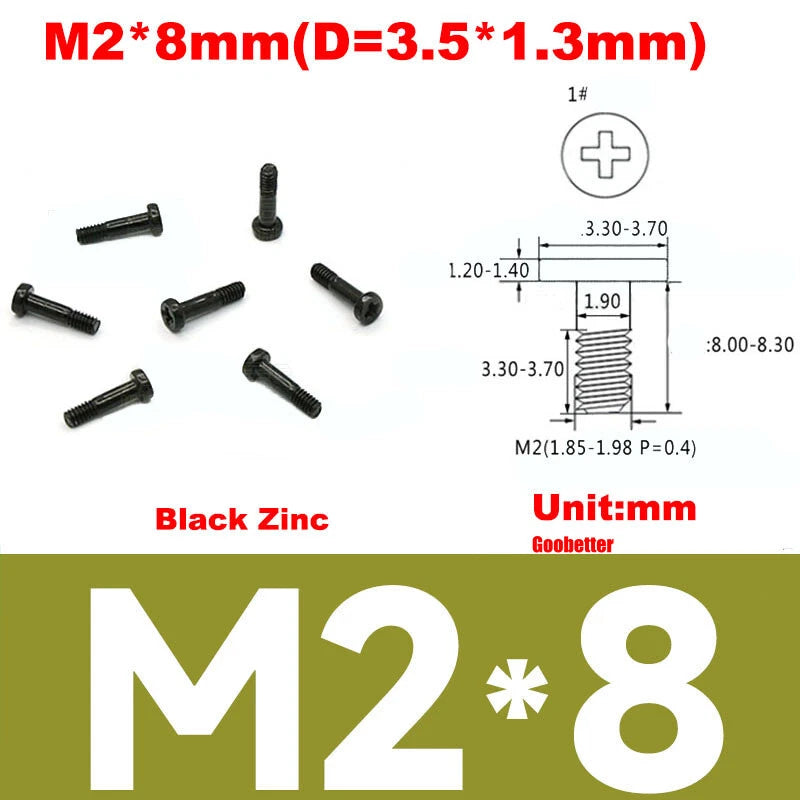

| Black Zinc |
Dark matte finish – blends with black equipment |

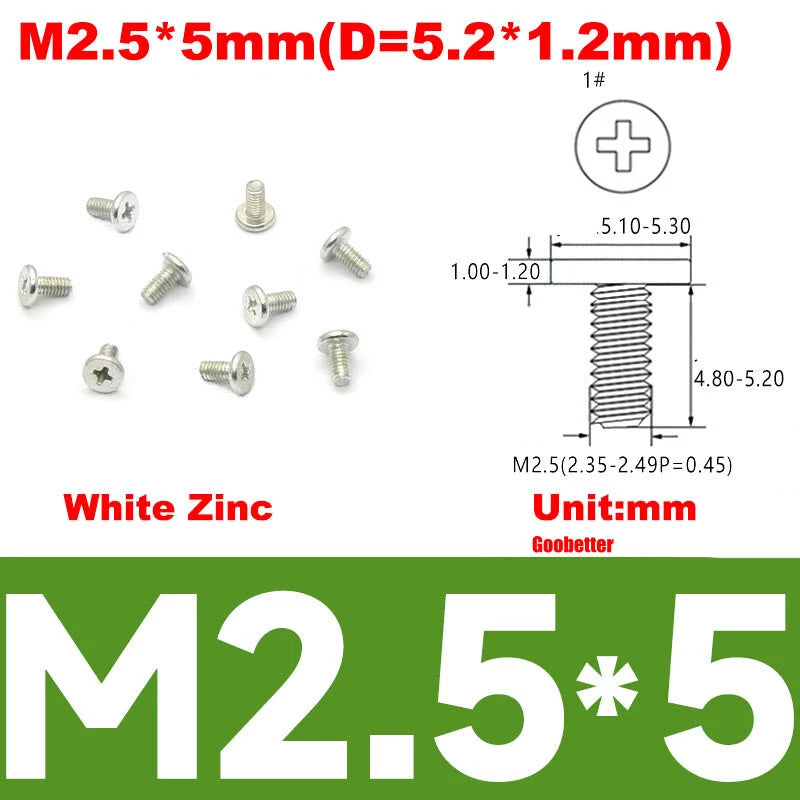

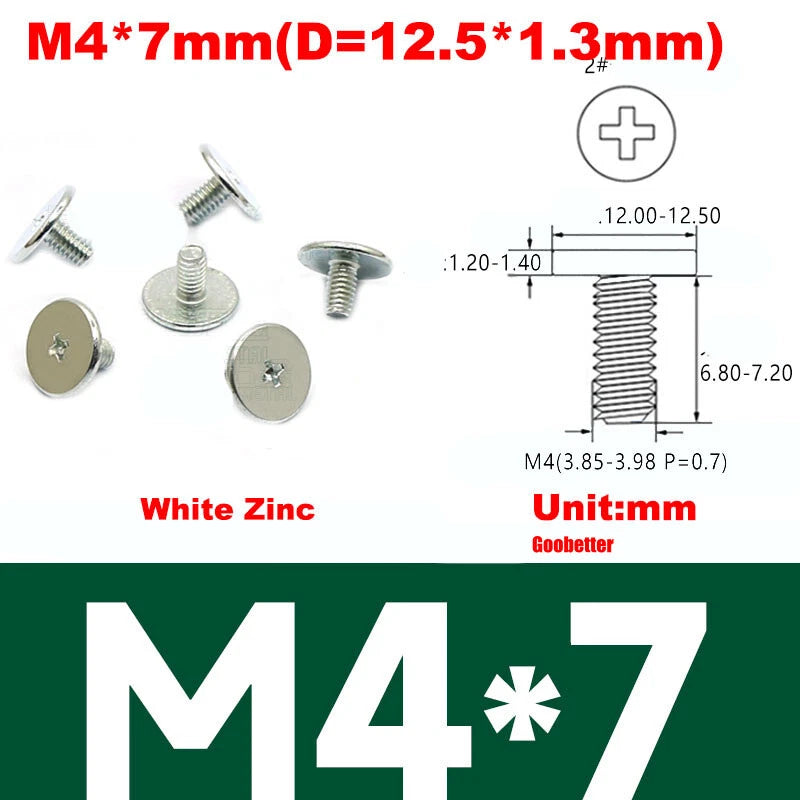

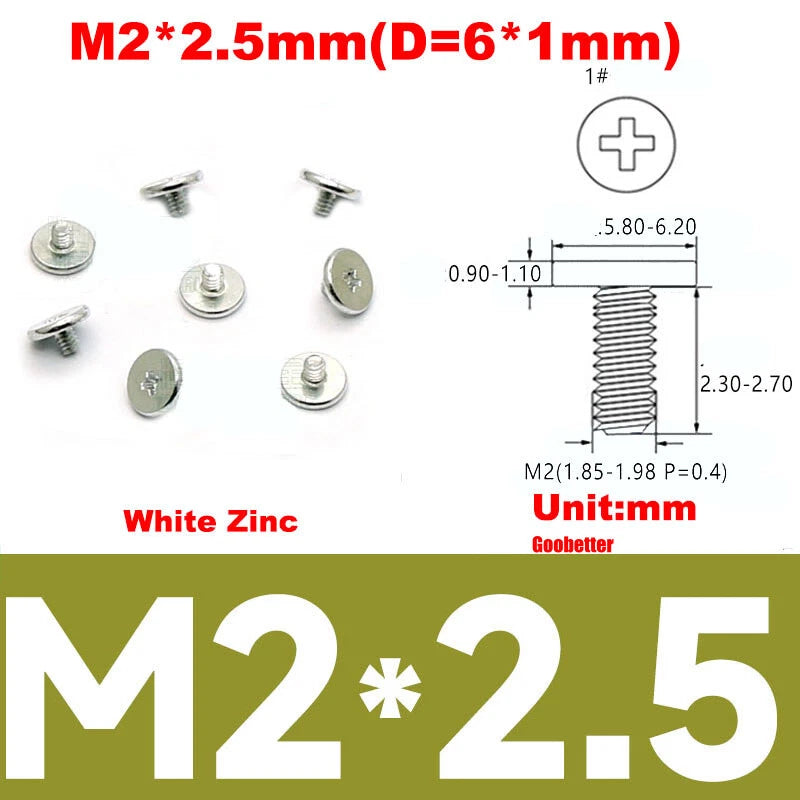

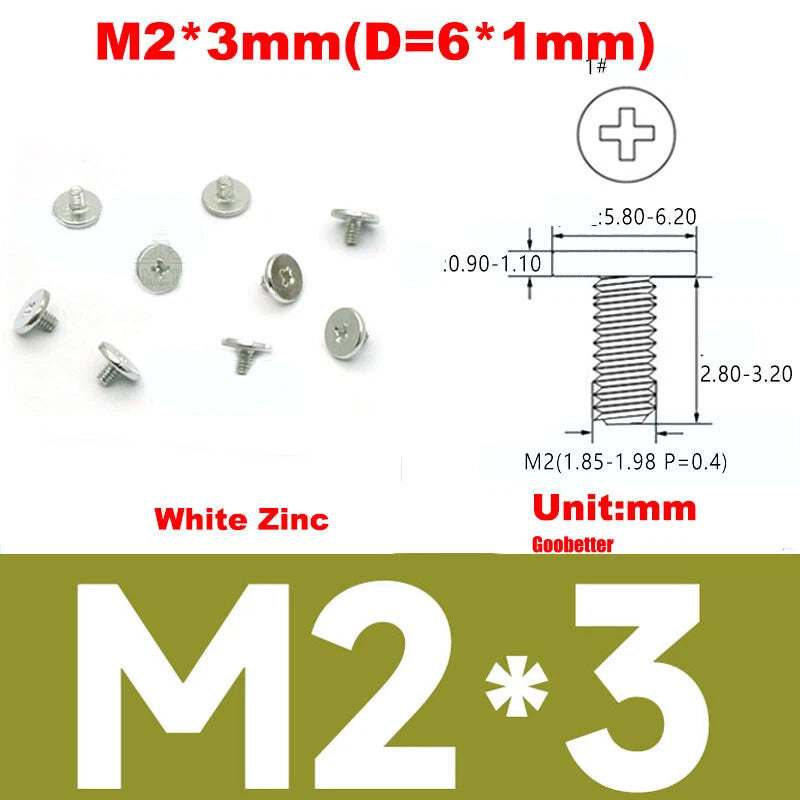

| White Zinc |
Bright silver with slight bluish tint |

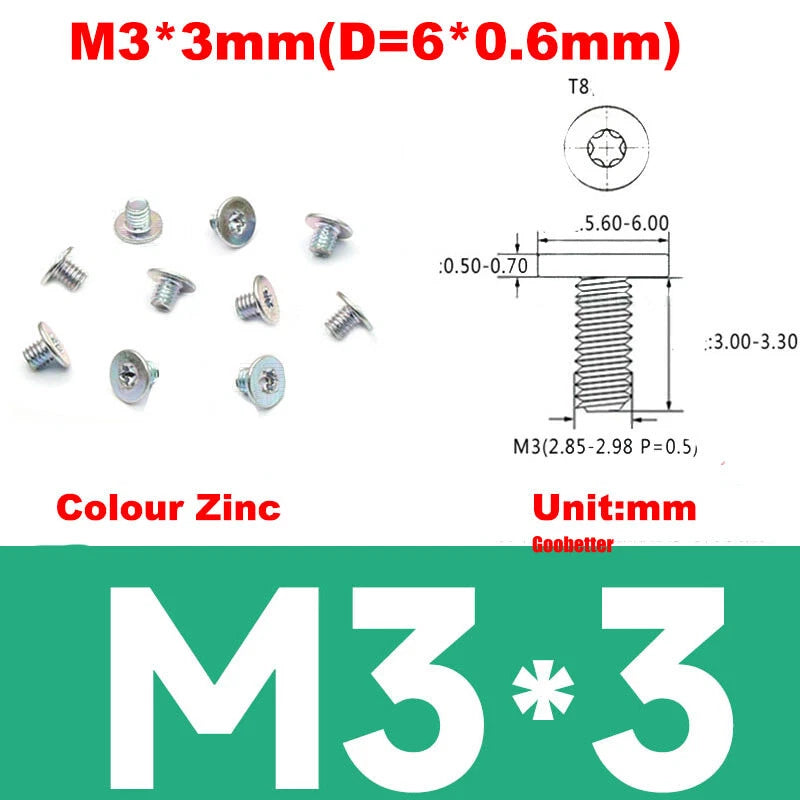

| Color Zinc |

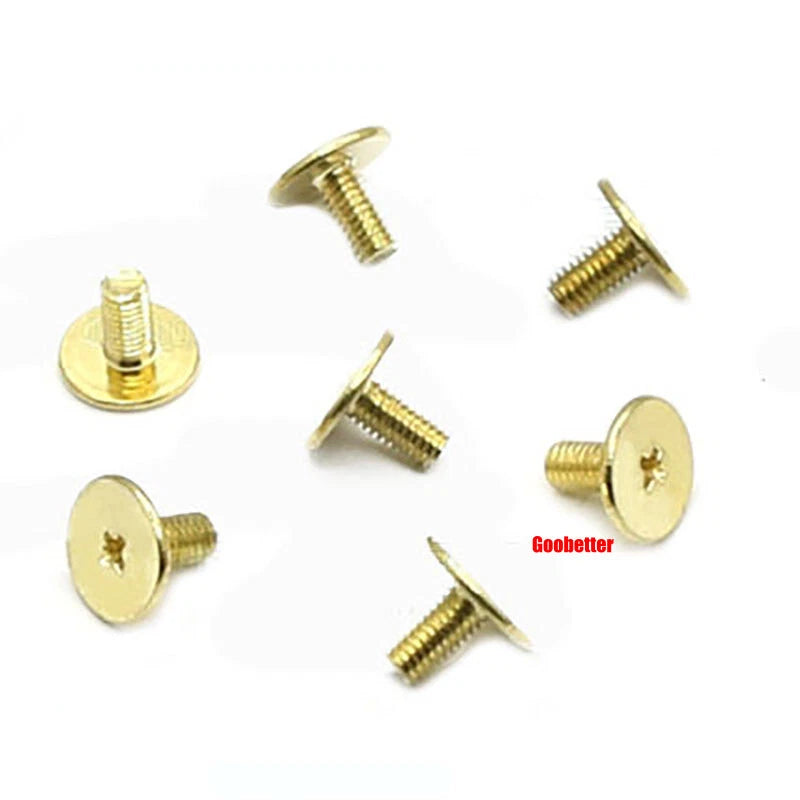

Yellow/gold iridescent – decorative |

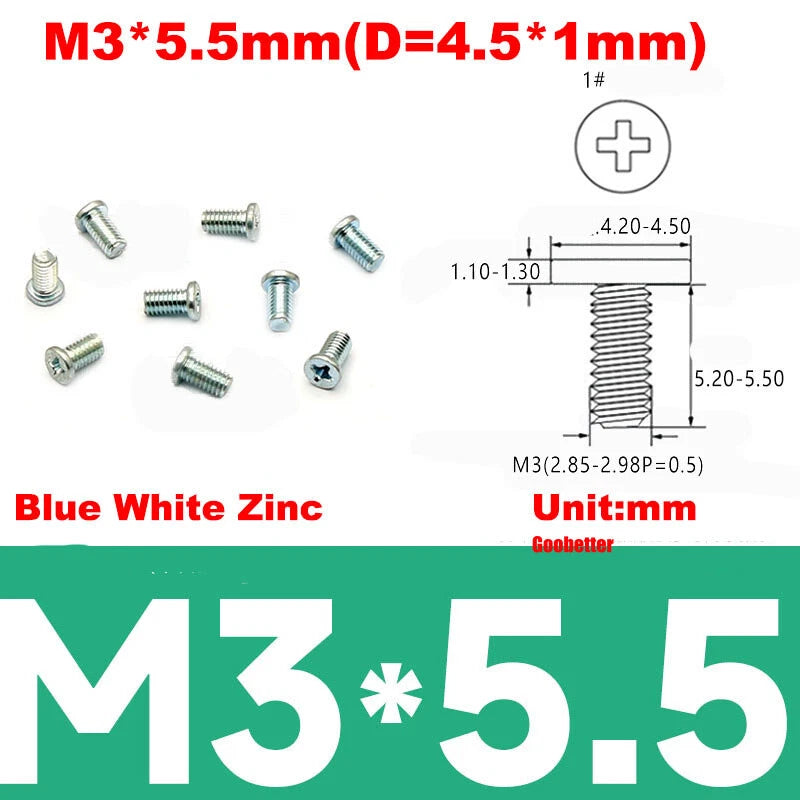

| Blue White Zinc |
Bright blue‑silver, high corrosion resistance |

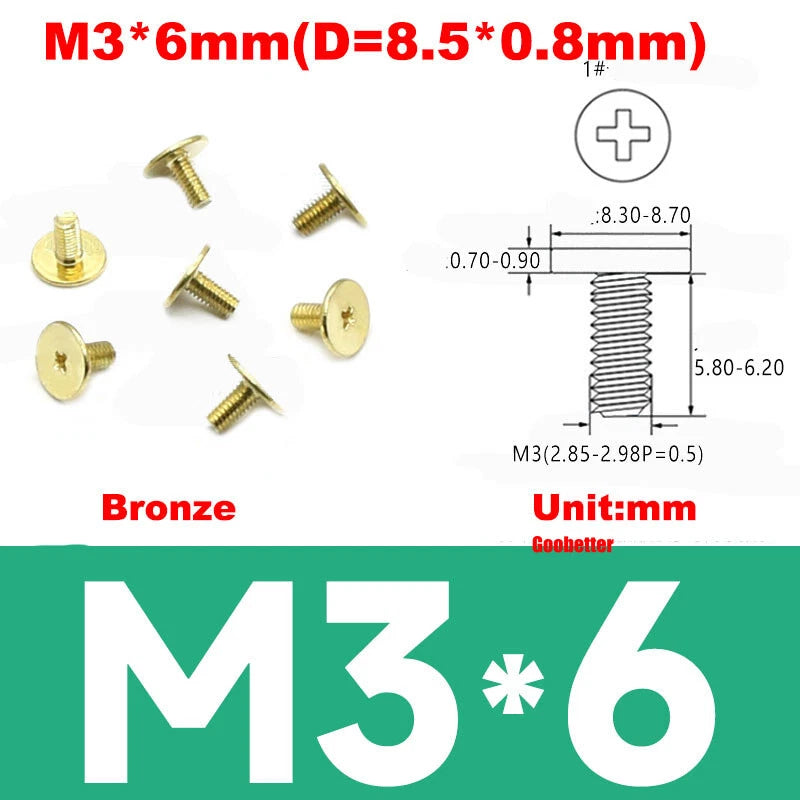

| Bronze |
Warm brown/copper tone |

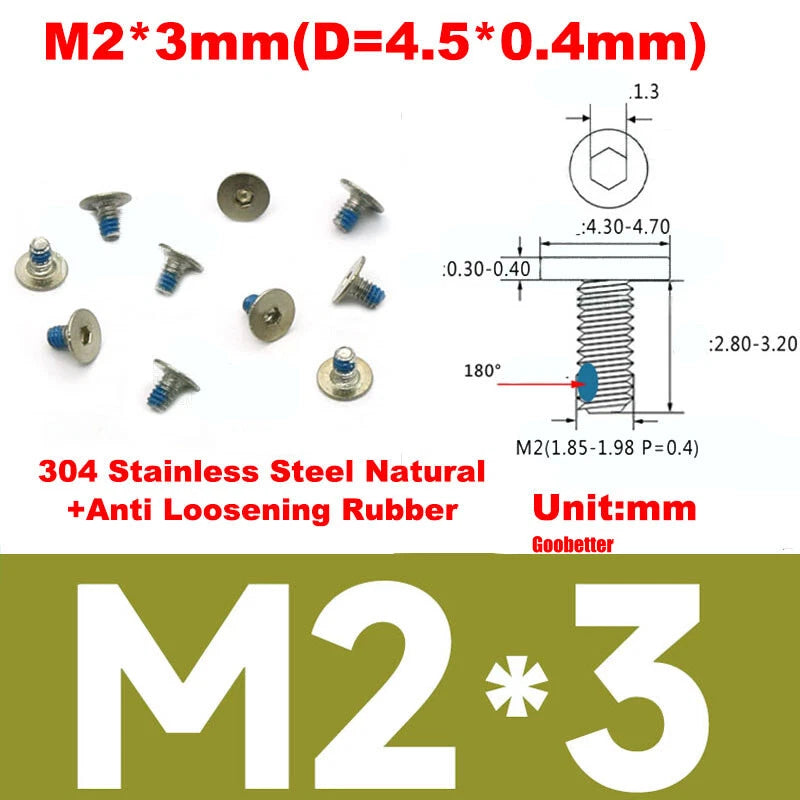

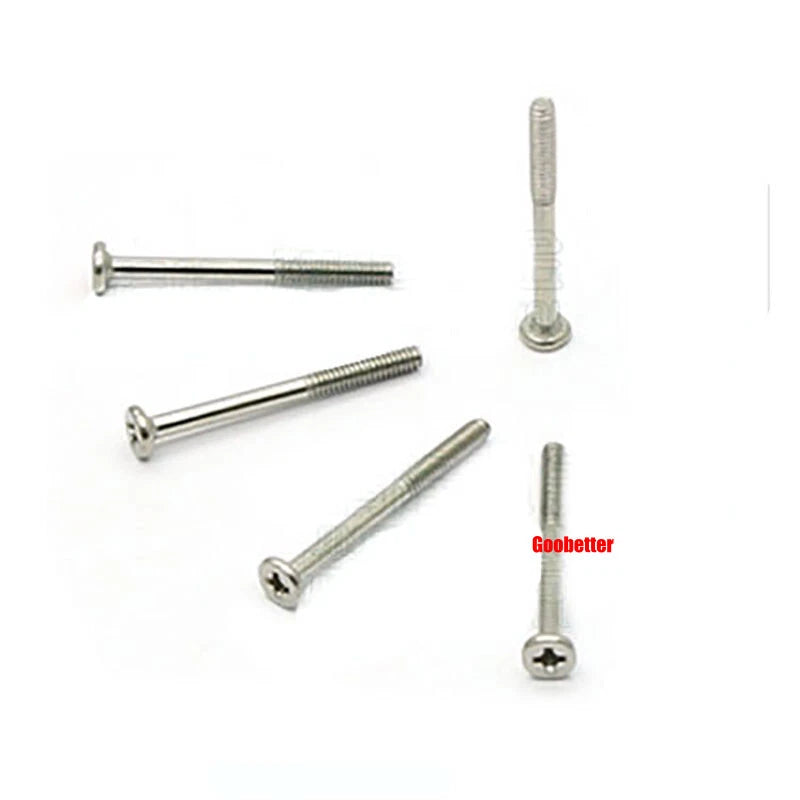

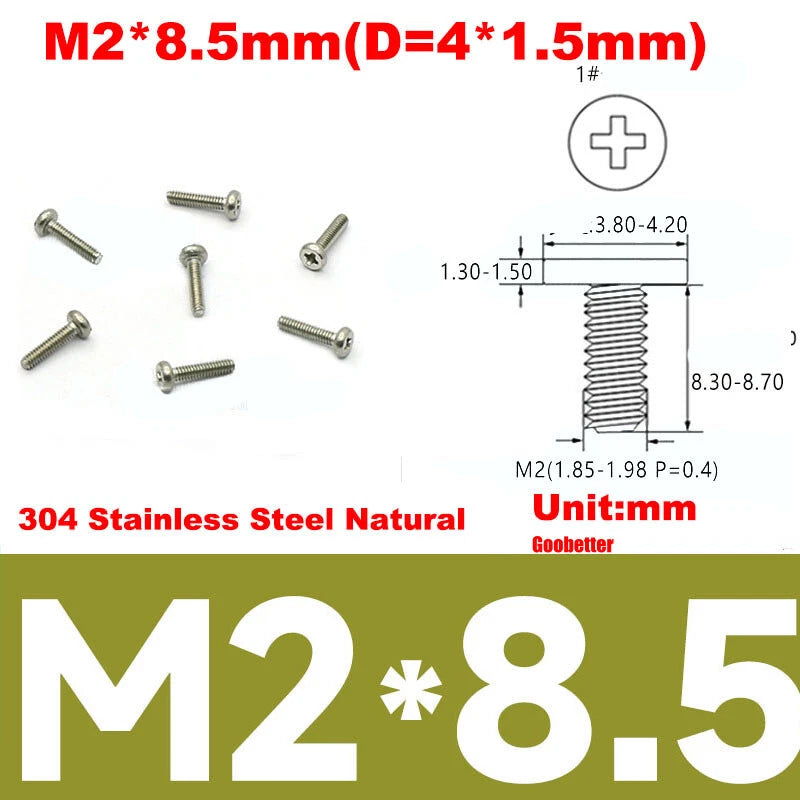

| 304 Stainless Natural |
Unplated, silver, excellent rust resistance |

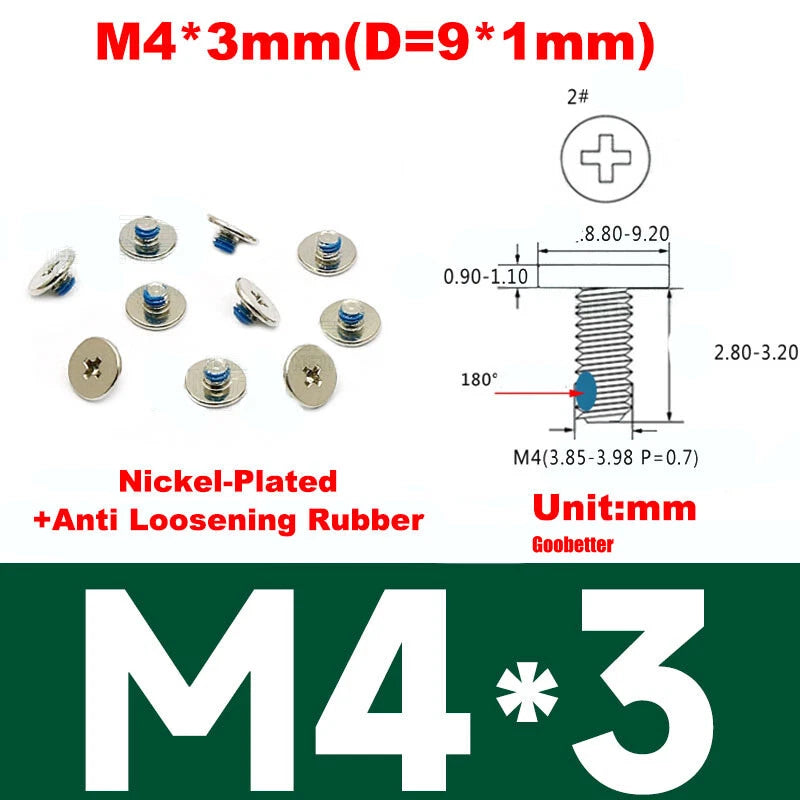

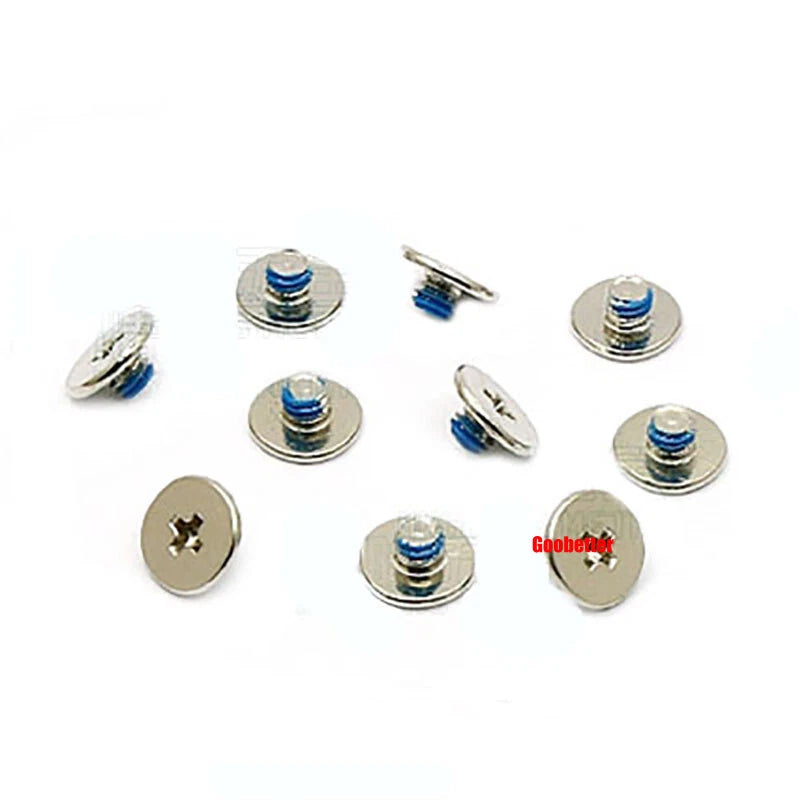

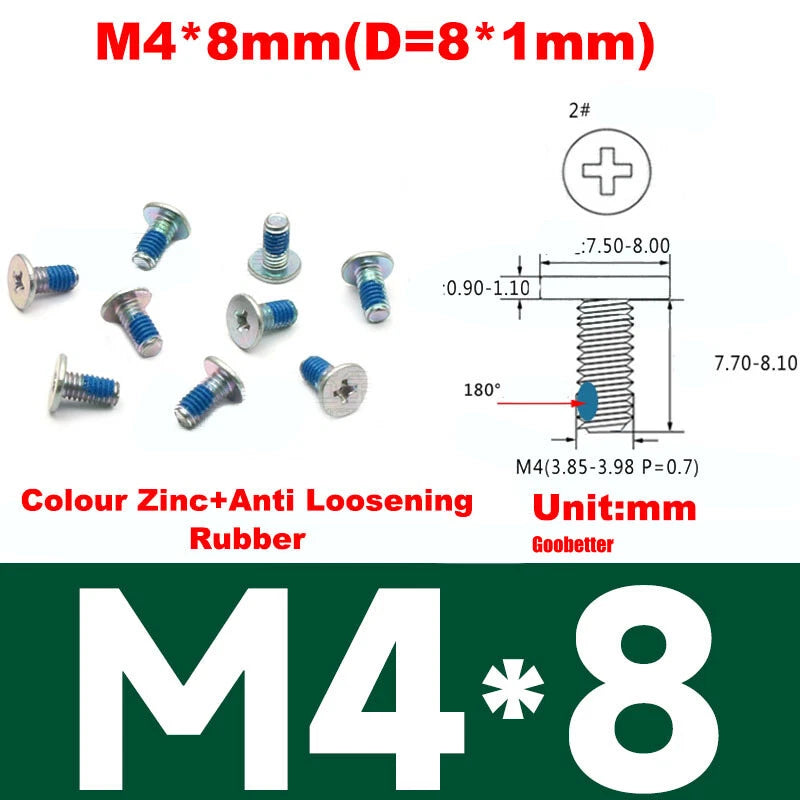

| With Anti‑Loosening Rubber |
Pre‑applied patch for vibration resistance (available on several platings) |
❓ FAQs – CM Series Ultra Thin Wafer Head Screws

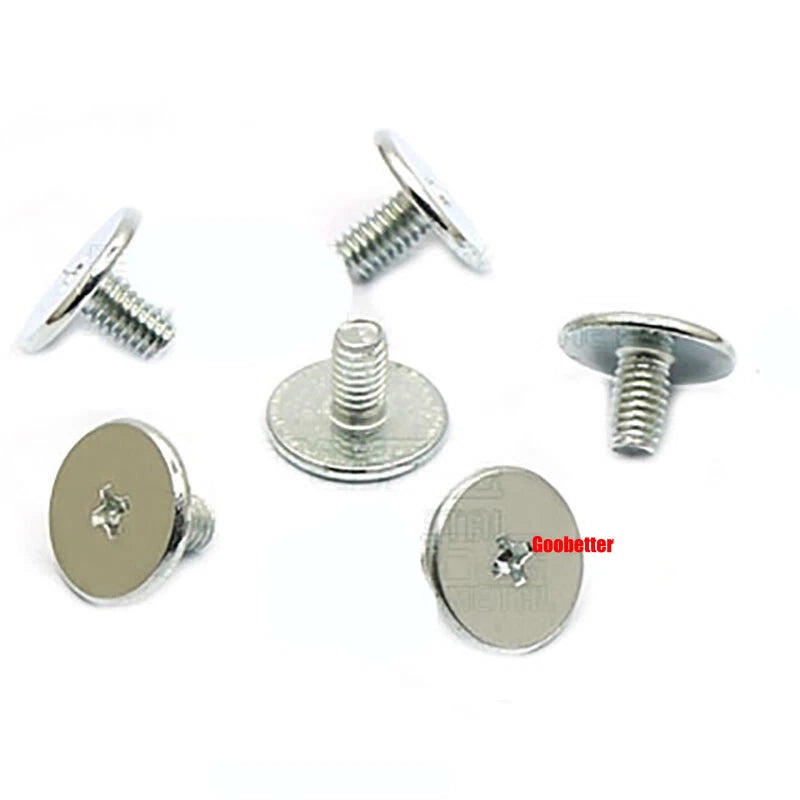

🔸 What is the difference between a wafer head and a standard flat head?
A wafer head (also called flat washer head) has a very thin profile and a wide, flat underside – it does not require a countersunk hole. It sits nearly flush on the surface, making it ideal for plastic laptop cases and thin panels where countersinking is not possible. A standard flat head requires a tapered hole to sit flush.
🔸 How is length measured for these screws?
Length is measured from the underside of the head to the tip (thread length), excluding the head thickness. For example, an M3 x 10mm screw has a 10mm threaded shank. This matches the specification shown in the product details.
🔸 Which finish should I choose for laptop repair?
For most laptops, nickel‑plated (silver) or black zinc (black) are the most common OEM finishes. Match the original screw color. If your device has a silver bottom case, choose nickel. For black cases, black zinc is a good match. 304 stainless natural is also silver but offers better rust resistance.

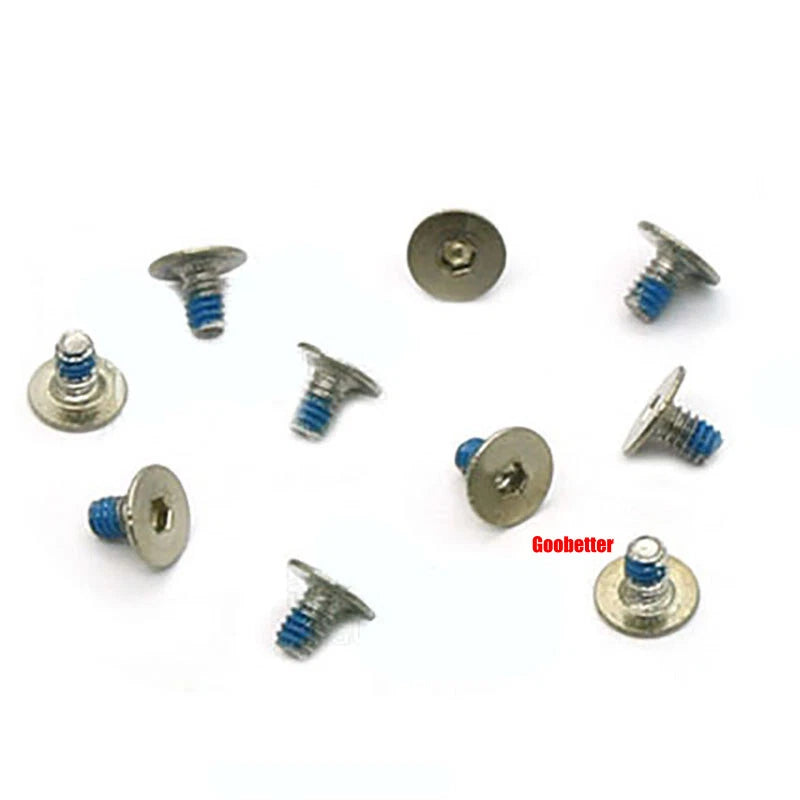

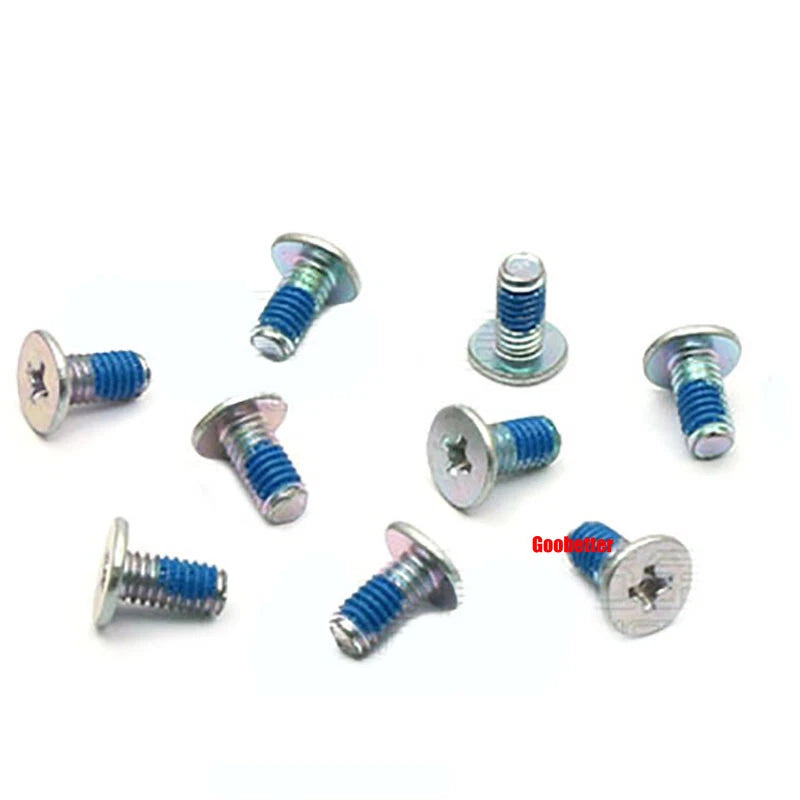

🔸 What is the anti‑loosening rubber coating?
The anti‑loosening rubber (also known as a pre‑applied patch or nylon patch) is a coating on the threads that adds friction, preventing the screw from vibrating loose. It is ideal for applications with movement or vibration, such as laptops with cooling fans or automotive components.
🔸 What Phillips screwdriver size works for these micro screws?
M2 and M2.5: use PH00 or PH0. M3: use PH0 or PH1. M4: use PH1. A precision screwdriver set with interchangeable bits is highly recommended. Avoid using a worn or oversized bit.
🔸 Can I use these screws outdoors?
For outdoor use, we recommend 304 stainless steel natural finish (no plating) or nickel‑plated carbon steel for light outdoor exposure. For direct saltwater or high humidity, 304 stainless is the better choice. Plated carbon steel may rust over time if the coating is scratched.
