When you need to terminate, seal, or pressure-test a drain pipe run, an ill-fitting or incompatible end cap can cause leaks, odours, and costly rework. These UPVC cap end caps are engineered for DIY builders, plumbers, and renovation contractors who demand a clean, permanent seal on dark grey PVC drainage systems — from bathroom waste lines to garden drainage channels.

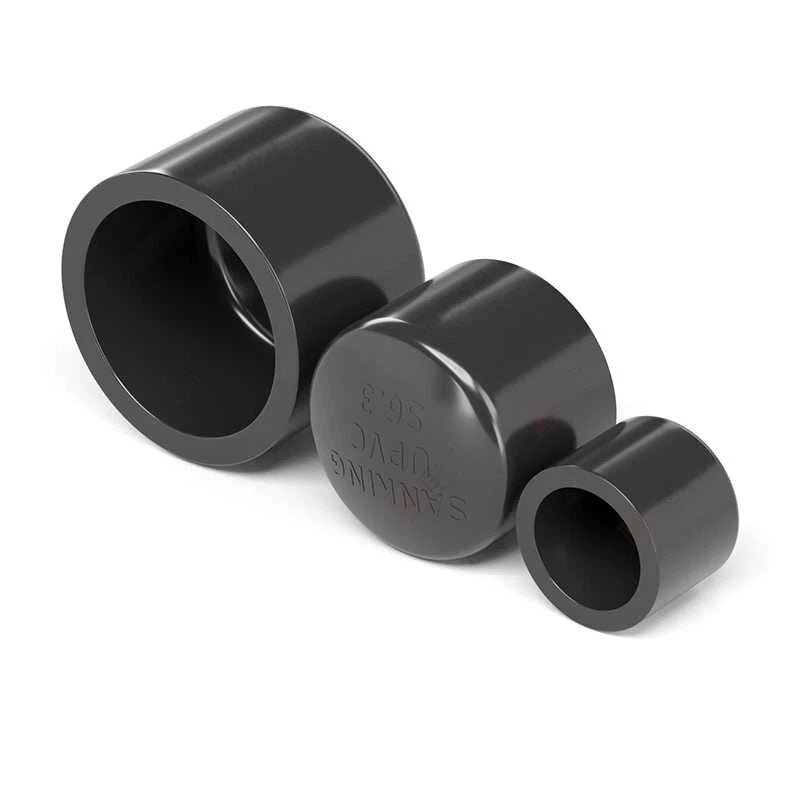

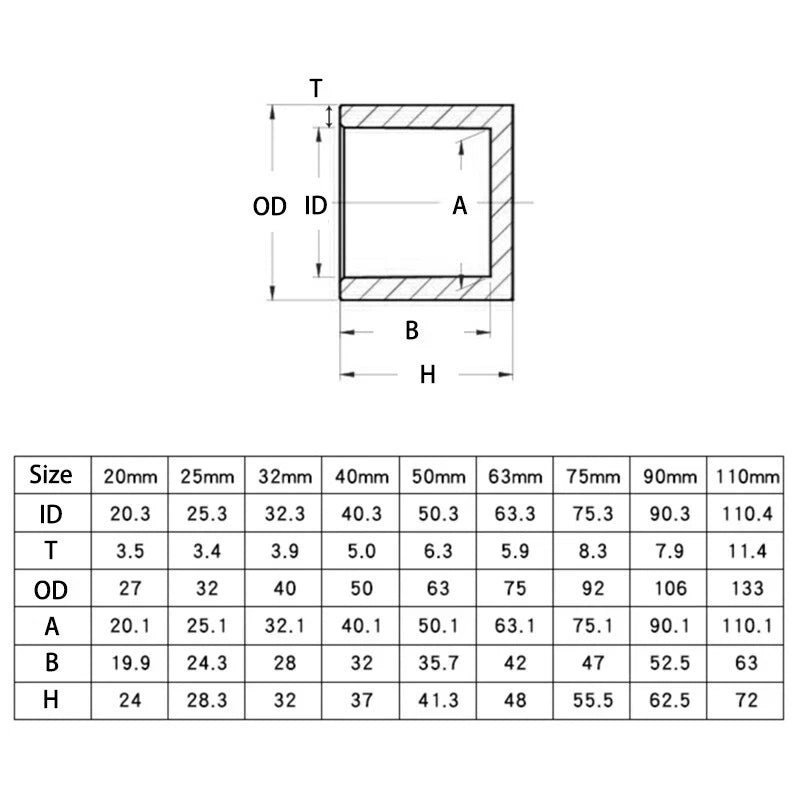

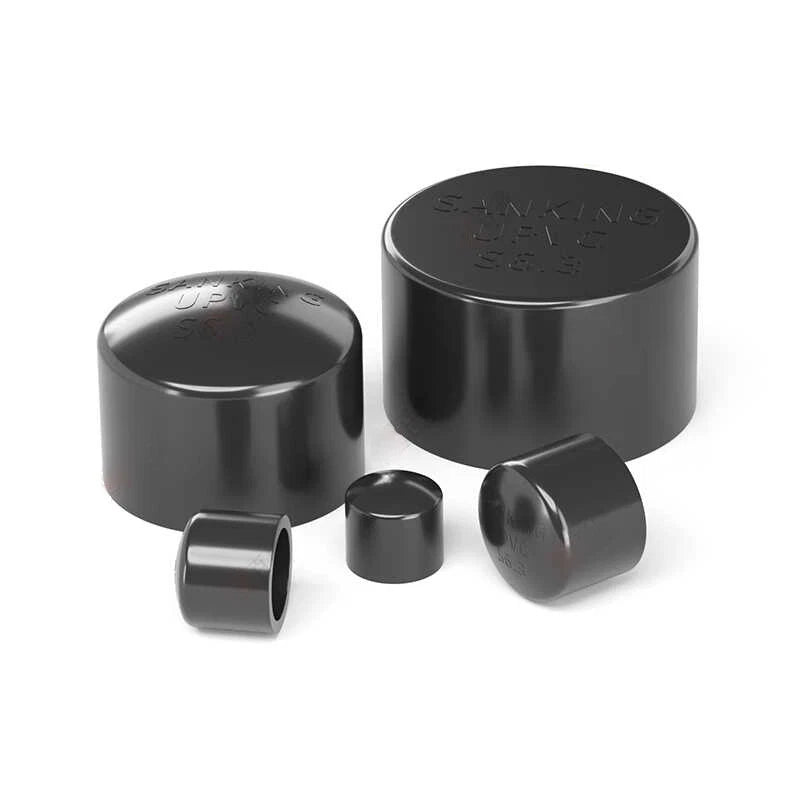

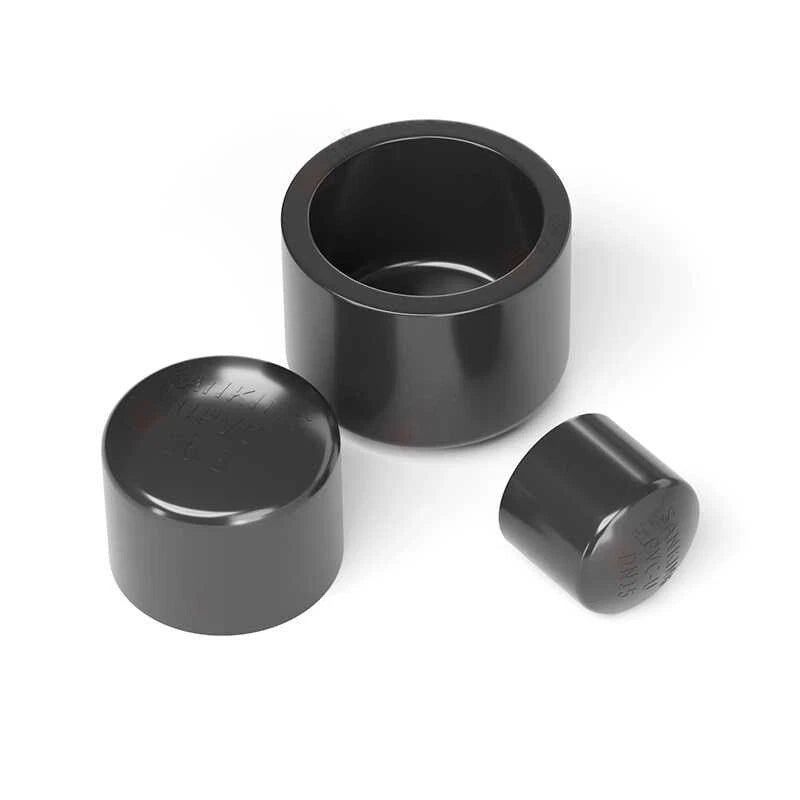

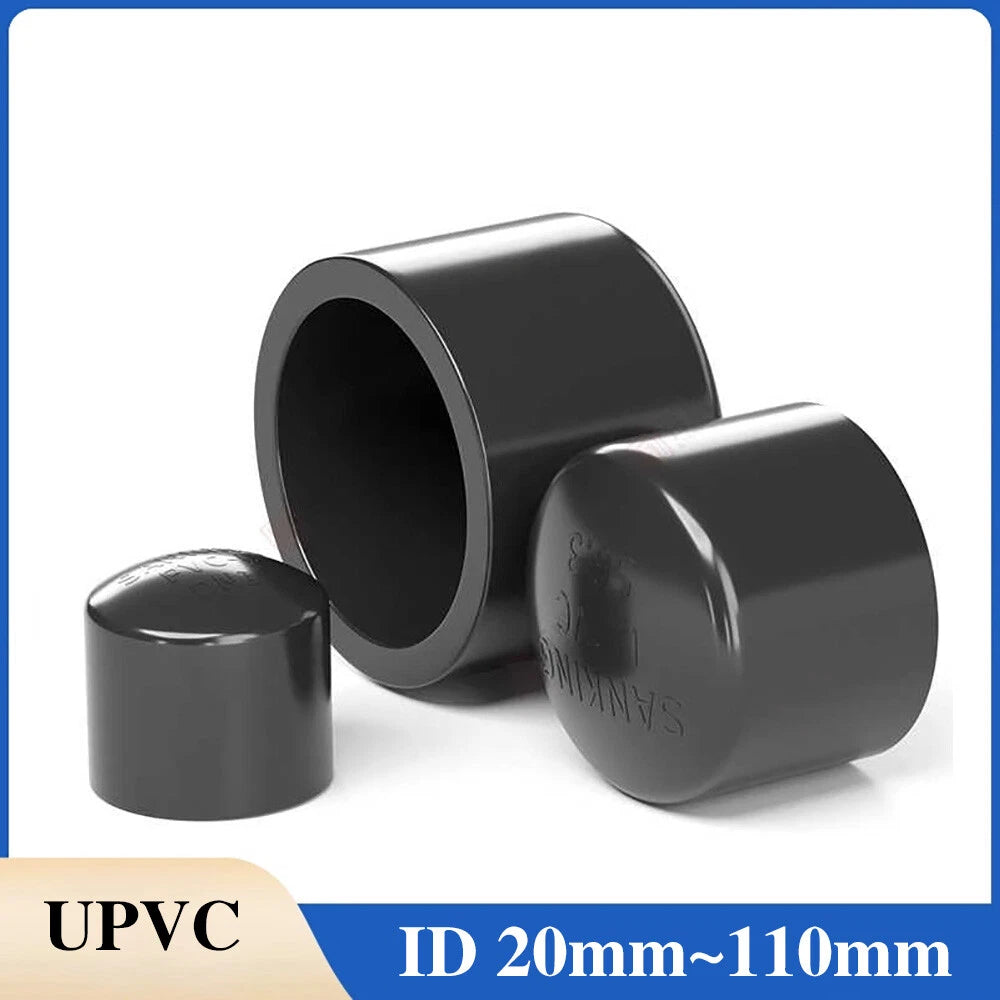

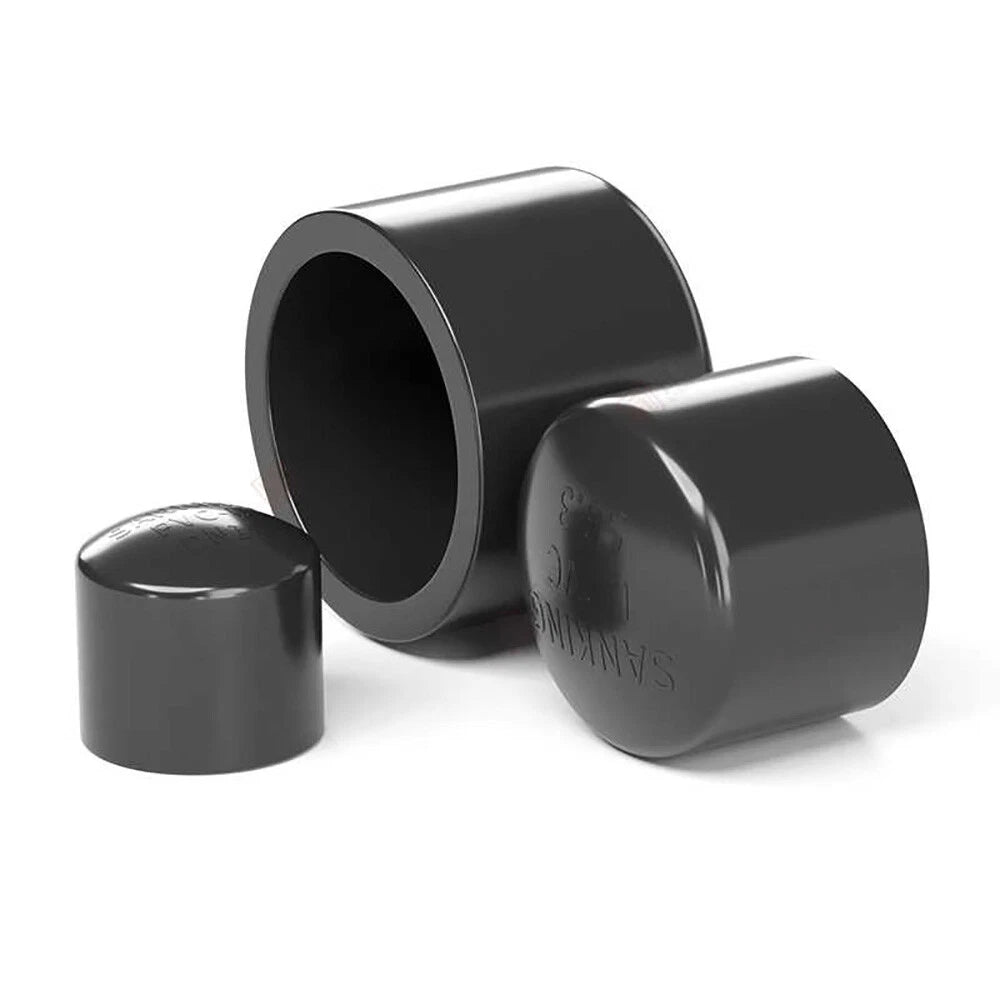

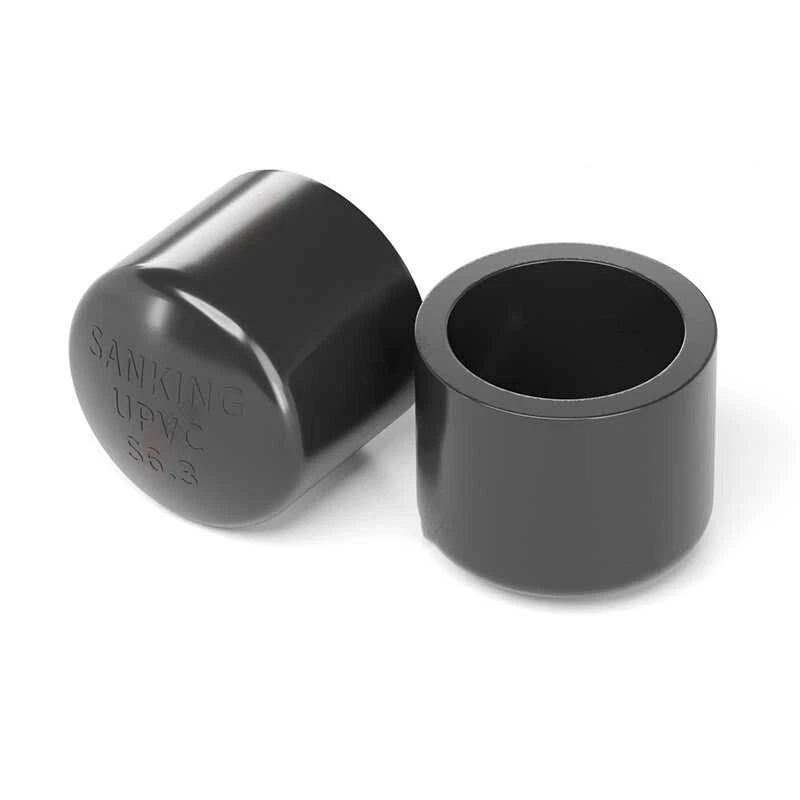

Each cap is moulded from unplasticised PVC (UPVC) in a dark grey finish that blends seamlessly with standard drainage pipework. The socket end accepts solvent-weld adhesive for a watertight, rigid bond. Available in nine pipe diameters spanning ø20 mm (approx. ¾ in) through ø110 mm (approx. 4⅓ in), with wall thickness and socket depth scaled proportionally to each size.
Typical applications include blanking off unused branch outlets on soil stacks, capping inspection chamber ports during construction, sealing the dead end of underground drainage runs, and pressure-testing completed pipework before backfilling. Long-tail use cases: UPVC drain pipe end cap ø110mm, dark grey PVC blanking plug for 50mm waste pipe, solvent-weld cap for 32mm basin waste.
| Material | UPVC (Unplasticised PVC) |
|---|---|
| Colour / Finish | Dark Grey |
| Joint Type | Solvent-weld (adhesive socket) |
| Pipe Diameter Range | ø20 mm – ø110 mm (approx. ¾ in – 4⅓ in) |
| Available Sizes | 20 mm, 25 mm, 32 mm, 40 mm, 50 mm, 63 mm, 75 mm, 90 mm, 110 mm |
| Wall Thickness | See variant options |
| Socket Depth | See variant options |
| Operating Temperature | Typically –10 °C to +60 °C (14 °F to 140 °F) |
| Application | Above-ground and below-ground drainage, waste pipe systems |
| Pack Quantities | 1 pc, 2 pcs, 3 pcs, 5 pcs |
| Weight (per piece) | See variant options |
Match the cap size to your pipe's outer diameter (OD). For example, a 50 mm cap fits a pipe with a 50 mm OD. If you are unsure, measure the outside of the pipe with a tape measure or vernier caliper before ordering. Standard domestic waste pipes are typically 32 mm (basin), 40 mm (bath/shower), or 50 mm (soil branch), while soil stacks are usually 110 mm.
Use a standard UPVC solvent cement (also sold as PVC solvent weld adhesive). Apply a thin, even coat to both the pipe end and the inside of the cap socket, push firmly together with a slight twisting motion, and hold for 30 seconds. Allow at least 15 minutes before handling and 24 hours before pressure-testing.
Yes. UPVC is widely used for below-ground drainage because it resists soil moisture, mild acids from groundwater, and root intrusion. Once solvent-welded, the joint is rigid and watertight. Ensure the pipe trench is properly bedded and backfilled to avoid point loading on the fitting.
Yes — temporarily capping pipe ends with solvent-welded UPVC caps is a common method for air or water pressure testing drainage runs before covering. Allow the solvent weld to cure fully (typically 24 hours at room temperature) before applying test pressure. Always follow local building code requirements for test pressure limits.
The socket dimensions are standardised to fit UPVC drainage pipe of the corresponding diameter regardless of colour. The caps themselves are dark grey, so they are a visual match for dark grey systems. They will function correctly on white or light grey pipe of the same OD, though there will be a colour difference at the joint.
Count the number of pipe ends you need to blank off, then select the matching pack size (1, 2, 3, or 5 pcs). Ordering a pack of 2 or more is cost-effective if you have multiple termination points or want a spare on hand. The per-piece price decreases with larger packs.
UPVC has good resistance to the concentrations of caustic soda (sodium hydroxide), bleach, and enzyme-based drain cleaners typically found in household use. It is not recommended for prolonged contact with concentrated solvents or strong oxidising acids. For standard domestic drainage, chemical resistance is not a concern.
