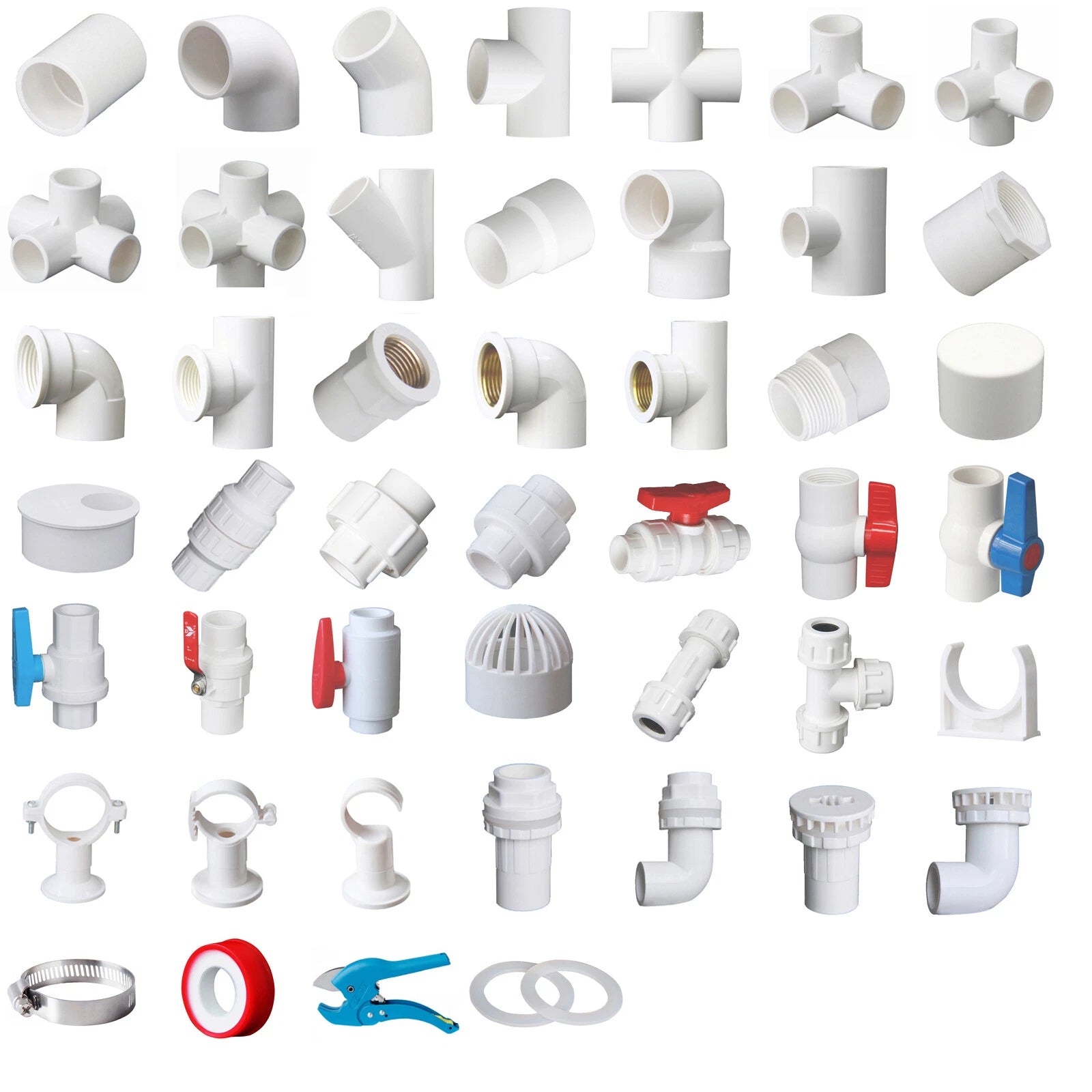

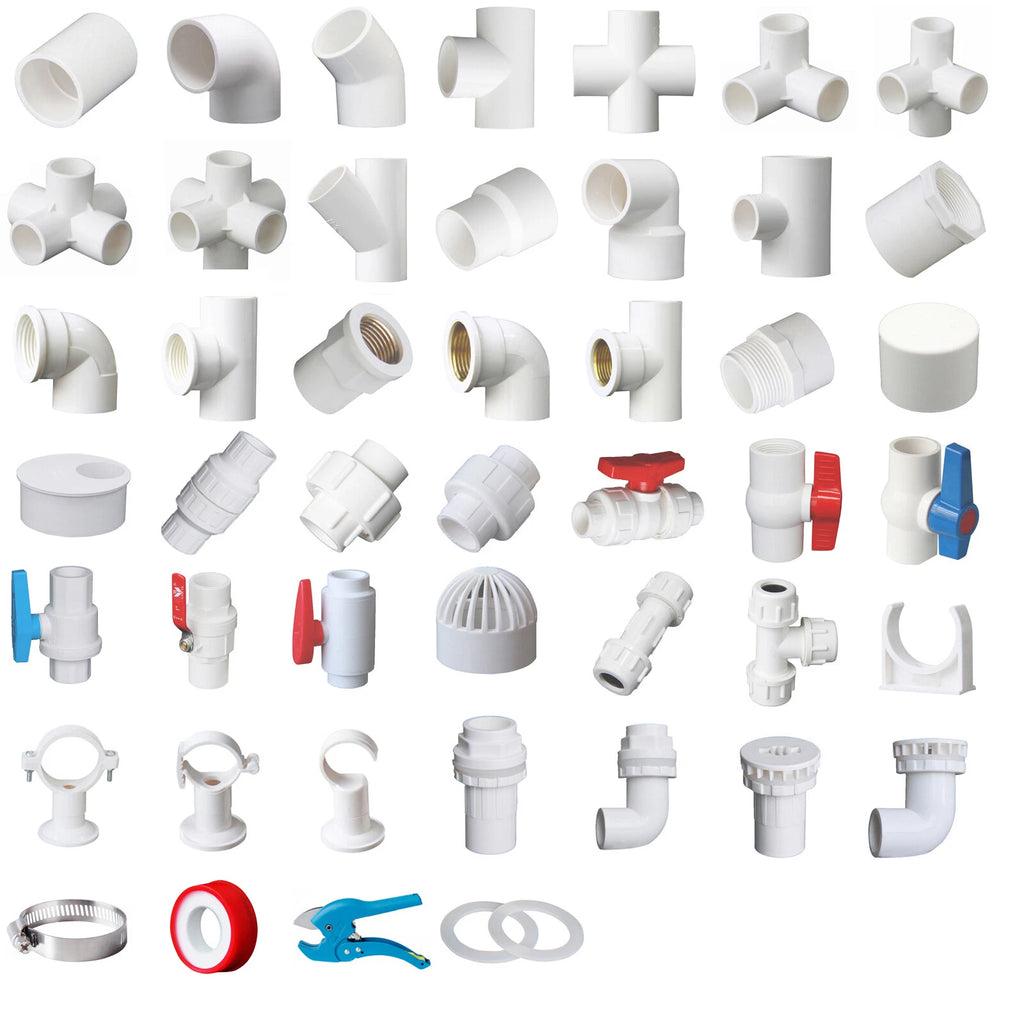

White PVC 32mm ID Pressure Pipe Fittings Metric Solvent Weld Various Parts

These fittings are designed for metric PVC pressure pipe with a 32mm inner diameter (ID). The pipe outer diameter (OD) will be slightly larger — typically around 36–38mm depending on wall thickness and pressure class. Always verify your pipe OD against the fitting socket depth before cementing. Reducing variants accept a smaller pipe on one end; the listed size (e.g., 32mm:20mm) indicates the larger socket first.

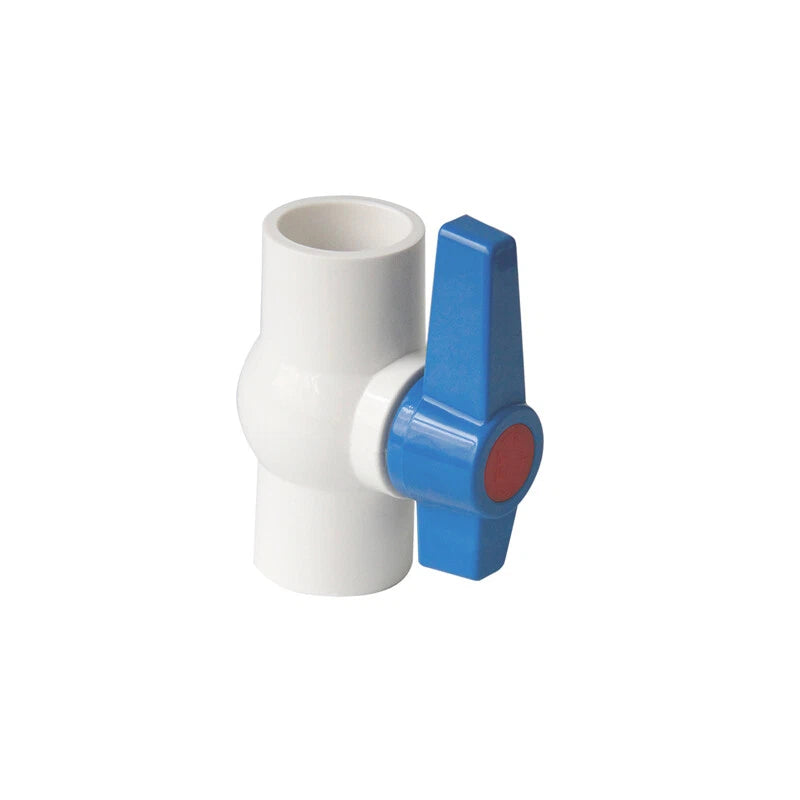

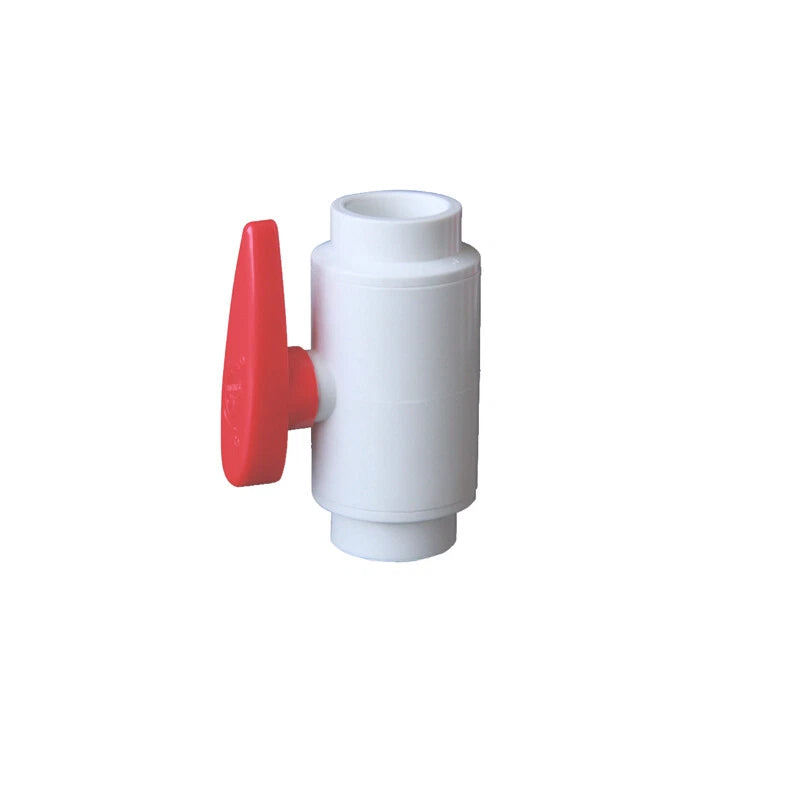

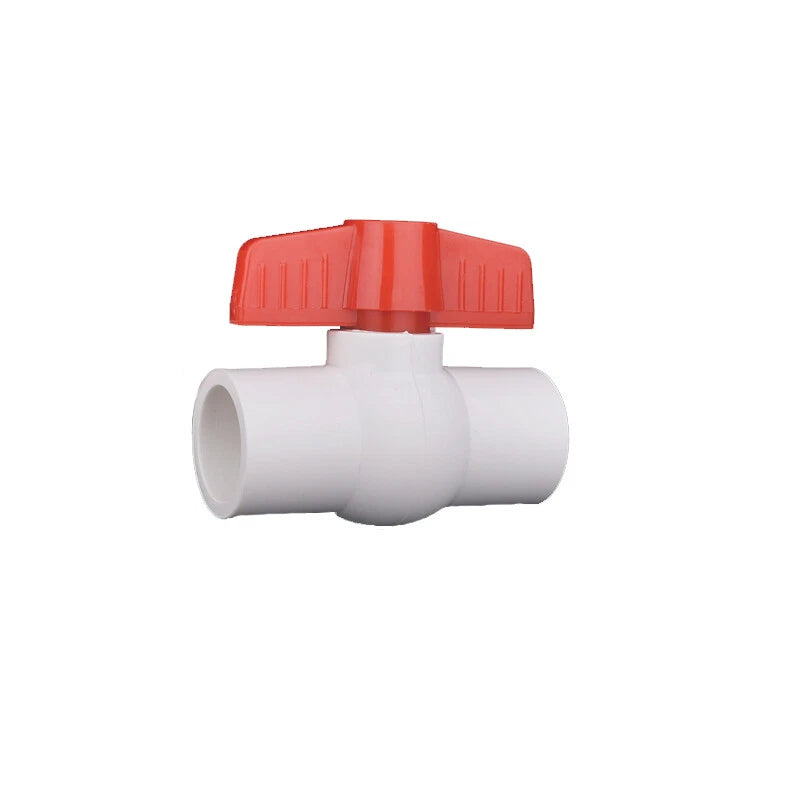

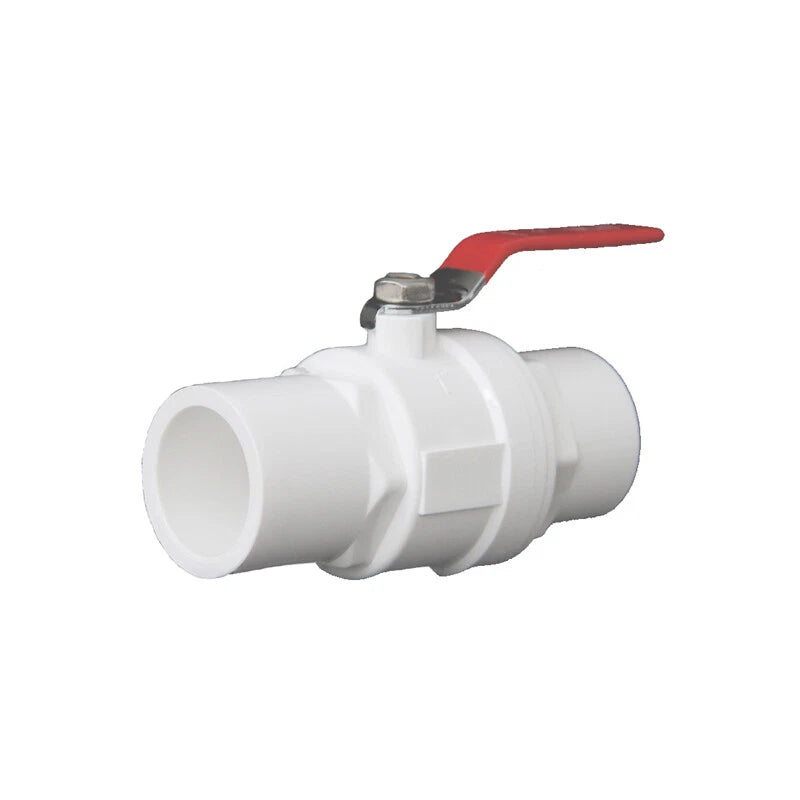

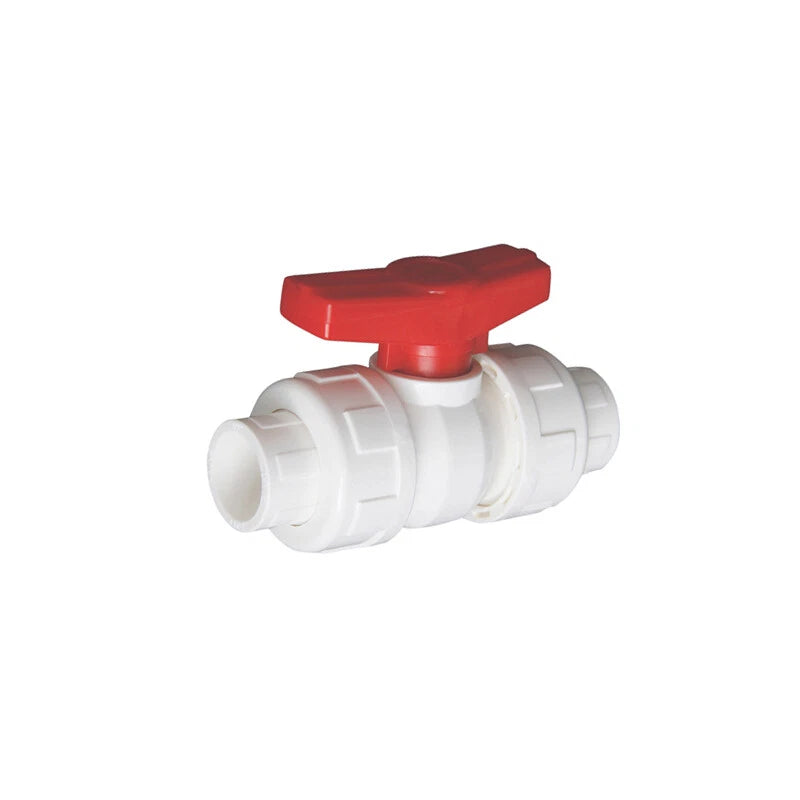

Standard white PVC solvent-weld fittings are rated for cold-water service only — typically up to approximately 20 °C (68 °F) at full pressure rating. The ball valve variant rated 5–55 °C at 1.0 MPa is an exception and can handle moderately warm water. For hot-water applications, CPVC or ABS fittings are the appropriate choice. If in doubt, contact us to confirm suitability for your specific temperature and pressure conditions.

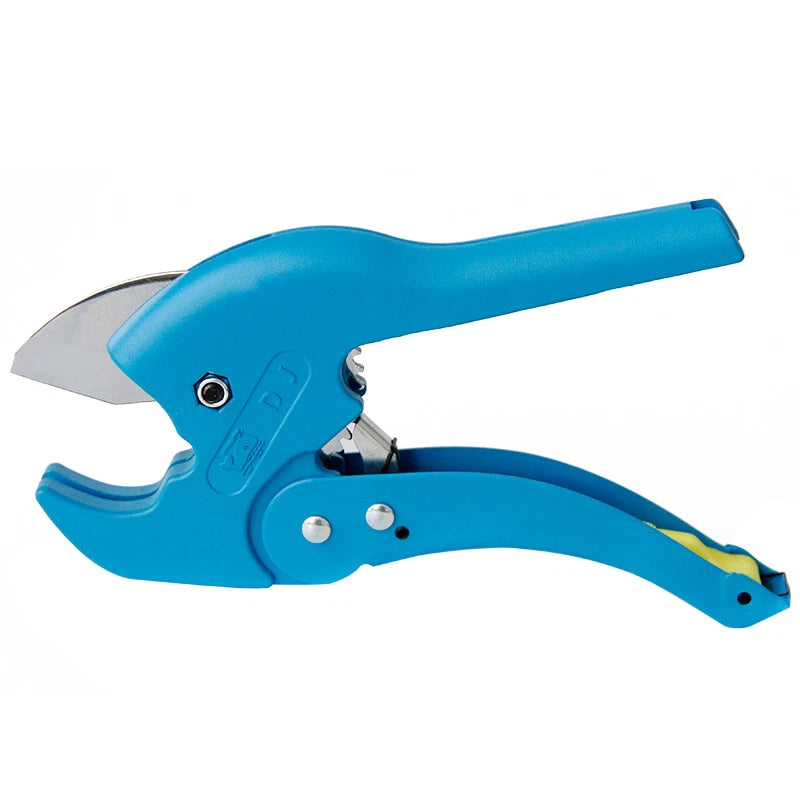

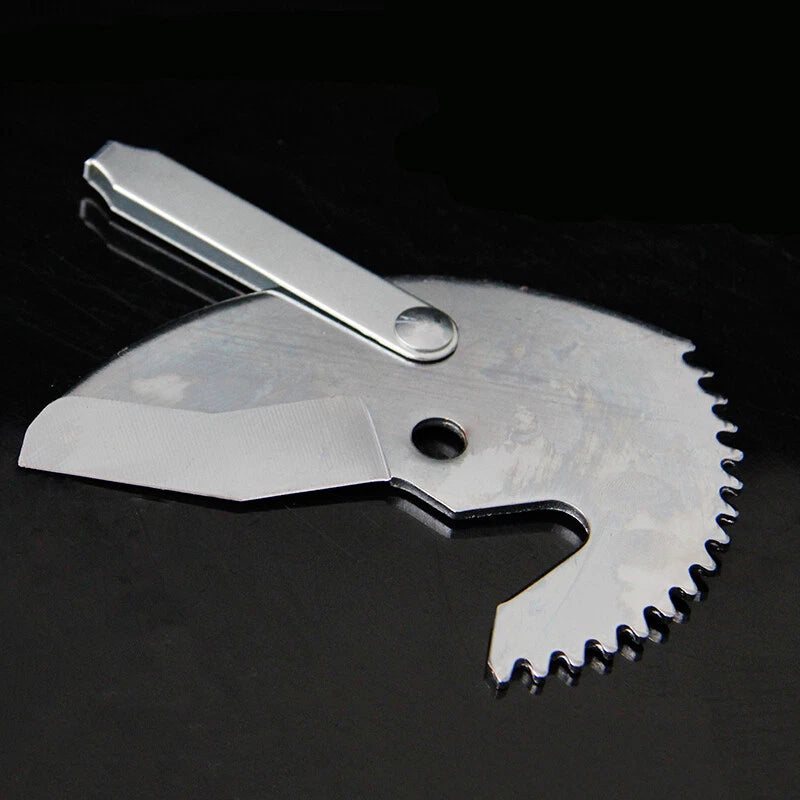

No power tools are required. You will need PVC solvent cement (primer optional depending on your local code), a clean cloth, and a way to cut the pipe squarely — the 16–42mm PVC pipe scissors listed as a variant in this product are suitable for 32mm pipe. Deburr the cut end, apply cement to both the pipe end and fitting socket, push together with a slight twist, and hold for 30 seconds. Allow the joint to cure fully before pressurising.

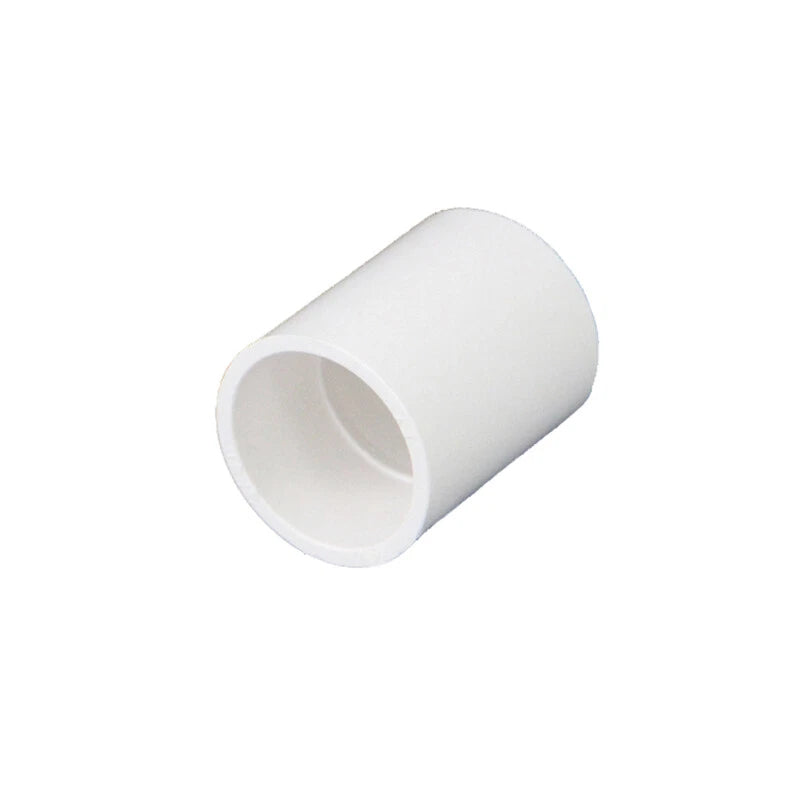

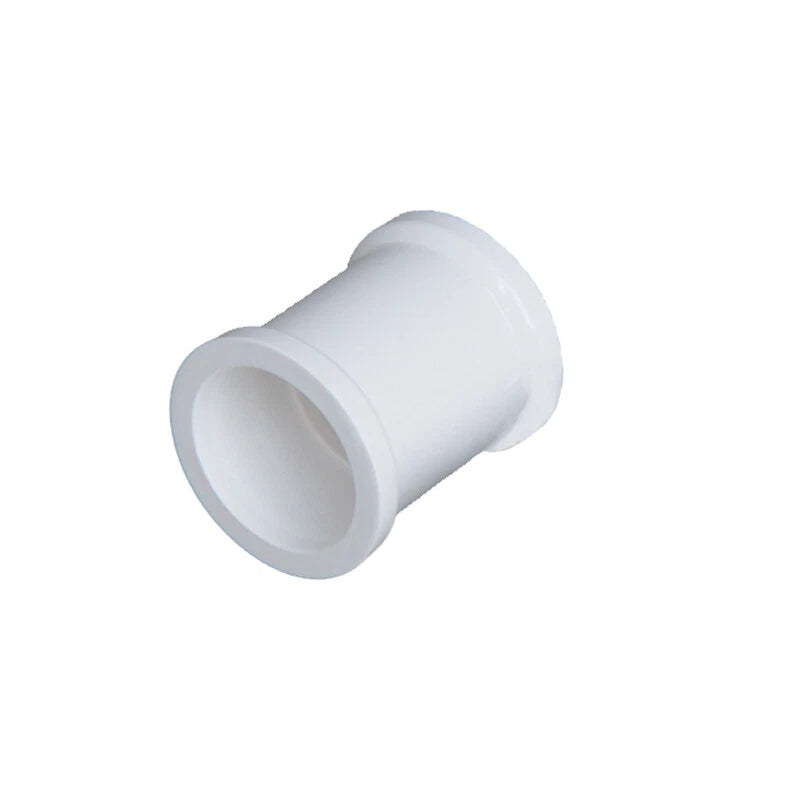

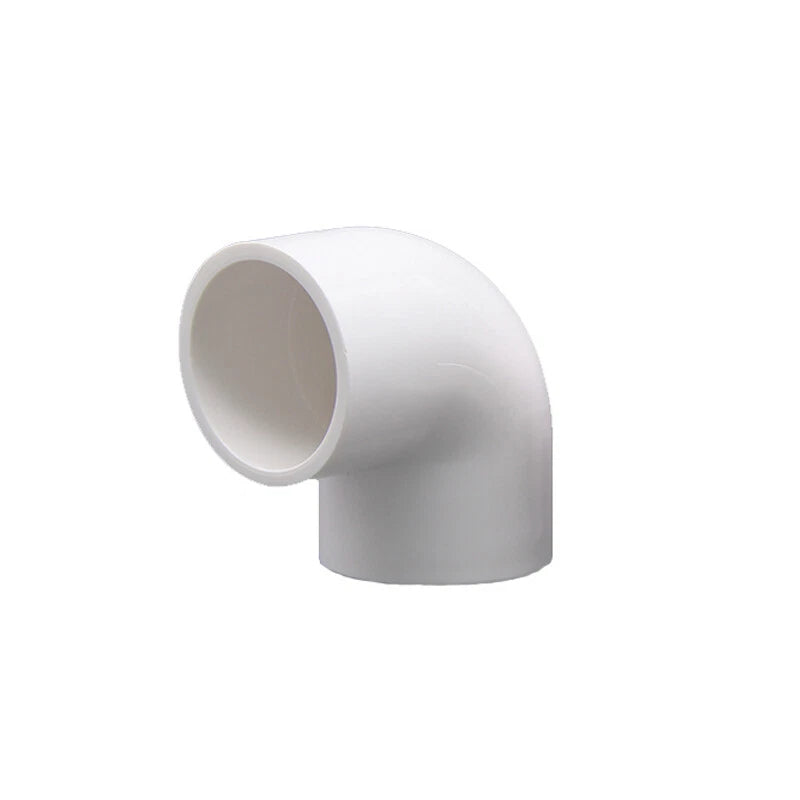

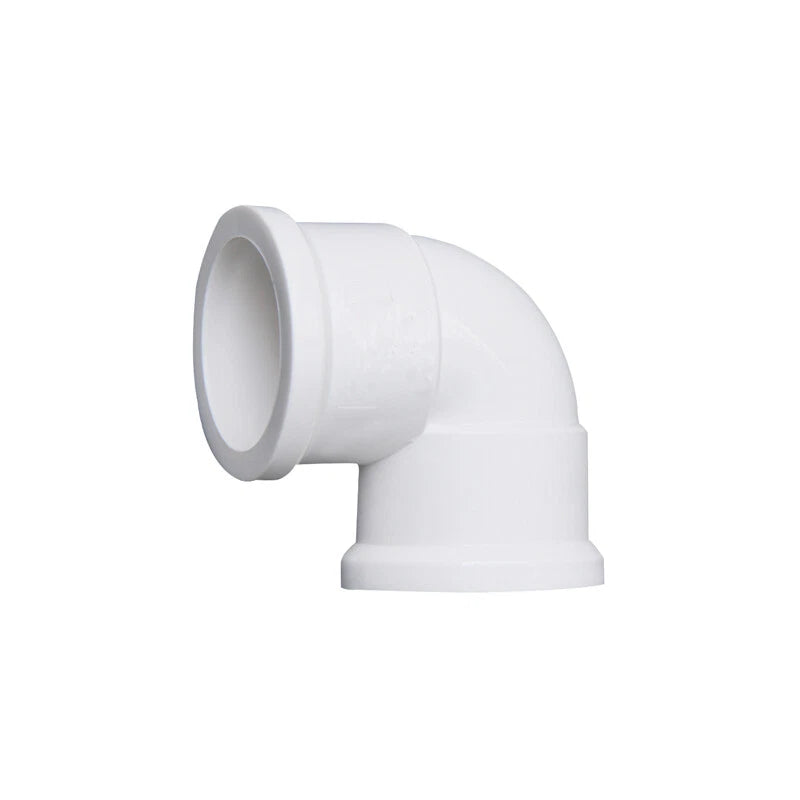

Thick-wall variants (labelled Socket(Thick), 90°Elbow(Thick), Tee(Thick)) have a greater wall thickness than the standard parts. This provides additional mechanical strength and is preferred for buried runs, high-vibration environments, or installations where the fitting may be subject to external load. For typical above-ground domestic plumbing, standard-wall fittings are sufficient.

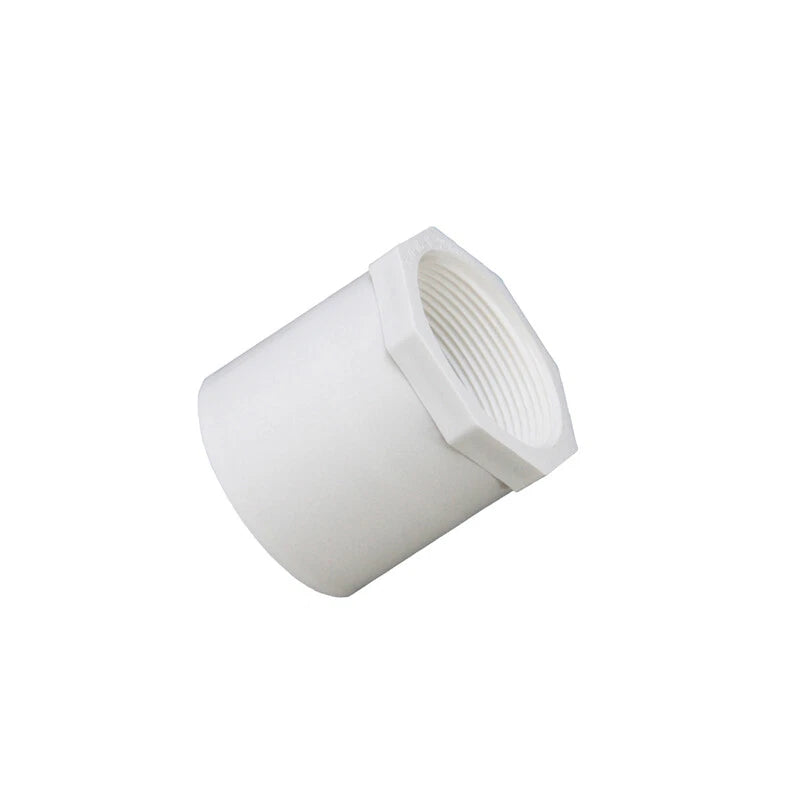

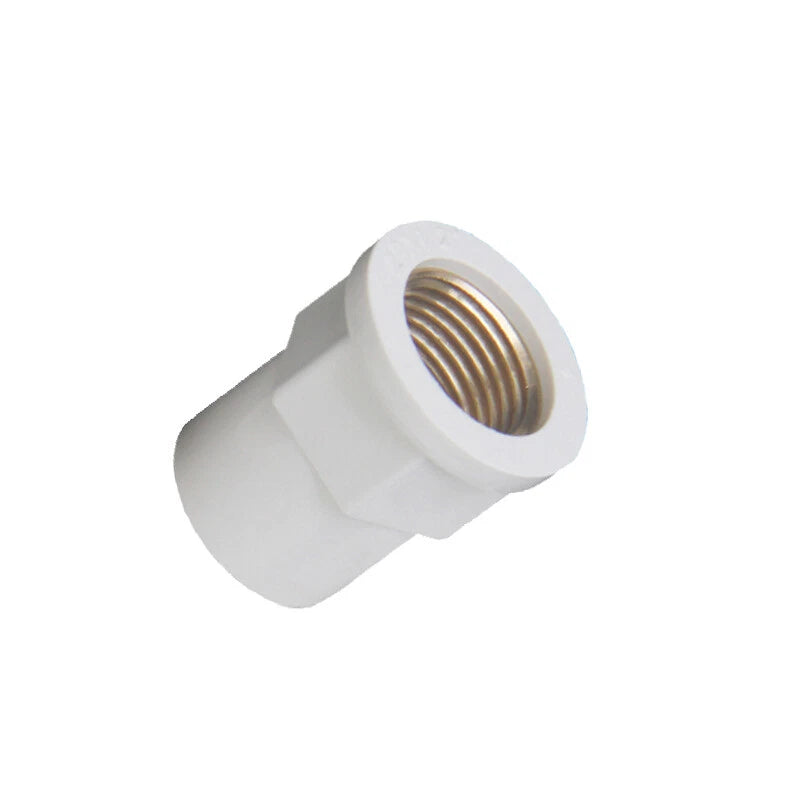

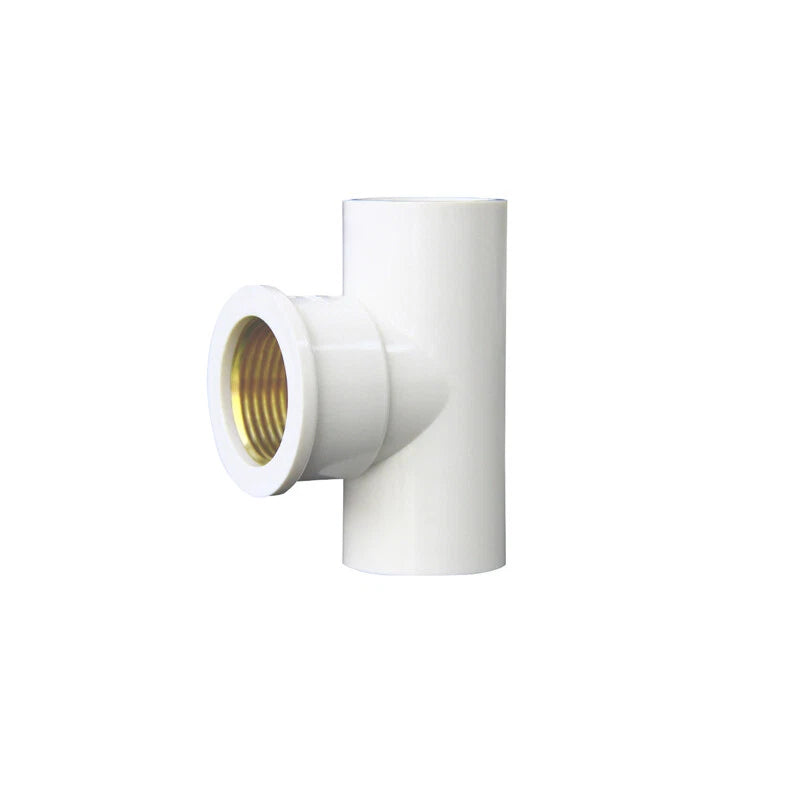

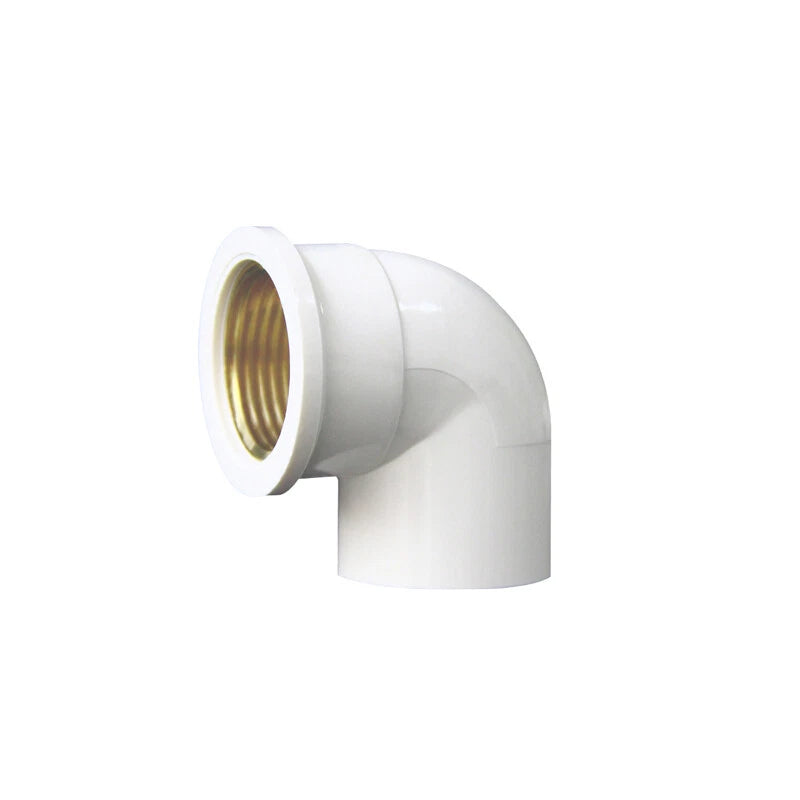

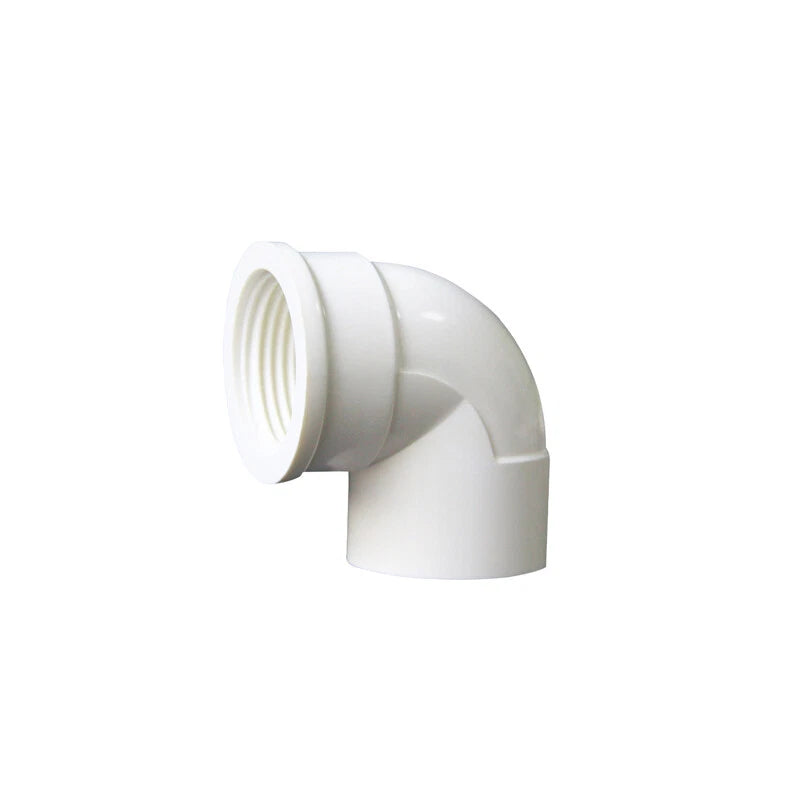

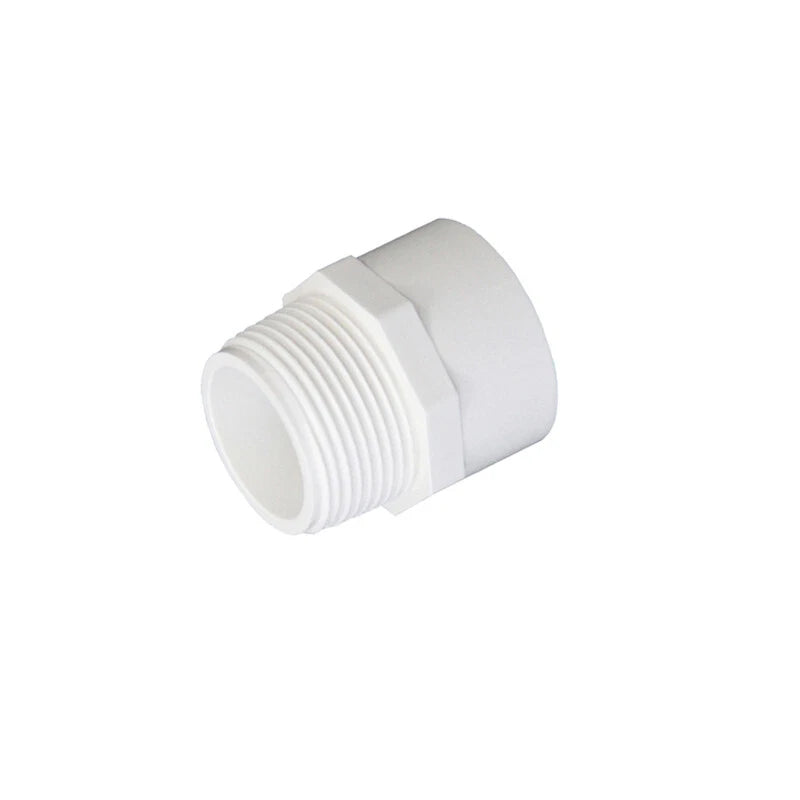

FBSP stands for Female British Standard Pipe (parallel thread), and MBSP stands for Male British Standard Pipe. These are the thread standards used on most UK and Australian plumbing fixtures, taps, and valves. FBSP sockets accept a male BSP fitting or tap tail; MBSP adaptors screw into a female BSP port. Brass FBSP variants are available where a metal-to-metal seal is preferred, such as at a tap connection point.

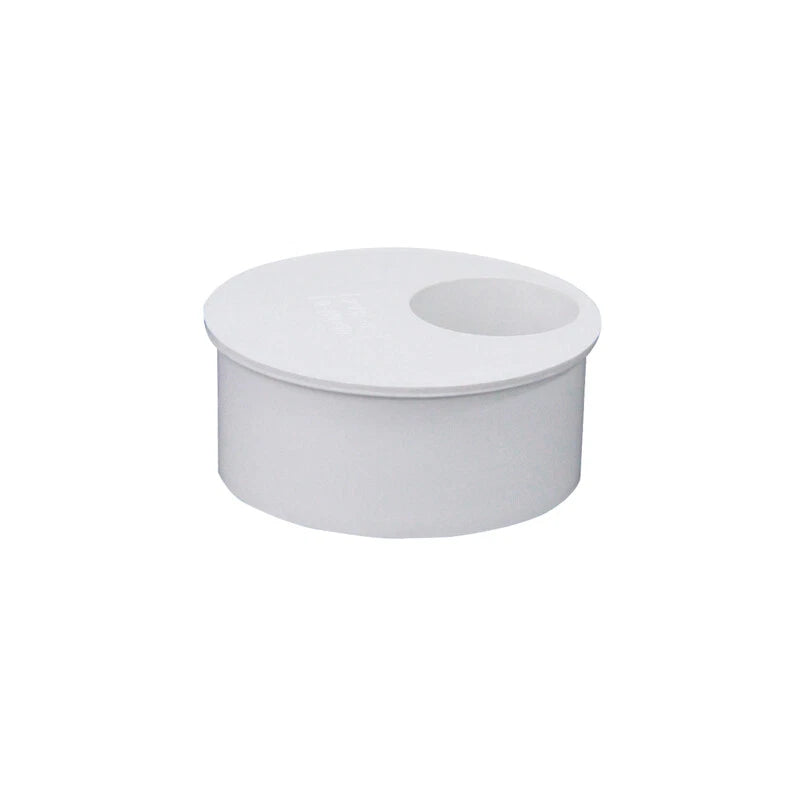

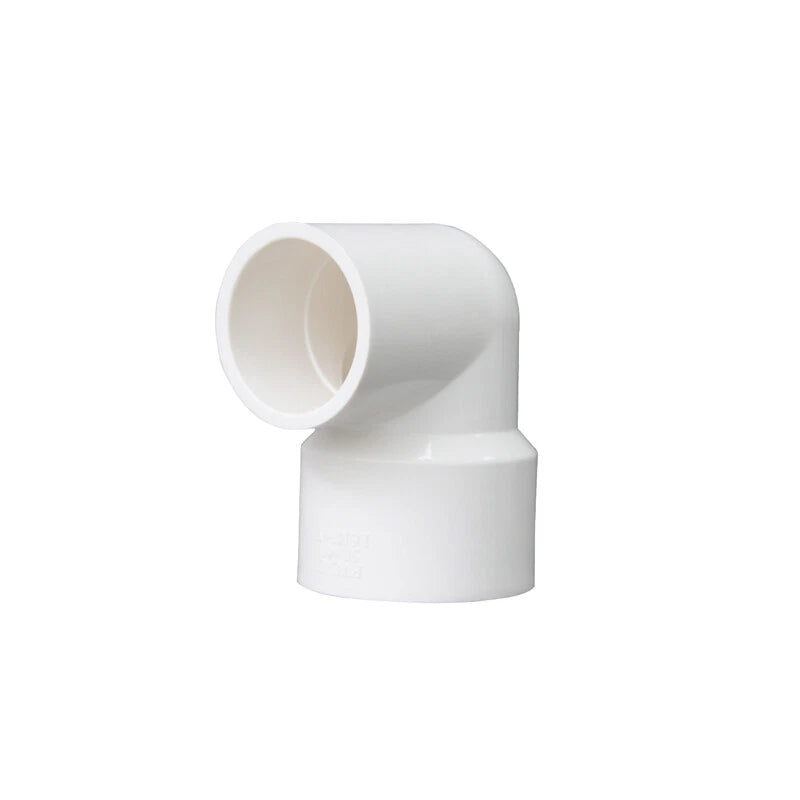

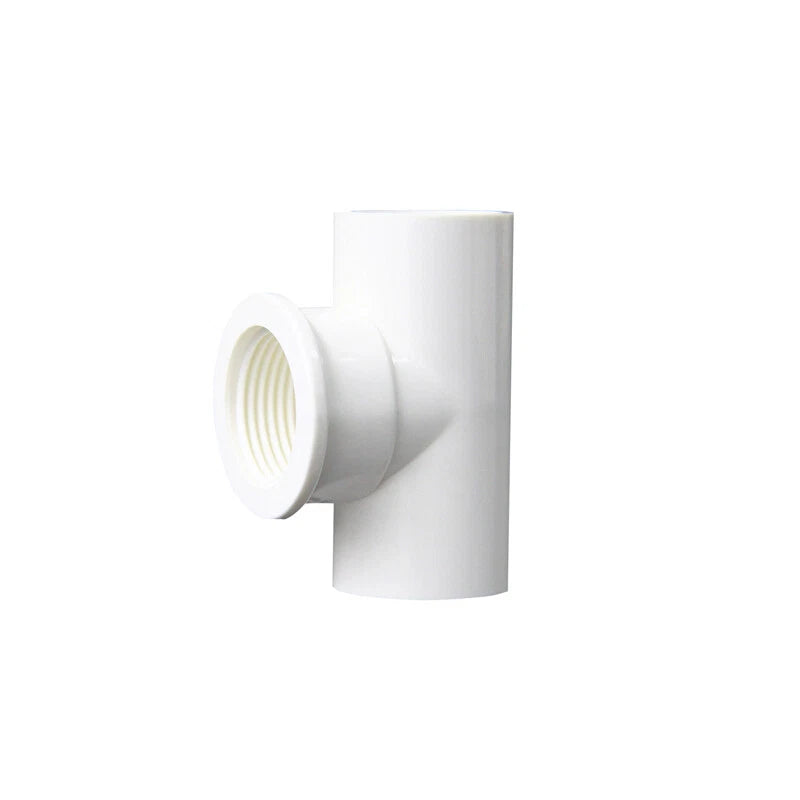

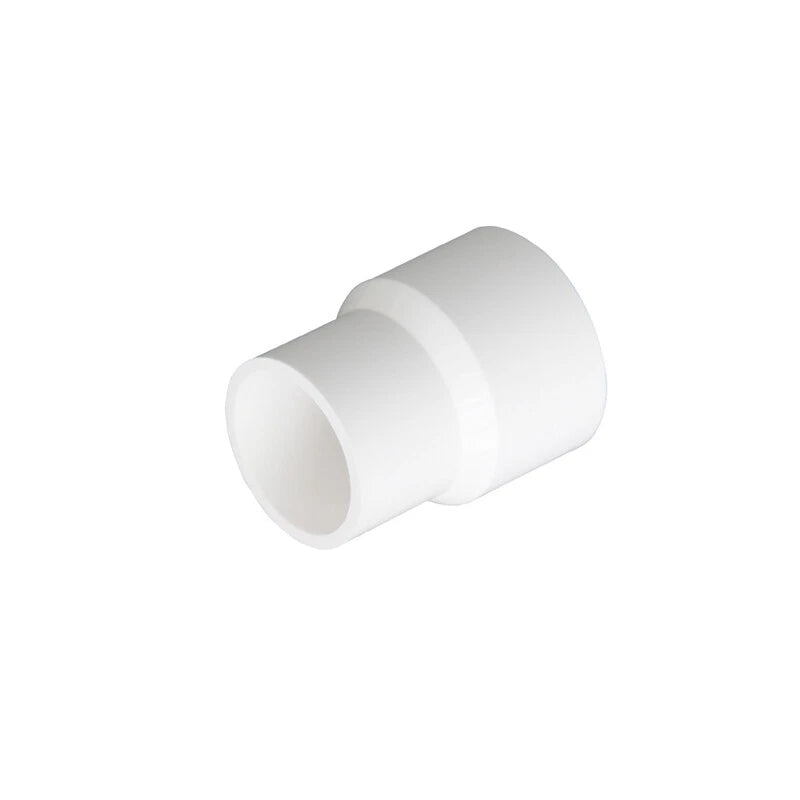

Yes. Reducing sockets, reducing elbows, reducing tees, and reducing bushes are all designed to transition between 32mm and a smaller metric or BSP size within the same solvent-weld system. Plan your run by mapping each diameter change to the appropriate reducing part. For example, to branch a 32mm main into a 20mm sub-run, use a 32mm:20mm Reducing Tee. Reducing bushes are a compact alternative when space is tight.

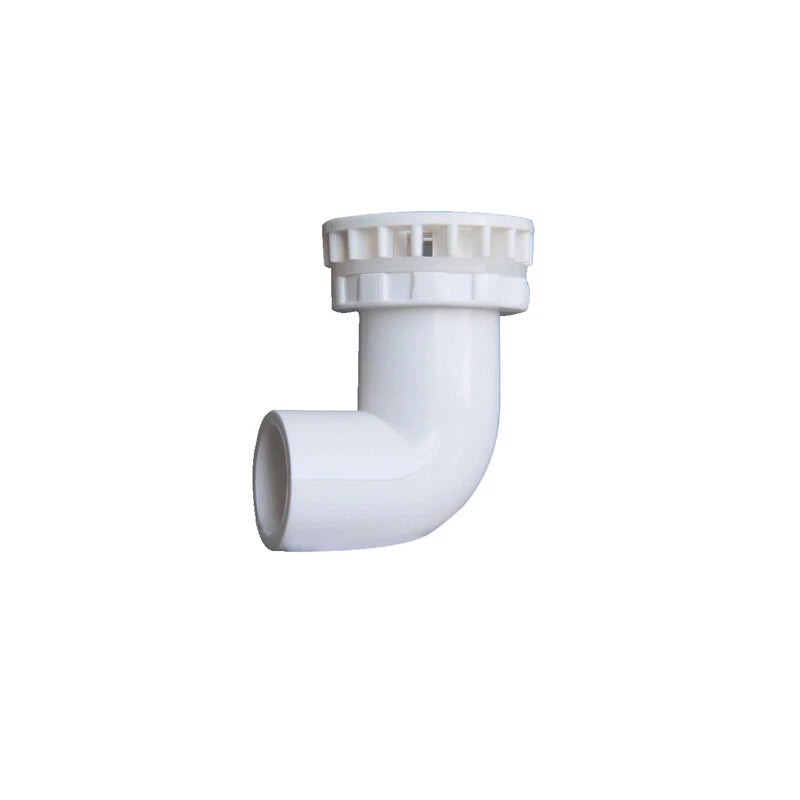

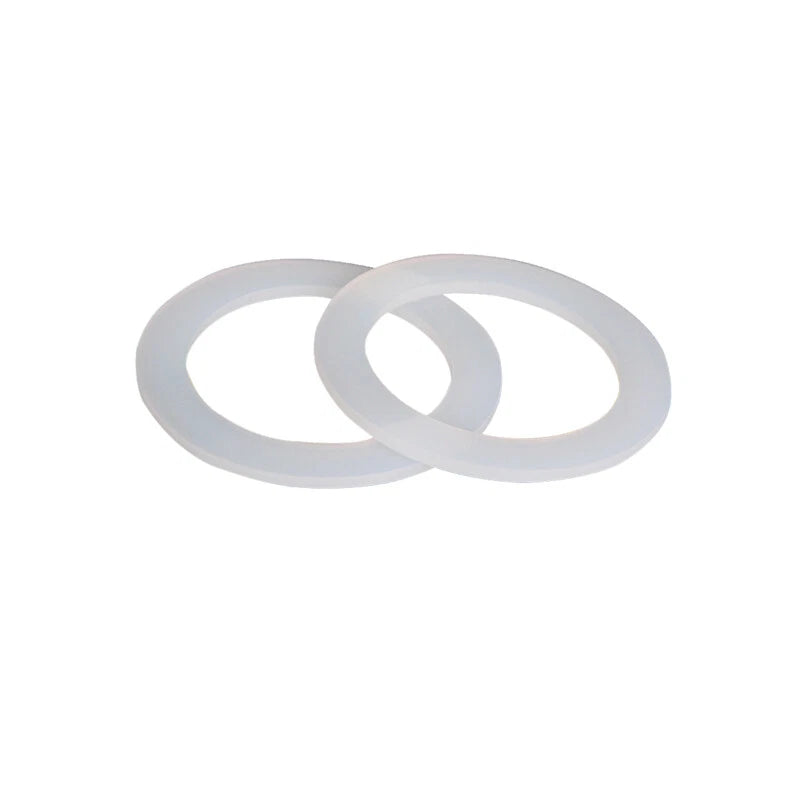

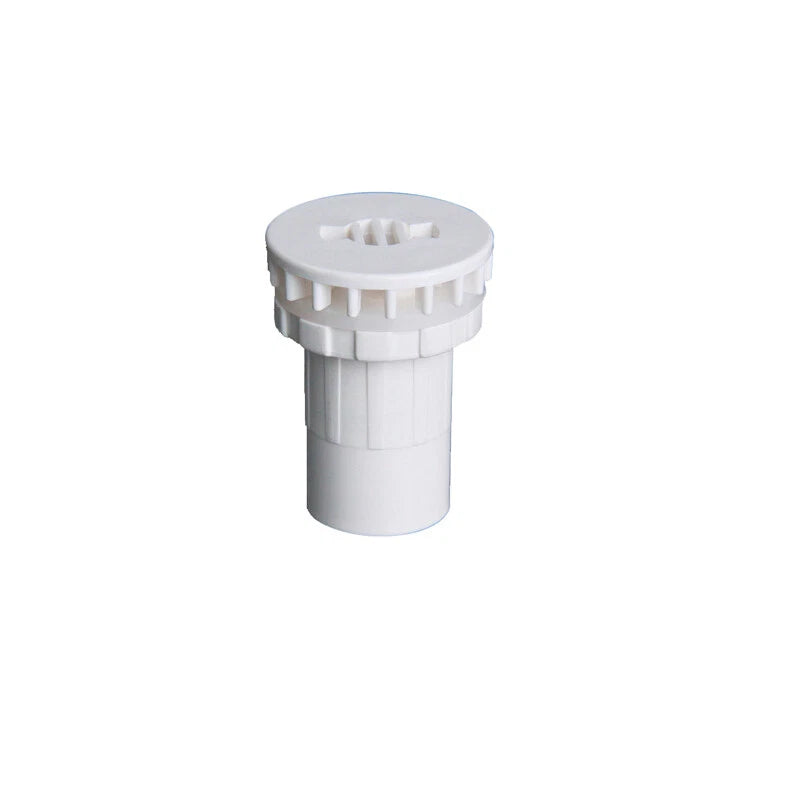

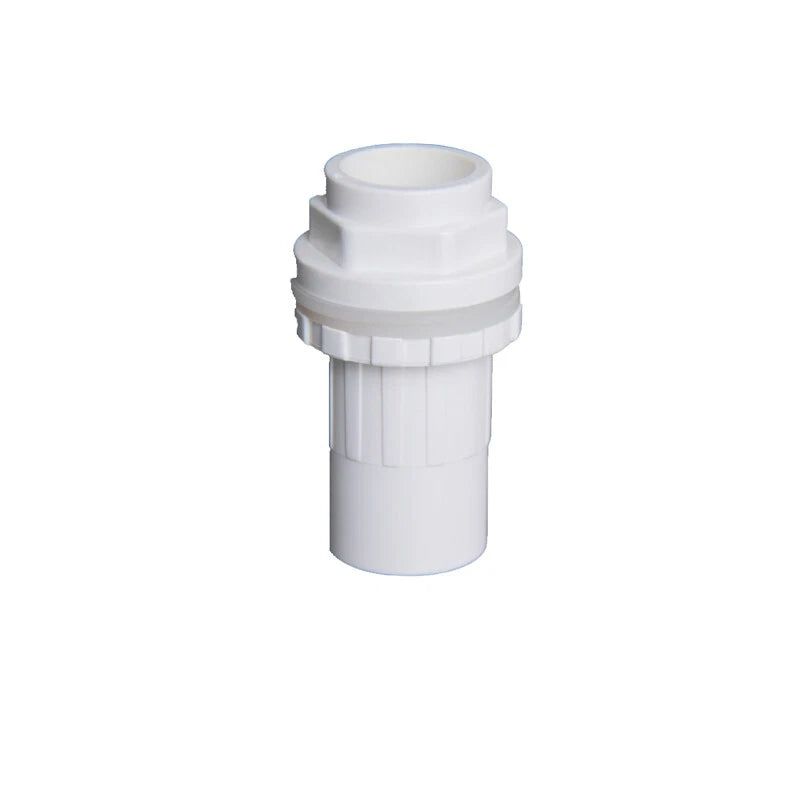

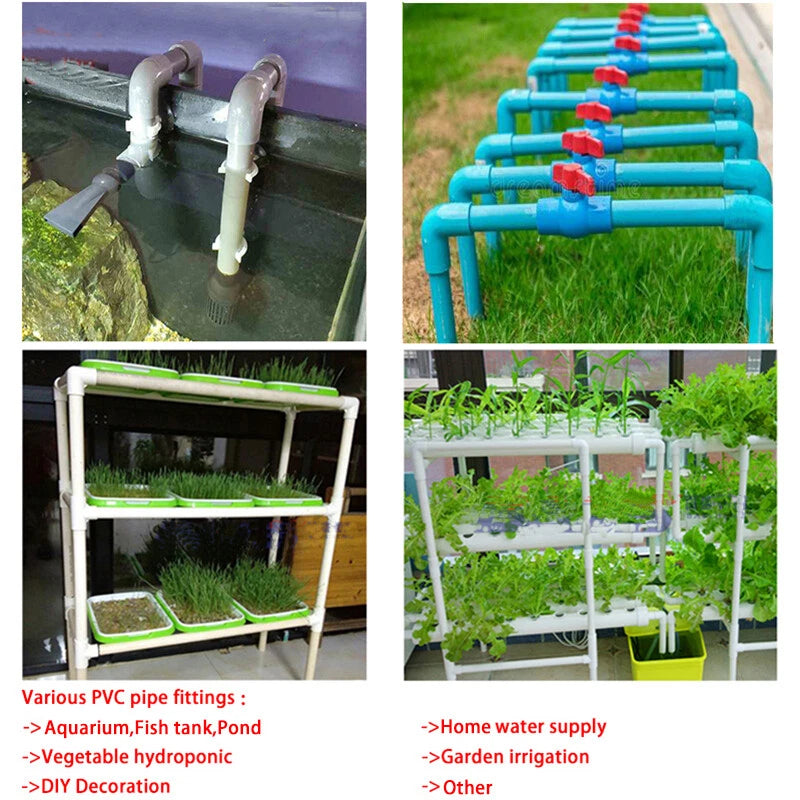

PVC is chemically inert and widely used in aquarium and pond plumbing. Ensure all solvent cement is fully cured and the system is flushed before introducing livestock. The silicone washers listed in this product are compatible with these connectors for a watertight panel seal.
