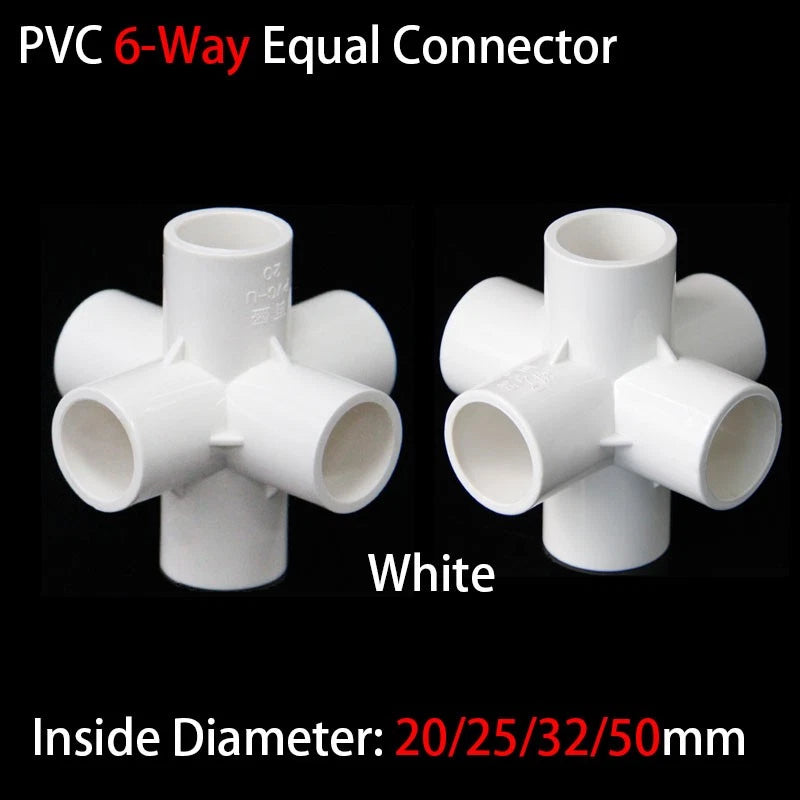

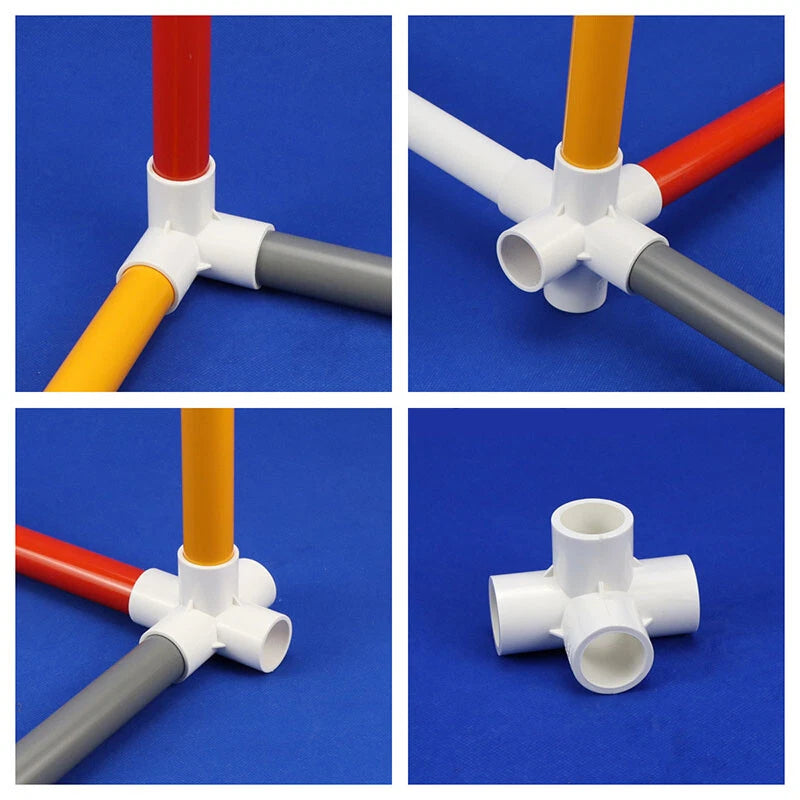

White PVC 6-Way Equal Connector Socket Pressure Pipe Fittings ID: 20 25 32 50mm

"6-Way" refers to the six socket ports on the fitting body, oriented in six directions (typically along three perpendicular axes: left/right, front/back, top/bottom). "Equal" means all six ports share the same inner diameter — no port is larger or smaller than the others. This allows you to connect six pipes of the same size to a single central node without any reducers.

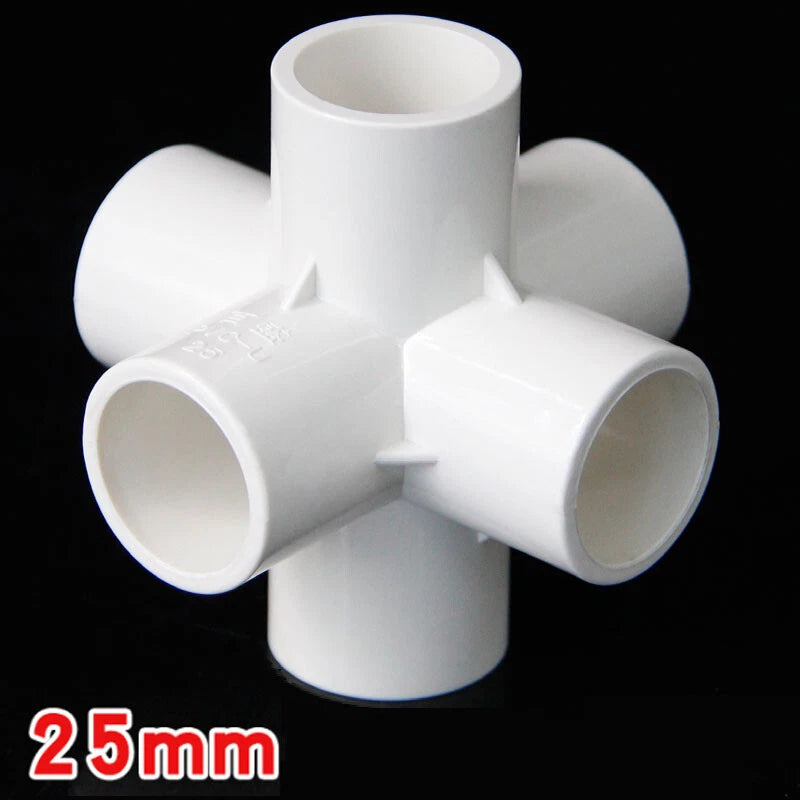

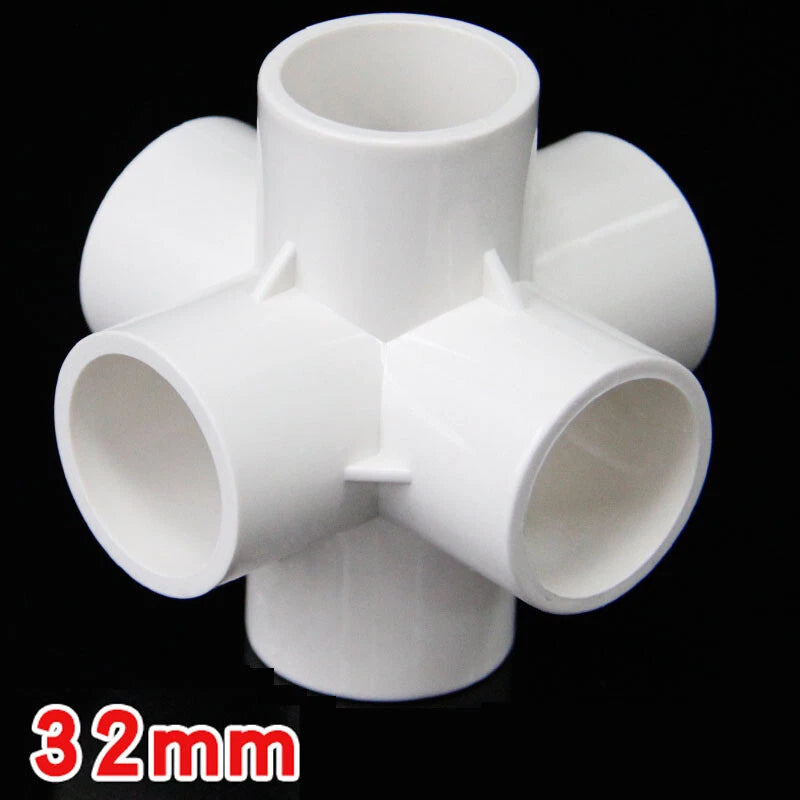

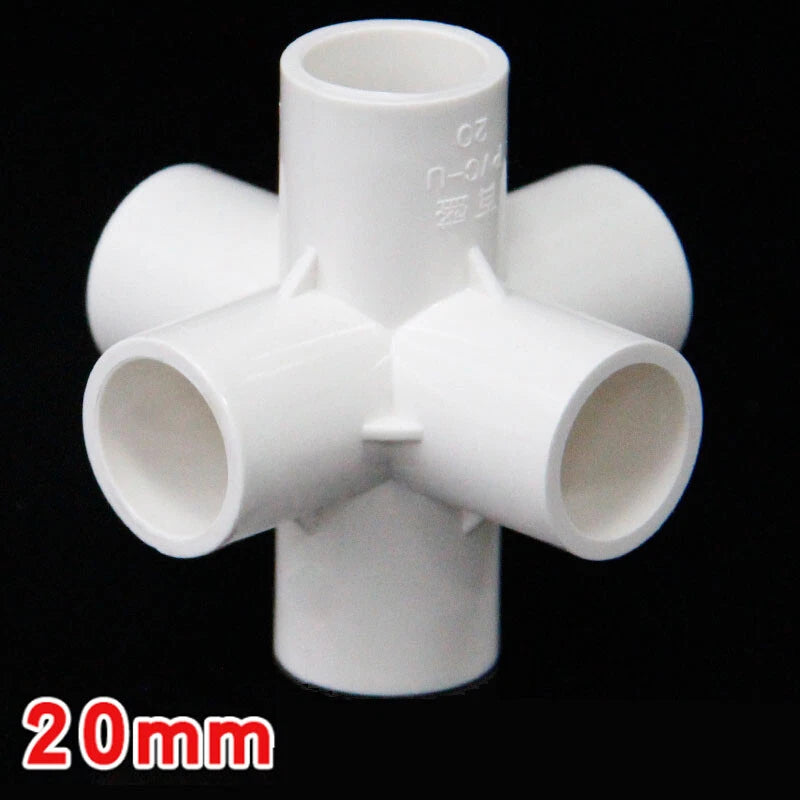

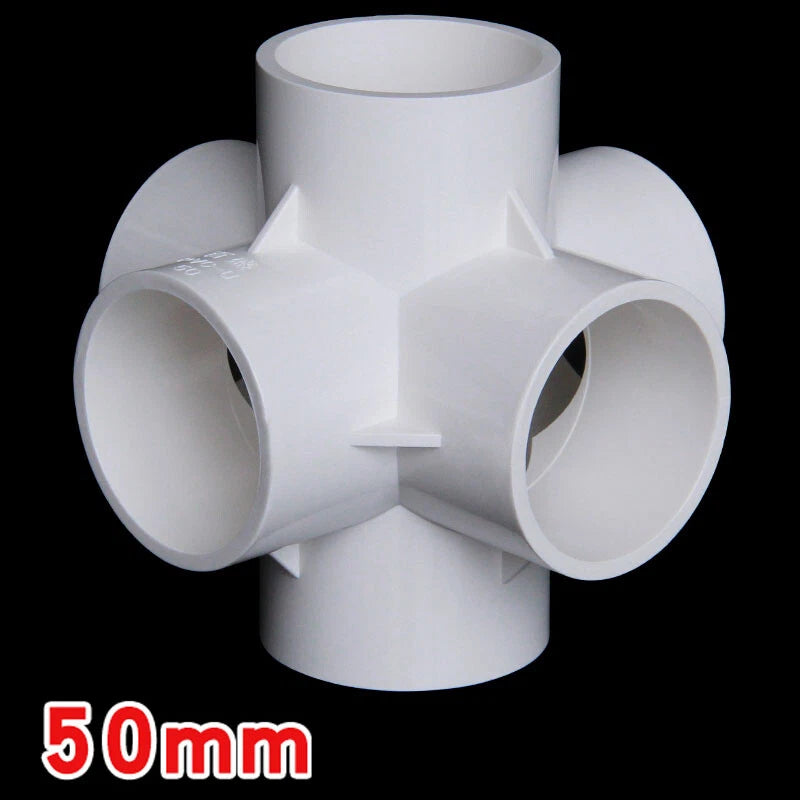

Select the inner diameter that matches your pipe’s nominal size: 20mm (~¾"), 25mm (~1"), 32mm (~1¼"), or 50mm (~2"). Measure the outer diameter of your existing pipe and cross-reference with standard PVC pipe OD charts to confirm the correct nominal size. All six ports on the fitting will be the same size, so all connected pipes must be the same diameter.

These connectors are molded from rigid PVC to pressure fitting dimensional tolerances and are suitable for pressure pipe applications including water supply and irrigation. Always verify the specific pressure rating for your chosen size against your system’s working pressure. For high-pressure or hot-water systems, consult a licensed plumber before installation.

Rigid PVC is inherently corrosion-resistant and does not react with potable cold water, irrigation water, or most common water treatment chemicals at standard concentrations. It will not rust, scale, or pit under normal operating conditions. For continuous hot-water lines above approximately 60°C / 140°F, CPVC or other heat-rated materials are recommended.

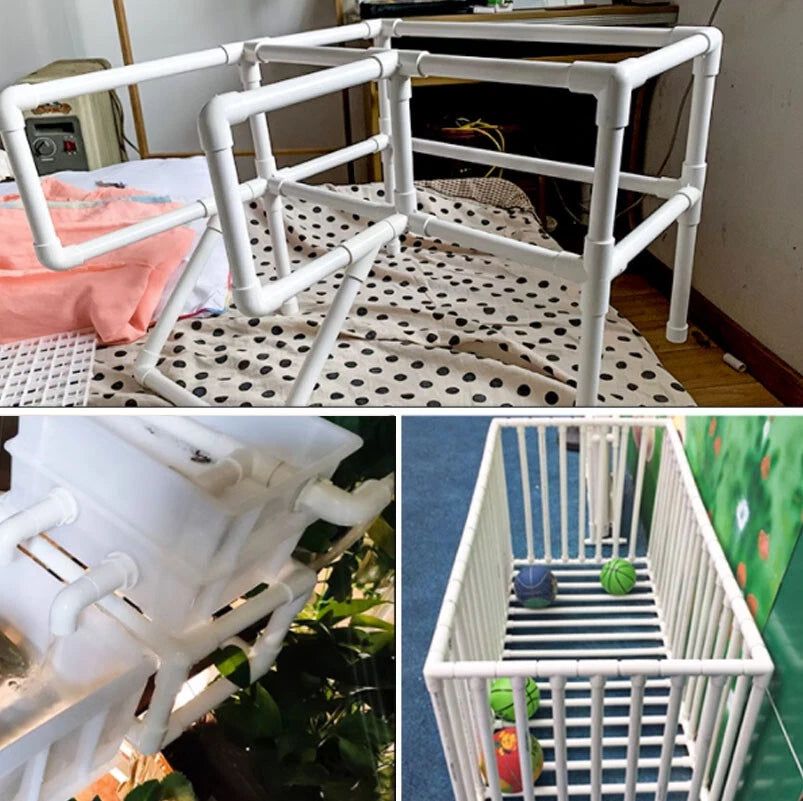

Yes. PVC 6-way equal connectors are widely used in modular pipe framework applications — including furniture, shelving, greenhouse frames, and display structures — where a rigid three-dimensional node is needed. In non-pressure structural applications, you can use PVC cement for a permanent bond or leave the joints dry-fit for a reconfigurable structure.

Cut each pipe end square and deburr the cut edge. Dry-fit all pipes into the connector to confirm alignment before cementing — this is especially important with a 6-way fitting since all six ports must align simultaneously. Apply PVC primer to both the pipe end and the socket, then apply PVC cement to both surfaces. Insert the pipe with a slight twist and hold for 30 seconds. Work port by port and allow each joint to cure per the cement manufacturer’s instructions before pressurizing.

For a single manifold node or repair, 1 piece is sufficient. For irrigation grids or modular frameworks with multiple nodes of the same size, the 3, 5, or 10-piece packs offer a lower per-unit cost and ensure you have spares on hand. The 2-piece option suits small two-node builds or when a backup is needed for a critical connection.
