White PVC Metric Plumbing Fittings Pipe For Aquarium Fish Tank Pond Solvent Weld

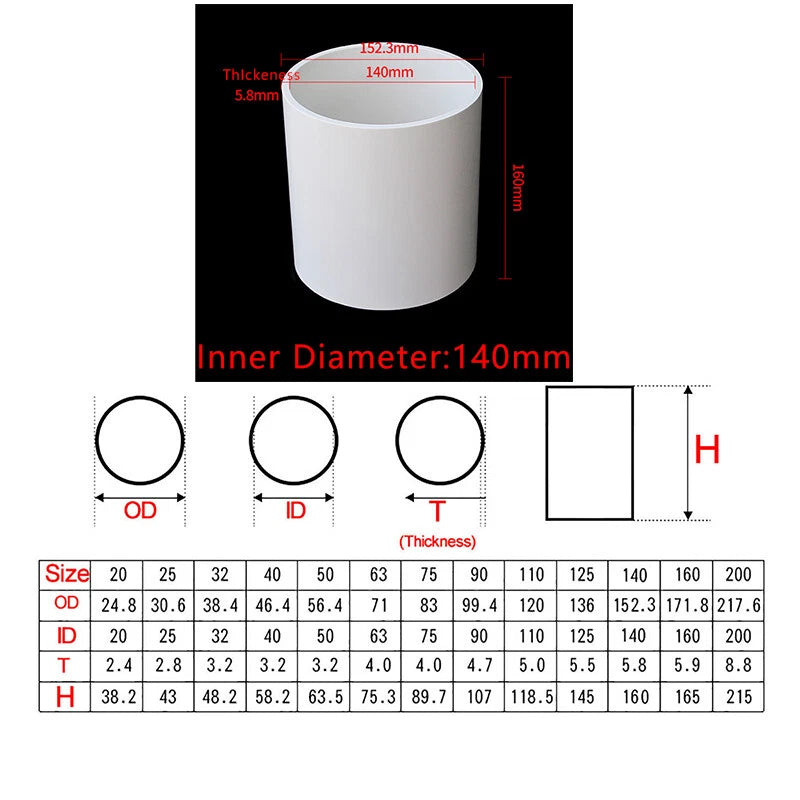

Measure the outer diameter (OD) of your existing pipe with calipers — do not rely on nominal or trade sizes. These fittings are sized to metric OD pipe (e.g., a "20 mm" fitting accepts pipe with a 20 mm OD). Metric and imperial pipe share similar nominal names but have different ODs, so always verify with a physical measurement before ordering.

Use a uPVC / PVC-U solvent cement rated for pressure pipe — commonly labelled as "PVC solvent weld cement" or "CPVC cement" (check compatibility). Apply a thin, even coat to both the pipe end and the fitting socket, push together with a quarter-turn, and hold for 30 seconds. Allow the joint to cure fully (typically 15–30 minutes before handling, 24 hours before pressure testing) before filling the system.

Rigid uPVC is widely used in aquarium and aquaculture plumbing because it does not leach plasticisers or heavy-metal stabilisers into the water column once fully cured. After solvent welding, flush the completed pipework thoroughly with dechlorinated water before introducing livestock, as residual solvent vapour can be harmful until fully off-gassed (typically 24–48 hours with good water flow).

Yes. uPVC is chemically resistant to salt water, common aquarium additives, and calcium/magnesium supplements used in reef systems. It is not affected by the salt concentrations found in typical marine aquarium or aquaculture environments. Avoid exposure to strong oxidising acids or ketone-based solvents outside of the solvent cement application step.

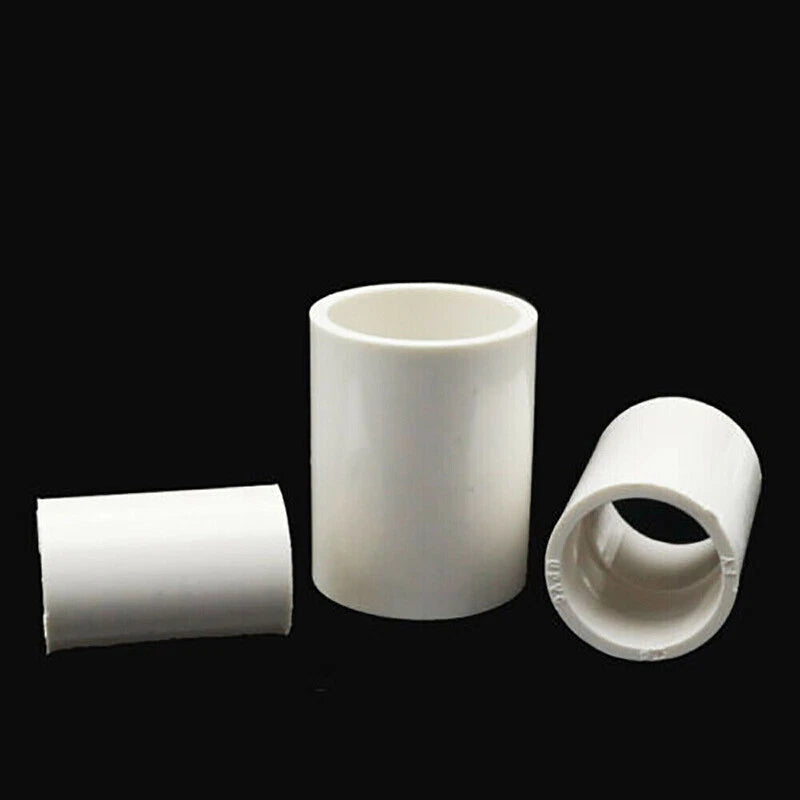

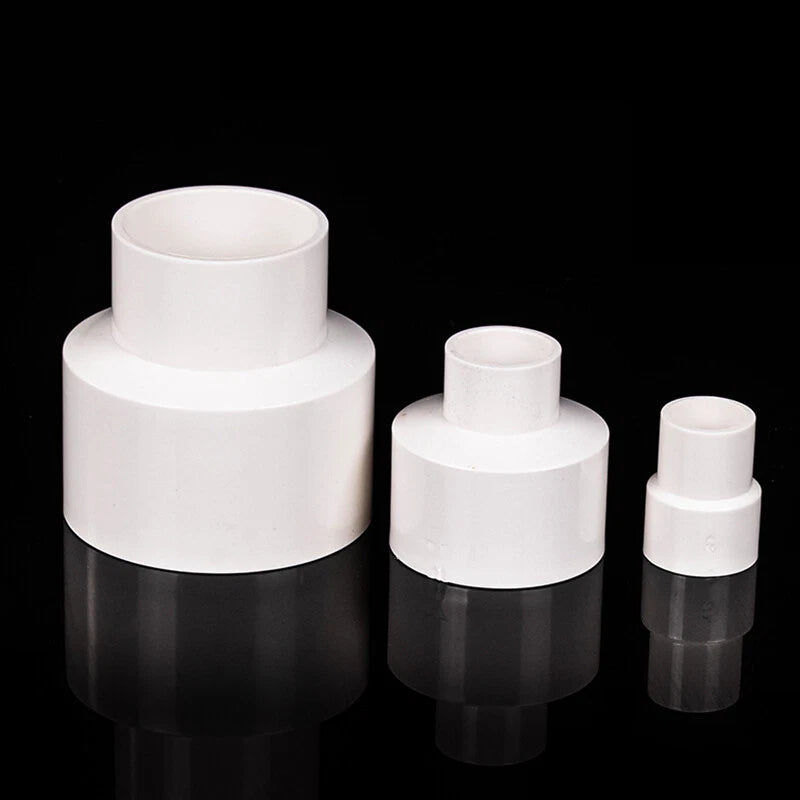

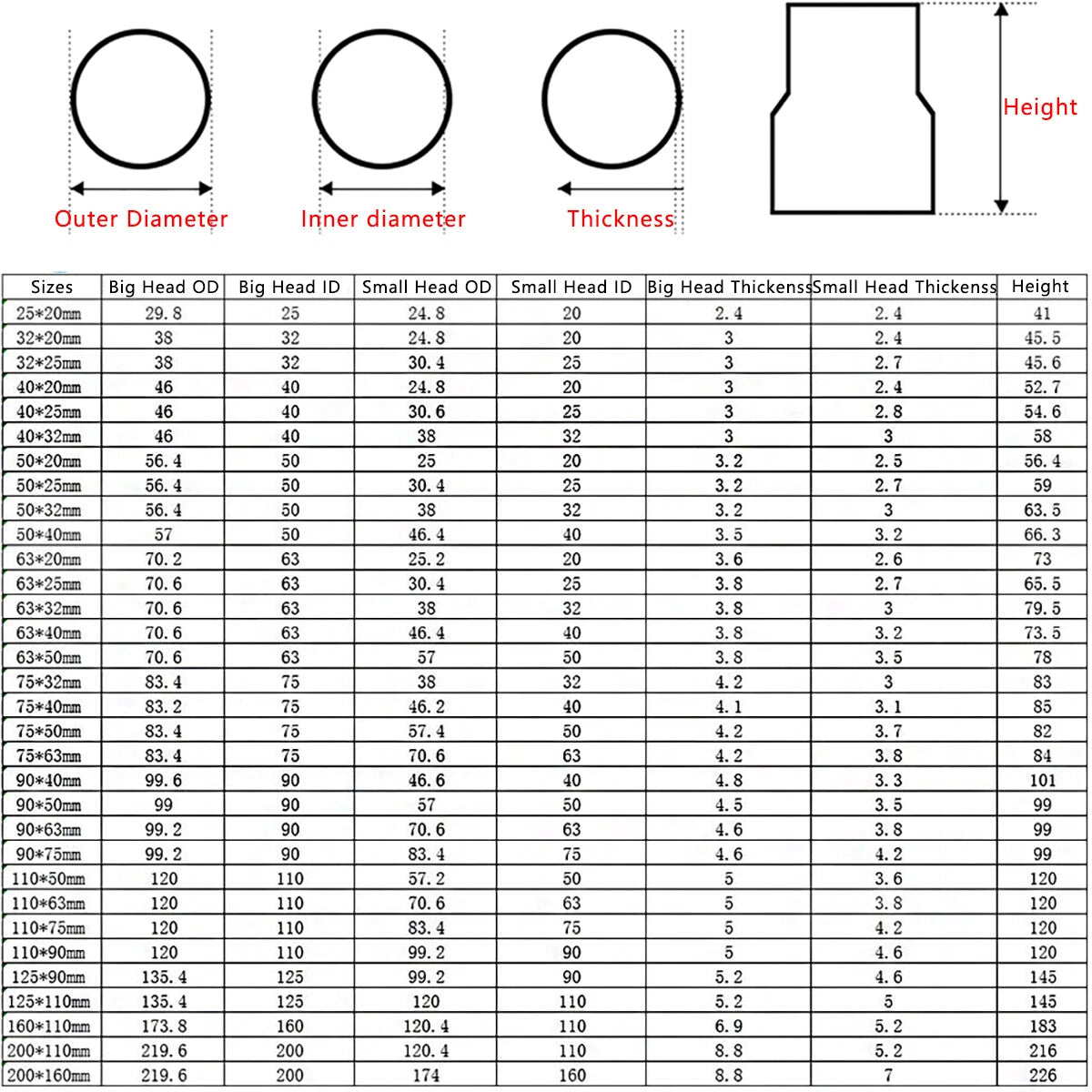

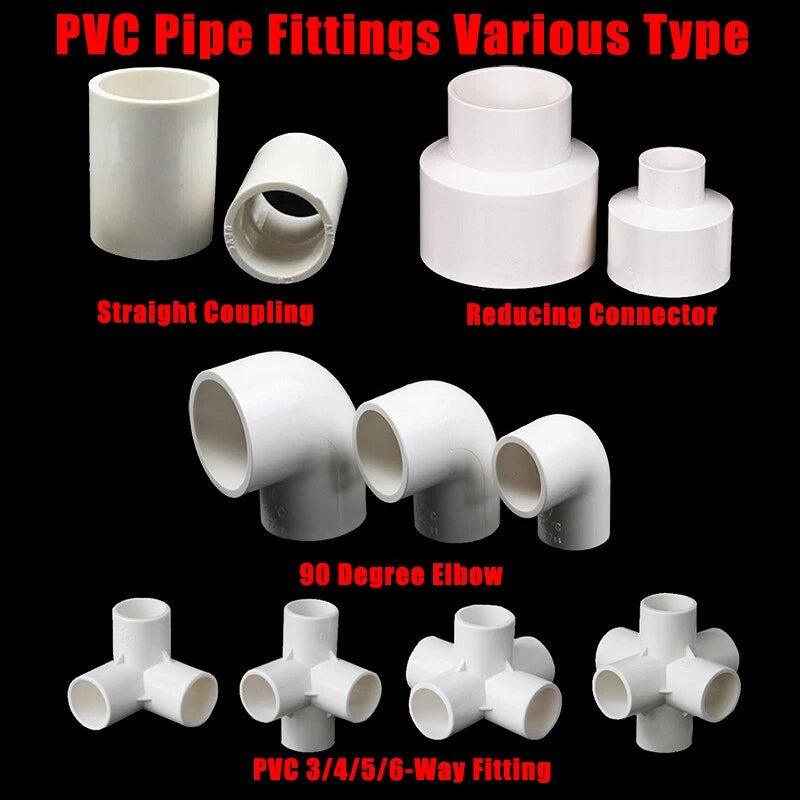

A Straight Coupling joins two pipes of the same diameter end-to-end — used to extend a run or repair a section. A Reducing Connector joins two pipes of different diameters (e.g., 50 mm main to 32 mm branch), allowing you to step down flow to a smaller pipe without a separate reducer bush. Select the reducing size that matches your large pipe OD on the big-head end and your small pipe OD on the small-head end.

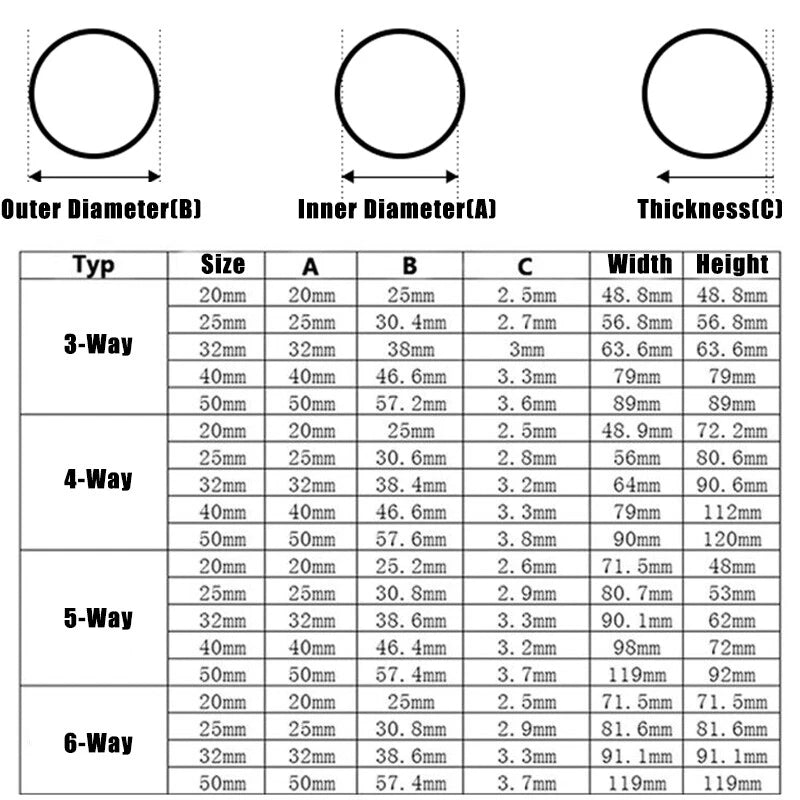

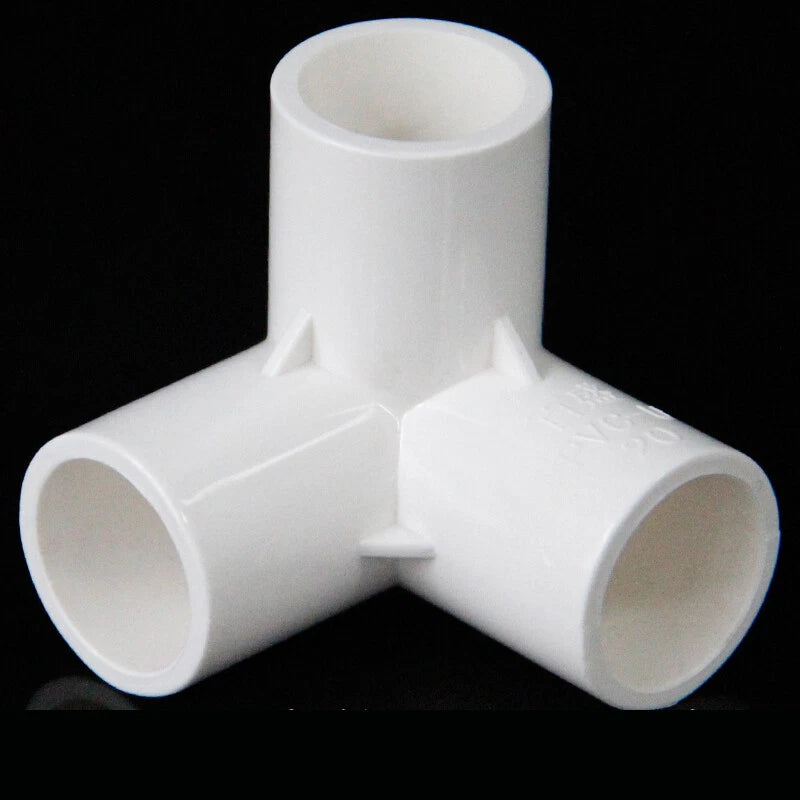

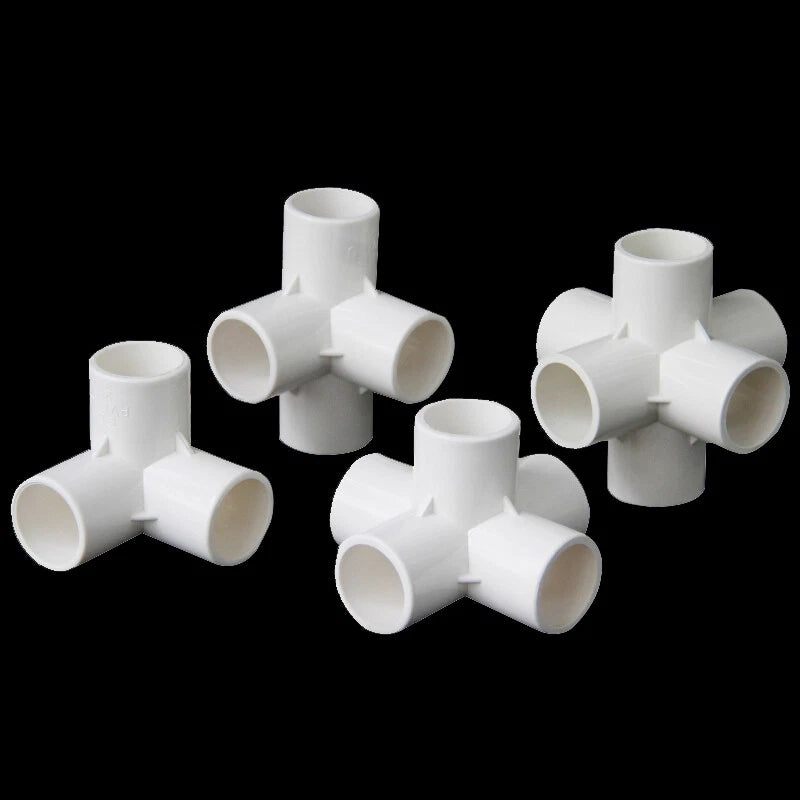

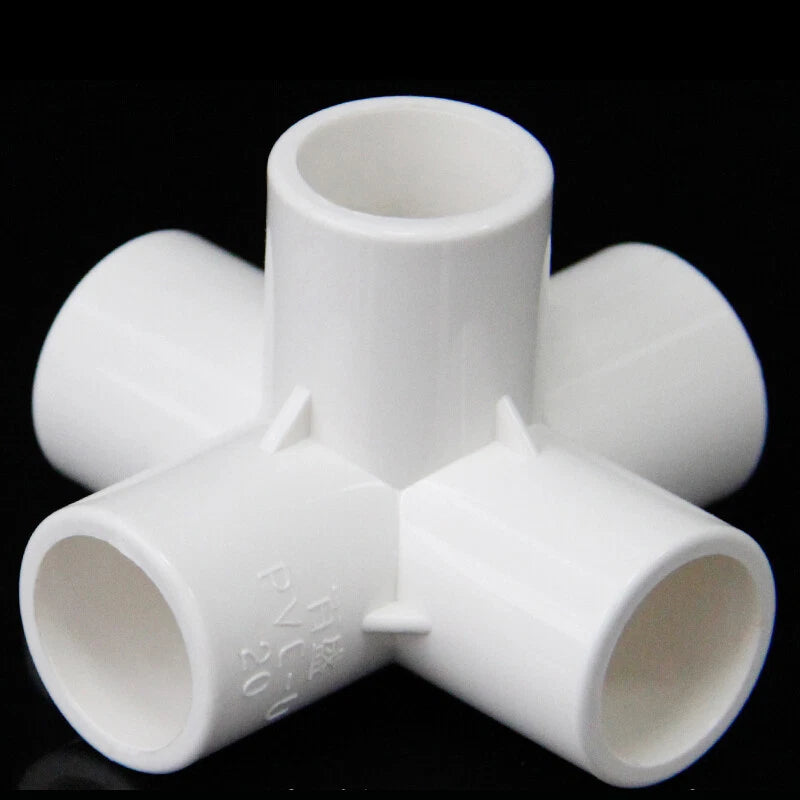

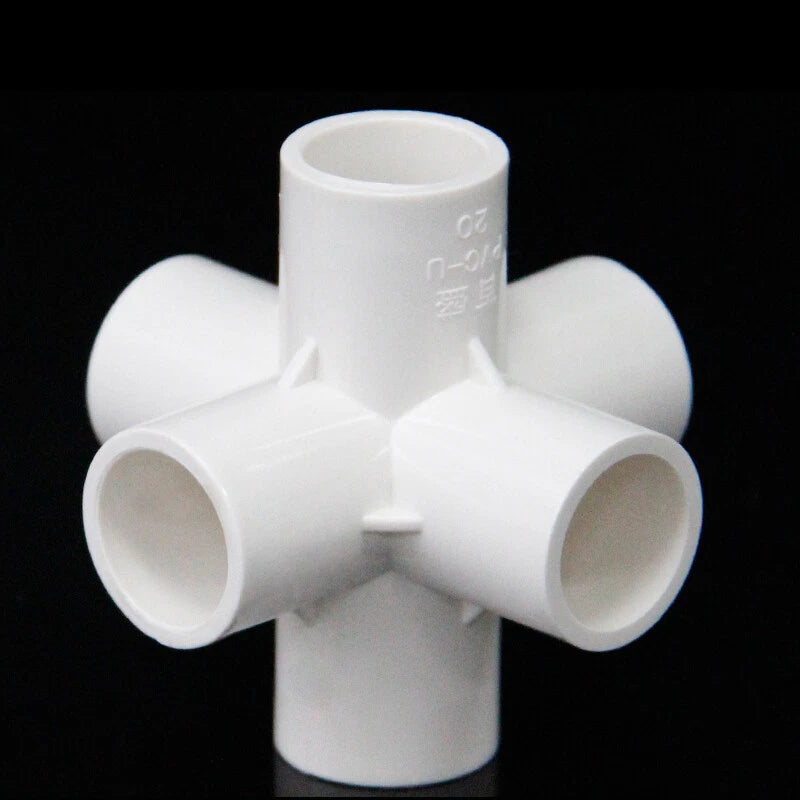

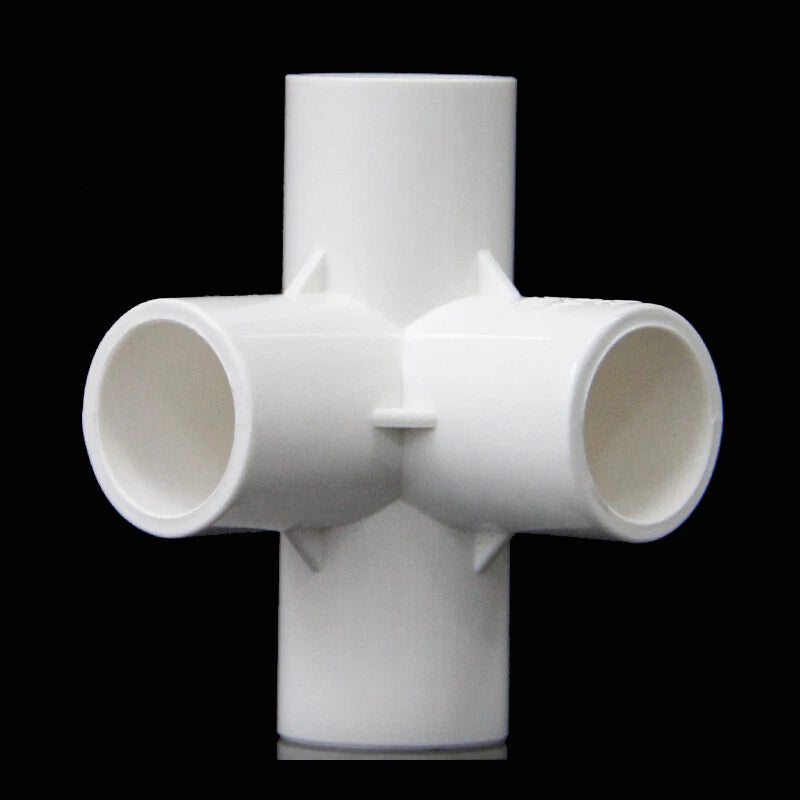

The 3-Way fitting has three ports in a T configuration (two in-line, one perpendicular). The 4-Way fitting has four ports in a cross / X configuration. The 5-Way fitting adds a fifth port (typically one axial port plus four radial). The 6-Way fitting provides six ports for complex manifold builds. All ports on a given fitting are the same diameter — select the diameter that matches your pipe OD.

uPVC has moderate UV resistance but will become brittle over years of direct, unshielded sunlight exposure. For outdoor pond installations where fittings will be permanently exposed to direct sun, consider wrapping exposed sections with UV-resistant pipe lagging or foam insulation, or routing pipework through a shaded equipment housing. Fittings installed below the waterline or inside filter housings are not affected by UV.
