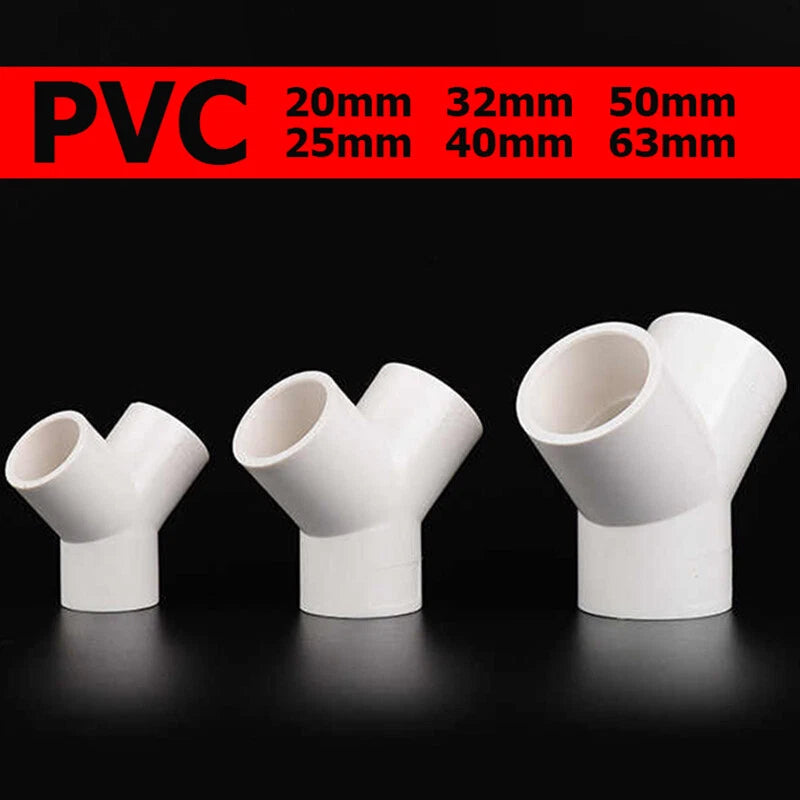

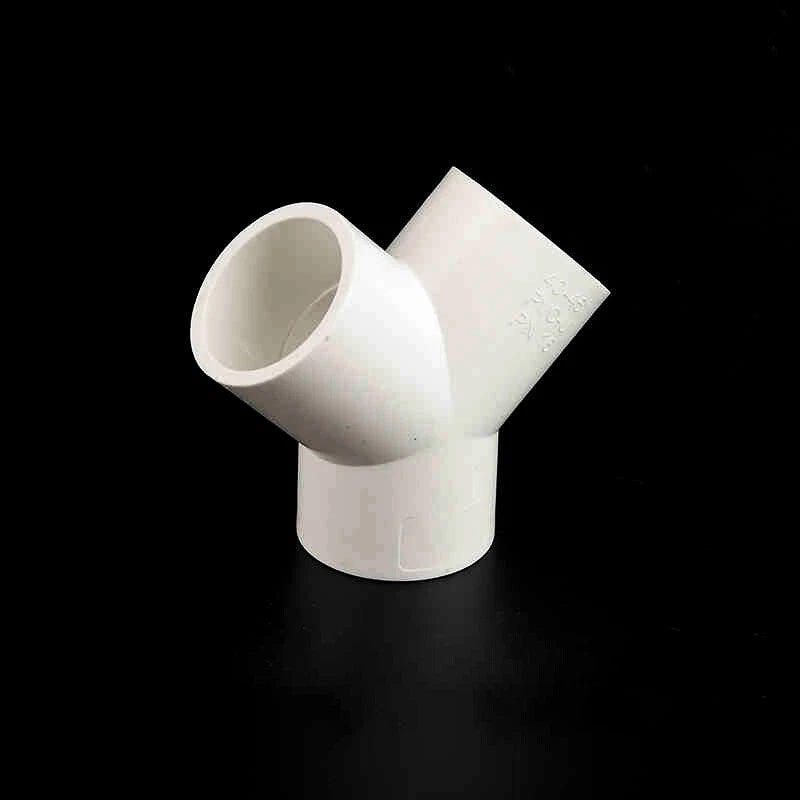

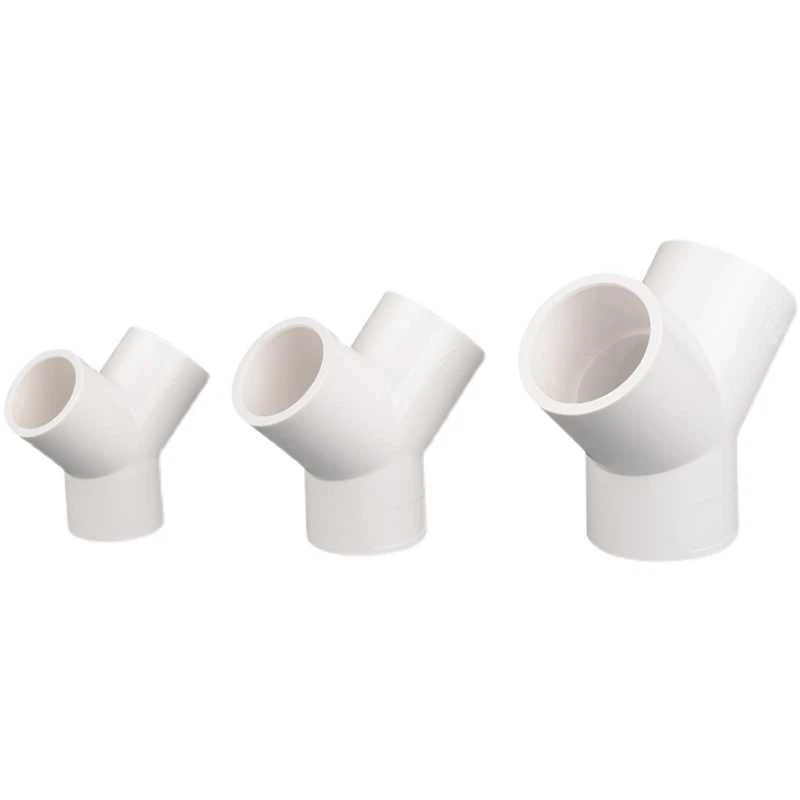

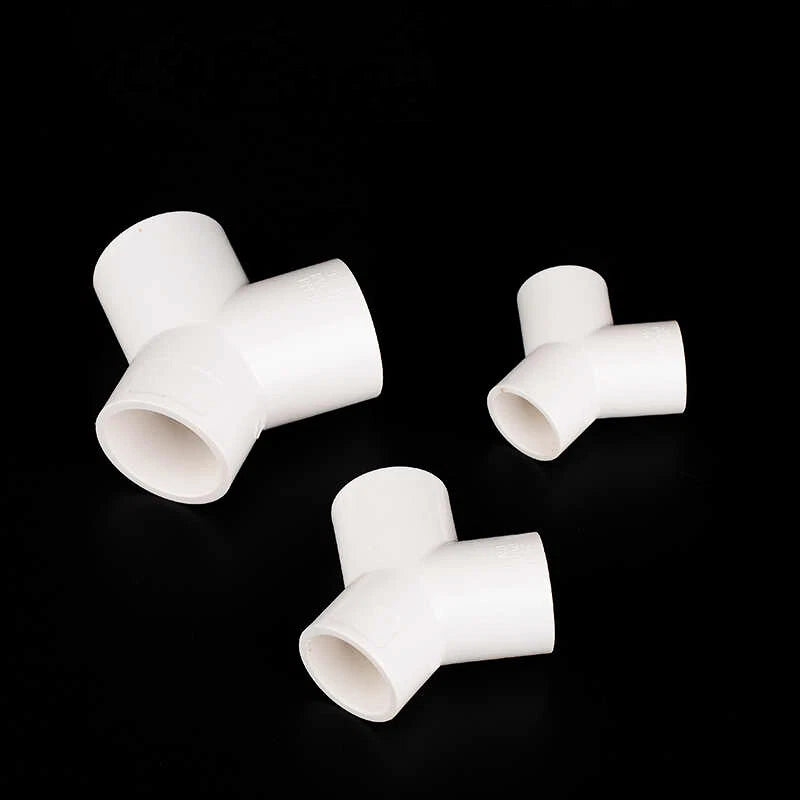

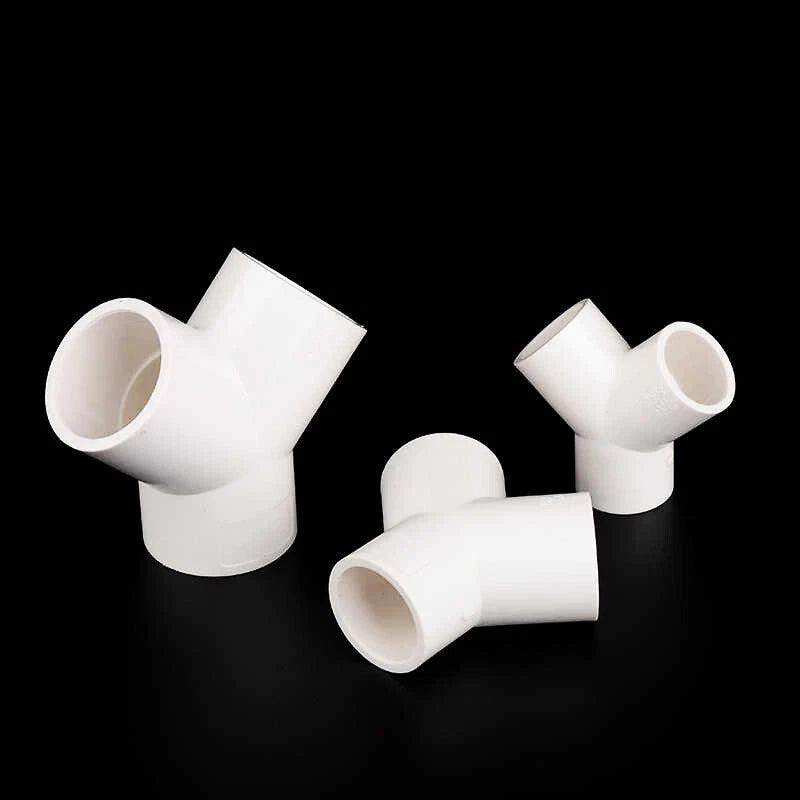

White PVC Pipe Fittings Y-Shape Wye Connector Adapter Solvent Weld 20mm - 63mm

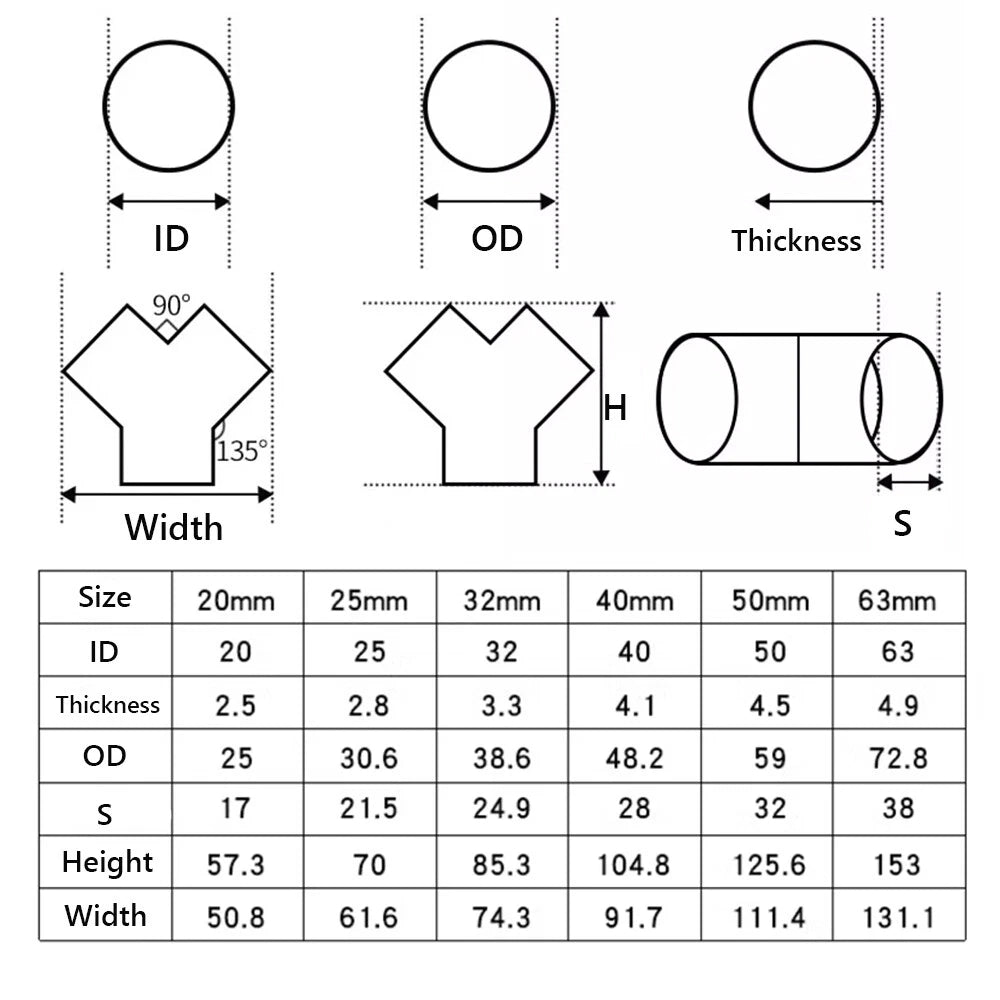

Match the fitting's inner diameter (ID) to your pipe's outer diameter (OD). For standard thin-wall PVC pipe, the pipe OD typically equals the fitting ID. For example, a 20mm fitting accepts 20mm OD pipe. If you are unsure, measure your existing pipe's outer diameter with calipers and select the matching size from the variant options above.

These fittings are moulded from rigid PVC and use a solvent-weld joint, which is inherently strong. However, the pressure rating depends on pipe schedule, solvent cement quality, and cure time. For pressurised supply applications, confirm the pressure rating with us before ordering and always follow local plumbing codes.

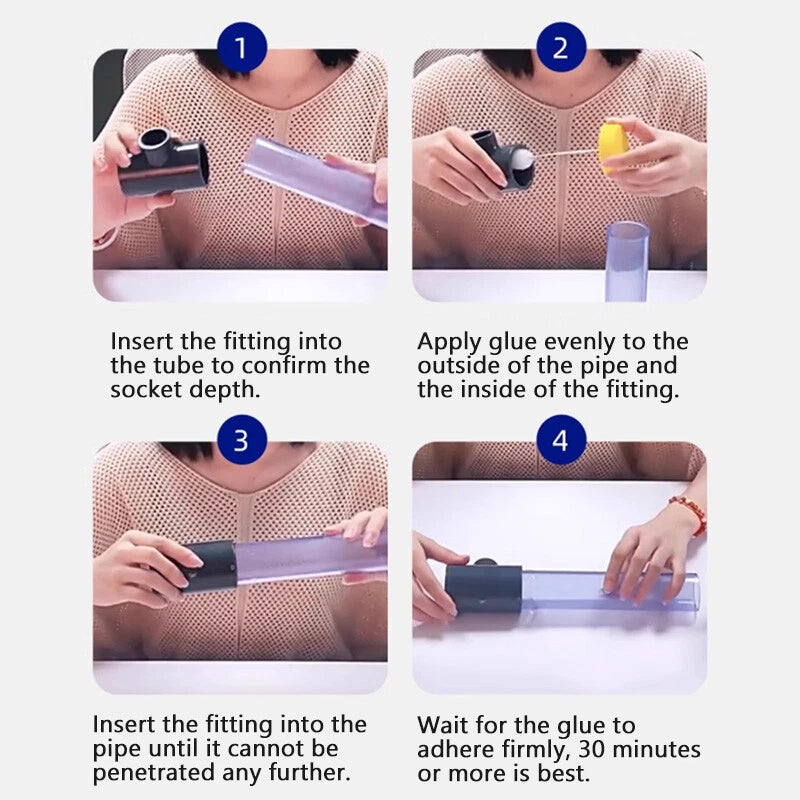

Solvent cement is not included. Use a PVC-rated solvent cement (and PVC primer where required by local code). Apply primer to both the pipe end and fitting socket, then apply cement, push the pipe fully into the socket with a slight twist, and hold for approximately 30 seconds. Allow the joint to cure fully before pressurising.

Rigid PVC is inherently corrosion-resistant and does not rust, scale, or pit like metal fittings. It is compatible with most household water, drainage fluids, and mild irrigation chemicals. For aggressive chemical environments (solvents, concentrated acids, or high-temperature fluids), verify chemical compatibility before use.

Yes. The Y-shape geometry is well-suited to irrigation manifolds where a lateral branch feeds a drip line or sprinkler zone from a main supply run. The 20mm and 25mm sizes are most commonly used for residential garden irrigation. Ensure the fitting ID matches your irrigation pipe OD and that the system operates within the fitting's pressure rating.

A standard tee creates a 90° branch, which causes a sharp directional change and increased flow resistance in the branch line. A wye (Y) fitting branches at approximately 45°, producing a smoother flow transition with lower turbulence. Wye fittings are preferred in drainage and venting applications where maintaining flow velocity matters, and in irrigation systems where pressure loss through the branch should be minimised.

Yes. Each size and quantity combination is a separate variant. Add the sizes you need to your cart individually — for example, add 5 pcs of 25mm and 2 pcs of 40mm as separate line items. This lets you mix sizes within a single order.
