When your 3D printer or CNC router loses positional accuracy, a worn or mismatched pulley is often the culprit. Makers, engineers, and desktop fabricators who demand repeatable motion need a timing belt pulley that fits their shaft exactly and holds its pitch under load. The XL20T Timing Belt Pulley Sprocket is engineered for that purpose — delivering consistent, backlash-resistant drive in compact motion systems.

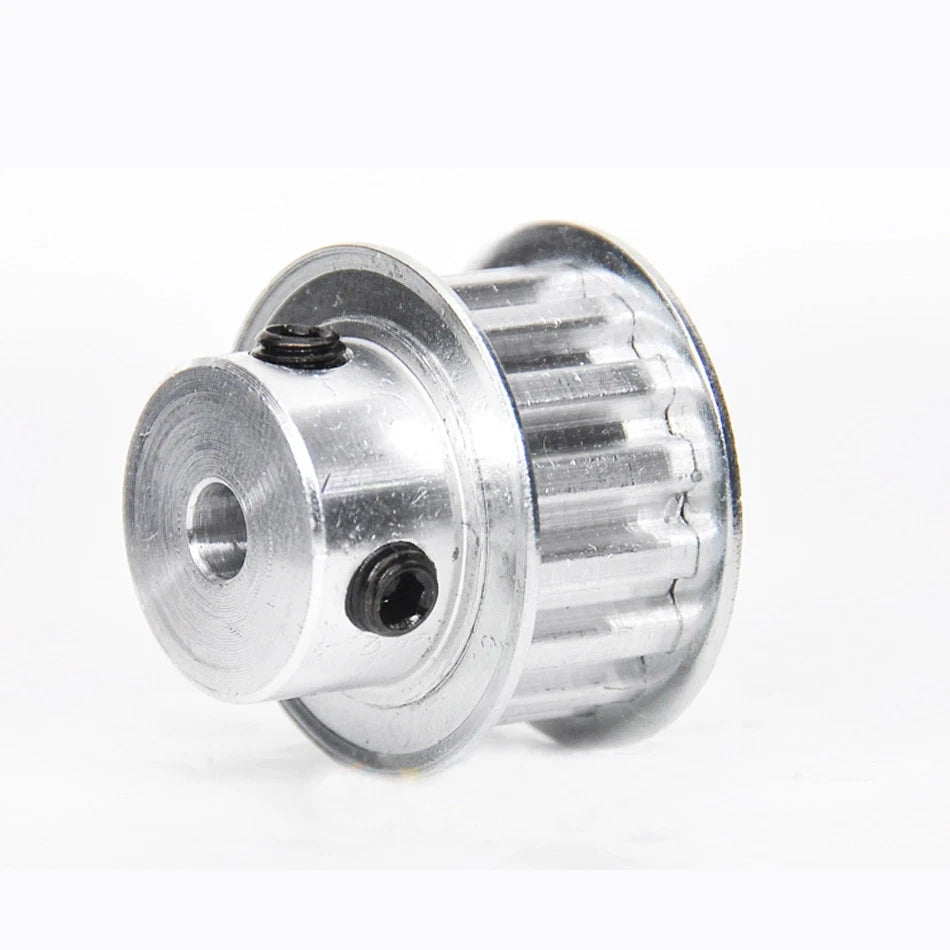

Each pulley features 20 teeth in the XL (Extra Light) tooth profile, compatible with standard XL-series timing belts. The bore range spans 4 mm to 20 mm (approximately 0.16 in to 0.79 in), and the belt width is 10 mm (approx. 0.39 in). The body is typically machined from aluminum alloy with a natural or anodized finish, keeping rotating mass low while maintaining dimensional stability.
Typical use cases include: replacing worn drive pulleys on Cartesian or CoreXY 3D printers, building custom CNC pen plotters or laser engravers that require XL-pitch synchronous drive, and constructing DIY conveyor or indexing mechanisms where precise step-to-distance ratios are critical.
Standard XL tooth geometry ensures full engagement with XL timing belts, delivering accurate step-to-distance ratios essential for 3D printing and CNC routing.
Fifteen bore sizes from 4 mm to 20 mm let you match the pulley directly to your motor shaft or lead screw without adapters or bushings.
Designed for 10 mm wide XL belts — the most common width in desktop 3D printers and compact CNC machines — for a secure, centered belt track.
Machined aluminum body keeps rotational inertia low, reducing motor load and improving acceleration response in fast-moving print heads and gantries.
Includes one or more set screws (typically M3) to lock the pulley firmly onto the shaft, preventing slippage during direction reversals and high-speed moves.
Dimensionally consistent with OEM-spec XL20T pulleys used in popular 3D printer platforms, making it a straightforward swap for maintenance and upgrades.

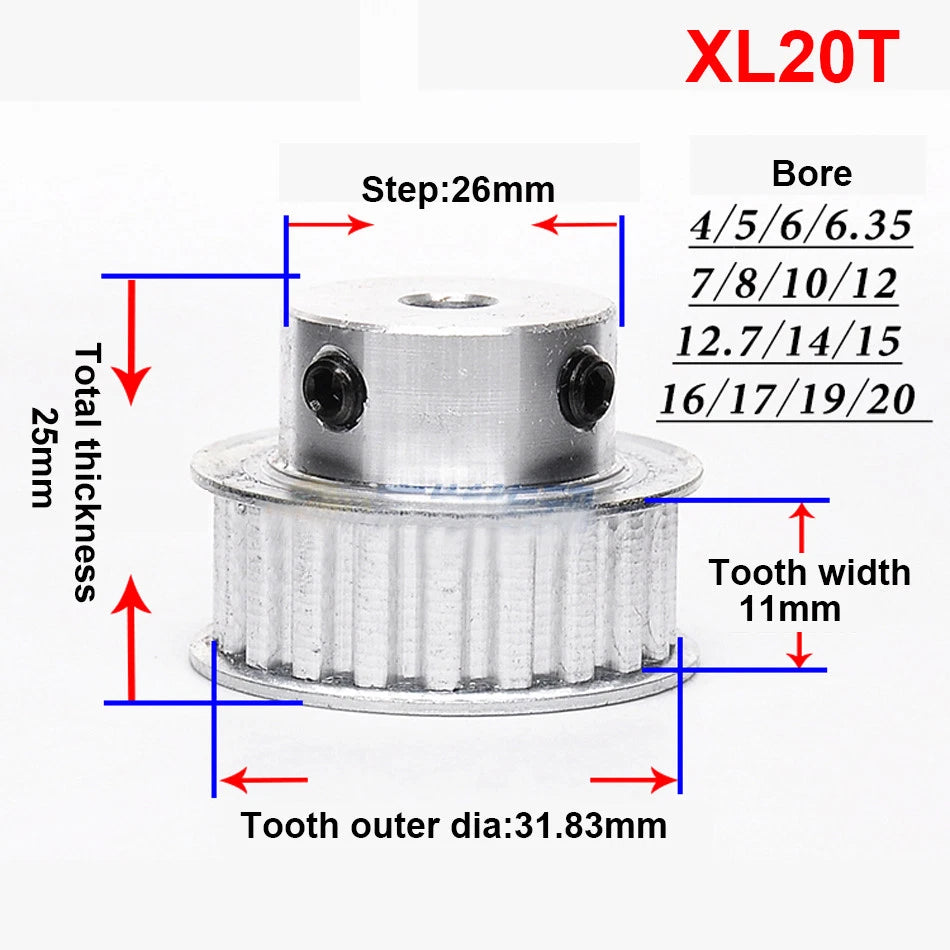

| Tooth Count | 20T |
|---|---|
| Belt Profile | XL (Extra Light) |
| Belt Pitch | 9.525 mm (0.375 in) |
| Belt Width | 10 mm (0.39 in) |
| Bore Diameter | 4 mm – 20 mm (see variant options) |
| Material | Aluminum alloy |
| Finish | See variant options |
| Flange | See variant options |
| Set Screw | Typically M3 (Contact us to confirm) |
| Outer Diameter | See variant options |
| Hub Length | See variant options |
Measure your motor shaft or drive shaft diameter with a caliper. Select the bore that matches exactly — for example, a NEMA 17 stepper motor typically has a 5 mm shaft, so choose the 5 mm bore variant. If your shaft is imperial (e.g., 1/4 in = 6.35 mm), select the 6.35 mm bore option available in this listing.
Yes — as long as your printer uses a standard XL-series timing belt with a 9.525 mm (0.375 in) pitch and 10 mm belt width. This is the most common belt spec on Cartesian and CoreXY desktop 3D printers. Check your printer's documentation or measure the belt pitch to confirm before ordering.
Absolutely. XL20T pulleys are widely used in DIY CNC pen plotters, laser engravers, and small milling machines that use XL-pitch synchronous drive systems. Verify that your machine's belt pitch and width match the XL spec (9.525 mm pitch, 10 mm width) before purchasing.
The set screw (typically M3) bites directly into the shaft when tightened with the appropriate hex key. For best results, apply a small amount of thread-locking compound and tighten firmly. On flat-sided (D-shaft) motor shafts, the connection is especially secure. On fully round shafts, ensure the screw seats against the shaft surface and re-check torque after initial run-in.
Aluminum alloy naturally forms a thin oxide layer that provides good resistance to moisture and mild environmental exposure. For indoor applications like 3D printers and desktop CNC machines, the material performs reliably over extended use. If operating in a humid or chemically active environment, an anodized finish variant (where available) offers additional protection.

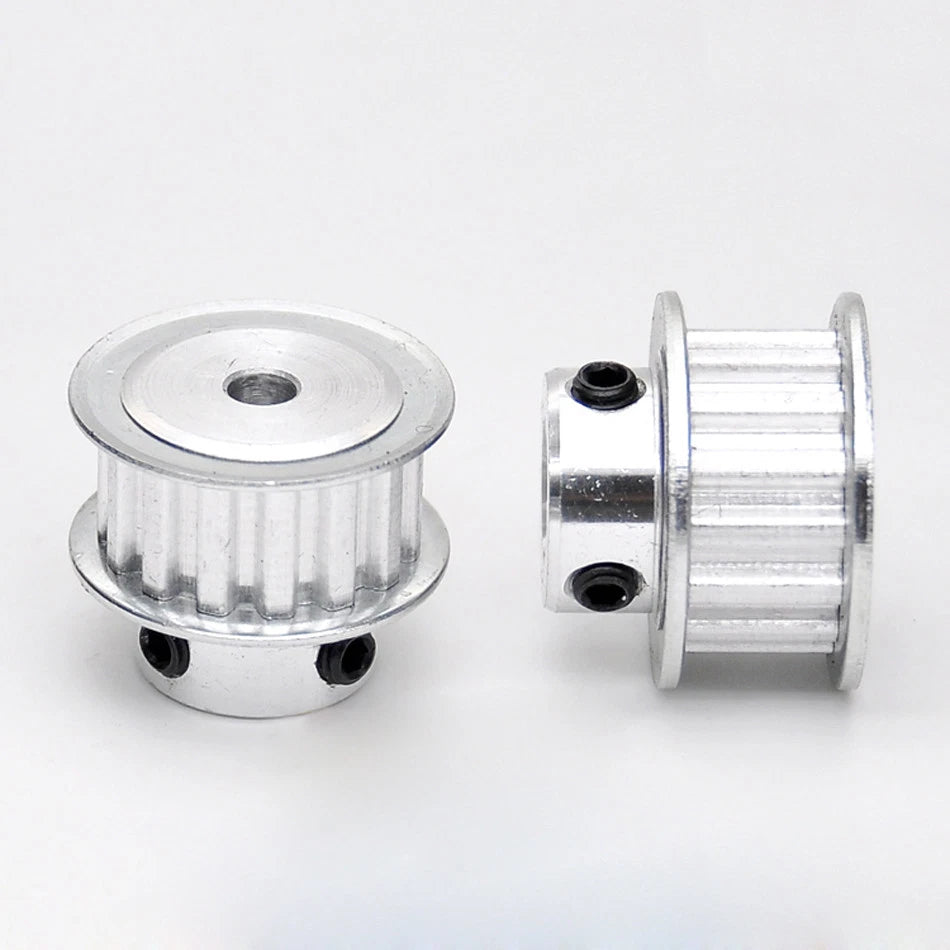

Flanged pulleys have raised edges (flanges) on one or both sides of the tooth profile that keep the belt centered and prevent it from walking off the pulley during operation. Non-flanged pulleys rely on belt tension and alignment for tracking. For most 3D printer and CNC applications, flanged pulleys are recommended to maintain consistent belt position, especially on longer belt runs.
In most cases, yes. This pulley follows standard XL20T dimensional specifications, making it compatible with OEM pulleys used in popular 3D printer platforms. Confirm the bore size, belt width, and flange configuration match your existing pulley before installing. If you are unsure, contact us with your printer model and we will help confirm compatibility.
