Name: Yamaha Outboard Sacrificial Anode Zinc Block – Anti-Corrosion Trim Tab & Steering Fin for 2‑Stroke & 4‑Stroke Engines
Brand: HomeDIYer
SKU: HKTBCLA180001
Price: 59.57 USD
Availability: InStock

📦 Yamaha Outboard Sacrificial Anode Kit – Corrosion Protection Zinc Block for 2‑Stroke & 4‑Stroke Engines

Protect your Yamaha outboard's cooling system, steering, and lower unit from the relentless effects of galvanic corrosion with these factory‑style sacrificial anodes. Cast from a zinc‑based alloy engineered to corrode before your engine's aluminum housing, gearcase, or mounting brackets do, these anodes are the most cost‑effective insurance you can install during routine maintenance. Whether your boat lives in a saltwater marina, on a mooring, or is trailered in brackish water, replacing worn anodes annually prevents pitting and structural damage that leads to costly repairs. This comprehensive selection covers every major application—trim tabs, rudder plates, lifting bottoms, gearcase blocks, and steering fins—across the full Yamaha outboard range from portable 2 HP models up to 350 HP V8s. Match your engine year, horsepower, and location to the variant menu to restore full corrosion protection.

⚠️ Routine Maintenance Reminder: Inspect your anodes at least once per season. If more than 50% of the original material has been consumed, replace it immediately. A dissolved anode can no longer protect your engine.

✨ Key Features of Yamaha‑Compatible Sacrificial Anodes

Direct Yamaha Fitment: Designed to match OEM mounting hole patterns and profiles—no drilling or modification needed for a drop‑in replacement.
Zinc Alloy Composition: Meets marine‑grade sacrificial anode standards, corroding preferentially to protect expensive aluminum castings and stainless hardware.
Covers 2‑Stroke & 4‑Stroke Engines: From small 2‑4 HP kickers to 350 HP big‑blocks, with specific anodes for gearcases, trim tabs, and steering fins.
Multiple Installation Positions: Variants available for lower unit (gearcase), transom bracket (lifting bottom), side plates, and steering rudder plates.

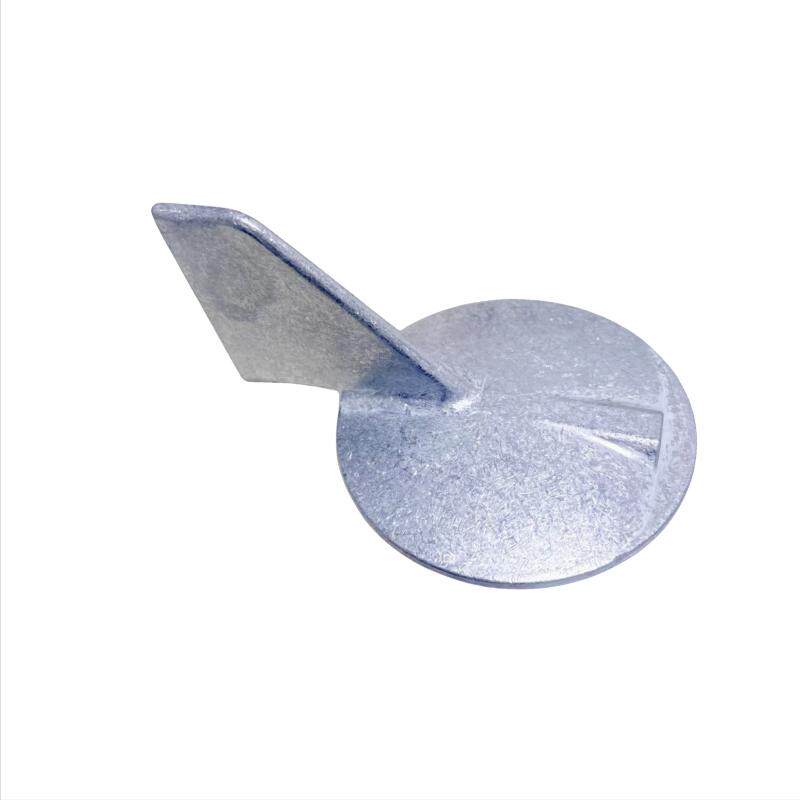

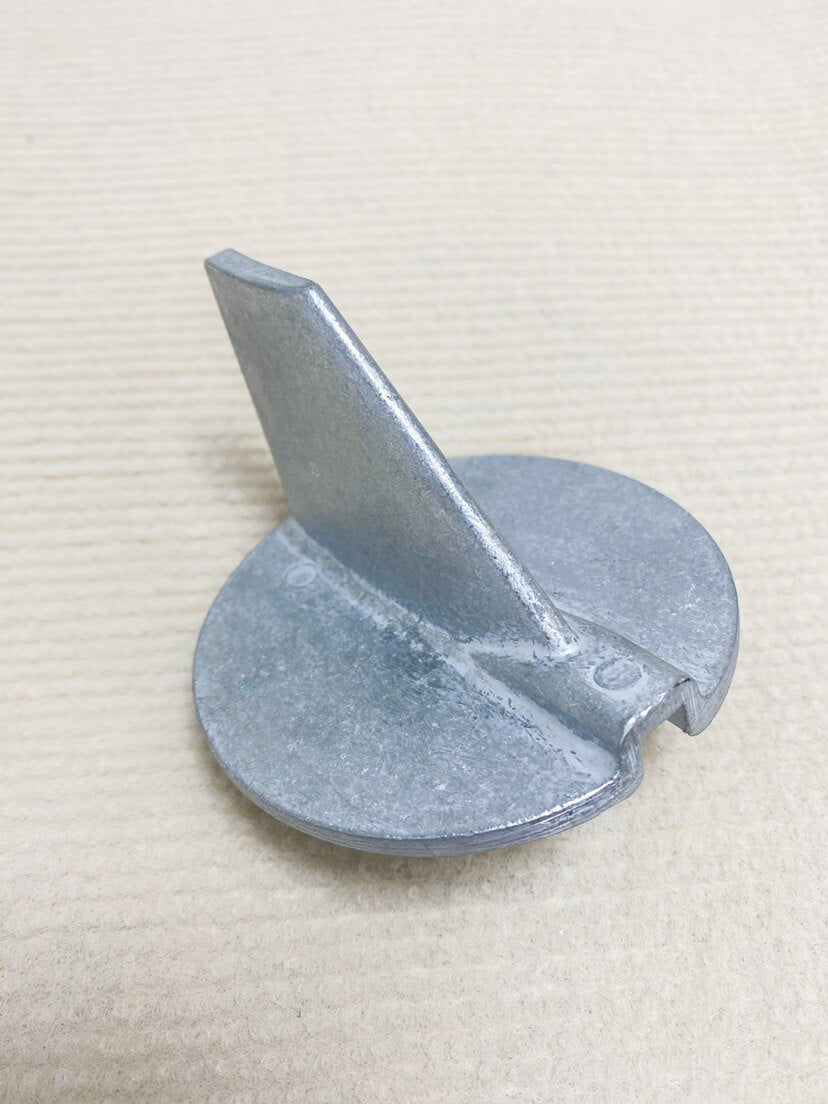

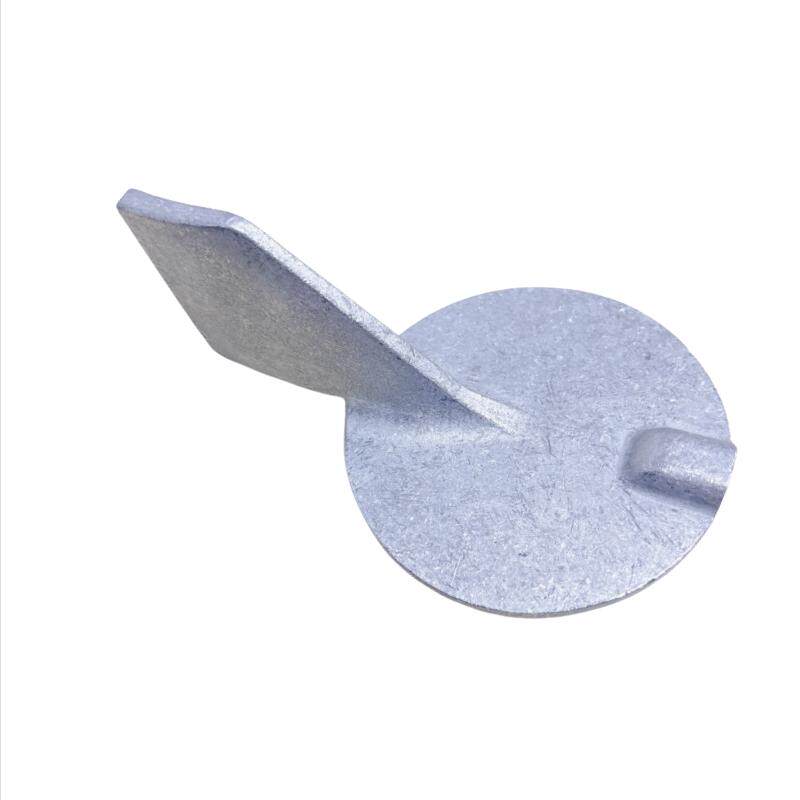

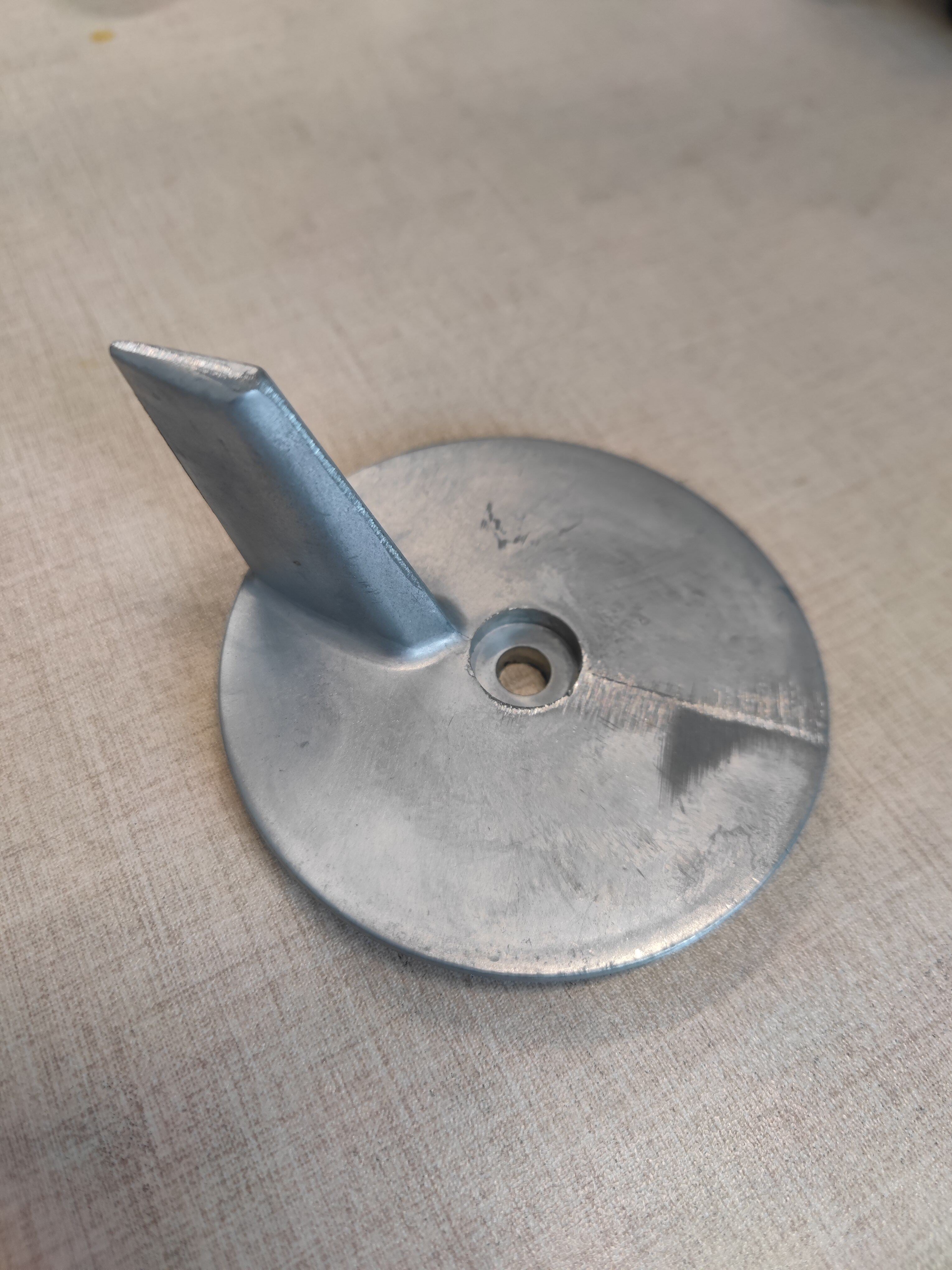

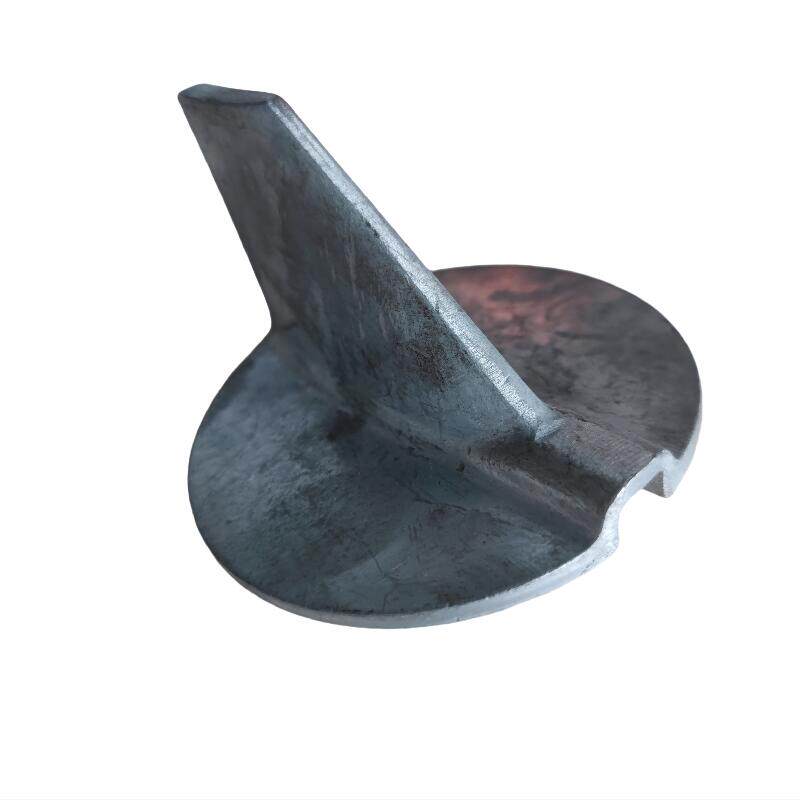

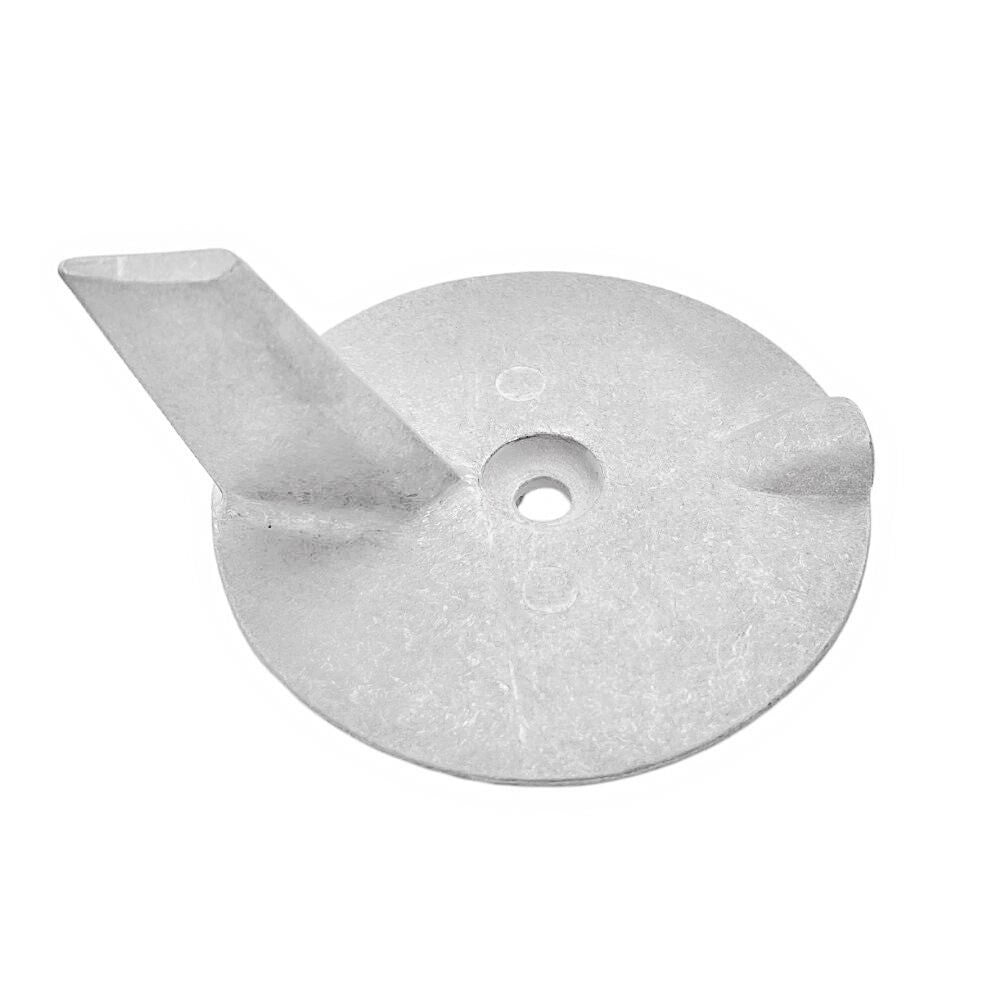

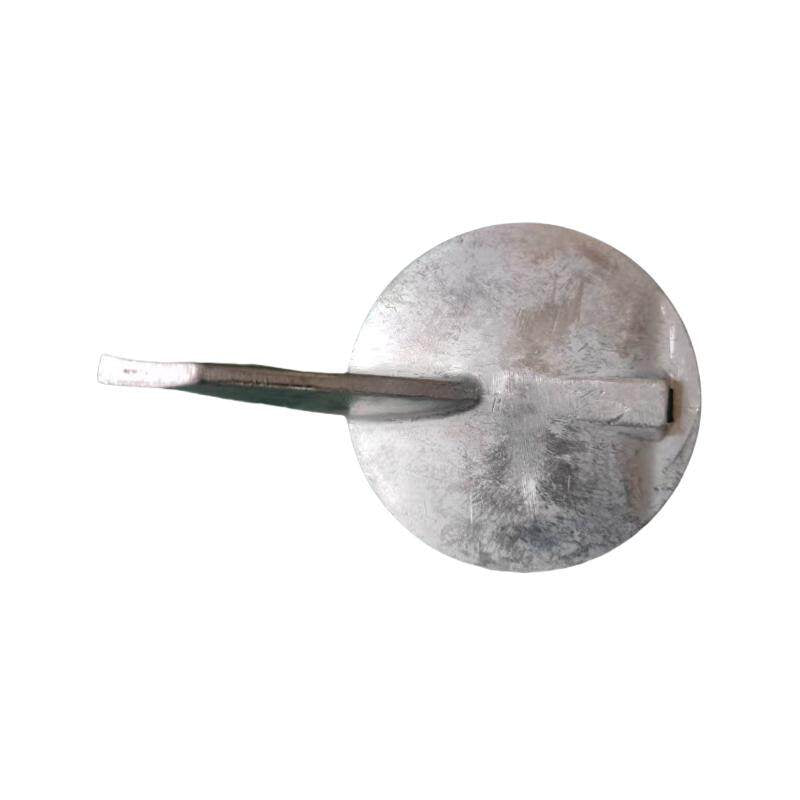

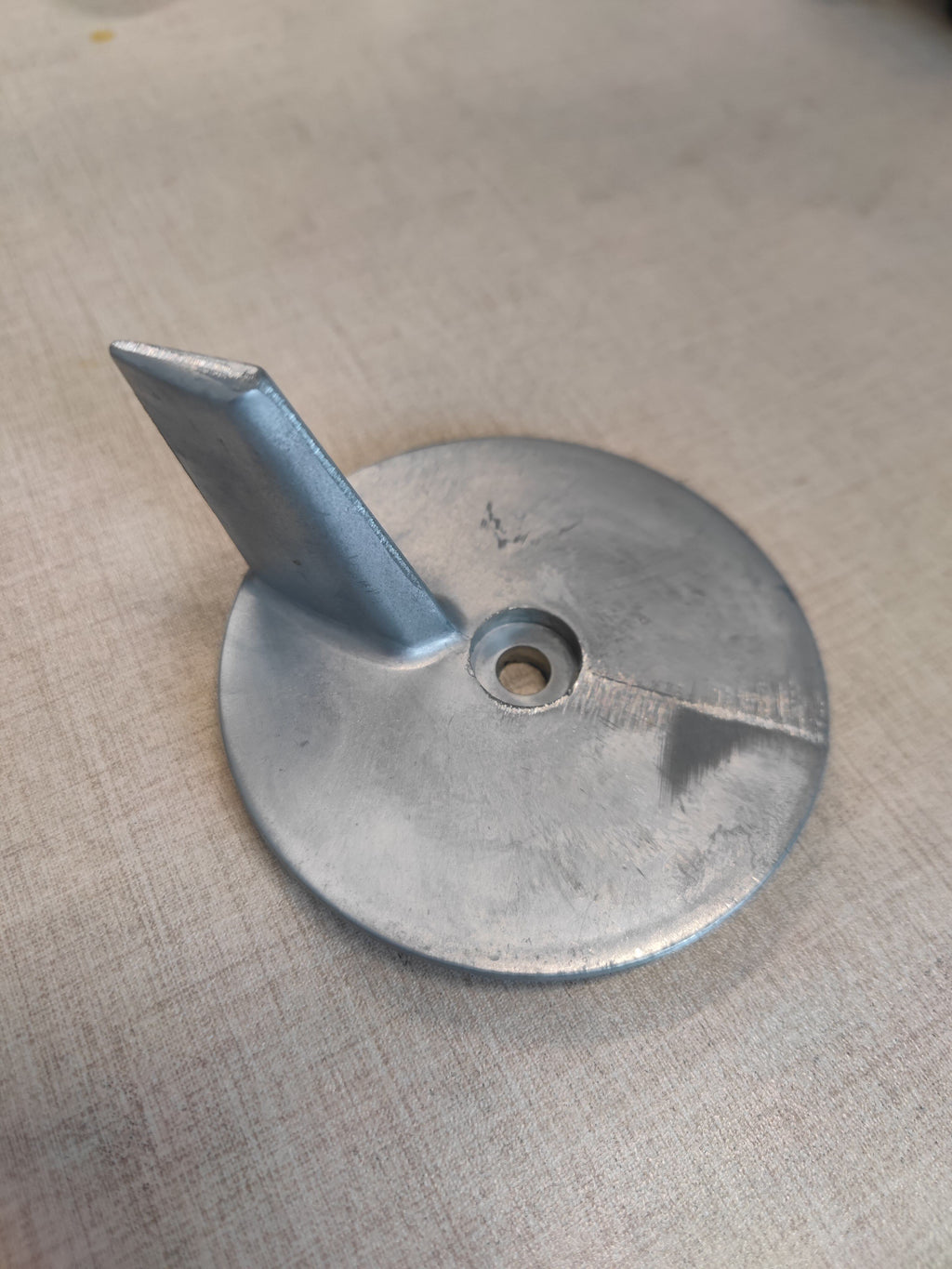

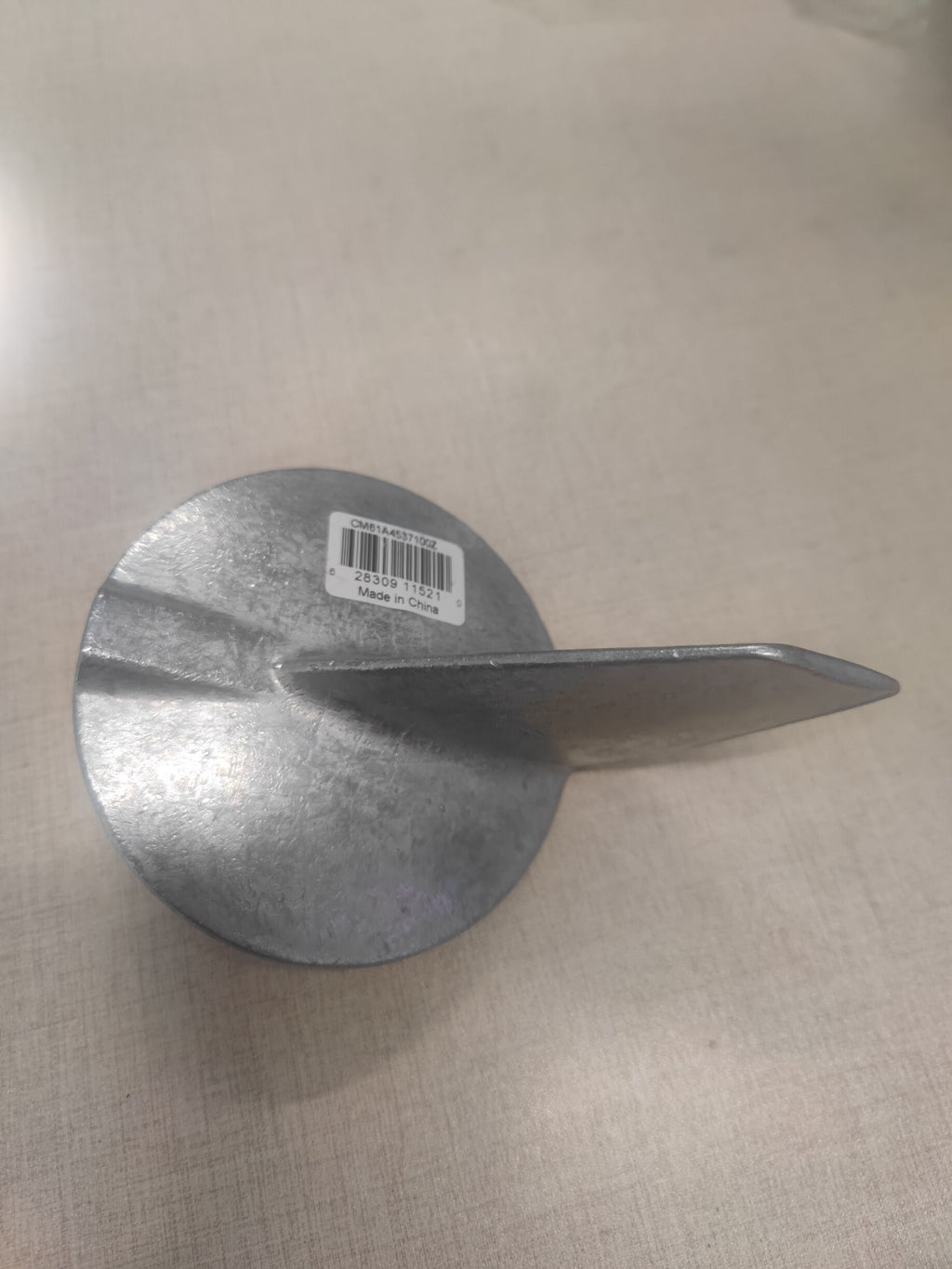

Includes Steering & Trim Tab Anodes: Specialized rudder‑mounted zinc fins also serve as sacrificial anodes while maintaining steering dynamics.
Easy Visual Inspection: Silver zinc surface clearly shows wear progression. No special tools required for inspection—look for pitting or size reduction.

📏 Specifications – Yamaha Outboard Sacrificial Anode

Material	Zinc Alloy (Marine-Grade Sacrificial Anode)
Compatibility	Yamaha Outboard Motors – 2‑Stroke & 4‑Stroke
Horsepower Range	2 HP to 350 HP (select variant for your engine)

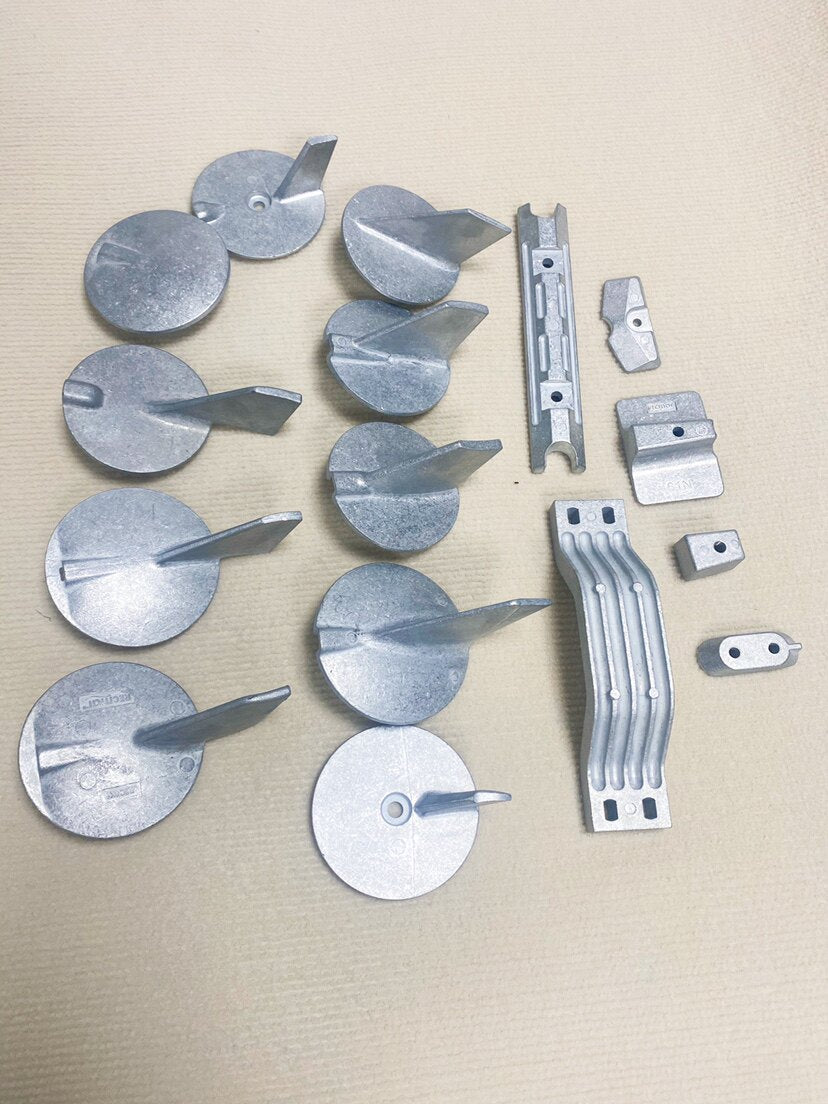

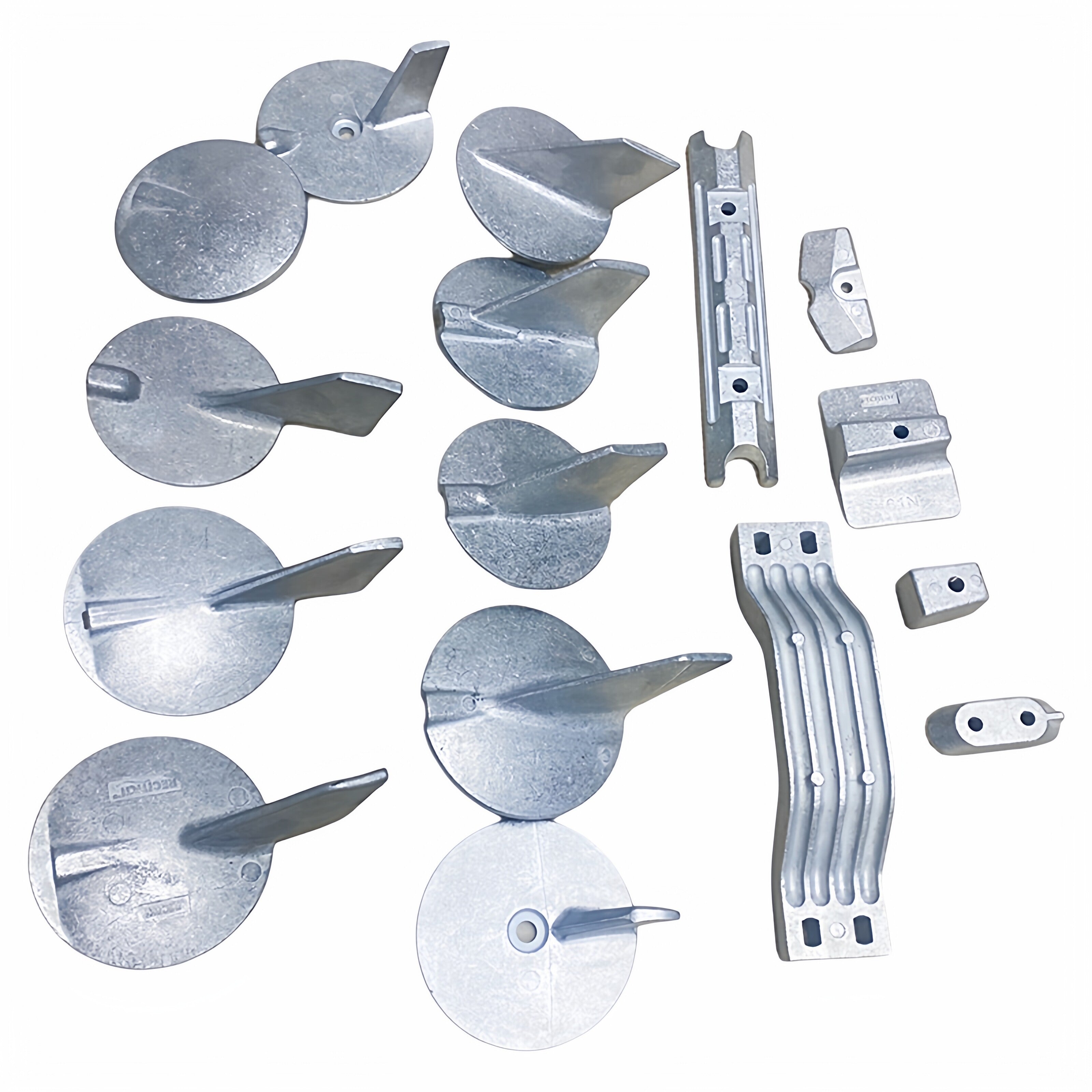

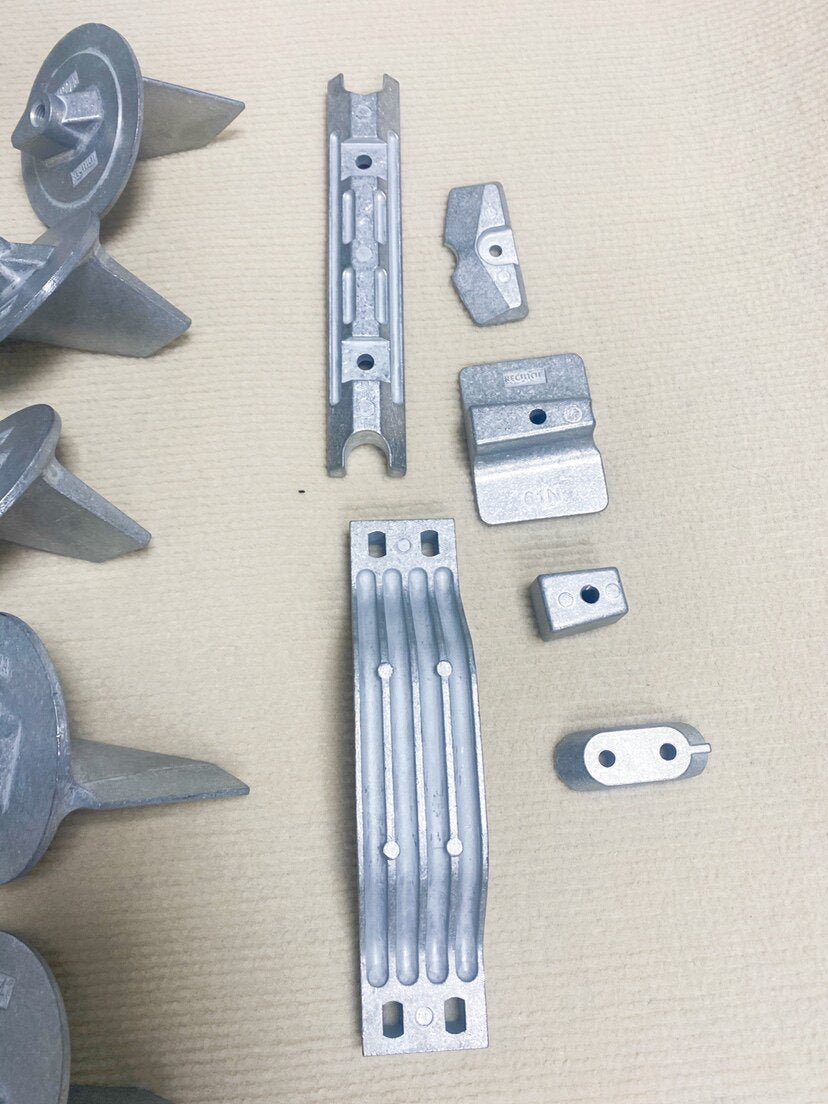

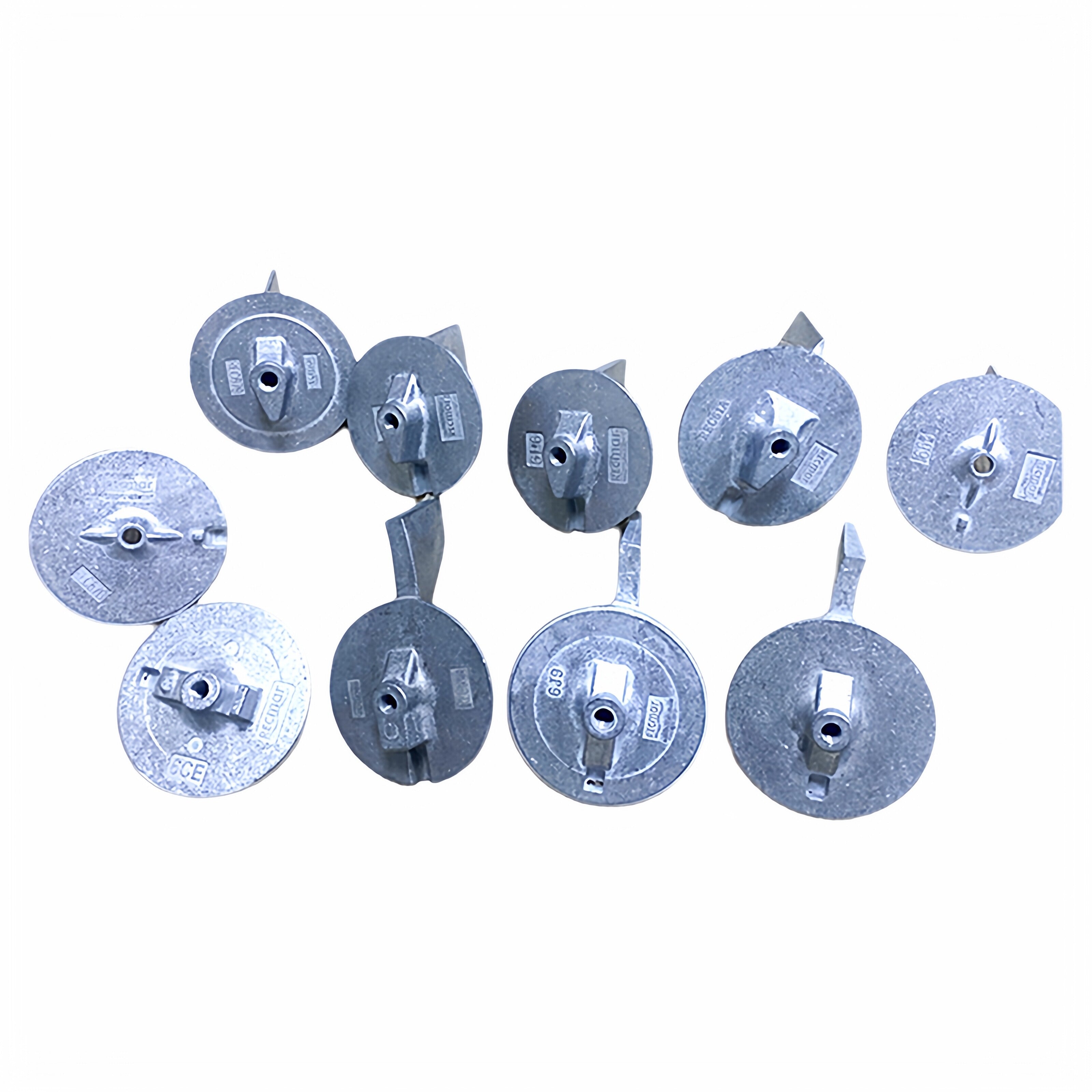

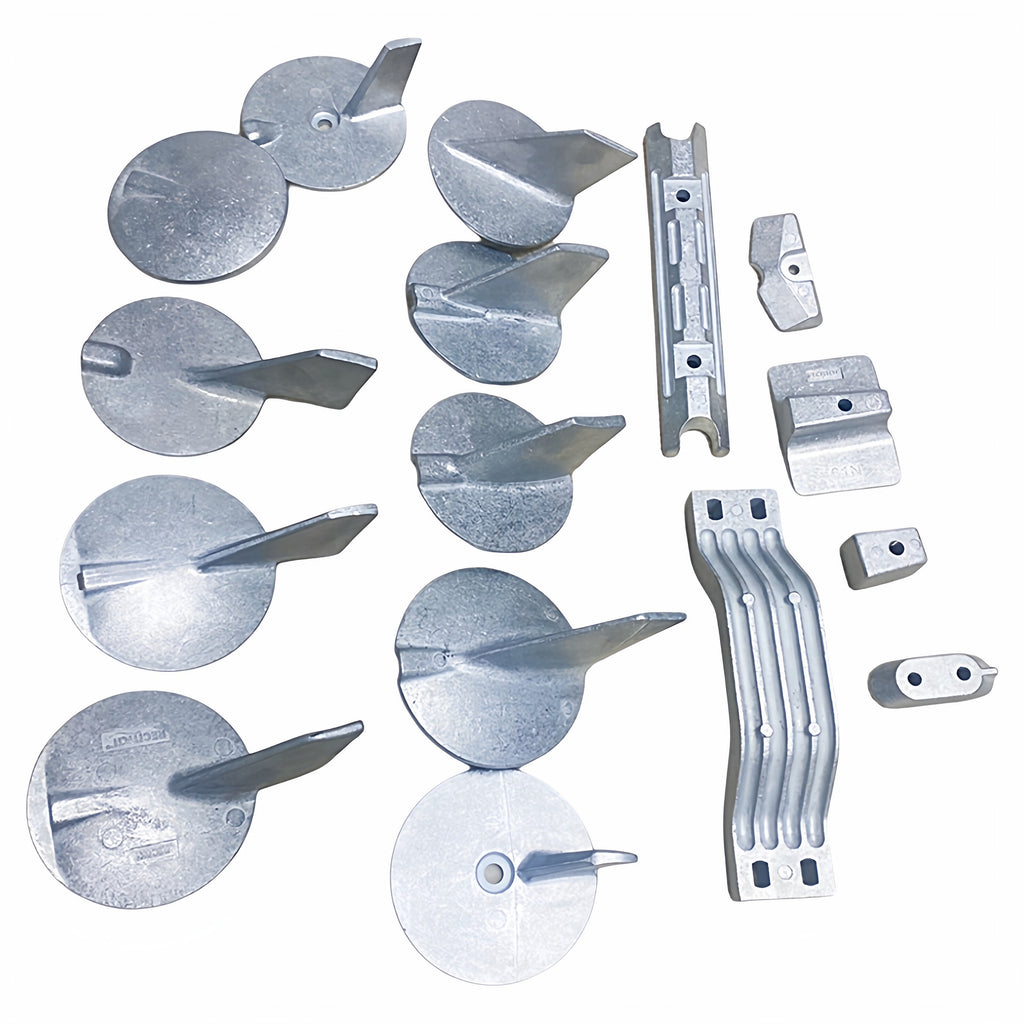

Anode Types Available	Gearcase block, trim tab, steering rudder fin, lifting bottom anode, side plate
Mounting	Uses original Yamaha hardware (bolts/holes); reuse existing fasteners or source separately.
Inspection Interval	Every 50 hours or every 3 months in saltwater; replace when 50% consumed
Application	Prevent galvanic corrosion; protect the lower unit, transom bracket, and steering components.
Package Includes	1 × sacrificial anode (select correct variant from menu; hardware not included)

🔍 Yamaha Model Compatibility Guide

Engine Type	Horsepower	Anode Location / Style
2‑Stroke	2 – 4 HP	Small lower unit anode
4‑Stroke	2.5 – 6 HP	Small lower unit anode
2‑Stroke	9.9 / 15 / 25 / 30 HP	Steering fin/rudder plate (original style)
2‑Stroke	9.9 / 15 / 25 / 30 HP	Lower unit anti‑corrosion anode
2‑Stroke	40 HP	Steering adjustment tab / trim fin

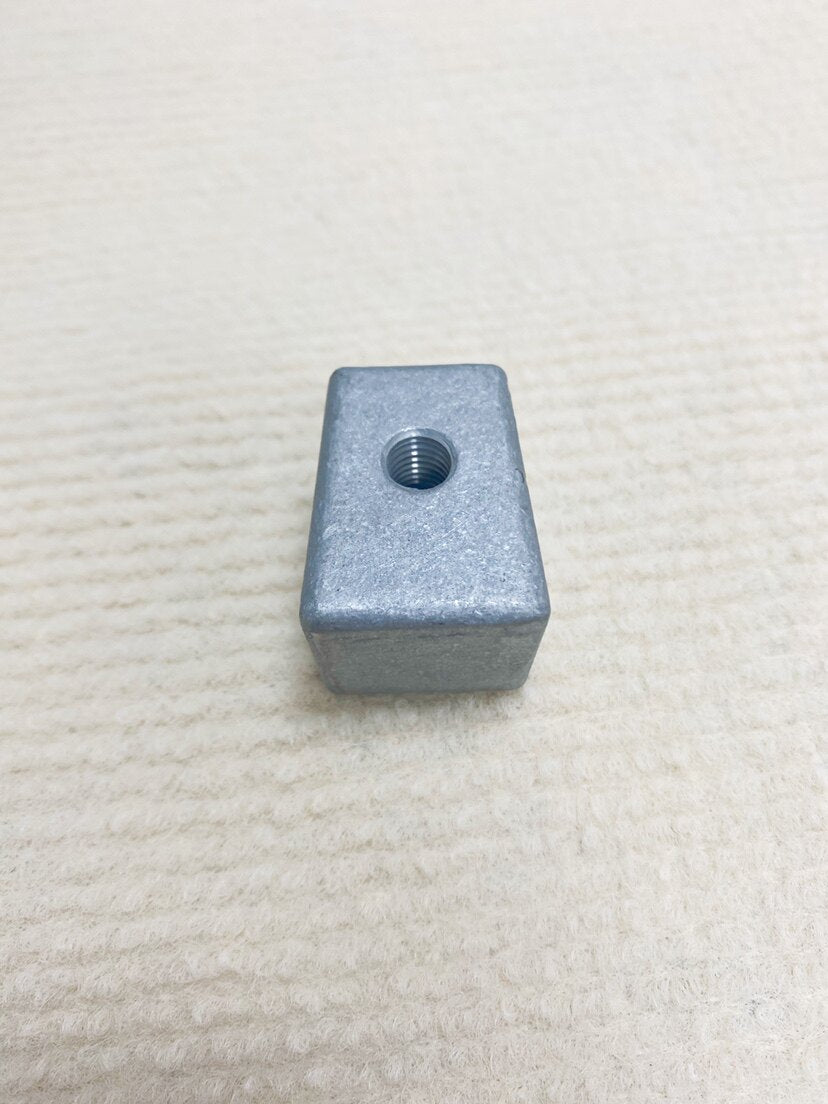

2‑Stroke 40 / 4‑Stroke	30 – 60 HP	Gearcase small block anode
2‑Stroke	40 HP	Lifting the bottom anode (transom bracket)
4‑Stroke	30 / 40 / 50 / 60 HP	Steering adjustment fin
4‑Stroke	30 – 60 HP	Side plate / electric lift bottom anode
2‑Stroke	48 / 55 HP	Steering adjustment fin
2‑Stroke	48 (long shaft) / 60 HP	Rear electric lift bottom anode
4‑Stroke	80 / 90 / 100F / 150B	Lifting the bottom anti‑corrosion anode
2‑Stroke 60‑85 / 4‑Stroke	80 – 90 HP	Steering fin/rudder anode
2‑Stroke / 4‑Stroke	50 / 60 / 80 / 90 / 100 / 110 HP	Steering fin anode
4‑Stroke	60 / 70 / 75 / 85 / 90 HP	Steering fin (incl. Parsun 85P compatible)

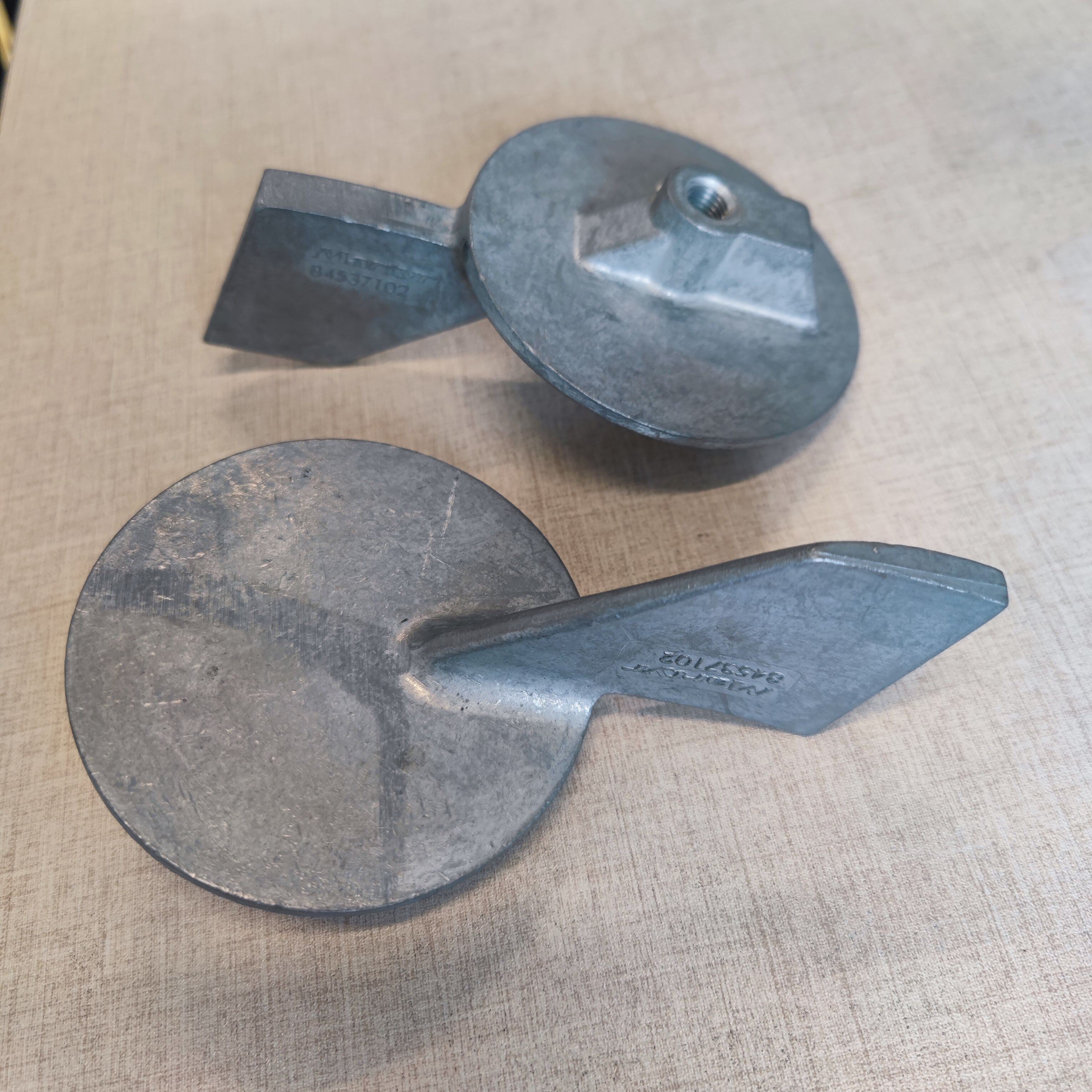

2‑Stroke 115 / 4‑Stroke	80 – 130 HP (115 old & new)	Right‑turn rudder anode

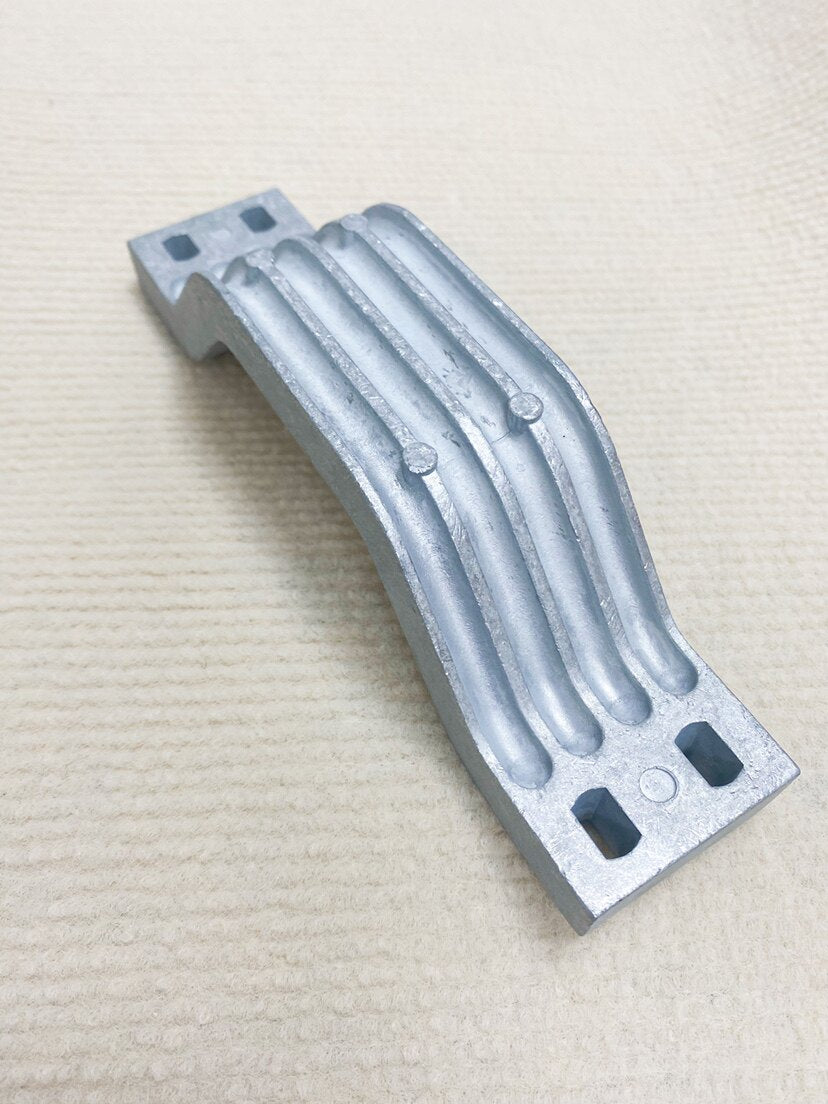

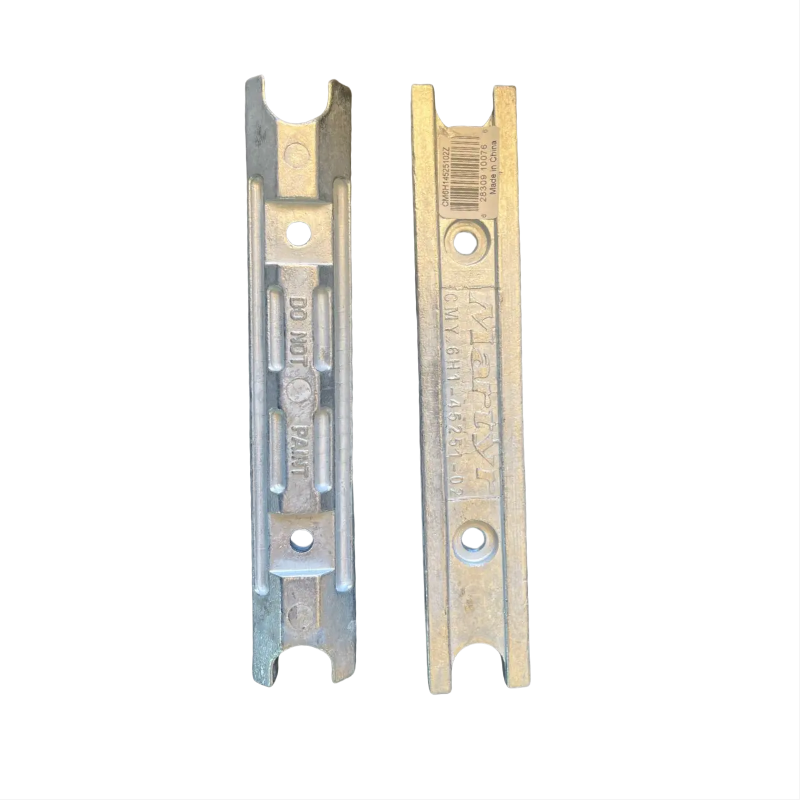

2‑Stroke / 4‑Stroke	100 – 300 HP	Large zinc block (under engine mount)
2‑Stroke 150A‑200A / 4‑Stroke	150F (old model)	Right‑turn steering anode
2‑Stroke 150A‑200A / 4‑Stroke	150F (old model)	Left‑turn steering anode

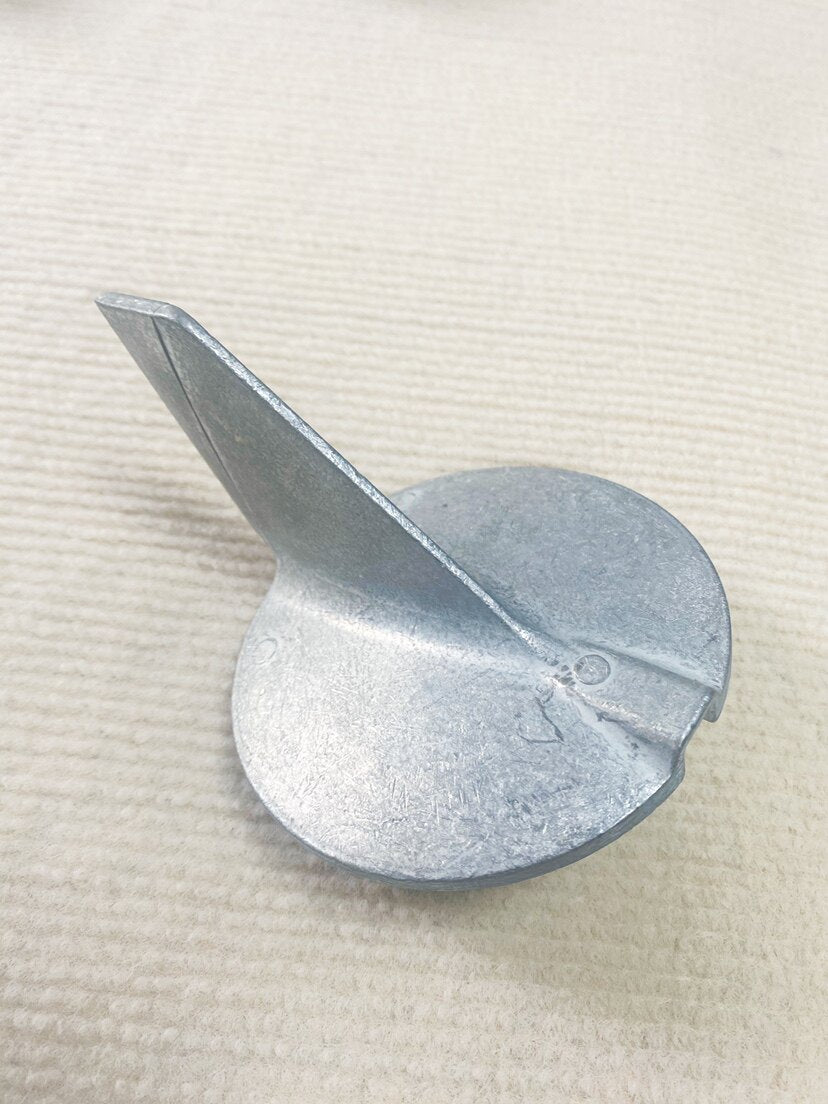

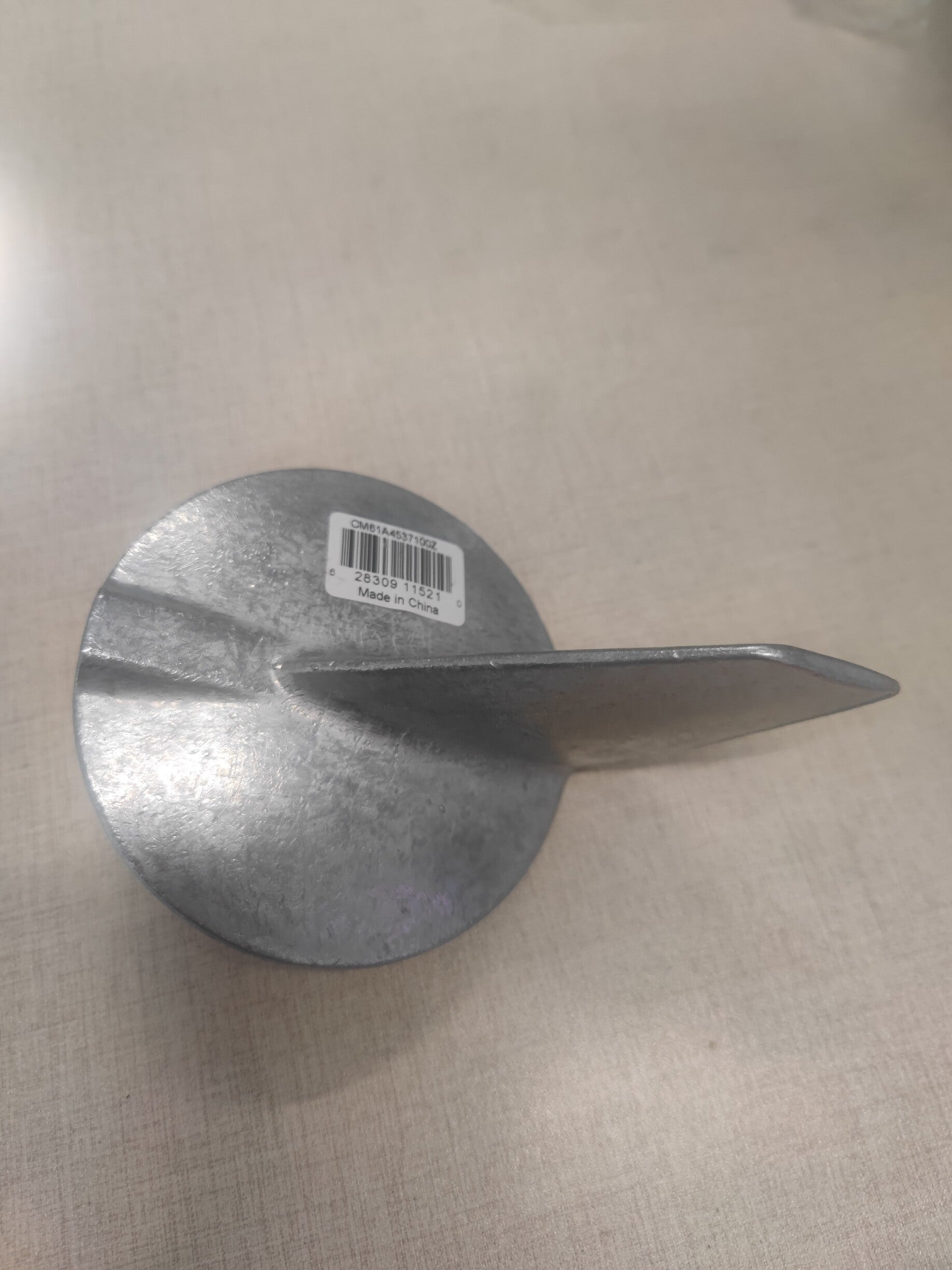

4‑Stroke	200B / 250 / 300B HP (old)	Anode with a tail fin
4‑Stroke	200B / 250F / 300D / 350 HP (new)	Anode without a tail fin

❓ Frequently Asked Questions – Outboard Sacrificial Anodes

Q: How often should I replace my Yamaha outboard anodes?

A: Inspect them every 50 hours of operation or every 3 months if your boat lives in saltwater. Replace the anode once more than half of its original material has been consumed. Waiting too long leaves your engine unprotected against galvanic corrosion.

Q: Can I install these anodes myself, or do I need a marine mechanic?

A: Most anodes are held on by one or two bolts and can be replaced in under 15 minutes with basic hand tools. The boat can stay on the trailer. For larger under‑mount zinc blocks, you may need a second person to hold the anode in place while tightening.

Q: Do I need to apply grease or anti‑seize to the bolts?

A: A small amount of marine grease on the bolt threads is recommended to prevent seizing, especially in saltwater use. Do not paint or grease the anode surface itself—it must be in direct contact with the metal it's protecting.

Q: How do I know which anode variant fits my specific outboard model?

A: Match your engine's horsepower, stroke type (2‑stroke or 4‑stroke), and the mounting location you need. The variant list is organized by engine size. If your boat is in the water, take a photo of the existing anode before removing it, and compare it to the shape shown in the listing photos.

Q: What happens if I don't replace a worn anode?

A: Once the sacrificial anode is consumed, galvanic corrosion will attack the next most reactive metal—typically your engine's aluminum gearcase, mounting brackets, or propeller hub. This causes pitting, structural weakening, and expensive replacement of major engine components.
