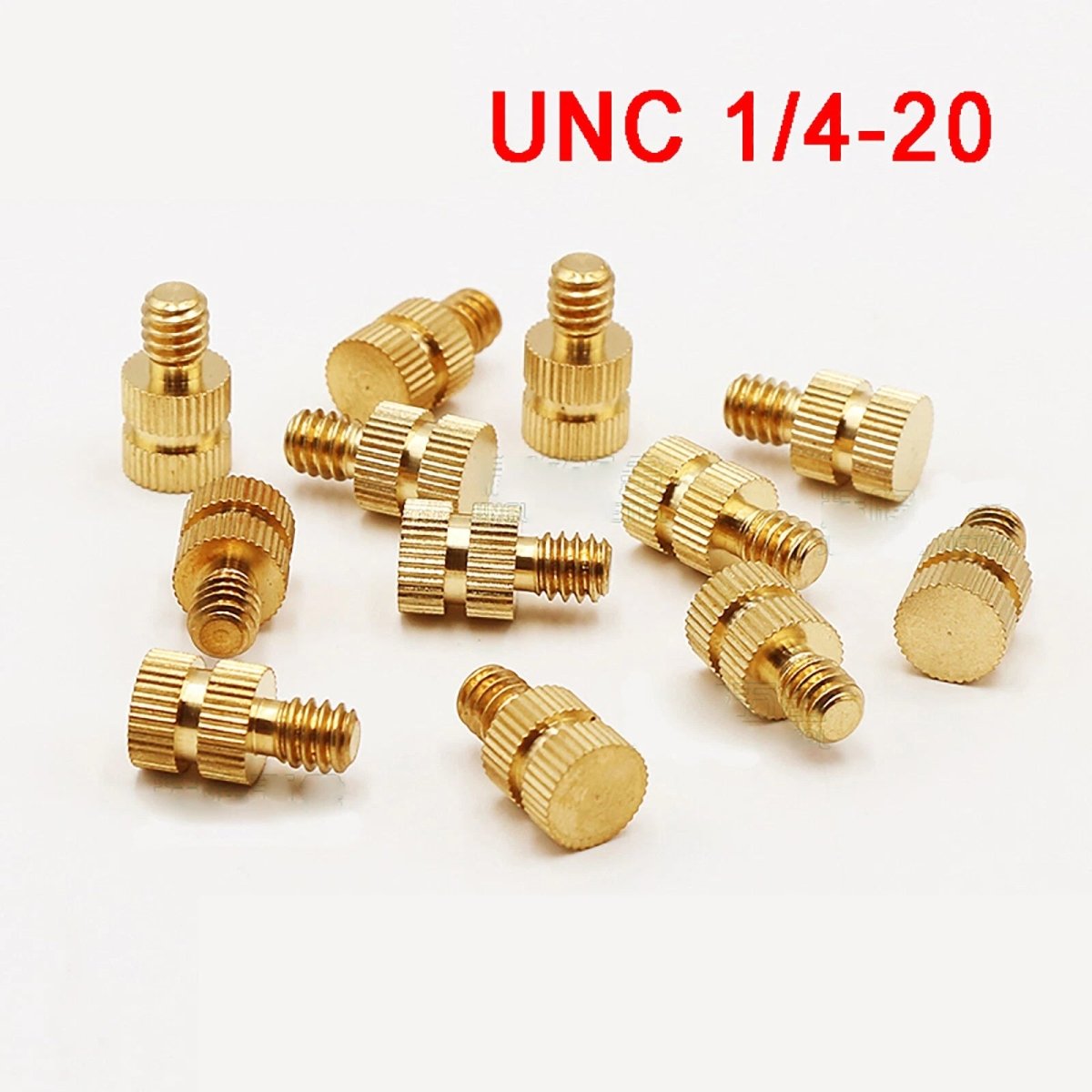

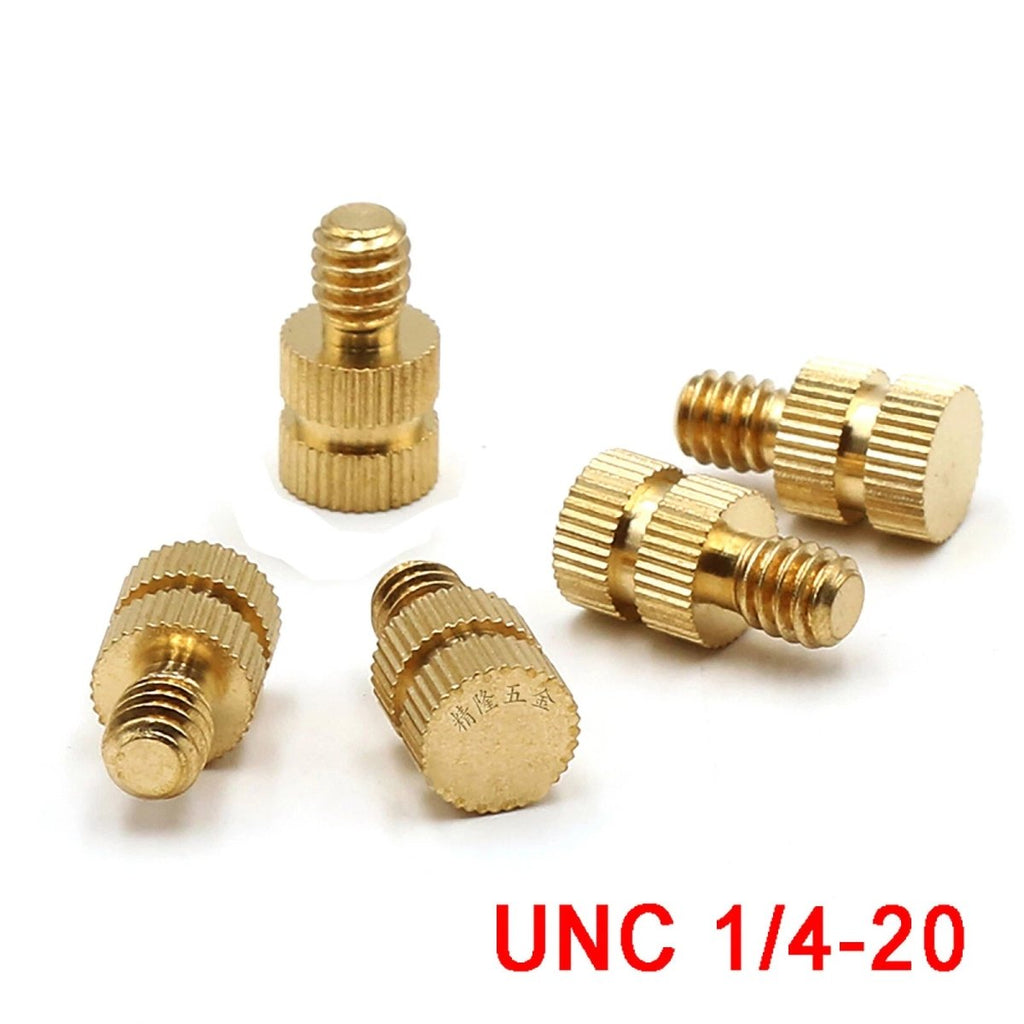

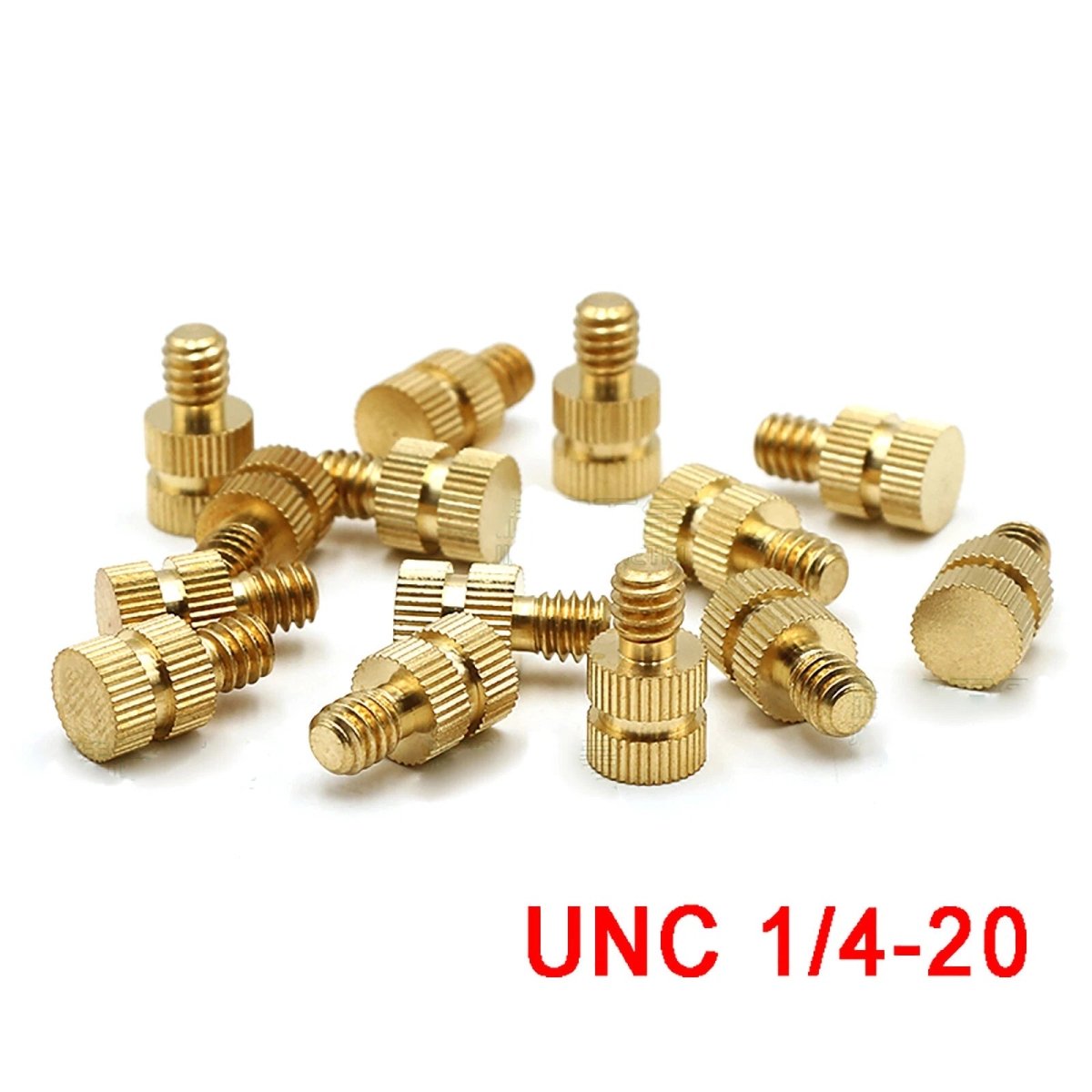

🔩 Product Overview: 1/4"-20 BSW Brass Injection Molding Knurled Thread Inserts – Thumb Bolts
If you need a strong, corrosion‑resistant threaded insert that can be molded directly into plastic parts, or a hand‑tightenable thumb bolt for equipment that requires frequent assembly and disassembly, these solid brass knurled inserts are the answer. Made from high‑quality brass with a natural self‑color finish, they feature a 1/4"-20 BSW (British Standard Whitworth) thread – the standard size for many photographic accessories and beer machine components. The external knurling provides excellent grip for hand turning, while the knurled body also anchors securely when injection‑molded into plastic. Perfect for camera rigs, tripod accessories, beer dispensing equipment, and custom DIY projects where a reliable, non‑corrosive, aesthetically pleasing threaded insert is required.
✨ Why Choose Brass Knurled Threaded Inserts / Thumb Bolts
-
Solid brass construction – Naturally corrosion‑resistant, non‑magnetic, and offers a warm golden appearance. Ideal for both functional and decorative applications.
-
1/4"-20 BSW thread – British Standard Whitworth thread (20 TPI). Commonly used in photographic equipment (tripod mounts, quick‑release plates) and beer machine components.
-
Knurled body for two purposes – The knurled exterior provides grip for hand‑tightening as a thumb bolt. When used as an injection molding insert, the knurl locks into the plastic to prevent rotation and pull‑out.
-
Cylindrical head design – Low‑profile, clean appearance. Can be used as a thumb screw or embedded as a threaded insert.
-
Versatile applications – Photographic equipment accessories (tripod mounts, camera rigs), beer machine components, 3D printed parts, custom enclosures, and DIY projects.
-
GB standard, self‑color finish – Natural brass color without plating. Develops a beautiful patina over time or can be polished to maintain shine.
📏 Technical Specifications – Brass Knurled Threaded Inserts / Thumb Bolts
| Specification |
Details |
| Product Type |
Injection Molding Knurled Threaded Inserts / Thumb Bolts (dual‑purpose) |
| Material |
Solid brass |
| Thread Size |
1/4"-20 BSW (British Standard Whitworth, 20 threads per inch) |
| Head Style |
Cylindrical head with knurled exterior |
| Standard |
GB |
| Surface Treatment |
Self‑color (natural brass, unplated) |
| Application |
Photographic equipment accessories (tripod mounts, quick‑release plates), beer machine components, plastic injection molding inserts, custom DIY |
.\] Slightly larger than thread diameter for secure grip and plastic anchoring

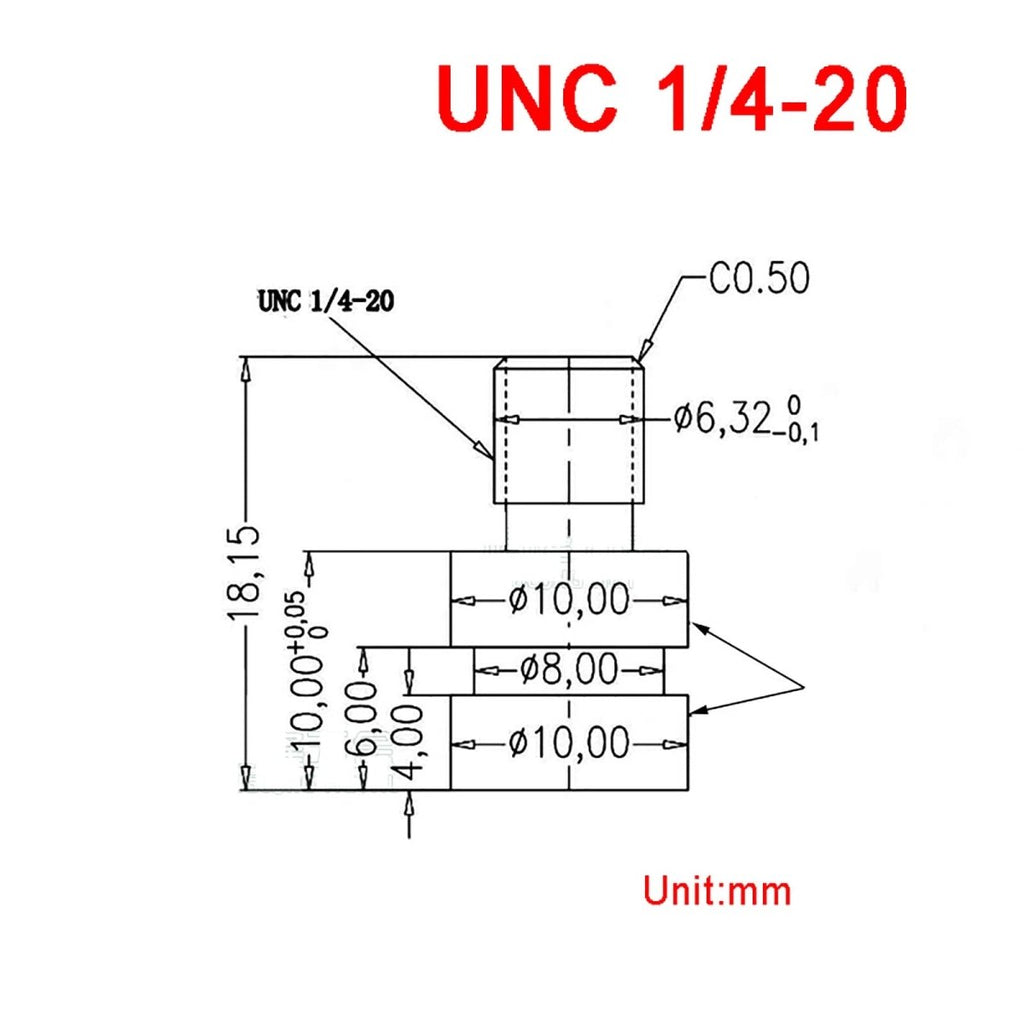

| Parameter |
Approximate Value |
| Overall Length (including head) |
Varies – please refer to product options (select your required length) |
| Thread Length |
Typically matches overall length minus head height – fully threaded |
| Knurled Diameter |
DSML |
❓ FAQs – Brass Knurled Inserts / Thumb Bolts
🔸 What is the difference between BSW and UNC threads? Will this fit 1/4"-20 UNC?
1/4"-20 BSW and 1/4"-20 UNC have the same 20 threads per inch and nearly identical diameters (0.250"). However, the thread form angles are different: BSW is 55°, UNC is 60°. In practice, they are often interchangeable for low‑ to medium‑strength applications like camera mounts and thumb screws. Most photographic accessories are designed for 1/4"-20 UNC, and BSW will fit adequately. For precision critical applications, test fit first.
🔸 Can these be used as both a thumb bolt and an injection molding insert?
Yes – the knurled body serves two purposes. When used as a thumb bolt, the knurling gives you grip for hand tightening. When placed in an injection mold, the knurl anchors into the plastic, preventing the insert from rotating or pulling out. This makes them very versatile for custom plastic parts that need a threaded metal insert.
🔸 Will brass corrode or tarnish over time?
Brass does not rust like steel. It may develop a darker patina or slight greenish tint (verdigris) over years in damp or salty environments. This is a surface change that does not weaken the material. For indoor use in cameras or beer machines, they will stay bright for a long time. You can polish them to restore shine if desired.
🔸 Are these screws magnetic? Will they affect sensitive electronics?
Brass is completely non‑magnetic. They are safe to use near camera sensors, magnetic field sensors, or other sensitive electronic equipment.
🔸 How do I install these as injection molding inserts?
Place the insert into the mold cavity before injection. The knurled body will be encapsulated by the molten plastic, locking the insert in place. Ensure the mold design has a core pin to keep the threads clear. For DIY applications, you can also heat the insert and press it into a pre‑drilled plastic hole (thermal insertion).
🔸 What lengths are available?
Please select your desired overall length from the dropdown options. Common lengths for 1/4"-20 thumb bolts range from 10mm to 30mm total length (including head). If you need a specific length not listed, contact us.
