1/4" Knurled Thumb Screws & Thumb Nuts — Aluminum + Stainless Hand-Tighten Fasteners for Camera Rigs, PC Builds & Instrument Panels
When you need to mount, adjust, or swap components quickly without reaching for a screwdriver — and you need a fastener that won't strip, loosen under vibration, or mar a delicate surface — a knurled thumb screw or thumb nut is the right solution. Photographers, videographers, PC builders, lab technicians, and DIY engineers who work with 1/4"-20 threaded hardware need hand-tightenable fasteners that are reliable, easy to grip, and available in the right configuration for their specific application. This listing covers both 1/4" knurled thumb screws and thumb nuts in a single product family.

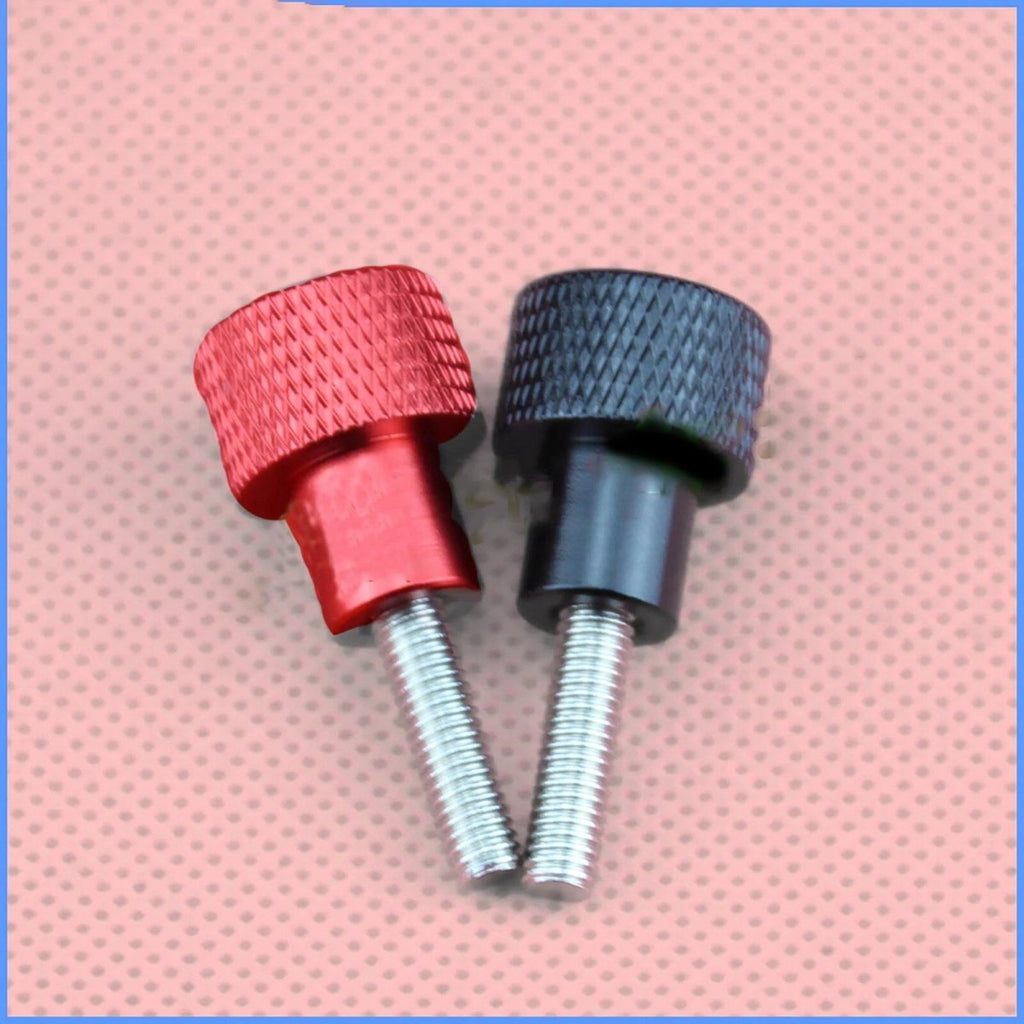

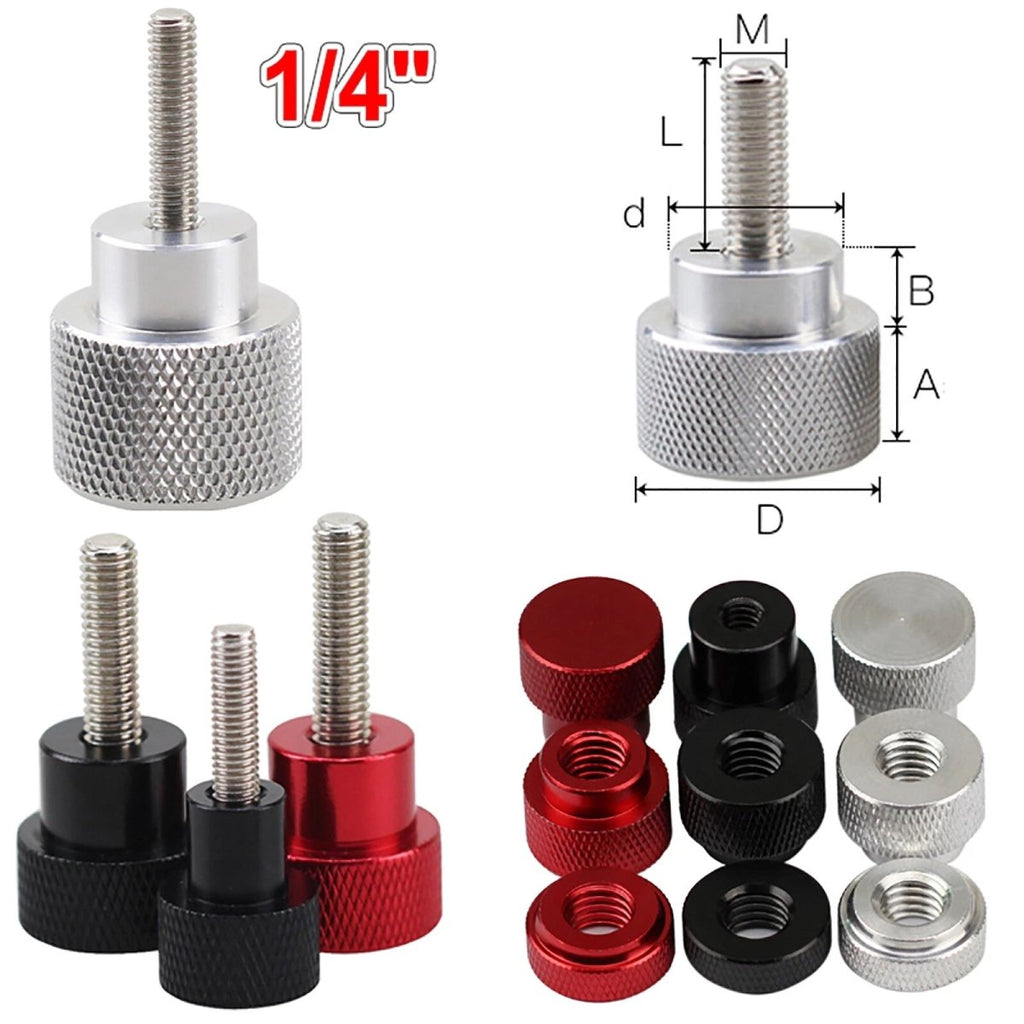

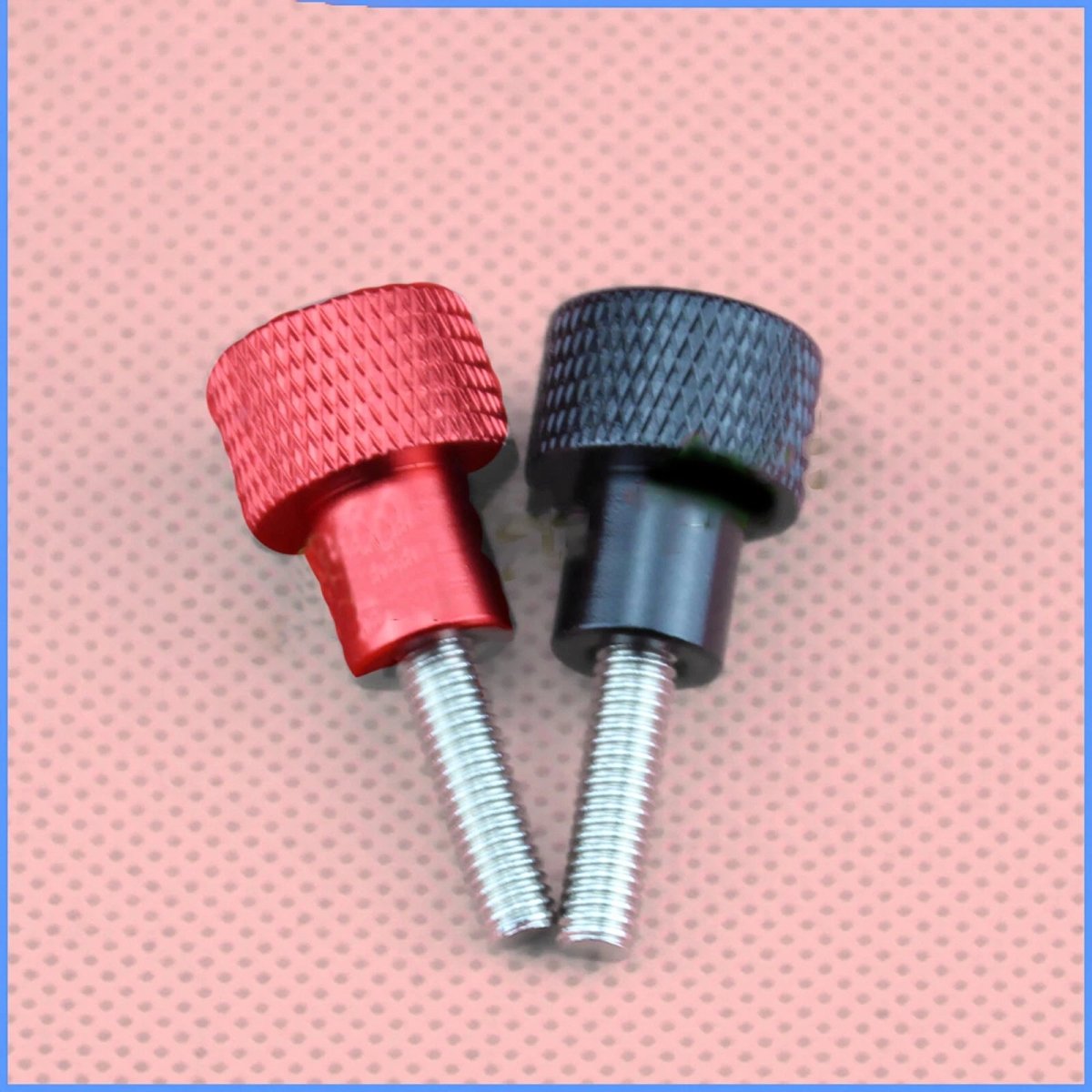

The Thumb Screws feature a 1/4"-20 UNC threaded stainless steel shaft with an anodized aluminum alloy knurled knob (D20mm ≈25/32"), available in shaft lengths from L15mm (≈19/32") to L40mm (≈1-9/16"). The Thumb Nuts come in three configurations: Thin Through-Hole (D20 × H6mm), Standard Through-Hole (D20 × H15mm), and Blind-Hole (D20 × H20mm), plus a larger D30 × H8mm through-hole variant. All variants are available in Red, Black, and Silver White anodized finishes, sold in packs of 1, 3, 5, 10, or 30 pieces depending on the variant.
Typical use cases include securing cameras to tripod quick-release plates and pan heads for photography and video production, fastening side panels and drive bays in custom PC builds where tool-free access is needed, and mounting instrument enclosure covers in laboratory and electronics assembly where frequent hand-adjustment is required. The 1/4"-20 UNC thread makes these compatible with the vast majority of camera tripod systems, optical rail hardware, and US-standard threaded inserts.
🔗
Compatibility: 1/4"-20 UNC thread — fits camera tripod sockets, quick-release plates, optical rail hardware, and US-standard 1/4"-20 tapped holes and threaded inserts. Verify your application's thread standard before ordering.
⚠️

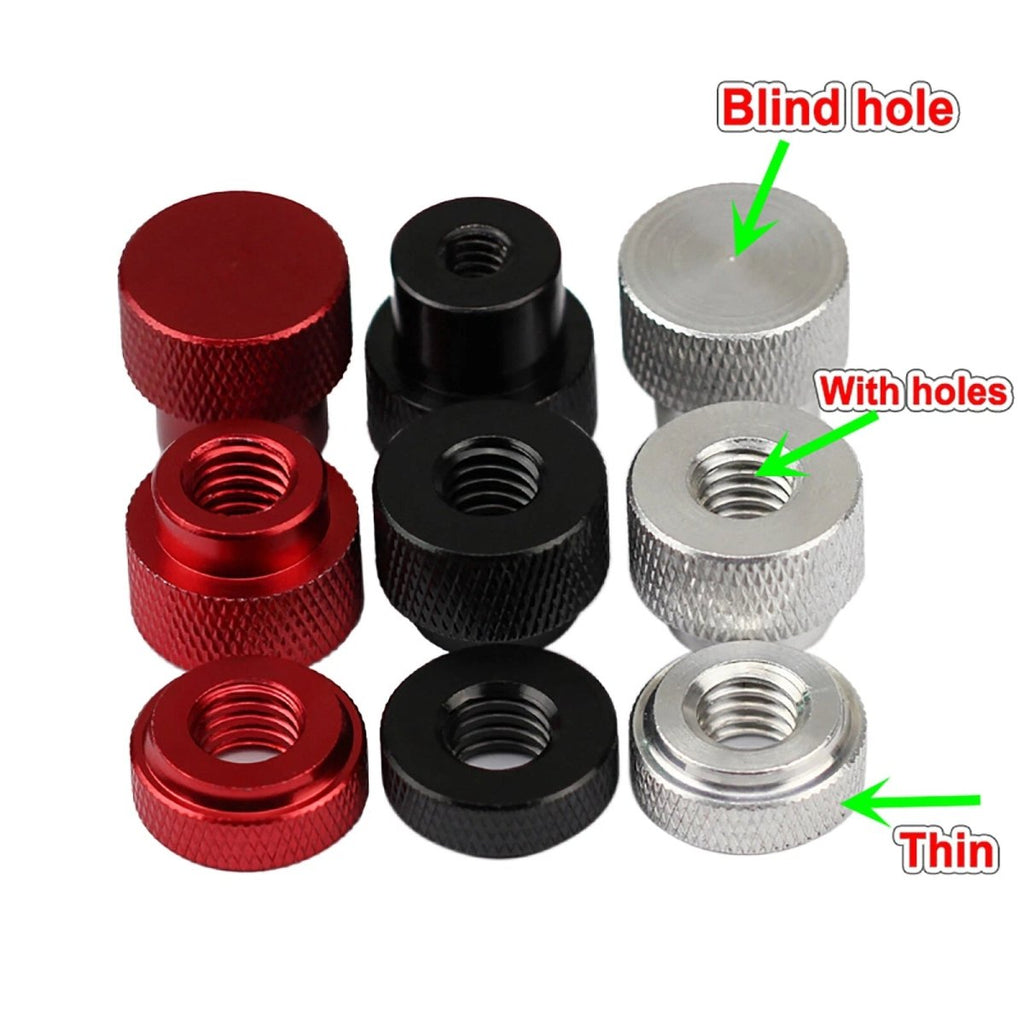

Variant Note: This listing includes both Screws (with shaft, thread into a hole) and Nuts (thread onto a stud/bolt). Nut variants are labeled "Nut - Thin" (H6mm through-hole), "Nut" with H15mm (through-hole) or H20mm (blind-hole), and D30 (larger knob). Select the correct Type/Color option for your application.
✅ Key Features of These 1/4" Knurled Thumb Screws and Thumb Nuts
-
🔩1/4"-20 UNC Thread — Universal Camera & Instrument Standard — The 1/4"-20 UNC thread is the universal standard for camera tripod systems, quick-release plates, and optical bench hardware, making these thumb screws and nuts directly compatible with the vast majority of photography and videography equipment.
-
⚙️Aluminum Knob + Stainless Steel Thread — Strength Where It Counts — The combination of a lightweight anodized aluminum alloy knob and a stainless steel threaded component gives you corrosion-resistant thread engagement without the weight penalty of an all-steel fastener — well-suited for portable camera rigs and instrument fixtures.
-
📏Screws in Six Lengths, Nuts in Four Configurations — Screw shaft lengths from L15mm (≈19/32") to L40mm (≈1-9/16"), plus thin through-hole, standard through-hole, blind-hole, and large-knob nut variants, give you the right fastener for shallow panel mounts, deep adapter blocks, and stud-capping applications.
-
🔒Blind-Hole Nut Option for Clean, Finished Assemblies — The H20mm blind-hole thumb nut caps the end of a stud for a clean appearance and prevents the stud tip from scratching adjacent surfaces — a practical choice for camera cage panels, enclosure covers, and any assembly where exposed stud ends are undesirable.
-
🎨Three Anodized Colors for Visual Organization — Red, Black, and Silver White anodized finishes let you color-code fasteners by size, function, or assembly stage — useful in multi-component camera rigs, PC builds, and lab setups where quick identification of the right fastener matters.
-
📦Flexible Pack Quantities from 1 to 30 Pieces — Available in 1, 3, 5, 10, and 30-piece packs, making these thumb fasteners practical for single-unit prototyping, small batch assembly, or stocking a workshop with a reliable supply of 1/4"-20 hand-tightenable hardware.
📐 Technical Specifications — 1/4" Knurled Thumb Screws & Thumb Nuts
| Thread Standard |
1/4"-20 UNC |
| Knob Outer Diameter |
D20mm (≈25/32") for most variants; D30mm (≈1-3/16") for large-knob nut variant |
| Screw Shaft Lengths |
L15mm (≈19/32"), L20mm (≈25/32"), L25mm (≈1"), L30mm (≈1-3/16"), L35mm (≈1-3/8"), L40mm (≈1-9/16") |
| Nut Configurations |

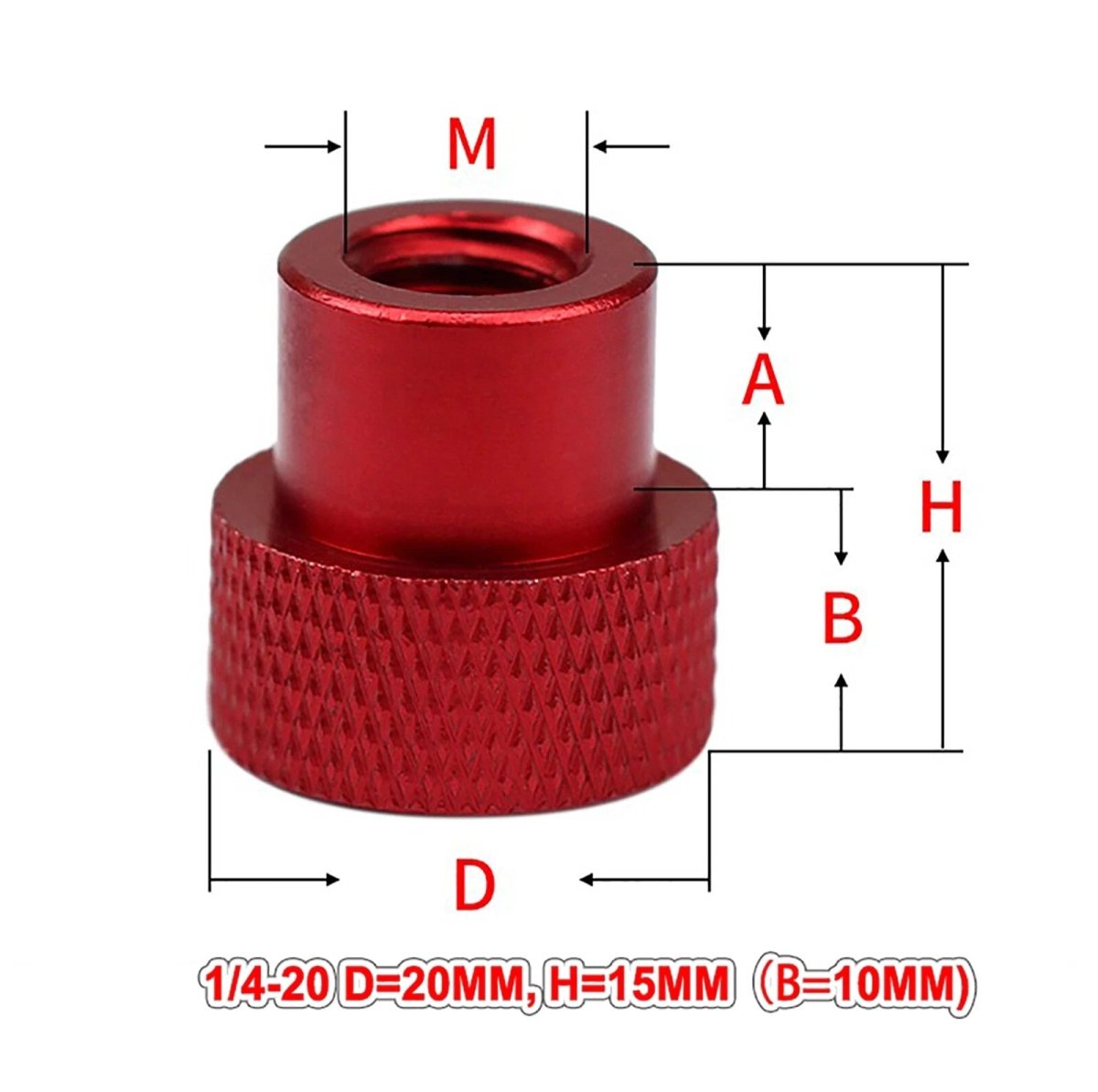

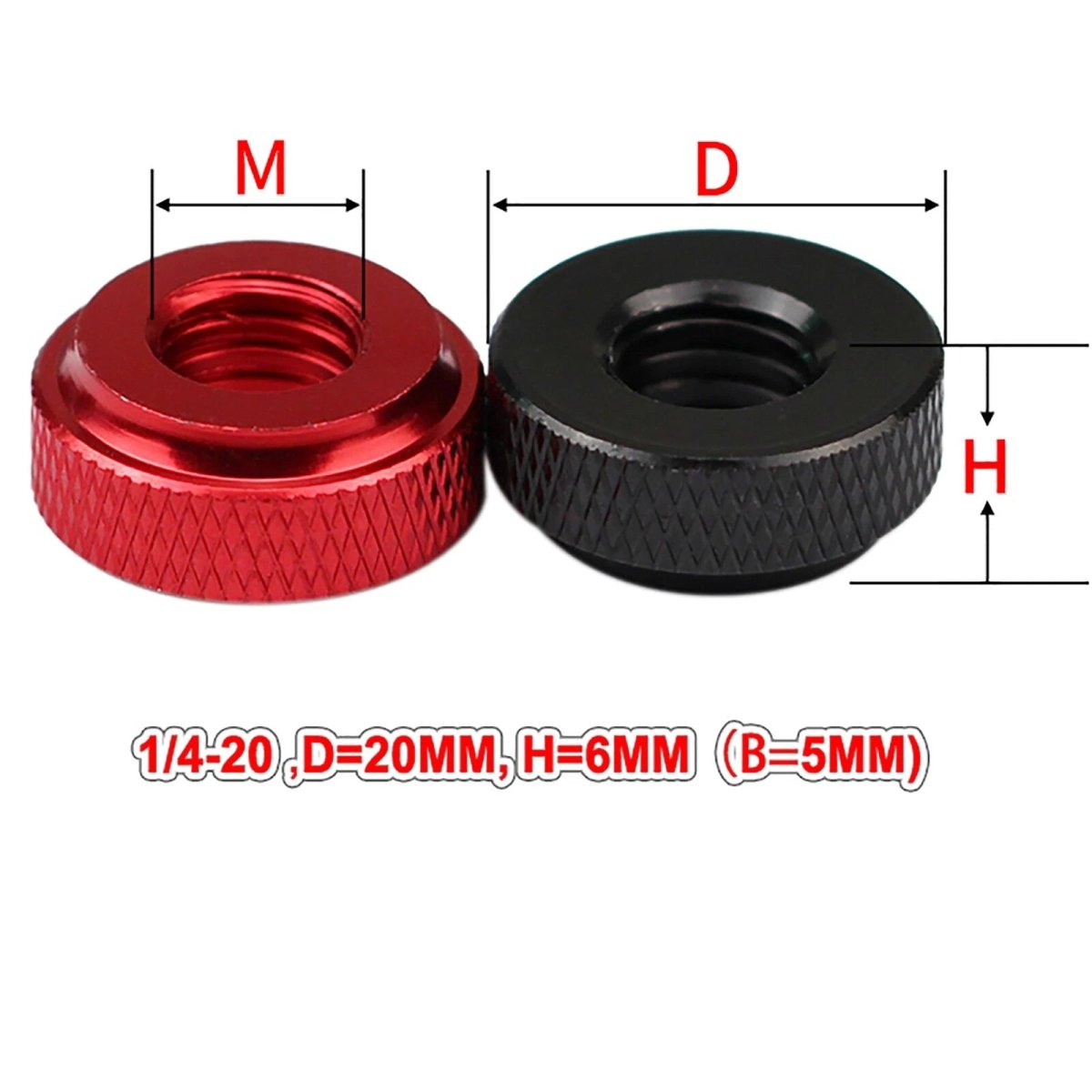

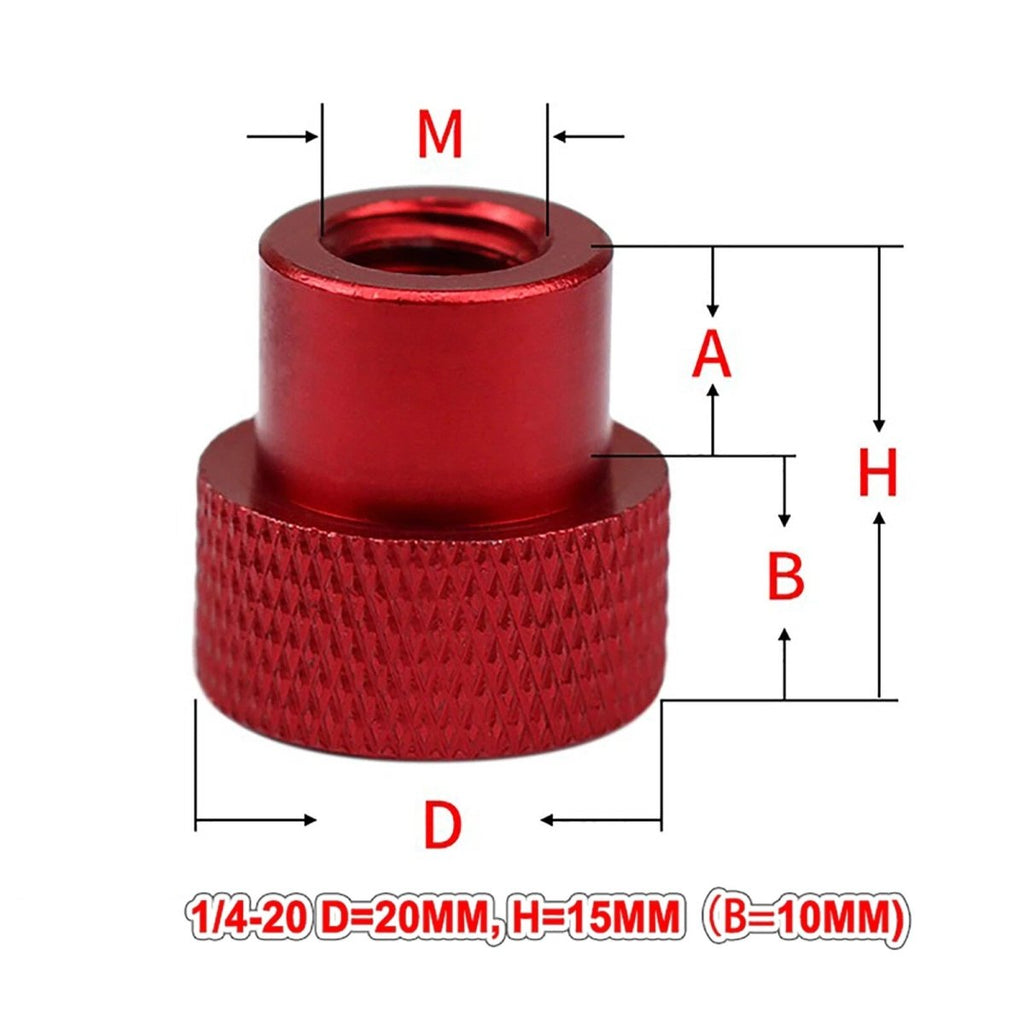

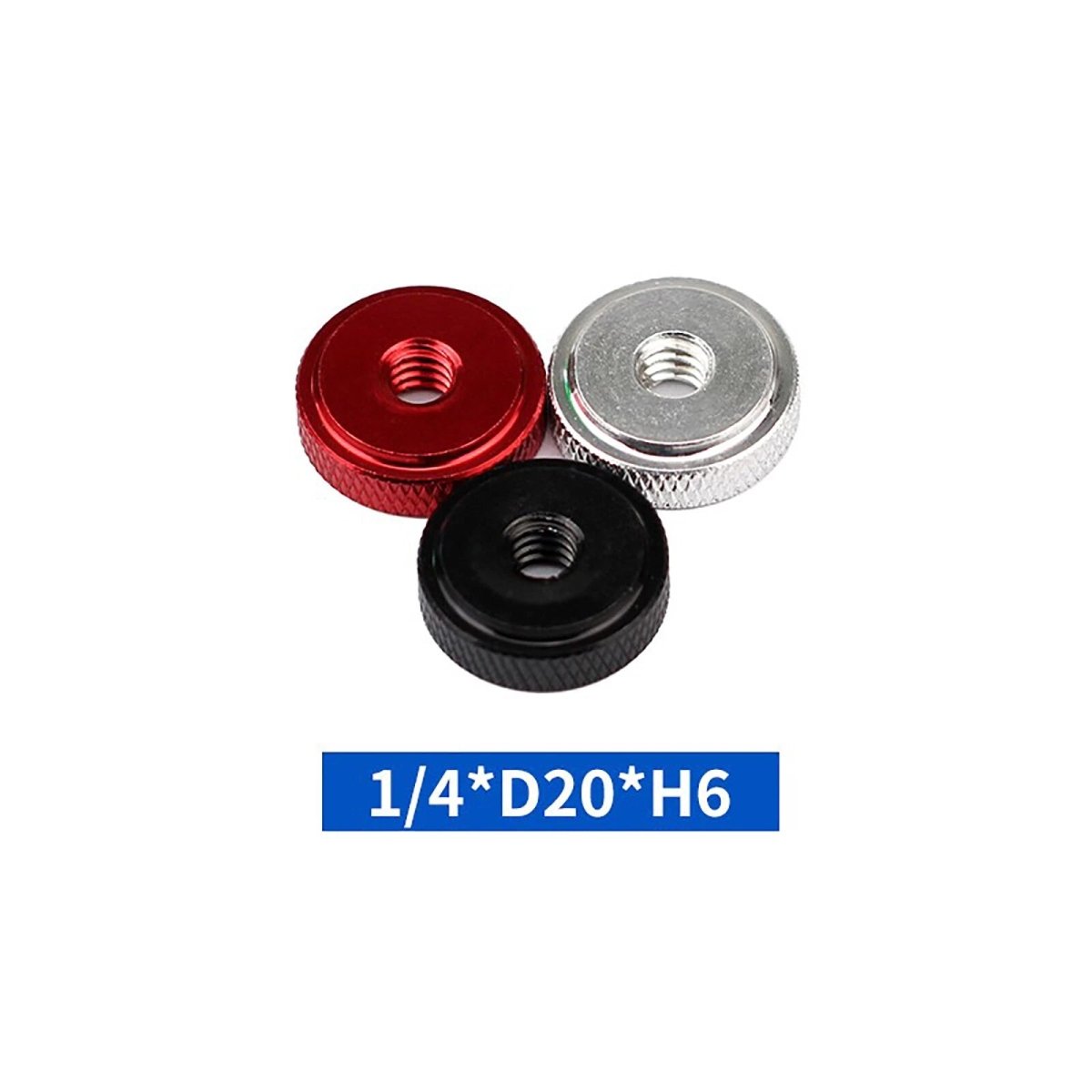

Thin Through-Hole (H6mm ≈1/4"), Standard Through-Hole (H15mm ≈19/32"), Blind-Hole (H20mm ≈25/32"), Large Knob Through-Hole D30 × H8mm (≈5/16") |
| Knob Material |
Anodized aluminum alloy |
| Thread / Shaft Material |
Stainless steel |
| Drive Type |
Hand-tighten (no tool required); knurled grip surface |
| Color Options |
Red anodized, Black anodized, Silver White (natural aluminum) |
| Pack Quantities |
1, 3, 5, 10, or 30 Pcs (varies by variant) |
| Compatible Applications |
Camera tripods, quick-release plates, optical rails, PC panel mounts, instrument enclosures, 1/4"-20 tapped holes and threaded inserts |
| Weight per Piece |
Contact us to confirm (varies by type and size) |
| Country of Origin |
See variant options |
❓ Frequently Asked Questions
How do I choose between a thumb screw and a thumb nut for my application?
Choose a thumb screw when you need a fastener with its own threaded shaft that threads directly into a tapped hole or threaded insert — for example, attaching a camera to a tripod socket or threading into a panel-mount insert. Choose a thumb nut when you already have a bolt or stud in place and need a hand-tightenable nut to secure it from the other end. Through-hole nuts work on exposed studs; blind-hole nuts cap the stud end for a cleaner appearance.
How do I choose the right screw length (L15–L40mm)?
Generally, select a length that allows full thread engagement in your tapped hole without the shaft bottoming out before the knob seats. For camera tripod sockets and quick-release plates, L15mm (≈19/32") or L20mm (≈25/32") typically works well. For thicker adapter blocks or panels, L25mm (≈1") to L40mm (≈1-9/16") is generally more appropriate. Measure your thread depth with a caliper before ordering to ensure a proper fit.
What is the difference between a through-hole nut and a blind-hole nut?
A through-hole nut has a thread that runs all the way through the body, so the stud or bolt can protrude out the top. This is the standard configuration for most applications. A blind-hole nut has a closed end, so the stud is hidden inside the nut body — this gives a cleaner, finished appearance and prevents the exposed stud tip from scratching adjacent surfaces or snagging cables. Choose blind-hole for aesthetic or safety-critical assemblies.
How strong are these thumb screws and nuts — what loads can they handle?
The stainless steel threaded component (shaft on screws, insert on nuts) provides the primary thread strength, which is generally higher than a pure aluminum thread. These are typically suitable for light-to-medium clamping loads in camera rigs, PC panel mounts, instrument enclosures, and optical bench assemblies. For heavy-duty structural or high-vibration applications, contact us to confirm suitability before ordering.
Can these be used outdoors or in humid environments?
The stainless steel threaded component offers good corrosion resistance. The anodized aluminum knob body generally resists surface oxidation well for occasional outdoor use. For extended outdoor, marine, or high-humidity environments, we recommend confirming suitability before committing to a bulk order, as prolonged exposure may affect the anodized finish over time.
Are these compatible with standard camera tripod threads?
In most cases, yes. These use the 1/4"-20 UNC thread, which is the universal standard for camera tripod systems, quick-release plates, fluid pan heads, and optical rail hardware. They are generally compatible with Manfrotto, Joby, Arca-Swiss style systems, Benro, and most other brands that use the 1/4"-20 standard. Always verify the thread standard of your specific hardware before ordering, as some larger format systems use 3/8"-16 threads instead.
Which color should I choose — Red, Black, or Silver White?
All three colors are functionally identical — anodized aluminum alloy knob with a stainless steel threaded component. Red is easy to spot in a gear bag or on a busy workbench and is popular for quick-release fixtures. Black blends with most camera and electronics equipment. Silver White has a clean, industrial appearance suited to laboratory and optical setups. Many users order multiple colors to color-code fasteners by size or function across a multi-component rig.
🛒 Select your size, type, color, and quantity above, then add to cart — ships from our US warehouse.
