1.5mm Heat Shrink Tubing 2:1 Ratio – 7 Colors, Black White Red Green Yellow Blue Clear

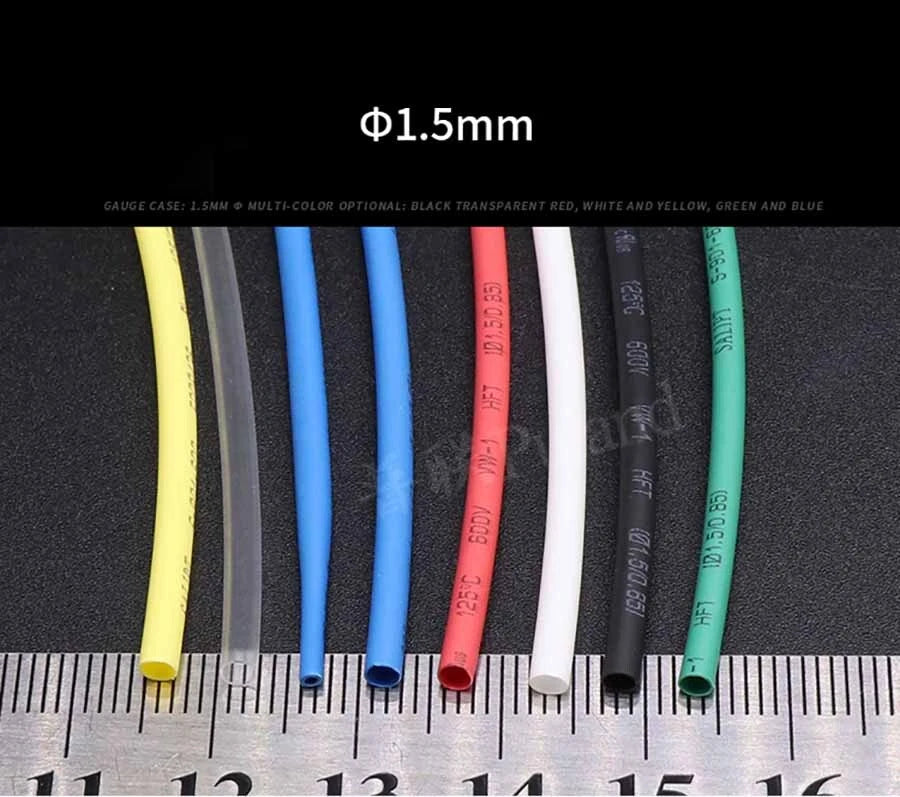

This tubing is designed for wires and components with an outer diameter of up to 1.5mm before shrinking. After applying heat, it typically shrinks down to approximately 0.75mm (≈1/32"), giving a snug, insulating fit. Always measure your wire's outer diameter before selecting a size — if your wire is close to 1.5mm OD, sizing up may make installation easier.

A 2:1 shrink ratio means the tubing shrinks to half its original inner diameter when heat is applied. For this 1.5mm tube, it generally shrinks down to around 0.75mm, conforming tightly to the wire or component underneath. This ratio is the most common for general-purpose insulation and wire bundling tasks.

Polyolefin heat shrink tubing typically provides solid electrical insulation for low-to-medium voltage DIY, automotive, and electronics applications. For high-voltage or safety-critical installations, please contact us to confirm the specific dielectric rating before ordering.

Polyolefin generally offers good resistance to moisture, mild UV exposure, and common chemicals, making it suitable for many outdoor and semi-exposed wiring applications — such as marine lighting, garden irrigation controls, or exterior automotive wiring. For prolonged direct UV exposure or harsh chemical environments, we recommend confirming suitability for your specific conditions.

Polyolefin heat shrink tubing typically begins to shrink at around 70–90°C (158–194°F) and fully shrinks at approximately 120°C (248°F). A standard heat gun is the recommended tool for even, controlled shrinkage. A lighter can work in a pinch but may cause uneven shrinkage or surface scorching — use it carefully and keep it moving.

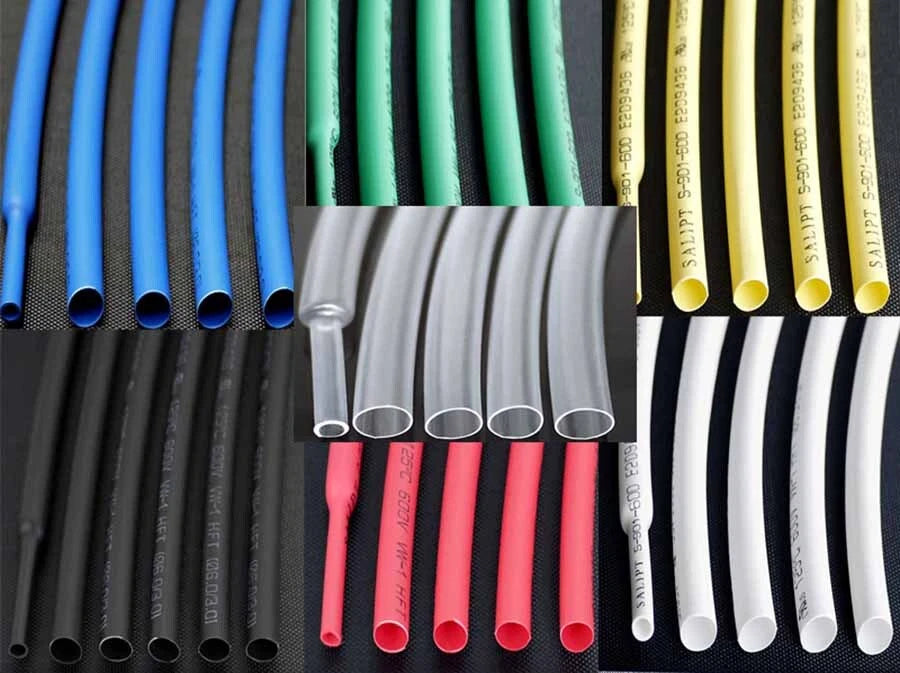

Color selection is often guided by standard wiring conventions or personal organization preferences. Black is the most common for general insulation. Red is typically used for positive DC leads. White, green, yellow, and blue help with color-coded wire identification in multi-conductor harnesses. Transparent tubing is useful when you want to visually inspect the solder joint or wire label through the sleeve after shrinking.

For small repairs or hobby electronics projects, 5m (≈16.4 ft) is generally sufficient. For automotive wiring harness work or larger DIY builds, 20m (≈65.6 ft) or 100m (≈328 ft) rolls offer better value per meter. The 1000m (≈3,281 ft) spool is ideal for repair workshops, electronics production benches, or resellers who need a continuous supply of small-diameter heat shrink wire sleeving on hand.
