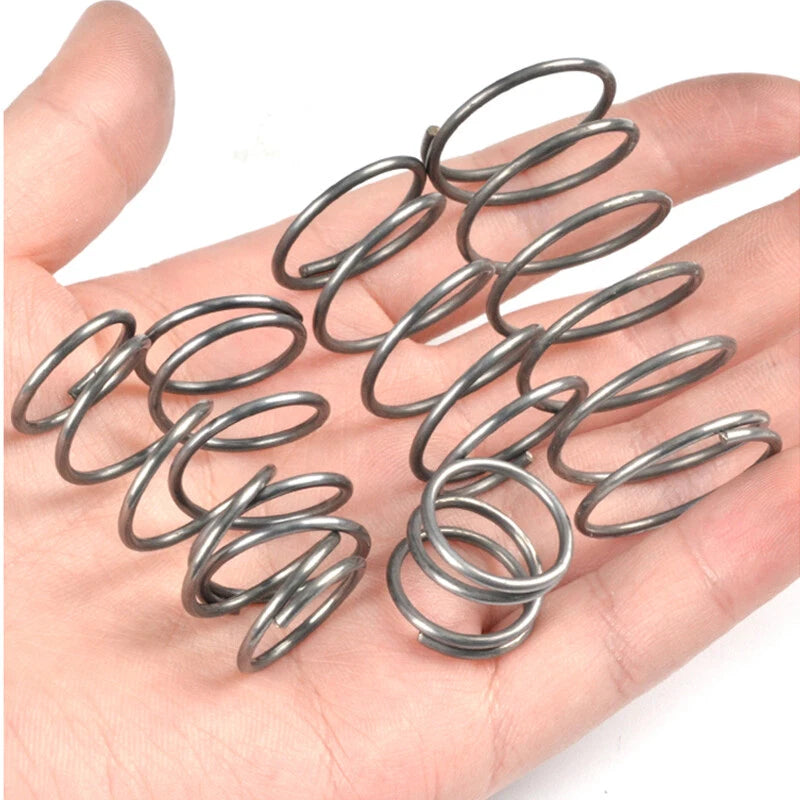

When a mechanism fails to return to position, or a valve chatters under load, the culprit is almost always an undersized or fatigued spring. Engineers, hobbyists, and repair technicians who need a reliable stock of compression springs in a range of outer diameters will find this 10-piece set covers the most common OD requirements in a single order.

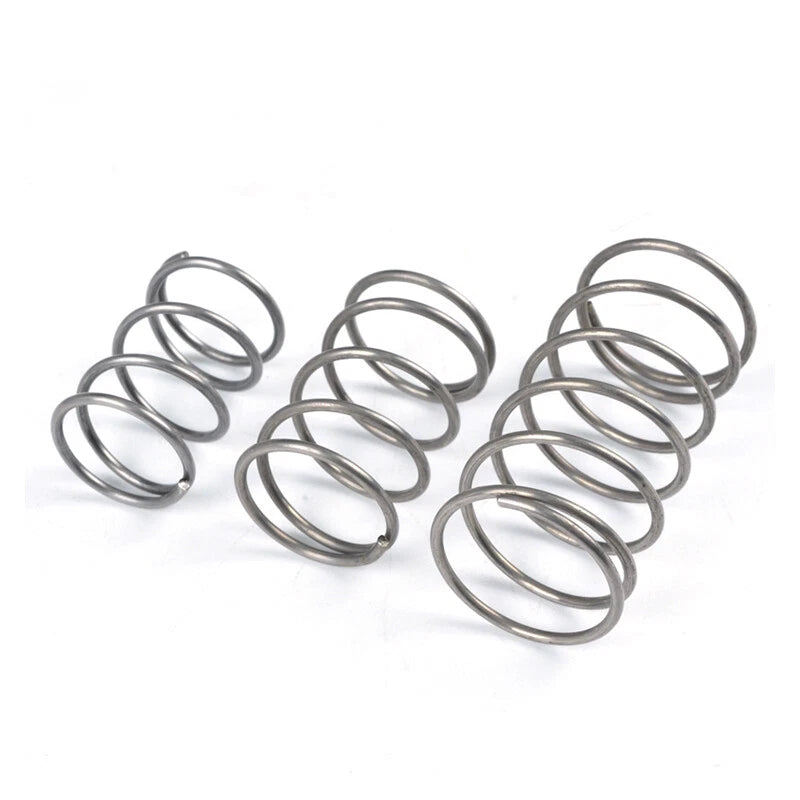

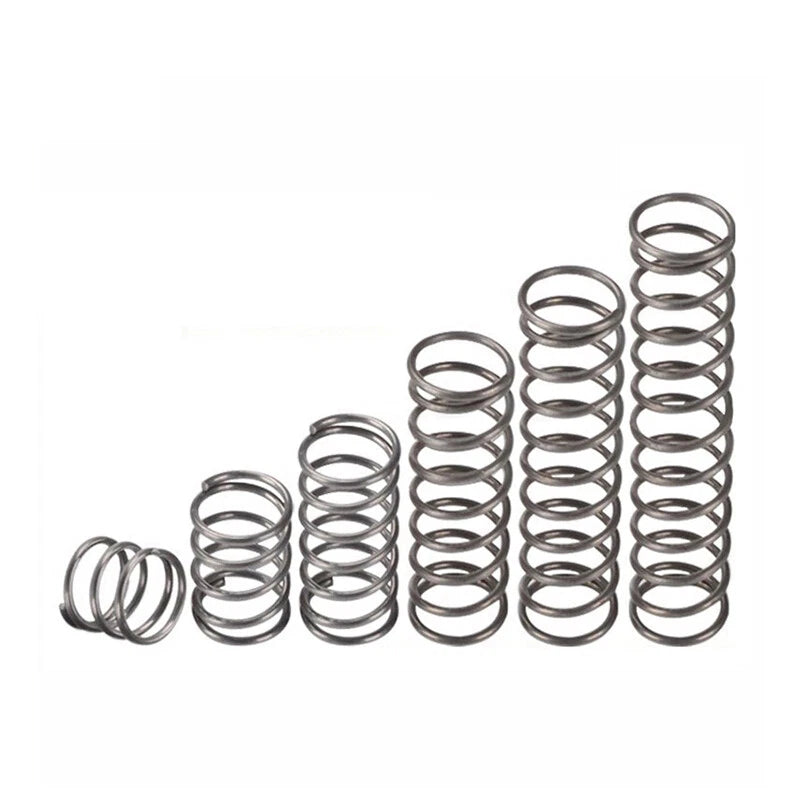

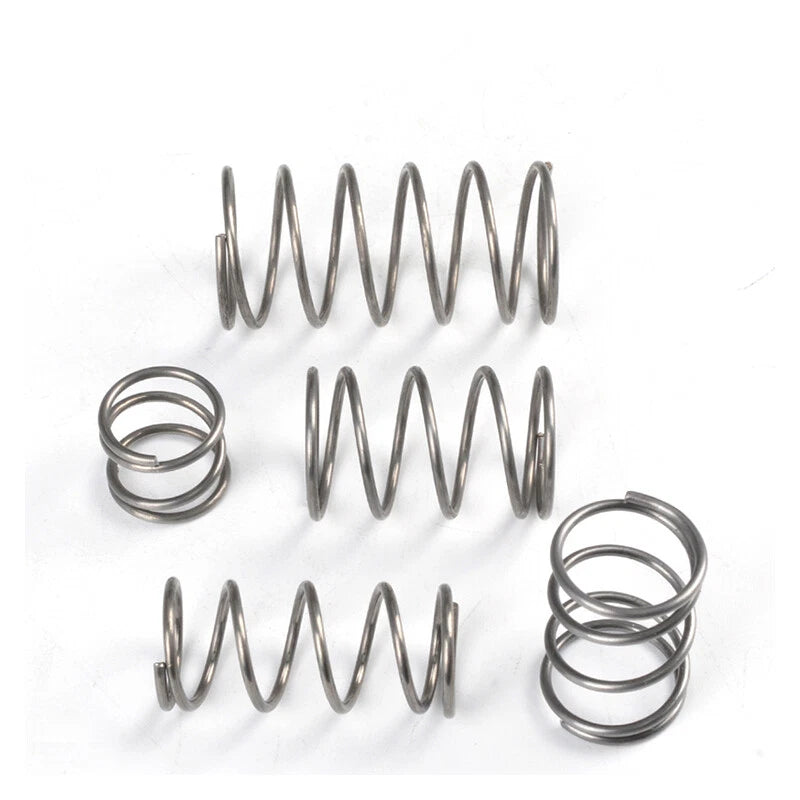

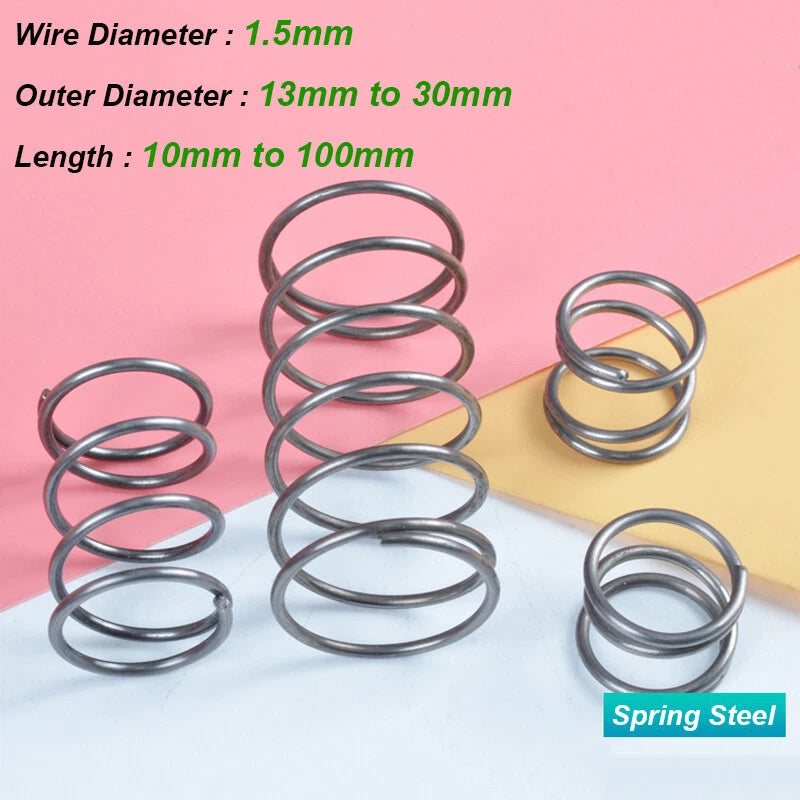

Each spring is formed from spring steel wire with a nominal diameter of 1.5 mm (0.059 in). Outer diameters span 13 mm to 30 mm (0.51 in – 1.18 in), and free lengths range from 10 mm to 100 mm (0.39 in – 3.94 in) depending on the variant selected. The closed, ground ends provide a flat seating surface for consistent load distribution.
Typical use cases include compression spring replacement in 3D printer extruder assemblies, DIY pneumatic valve actuators, mechanical keyboard switch modding, and light-duty industrial jig fixtures where a repeatable return force is required.
| Wire Diameter | 1.5 mm (0.059 in) |
|---|---|
| Outer Diameter (OD) | 13 mm – 30 mm (0.51 in – 1.18 in) — see variant options |
| Free Length | 10 mm – 100 mm (0.39 in – 3.94 in) — see variant options |
| End Type | Closed, ground |
| Material | Carbon spring steel |
| Finish | See variant options |
| Spring Rate | See variant options |
| Quantity per Pack | 10 pieces |
| Coil Direction | Right-hand |
| Operating Temperature | Contact us to confirm |

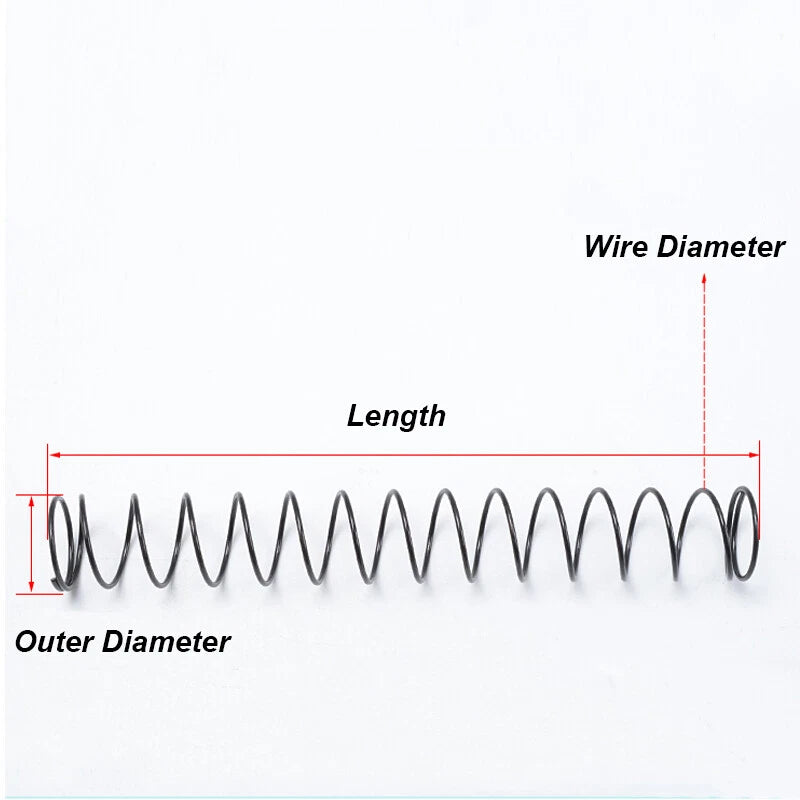

The spring OD should be slightly smaller than the bore or housing it sits in, and slightly larger than any guide rod it slides over. A typical clearance is 0.5–1 mm between the spring OD and the bore wall. Select your OD from the variant dropdown, then verify the fit against your housing dimensions before assembly.
Free length is the uncompressed length of the spring. Choose a free length that is longer than your required working length by at least the amount of travel (stroke) you need. For example, if you need 20 mm of compression travel and your working length is 30 mm, select a free length of at least 50 mm.
Spring rate (load per unit deflection) varies by OD and free length combination. Longer springs with larger ODs generally have lower spring rates; shorter, smaller-OD springs are stiffer. Exact spring rate data for each variant is available on request. For critical load-bearing applications, always verify with a spring rate calculation or physical test before deployment.
These springs are made from carbon spring steel, which offers good mechanical properties but limited corrosion resistance in wet or chemically aggressive environments. For outdoor, marine, or high-humidity applications, consider applying a light coat of oil or grease, or contact us to inquire about stainless steel alternatives.
Many 3D printer extruder and bed-leveling spring replacements use springs in the 13–20 mm OD range with free lengths of 15–40 mm. Check your printer's spring specification (OD, free length, wire diameter) and match it to the appropriate variant. The 1.5 mm wire diameter suits medium-duty extruder and bed-leveling applications.
These are compression springs designed to resist compressive loads. They are not suitable for tension applications. For tension use, a different spring type with hooked ends is required. Do not stretch these springs beyond their free length, as this can permanently deform the coils.
Larger OD and longer length variants require more material and machining, so prices increase with both dimensions. All variants are sold as 10-piece packs. Select your required OD and length from the dropdowns above to see the exact price for that combination.
