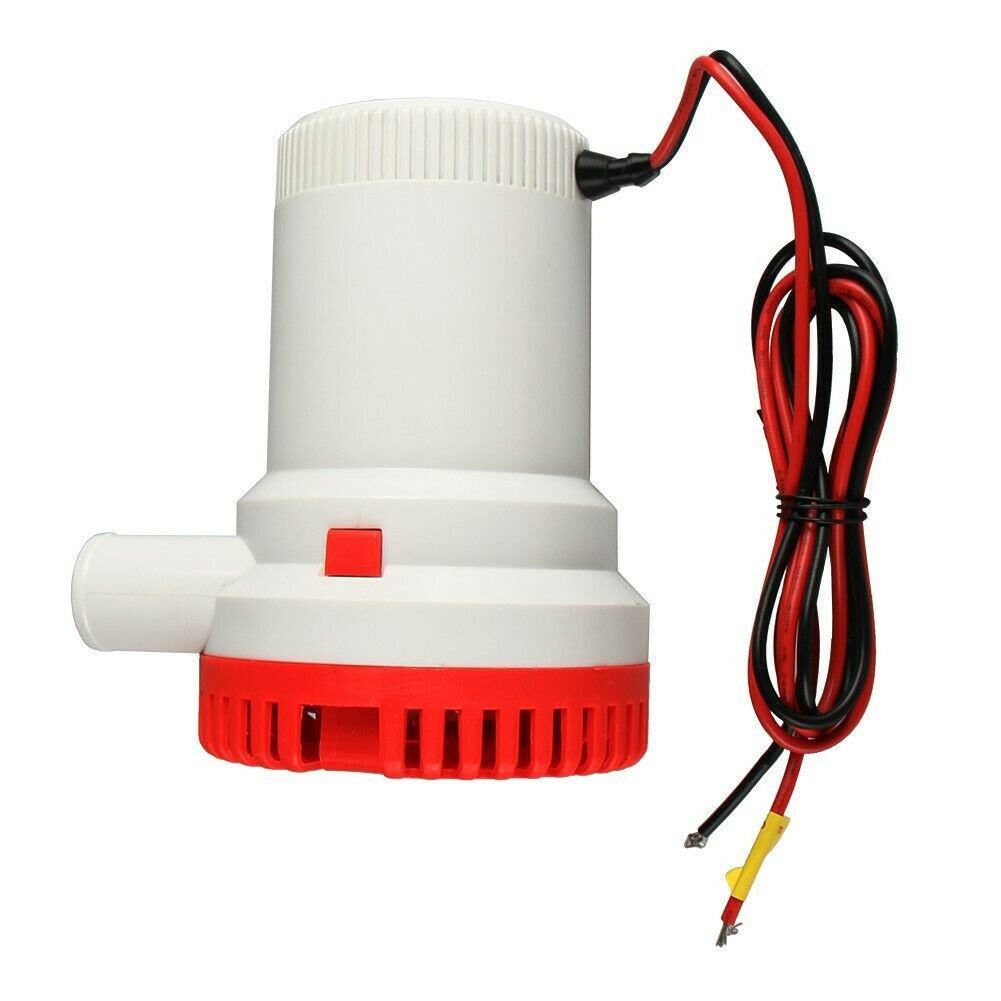

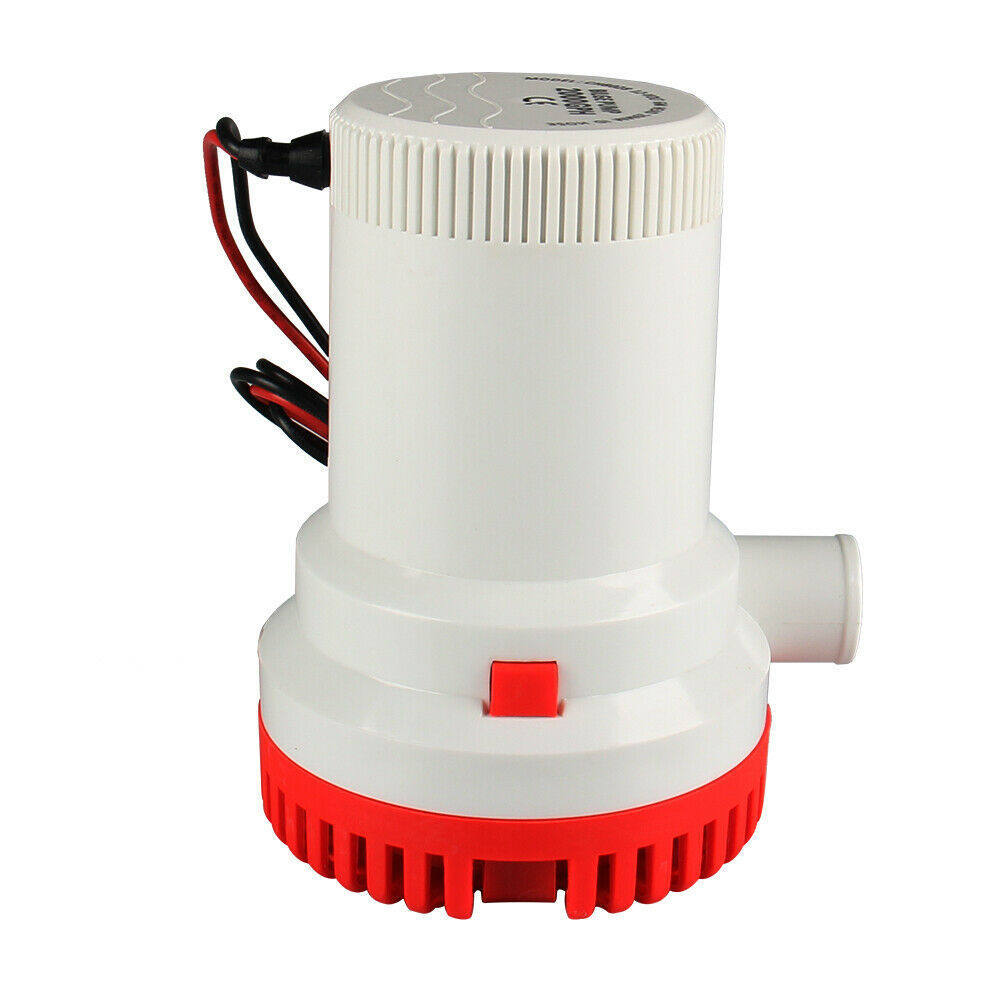

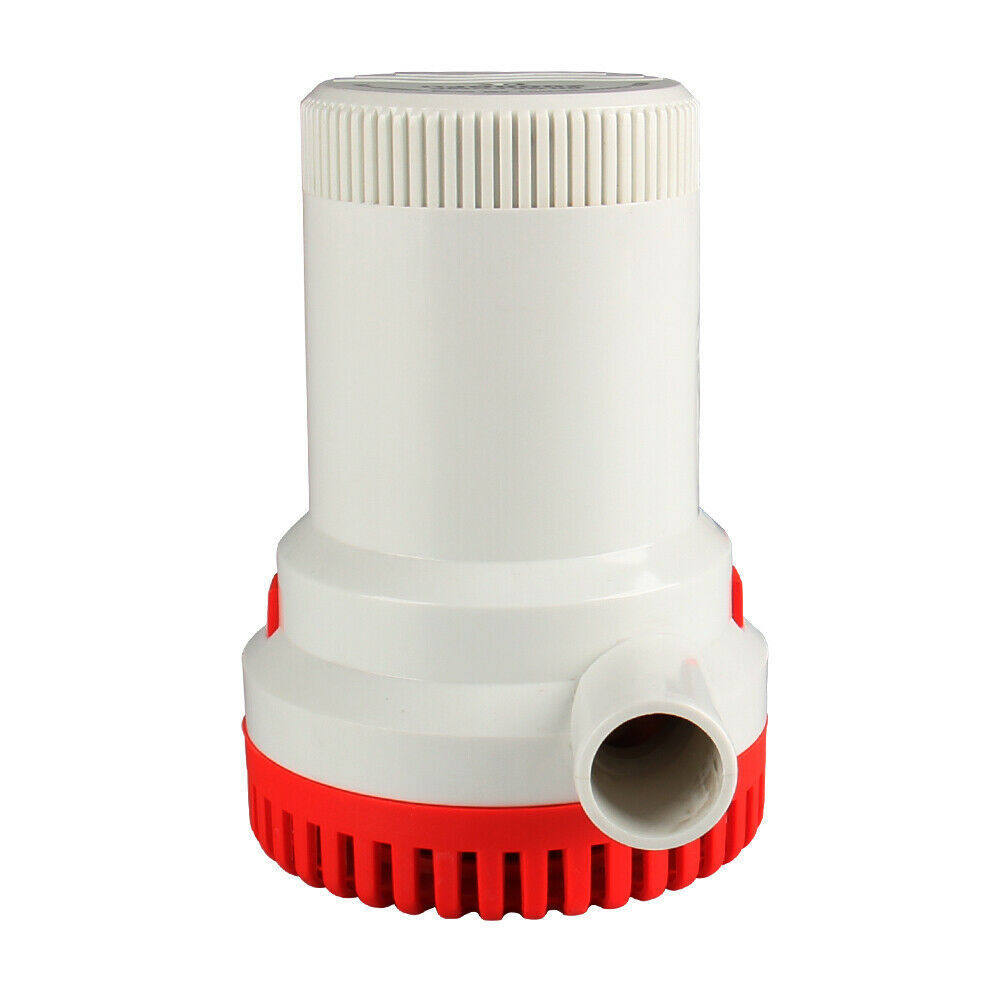

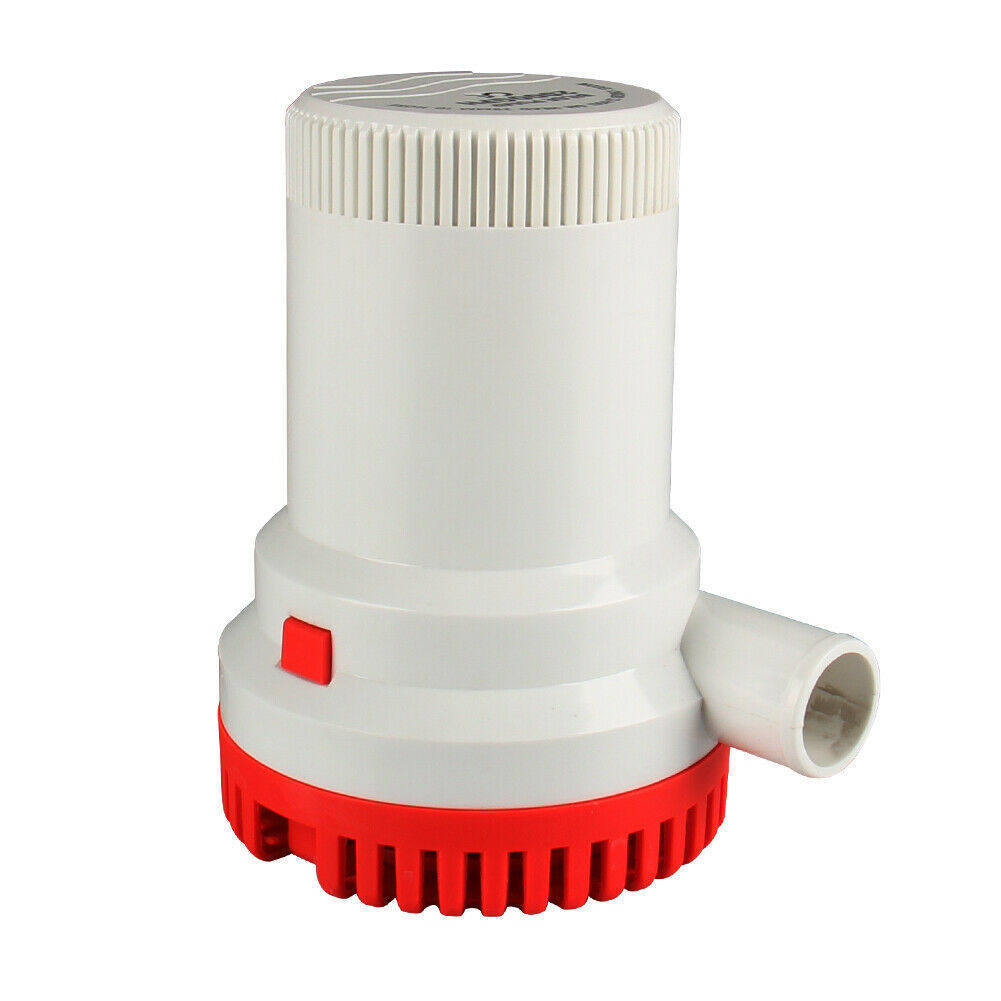

📦 1500-2000 GPH Submersible Bilge Pump – 12V & 24V DC Electric Water Pump for Yacht & Small Boat
Keep water where it belongs with this heavy-duty submersible bilge pump, available in 1500 GPH or 2000 GPH flow rates with your choice of 12V or 24V DC power. Whether replacing a tired original pump that cycles weakly or installing a new system during a bilge overhaul, these pumps offer real pumping capacity that moves standing water, wave splash, and routine drips out of your hull efficiently. The compact upright body slips easily into narrow bilge compartments on small yachts, runabouts, and fishing boats where space is tight. A sealed motor cartridge separates the electrical components from the wet end, while the pick-up strainer base filters out debris before it reaches the impeller. Straightforward wiring and a standard hose barb connection mean a swap takes less than an hour with basic tools. For boat owners and marine technicians who believe a dry bilge is the first rule of maintenance, these pumps deliver the flow, reliability, and quiet operation needed for year-round service.
⚙️ Three Variants Available: 1500 GPH (12V), 1500 GPH (24V), and 2000 GPH (12V). Choose your required voltage and capacity from the options menu.
✨ Key Features of 1500-2000 GPH DC Bilge Pump
- High Flow Output: 1500 GPH handles heavy rain and seepage; 2000 GPH provides extra margin for larger hulls or sudden water ingress.
- Dual Voltage Availability (12V / 24V): 12V models suit most small to mid-size vessels, while 24V variants serve commercial and larger yacht electrical systems.
- Sealed Motor Cartridge: The encapsulated coil separates electrically live parts from moisture, reducing corrosion failures and extending pump life in saltwater environments.

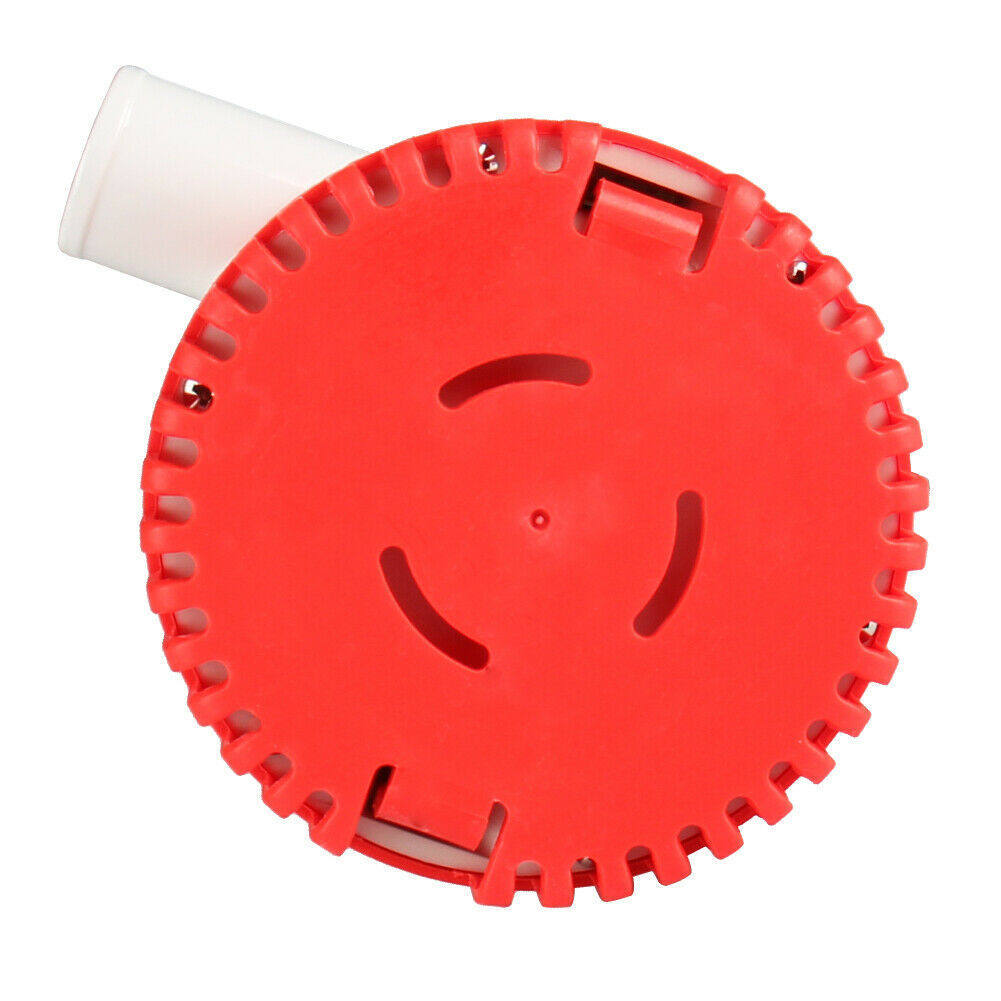

- Strainer Base Included: A snap-on intake screen blocks debris, leaves, and fishing line from jamming the impeller—easy to remove and rinse during routine checks.
- Submersible & Compact Body: Fully sealed design works submerged in the bilge or mounted inline; upright footprint fits confined engine bay spaces.
- Straightforward Installation: Pre-wired leads and a standard hose barb connection simplify replacement of old or failed pumps with minimal plumbing changes.
📏 Specifications – Submersible Bilge Pump
| Available Flow Rates |
1500 GPH / 2000 GPH |
| Voltage Options |
12V DC / 24V DC |
| Pump Type |
Submersible centrifugal |
| Motor Protection |
Sealed cartridge with oil seal and gasket |
| Filter |
Removable snap-on strainer base |
| Housing Material |
Marine-grade thermoplastic |
| Application |
Bilge water removal for yachts, runabouts, fishing boats, and small vessels |
| Package Includes |
1 × submersible bilge pump with strainer (select voltage & flow rate) |
❓ Frequently Asked Questions – DC Bilge Pump
Q: How do I choose between 1500 GPH and 2000 GPH for my boat?
A: 1500 GPH is sufficient for most small to medium runabouts and fishing boats under 25 feet. If your bilge space is large, you frequently encounter heavy weather, or you simply want the fastest possible water evacuation, the 2000 GPH model moves substantially more water per minute. When replacing an existing pump, check the old unit's rated flow and match or upgrade slightly.
Q: Will a 12V pump work on my 24V boat, or vice versa?
A: No. Always match the pump voltage to your boat's electrical system. A 12V pump on a 24V system will burn out the motor almost instantly. A 24V pump on a 12V system will run slowly or not at all. Select the voltage option that matches your battery bank.
Q: How do I clean the strainer and impeller?

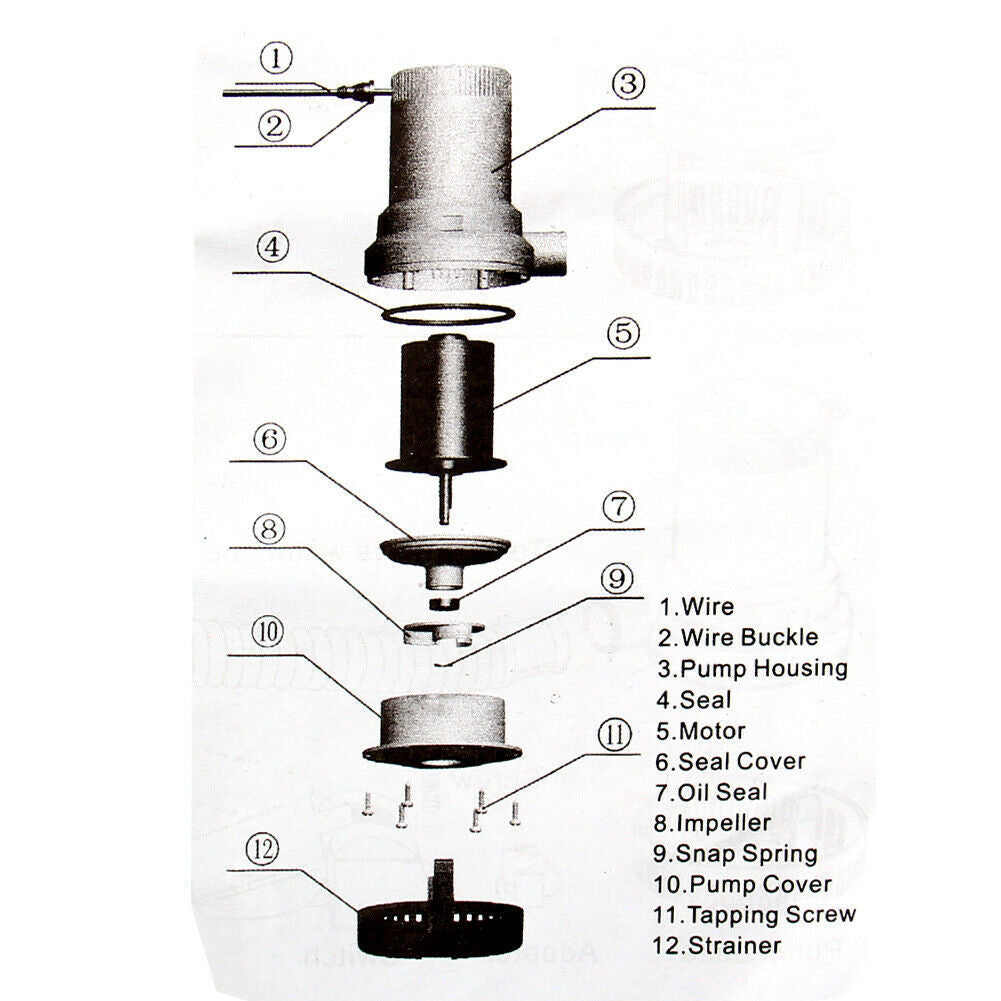

A: The strainer snaps off the bottom of the pump body—pull it away and rinse with fresh water. If you need to access the impeller, remove the screws on the pump cover (bottom face), lift off the cover, and the impeller slides off the shaft. Clear any debris, reassemble, and the pump is ready to go. Check the strainer monthly or whenever you notice reduced flow.
Q: Can I run this pump dry, or will it damage the seals?
A: The pump relies on water for cooling and lubrication. Brief dry running during testing is acceptable, but extended operation without water will overheat the motor and wear the shaft seal. Always ensure water is present before running the pump continuously.
Q: How do I wire this pump? Is a float switch included?
A: The pump comes with pre-attached wire leads ready to connect to your fused DC circuit. A float switch is not included—this is the pump unit only. You can wire it to an external float switch, a manual control panel, or an automatic bilge pump switch (sold separately), depending on your preferred setup.
