Loose soil, gravel, or asphalt that shifts under load is a foundation problem waiting to happen. Whether you’re a contractor laying a paver patio, a landscaper prepping a driveway base, or a DIYer building a retaining wall, this 212cc gas plate compactor delivers the compaction force professionals rely on — in a machine any adult can operate.
Powered by a 212cc / 7.0HP gasoline engine, this compactor generates 2,700 lbs of centrifugal compaction force at 5,600 vibrations per minute, achieving a 12" (30 cm) compaction depth. The 20" × 14" (510 × 370 mm) one-piece stamped steel plate covers up to 4,800 ft² per hour at a travel speed of 50 ft/min (15 m/min). It weighs 134 lbs (73 kg) assembled and ships in a 31.5" × 16.2" × 24.1" package at 146 lbs. EPA compliant for use across the US.
From residential landscaping and patio prep to commercial construction sites, this plate compactor handles loose dirt, soil, gravel, sand, and asphalt — delivering a solid, level foundation every time.
Need reliable compaction on commercial or residential job sites? The 2,700 lb force and 4,800 ft²/hr coverage rate keep your crew productive on foundation prep, trench backfill, and paving projects.
Prepping a paver patio, retaining wall base, or gravel driveway? This compactor delivers the consistent compaction depth needed for a stable, long-lasting hardscape installation.
Tackling a backyard project that needs a solid base? The balanced design and folding transport wheels make this compactor manageable for experienced DIYers without a crew.
Looking for a durable, EPA-compliant plate compactor to add to your rental fleet? The steel construction and straightforward operation make it a reliable rental unit.
| Engine Displacement | 212cc |
|---|---|
| Engine Power | 7.0 HP |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | 3.8 L (~1 gal) |
| Vibration Frequency | 5,600 VPM (exciter speed) |
| Centrifugal Force | 2,700 lbs (12 kN) |
| Compaction Depth | 12" (30 cm) |
| Plate Size | 20" × 14" (510 × 370 mm), one-piece stamped steel |
| Travel Speed | 50 ft/min (15 m/min) |
| Coverage Rate | Up to 4,800 ft²/hr (~450 m²/hr) |

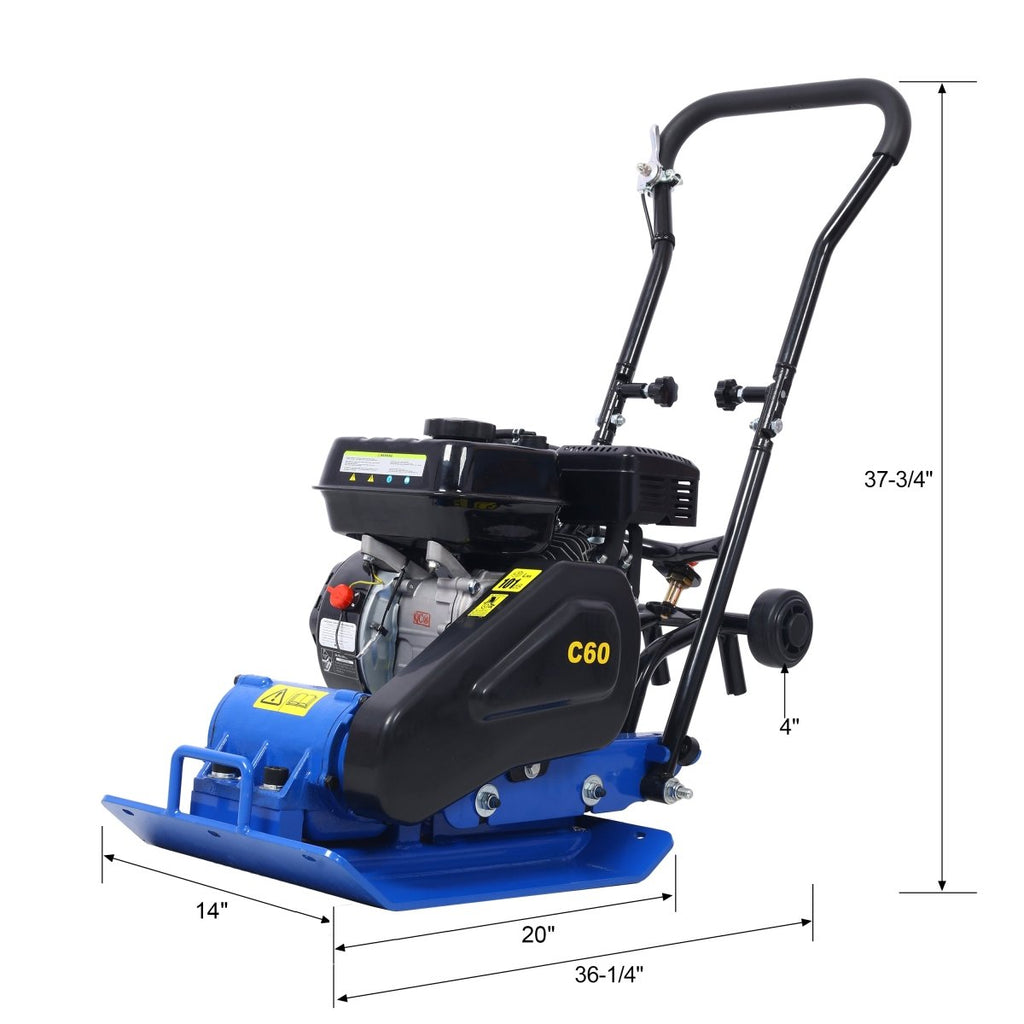

| Assembled Dimensions | 36.2" L × 14" W × 37.8" H (92 × 36 × 96 cm) |
| Package Dimensions | 31.5" L × 16.2" W × 24.1" H (80 × 41 × 61 cm) |
| Operating Weight | 134 lbs (73 kg) |
| Package Weight | 146 lbs (~66 kg) |
| Color | Blue |
| Material | Steel |
| Emissions | EPA compliant |
| Transport Wheels | Folding, included |
This compactor is suitable for loose dirt, soil, gravel, sand, asphalt, and general compactable fill. It achieves a compaction depth of up to 12" (30 cm) per pass, making it effective for base preparation in landscaping, paving, and construction applications.
Yes. The 212cc gasoline engine is EPA compliant, making it legal for use across all US states including those with stricter emissions regulations.
The compactor travels at 50 ft/min (15 m/min) with a 20" × 14" plate, covering up to approximately 4,800 ft² (~450 m²) per hour under typical operating conditions.
Yes. Folding transport wheels are included. They fold out for easy repositioning and storage, and fold away during operation to ensure full plate contact with the ground surface.
The operating weight is 134 lbs (73 kg). The included folding transport wheels allow one person to roll it without lifting. For loading onto a truck or trailer, two people or a lift assist is recommended.
The engine runs on standard gasoline. The fuel tank holds 3.8 liters (~1 gallon), providing a reasonable runtime per fill for typical job site use.
Yes. The compactor is designed for use on asphalt as well as soil, gravel, and sand. For asphalt applications, a water kit or pad kit is generally recommended to prevent the plate from sticking — these are available as aftermarket accessories.
