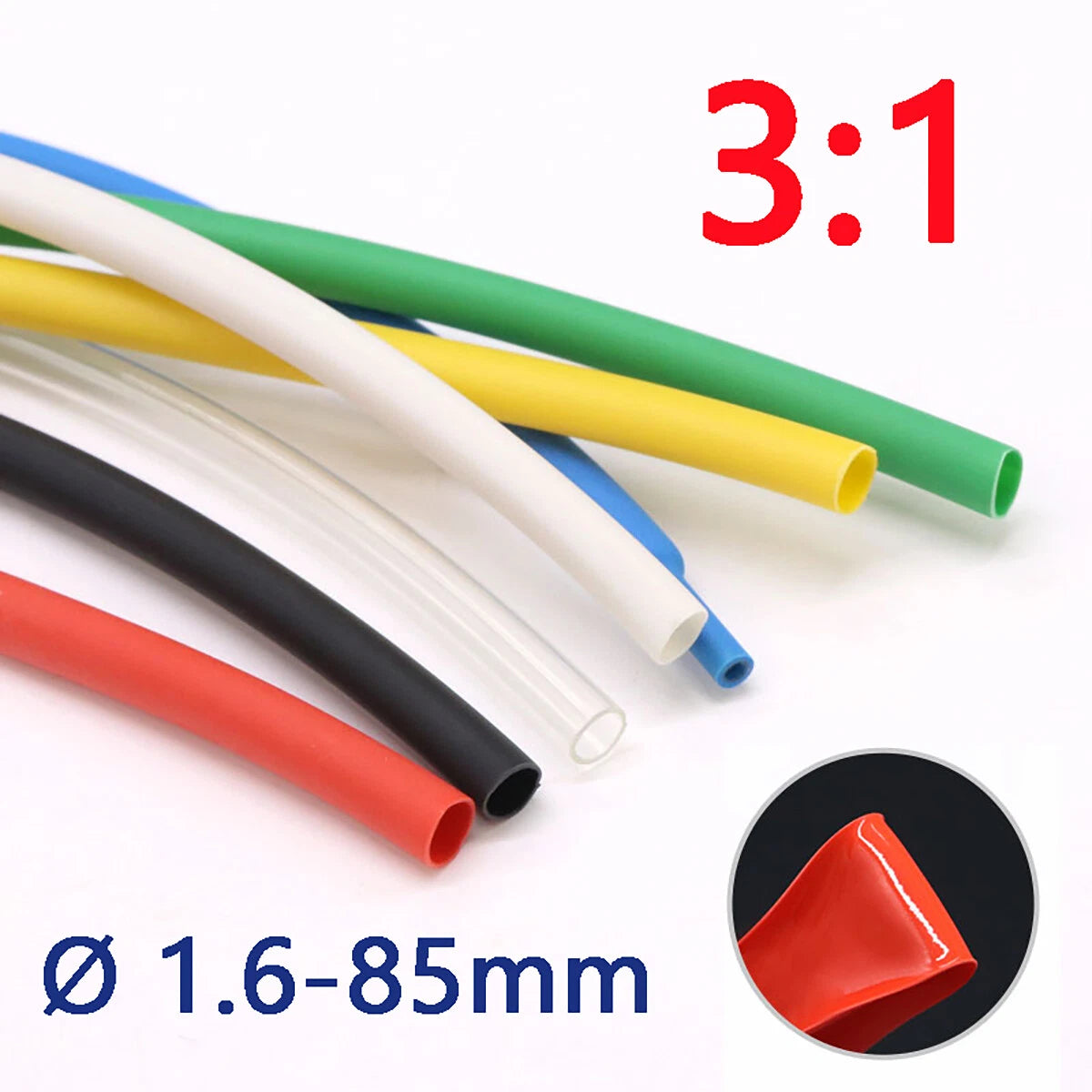

3:1 Dual Wall Adhesive Heat Shrink Tubing — Waterproof Wire Insulation Sleeve

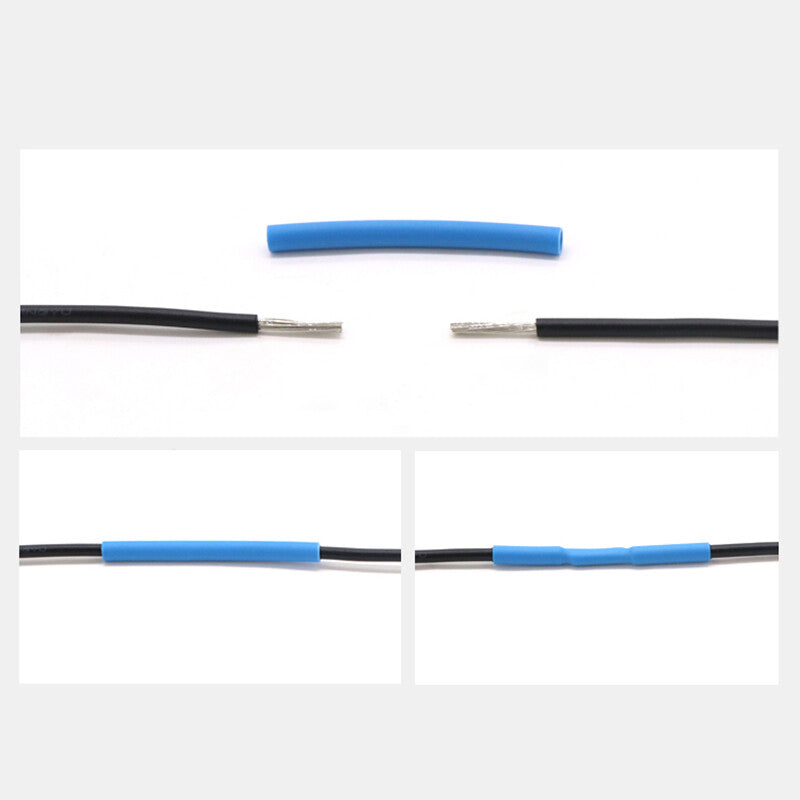

Exposed wire splices, corroded marine terminals, and leaking automotive connectors are a constant headache for electricians, DIYers, and hobbyists who need a reliable, long-lasting seal. Standard single-wall tubing often leaves gaps at connector ends, letting moisture creep in and causing failures weeks or months later. This 3:1 dual wall adhesive-lined heat shrink tubing solves that problem with a built-in hot-melt adhesive inner layer that flows into every gap as it shrinks, creating a fully waterproof wire insulation sleeve around your connection.

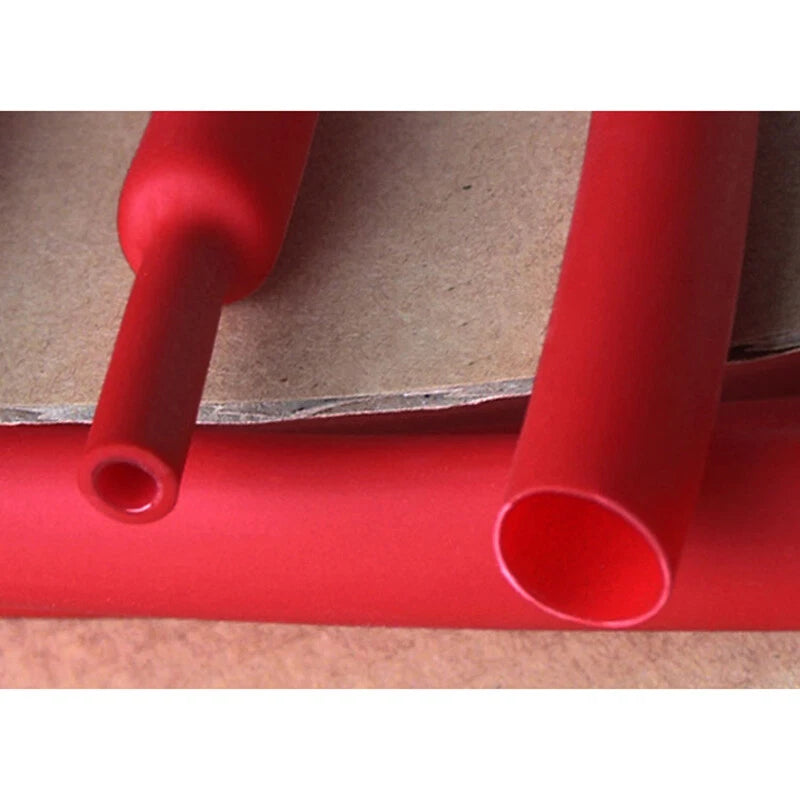

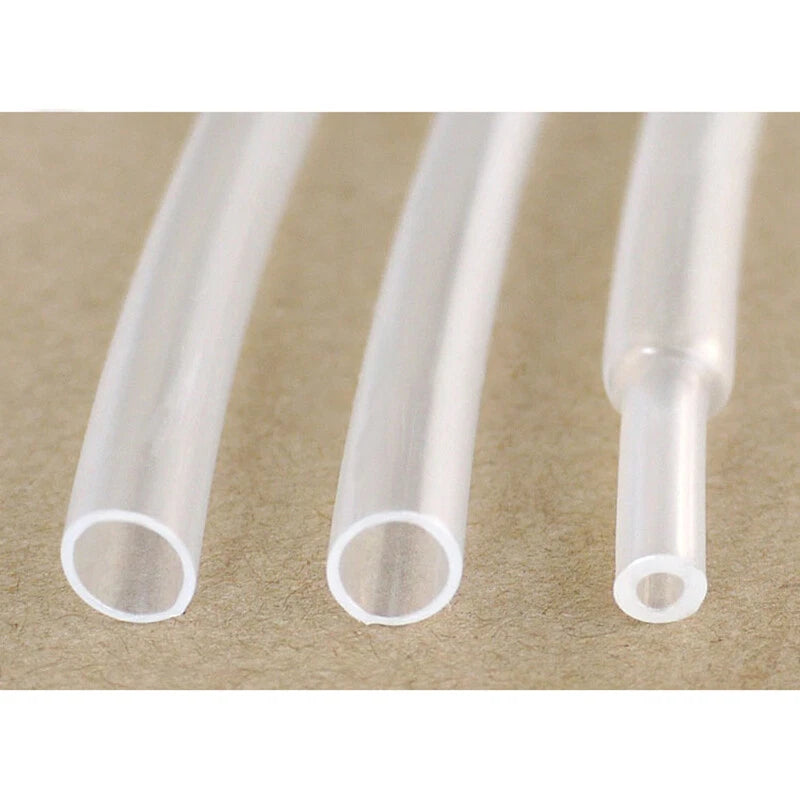

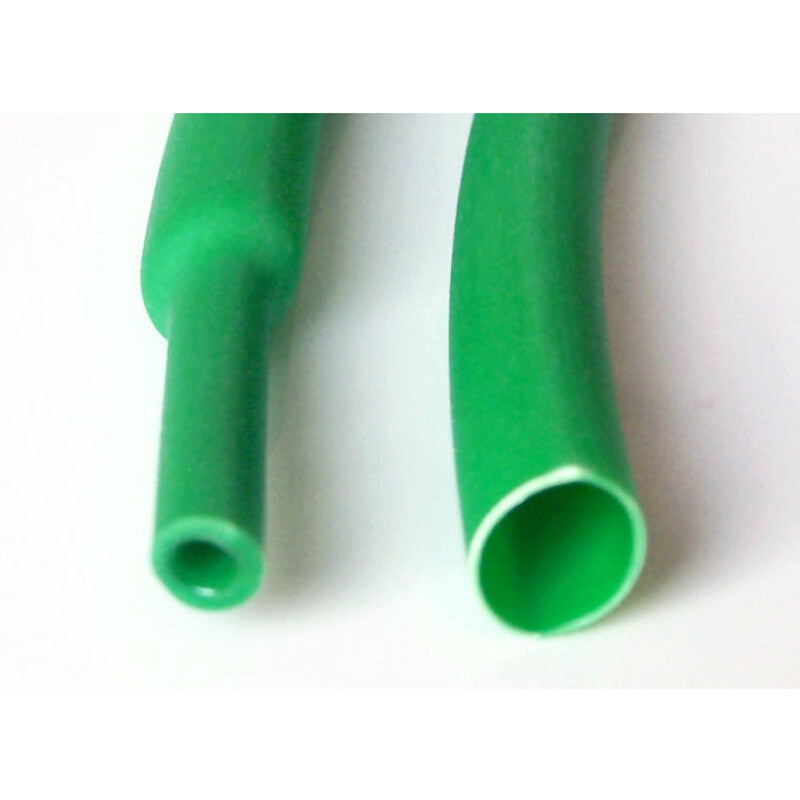

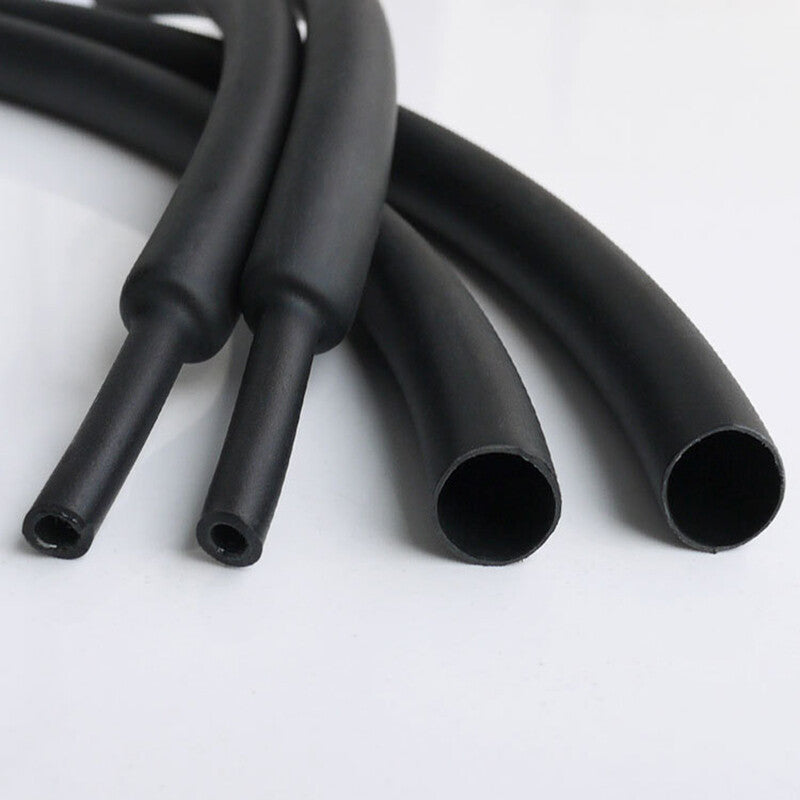

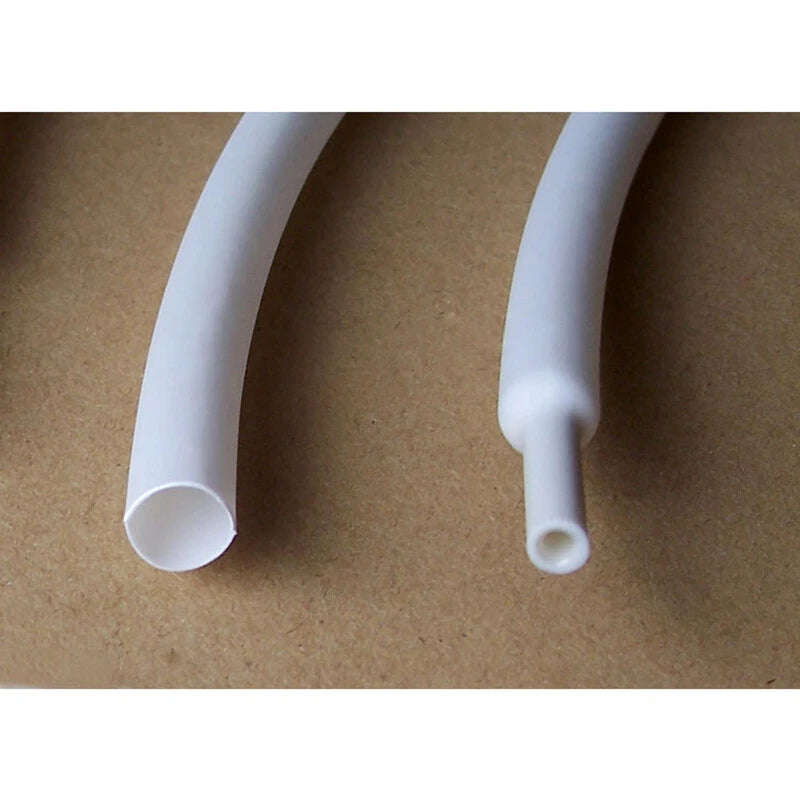

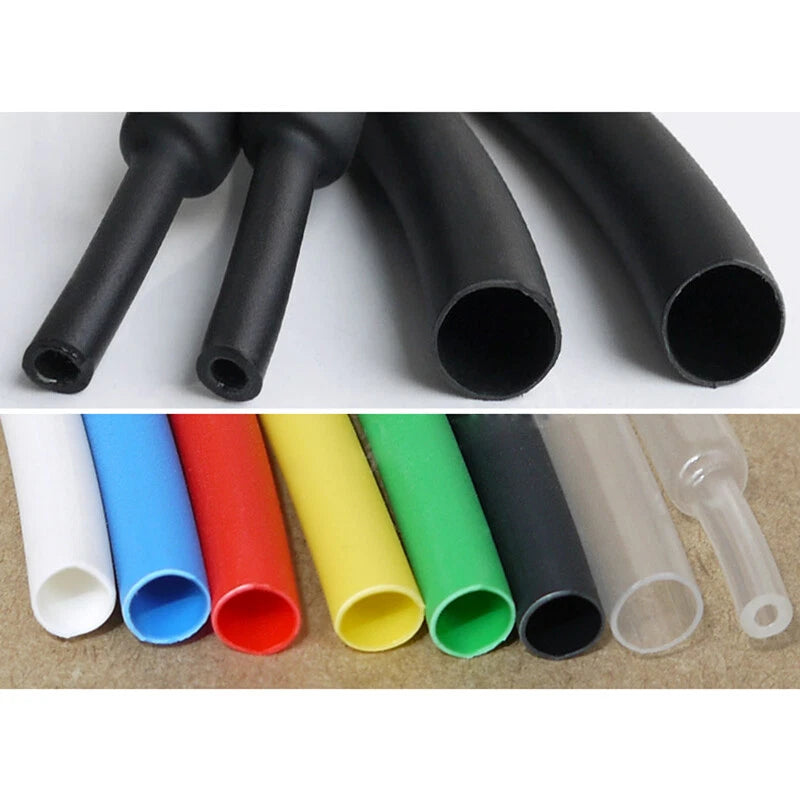

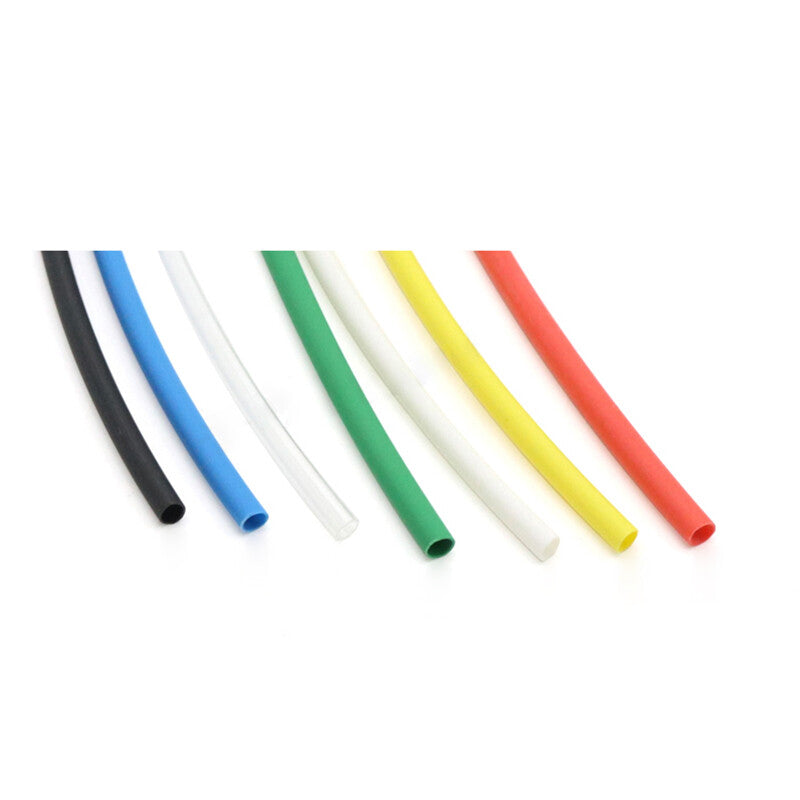

Each piece is a dual-wall tube: an outer polyolefin jacket that shrinks at a 3:1 ratio, and an inner adhesive lining that melts and bonds to the cable surface. Available in diameters from φ1.6mm (≈1/16") to φ85mm (≈3-3/8"), in 1M (≈39") and 5M (≈197") lengths, and in 8 colors — Black, White, Red, Green, Yellow, Blue, Transparent, and Orange — so you can match your project's color-coding needs.

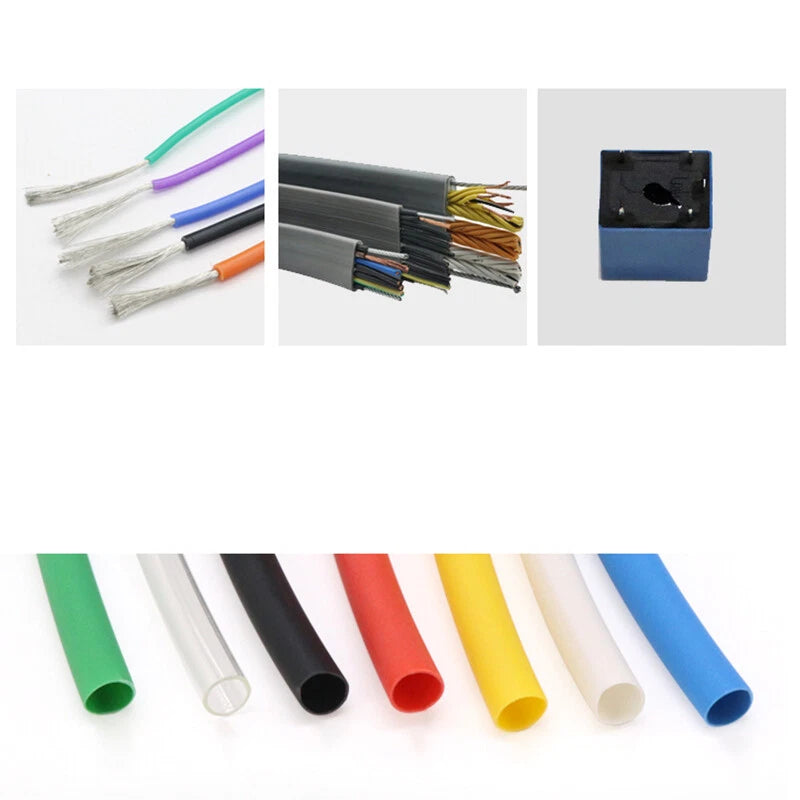

Typical use cases include automotive wiring harness repair, marine electrical connection sealing, outdoor solar panel cable management, and RC/hobby electronics strain relief — anywhere a waterproof, flexible, and durable cable sleeve is needed.
🔌 Compatibility: Works with copper, aluminum, and tinned wire; compatible with most plastic and metal connector housings. Suitable for 12V–48V DC automotive, marine, and low-voltage electrical applications. Confirm voltage rating with your specific application before use on high-voltage circuits.
✅ Key Features of These 3:1 Dual Wall Adhesive Heat Shrink Tubes
-

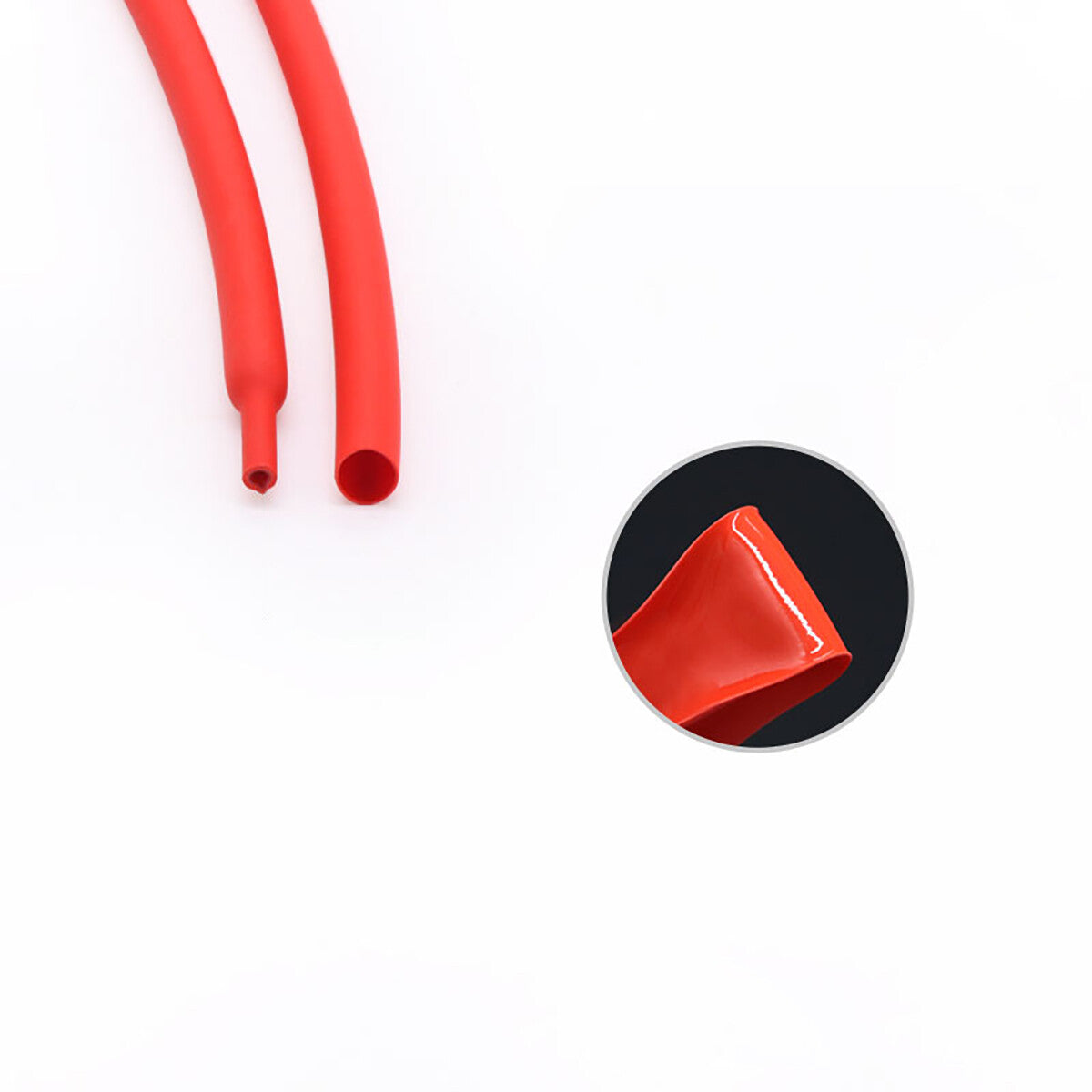

💧Waterproof Adhesive Inner Layer — The hot-melt adhesive lining flows into cable strands and connector gaps when heated, forming a watertight seal that resists moisture ingress in outdoor and marine wiring applications.
-
📐3:1 Shrink Ratio — Shrinks to one-third of its original diameter, covering stepped connectors, irregular shapes, and large-to-small transitions that standard 2:1 heat shrink tubing cannot accommodate.
-

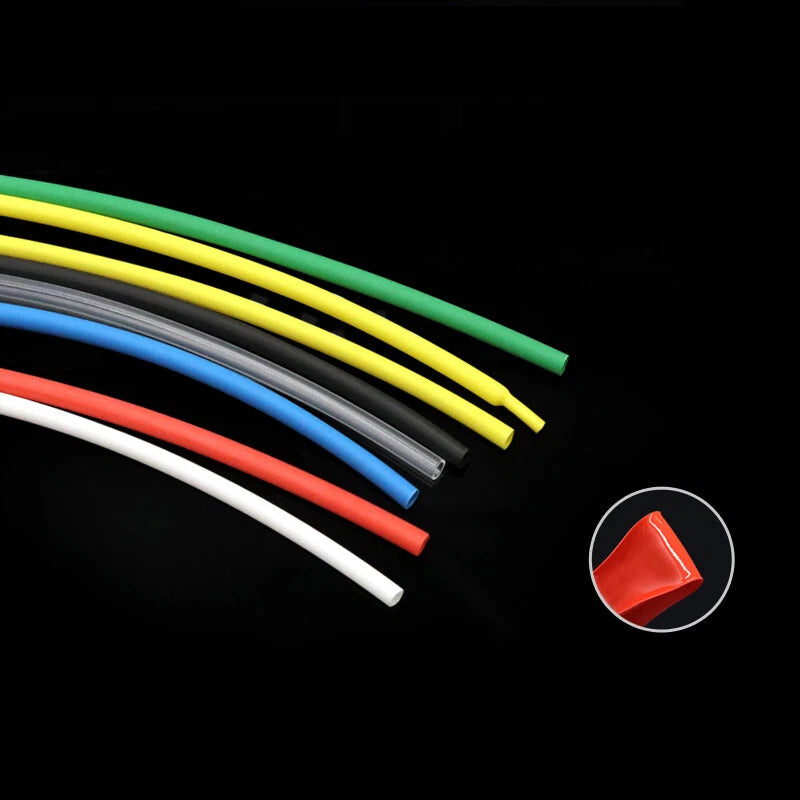

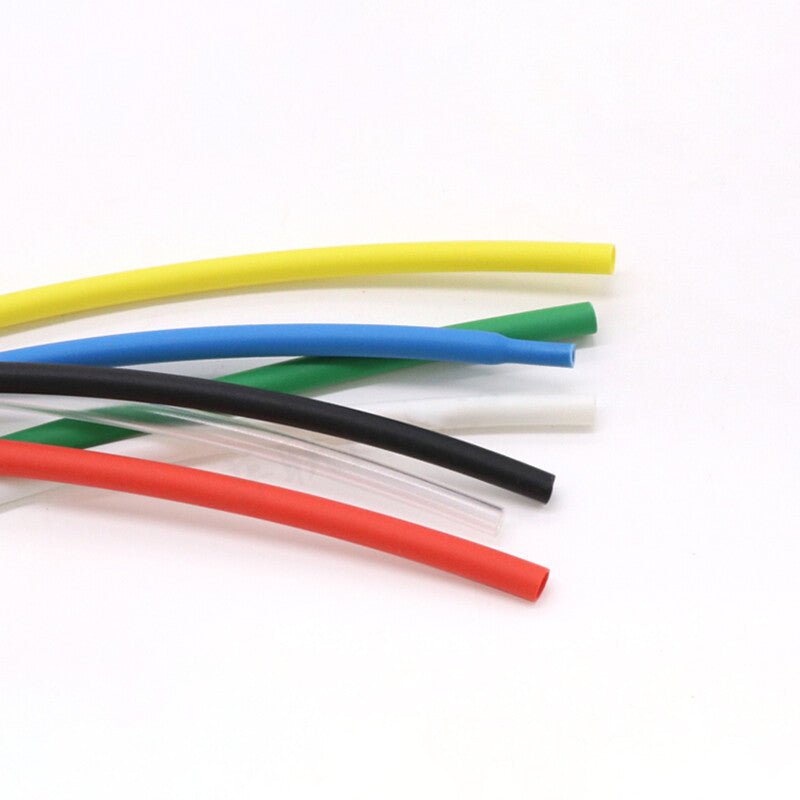

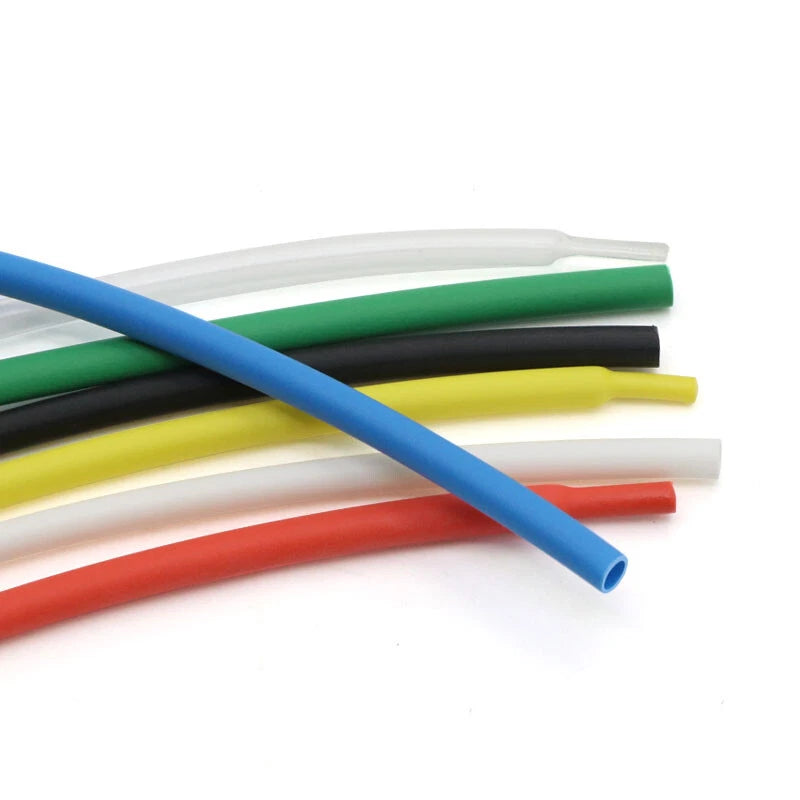

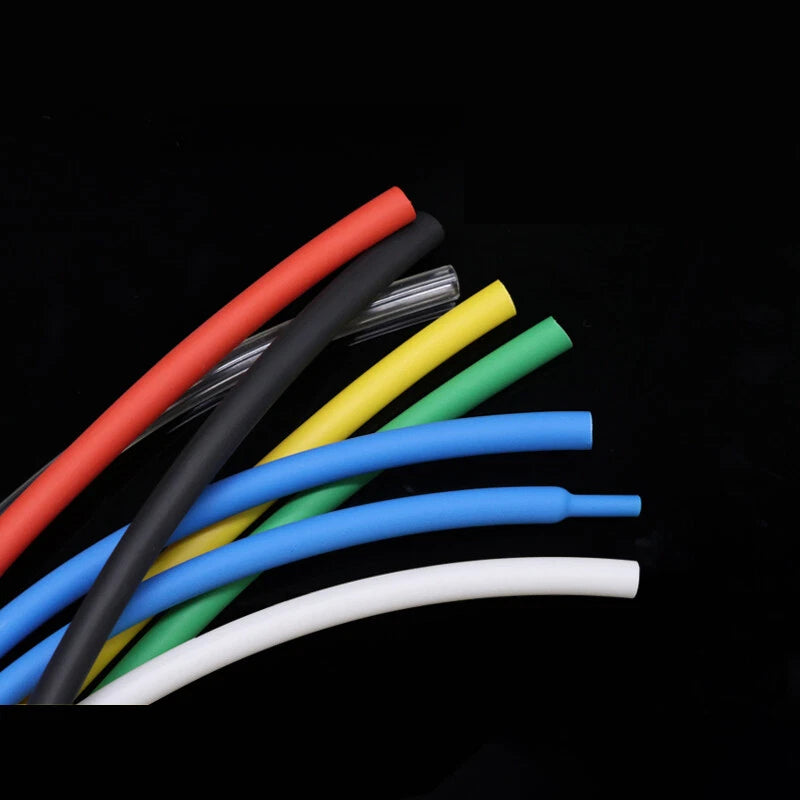

🎨8 Color Options for Circuit Identification — Black, White, Red, Green, Yellow, Blue, Transparent, and Orange allow color-coded wire labeling and polarity identification across complex wiring harnesses.
-
📏Wide Diameter Range — φ1.6mm to φ85mm — From fine hobby wires to large battery cables and conduit ends, a single product line covers the full range of cable sleeve sizes needed for automotive, marine, and DIY electrical work.
-
🔥Flexible After Recovery — The recovered dual-wall tube remains pliable and resistant to cracking, making it suitable for vibration-prone automotive wiring harness repair and cable management in moving assemblies.
-
✂️Cut-to-Length Convenience — Available in 1M and 5M rolls so you can cut exactly what you need for each connection, reducing waste on small repairs or stocking up for larger wiring projects.

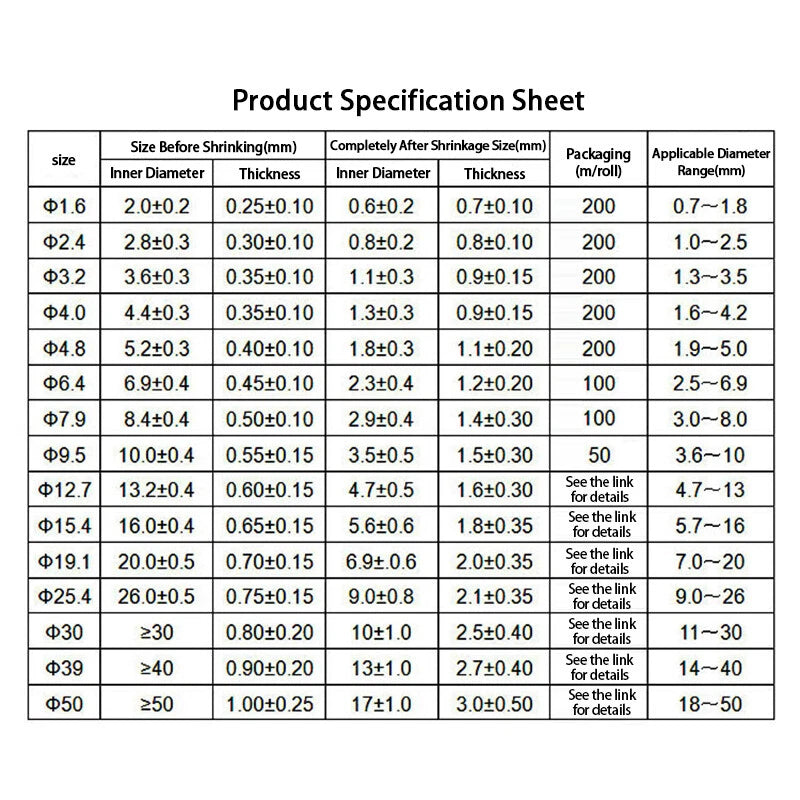

📐 Technical Specifications — 3:1 Dual Wall Adhesive Heat Shrink Tubing
| Product Type |
Dual Wall Adhesive-Lined Heat Shrink Tubing |
| Shrink Ratio |
3:1 |
| Outer Wall Material |
Polyolefin |
| Inner Layer |
Hot-melt adhesive (polyamide-based) |
| Available Diameters (Supplied) |
φ1.6mm, φ2.4mm, φ3.2mm, φ4mm, φ4.8mm, φ6.4mm, φ7.9mm, φ9.5mm, φ12.7mm, φ15.4mm, φ19.1mm, φ25.4mm, φ30mm, φ39mm, φ50mm, φ65mm, φ85mm |
| Available Lengths |
1M (≈39") / 5M (≈197") |
| Colors |
Black, White, Red, Green, Yellow, Blue, Transparent, Orange |
| Shrink Temperature |
Typically 120–150°C (248–302°F) |
| Operating Temperature (Recovered) |
See variant options / Contact us to confirm for high-temp applications |
| Waterproof Rating |
Waterproof seal at cable entry (adhesive flow); not rated for full submersion without confirmation |
| Recommended Tool |
Heat gun (open flame not recommended) |
| Application |
Automotive wiring, marine electrical, outdoor cable management, hobby electronics |
⚠️ Size Selection Tip: Measure your cable's outer diameter before ordering. The supplied diameter is the pre-shrink inner diameter. After shrinking at 3:1, the recovered ID will be approximately one-third of the listed size. If you are unsure, order one size up and test before committing to a full run.
❓ Frequently Asked Questions
How do I choose the right diameter for my wires or cables?
Measure the outer diameter of the cable or connector before shrinking. The tubing's recovered (post-shrink) inner diameter should be slightly smaller than your cable OD to ensure a snug seal. For example, if your cable is 3mm in diameter, a φ4mm tube will typically shrink down to approximately 1.3mm — enough to grip firmly. When in doubt, size up one step and confirm with a test piece.
What is the 3:1 shrink ratio and why does it matter?
A 3:1 ratio means the tubing shrinks to one-third of its original diameter when heat is applied. This is significantly more versatile than standard 2:1 tubing, allowing it to cover irregular shapes, connectors, and stepped transitions that a 2:1 tube generally cannot accommodate.
How strong is the adhesive lining and what does it bond to?
The inner adhesive layer is typically a hot-melt polyamide compound that flows and bonds to most clean metal and plastic surfaces when activated by heat. It generally provides a firm mechanical seal rather than a structural bond, making it ideal for strain relief and moisture exclusion rather than load-bearing applications.
Is this tubing suitable for outdoor or marine use?
Yes. The dual-wall construction with adhesive lining creates a waterproof seal around the cable entry point, making it well-suited for outdoor wiring, marine electrical connections, and automotive applications where moisture ingress is a concern. For fully submerged or high-pressure environments, confirm suitability with your specific application requirements.
What temperature is needed to shrink this tubing?
This tubing generally activates at around 70–90°C (158–194°F) and fully shrinks and flows the adhesive at approximately 120–150°C (248–302°F). A heat gun is the recommended tool. Avoid open flames, which can scorch the outer jacket unevenly.
Can I use this for automotive wiring repairs?
Yes. Dual-wall adhesive-lined heat shrink tubing is widely used in automotive wiring harness repair, trailer connector sealing, and battery terminal protection. The waterproof seal and flexible recovered wall help resist vibration and road moisture. Confirm the operating temperature range matches your vehicle's underhood conditions before use.
Which color should I choose for my project?
Color choice is typically functional rather than aesthetic in wiring work. Black is the most common for general insulation. Red, Blue, Yellow, Green, White, and Orange are often used for color-coding wire circuits or polarity identification. Transparent allows visual inspection of the connection underneath.
