3:1 Triple Wall Heat Shrink Tubing — Adhesive Lined, Waterproof Protection for Automotive, Marine & DIY Wiring

Exposed wire splices, corroded terminals, and poorly sealed connectors are among the most common causes of electrical failures in vehicles, boats, and outdoor equipment. Whether you're a professional auto electrician, a marine rigger, or a hands-on DIYer tackling a wiring repair, you need a heat shrink solution that does more than just cover — it needs to seal. This 3:1 triple wall heat shrink tubing delivers a tight, adhesive-bonded, moisture-resistant barrier that standard single-wall tubing simply cannot match.

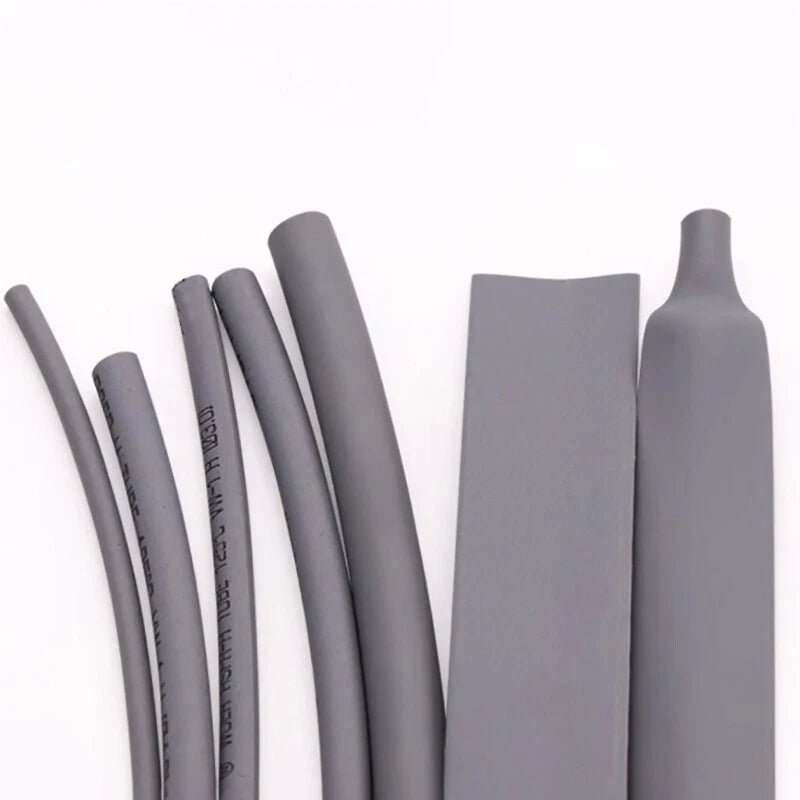

Each piece measures approximately 1 meter (≈39.4") in length and is available in 16 diameters ranging from φ1.6mm (≈1/16") up to φ65mm (≈2-9/16"), covering everything from fine signal wires to large battery cables. The triple wall construction consists of an outer polyolefin jacket, a middle structural layer, and an inner hot-melt adhesive lining. Seven color options — Black, White, Red, Green, Yellow, Blue, and Transparent — support color-coded wiring systems and circuit identification. Quantity options of 1, 2, or 5 pieces are available depending on size.

Typical use cases include automotive wiring harness repair and battery terminal protection, marine cable sealing and bilge pump wiring, outdoor landscape lighting connections, and heavy-duty DIY electrical projects where a waterproof heat shrink sleeve is required. The 3:1 shrink ratio also makes this tubing ideal for covering irregular shapes like connectors and terminals that standard 2:1 tubing cannot grip tightly.

🔌 Compatible with standard wire gauges, butt connectors, ring terminals, spade connectors, and bare wire splices. Fits cables from small signal wires up to large battery and conduit runs. Verify expanded inner diameter against your cable OD before ordering.

✅ Key Features of These 3:1 Triple Wall Heat Shrink Tubes

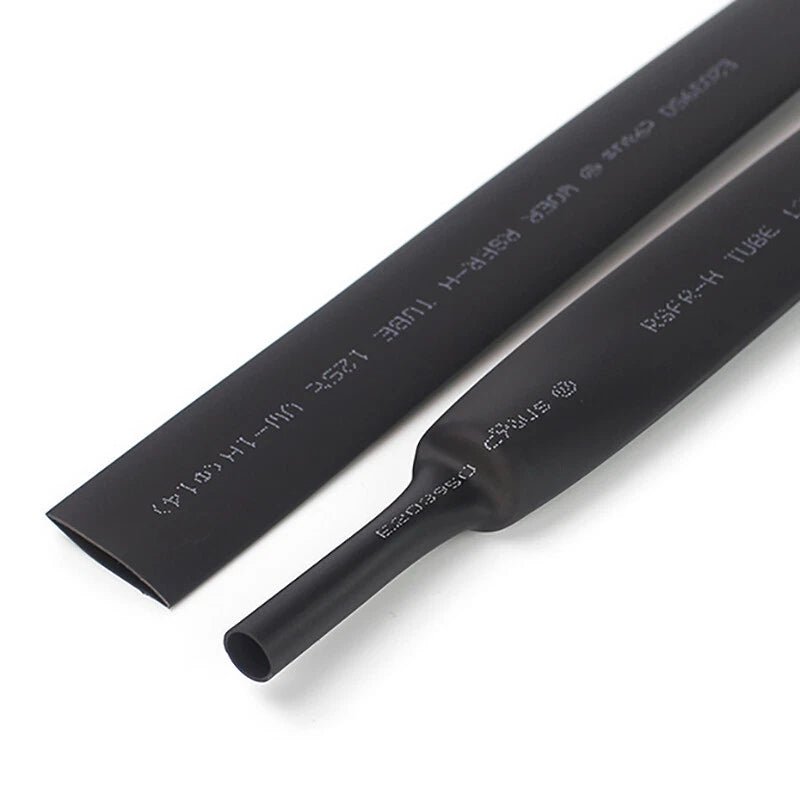

🔥 3:1 Shrink Ratio — Shrinks to one-third of its expanded diameter, conforming tightly around connectors, terminals, and irregular cable shapes that 2:1 tubing cannot seal properly.
💧 Adhesive Inner Wall — The hot-melt adhesive layer flows when heated, creating a waterproof, moisture-resistant seal — essential for marine wiring, automotive underhood use, and outdoor electrical connections.
📏 16 Sizes: φ1.6mm–φ65mm — One listing covers the full range from fine instrument wiring (φ1.6mm / ≈1/16") to large battery cable protection (φ65mm / ≈2-9/16"), eliminating the need to source multiple products.

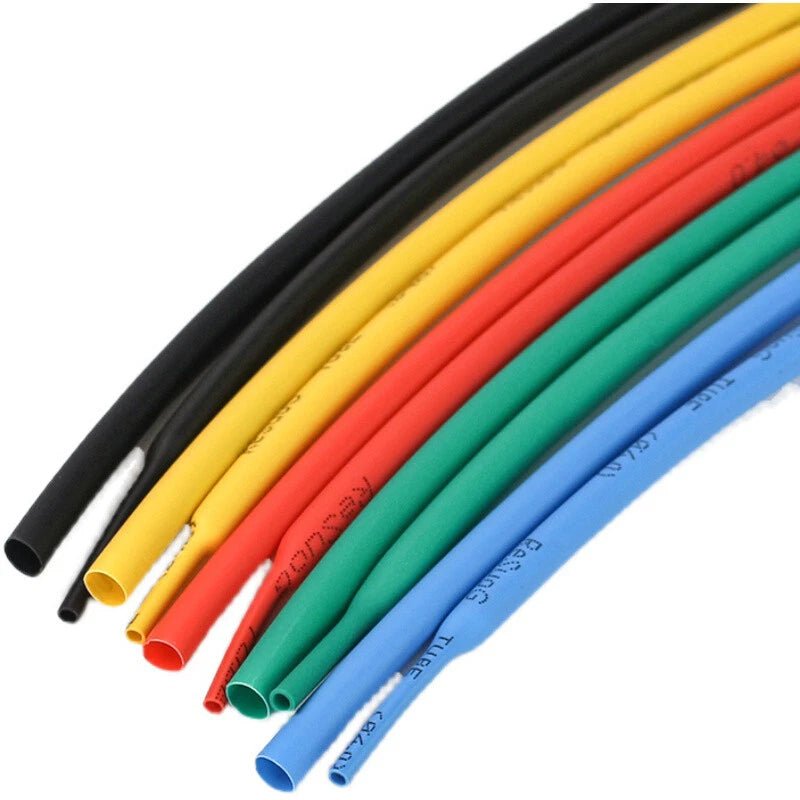

🎨 7 Color Options — Black, White, Red, Green, Yellow, Blue, and Transparent support color-coded wiring identification and circuit tracing in automotive, marine, and industrial installations.
🛡️ Polyolefin Outer Jacket — The outer layer resists abrasion, mild chemicals, and UV exposure, providing durable mechanical protection for cables routed through engine bays, bilges, and outdoor conduit.
✂️ Cut-to-Length Flexibility — Each 1-meter piece can be cut to any length before shrinking, giving you precise coverage for short terminal ends or longer cable runs without waste.

📐 Technical Specifications — Triple Wall Adhesive Heat Shrink Tubing

Product Type	Triple Wall Adhesive-Lined Heat Shrink Tubing
Shrink Ratio	3:1
Available Diameters	φ1.6mm (≈1/16"), φ2.4mm (≈3/32"), φ3.2mm (1/8"), φ4mm (5/32"), φ4.8mm (3/16"), φ6.4mm (1/4"), φ7.9mm (5/16"), φ9.5mm (3/8"), φ12.7mm (1/2"), φ15.4mm (≈5/8"), φ19.1mm (3/4"), φ25.4mm (1"), φ30mm (≈1-3/16"), φ39mm (≈1-9/16"), φ50mm (≈2"), φ65mm (≈2-9/16")
Length per Piece	Approximately 1 meter (≈39.4")
Wall Construction	Triple wall: polyolefin outer layer + structural middle layer + hot-melt adhesive inner lining

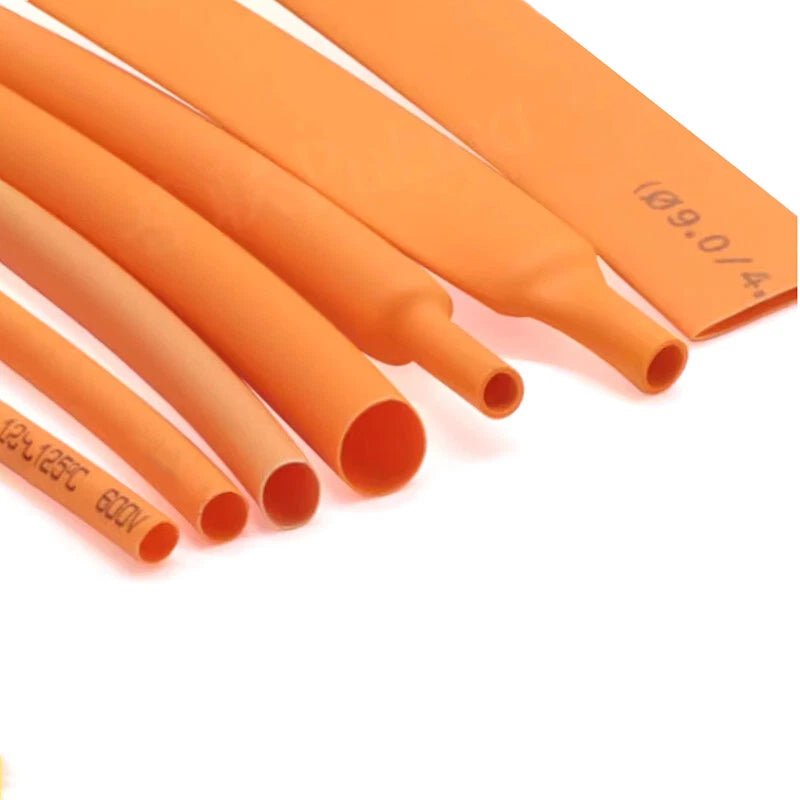

Colors Available	Black, White, Red, Green, Yellow, Blue, Transparent (Orange available in φ6.4mm)
Quantity Options	1 Pc, 2 Pcs, or 5 Pcs (availability varies by size)
Shrink Temperature	Typically 120–150°C (248–302°F); full adhesive flow at higher temperatures
Recommended Heat Source	Heat gun (open flame not recommended for even shrinkage)
Outer Material	Polyolefin (abrasion, chemical, and UV resistant)
Inner Adhesive	Hot-melt adhesive (moisture-resistant seal when activated)
Typical Applications	Automotive wiring, marine cable sealing, outdoor electrical connections, battery terminal protection
Country of Origin	See variant options

⚠️ Size selection tip: Always measure the outer diameter of your cable or connector before ordering. Select a tube whose expanded inner diameter is slightly larger than your cable OD. After shrinking at 3:1, the tubing will compress tightly around the cable and the adhesive will flow to fill gaps.

❓ Frequently Asked Questions

How do I choose the right diameter for my cable?

Measure the outer diameter of your cable or connector before shrinking. Choose a size where the expanded inner diameter is slightly larger than your cable — typically 10–20% larger. For example, a 4mm cable generally works well with the φ4.8mm or φ6.4mm tube. After shrinking at a 3:1 ratio, the tubing will conform tightly around the cable. When in doubt, size up rather than down.

Quick inch reference: φ3.2mm = 1/8", φ6.4mm = 1/4", φ9.5mm = 3/8", φ12.7mm = 1/2", φ19.1mm = 3/4", φ25.4mm = 1".

What does a 3:1 shrink ratio mean in practice?

A 3:1 shrink ratio means the tubing shrinks to one-third of its original expanded diameter when heat is applied. For example, a φ12.7mm (1/2") tube will shrink down to approximately φ4.2mm. This makes it suitable for covering connectors, terminals, and irregular shapes that standard 2:1 tubing cannot grip tightly. It also allows the adhesive layer more time to flow and seal before the tube fully contracts.

Is this heat shrink tubing waterproof?

Yes. The triple wall construction includes an inner adhesive layer that melts and flows when heat is applied, creating a moisture-resistant seal around the cable or connector. This makes it generally suitable for outdoor, marine, and automotive applications where moisture ingress is a concern. For fully submerged or high-pressure water exposure, additional sealing measures may be advisable.

Can I use this tubing outdoors or in marine environments?

Yes. The adhesive inner wall creates a sealed barrier that resists moisture, salt spray, and mild chemical exposure. It is commonly used in marine wiring, outdoor electrical connections, and automotive underhood applications. The polyolefin outer jacket also provides resistance to UV exposure and abrasion. For prolonged direct UV exposure in harsh climates, additional UV-protective conduit or tape may be advisable for long-term installations.

What wire gauges and connector types is this compatible with?

This tubing is compatible with a wide range of wire gauges and connector types. The 16 available sizes (φ1.6mm through φ65mm) cover everything from small signal wires and instrument cables to large battery cables and conduit ends. It works with standard butt connectors, ring terminals, spade connectors, and bare wire splices. Always verify the expanded inner diameter against your specific cable or connector OD before ordering.

How long is each piece, and can I cut it to a shorter length?

Each piece is approximately 1 meter (≈39.4") in length. You can order 1, 2, or 5 pieces depending on the size and color selected. The tubing can be cut to any shorter length with scissors or a utility knife before applying heat — simply cut to your desired length, slide it over the cable, and apply heat evenly with a heat gun.

Which size should I choose for automotive battery cables or large connectors?

For automotive battery cables, large ring terminals, or heavy-gauge wiring bundles, sizes φ25.4mm (1"), φ30mm (≈1-3/16"), φ39mm (≈1-9/16"), φ50mm (≈2"), or φ65mm (≈2-9/16") are generally appropriate. Measure the connector or cable bundle diameter and select the next size up to ensure the tubing slides on easily before shrinking.

What temperature and tools do I need to shrink this tubing?

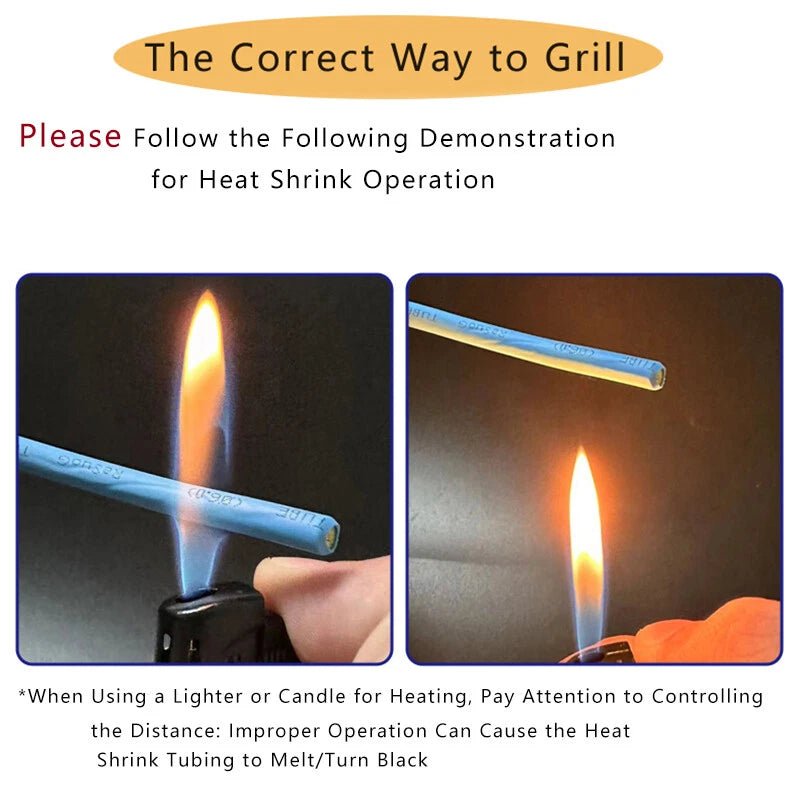

Triple wall adhesive-lined heat shrink tubing typically requires a heat source of around 120–150°C (248–302°F) to begin shrinking, with full adhesive flow occurring at higher temperatures. A heat gun is strongly recommended over an open flame for even, controlled shrinkage. Move the heat gun slowly along the length of the tube, working from the center outward to prevent air pockets from forming under the tubing.
