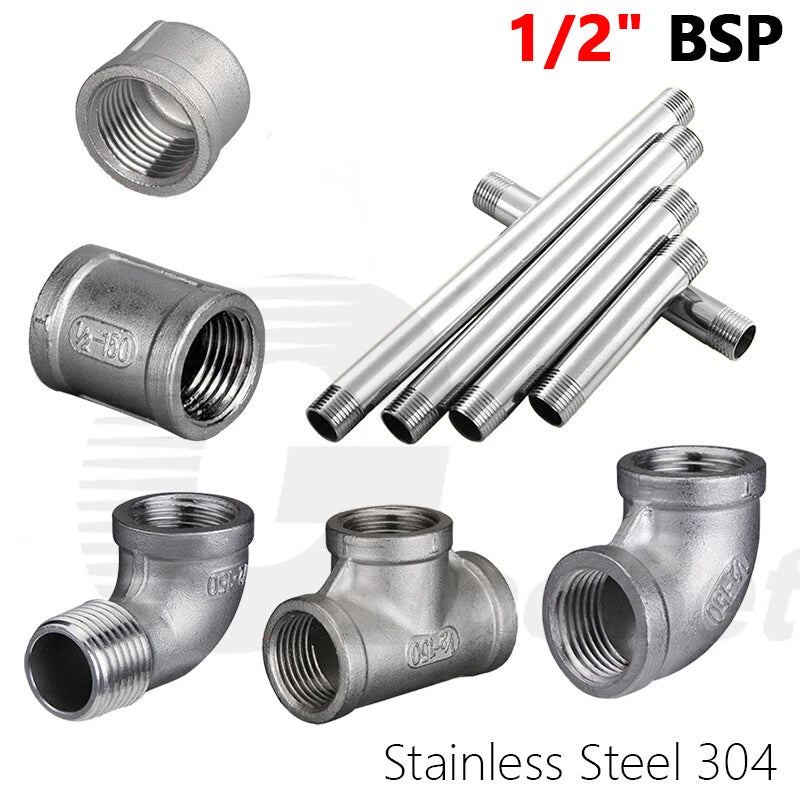

304 Stainless Steel 1/2" BSP Threaded Pipe Fittings — Nipple, Elbow, Tee, Socket & Cap

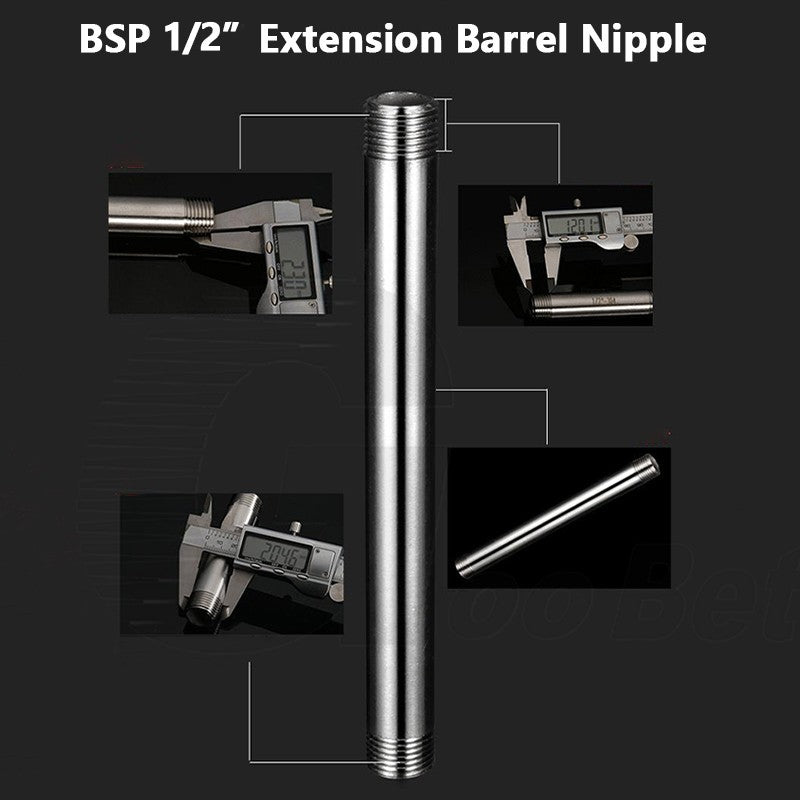

Measure the gap between your two threaded fittings or pipe ends, then add the thread engagement depth on each side — typically 8–12mm per end for 1/2" BSP. For example, a 100mm nipple (≈3.9" overall) generally gives you roughly 76–84mm of exposed pipe between two fittings. When in doubt, size up — you can always use a union to fine-tune the run. Available lengths run from 30mm (≈1.2") to 500mm (≈19.7").

304 stainless steel BSP fittings in 1/2" size generally handle working pressures up to 150 PSI (≈10 bar) for water and non-corrosive fluids at ambient temperature. Actual ratings depend on wall thickness, thread engagement, and the sealant used. Contact us to confirm suitability for high-pressure or elevated-temperature applications.

304 stainless steel offers good corrosion resistance in most outdoor environments, including garden irrigation, outdoor water supply, and light industrial outdoor plumbing. For coastal or marine environments with heavy salt-spray exposure, 316 stainless steel is generally recommended. These fittings perform well in non-marine outdoor settings.

These fittings use BSP (British Standard Pipe) threads — specifically 1/2" BSP, also written G1/2. BSP threads are parallel (BSPP) and are not directly interchangeable with NPT (National Pipe Taper) threads common in North American plumbing. If your existing pipes are NPT, you will need a BSP-to-NPT adapter to connect them.

For BSPP (parallel) threads, an O-ring face seal or a flat washer combined with PTFE (Teflon) tape is typically used. Apply 2–3 wraps of PTFE tape in the direction of the thread. Avoid over-tightening stainless steel fittings — galling can occur if forced. Hand-tight plus 1–2 turns with a wrench is generally sufficient for a leak-free seal.

These fittings are designed for water, air, and general fluid applications. Gas line installations are subject to local building codes and typically require fittings that are specifically rated and certified for gas service. We recommend consulting a licensed plumber or gas fitter and verifying local regulations before using any fitting in a gas application.

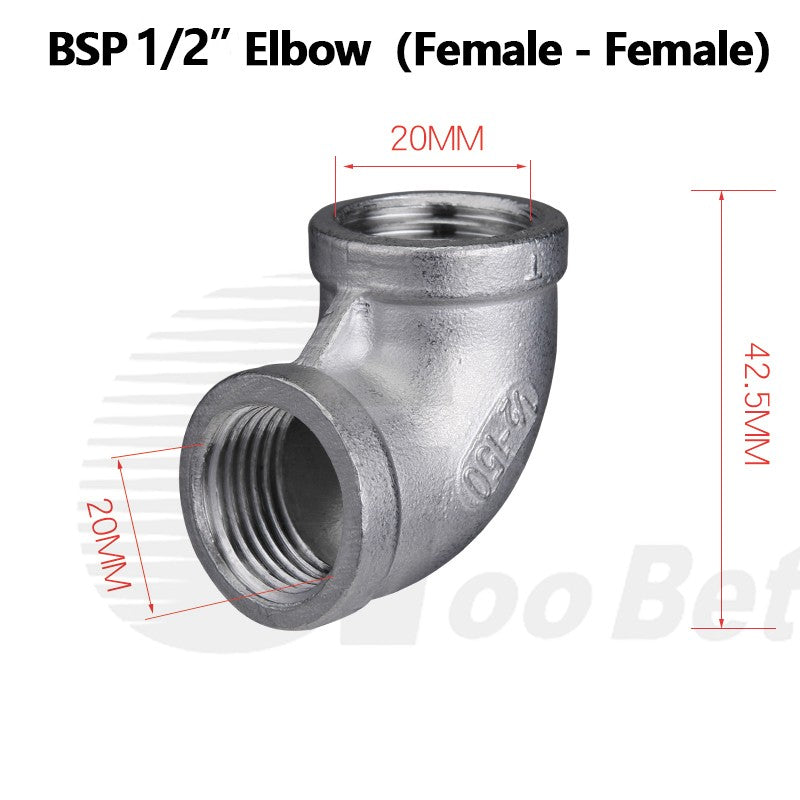

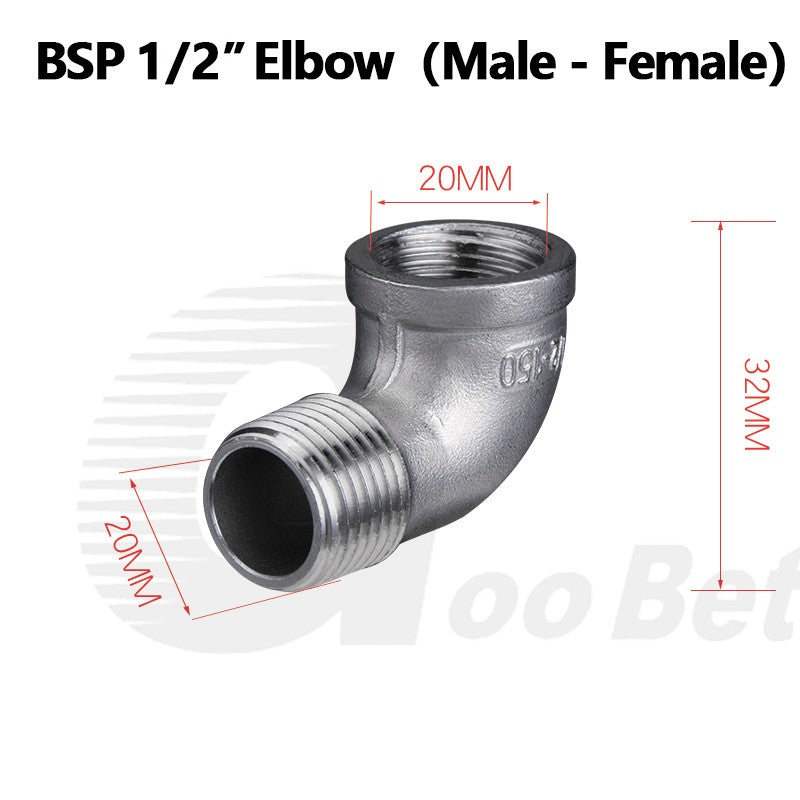

The Female-Female (F-F) elbow has internal BSP threads on both ports — it connects two male-threaded pipes or nipples at a 90° angle. The Male-Female (M-F) elbow has one external (male) BSP thread and one internal (female) BSP thread, useful when you need to change direction while also extending a run or connecting directly to a female-threaded port such as a pump or valve body.
