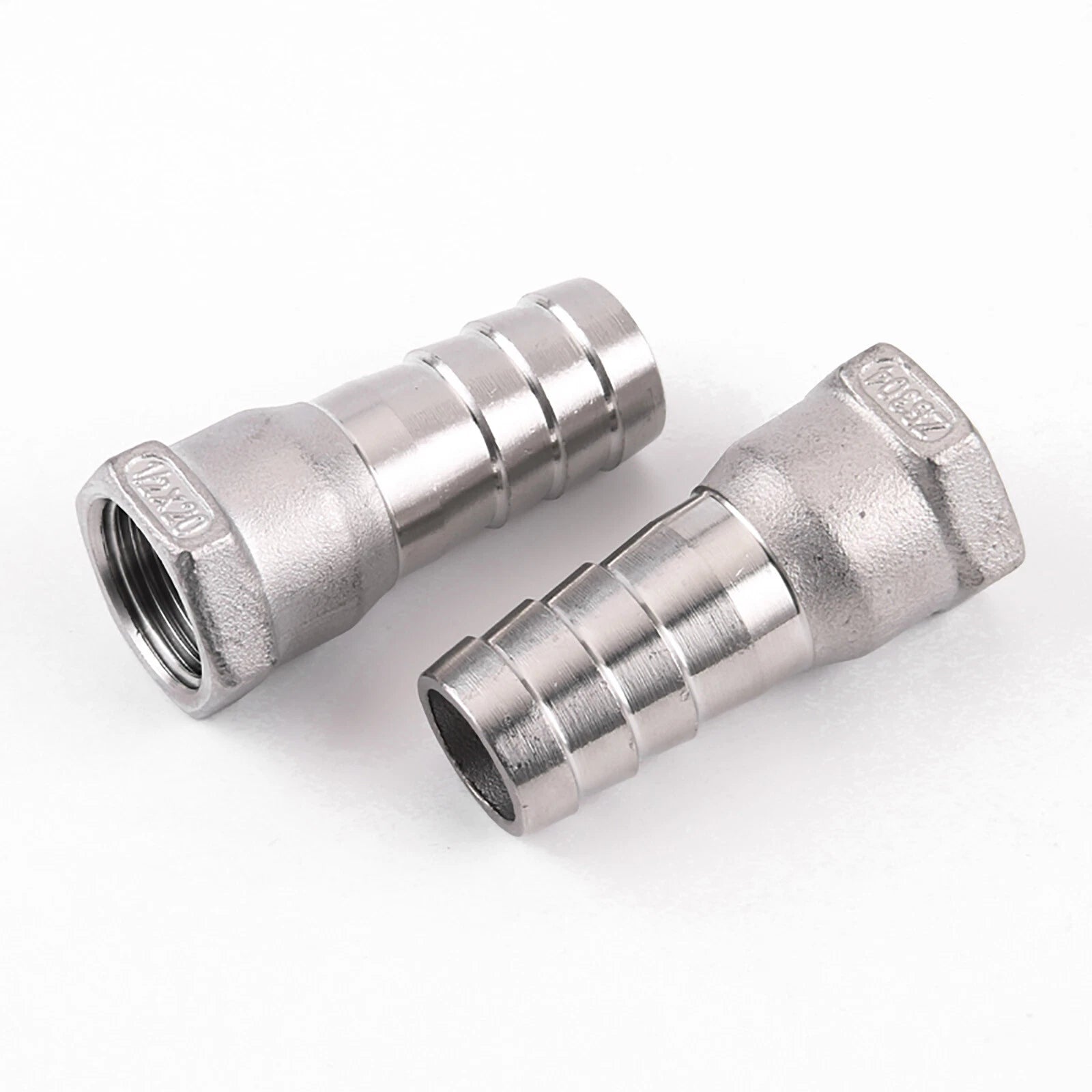

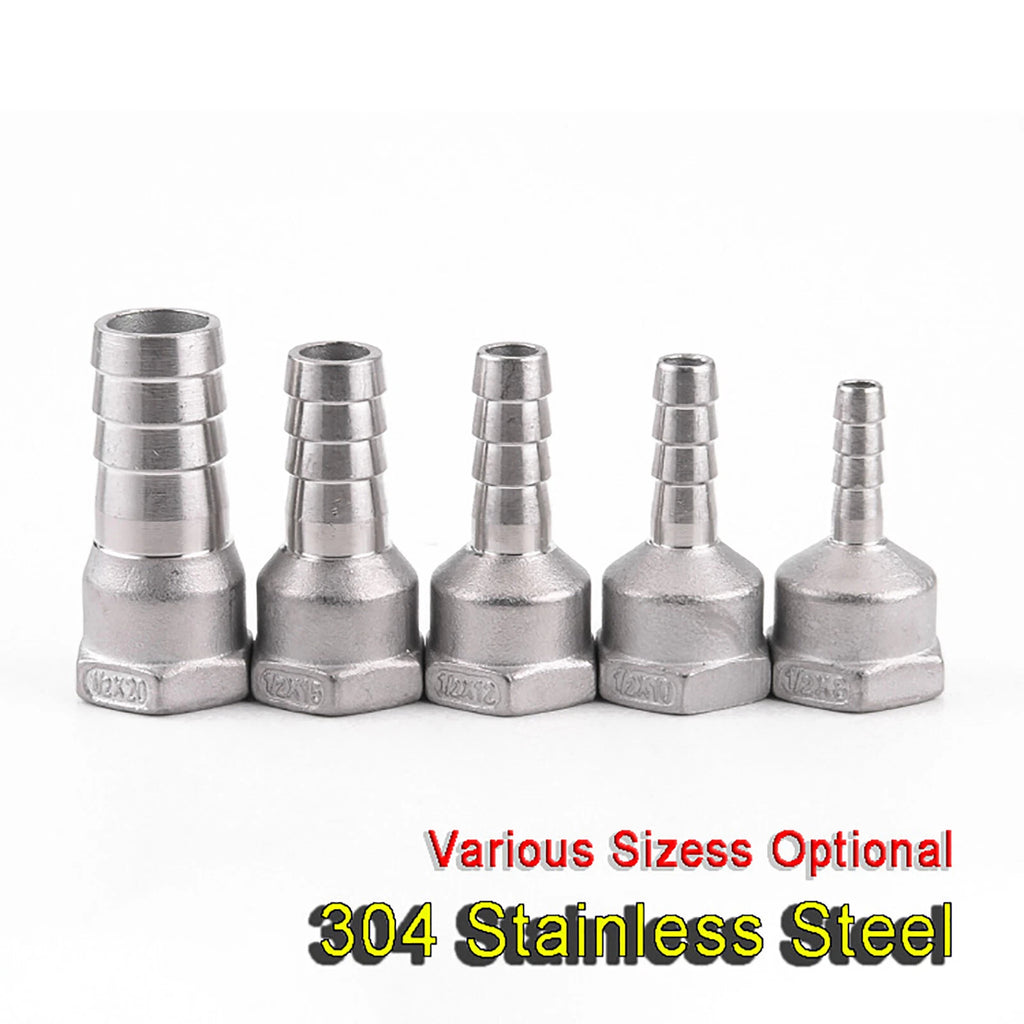

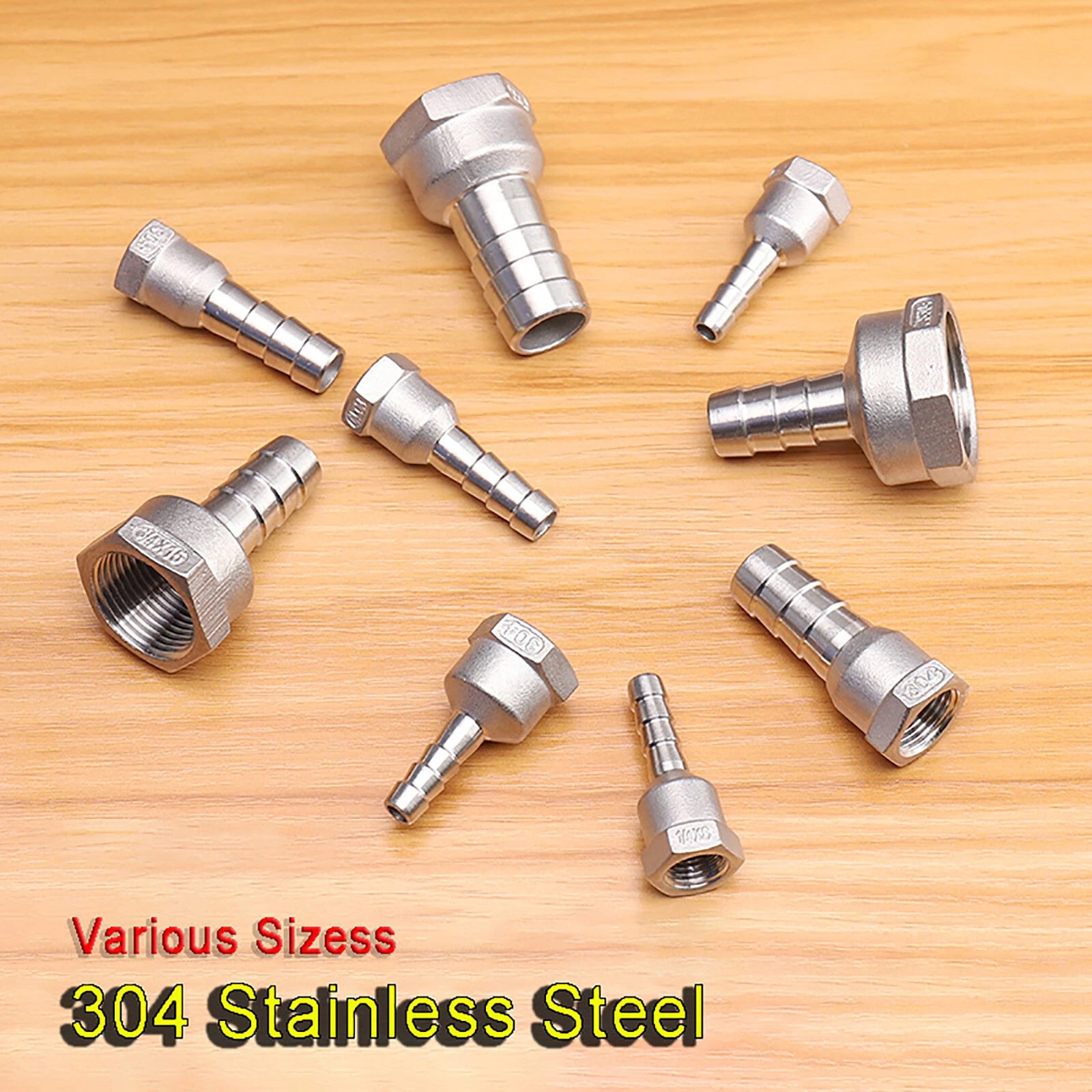

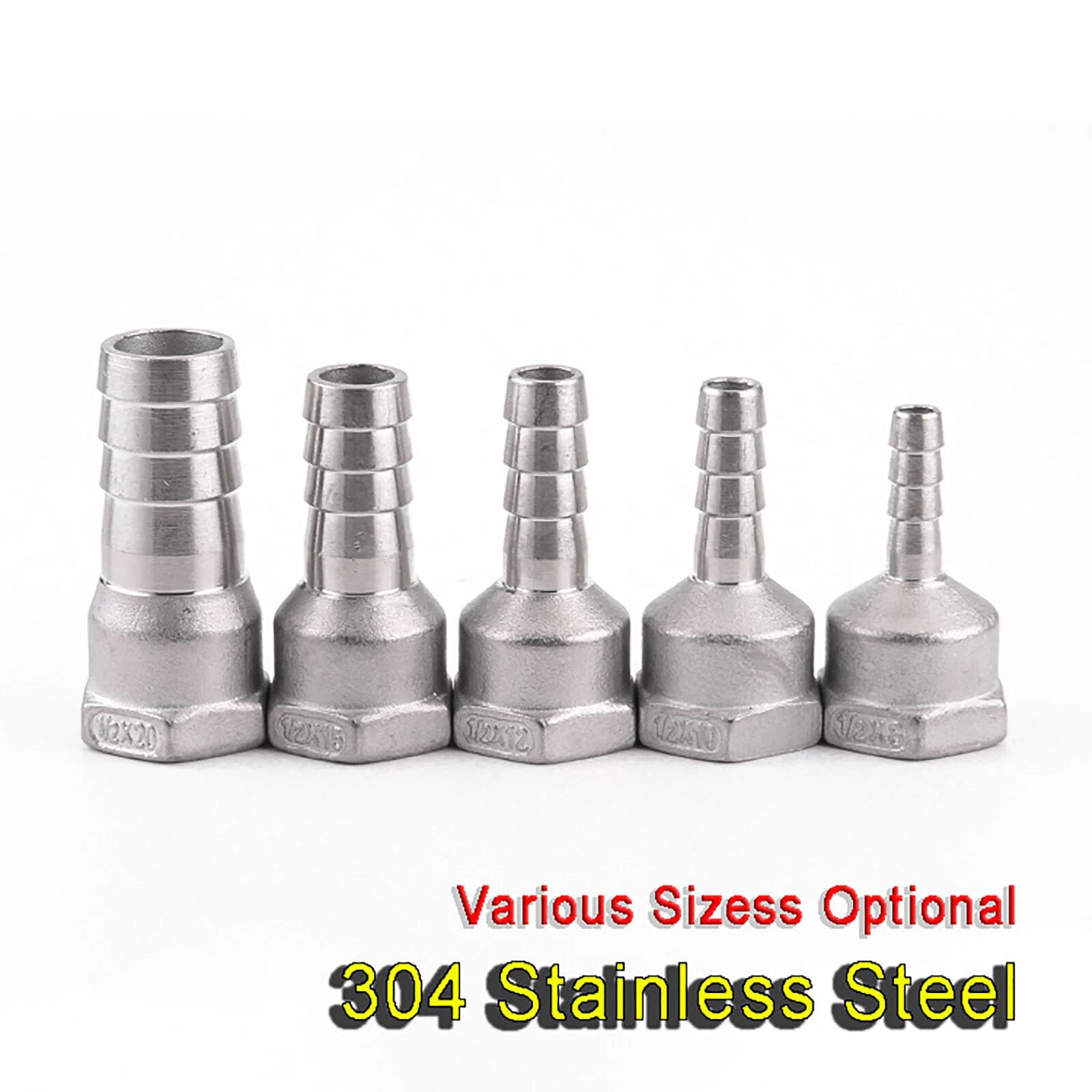

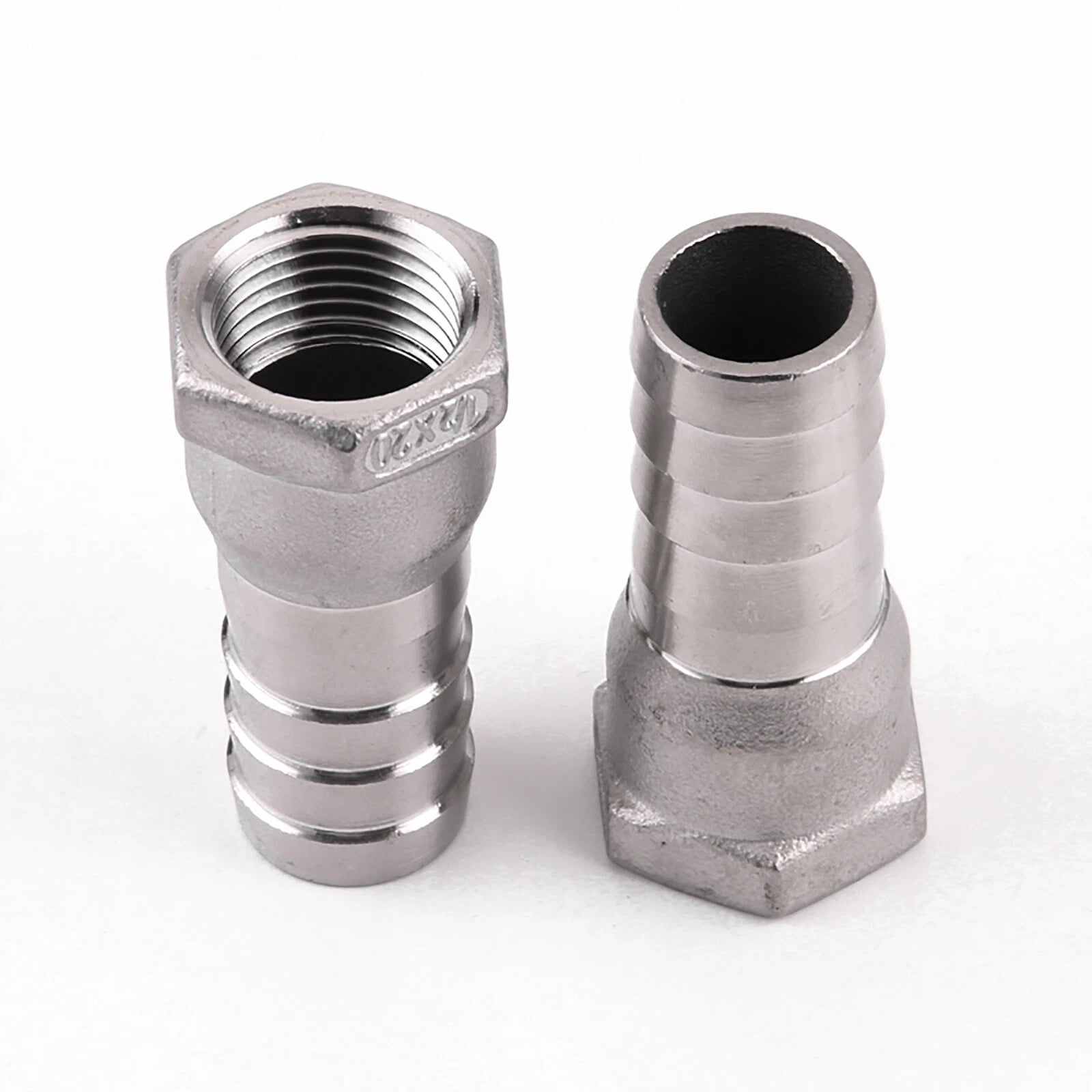

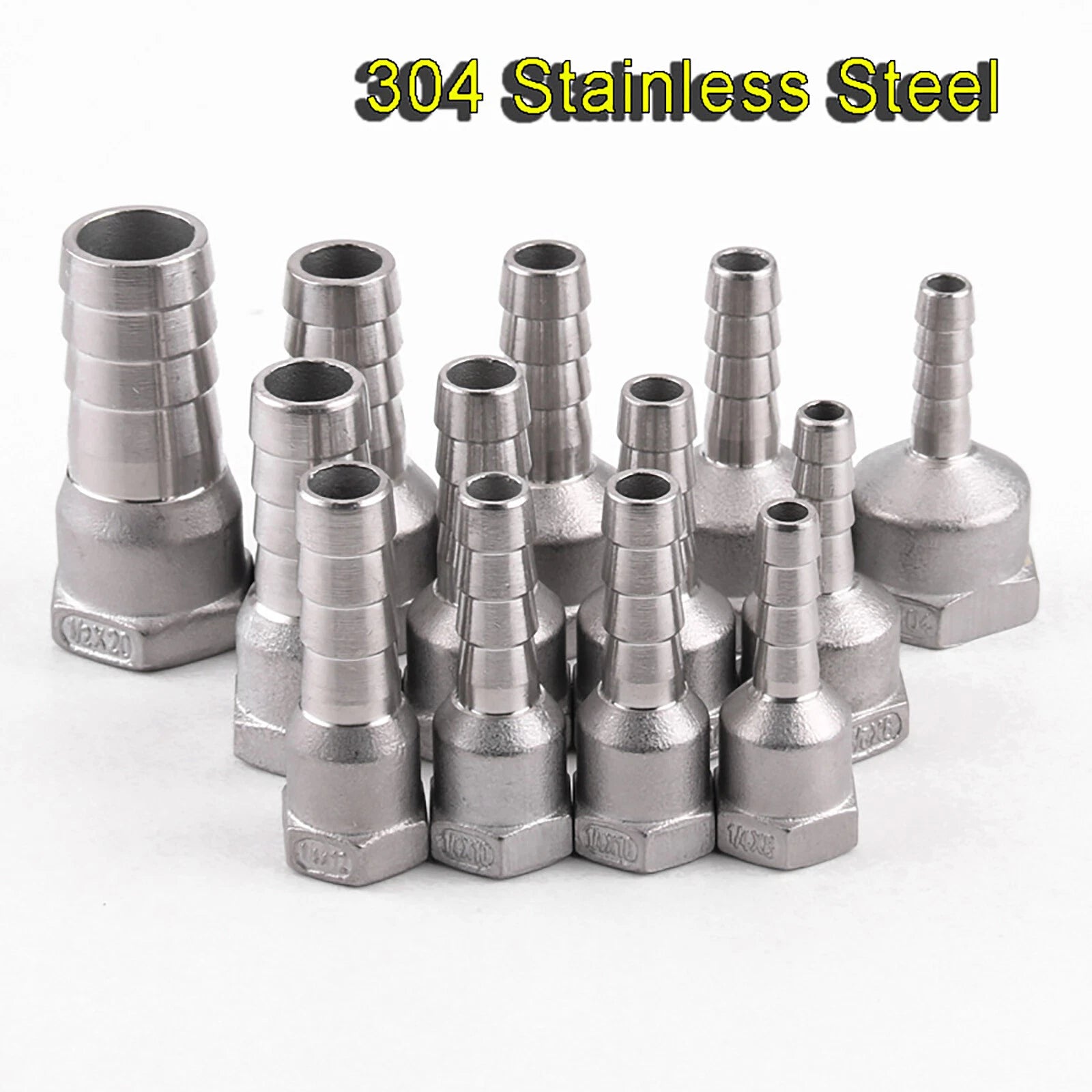

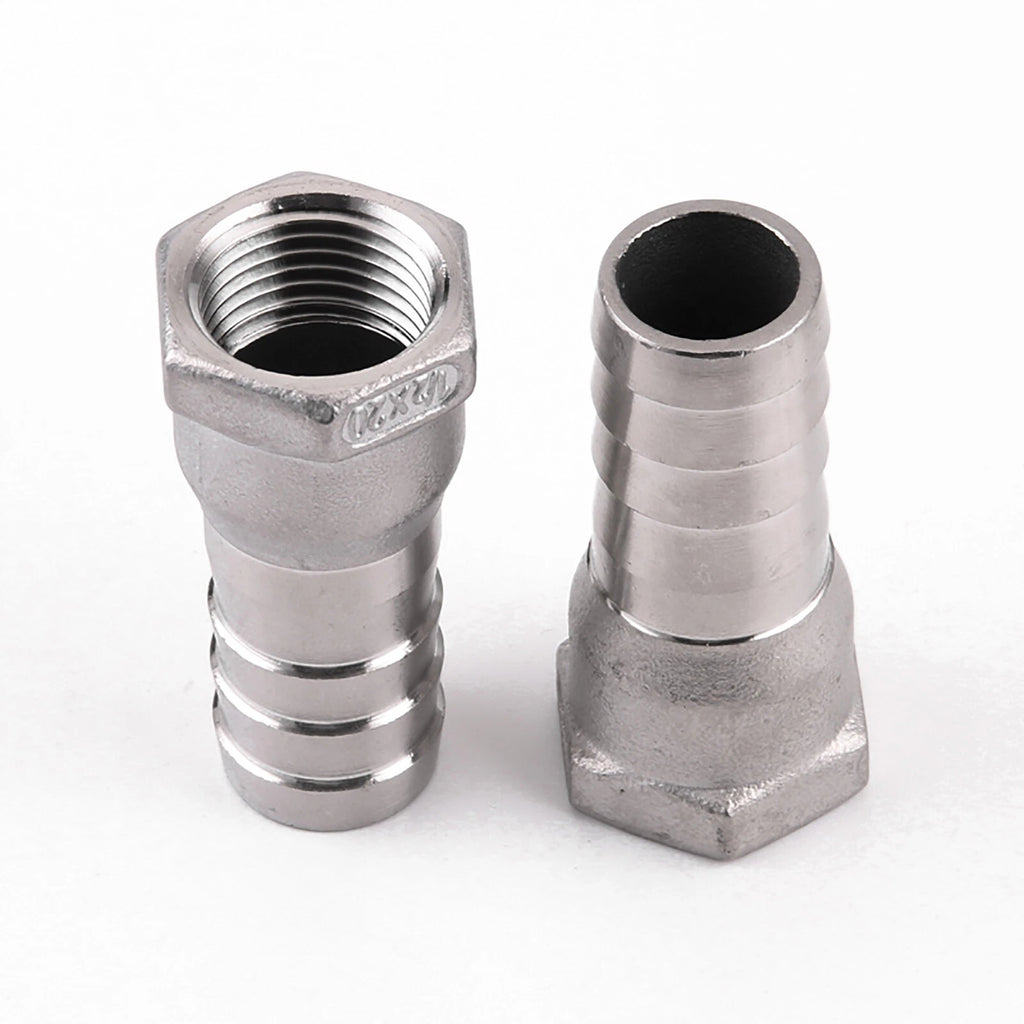

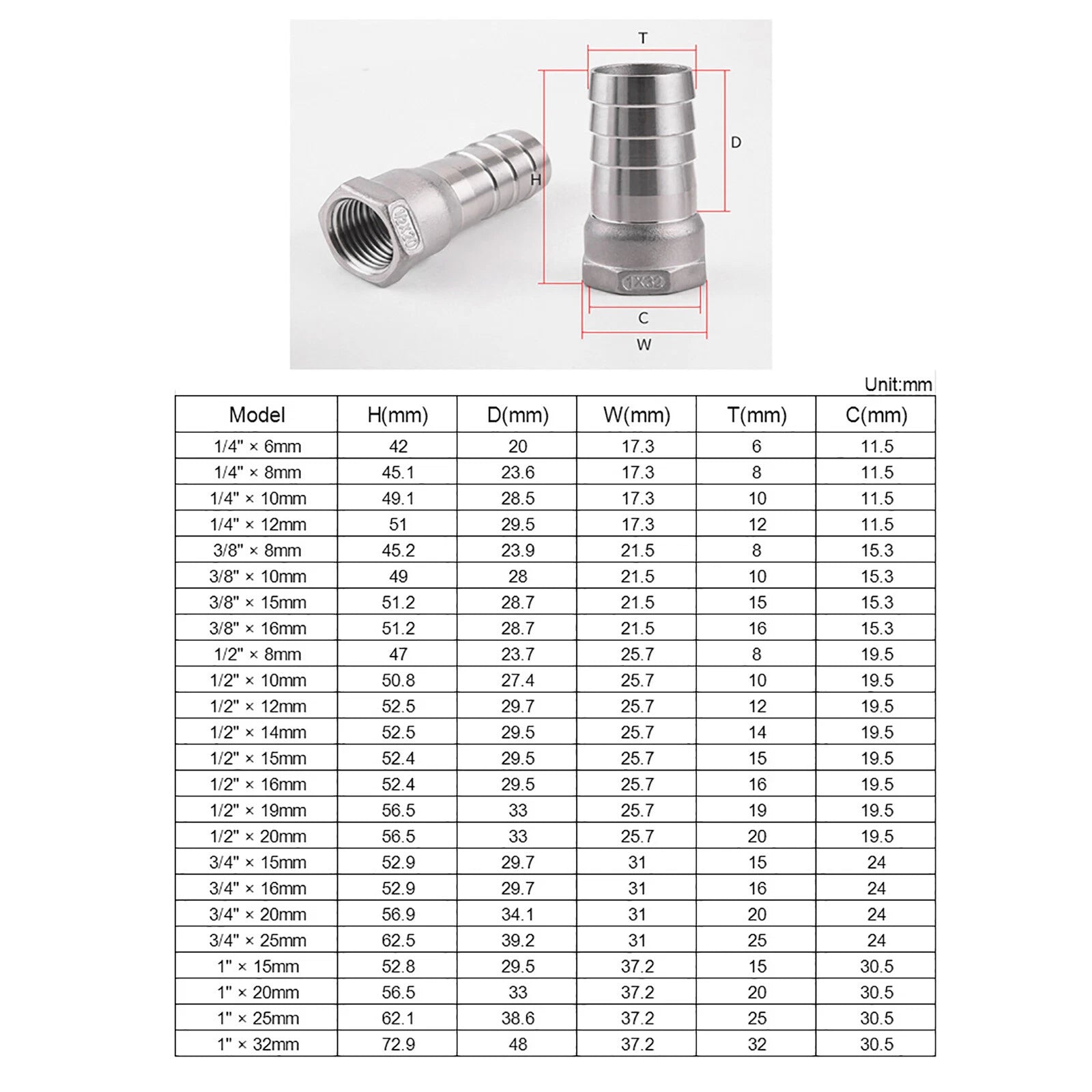

304 Stainless Steel Female NPT x Barb Hose Tail Connector — 1/4" to 1"

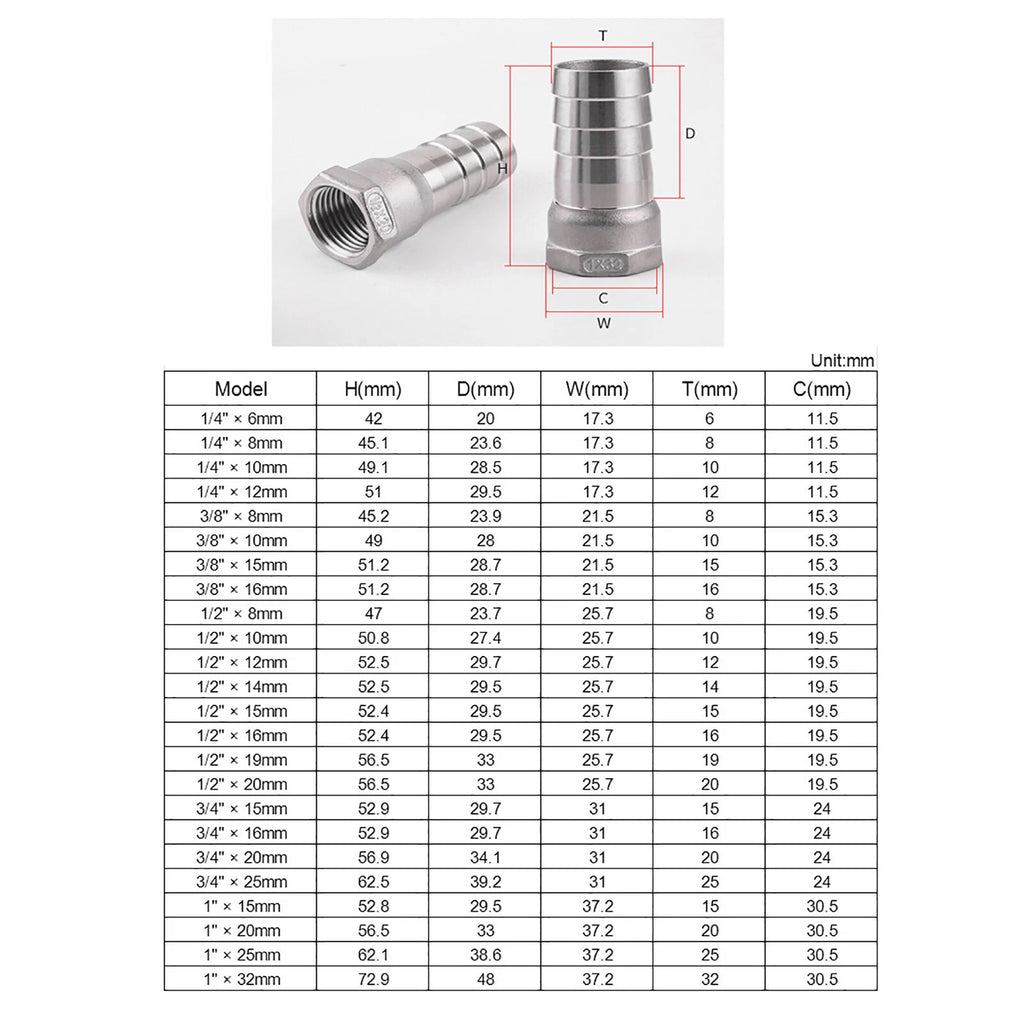

Match the barb length to your hose's inner diameter (ID). Generally, the barb OD should be equal to or slightly larger than the hose ID to create a snug, leak-resistant grip. For example, a hose with a 1/2" (≈12.7mm) ID typically pairs well with a 12mm or 15mm barb. When in doubt, go slightly longer for a tighter seal, and always secure with a stainless steel hose clamp on pressurized lines.

These connectors use NPT (National Pipe Taper) female threads — the standard tapered thread used in the US for pipe fittings and plumbing. NPT threads are generally not directly compatible with BSP (British Standard Pipe) threads. If you need BSP compatibility, an NPT-to-BSP adapter is typically required.

Yes. 304 stainless steel offers solid corrosion resistance in most outdoor, freshwater, and mild chemical environments, making it a reliable choice for garden irrigation fittings and outdoor plumbing connections. For highly saline, marine, or chlorinated environments, 316 stainless steel is generally the better option.

304 stainless steel barb fittings typically handle working pressures up to 150 PSI when used with a properly sized hose clamp. Actual pressure capacity depends on hose material, wall thickness, clamp type, and temperature. Always verify the pressure rating against your specific system requirements before installation.

For gravity-fed or very low-pressure systems, a push-fit connection may hold without a clamp. For any pressurized line, a stainless steel hose clamp is strongly recommended to prevent hose blowoff and ensure a leak-free seal. The ribbed barb profile helps grip the hose, but a clamp provides the mechanical retention needed under pressure.

These barb fittings are generally compatible with flexible hoses including PVC, rubber, silicone, and polyurethane tubing. The hose inner diameter should match the barb outer diameter for a secure fit. Rigid tubing (copper, CPVC, PEX) is not compatible with barb-style fittings. Check the variant options for the specific barb size before ordering.

Yes — applying PTFE (Teflon) tape to the male pipe threads before threading into the female NPT end of this fitting is recommended. PTFE tape fills the thread gaps on tapered NPT connections and helps achieve a leak-free seal. Wrap the tape clockwise (when facing the thread end) for 2–3 layers before assembly.
