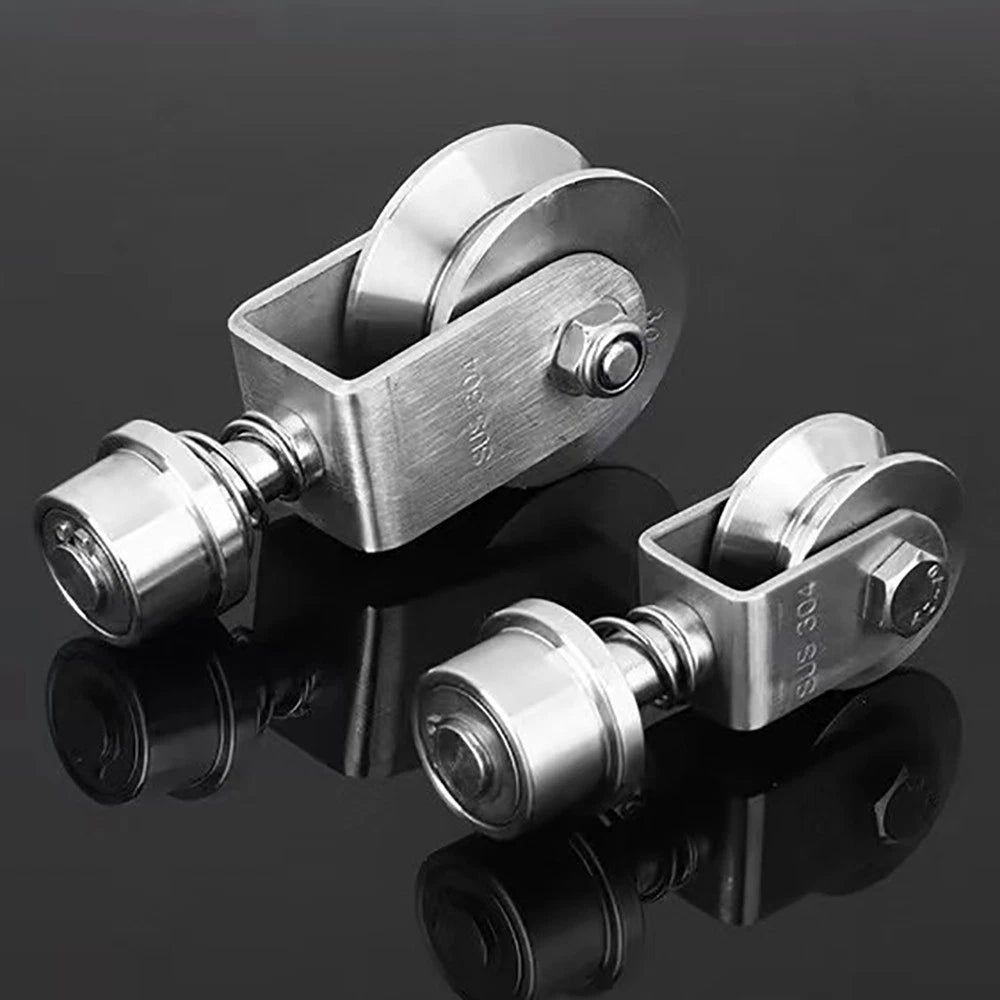

304 Stainless Steel Pulley "U V H" Groove Shape Roller Wheels Idler Pulley Wheel

Roll over image to zoom in Click on image to zoom

304 Stainless Steel Pulley "U V H" Groove Shape Roller Wheels Idler Pulley Wheel

HomeDIYer

No reviews

By HomeDIYer®

Size Specifications: U Type (OD 48mm)

Price:

$111.23 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

304 Stainless Steel Idler Pulley Wheel — Reliable U, V & H Groove Roller for Gates, Conveyors & DIY Builds

When a sliding gate wobbles off track, a conveyor belt skips under load, or a DIY rope-and-pulley system wears out prematurely, the culprit is almost always an undersized or corrosion-prone wheel. Engineers, fabricators, and hands-on builders who need a long-service roller in wet, outdoor, or industrial environments will find this 304 stainless steel idler pulley wheel purpose-built for the task.

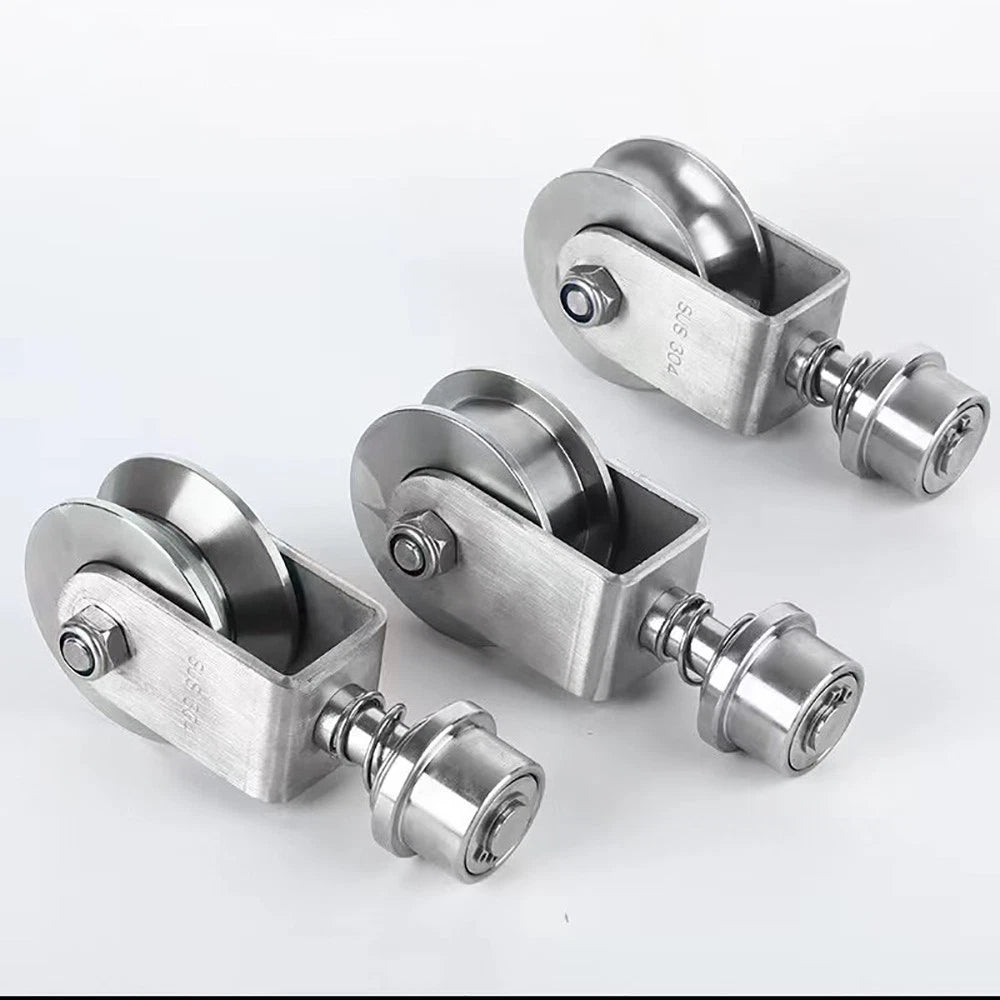

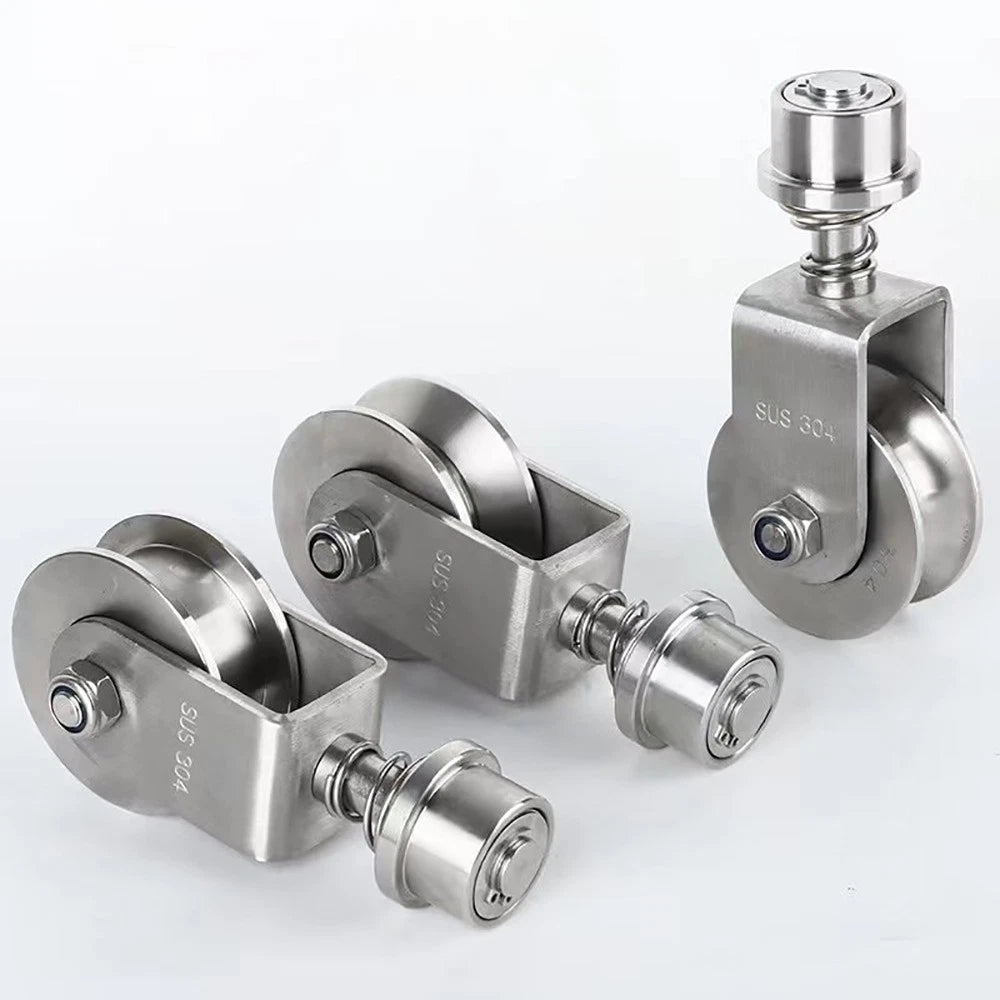

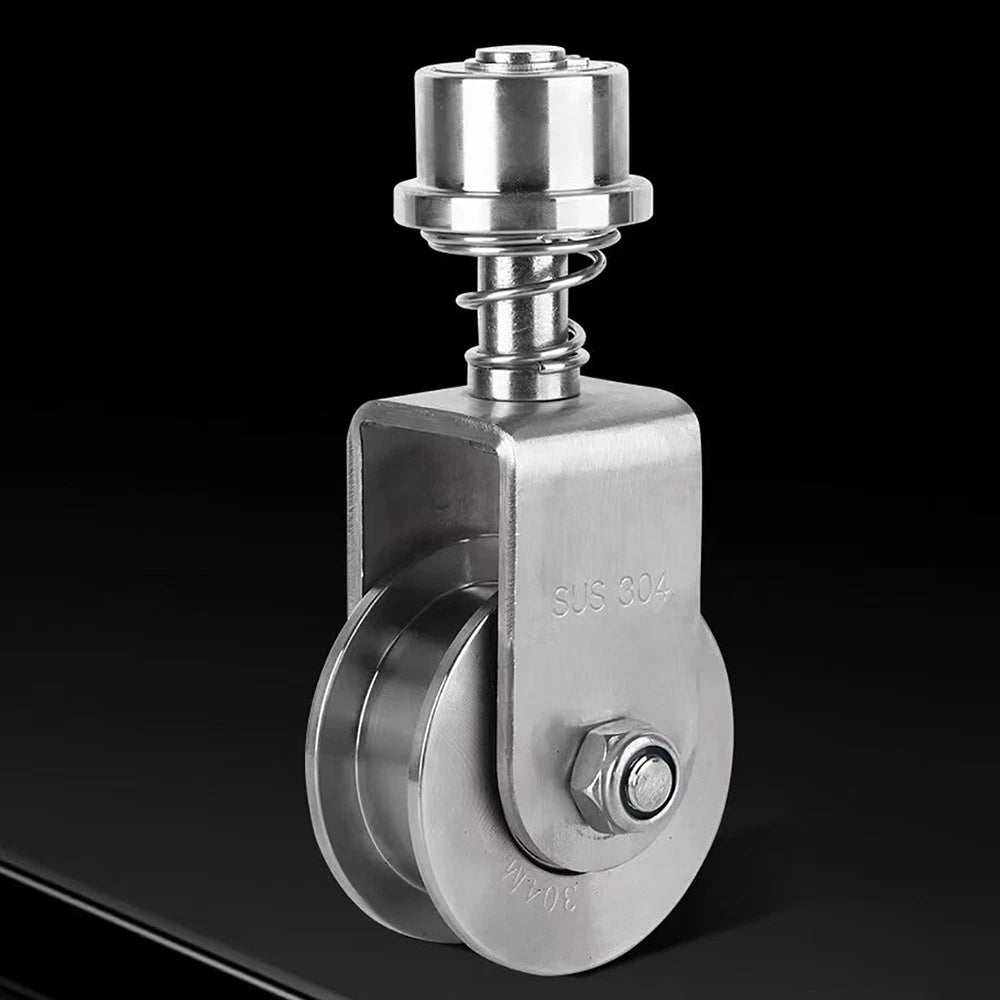

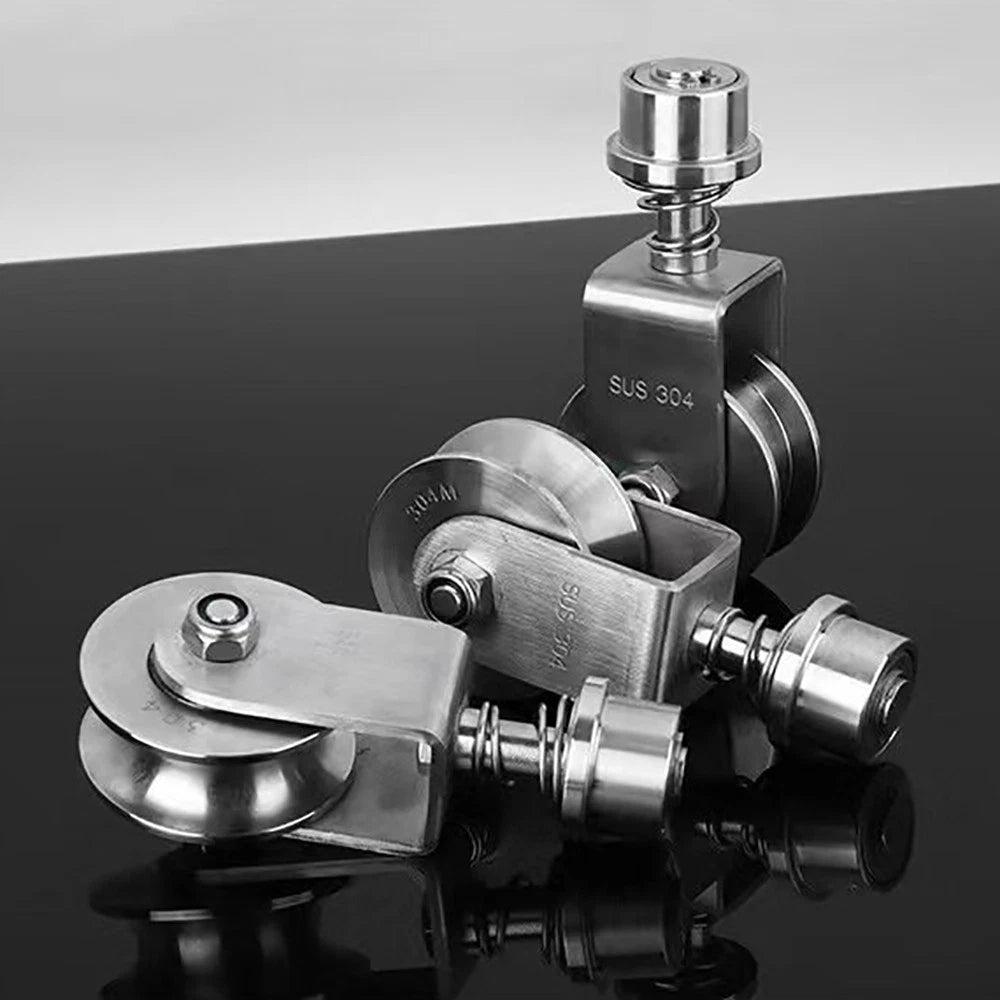

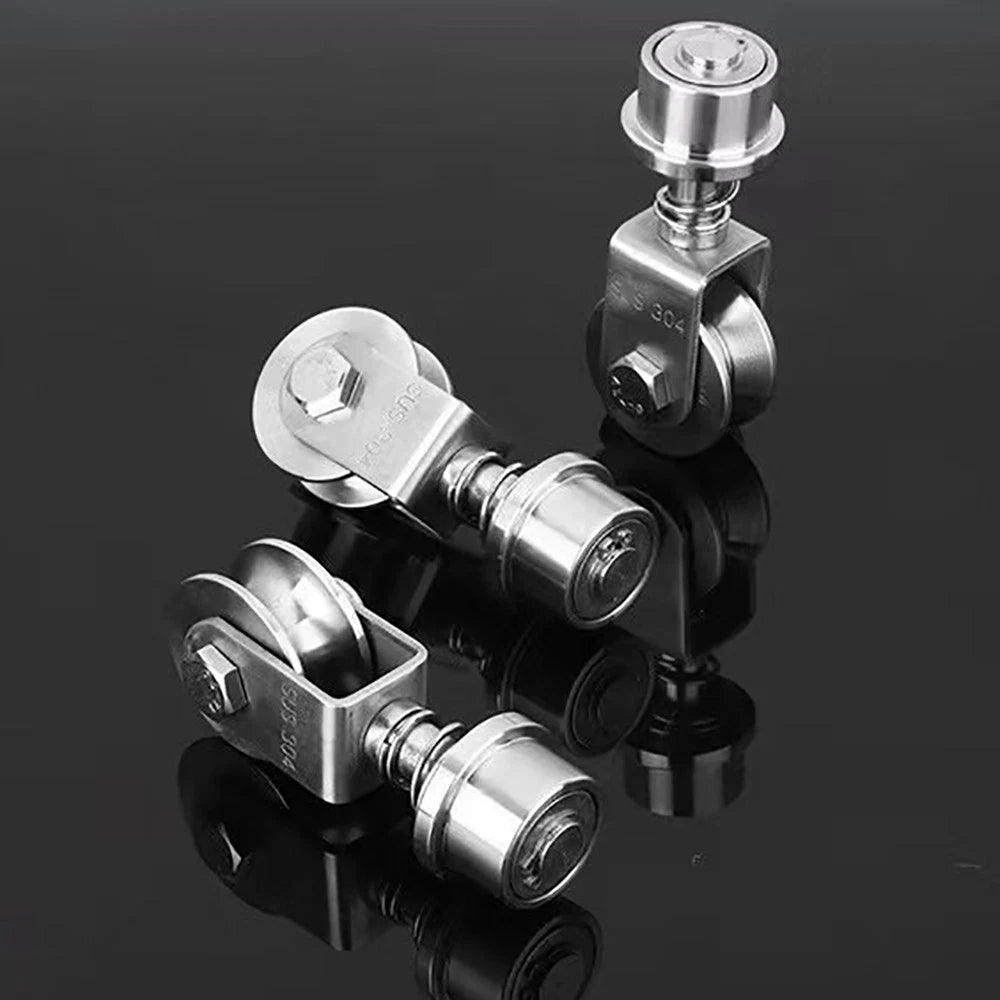

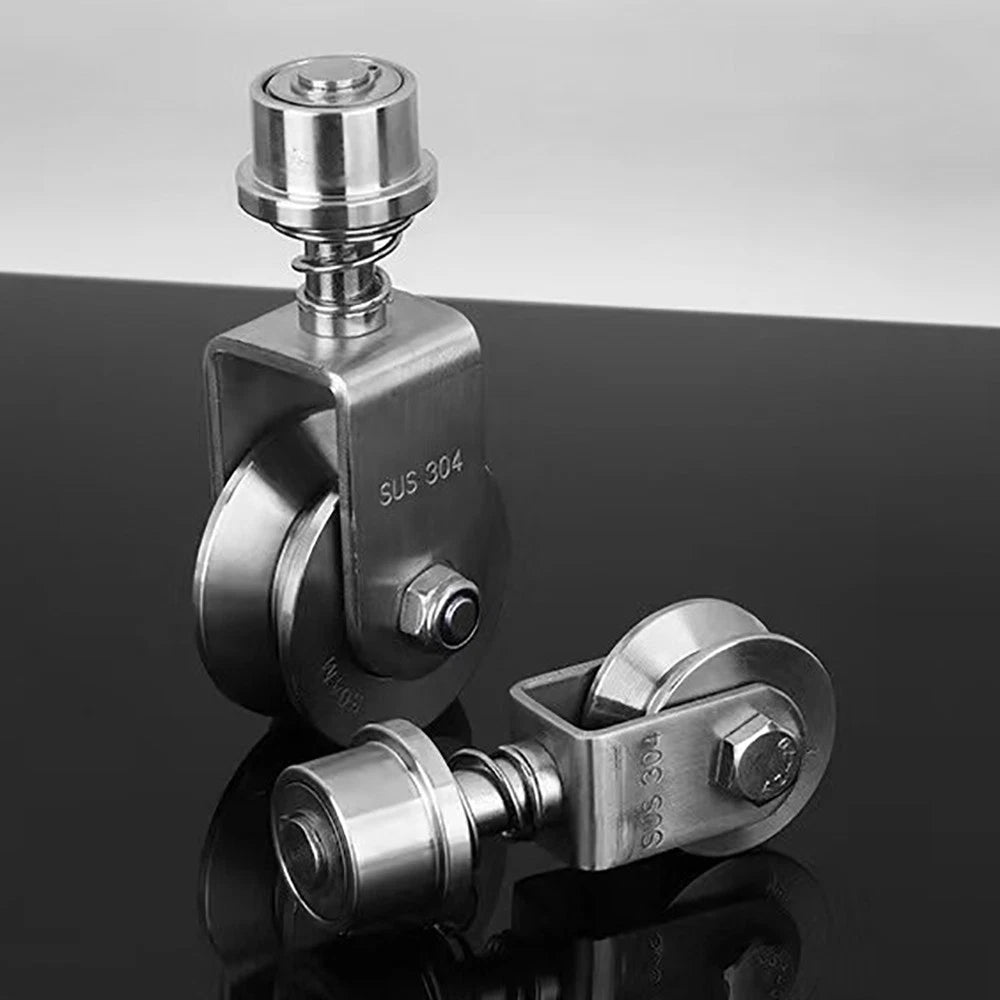

Each pulley is machined from solid 304 stainless steel and fitted with sealed bearings for smooth, low-friction rotation. Available in three groove profiles — U-groove, V-groove, and H-groove — and three outer diameter sizes: 48 mm (~1.89 in), 58 mm (~2.28 in), and 68 mm (~2.68 in). Bore diameter and overall width vary by variant; see variant options for exact dimensions. Accessory options include a door hinge bracket and a wheel frame mount for direct integration into gate or track systems.

Typical applications include sliding gate track rollers, overhead conveyor guide wheels, rope-and-cable tensioner pulleys for workshop hoists, and custom automation rigs where a corrosion-resistant idler pulley wheel is required. Long-tail use cases: stainless steel gate wheel replacement, V-groove pulley for cable guide, H-groove roller for T-slot track.

🔩 Compatible with standard round cables, V-belts, flat ropes, and T-slot / square-edge tracks depending on groove profile selected. Verify groove type and OD against your track or cable diameter before ordering.

✅ Key Features of These 304 Stainless Steel Idler Pulley Wheels

🔩 304 Stainless Steel Construction

Machined from 304-grade stainless steel for strong corrosion resistance in outdoor, marine-adjacent, and humid industrial environments — no surface coating required.

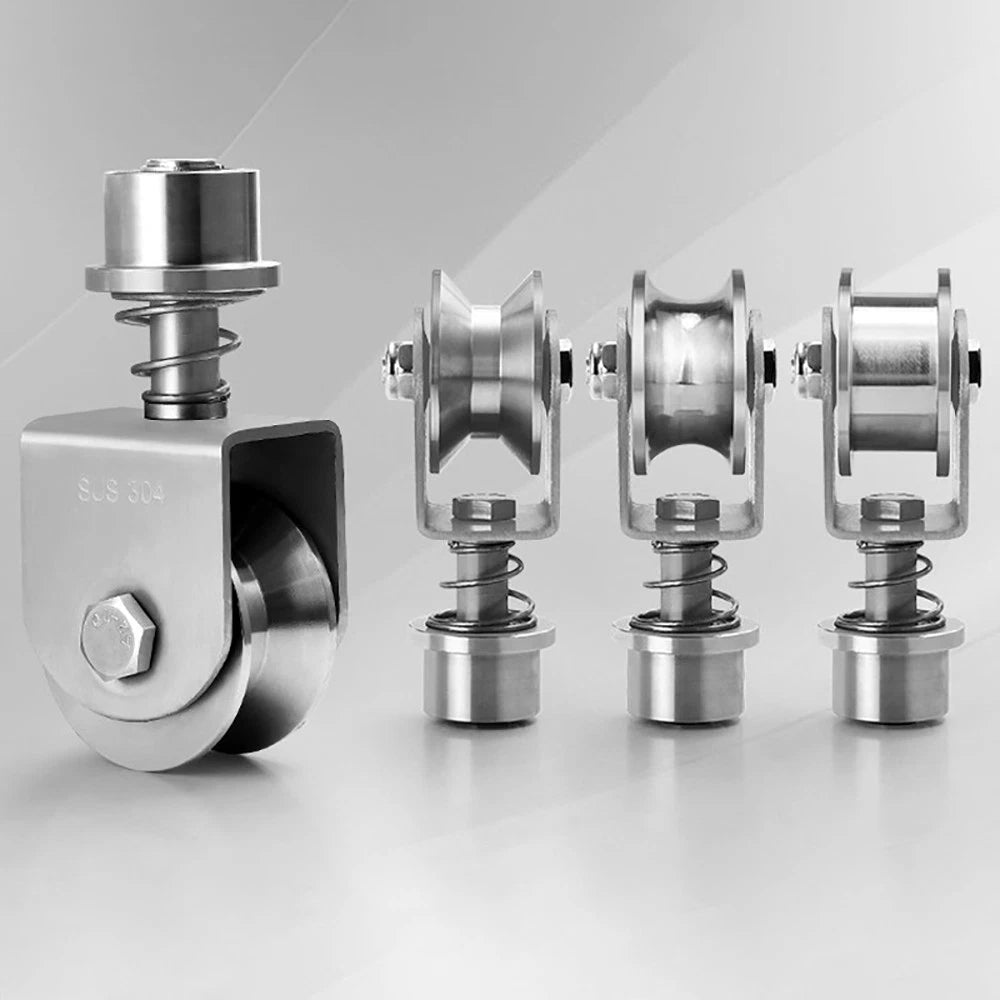

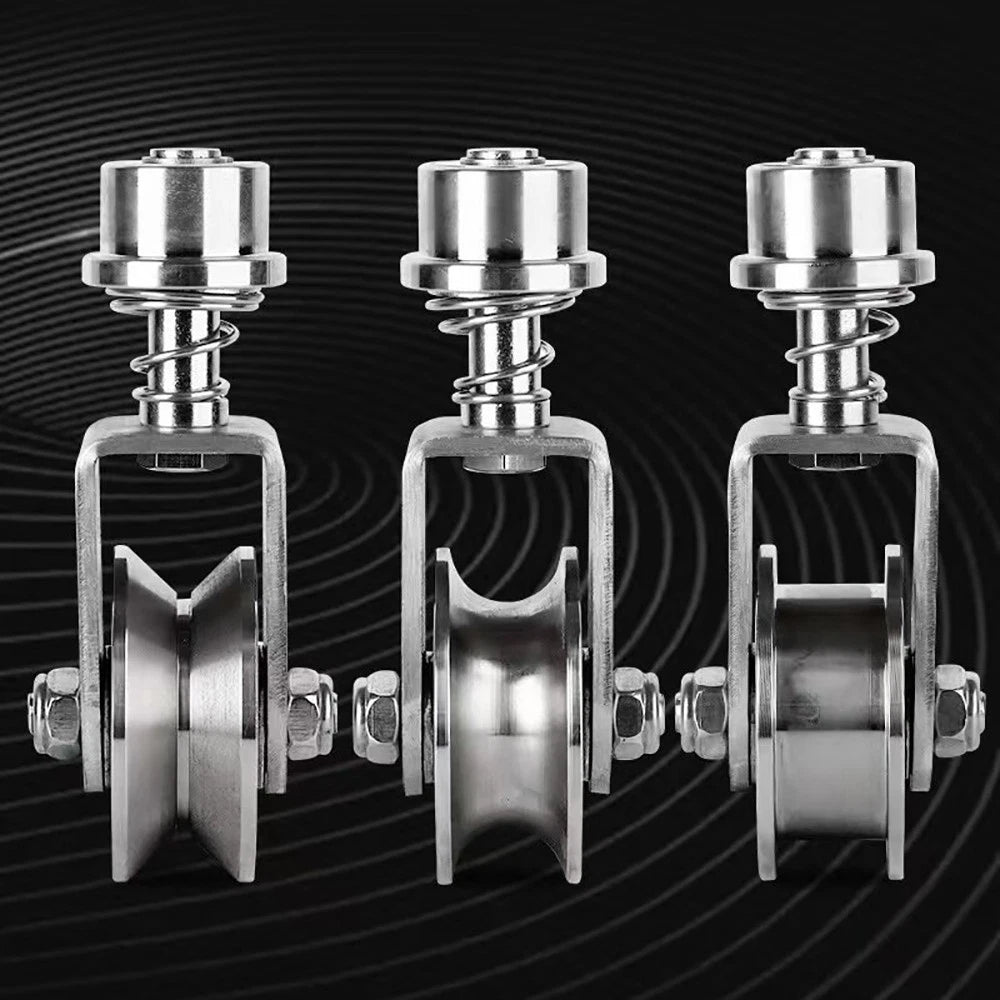

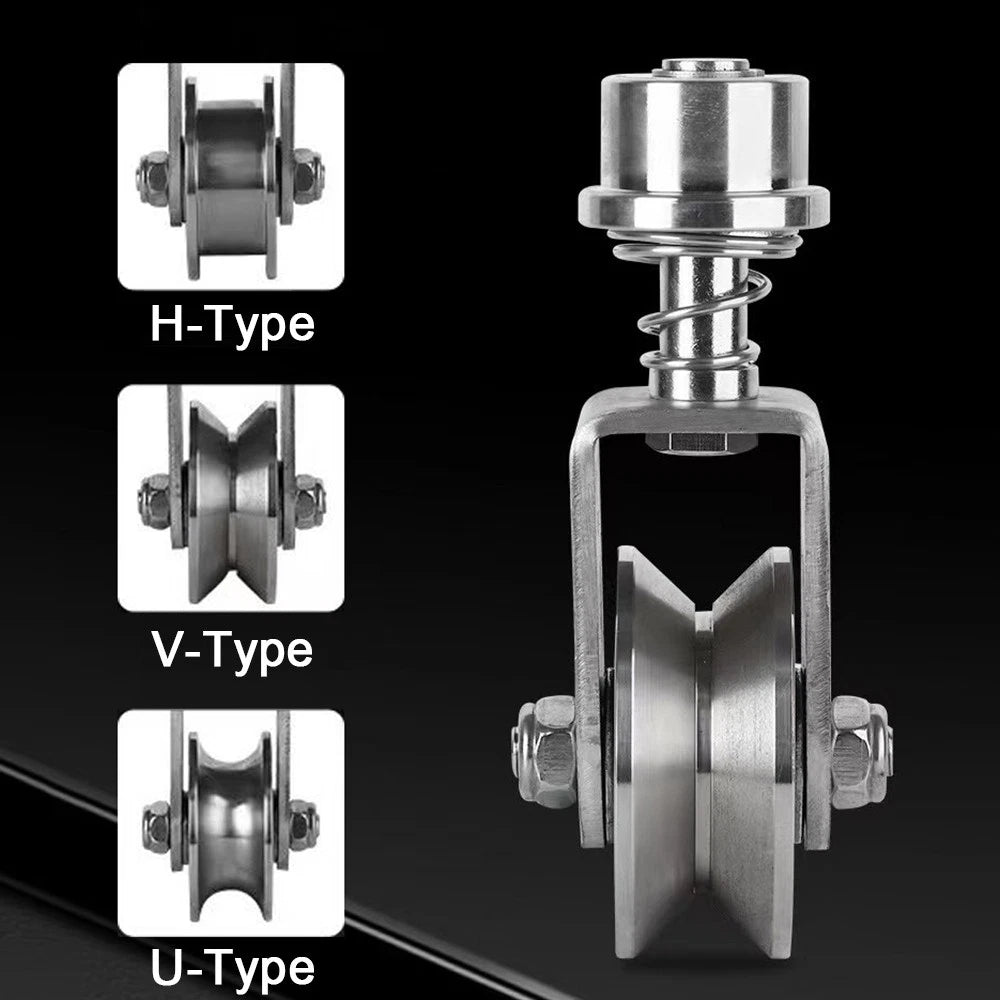

🔄 Three Groove Profiles: U, V & H

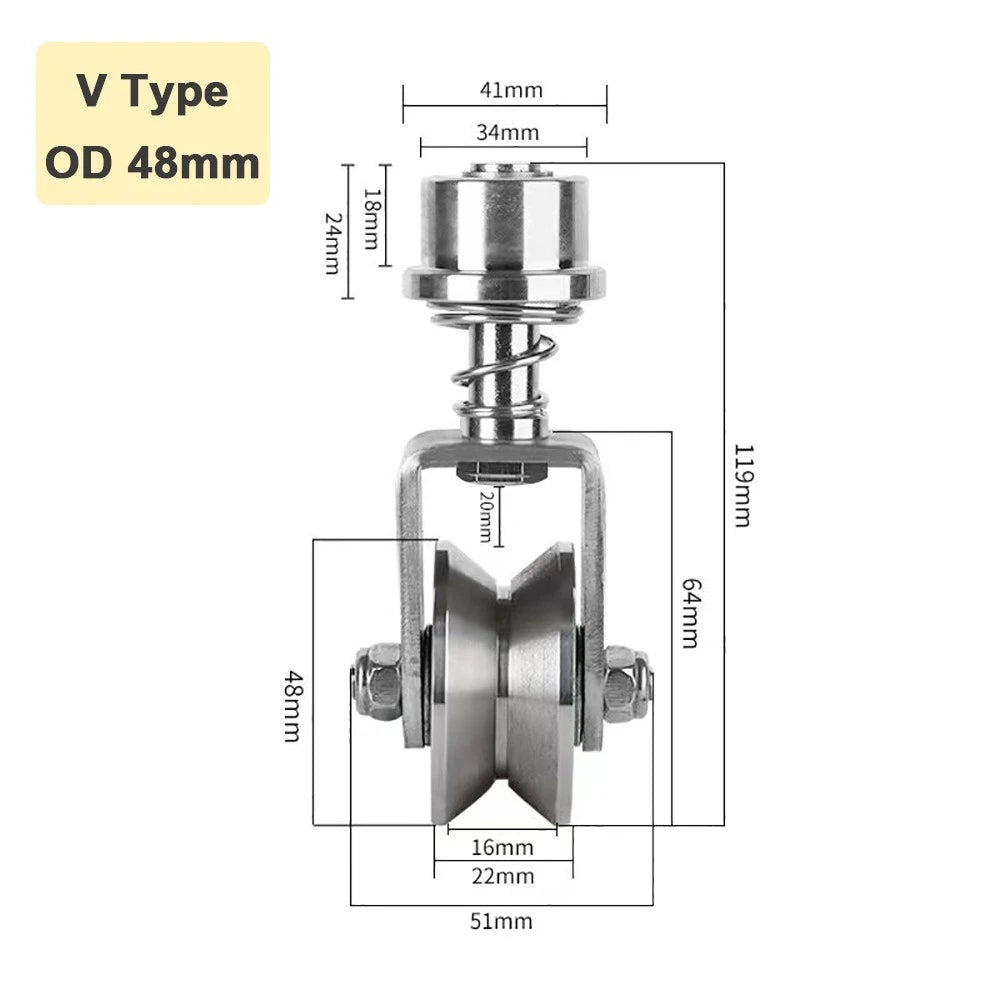

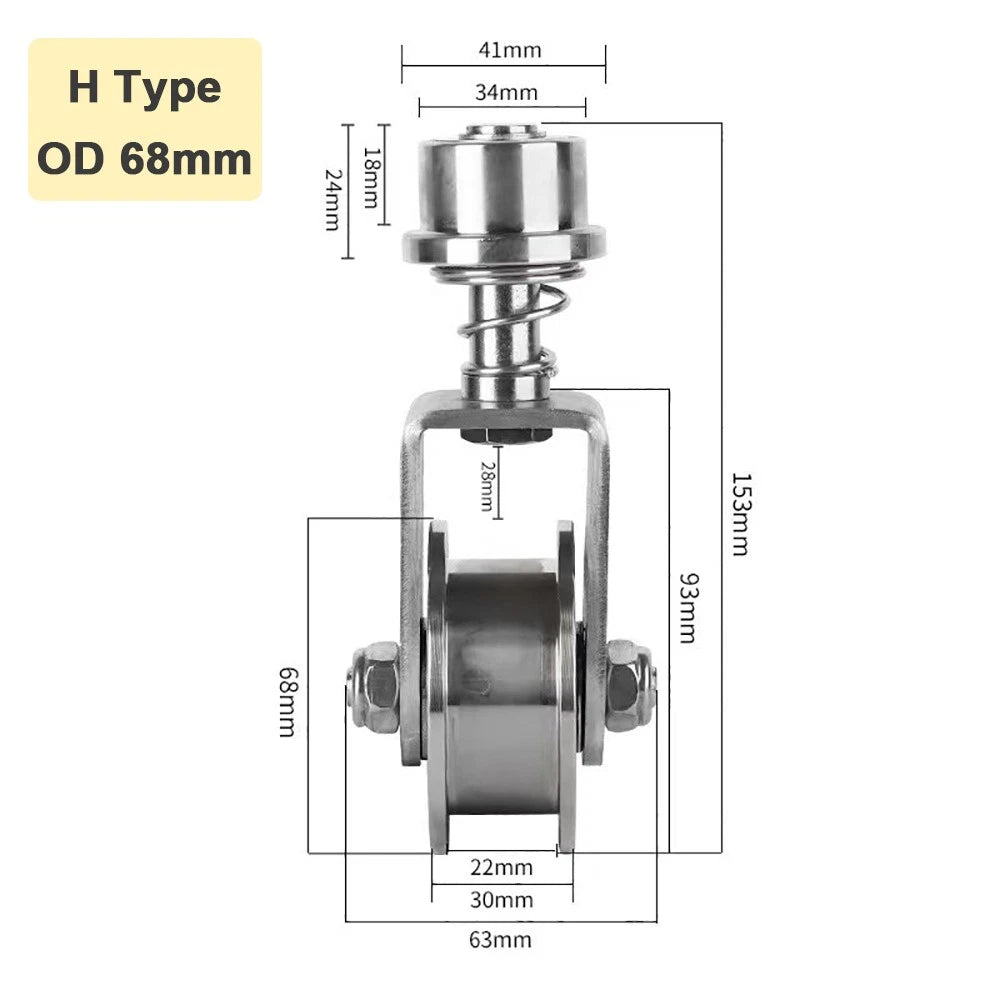

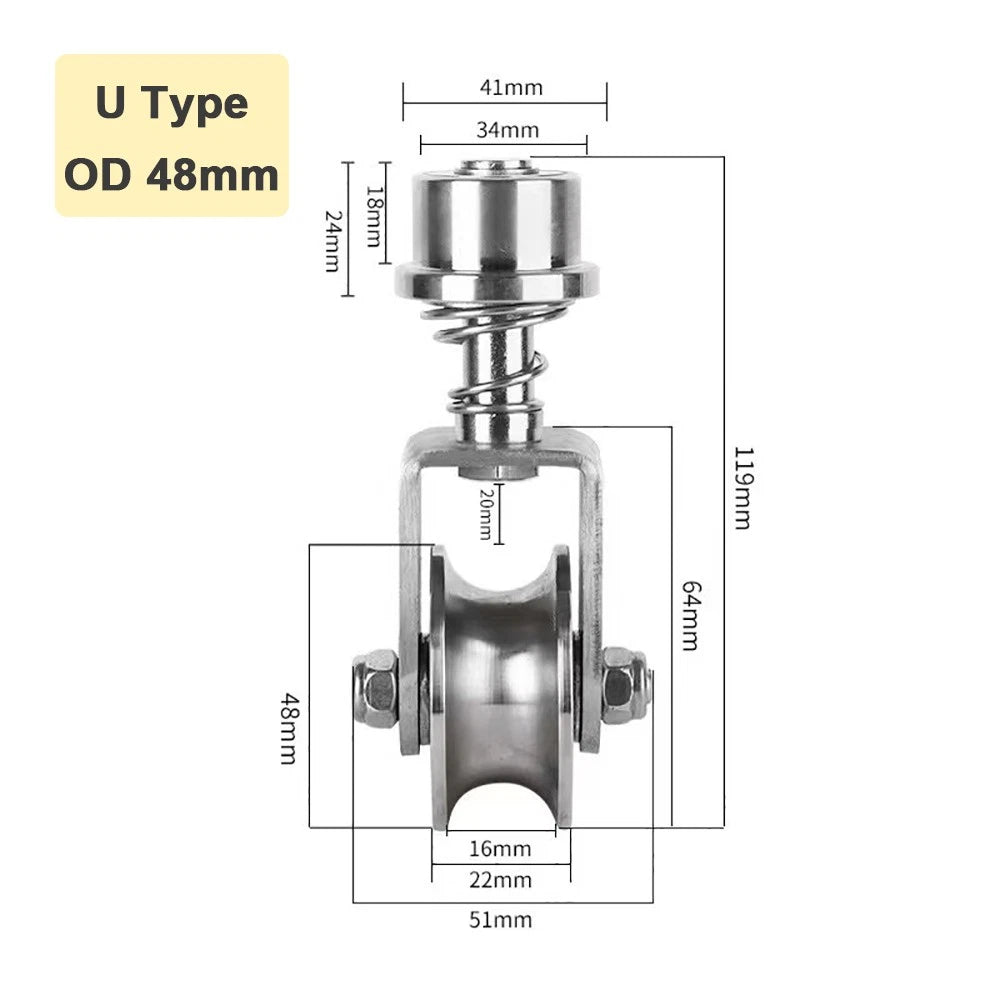

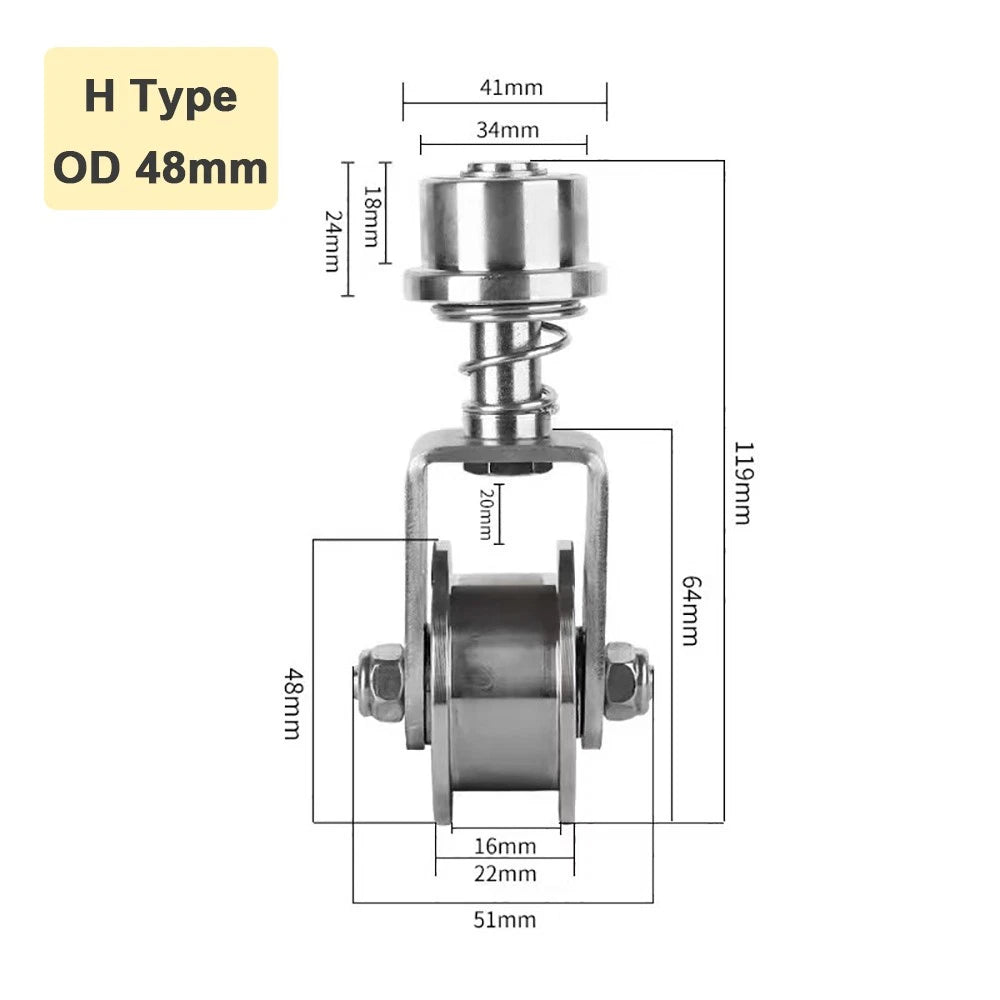

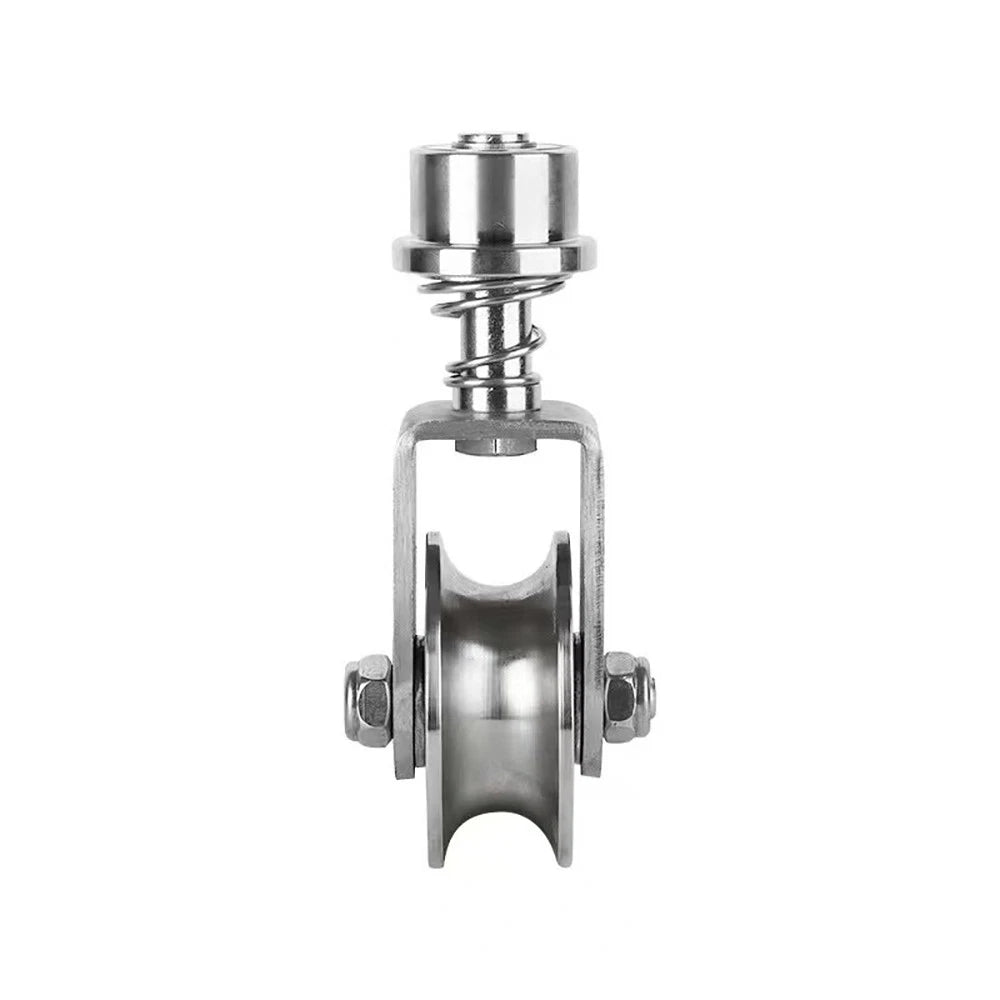

U-groove suits round cables and ropes; V-groove guides V-belts and angled cables; H-groove (flat-bottom) rides square-edge or T-slot tracks — one product family covers most guide-wheel applications.

📐 Multiple OD Sizes: 48 / 58 / 68 mm

Three outer diameter options let you match the pulley to your load rating and track geometry without custom machining. Larger OD = lower contact stress and longer service life under equivalent loads.

⚙️ Sealed Bearing Core

Pre-installed sealed bearings deliver smooth, low-noise rotation and keep contaminants out, reducing maintenance intervals in dusty or wet operating conditions.

🚪 Ready-to-Mount Accessory Options

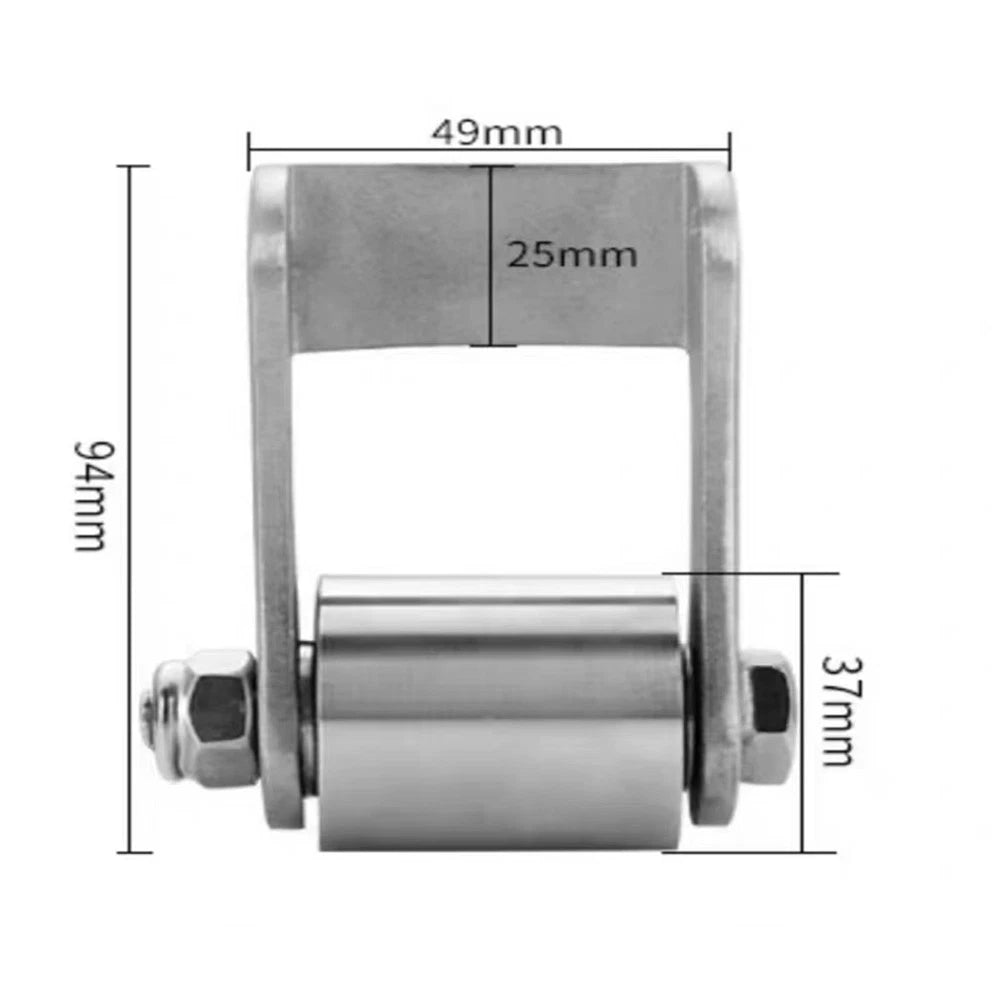

Door hinge and wheel frame variants include integrated mounting hardware, allowing direct bolt-on installation to sliding gate frames or track channels without additional fabrication.

🏗️ Broad Application Range

Suitable for sliding gates, overhead conveyors, rope tensioners, cable guide systems, and custom automation builds — wherever a durable, corrosion-resistant idler pulley wheel is needed.

📐 Technical Specifications — Stainless Steel Idler Pulley Wheel

Material	304 Stainless Steel
Groove Profile	U-groove / V-groove / H-groove (see variant options)

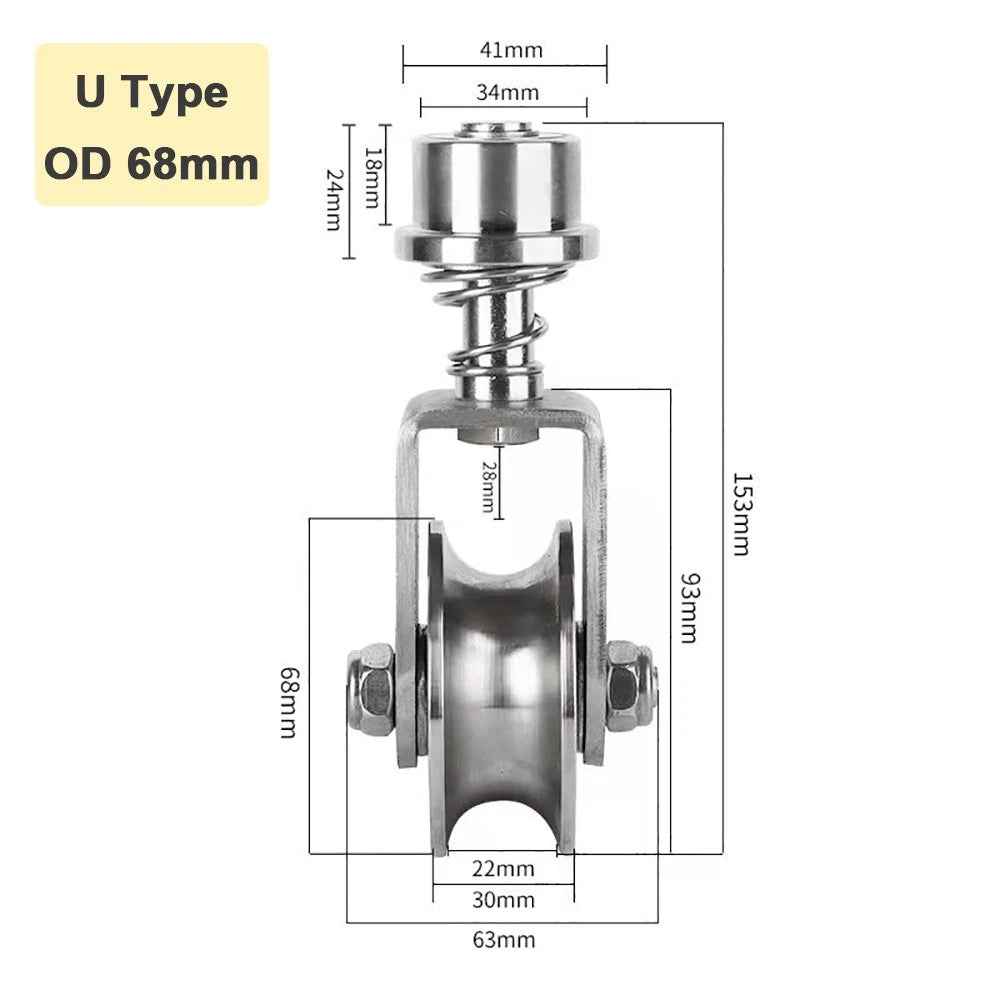

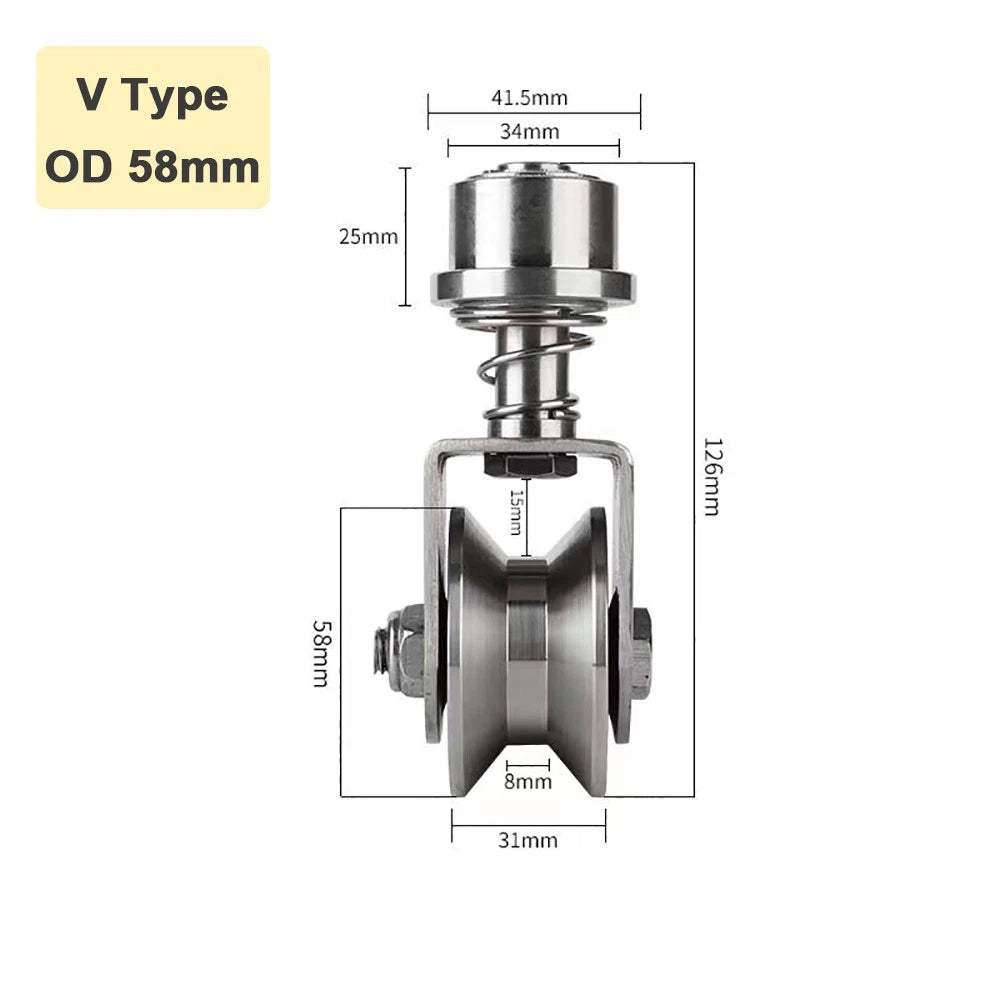

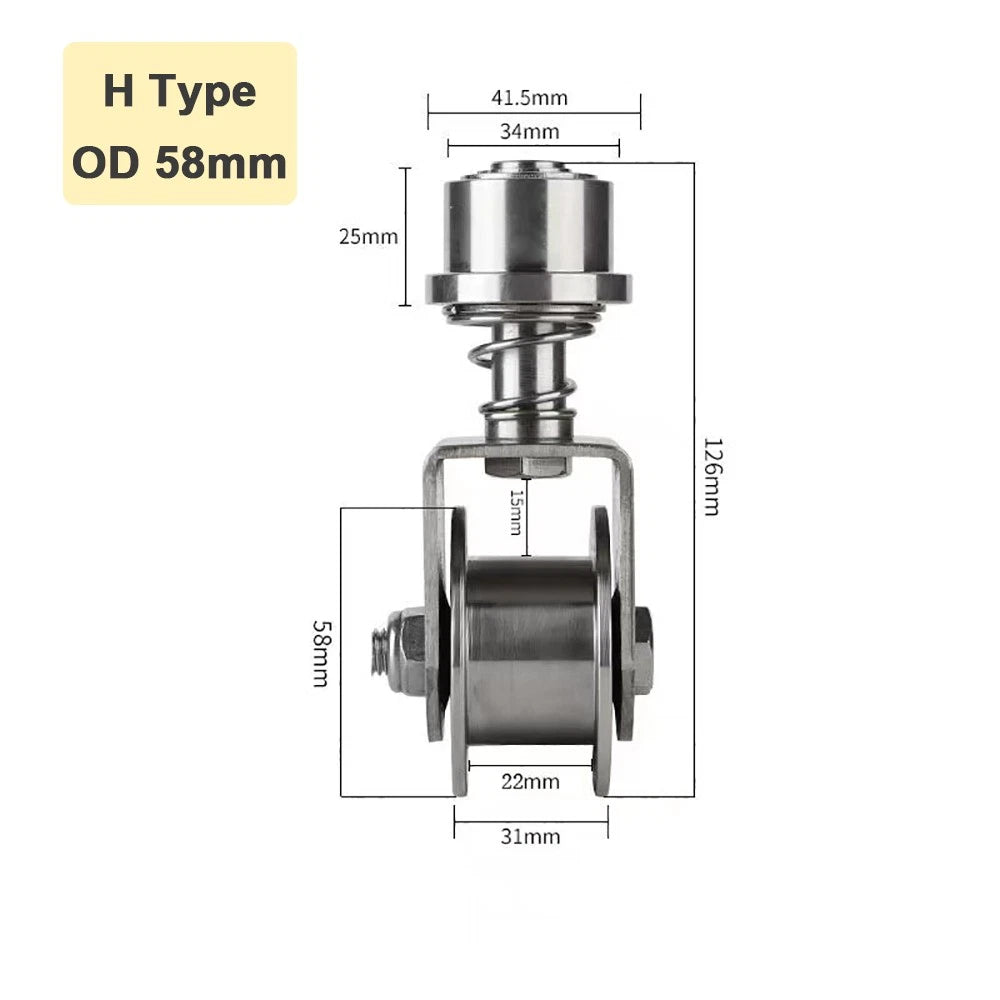

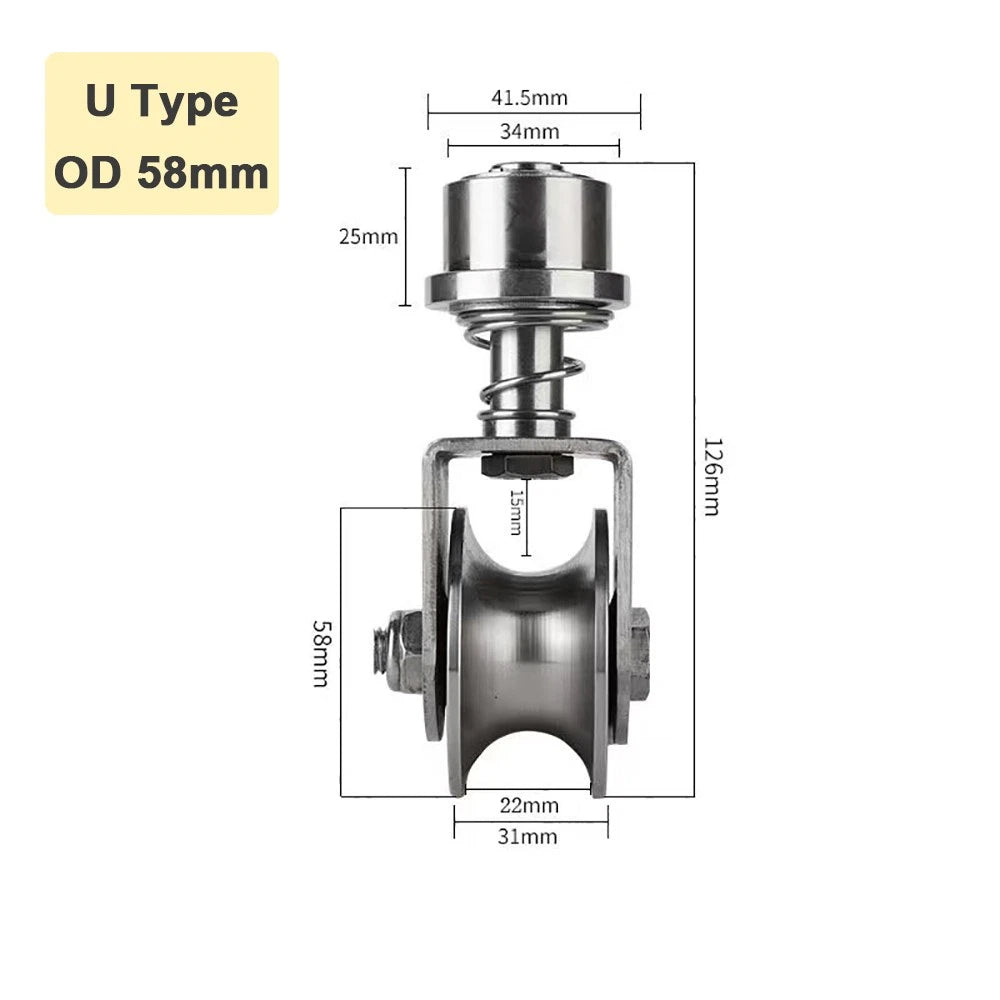

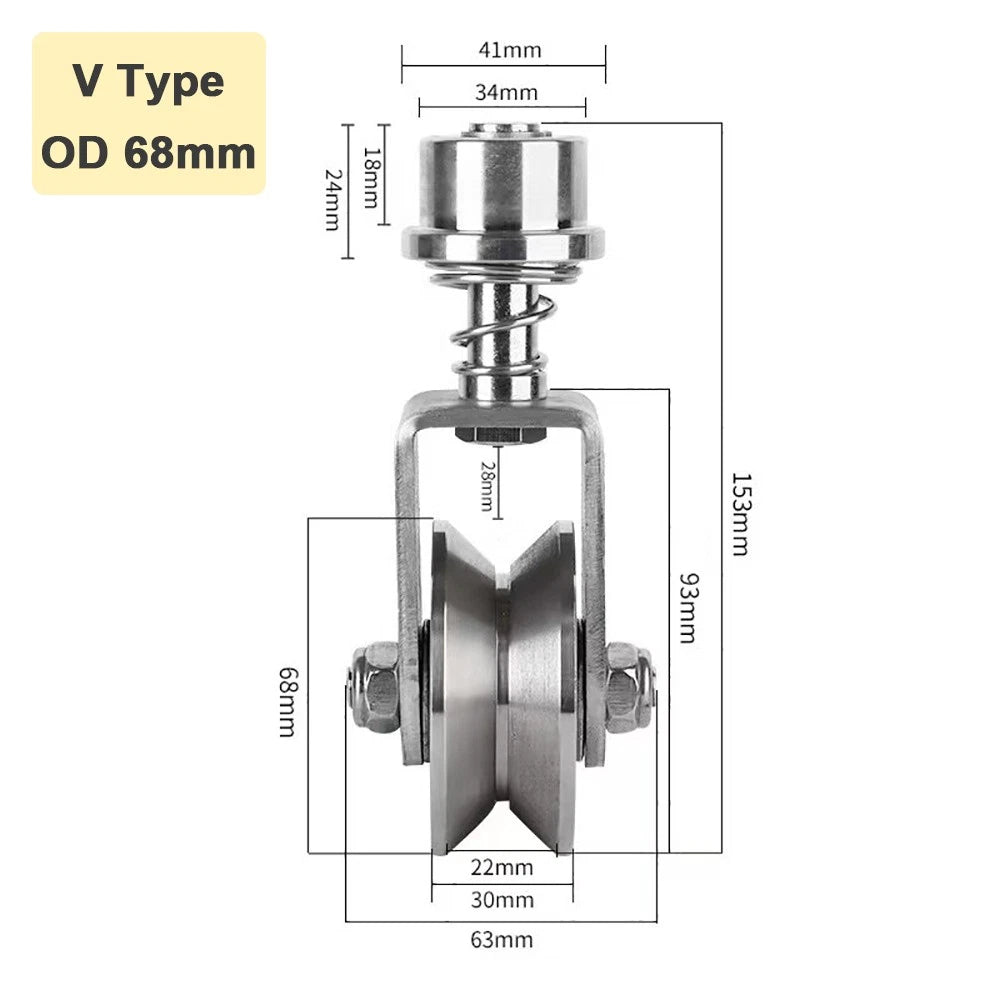

Outer Diameter (OD)	48 mm (~1.89 in) / 58 mm (~2.28 in) / 68 mm (~2.68 in)
Bore Diameter	See variant options
Overall Width	See variant options
Bearing Type	Sealed ball bearing
Surface Finish	Brushed / natural stainless
Mounting	Bolt-through bore; door hinge & wheel frame variants available
Applicable Track / Cable	Round rope, V-belt, flat rope, T-slot track (profile-dependent)
Operating Environment	Indoor / outdoor; corrosion-resistant
Weight	See variant options

❓ Frequently Asked Questions

How do I choose between U-groove, V-groove, and H-groove?

Select U-groove for round cables, ropes, or wires. Choose V-groove when guiding V-belts or angled cables that need a wedging grip. Use H-groove (flat-bottom) for square-edge rails, T-slot aluminum extrusions, or flat straps. If unsure, measure your cable or track profile and match it to the groove shape.

Which OD size should I order for my sliding gate?

For light residential sliding gates (up to ~150 kg), the 48 mm OD is typically sufficient. For medium-duty gates (150–300 kg), the 58 mm OD provides a better load distribution. For heavy-duty industrial gates or high-cycle applications, choose the 68 mm OD for lower contact stress and extended bearing life. Always verify your track channel width accommodates the selected OD.

Is 304 stainless steel strong enough for load-bearing pulley applications?

304 stainless steel offers a tensile strength of approximately 515 MPa (75,000 psi) and a yield strength of ~205 MPa, making it suitable for moderate load-bearing guide and idler pulley applications. For very high-load or high-speed drive pulleys, consult your load calculations and consider whether a larger OD or additional pulleys are needed to distribute the load.

How corrosion-resistant are these pulleys in outdoor or wet environments?

304 stainless steel contains approximately 18% chromium and 8% nickel, forming a passive oxide layer that resists rust in most outdoor, humid, and mildly corrosive environments. It performs well in rain, morning dew, and general outdoor exposure. For coastal or salt-spray environments, 316 stainless steel is generally recommended; contact us to confirm availability.

What is the bore diameter and how do I mount the pulley?

Bore diameter varies by variant — please see variant options or contact us to confirm the exact bore for your chosen size. Standard mounting is bolt-through the bore using a shoulder bolt or axle pin. The door hinge and wheel frame variants include integrated mounting brackets for direct attachment to gate frames or track channels without additional hardware.

Do the bearings require lubrication or maintenance?

The pre-installed bearings are sealed and pre-lubricated at the factory, requiring no routine re-greasing under normal operating conditions. In high-temperature or high-cycle environments, inspect bearings periodically for smooth rotation and replace if noise or resistance develops. Avoid pressure-washing directly into the bearing seal.

Can I use these pulleys on aluminum T-slot extrusion frames?

Yes — the H-groove variant is designed to ride on square-edge or T-slot profiles. Verify that the groove width of the H-groove matches your extrusion's rail width before ordering. The U and V groove variants are not recommended for T-slot track use as they may not seat correctly on the rail geometry.

🛒 Select your groove type and OD size above, then add to cart.
