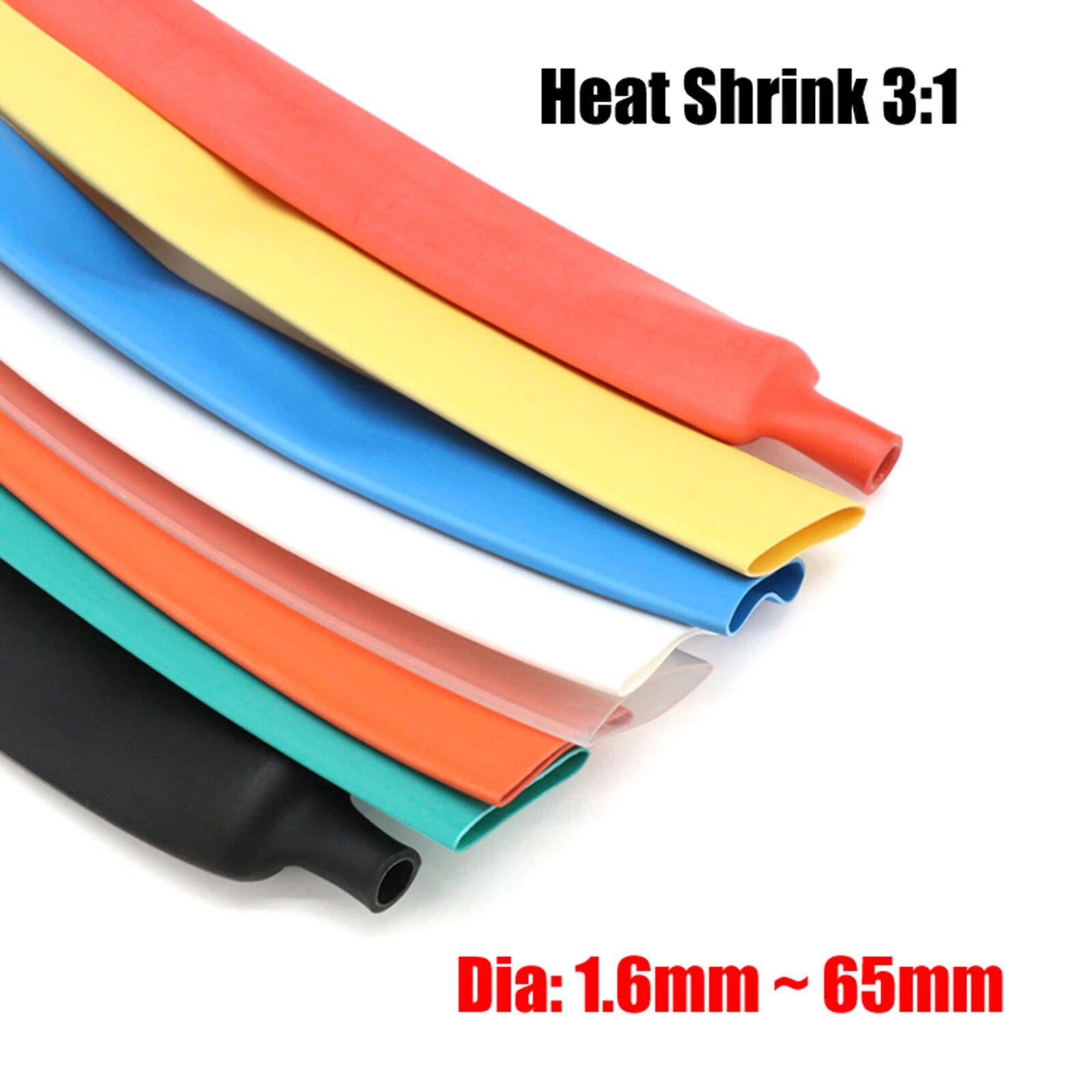

3:1 Ratio Dual Wall Adhesive Heat Shrink Tubing — Waterproof Glue Lined Sleeving
Exposed wire splices, corroded terminals, and unprotected cable ends are a constant headache for electricians, automotive technicians, marine riggers, and serious DIYers. One failed seal can mean a short circuit, a safety hazard, or an expensive repair. This 3:1 ratio dual wall adhesive heat shrink tubing delivers a reliable, professional-grade solution that insulates, seals, and protects in a single step.

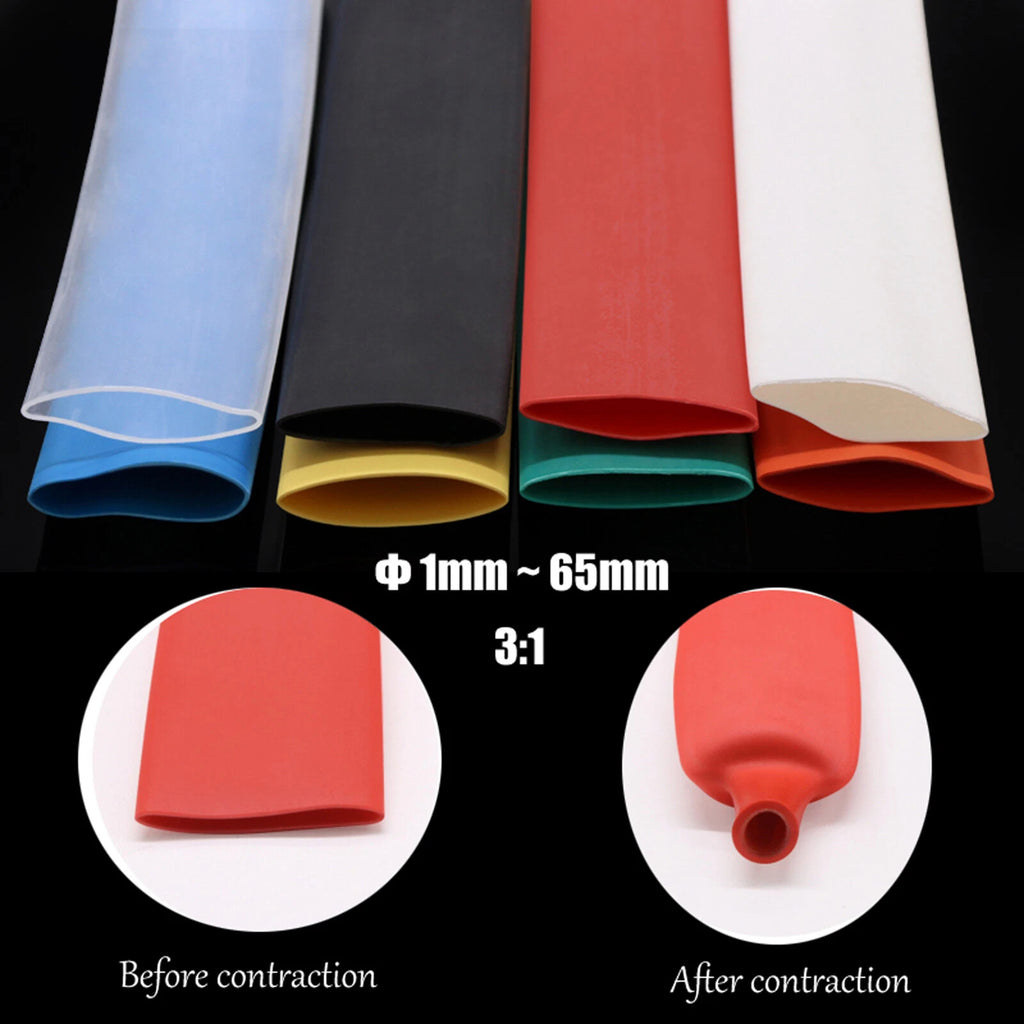

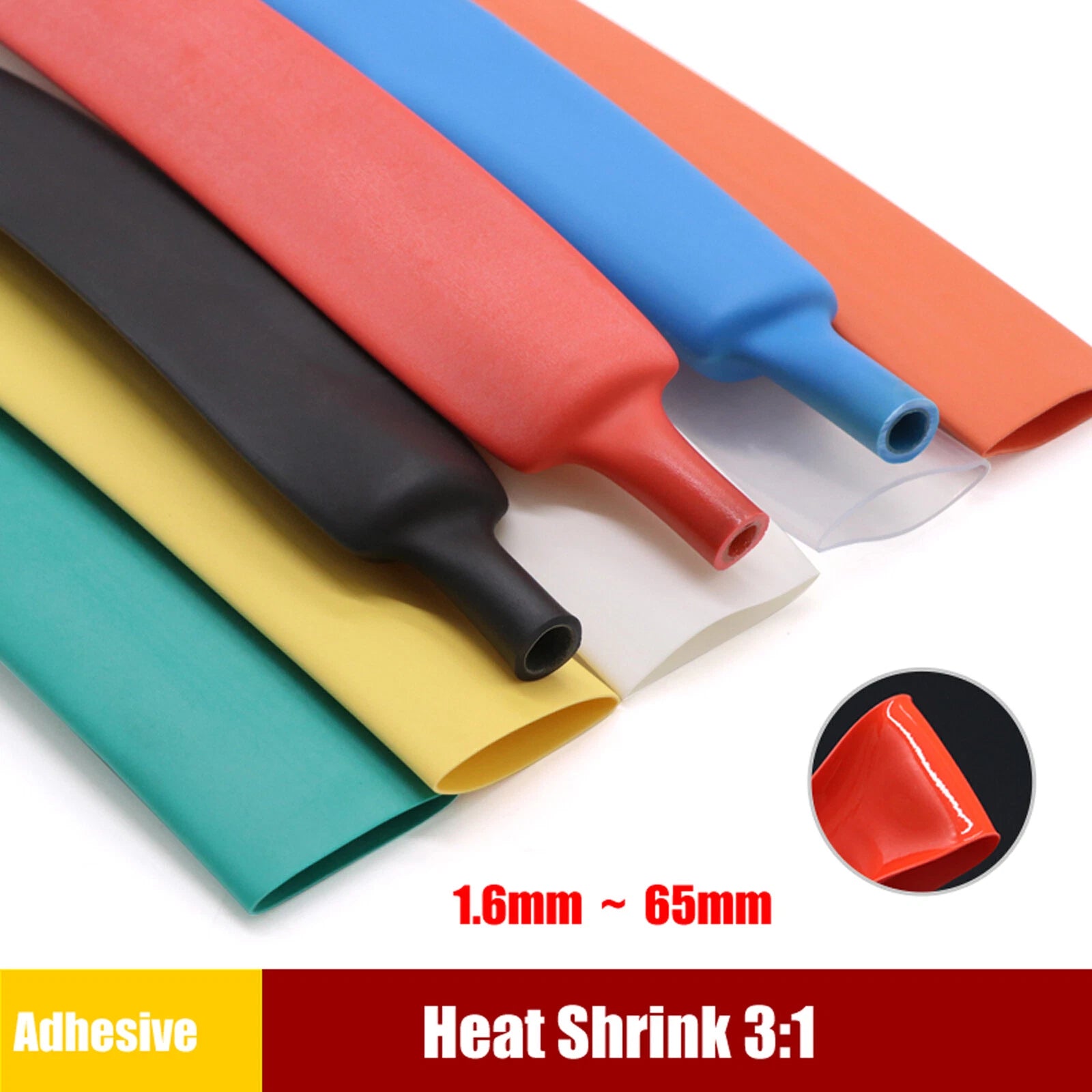

Each piece consists of a flexible polyolefin outer wall and an inner layer of thermoplastic hot-melt adhesive. Available in diameters from 1.6mm (1/16") to 65mm (≈2.6"), sold in 1 Meter and 5 Meter lengths, and offered in 8 colors plus transparent. When heated, the outer wall shrinks to one-third of its original diameter while the adhesive flows into voids and bonds firmly to the substrate — creating a moisture-resistant, strain-relieving sleeve.

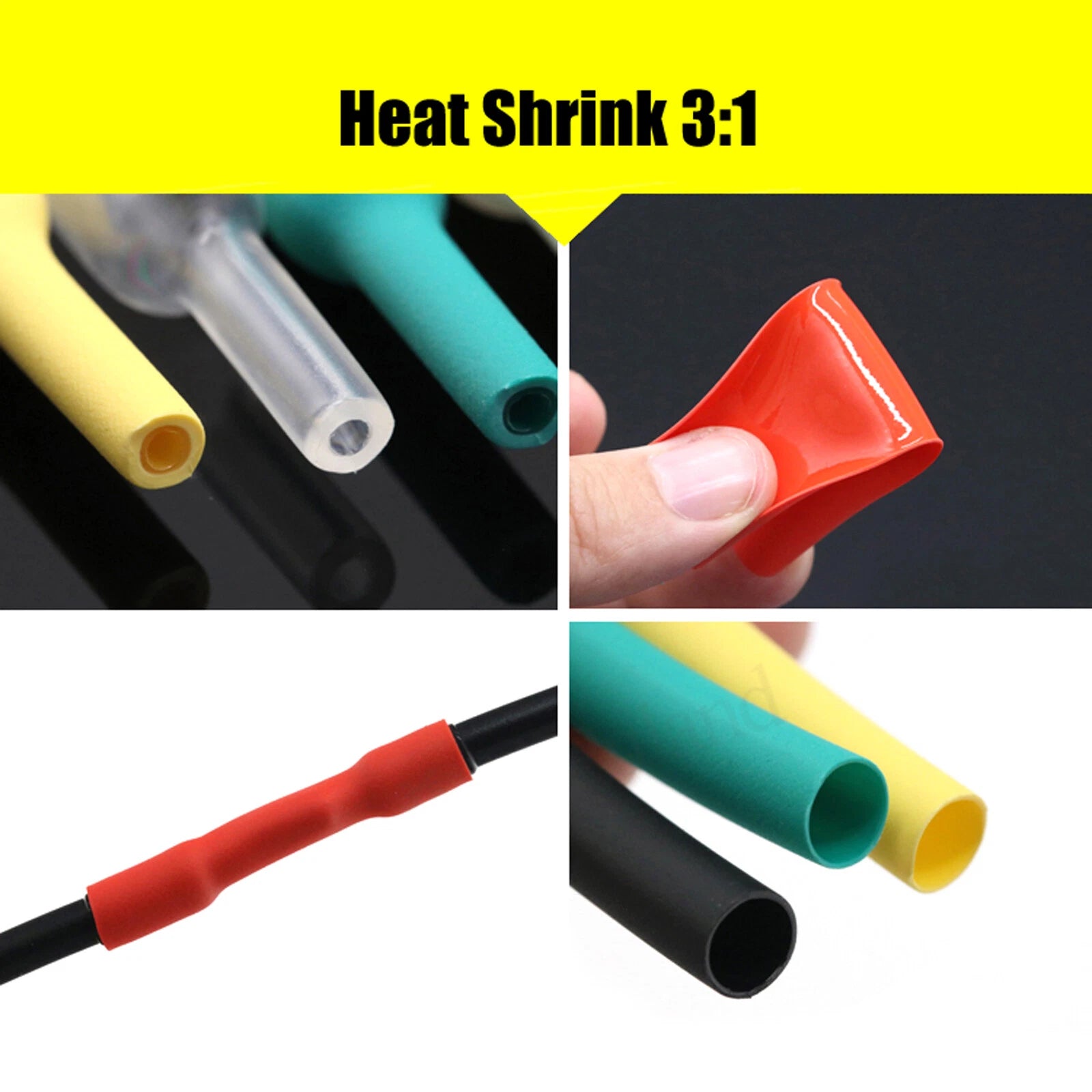

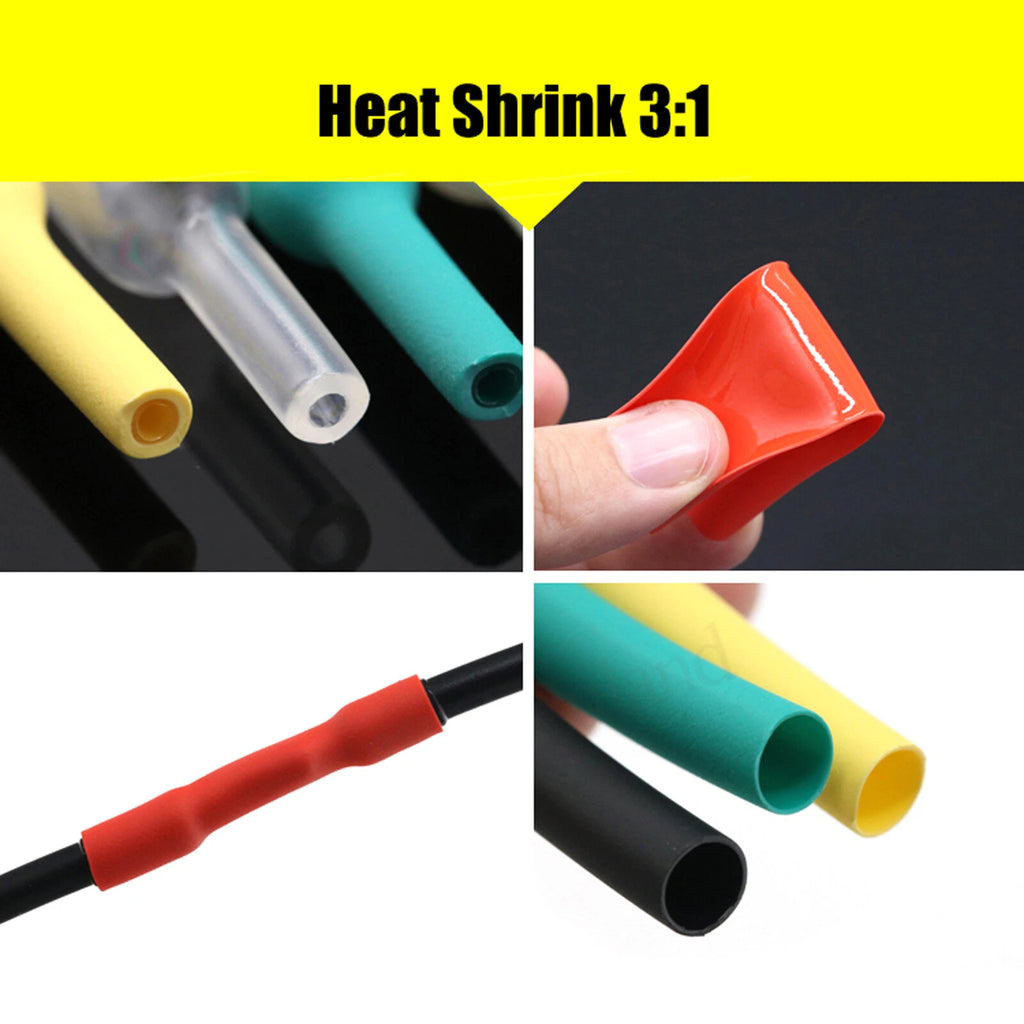

Typical use cases include automotive wiring harness repair, marine cable splicing and connector sealing, outdoor electrical junction protection, and bicycle or motorcycle handlebar grip installation. The color options make this glue lined heat shrink sleeving equally useful for color-coded wire identification in control panels and industrial equipment.
🔌 Compatibility: Suitable for copper wire, aluminum conductors, steel cable, and most PVC or rubber-jacketed cables. Works with standard heat guns operating at 120–150°C (248–302°F). Not recommended for silicone-jacketed cables without surface preparation.
⚠️ Size Note: Diameters listed are pre-shrink (expanded) sizes. With a 3:1 shrink ratio, the recovered inner diameter will be approximately one-third of the listed diameter. If you are unsure which size fits your application, please contact us to confirm before ordering.
✅ Key Features of These Dual Wall Adhesive Heat Shrink Tubes
-

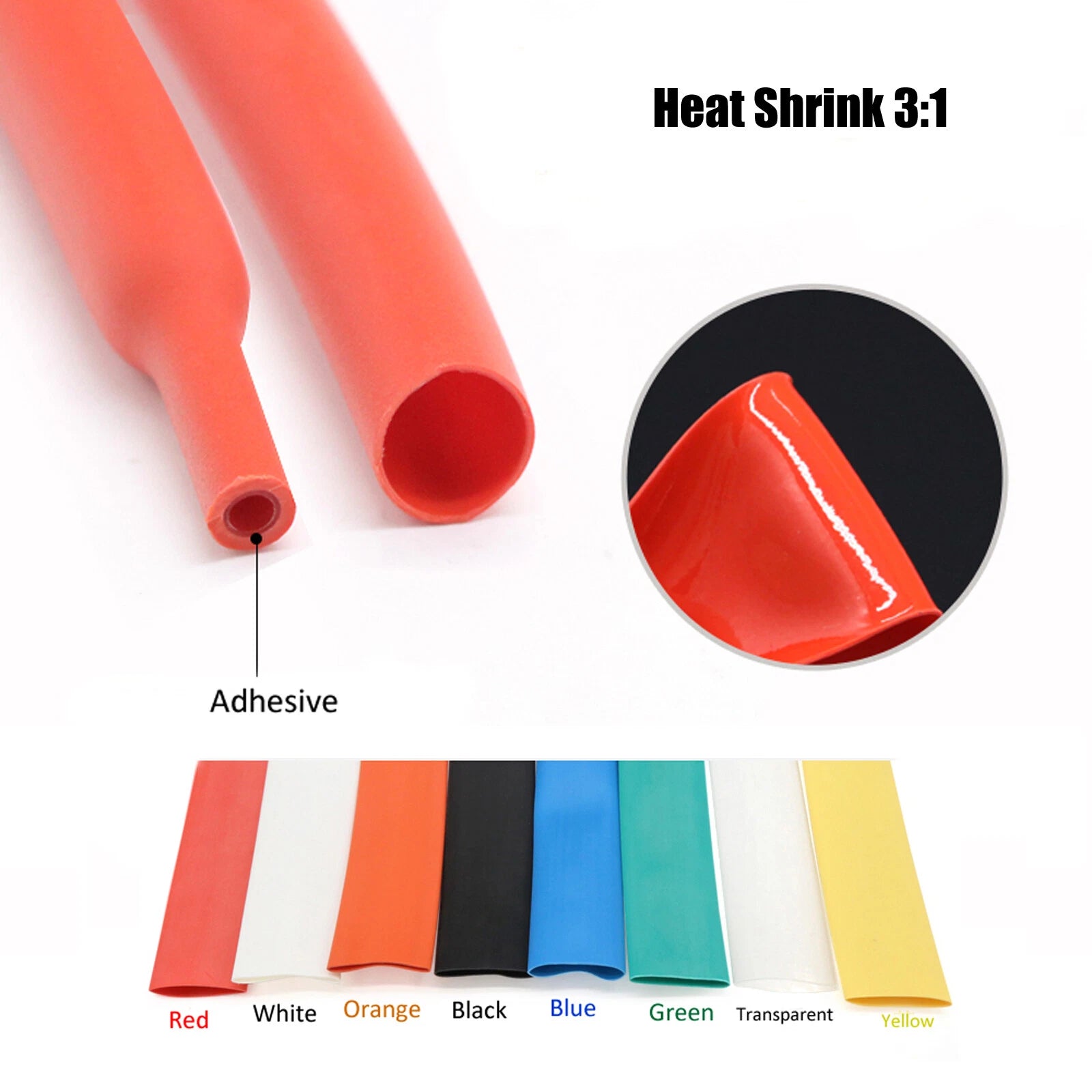

🔒Waterproof Adhesive Inner Layer — The hot-melt glue lining flows when heated, filling gaps and creating a moisture-resistant seal ideal for outdoor wiring and marine cable splicing.
-
📐3:1 Shrink Ratio — Shrinks to one-third of its original diameter, accommodating a wider range of cable sizes than standard 2:1 tubing and reducing the number of sizes you need to stock.
-

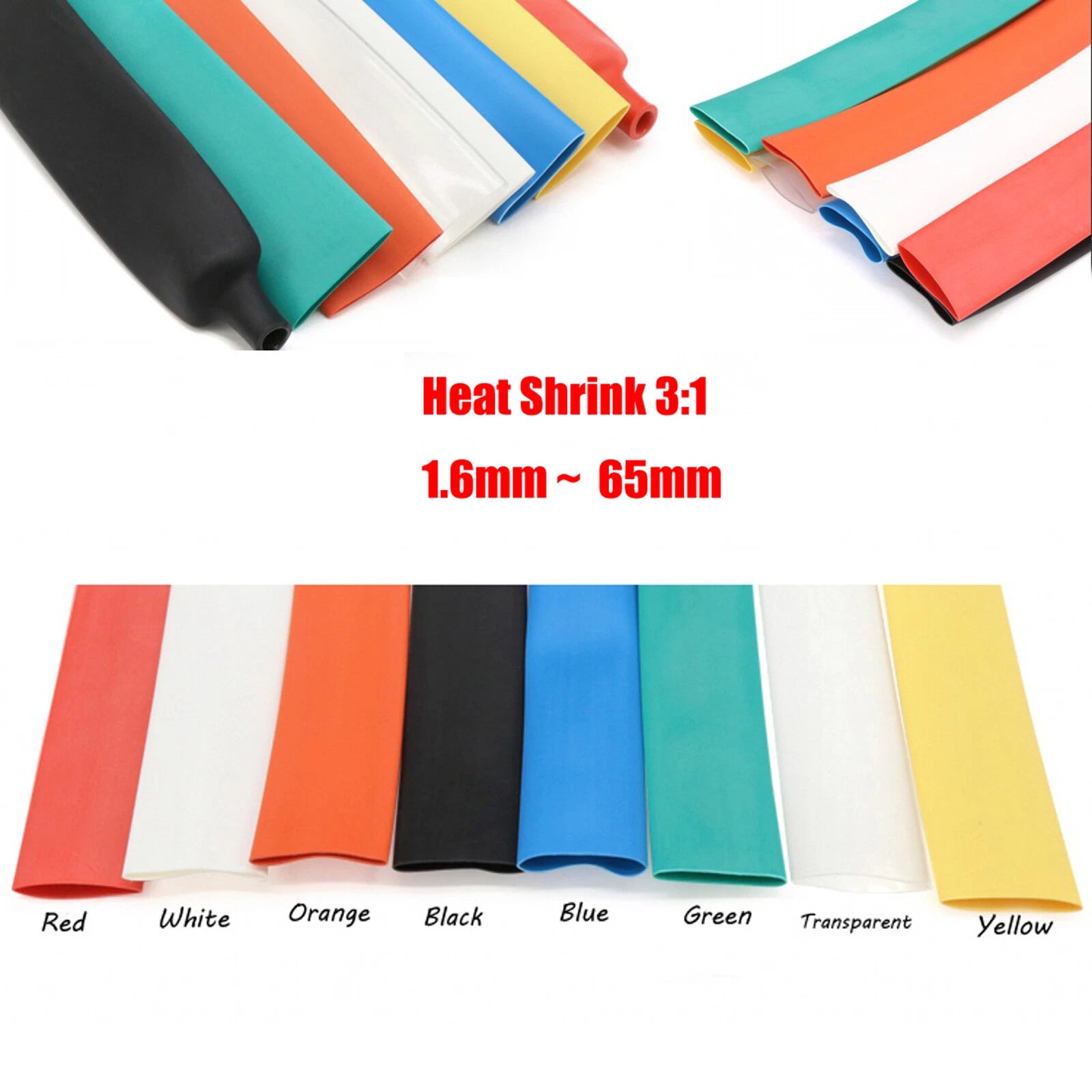

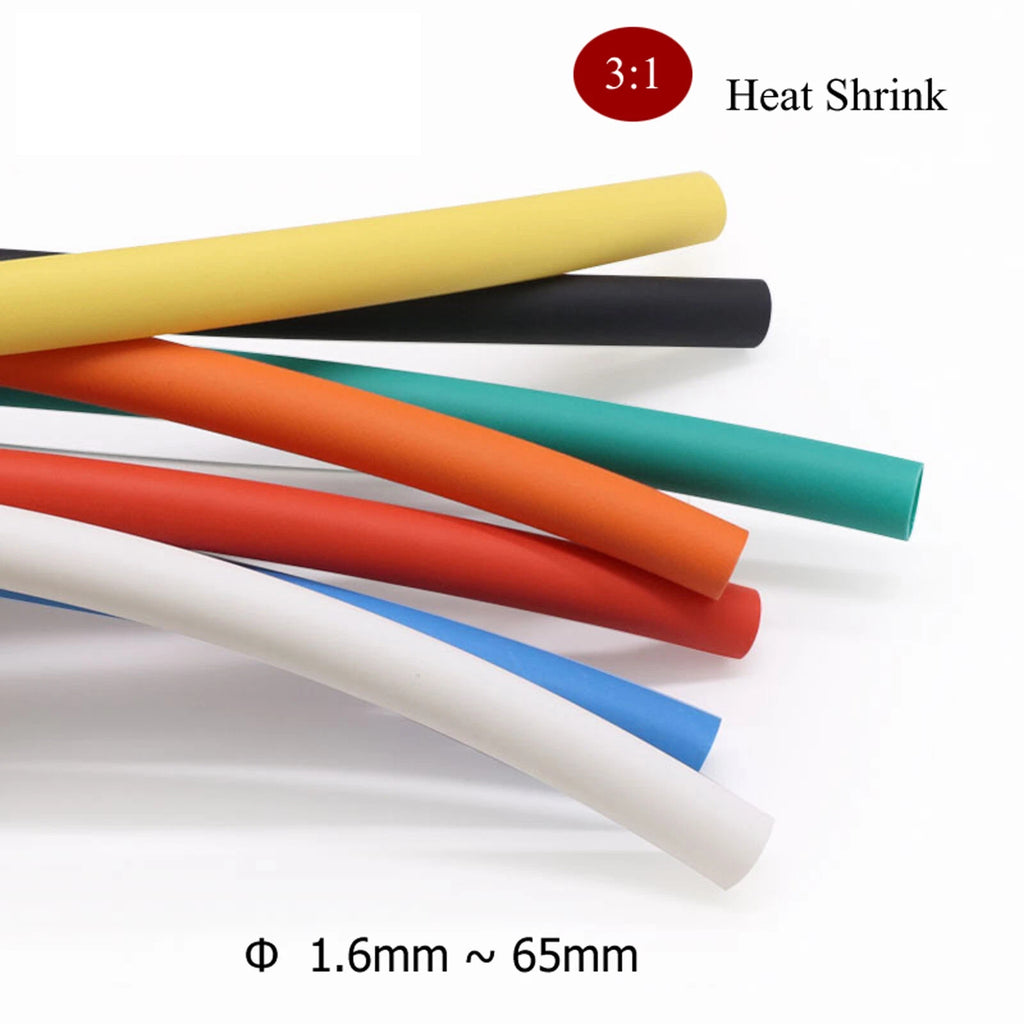

🎨8 Colors + Transparent — White, Black, Red, Yellow, Green, Blue, Orange, and Transparent options support color-coded wire identification in control panels and automotive harnesses.
-
📏Wide Diameter Range — From 1.6mm (1/16") to 65mm (≈2.6"), covering everything from fine instrument wire to large battery cables and conduit ends.
-
⚡Flexible Polyolefin Construction — The outer wall remains flexible after recovery, resisting cracking in high-vibration environments such as automotive and motorcycle applications.
-
✂️Cut-to-Length Convenience — Available in 1 Meter and 5 Meter rolls, so you can cut exactly what you need for each job without waste — perfect for both single repairs and bulk wiring projects.
📐 Technical Specifications — Dual Wall Glue Lined Heat Shrink Tubing
| Product Type |
Dual Wall Adhesive (Glue Lined) Heat Shrink Tubing |
| Shrink Ratio |
3:1 |
| Outer Wall Material |
Polyolefin |
| Inner Layer |
Thermoplastic Hot-Melt Adhesive |
| Available Diameters (Pre-Shrink) |

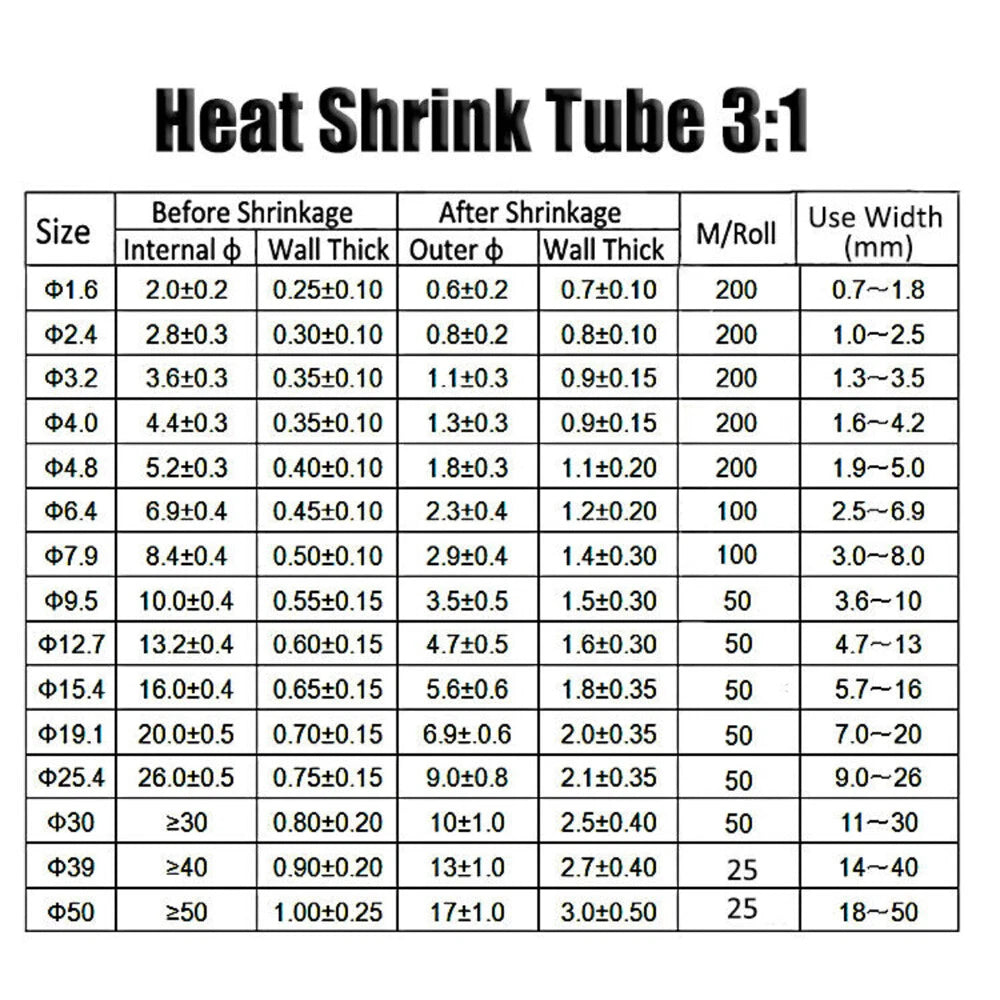

1.6mm (1/16"), 2.4mm (3/32"), 3.2mm (1/8"), 4mm (5/32"), 4.8mm (3/16"), 6.4mm (1/4"), 7.9mm (5/16"), 9.5mm (3/8"), 12.7mm (1/2"), 15.4mm (5/8"), 19.1mm (3/4"), 25.4mm (1"), 30mm (≈1.2"), 39mm (≈1.5"), 50mm (≈2"), 65mm (≈2.6") |
| Available Colors |
White, Black, Red, Yellow, Green, Blue, Orange, Transparent |
| Available Lengths |
1 Meter (≈3.3 ft), 5 Meter (≈16.4 ft) |
| Activation Temperature |
Typically 120–150°C (248–302°F) for shrinkage; adhesive activates at approx. 70–90°C (158–194°F) |
| Longitudinal Shrinkage |
Typically ≤10–15% |
| Operating Temperature (Post-Recovery) |
See variant options |
| Voltage Rating |
Contact us to confirm |
| Recommended Application Tool |
Heat gun |
| Country of Origin |
Contact us to confirm |
❓ Frequently Asked Questions
How do I choose the right diameter for my application?

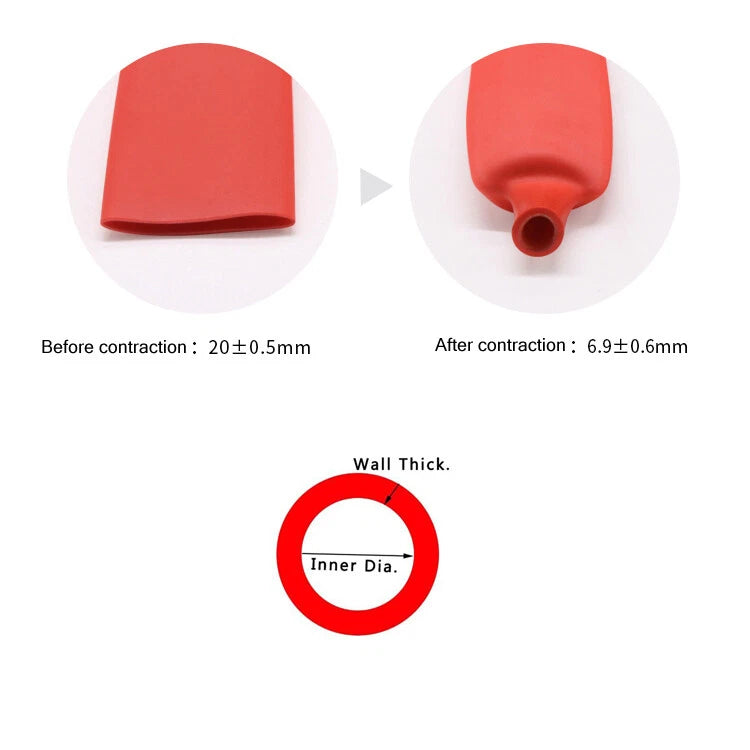

Select a pre-shrink diameter that is larger than the object you need to cover. With a 3:1 shrink ratio, a 6.4mm (1/4") tube will recover to approximately 2.1mm. As a general rule, choose a size that is 20–30% larger than the cable or connector you are sealing. For irregular shapes or large connectors, size up to ensure the adhesive can flow and fill the gap completely.
What temperature is needed to shrink this tubing and activate the adhesive?
This dual wall heat shrink tubing typically begins shrinking at around 120–150°C (248–302°F). The inner adhesive layer generally activates at approximately 70–90°C (158–194°F). A heat gun is recommended for even, controlled application. Move the heat gun continuously along the length of the tubing to avoid overheating any single spot.
Is this tubing waterproof and suitable for outdoor or marine use?
Yes. The inner hot-melt adhesive flows when heated and seals around the substrate, creating a moisture-resistant barrier. This makes it generally suitable for outdoor wiring, marine cable splicing, and underground cable splices where moisture ingress is a concern. For fully submerged applications, contact us to confirm suitability.
What is the difference between single wall and dual wall heat shrink tubing?
Single wall tubing provides electrical insulation and basic strain relief only. Dual wall tubing adds an inner layer of thermoplastic adhesive that melts and bonds to the substrate, providing a waterproof, airtight seal. Dual wall is the preferred choice for outdoor, marine, automotive, and high-vibration applications where moisture or mechanical stress is present.
What materials and cable types is this tubing compatible with?
This glue lined heat shrink sleeving is generally compatible with copper wire, aluminum conductors, steel cable, and most PVC or rubber-jacketed cables. The adhesive bonds well to clean, dry surfaces. It is not recommended for use over silicone-jacketed cables without surface preparation, as silicone can inhibit adhesion.
Can I use a lighter or open flame instead of a heat gun?
A heat gun is strongly recommended for consistent results. Open flames can cause uneven shrinkage, scorching, or charring of the tubing. If a heat gun is unavailable, a butane torch held at a safe distance and kept moving can work in a pinch, but results may vary. Never use a standard lighter for anything larger than very small diameter tubing.
How much longitudinal shrinkage should I expect when cutting pieces?
Allow for approximately 10–15% longitudinal shrinkage in addition to the radial shrinkage. For example, a 100mm (≈3.9") piece will typically shrink to around 85–90mm (≈3.3–3.5") in length after full heat application. Always cut pieces slightly longer than the area you need to cover to account for this.
Which size should I use for automotive wiring harness repair?
For typical automotive wiring, the most commonly used sizes are 3.2mm (1/8"), 4mm (5/32"), and 6.4mm (1/4") for individual wire splices. For connector boots and larger harness bundles, 9.5mm (3/8") to 19.1mm (3/4") are generally appropriate. Measure the outer diameter of your cable bundle before selecting a size.
🛒 Select your diameter, color, and length above, then add to cart — ships from our US warehouse.
