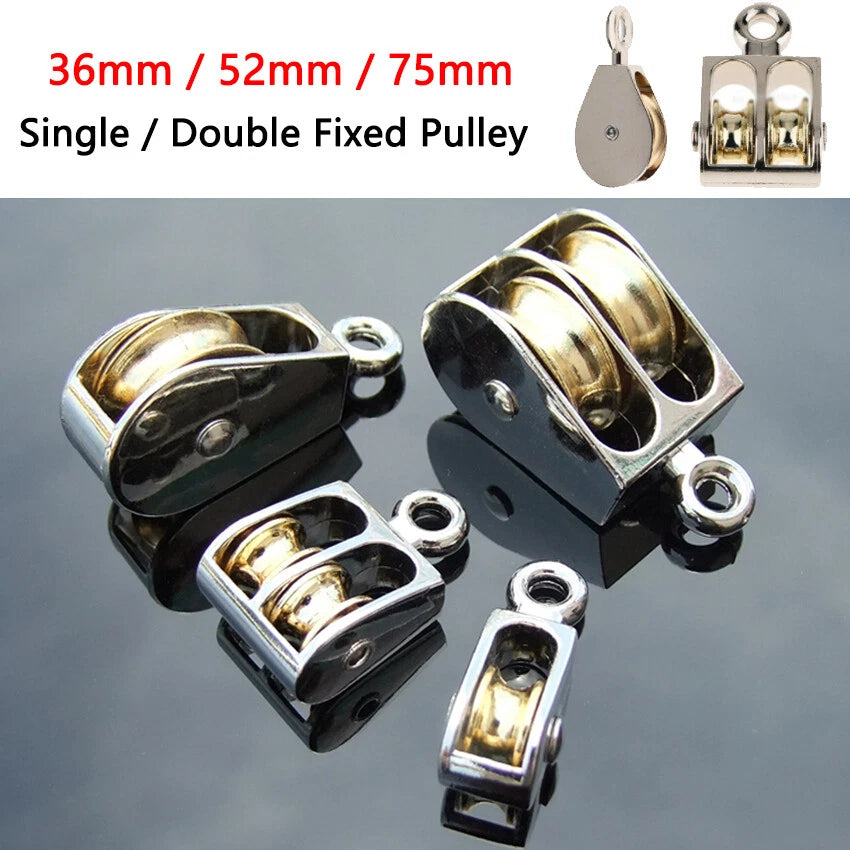

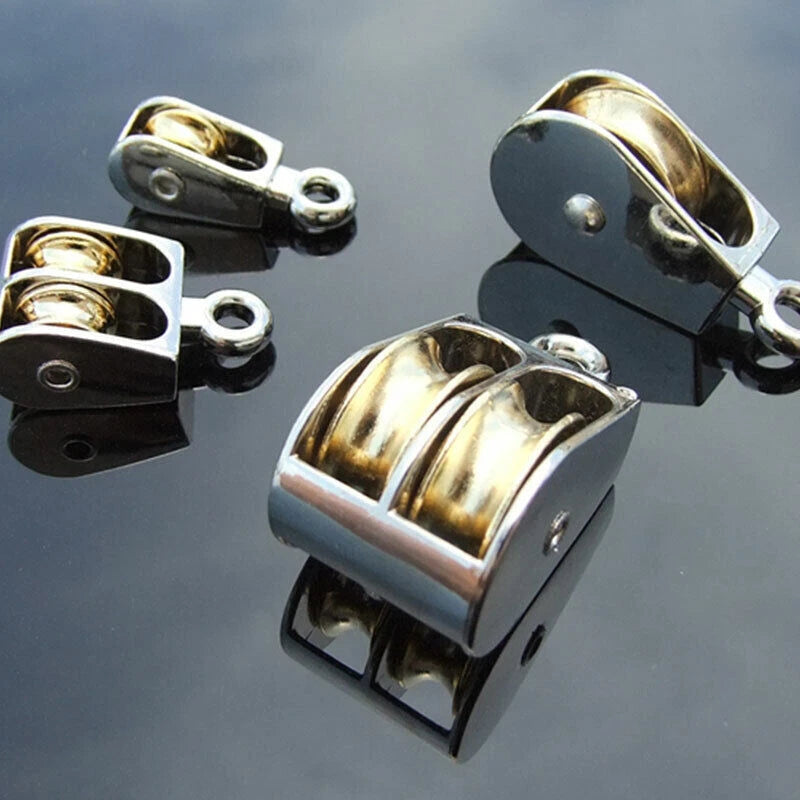

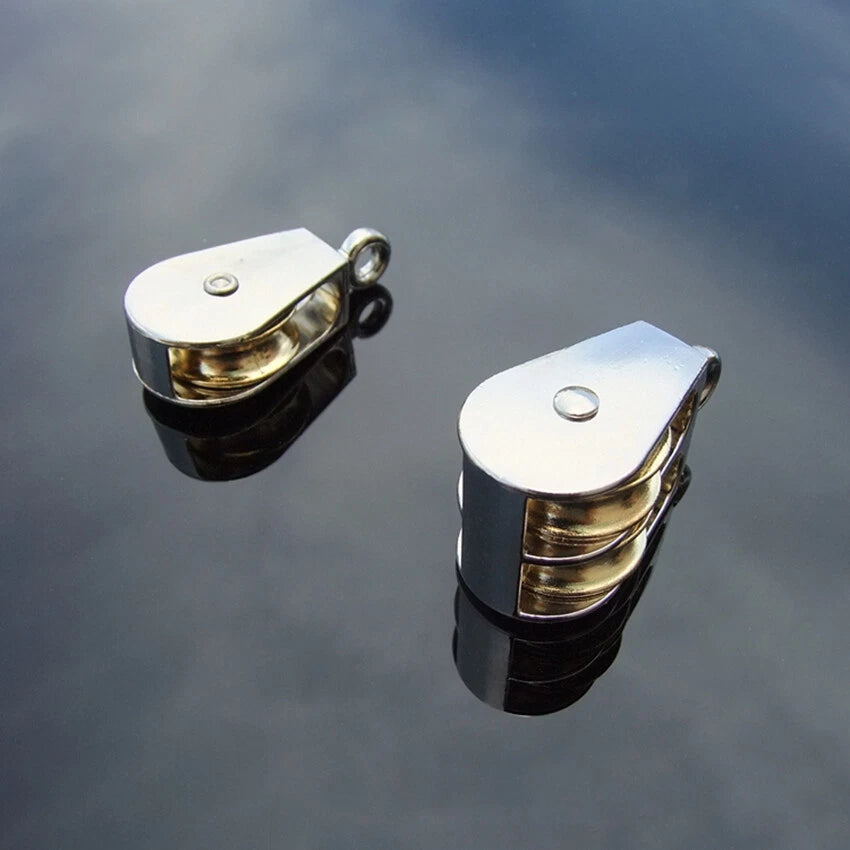

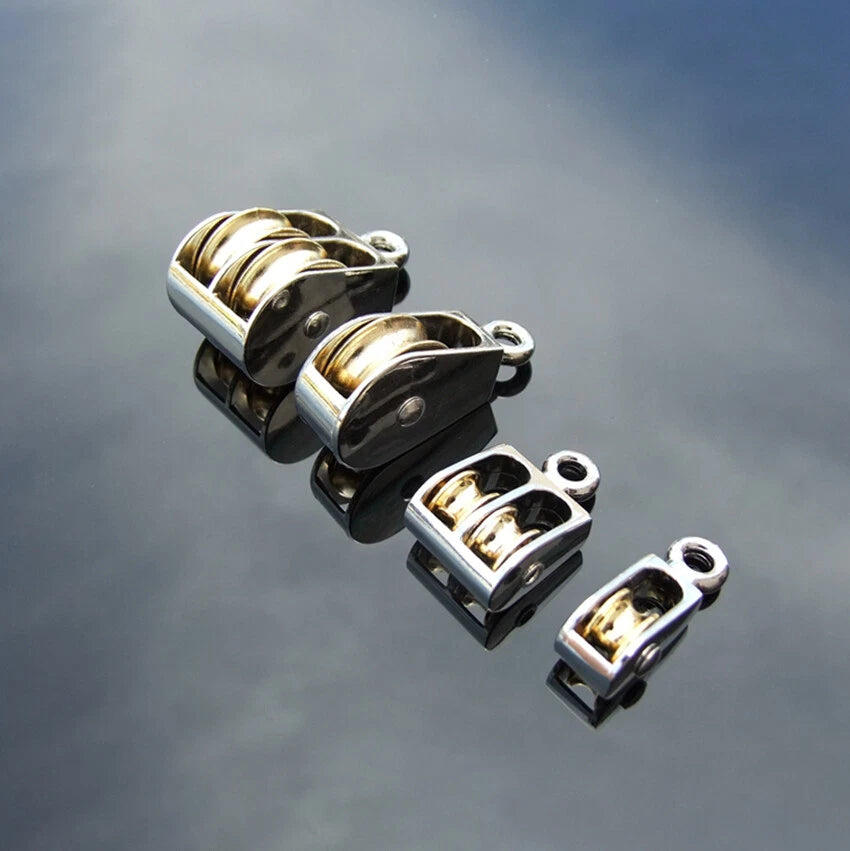

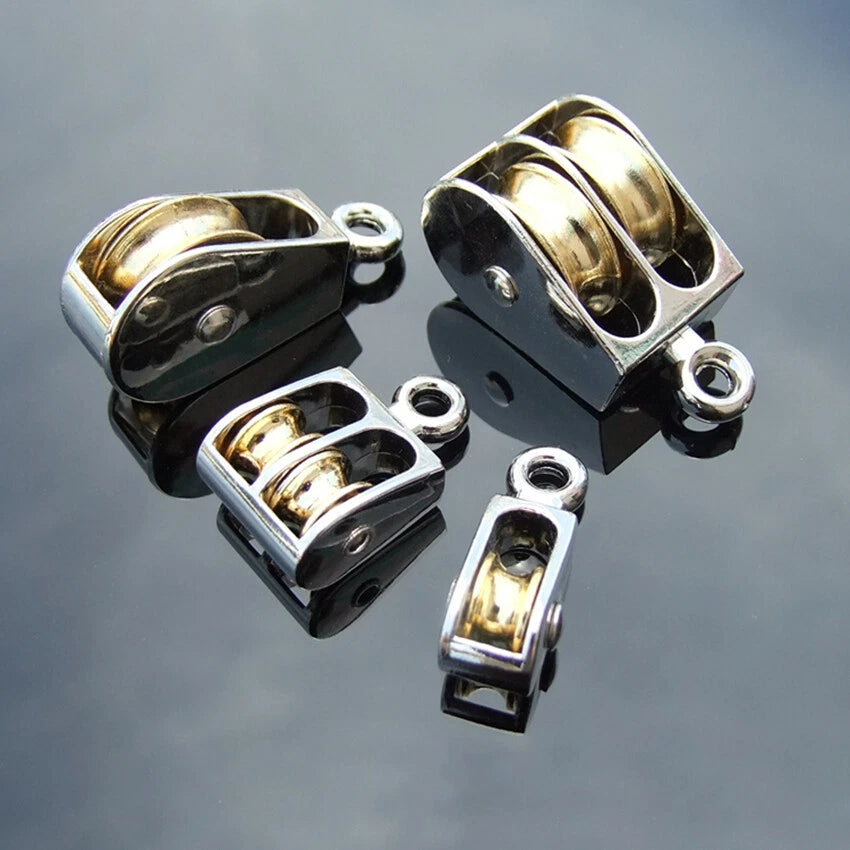

36/52/75mm Single/ Double Fixed Pulley Small Swivel Eye Sheave Rigging Lift Tool

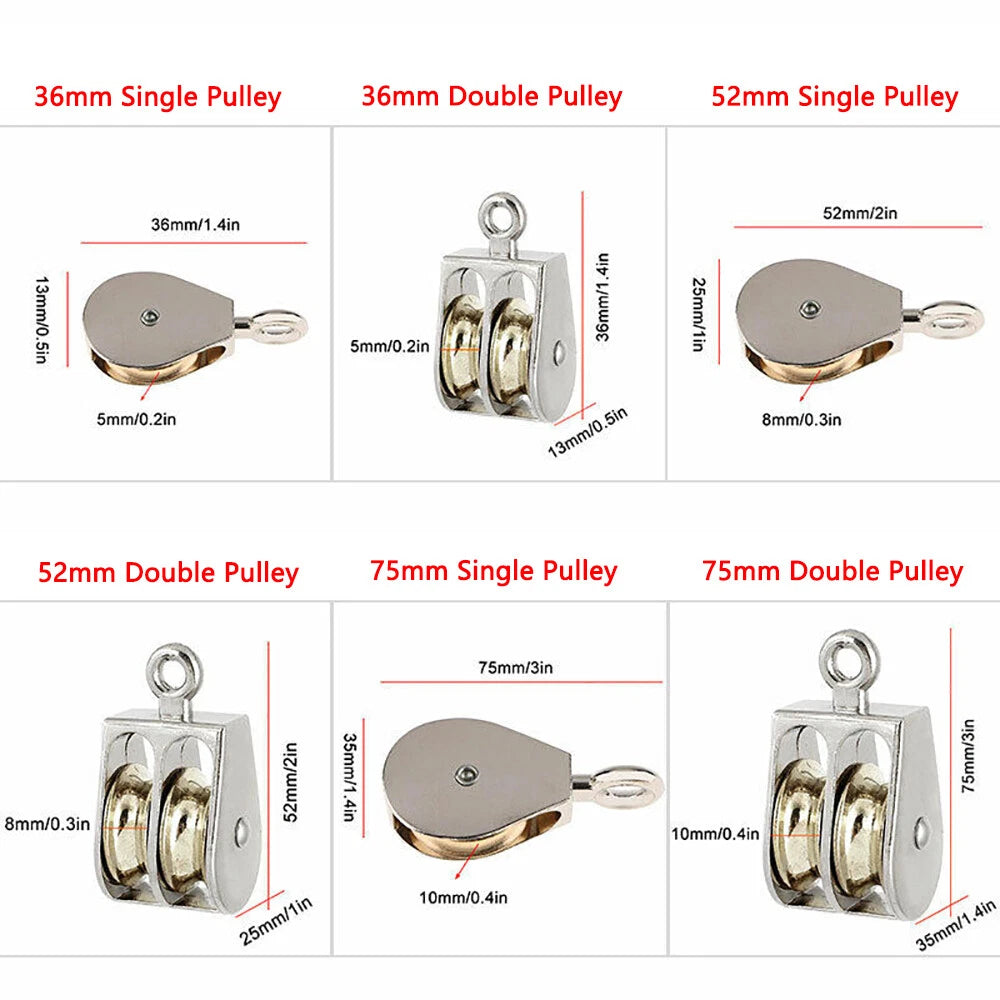

Match the sheave diameter to your rope size and load. The 36mm single pulley suits lighter lines up to ~8mm diameter for small hoists or clothesline redirects. The 52mm handles medium ropes up to ~10mm for workshop or marine use. The 75mm is suited to heavier ropes up to ~12mm and higher-load rigging tasks such as arborist redirect anchors or block-and-tackle systems.

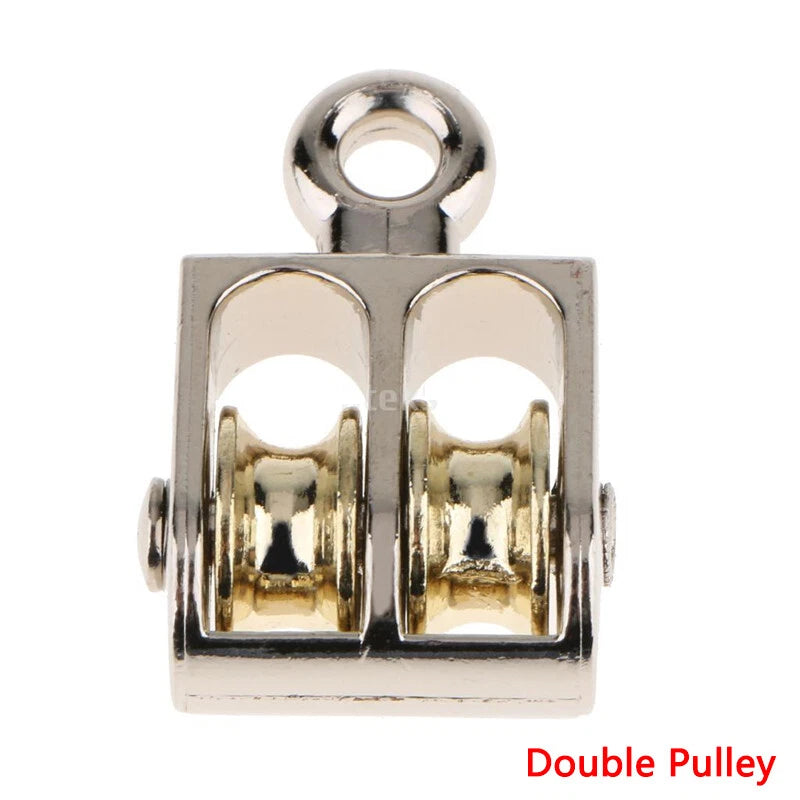

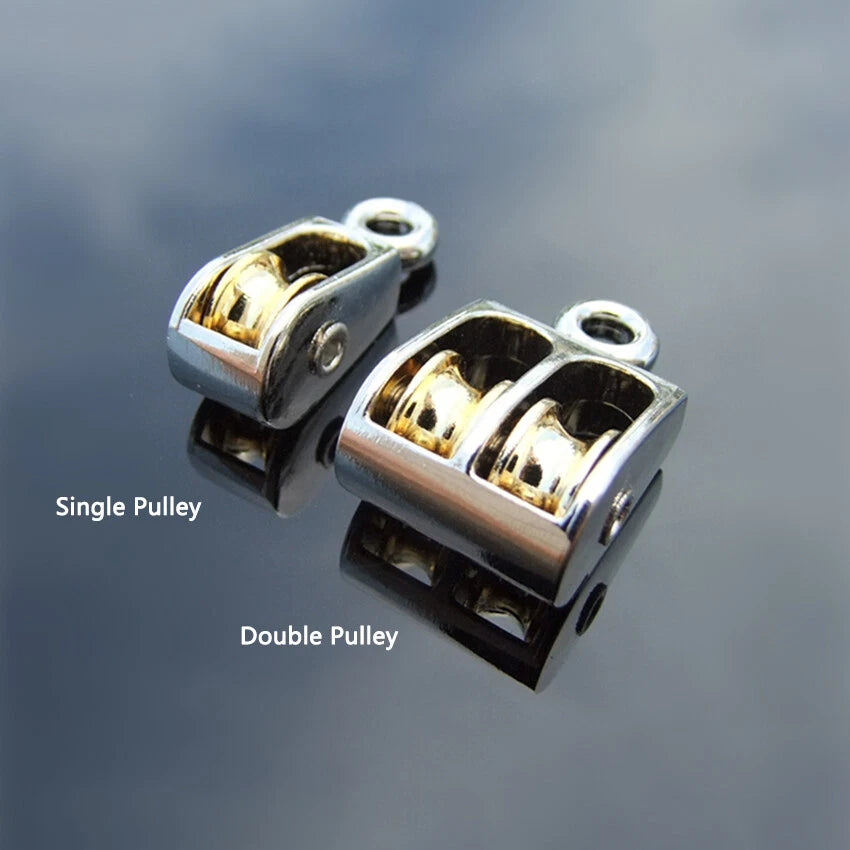

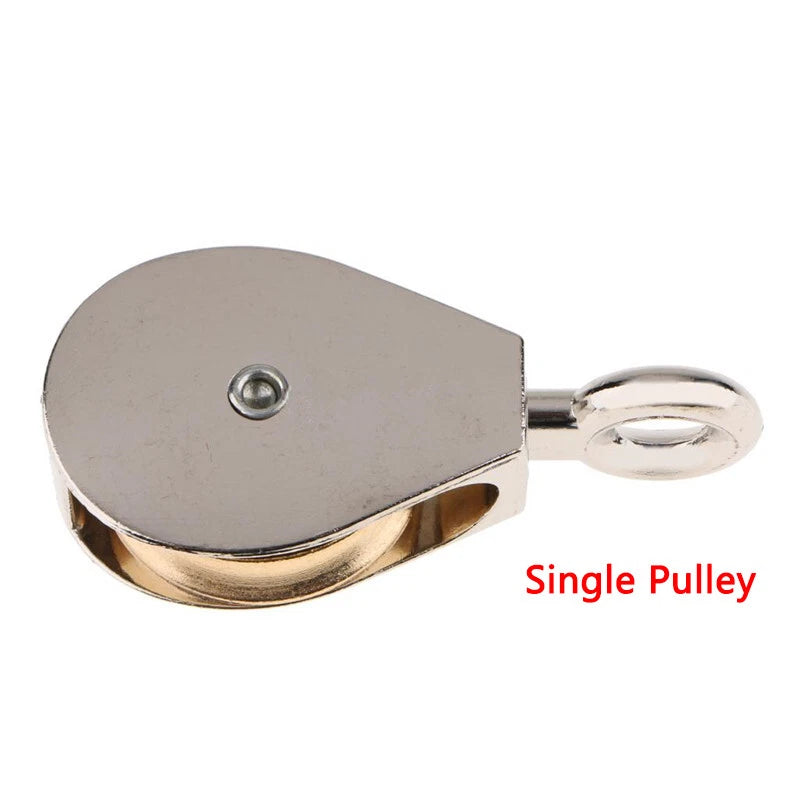

A single sheave pulley redirects a rope in one plane and is used to change the direction of pull. A double sheave pulley has two side-by-side wheels, allowing two rope runs through one block — this is the foundation of a block-and-tackle system that provides mechanical advantage to reduce the effort needed to lift or move a load.

These pulleys are suitable for light-to-moderate rigging and redirect applications. Before using in any overhead lifting scenario, verify the working load limit (WLL) of the specific variant against your application's requirements. Always apply an appropriate safety factor and inspect the pulley and attachment hardware before each use.

Corrosion resistance depends on the specific material and finish of the variant selected. For marine or consistently wet environments, confirm the material specification with us before ordering. Applying a light coating of corrosion inhibitor after installation can extend service life in exposed conditions.

These pulleys are compatible with fiber rope (nylon, polyester, polypropylene), braided cord, and light wire rope or cable, provided the rope diameter does not exceed the groove width of the selected sheave size. Avoid using ropes that are too thick, as this causes the rope to ride on the sheave flanges rather than the groove, increasing wear and reducing efficiency.

Multi-point rigging systems — such as a 3:1 or 5:1 mechanical advantage block-and-tackle — require multiple pulleys. Purchasing a 3-pack or 5-pack ensures you have matched pulleys for a complete system and reduces per-unit cost. Having spares on hand is also useful for field repairs or future projects without waiting for reorder.

The swivel eye is designed to accept a shackle, carabiner, hook, or bolt through the eye opening. Select hardware rated to at least the same working load as the pulley. The swivel function allows the pulley body to rotate freely, so the rope always feeds straight into the sheave groove regardless of the anchor orientation — reducing side-load and wear.
