3M HTD Closed-Loop PU Timing Belt — Precision Drive for CNC Routers & 3D Printers

When your CNC router skips steps or your 3D printer's axis loses position mid-print, a worn or imprecise drive belt is often the culprit. Makers, machine builders, and repair technicians who need reliable synchronous motion transmission will find these 3M HTD closed-loop PU timing belts a direct, no-splice solution for restoring or upgrading axis drives.

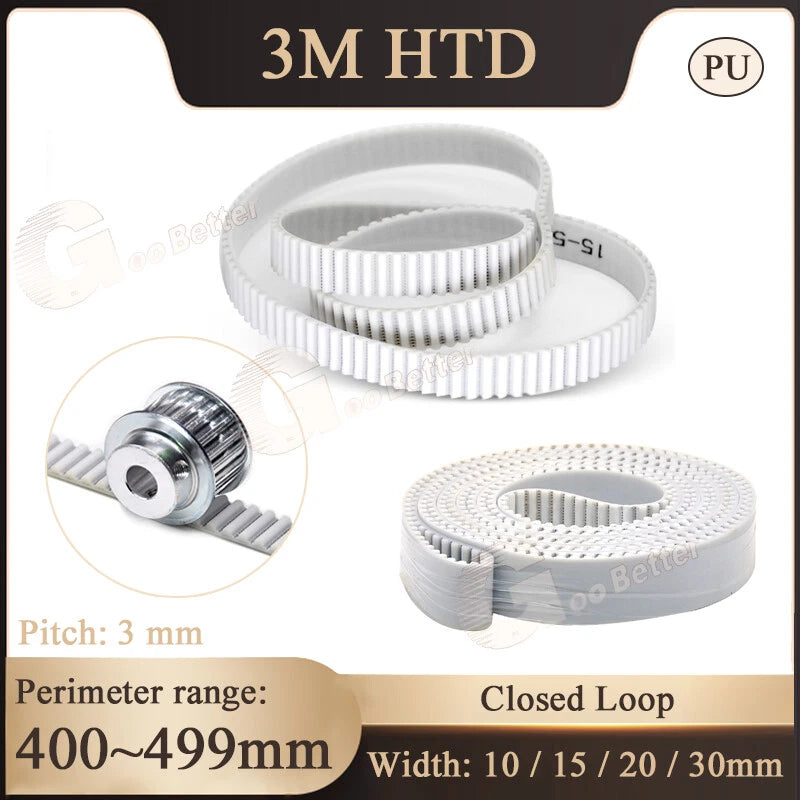

Each belt is a single closed-loop unit made from polyurethane (PU) with steel cord reinforcement, available in perimeters of 486mm (≈19.1"), 489mm (≈19.3"), 492mm (≈19.4"), 495mm (≈19.5"), and 498mm (≈19.6"), and widths of 10mm, 15mm, 20mm, and 30mm. The 3M HTD tooth profile has a 3mm pitch with a rounded tooth form designed for higher torque capacity than standard trapezoidal profiles.

Typical use cases include X/Y axis drives on FDM 3D printers, gantry drives on desktop CNC routers, and feed mechanisms on laser engravers — anywhere a closed-loop synchronous belt for CNC motion control is needed without the hassle of field-joining an open belt.

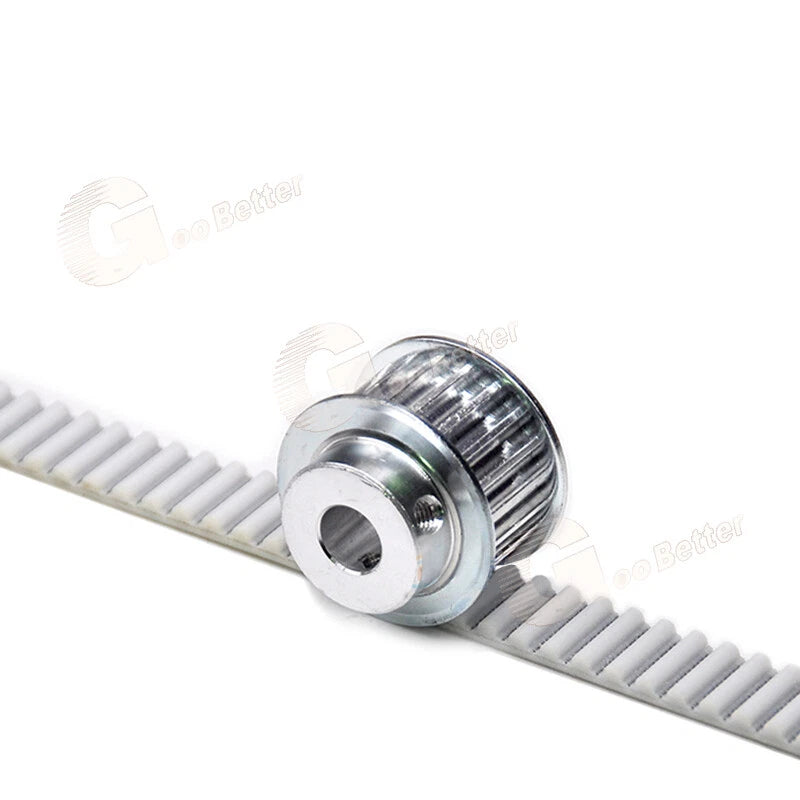

🔗 Compatibility: Fits any standard 3M HTD pulley (3mm pitch, rounded tooth profile). Confirm your pulley's tooth profile and groove width before ordering.
⚠️ Size Note: Perimeter and width are listed in the variant selector above. Measure your existing belt or calculate from pulley center distance before selecting. See FAQ below for guidance.

✅ Key Features of These 3M HTD Closed-Loop PU Timing Belts

  • 🔄Closed-Loop, No-Splice Design — Factory-joined loop eliminates the weak point of field-spliced belts, giving you consistent tension and tooth engagement from the first revolution.
  • 🧲Steel Cord Reinforcement — Embedded steel tension members resist elongation under load, maintaining positional accuracy in closed-loop CNC timing belt drives where backlash matters.
  • ⚙️3M HTD Tooth Profile — The 3mm-pitch rounded HTD tooth form distributes load across a larger contact area than trapezoidal profiles, reducing tooth shear risk at higher torque levels.
  • 🧪Polyurethane Construction — PU material offers better resistance to oils, mild solvents, and moisture compared to standard rubber, extending service life in workshop environments.
  • 📐Multiple Width Options — Available in 10mm, 15mm, 20mm, and 30mm widths to match your pulley groove and load requirements, from lightweight 3D printer axes to heavier CNC gantry systems.
  • 🔧Tool-Free Belt Swap — Closed-loop format installs by loosening the motor or idler mount — no belt lacing, no joining tools, no adhesives required for a clean synchronous belt replacement.

📐 Technical Specifications — 3M HTD PU Closed-Loop Timing Belt

Belt Type HTD (High Torque Drive), Closed Loop
Tooth Pitch 3mm (3M profile)
Tooth Profile Rounded HTD
Belt Material Polyurethane (PU)
Tension Member Steel cord
Available Perimeters 486mm (≈19.1") / 489mm (≈19.3") / 492mm (≈19.4") / 495mm (≈19.5") / 498mm (≈19.6")
Available Widths 10mm / 15mm / 20mm / 30mm

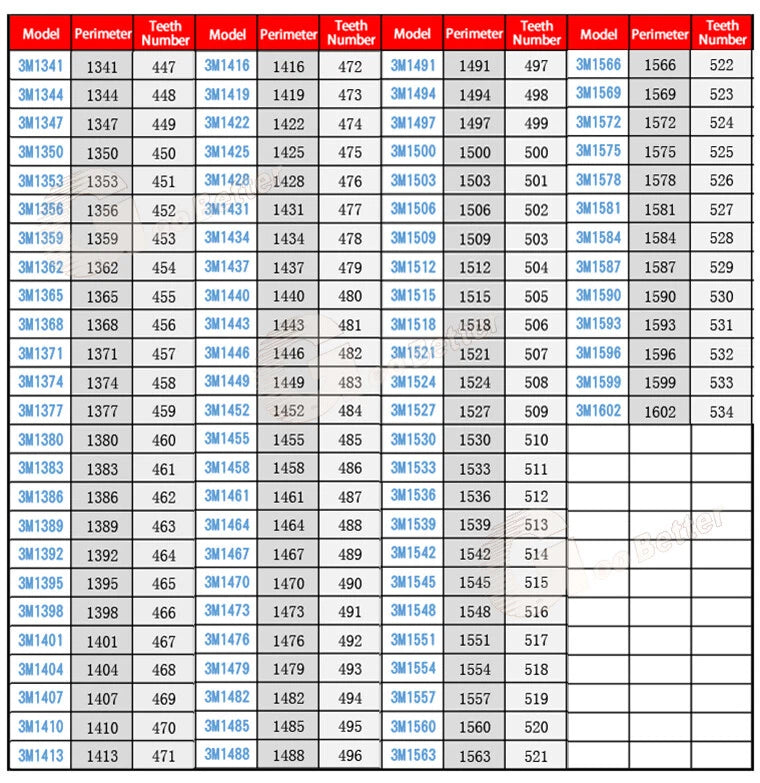

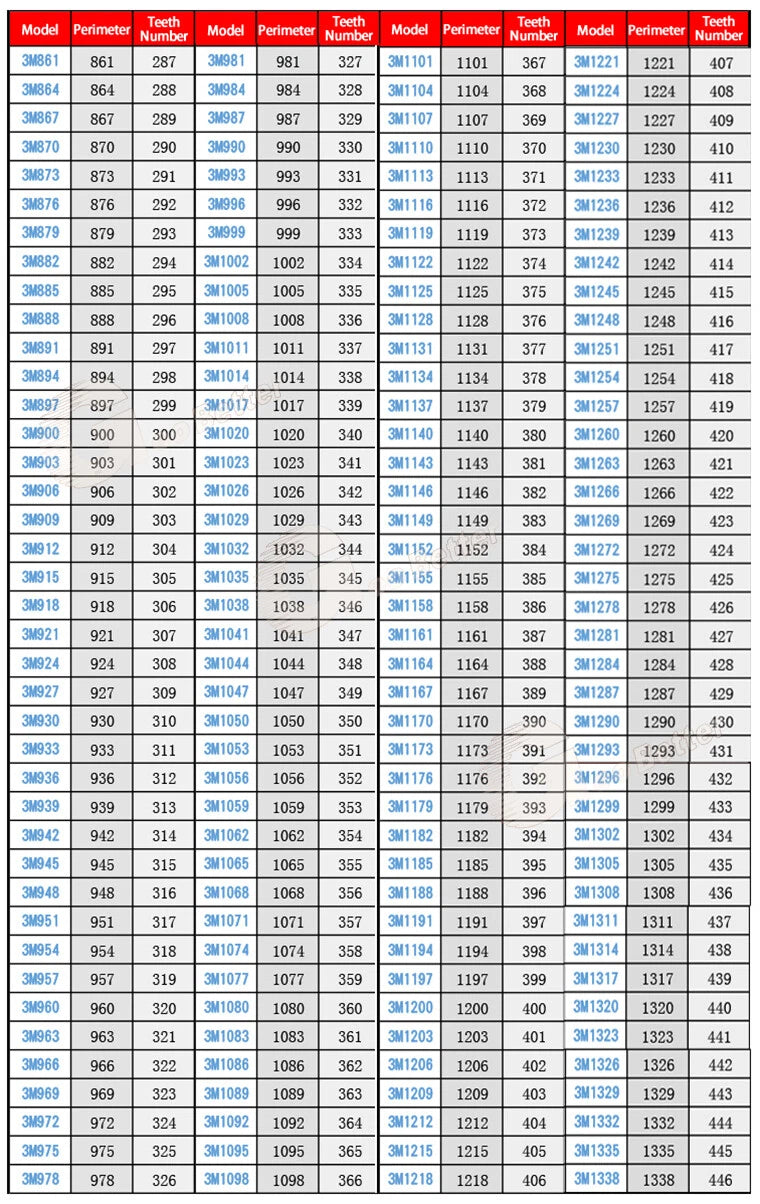

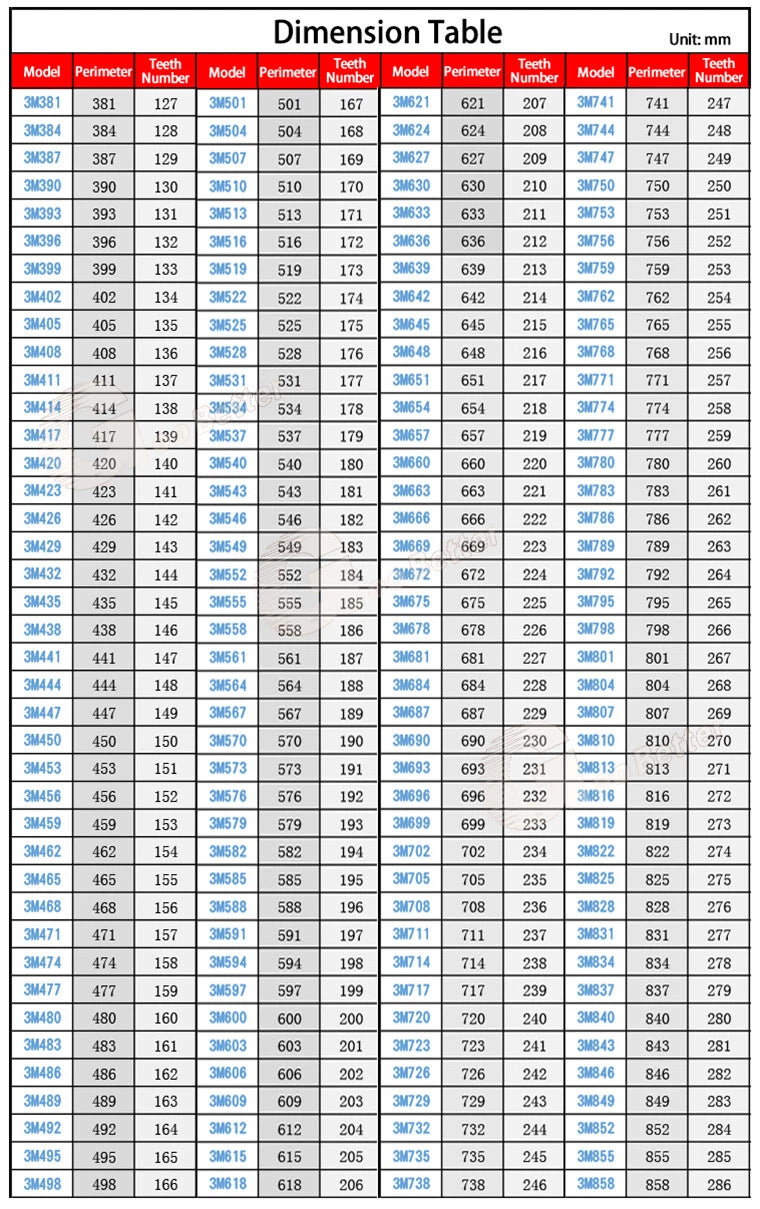

Number of Teeth See variant options (perimeter ÷ 3mm pitch)
Operating Temperature Contact us to confirm
Color/Finish Typically black PU
Compatible Pulley Standard 3M HTD
Quantity per Order 1 belt per unit

❓ Frequently Asked Questions

How do I choose the right perimeter size for my machine?

Measure the center-to-center distance between your two pulleys, then calculate the required belt perimeter: Perimeter ≈ 2 × center distance + π × (pulley pitch diameter). Available perimeters are 486mm (≈19.1"), 489mm (≈19.3"), 492mm (≈19.4"), 495mm (≈19.5"), and 498mm (≈19.6"). When in doubt, size up — a slightly longer belt can typically be accommodated with a tensioner.

What width should I choose for my application?

Width determines load capacity and lateral stability. For light-duty 3D printers and small CNC routers, 10mm or 15mm is generally sufficient. For heavier gantry systems or higher torque applications, 20mm or 30mm provides greater strength and reduced stretch under load. Always match the belt width to your pulley groove width.

How strong is a PU timing belt compared to a rubber one?

Polyurethane timing belts with steel cord reinforcement are generally stiffer and more dimensionally stable than standard rubber belts. They typically exhibit lower elongation under load, which translates to better positional accuracy in CNC and 3D printing applications. PU also resists oils and many common solvents better than rubber.

Can these belts be used outdoors or in humid environments?

PU timing belts are generally more resistant to moisture and mild environmental exposure than rubber belts. However, prolonged outdoor UV exposure can degrade polyurethane over time. For outdoor or high-humidity applications, we recommend shielding the belt from direct sunlight and verifying suitability with your specific operating conditions.

Are these belts compatible with standard 3M HTD pulleys?

Yes. These belts follow the 3M HTD tooth profile with a 3mm pitch and are designed to mesh with any standard 3M HTD pulley. Always confirm your pulley's tooth profile and pitch before ordering to ensure full compatibility.

What machines are these timing belts typically used in?

These closed-loop 3M HTD belts are commonly used in desktop CNC routers, FDM 3D printers (X/Y axis drives), laser engravers, pick-and-place machines, and other precision motion systems that require synchronous power transmission with minimal backlash.

Do I need any special tools to install a closed-loop belt?

No special tools are required. Closed-loop belts are pre-joined — installation typically involves loosening the motor or idler mount, slipping the belt over the pulleys, and re-tensioning with standard hex keys or wrenches. No splicing, lacing, or adhesives needed.

🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
