Perimeter: 1101mm
Width: 10mm
Price:
$20.94 USD
Stock:
In stock (500 units), ready to be shipped

Payment & Security

Ach Direct Debit Amazon American Express Apple Pay Bancontact BLIK Diners Club Discover EPS Google Pay iDEAL Wero JCB Maestro Mastercard Multibanco MobilePay PayPal Przelewy24 Shop Pay Twint Union Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Limited Offer — Spend More, Save More
Spend $55+
Save $5
Spend $100+
Save $10
Spend $200+
Save $25
✅ Discount applied automatically at checkout 🚚 Free shipping on orders over $89
HomeDIYer DIY Expert Support

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri  8:30 AM – 8:00 PM
WhatsApp
24-Hour Fast Ship
Arrives in 1–7 Days
US Warehouse
30-Day Returns
1 tree planted with every purchase

Description



3M HTD PU Timing Belt — Closed-Loop Synchronous Drive for CNC, 3D Printers & Automation

When a skipped tooth or a stretched belt costs you a failed print or a ruined workpiece, the drive belt becomes the most important part of your machine. Engineers, makers, and machine builders who demand repeatable, backlash-free motion rely on a 3M HTD timing belt that holds its pitch under load — not one that creeps and stretches after a few hundred hours of use.

Each belt in this listing is a closed-loop (endless) synchronous belt manufactured from polyurethane (PU) with steel tension cord reinforcement. Available perimeters run from 1101mm (≈43.3″) to 1197mm (≈47.1″) in 3mm increments, and widths are offered in 10mm, 15mm, 20mm, and 30mm to match your pulley flange. The 3M HTD tooth profile — a 3mm pitch curvilinear tooth — seats deeply into mating pulleys for positive engagement without the slip associated with flat or V-belts.

Typical use cases include CNC router X/Y axis drives where consistent step accuracy is critical, FDM 3D printer motion systems that require low-stretch belt tension, and light industrial conveyor or automation setups where a synchronous closed-loop drive belt replaces chain or gear mechanisms.

ℹ️ Compatibility: Requires a 3M HTD pulley (3mm pitch, curvilinear tooth profile). Not compatible with 5M, 8M, or trapezoidal (XL/L) pulleys. Match belt width to your pulley flange width.

✅ Key Features of These 3M HTD PU Timing Belts

  • 🔁Closed-Loop Endless Construction — No joint or splice means uniform tension distribution around the full perimeter, eliminating the vibration and wear point that spliced open-end belts introduce in CNC drive systems.
  • 🧱Polyurethane Body with Steel Cord — PU resists abrasion and oil better than standard neoprene rubber, while the embedded steel tension cord keeps elongation minimal — a key requirement for accurate 3D printer belt tension and CNC axis repeatability.
  • 📐3M HTD Curvilinear Tooth Profile — The rounded HTD tooth seats fully into the pulley groove, distributing load across a larger contact area than trapezoidal teeth and reducing the risk of tooth jump under sudden acceleration.
  • 📏Multiple Width Options (10 / 15 / 20 / 30mm) — Select the width that matches your pulley flange. Wider belts carry higher torque loads, making the 20mm and 30mm variants suitable for heavier CNC gantry drives and light conveyor applications.
  • 🎯Fine Perimeter Increments (3mm steps) — With 33 perimeter sizes from 1101mm to 1197mm, you can find a belt that fits your exact center-to-center distance without resorting to idler adjustments that compromise tension consistency.
  • 🏭Ships from US Warehouse — Stocked domestically for faster delivery to US-based machine builders, repair shops, and prototyping labs that cannot afford long international lead times on a synchronous drive belt replacement.

📐 Technical Specifications — 3M HTD Closed-Loop PU Timing Belt

Belt Type HTD (High Torque Drive) Synchronous Timing Belt
Tooth Pitch 3mm (3M HTD)
Tooth Profile Curvilinear (HTD) — not trapezoidal
Belt Construction Closed-loop (endless / no joint)
Body Material Polyurethane (PU)
Tension Member Steel cord (typically fiberglass or steel — see variant)

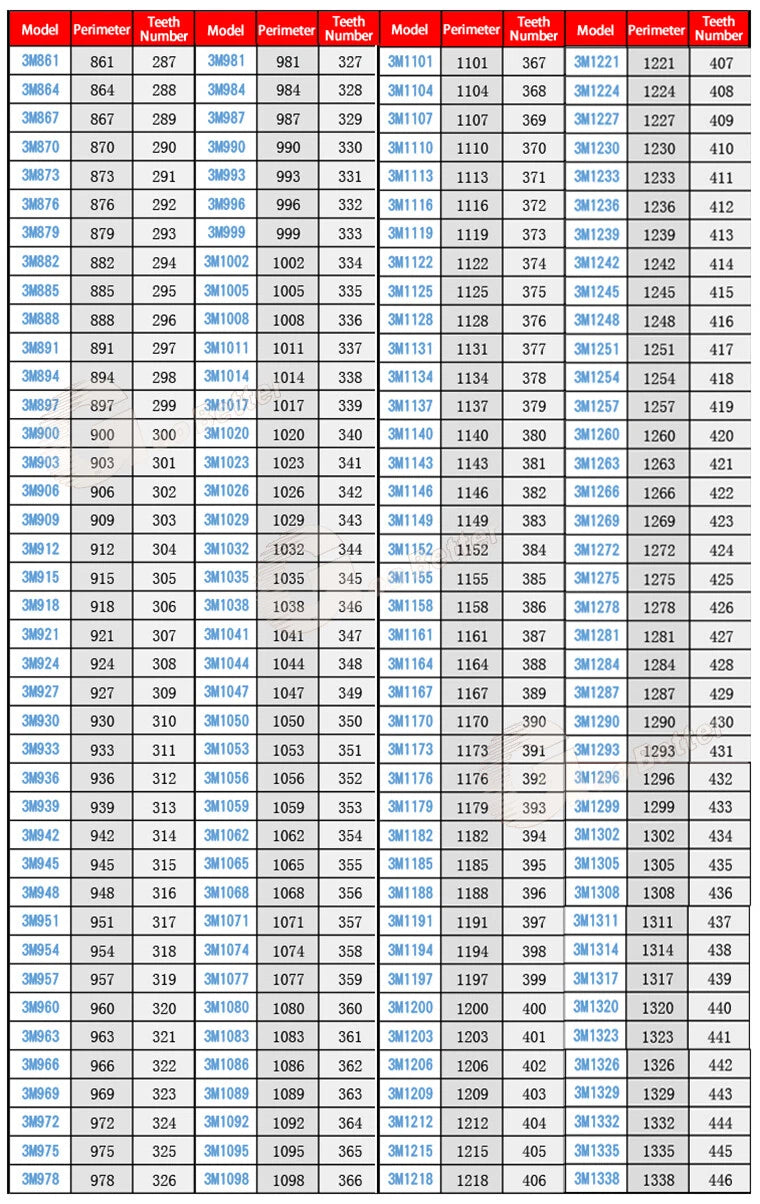

Available Perimeters 1101mm (≈43.3″) to 1197mm (≈47.1″) in 3mm increments
Available Widths 10mm / 15mm / 20mm / 30mm
Compatible Pulley Pitch 3M HTD only
Operating Temperature See variant options / Contact us to confirm
Color / Finish See variant options
Quantity per Order 1 belt per unit
Typical Applications CNC routers, 3D printers, plotters, light conveyors, automation
⚠️ Sizing note: Perimeter is the total outer loop length of the belt. Verify your required perimeter using the pulley center-distance formula before ordering. If you are unsure, contact us with your pulley specs and we will help you select the correct size.

❓ Frequently Asked Questions

How do I choose the right perimeter length for my 3M HTD timing belt?

Measure the center-to-center distance between your two pulleys, then calculate the belt perimeter using the formula: Perimeter ≈ 2 × C + π × (D1 + D2) / 2, where D1 and D2 are the pulley pitch diameters. For example, a 1140mm (≈44.9″) belt typically suits a center distance of around 540–560mm with standard 3M pulleys. When in doubt, size up — a slightly longer belt can be tensioned; a short one cannot.

What does the '3M' designation mean for this timing belt?

'3M' refers to the HTD tooth pitch of 3mm — the distance from one tooth center to the next. This pitch is compatible with 3M HTD pulleys and sprockets only. It is not interchangeable with 5M, 8M, or other pitch belts, even if the perimeter is the same.

How strong is a PU timing belt compared to a rubber one?

Polyurethane (PU) timing belts generally offer higher abrasion resistance and better dimensional stability than standard neoprene rubber belts. They typically maintain tension more consistently over time, which is why they are preferred in precision CNC and 3D printing applications where backlash must be minimized. Load ratings vary by width — wider belts carry more torque.

Can this belt be used outdoors or in wet environments?

PU timing belts are generally more resistant to oils and mild chemicals than rubber belts. However, prolonged exposure to UV radiation or standing water may degrade the material over time. For outdoor or washdown environments, confirm suitability with your application engineer or contact us before ordering.

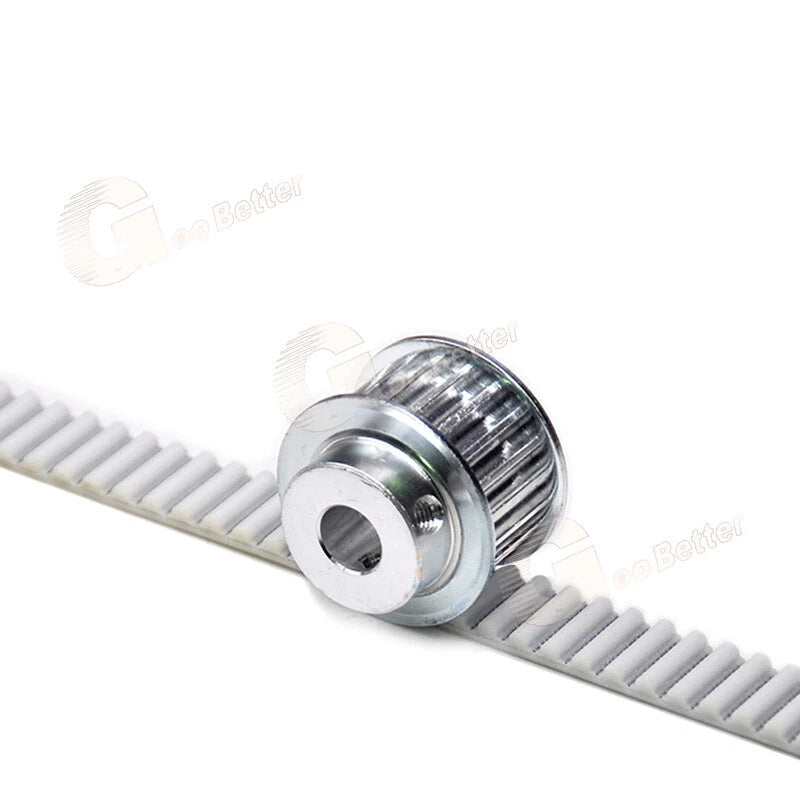

Which pulley or sprocket is compatible with this belt?

This belt requires a 3M HTD pulley — one with a 3mm tooth pitch and HTD (curvilinear) tooth profile. It is not compatible with trapezoidal (MXL, XL, L) pulleys or other HTD pitches such as 5M or 8M. Always verify the pulley tooth count and pitch before ordering.

How do I select the correct belt width for my application?

Belt width affects load capacity. Wider belts (20mm, 30mm) handle higher torque and lateral forces, making them suitable for heavier CNC gantries or light industrial conveyors. Narrower belts (10mm, 15mm) are typically used in lightweight 3D printers, plotters, and small automation systems. In all cases, match the belt width to your pulley flange width to prevent the belt from riding off the pulley.

Is this a closed-loop belt or an open-ended belt?

This is a closed-loop (endless) belt — it forms a continuous loop with no joint or splice. Closed-loop belts deliver smoother, more consistent power transmission than joined open-end belts and are the standard choice for CNC machines and 3D printers where positional accuracy matters.

🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
