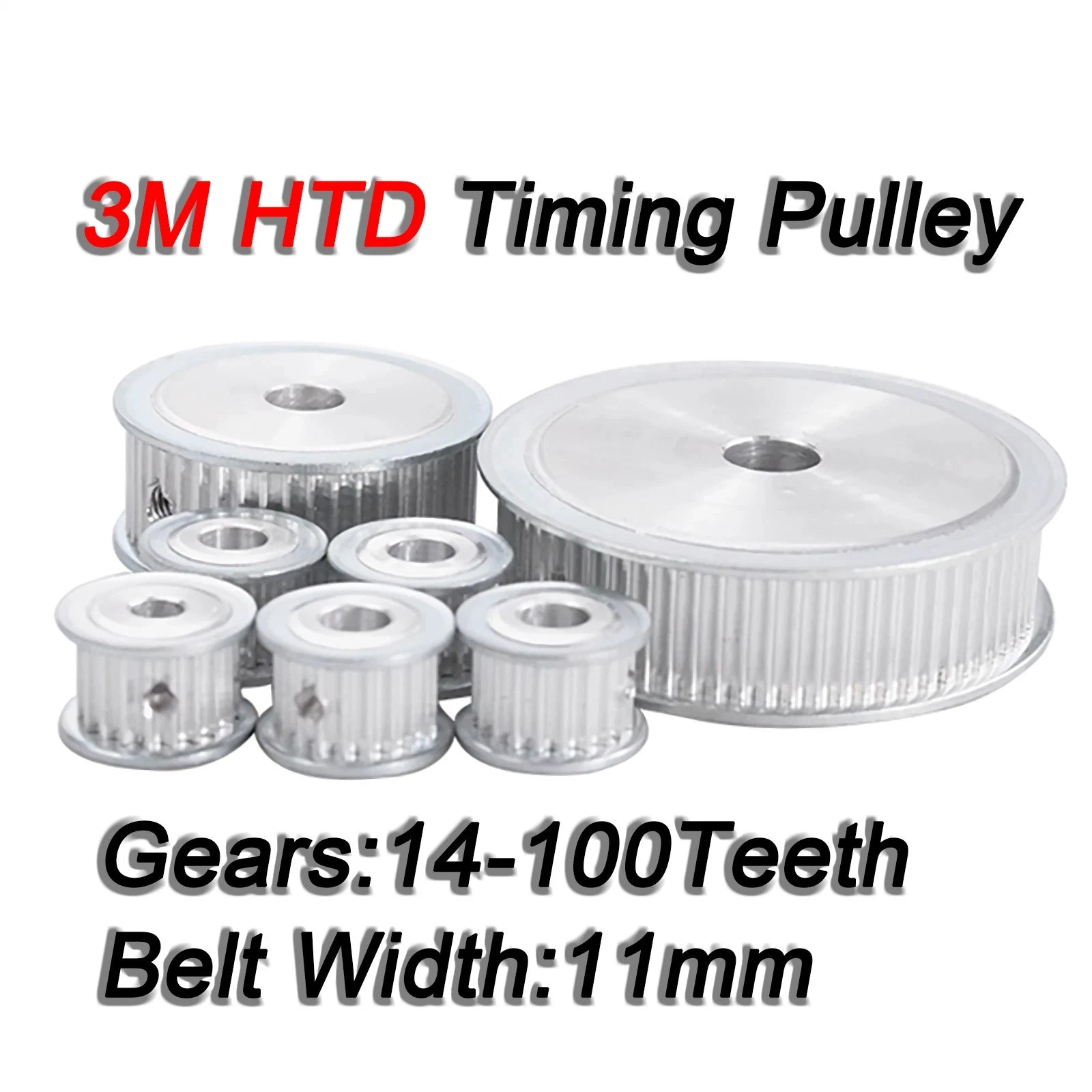

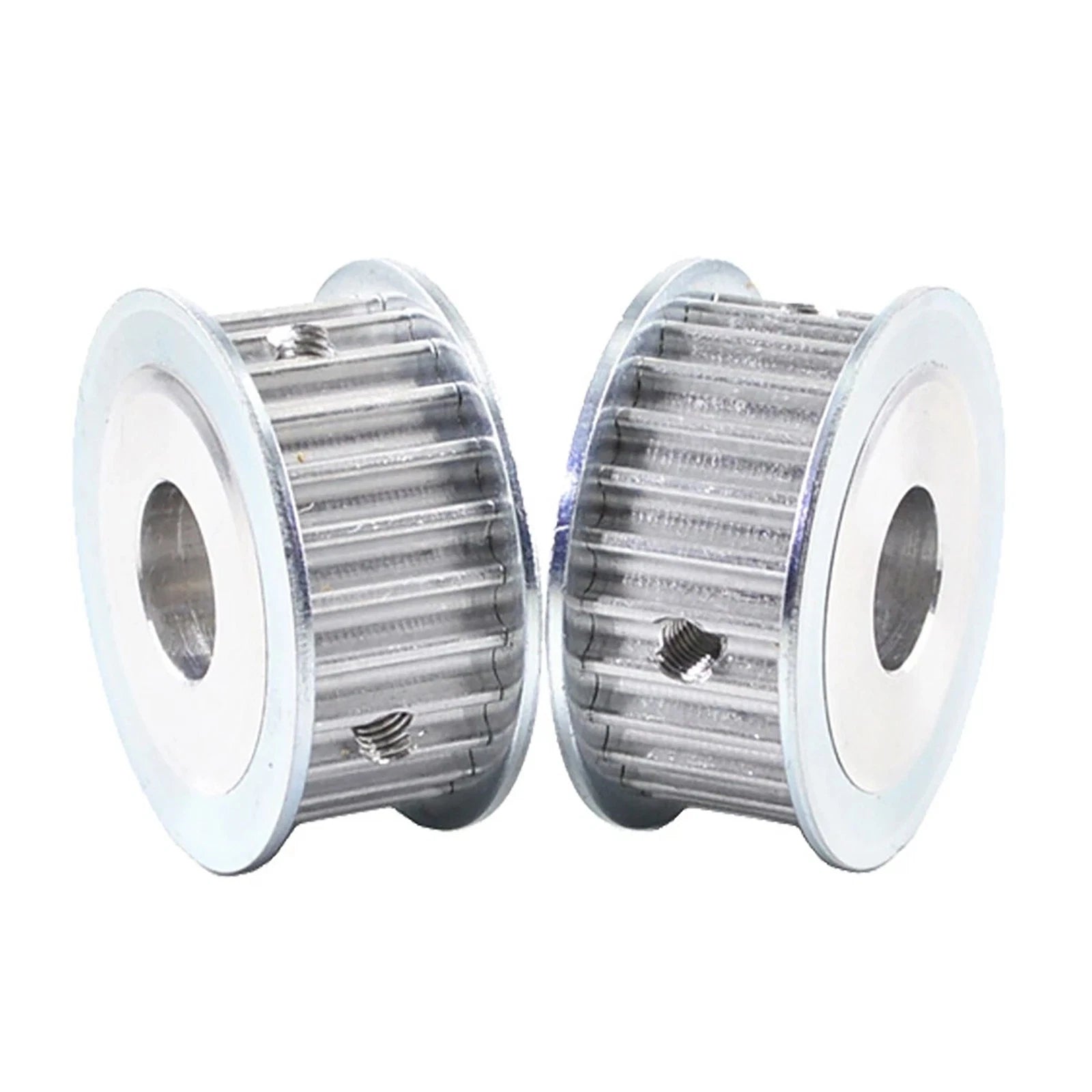

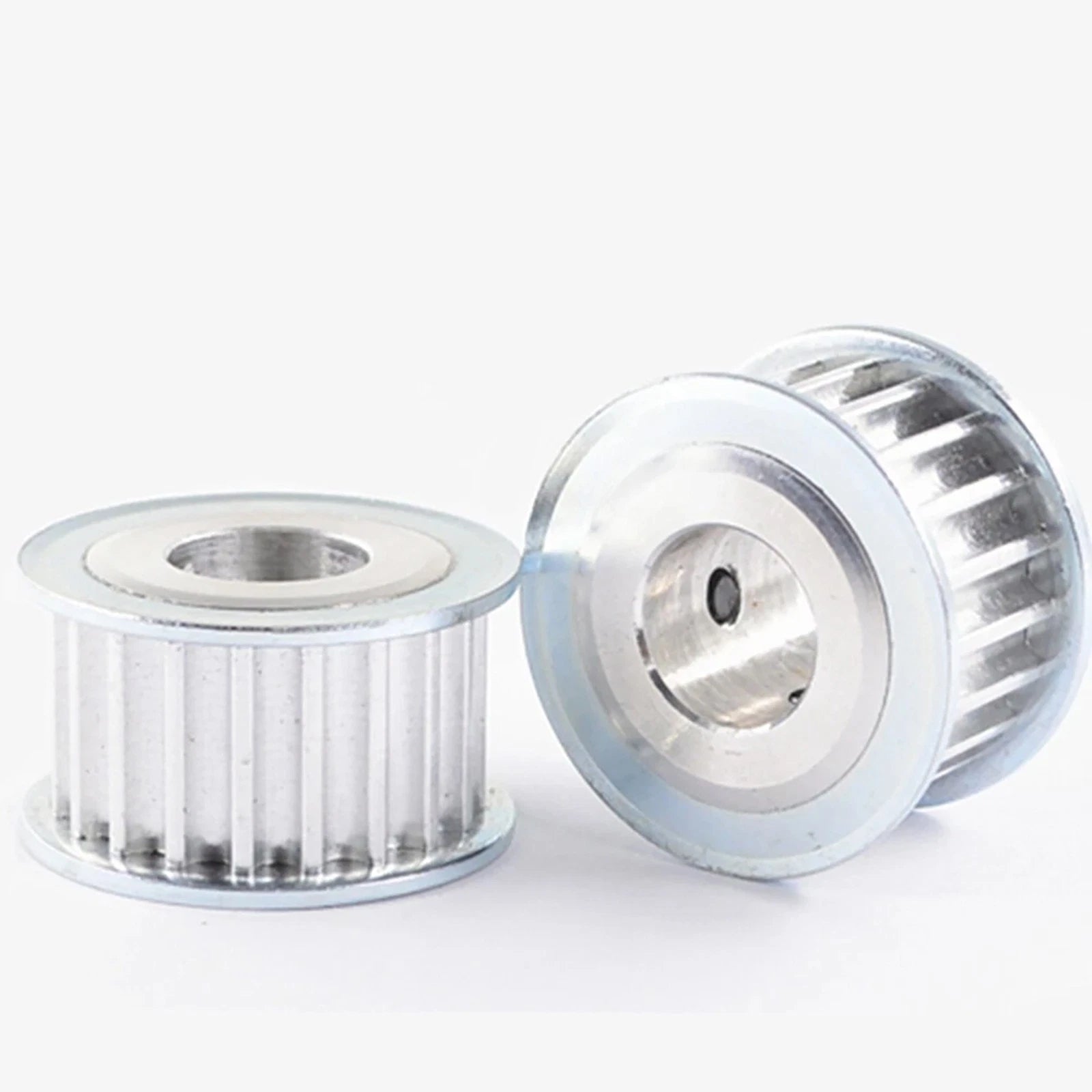

When your CNC router, 3D printer, or robotics project demands consistent belt tension and zero-slip power transmission, a mismatched or poorly made idler pulley can throw off your entire build. This 3M HTD Timing Pulley is designed for makers, engineers, and DIY builders who need a reliable smooth idler drive component that keeps their HTD 3M belt running true under load.

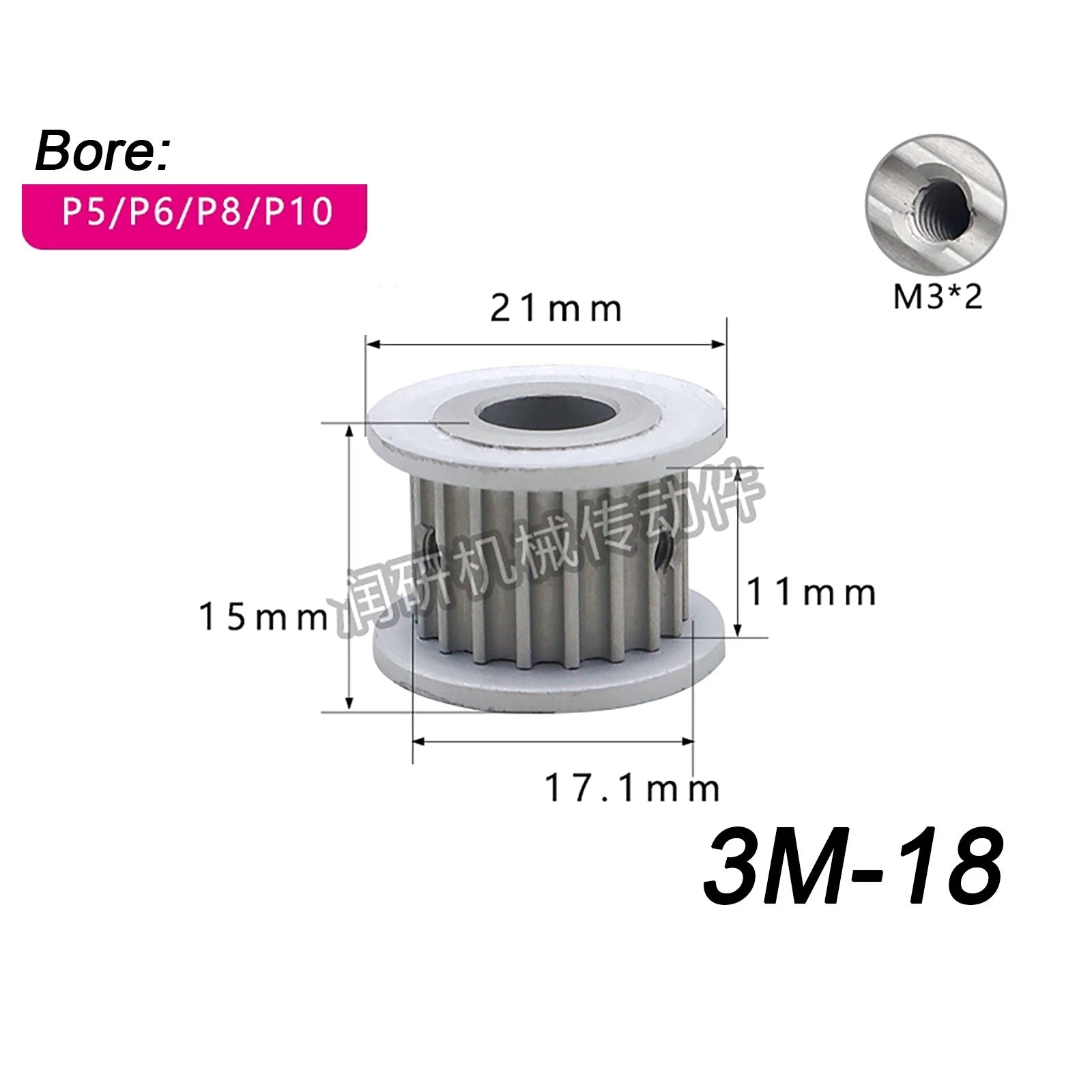

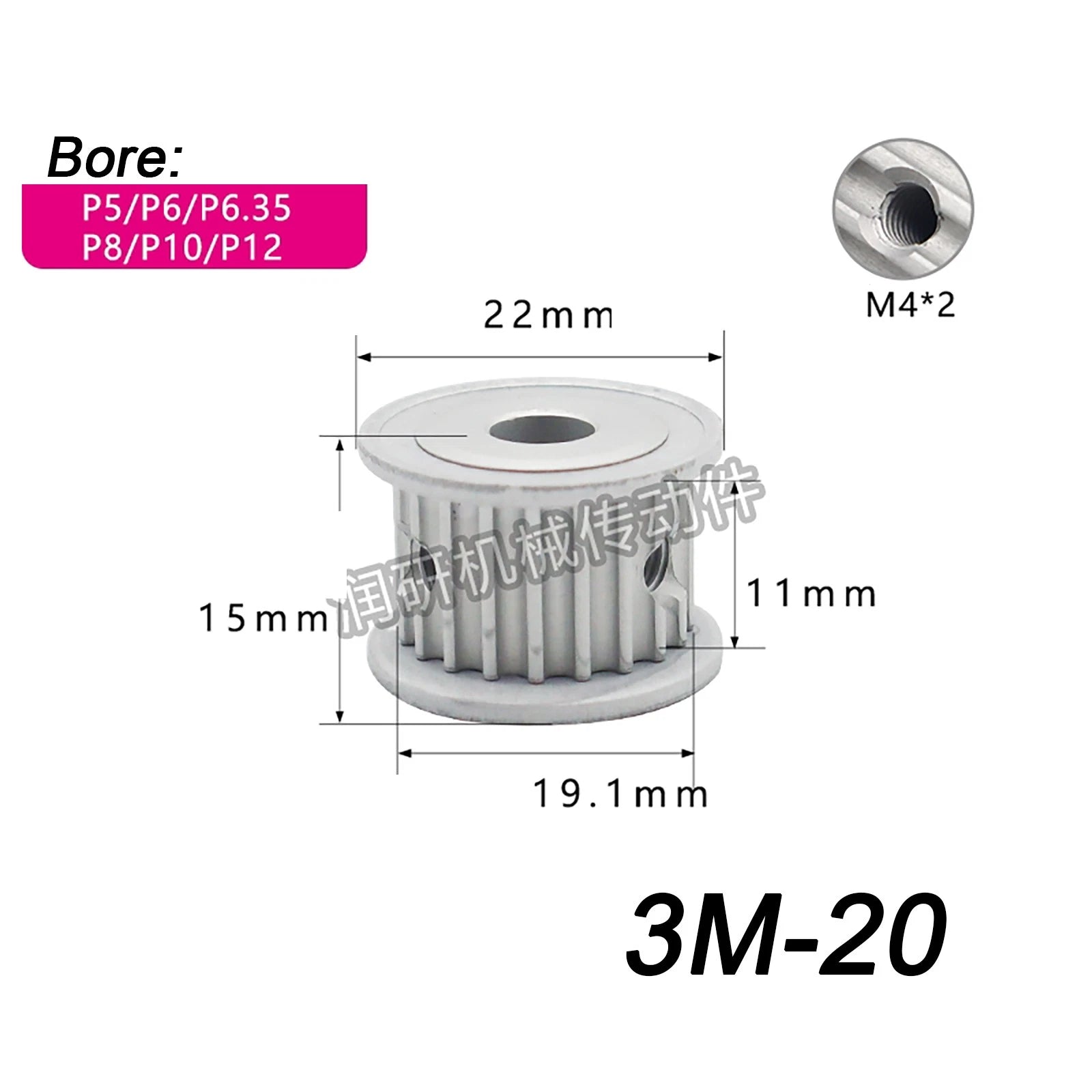

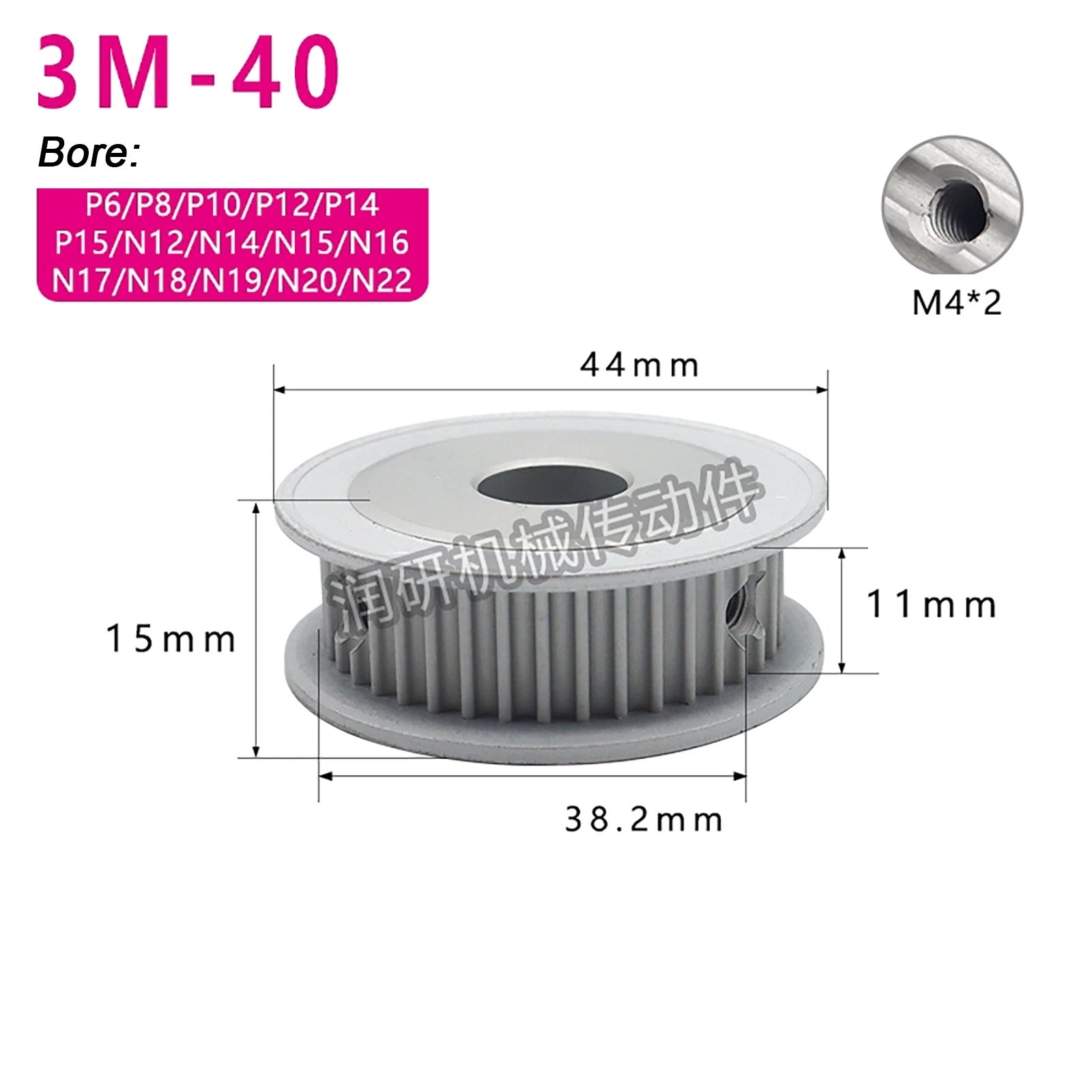

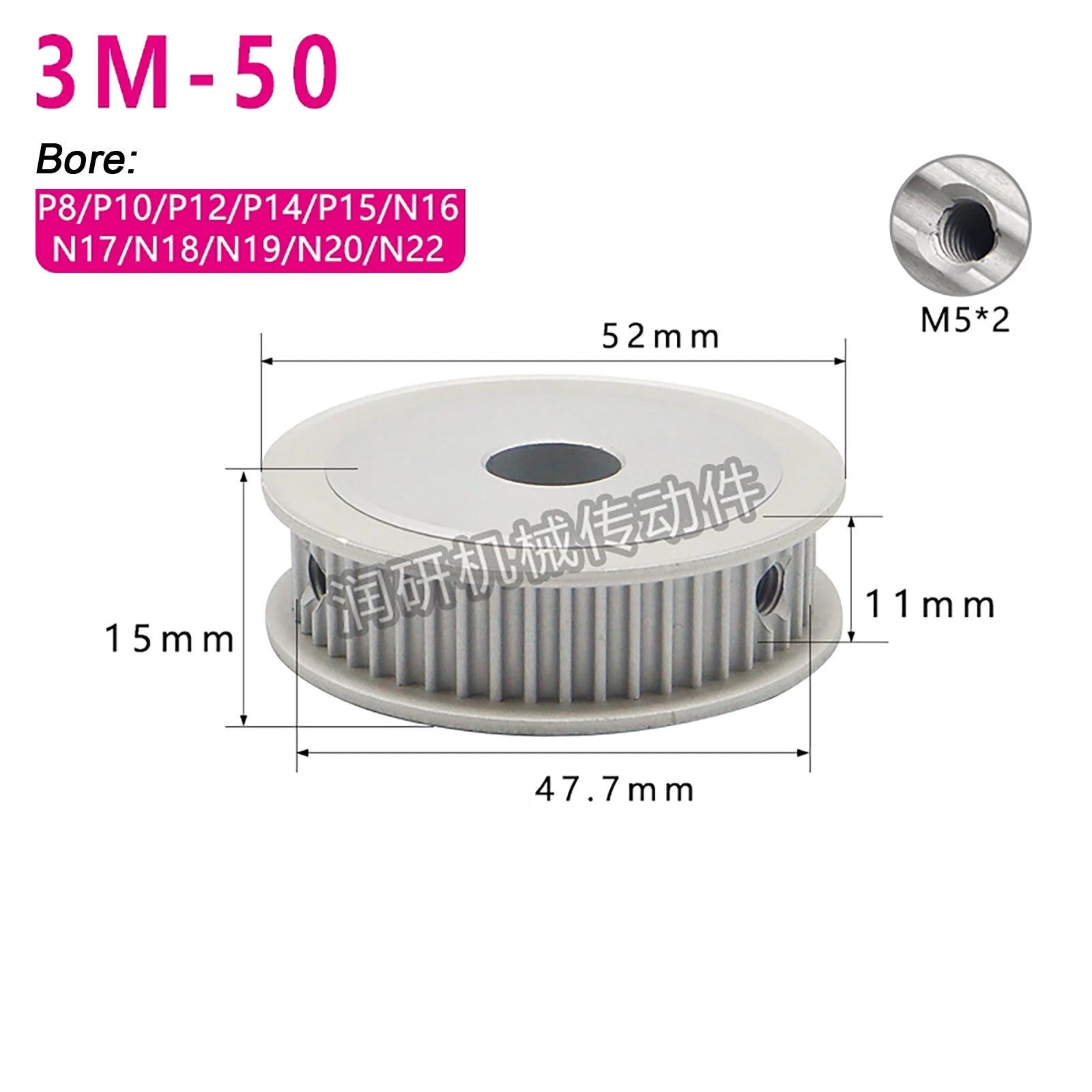

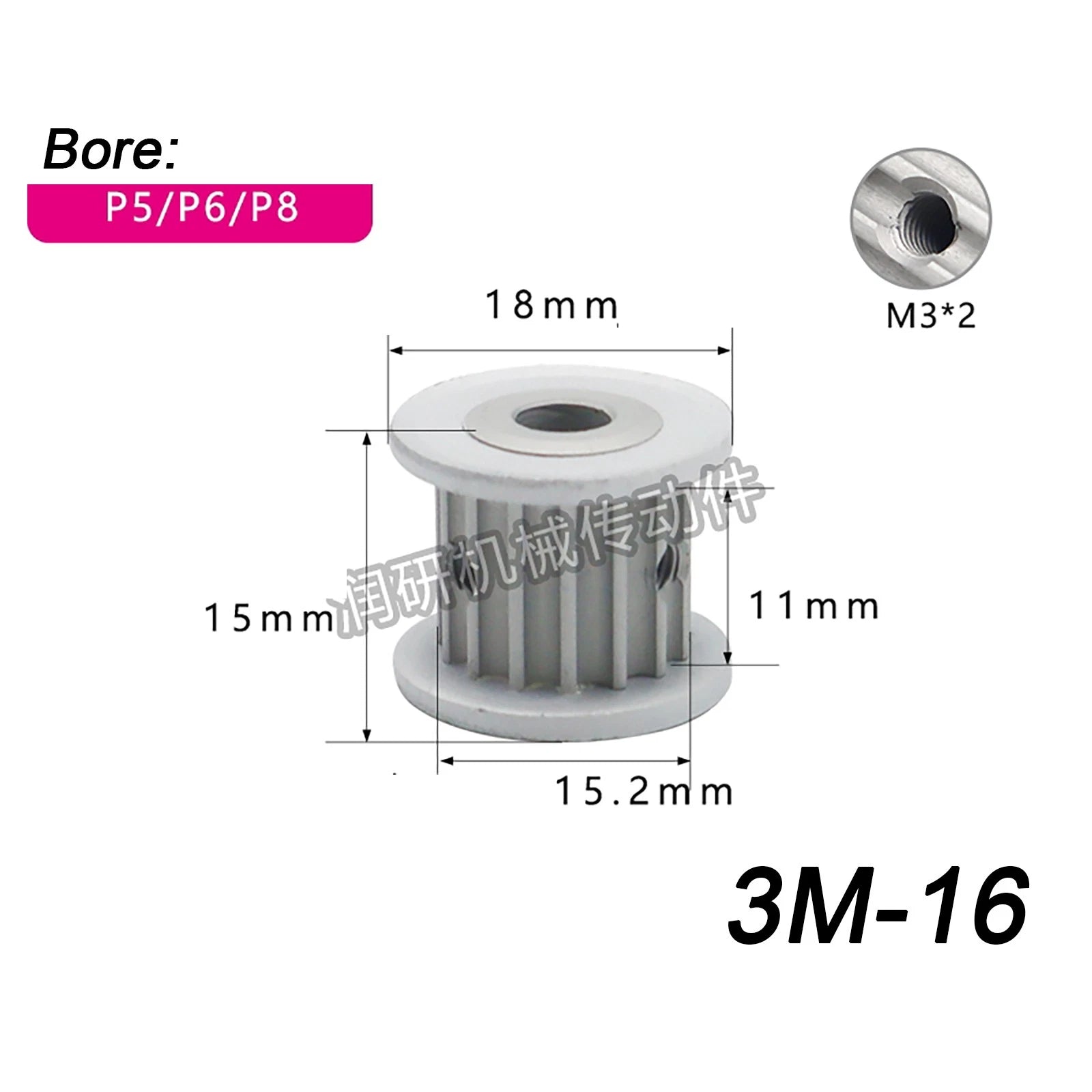

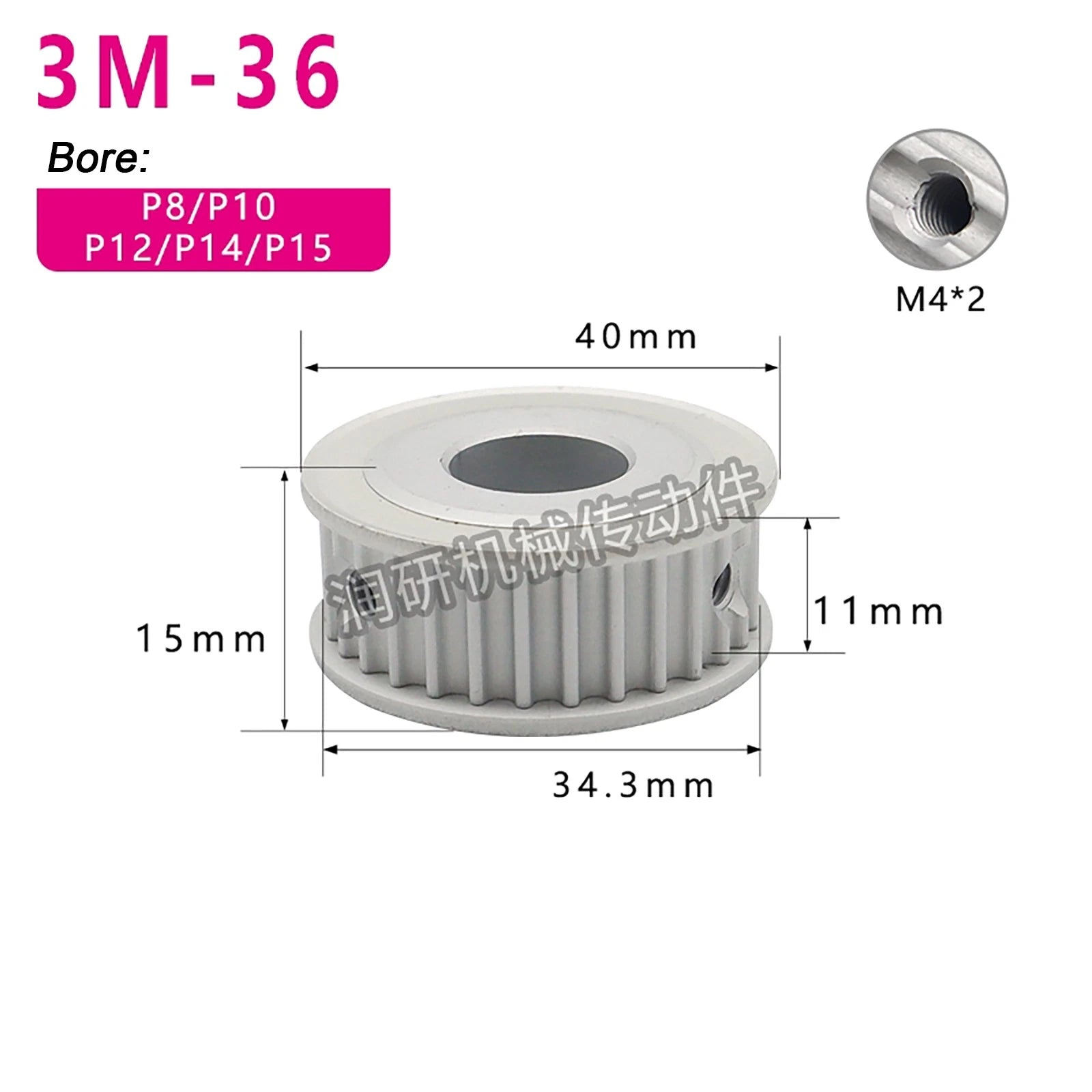

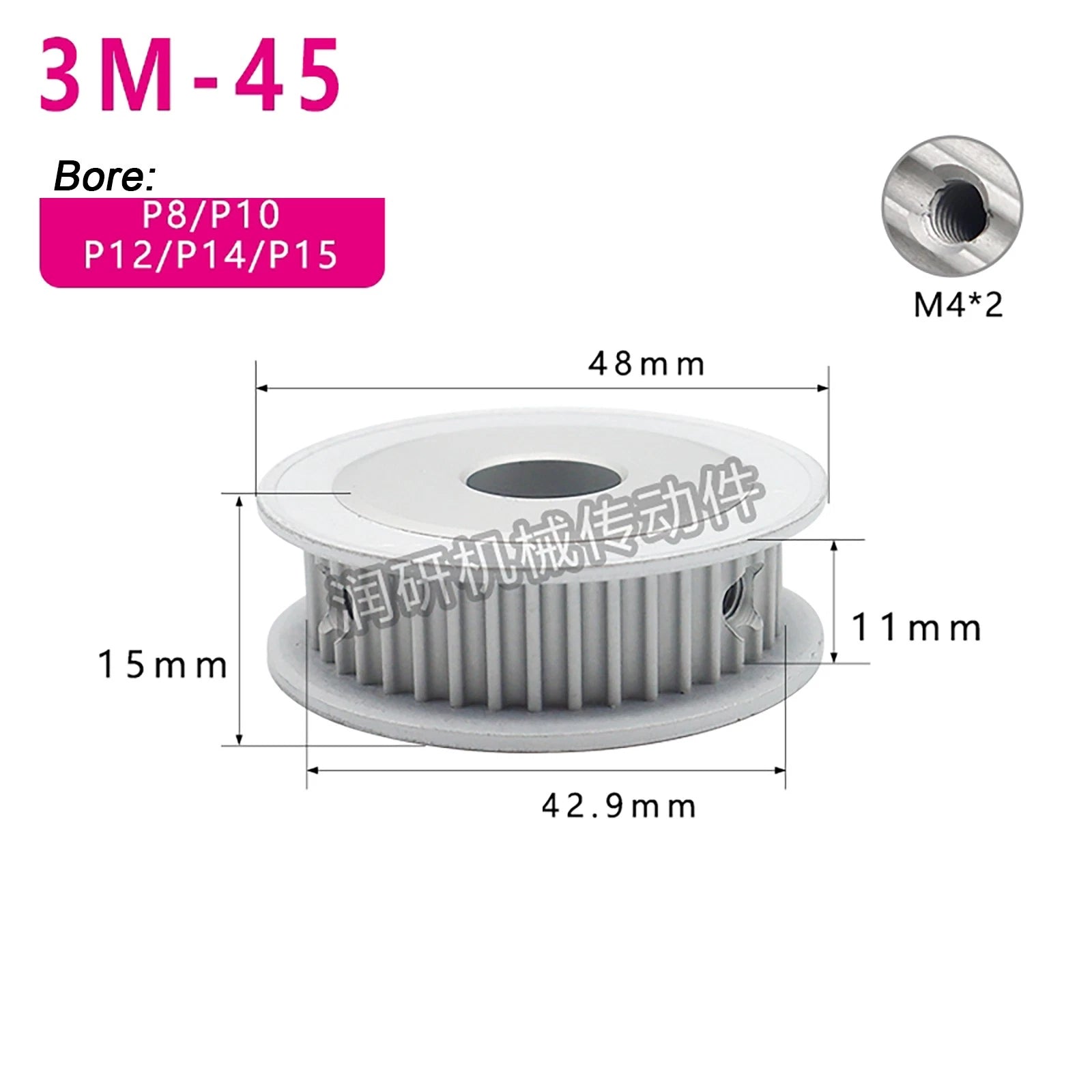

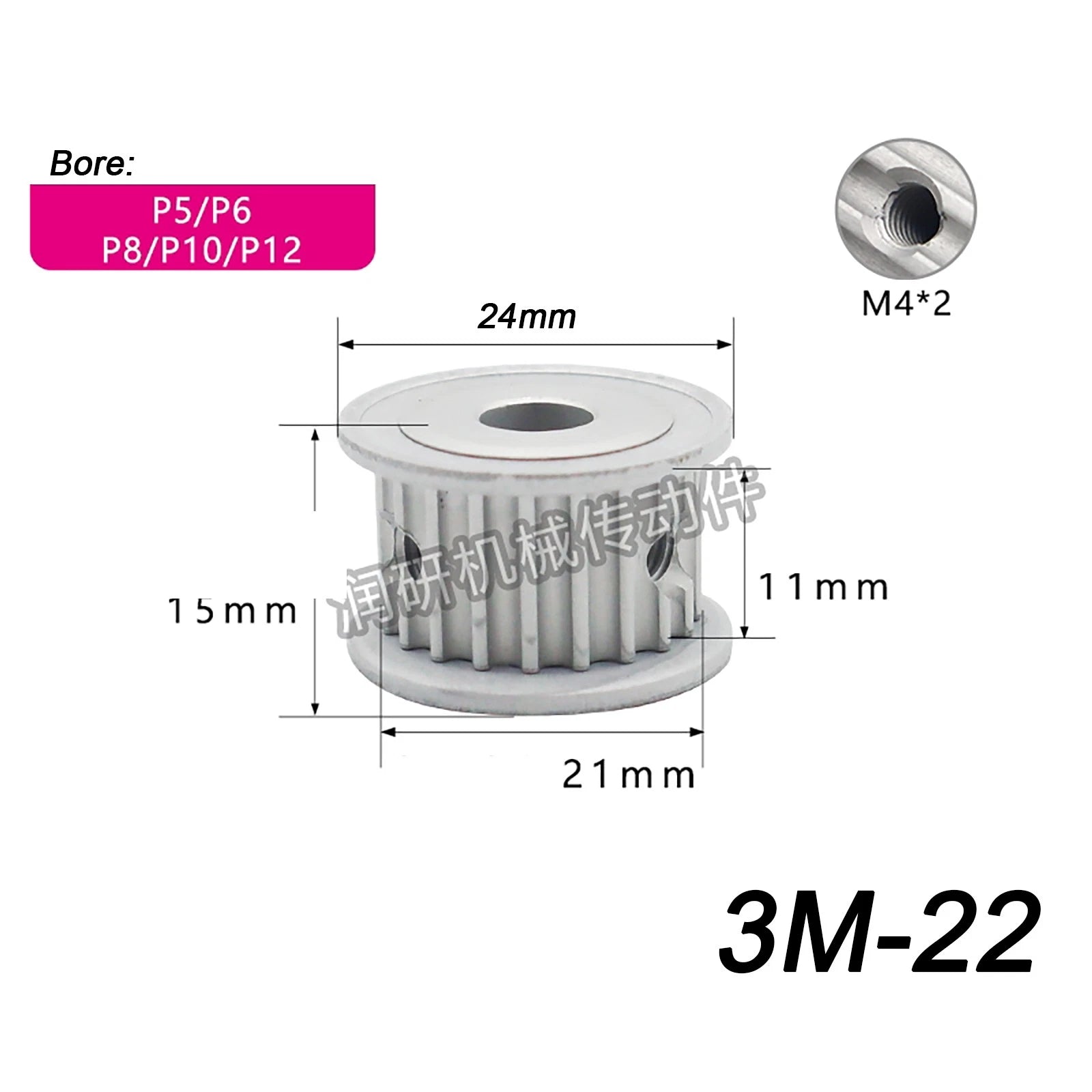

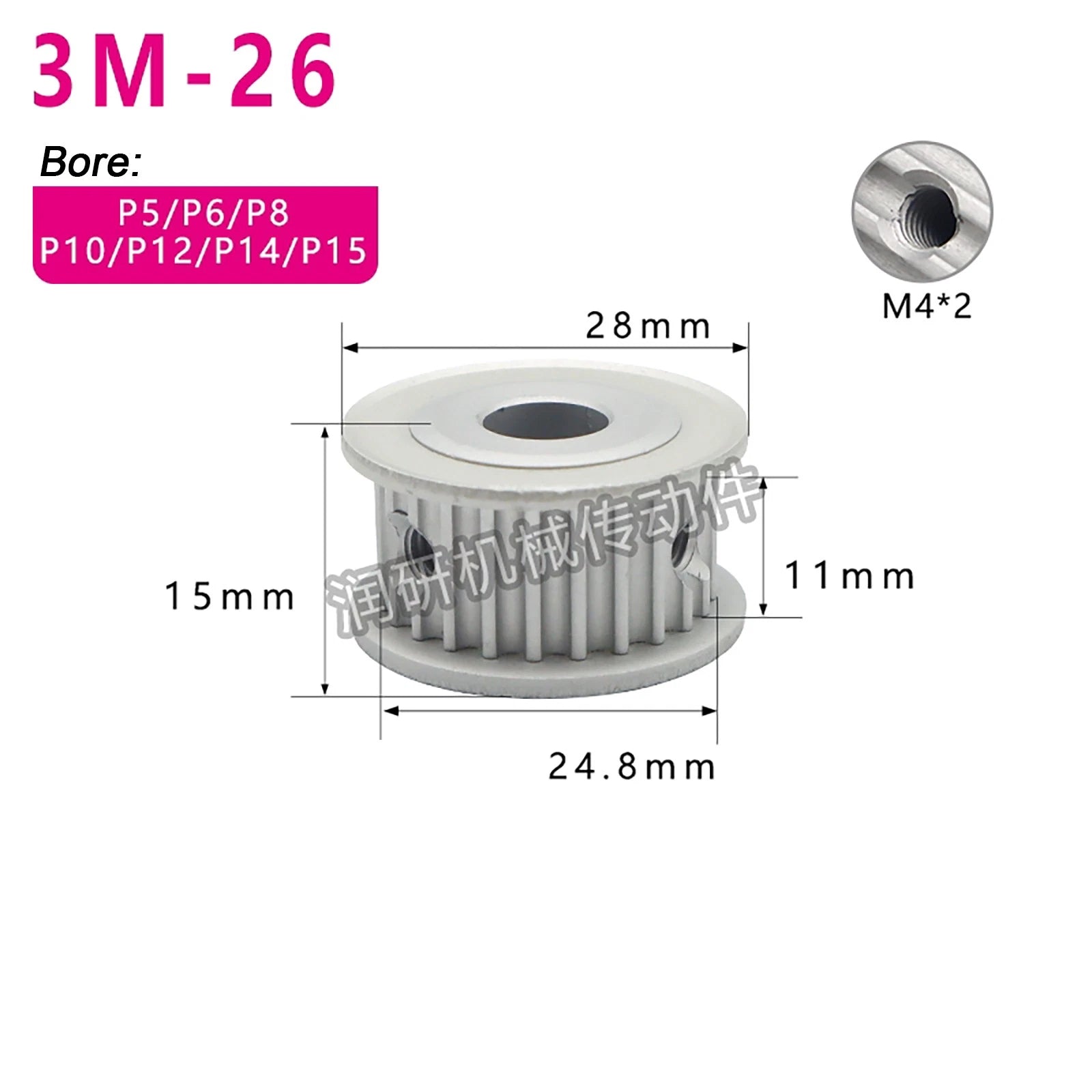

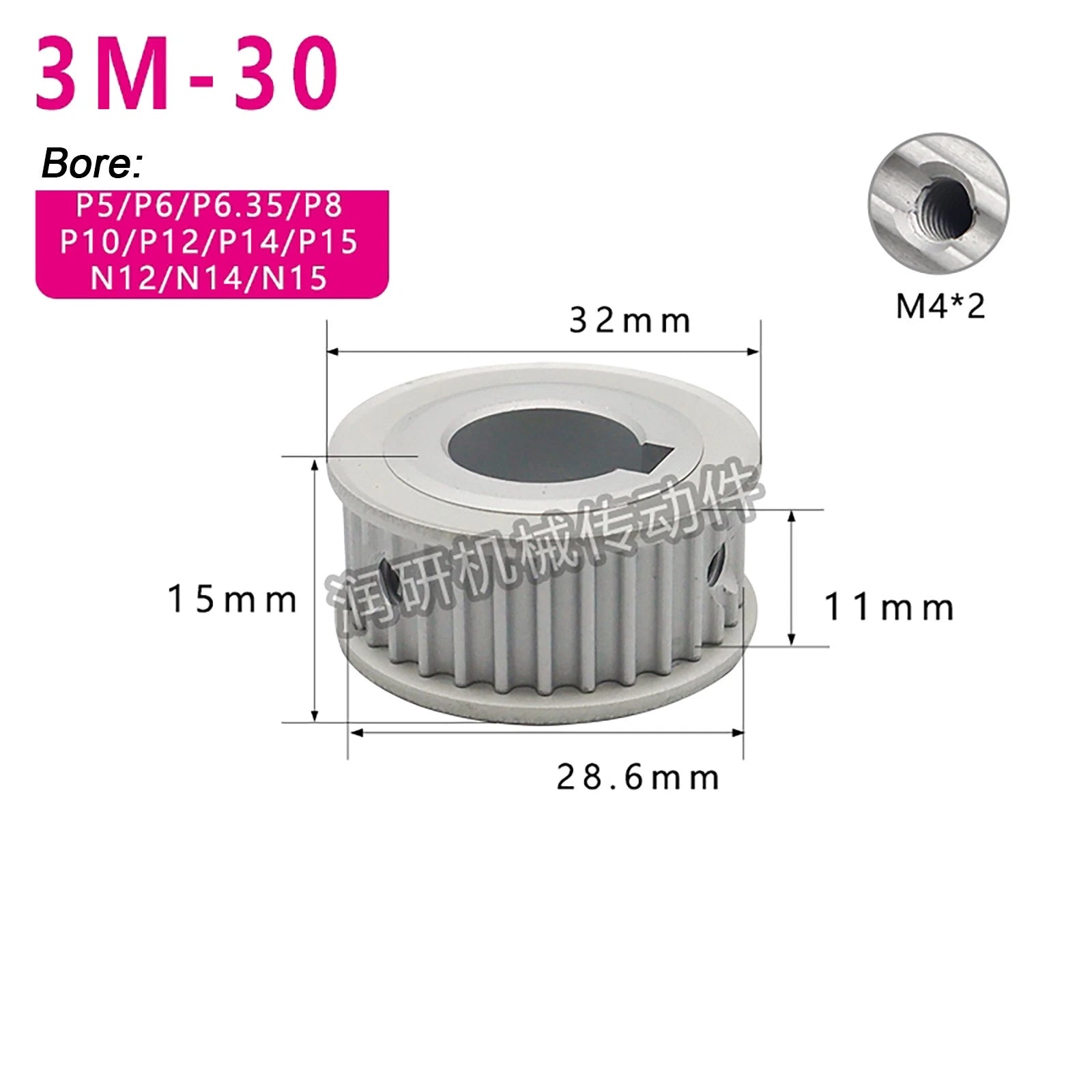

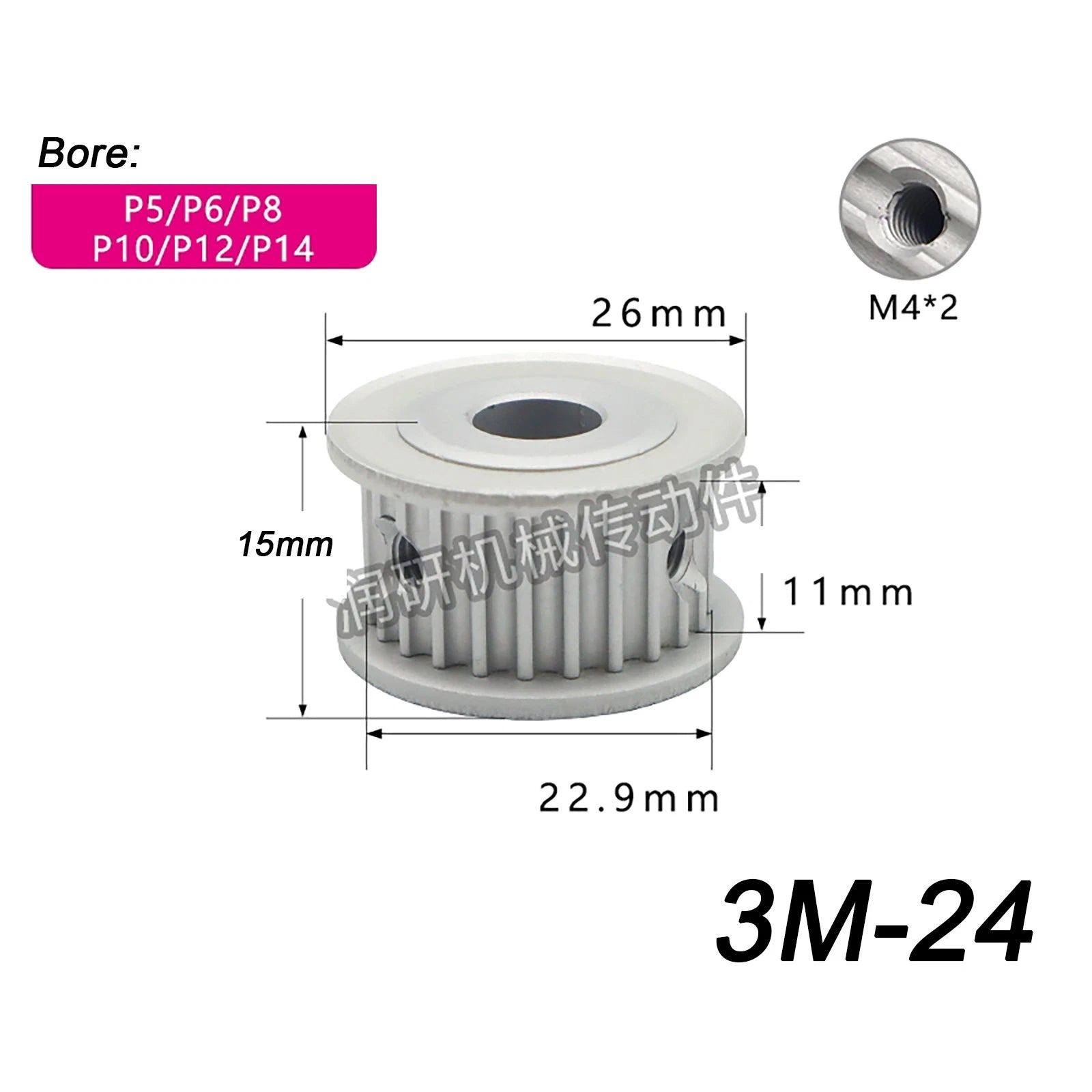

Each pulley features a 3mm HTD pitch profile and is sized for 11mm wide HTD 3M belts. The spring clamp mechanism allows for tool-free tensioning adjustments, making it easy to dial in belt tension during assembly or maintenance. Available in a wide range of tooth counts from 14 to 100 teeth, with bore diameter typically ranging from 5–20mm (0.20"–0.79") depending on variant — please see variant options for confirmed bore specs.
Typical use cases include open-loop and closed-loop CNC axis drives, 3D printer X/Y gantry systems, and custom belt-driven robotics arms. Whether you're sourcing a replacement idler pulley for a CoreXY 3D printer belt path or building a multi-axis automation rig, this HTD 3M smooth idler pulley with spring clamp delivers the dimensional consistency your motion system requires.
| Belt Profile | HTD 3M (3mm pitch) |
|---|---|
| Belt Width | 11mm |

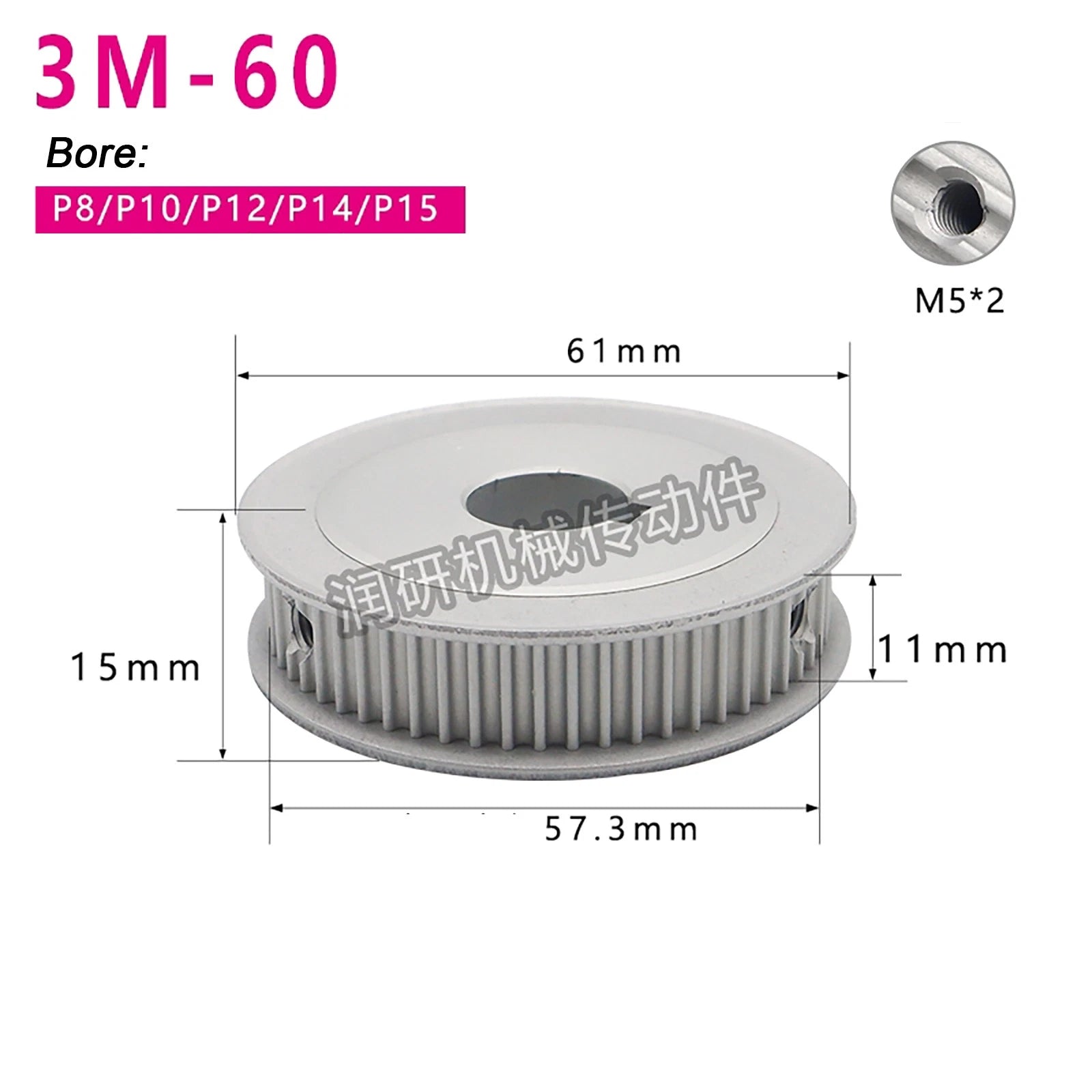

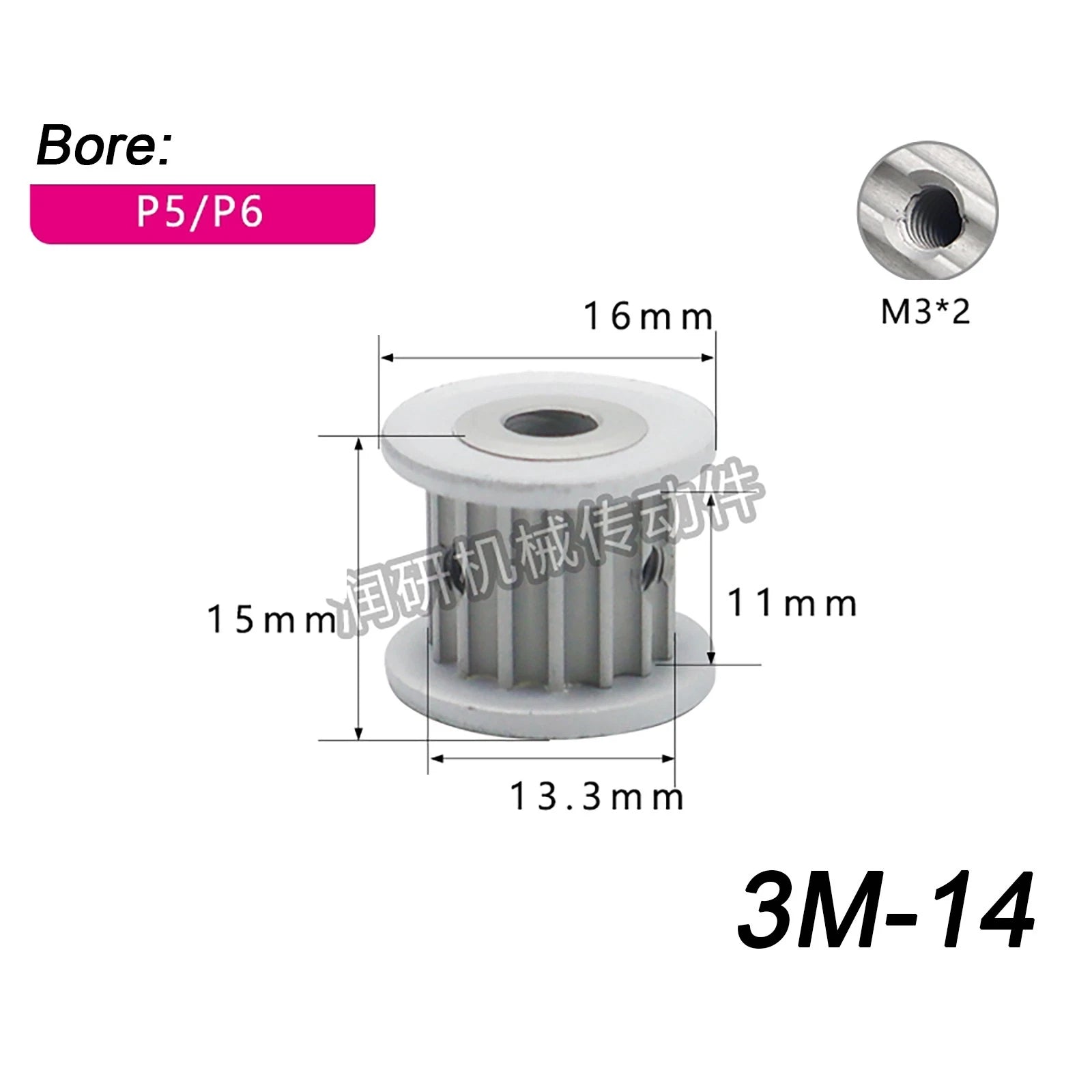

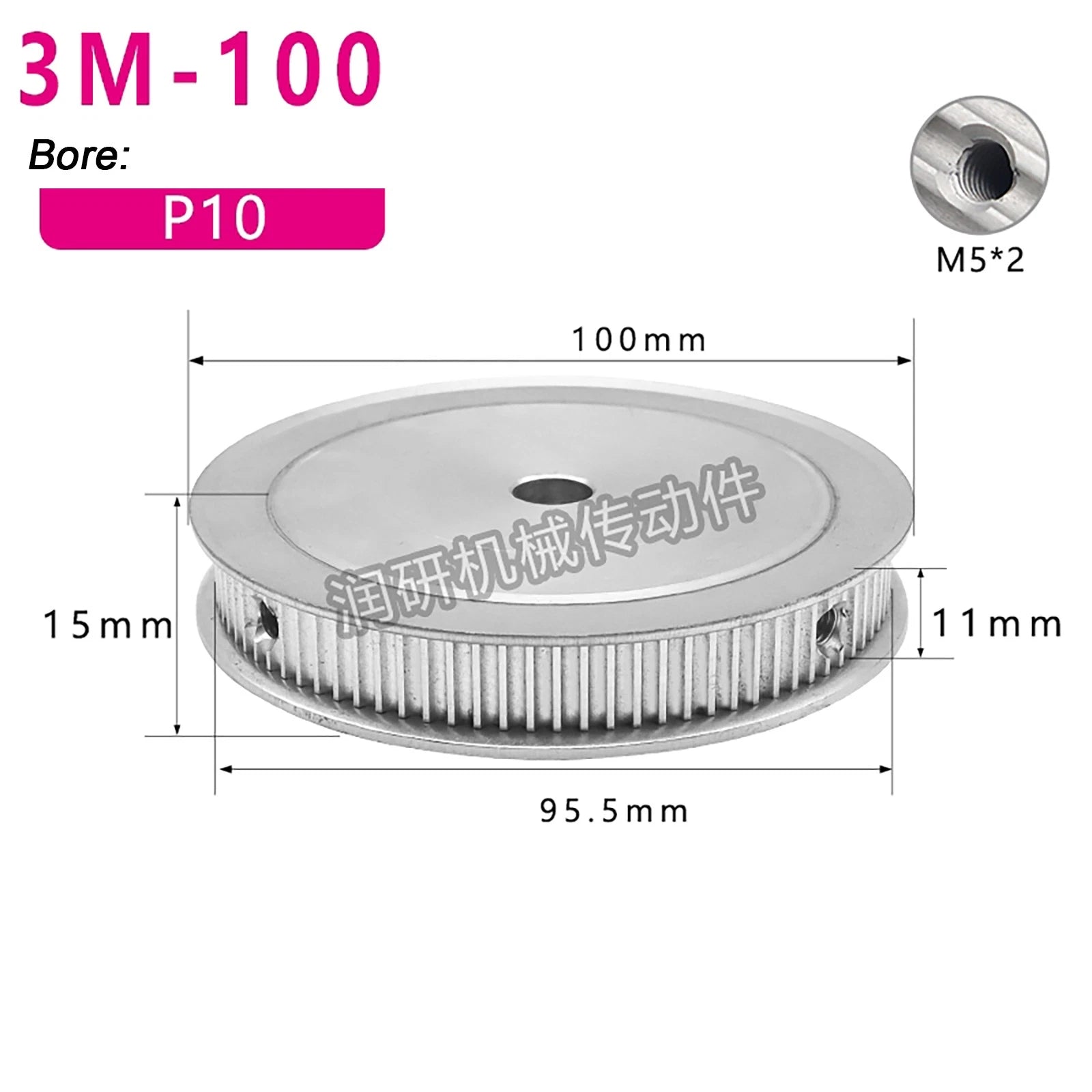

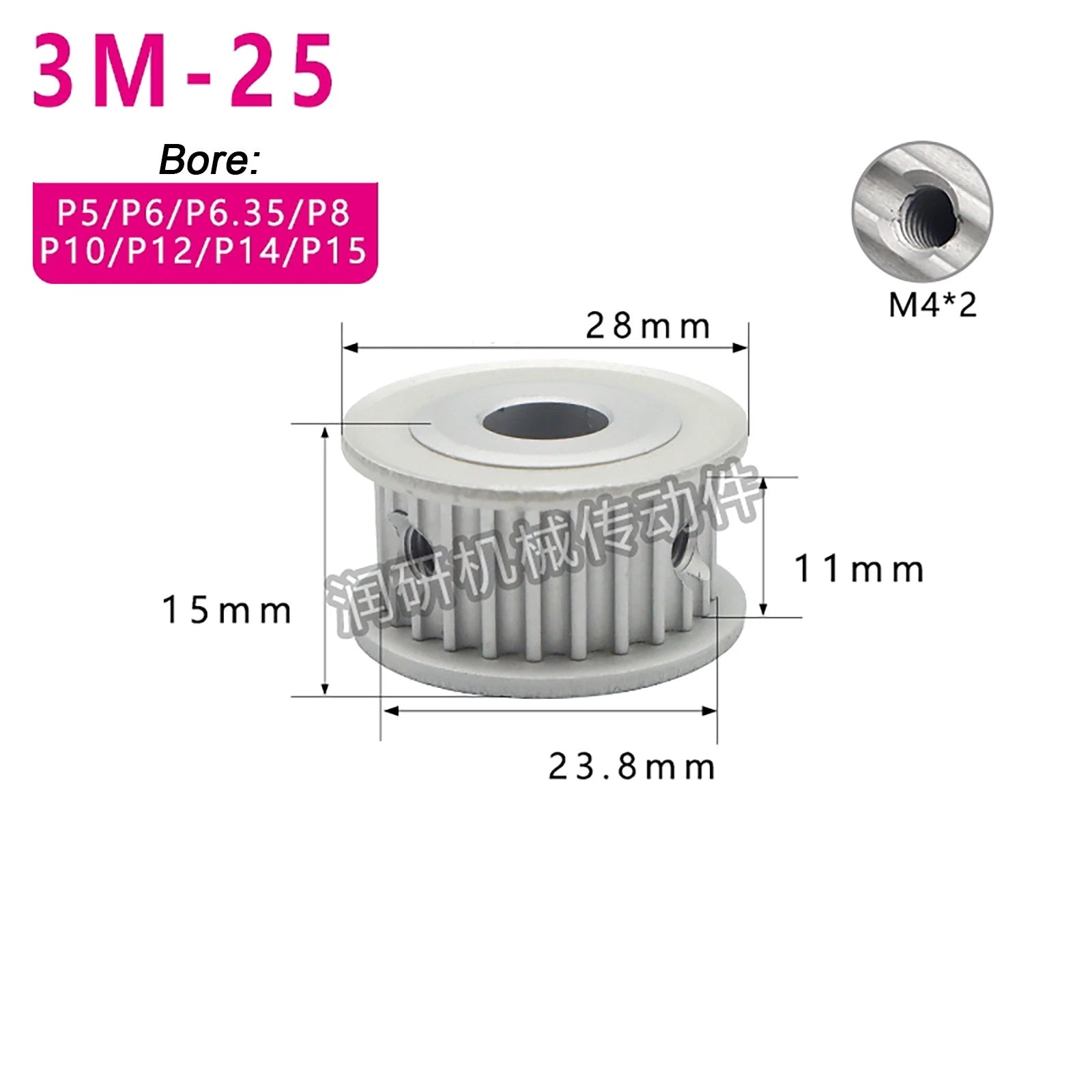

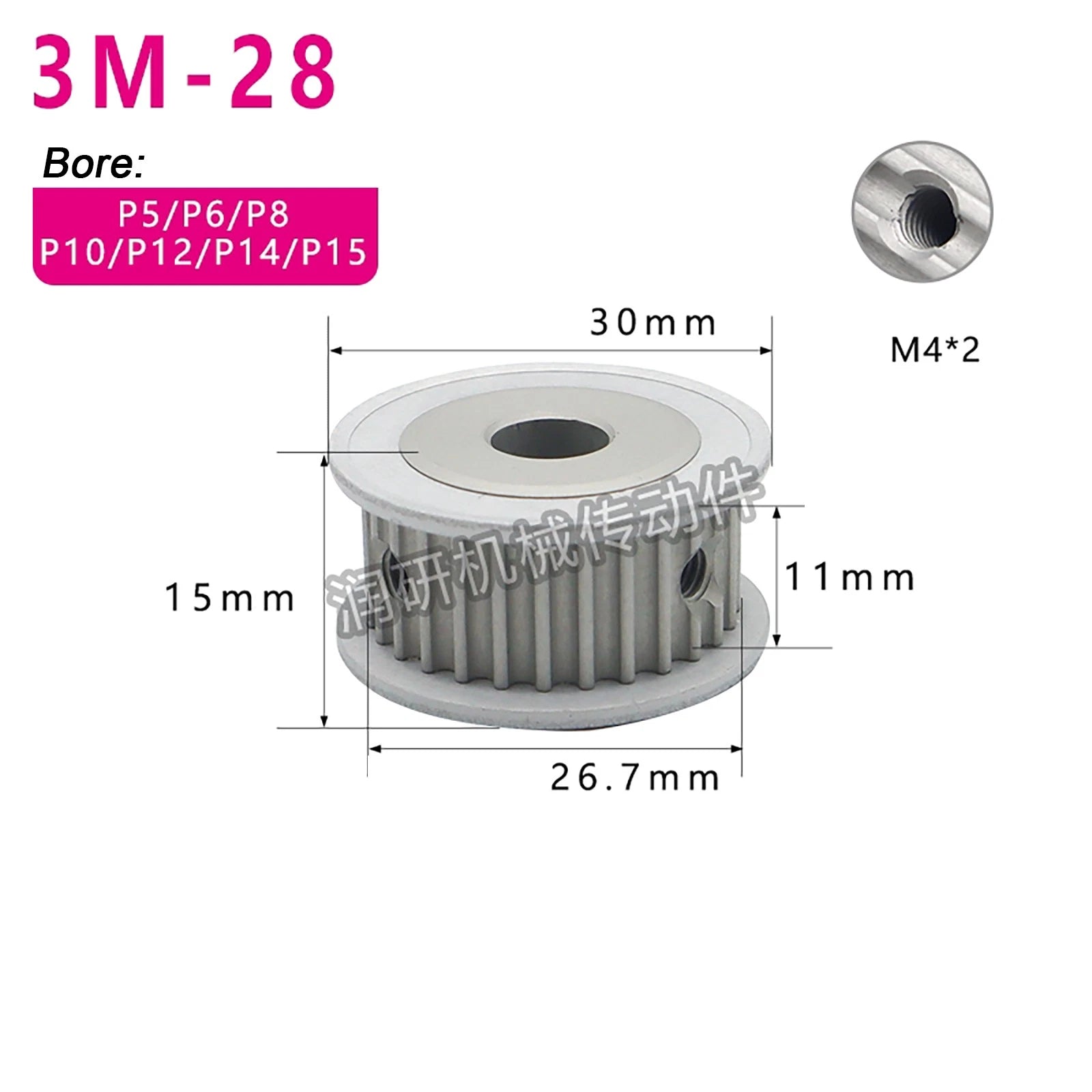

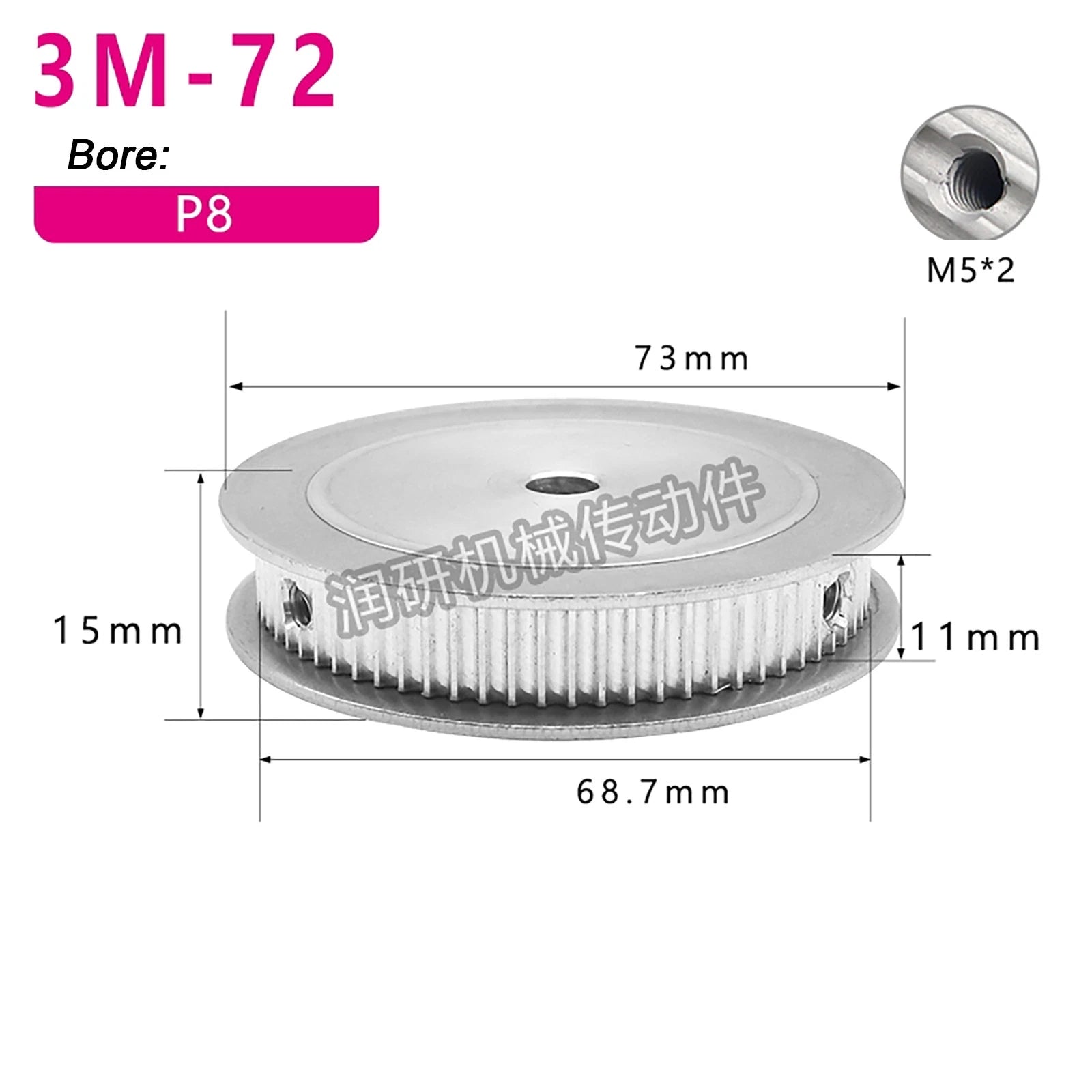

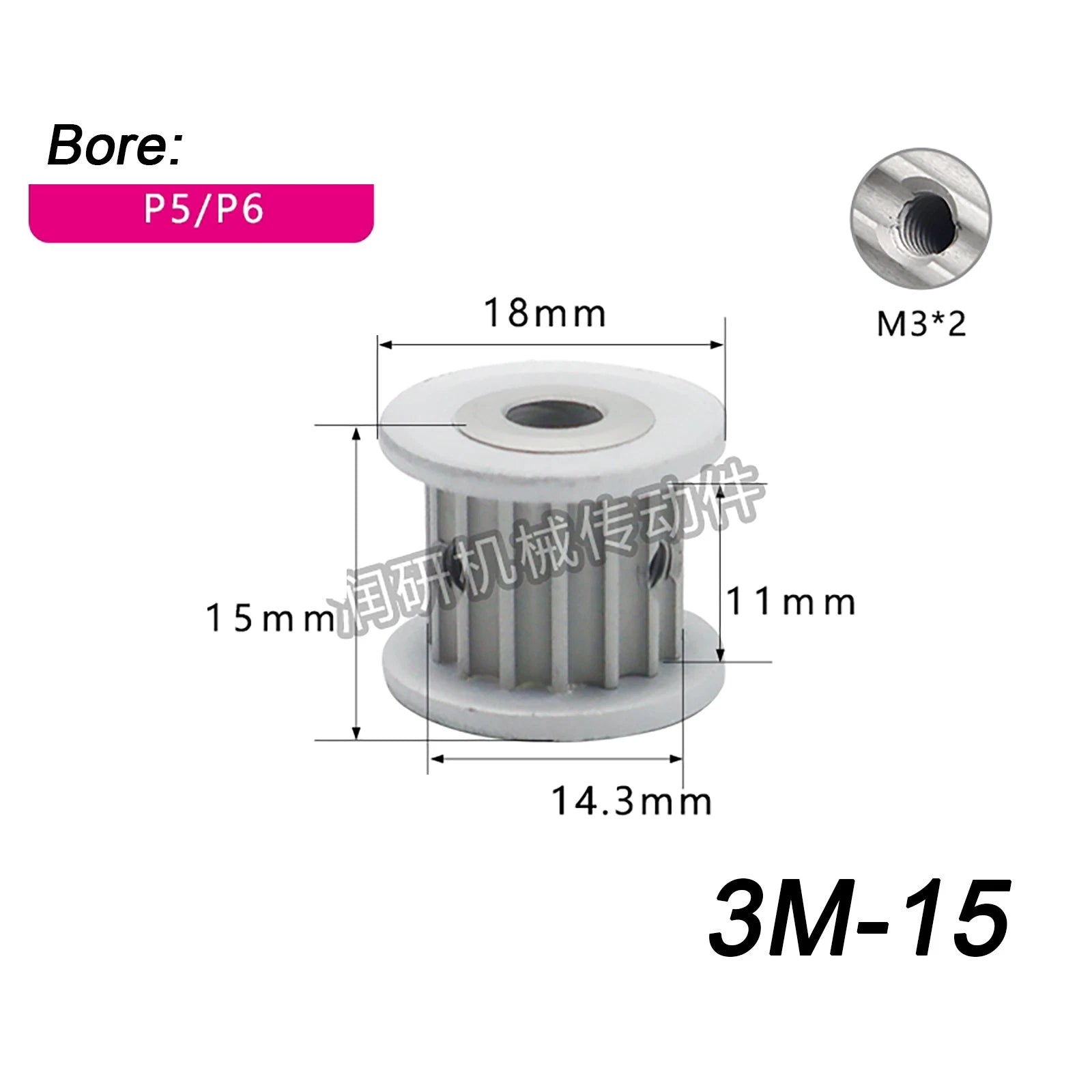

| Tooth Count | 14 / 15 / 16 / 18 / 20 / 22 / 24 / 25 / 26 / 28 / 30 / 36 / 40 / 45 / 50 / 60 / 72 / 75 / 80 / 90 / 100 Teeth |
| Bore Diameter | See variant options |
| Outer Diameter | See variant options |
| Hub Width | See variant options |
| Material | See variant options |
| Finish | See variant options |
| Drive Type | Smooth Idler |
| Tensioning | Spring Clamp |
| Quantity | 1 Pcs per order |
This pulley is designed specifically for HTD 3M timing belts — belts with a 3mm pitch HTD (High Torque Drive) tooth profile and 11mm width. It is not compatible with T2.5, T5, GT2, or other belt profiles. Always confirm your belt's pitch and width before ordering.
Tooth count determines the pulley's pitch diameter and affects your drive ratio. For CNC and 3D printer applications, common choices are 20 teeth (driver) paired with a larger idler. If you're replacing an existing pulley, match the tooth count exactly. For custom gear ratios, divide the driven pulley teeth by the driver pulley teeth to get your reduction ratio.
Bore diameter varies by tooth count variant — please refer to the variant options or contact us to confirm the bore size for your selected tooth count. Standard bore sizes typically range from 5mm to 20mm (0.20" to 0.79"). If you need a specific bore size not listed, contact us before ordering.
Load capacity depends on the material variant selected. Metal variants (typically aluminum alloy) offer significantly higher torque and fatigue resistance compared to plastic variants, making them suitable for CNC routers and motorized automation. For light-duty 3D printer idler applications, either material is generally adequate. Check the variant description for material details.
Corrosion resistance depends on the finish of the variant you select. Anodized aluminum variants provide good resistance to oxidation and light moisture exposure, suitable for indoor workshop environments. For high-humidity or outdoor applications, confirm the finish type with us before purchasing.
The spring clamp mechanism allows you to adjust belt tension by compressing or releasing the clamp without fully disassembling the drive system. This is particularly useful during initial setup or when fine-tuning belt tension after a print or machining run. It reduces the need for separate tensioner hardware in your build.
Yes. The smooth idler variant is commonly used in CoreXY and H-bot 3D printer belt paths where the belt's flat back rides over the idler. The 11mm belt width and HTD 3M profile are compatible with standard CoreXY belt configurations. Verify the bore diameter matches your idler shaft or bearing OD before ordering.
