When your CNC router, 3D printer, or stepper motor drive system demands repeatable, slip-free power transmission, a mismatched or worn pulley becomes the weakest link in the chain. Engineers, makers, and automation integrators who need a dependable 3M pitch drive pulley with a wide tooth-count selection will find this AF-type series purpose-built for the task.

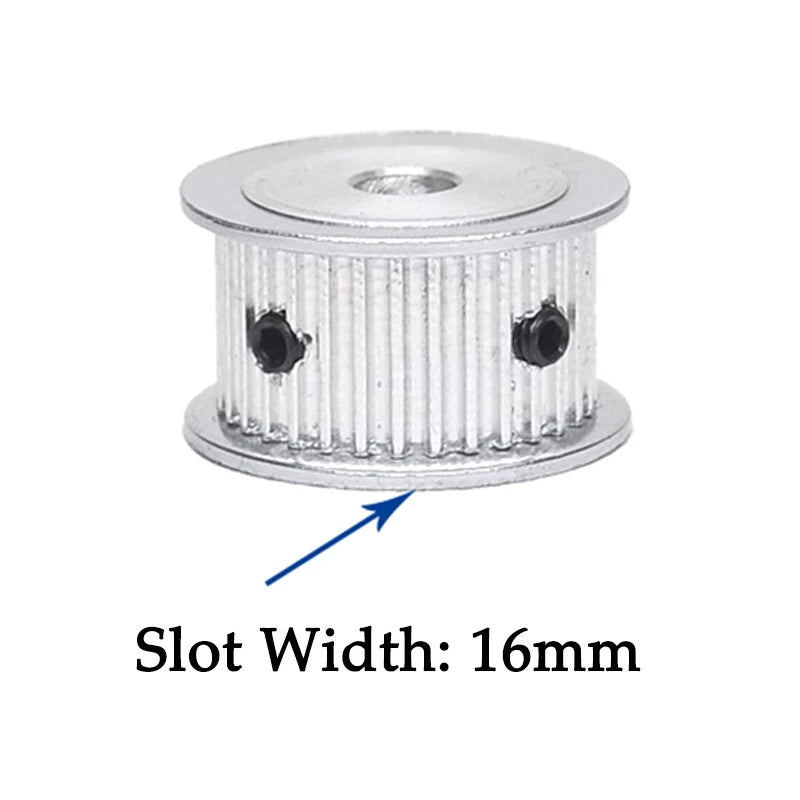

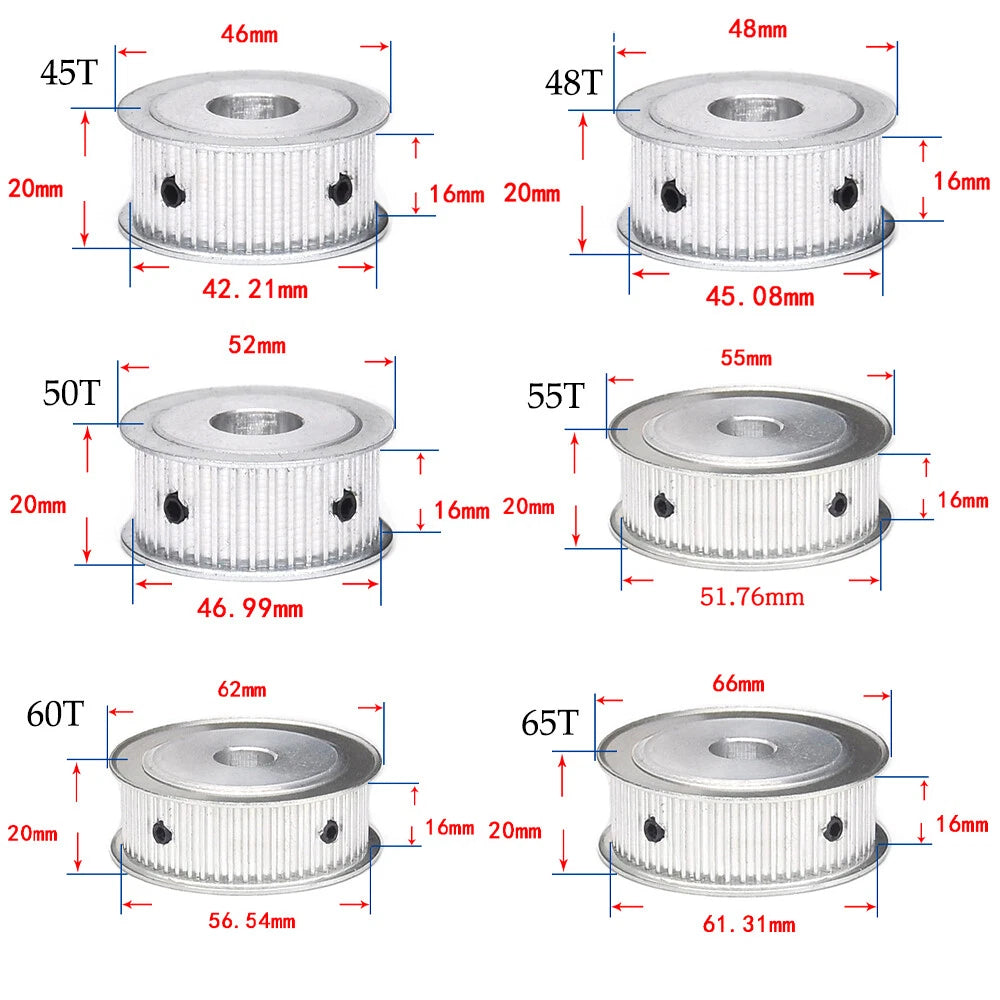

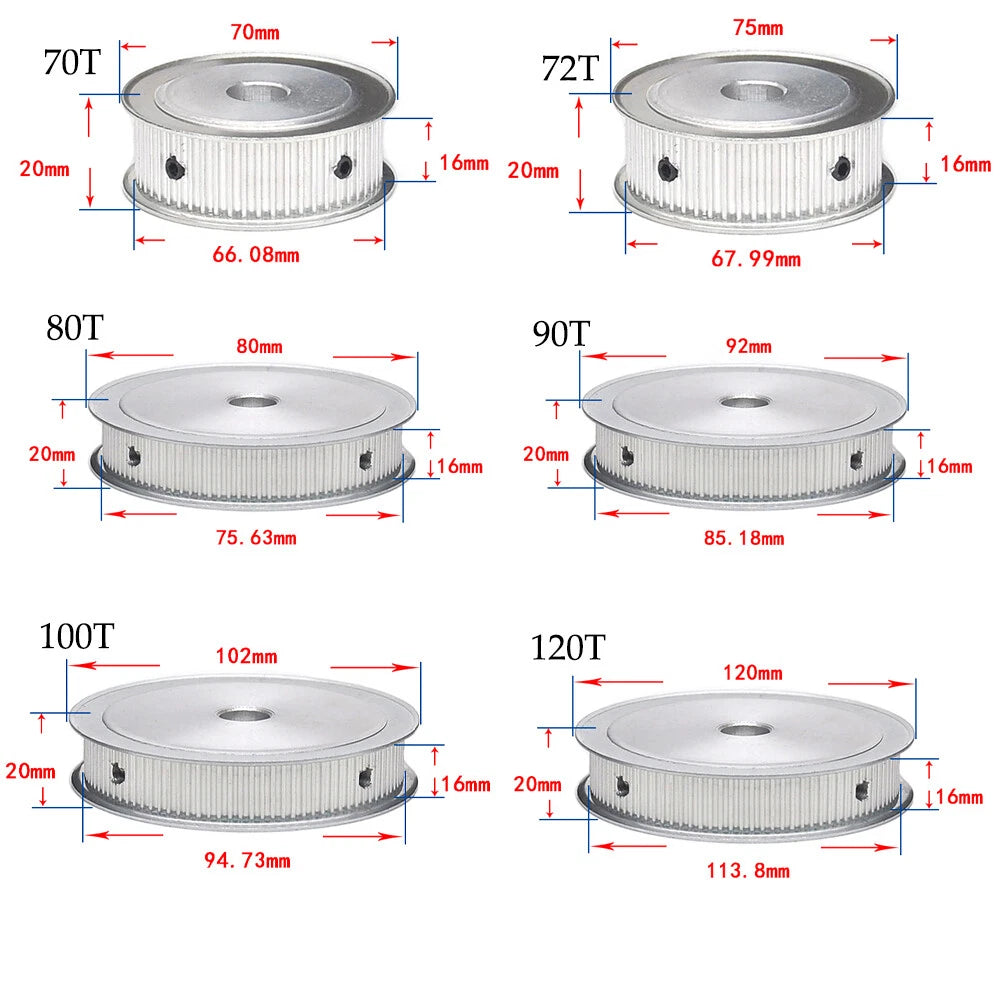

These pulleys feature a 3mm pitch (3M) AF-type tooth profile machined to accept standard 3M synchronous timing belts. The bore diameter ranges from 5mm to 40mm (~0.20" to ~1.57") depending on variant, and the slot width is 16mm across all configurations. Tooth counts span 45T through 120T, allowing fine-tuning of gear ratios for speed or torque. The body is typically machined from aluminum alloy, keeping rotating mass low while maintaining dimensional stability.
Typical use cases include CNC router X/Y axis drives requiring precise positioning, open-loop stepper motor belt drives in laser engravers and plasma cutters, and lightweight robotics joint actuators where a compact 3M pulley with a keyed or plain bore is needed for direct shaft mounting.
Engineered to the 3M synchronous belt standard, the AF-type tooth form provides positive engagement with matching 3M belts, minimizing backlash and tooth jump under dynamic loads typical of CNC and stepper motor applications.
Available bore diameters from 5mm up to 40mm (~0.20" to ~1.57") cover the most common stepper motor shaft sizes (5mm, 6.35mm, 8mm) as well as larger servo and spindle shafts, reducing the need for custom machining.
The lightweight aluminum body keeps rotational inertia low — a critical factor in stepper motor systems where rapid direction changes demand fast acceleration and deceleration without overloading the motor.
Twelve tooth-count options from 45T to 120T let you dial in the exact drive ratio your system needs — whether you are optimizing for linear speed on a CNC gantry or torque multiplication on a heavy-duty conveyor axis.

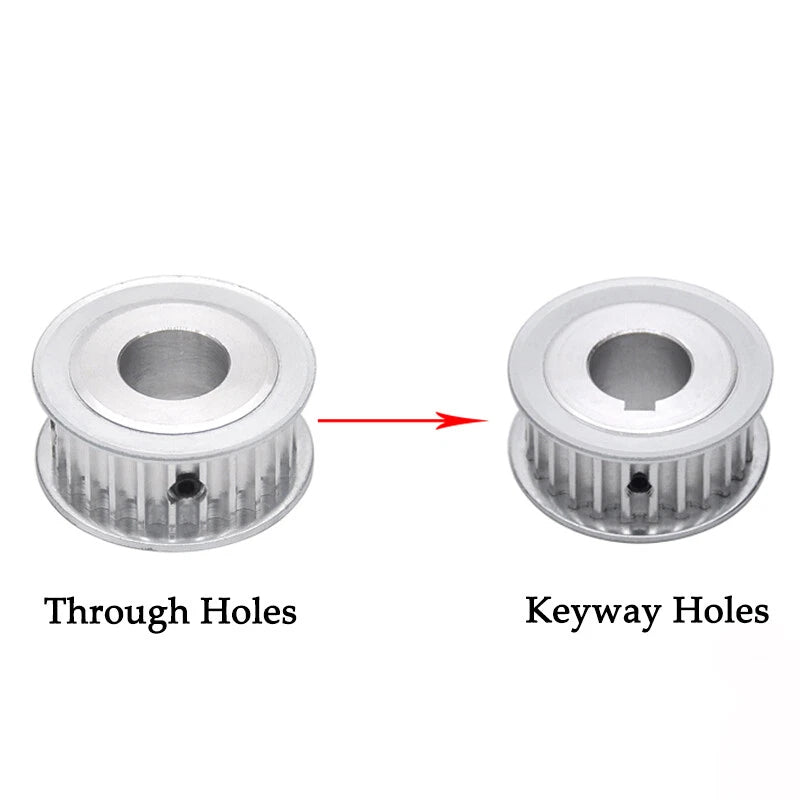

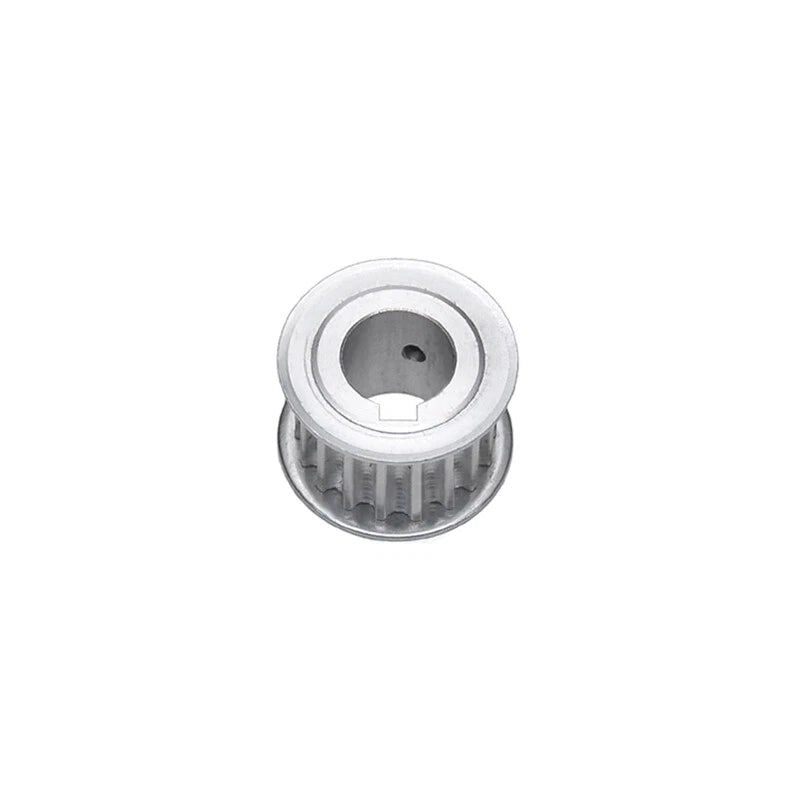

Select variants include keyway slots (e.g., 5×2.3mm, 6×2.8mm, 8×3.3mm) for positive torque transmission on keyed shafts, while plain bore variants suit set-screw or press-fit mounting on smooth shafts.
All variants in this series are designed for 16mm wide 3M timing belts, ensuring consistent belt tracking and even load distribution across the full tooth face — reducing edge wear and extending belt service life.

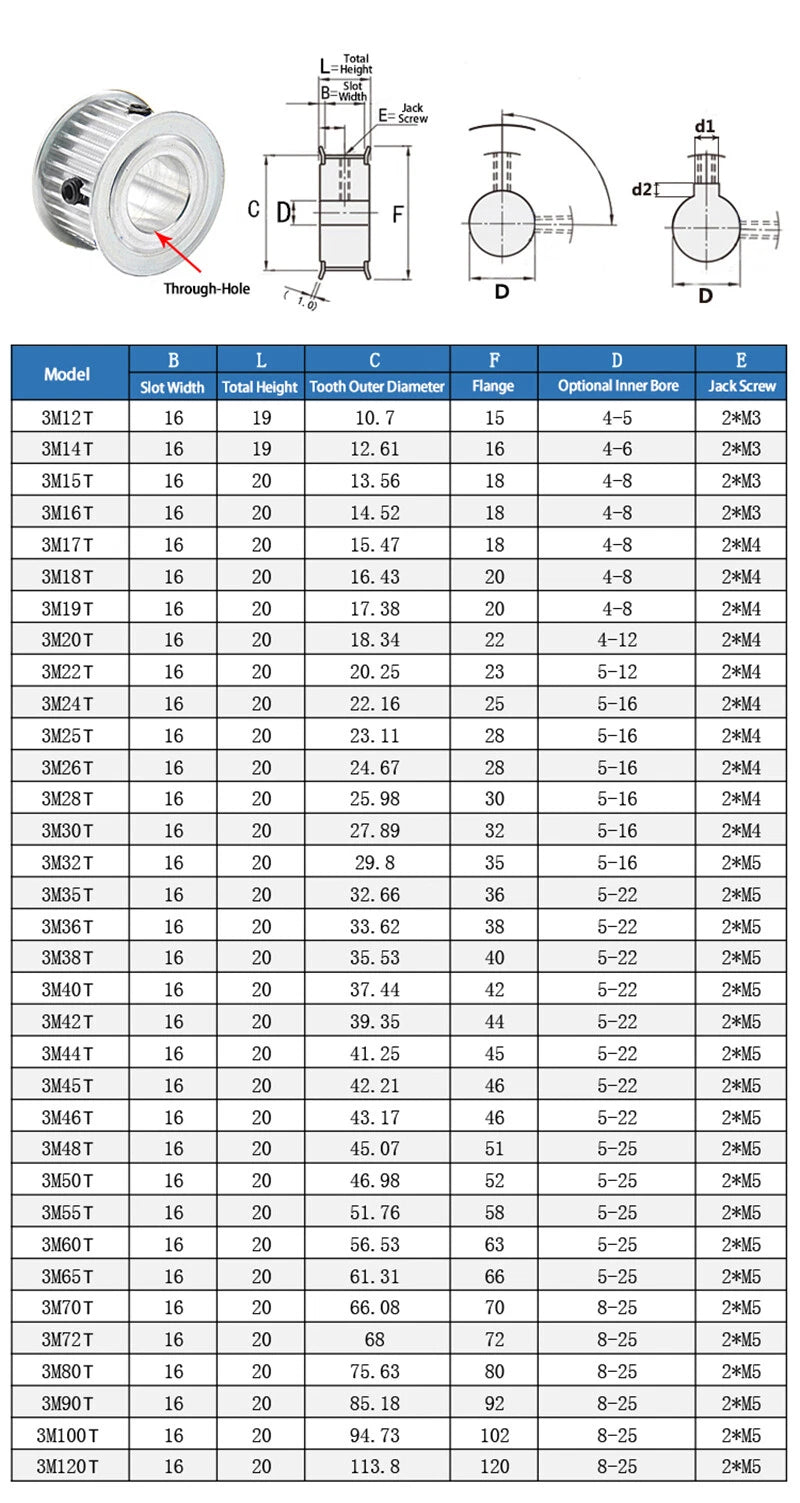

| Belt Pitch | 3mm (3M) |
|---|---|
| Pulley Type | AF-Type |
| Number of Teeth | 45T / 48T / 50T / 55T / 60T / 65T / 70T / 72T / 80T / 90T / 100T / 120T |
| Bore Diameter Range | 5mm – 40mm (see variant options) |
| Belt Width Compatibility | 16mm |
| Keyway Options | 5×2.3mm / 6×2.8mm / 8×3.3mm / 4×1.8mm (see variant options) |
| Body Material | Aluminum Alloy |
| Finish | See variant options |
| Weight | See variant options |
| Application | CNC routers, stepper motor drives, laser engravers, robotics, automation |
The tooth count determines your drive ratio when paired with a second pulley. Divide the driven pulley teeth by the drive pulley teeth to get the ratio. For example, a 45T drive pulley paired with a 90T driven pulley gives a 2:1 reduction, doubling torque while halving speed. For CNC gantry axes where speed matters more than torque, choose a smaller tooth-count difference between the two pulleys.
NEMA 17 stepper motors typically have a 5mm output shaft, so the 5mm bore variant is the direct fit. NEMA 23 motors commonly use an 8mm shaft, making the 8mm bore the standard choice. If your motor shaft has a flat (D-cut), a set-screw bore variant will work; if it has a keyway, select the matching keyway bore option (e.g., 5×2.3mm for a 5mm keyed shaft).
These pulleys conform to the standard 3M synchronous belt tooth profile, which means they are compatible with any 3M pitch timing belt of 16mm width from any manufacturer that follows the 3M standard. Always verify the belt pitch (3mm) and width (16mm) match before pairing.

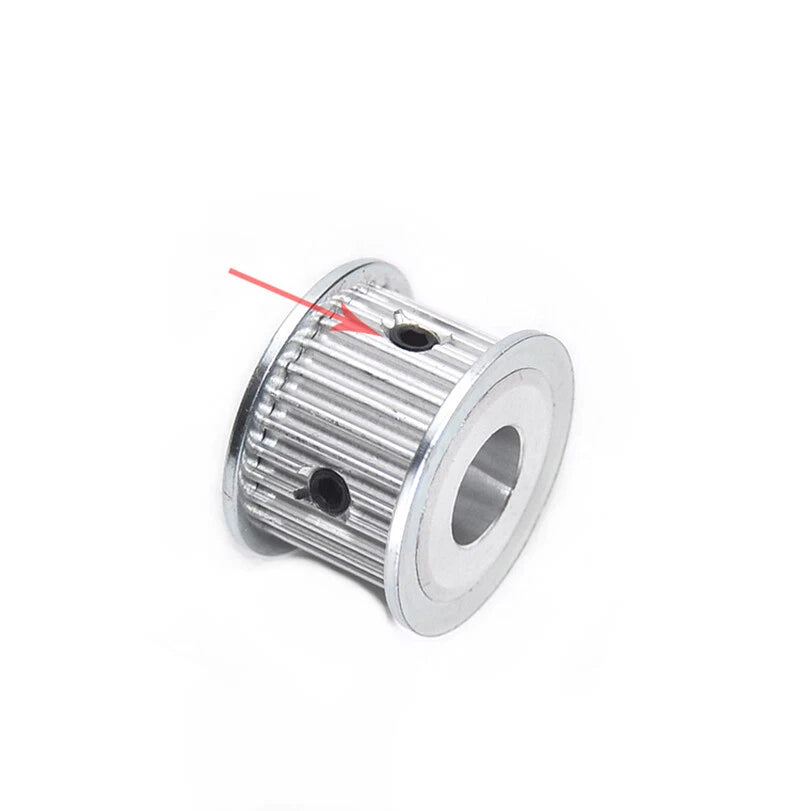

A plain bore pulley relies on a set screw or press fit to secure it to the shaft. This is simpler to install but may slip under high torque. A keyway bore (e.g., 5×2.3mm, 6×2.8mm) uses a matching key inserted between the shaft and pulley to provide a positive mechanical lock, preventing rotational slip even under shock loads. Choose keyway variants for high-torque or reversing-load applications.
The pitch diameter (PD) of a 3M pulley is calculated as: PD = (Number of Teeth × Pitch) ÷ π. For example, a 45T pulley: PD = (45 × 3) ÷ 3.1416 ≈ 42.97mm. Center distance depends on the belt length and both pulley pitch diameters. Use the standard belt drive center distance formula or an online belt drive calculator, inputting both pulley PDs and your chosen belt length.
Aluminum alloy has natural oxidation resistance that forms a protective layer, making it suitable for typical indoor CNC and automation environments. In dusty conditions, the primary wear factor is abrasive particles between the belt and pulley teeth. Regular cleaning of the belt and pulley groove, combined with correct belt tension, will significantly extend service life. For highly corrosive or wet environments, consider anodized variants or stainless steel alternatives.
Yes. Many 3D printers use 3M (or GT2/GT3) belt systems on their X and Y axes. If your printer uses a 3M pitch belt with 16mm width, these AF-type pulleys are a direct mechanical fit. Verify the bore matches your motor shaft (commonly 5mm for NEMA 17) and that the tooth count matches your existing setup or desired ratio change. Note that GT2 and 3M are different profiles — confirm your belt is specifically 3M pitch before ordering.
