When your CNC router skips a step or your 3D printer loses position mid-print, the culprit is often a mismatched or worn pulley. These 3M pitch timing belt pulleys are engineered for makers, robotics builders, and automation engineers who need repeatable, slip-free motion transfer without the guesswork of sourcing the right bore size.

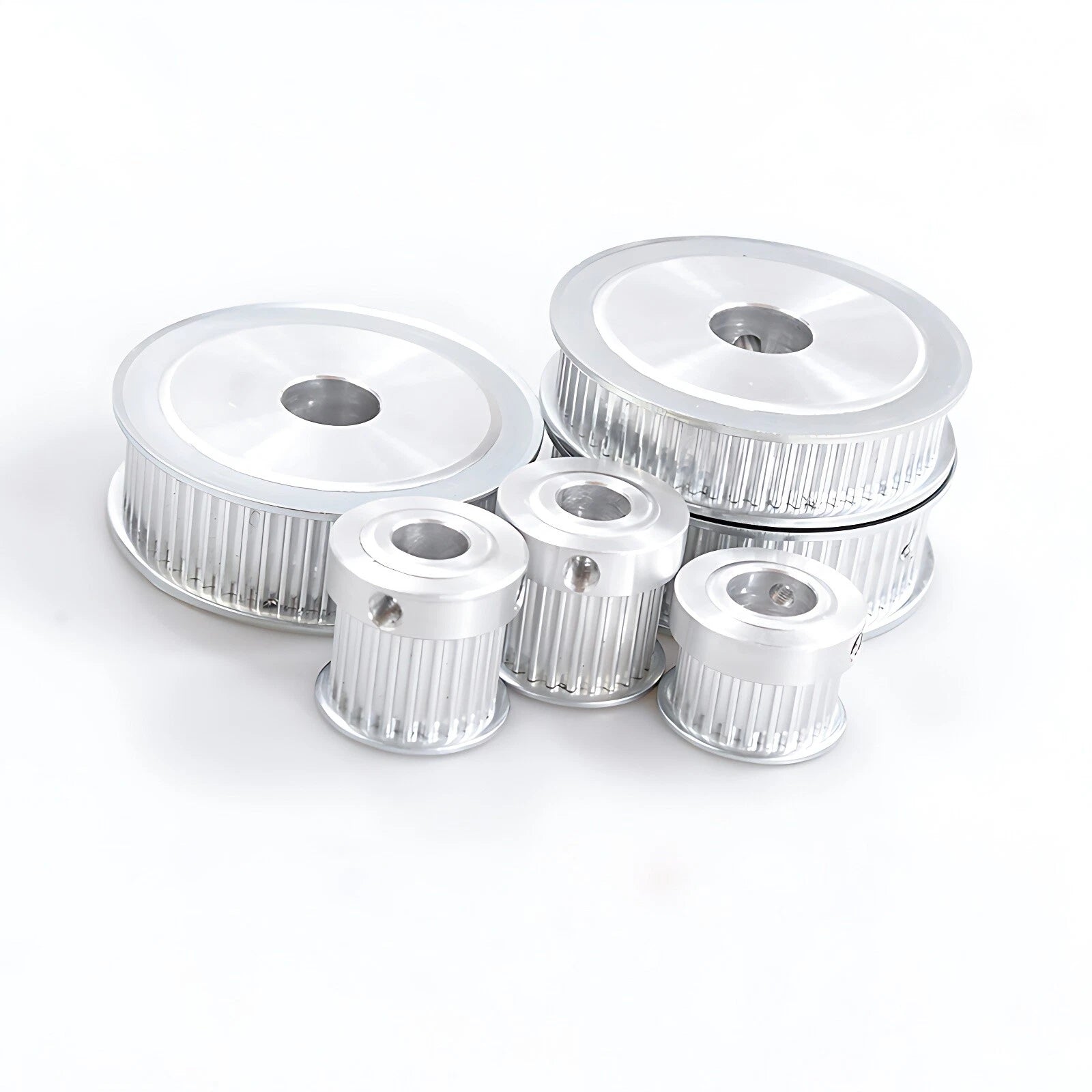

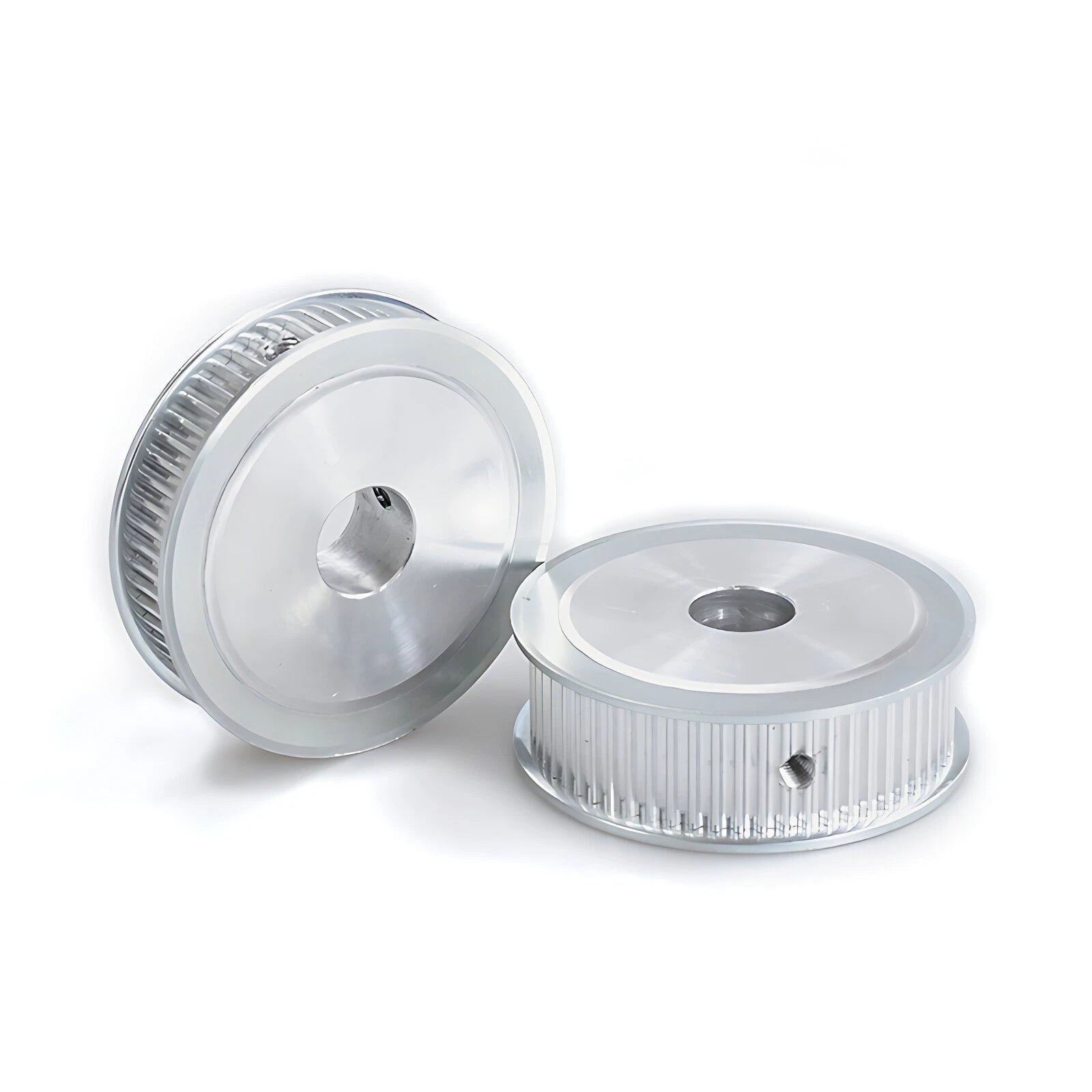

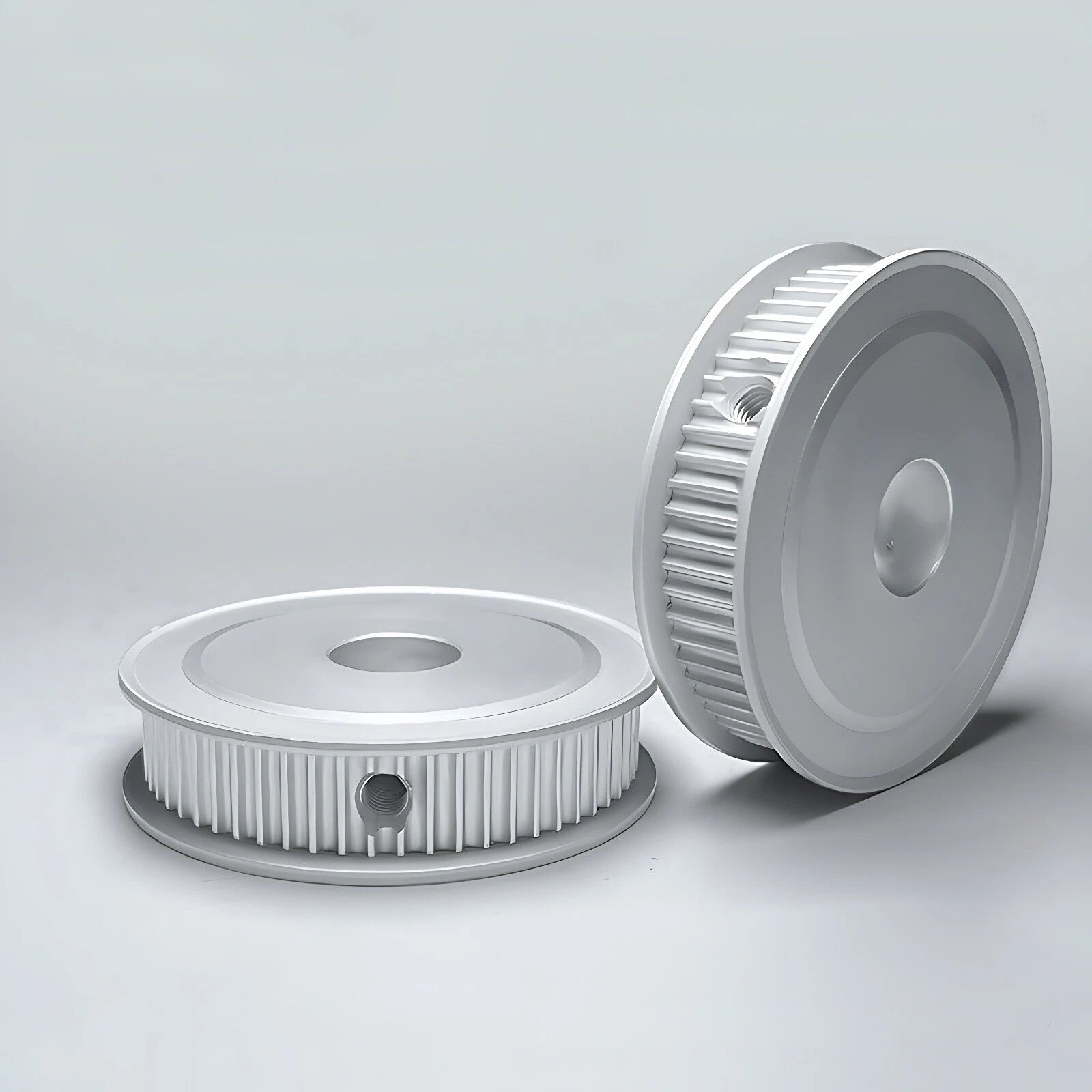

Each pulley is machined from aluminum alloy with a natural silver finish, featuring a 3M tooth profile (3mm pitch), 11mm tooth width, and a through-hole bore ranging from 4mm to 25mm (approximately 0.16" to 0.98"). Keyway variants are available for shaft-locking applications. Tooth counts span 15T to 40T, covering a wide range of gear ratios and pulley diameters from approximately 14.3mm (0.56") to 38.2mm (1.50") pitch diameter.
Typical use cases include 3M timing belt CNC drive systems, RepRap and FDM 3D printer X/Y axis pulleys, stepper motor synchronous wheel replacements, and compact robotic arm joint drives requiring low-backlash torque transmission.
15T to 40T options in a single listing — cover small high-speed drives and larger torque-multiplying setups without sourcing from multiple suppliers.
3mm pitch tooth geometry ensures accurate synchronous engagement with standard 3M timing belts, minimizing backlash in position-critical applications.
Through-hole bores from 4mm to 25mm; keyway variants (K 3mm, K 4mm, K 5mm) available for positive shaft retention without set-screw slip.
Lightweight yet rigid aluminum body keeps rotational inertia low — ideal for high-acceleration stepper and servo motor applications.
Consistent 11mm belt contact width across all tooth counts ensures uniform load distribution and compatibility with standard 11mm 3M belt stock.
Standard dimensions match common OEM pulley specs for RepRap printers, laser cutters, and open-frame CNC machines — no custom machining required.

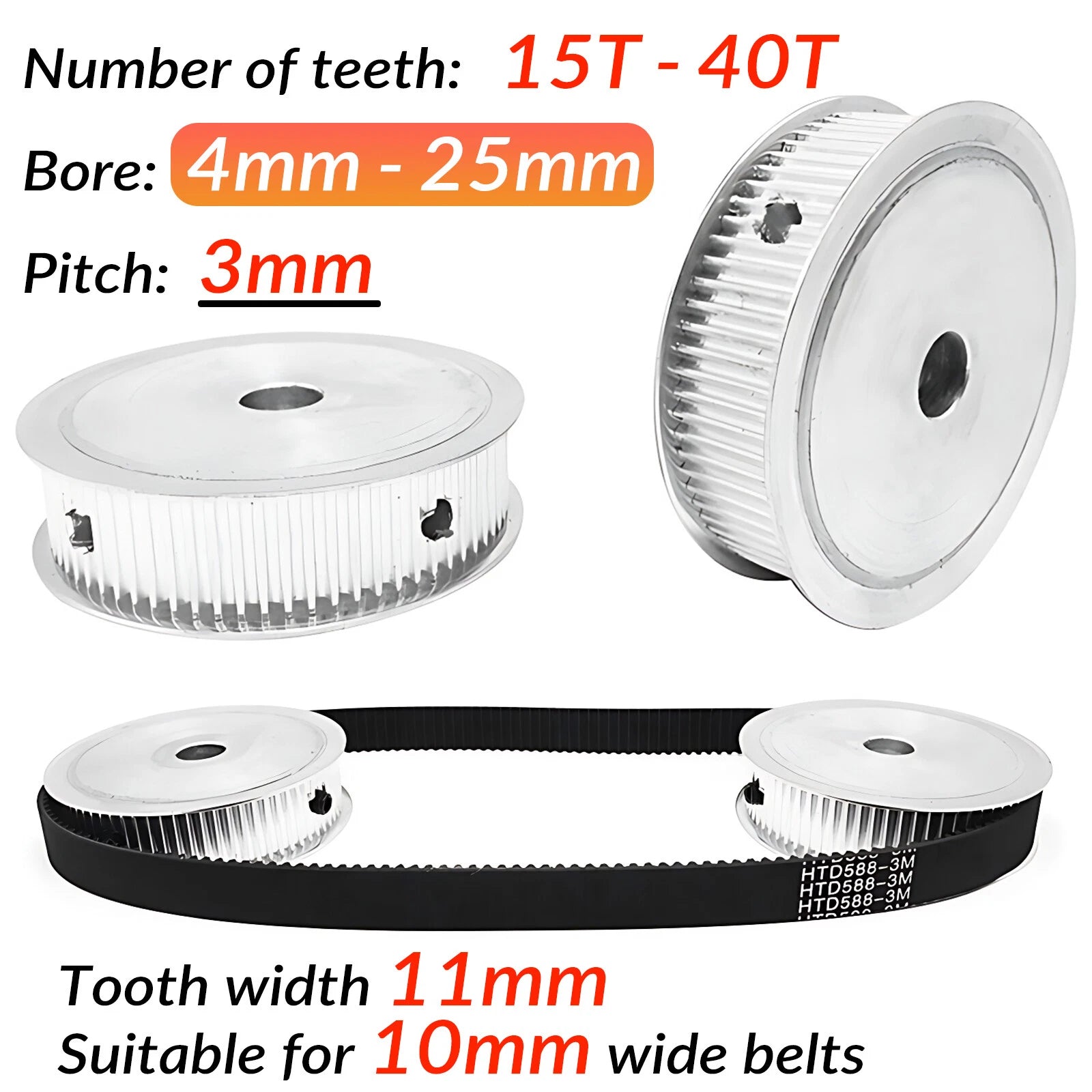

| Tooth Profile | 3M (3mm pitch) |
|---|---|
| Tooth Width | 11mm (0.43") |
| Tooth Count Options | 15T, 16T, 17T, 18T, 19T, 20T, 22T, 24T, 25T, 26T, 27T, 28T, 30T, 32T, 34T, 35T, 36T, 38T, 40T |
| Through Hole (Bore) Options | 4mm, 5mm, 6mm, 6.35mm, 7mm, 8mm, 10mm, 12mm, 12.7mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 25mm |
| Keyway Options | K 3mm, K 4mm, K 5mm (select variants) |
| Material | Aluminum alloy |
| Finish | Natural aluminum (silver) |
| Pitch Diameter Range | Approx. 14.3mm–38.2mm (0.56"–1.50"), varies by tooth count |
| Compatible Belt Width | 11mm |
| Compatible Belt Pitch | 3M (3mm) |
| Quantity per Order | 1 piece |
The tooth count determines the pulley's pitch diameter and, combined with your belt length and the driven pulley's tooth count, sets your gear ratio. For 1:1 drives (same speed), use matching tooth counts on both pulleys. For speed reduction or torque multiplication, use a larger tooth count on the driven side. Common CNC and 3D printer setups use 20T pulleys for balanced speed and torque.
Measure your motor shaft diameter with calipers before ordering. Common stepper motor shaft sizes are 5mm (NEMA 17), 6.35mm (1/4"), and 8mm (NEMA 23). Select the bore that matches your shaft exactly — a loose fit will cause vibration and positioning errors. For a positive lock, choose a keyway variant if your shaft has a keyway slot.

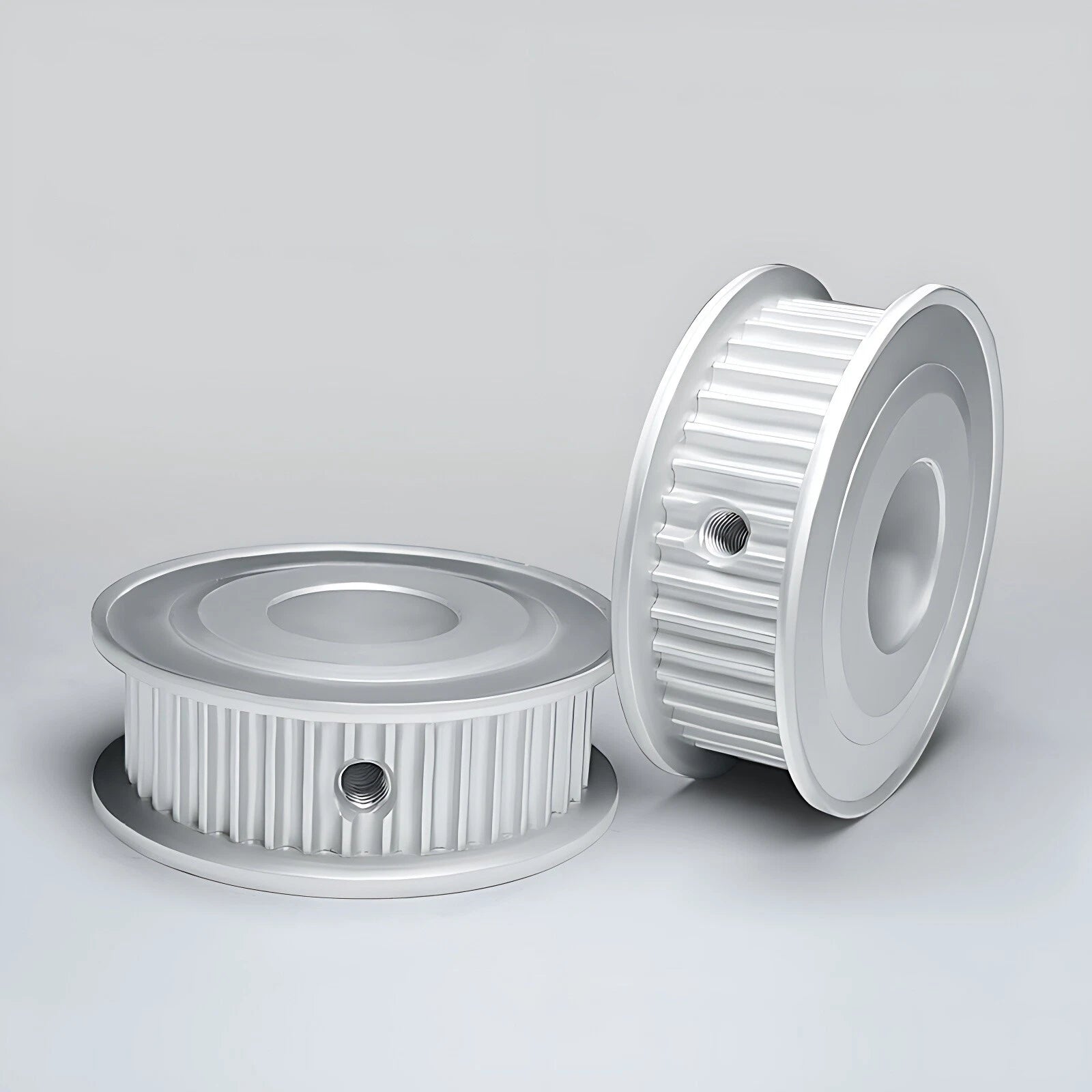

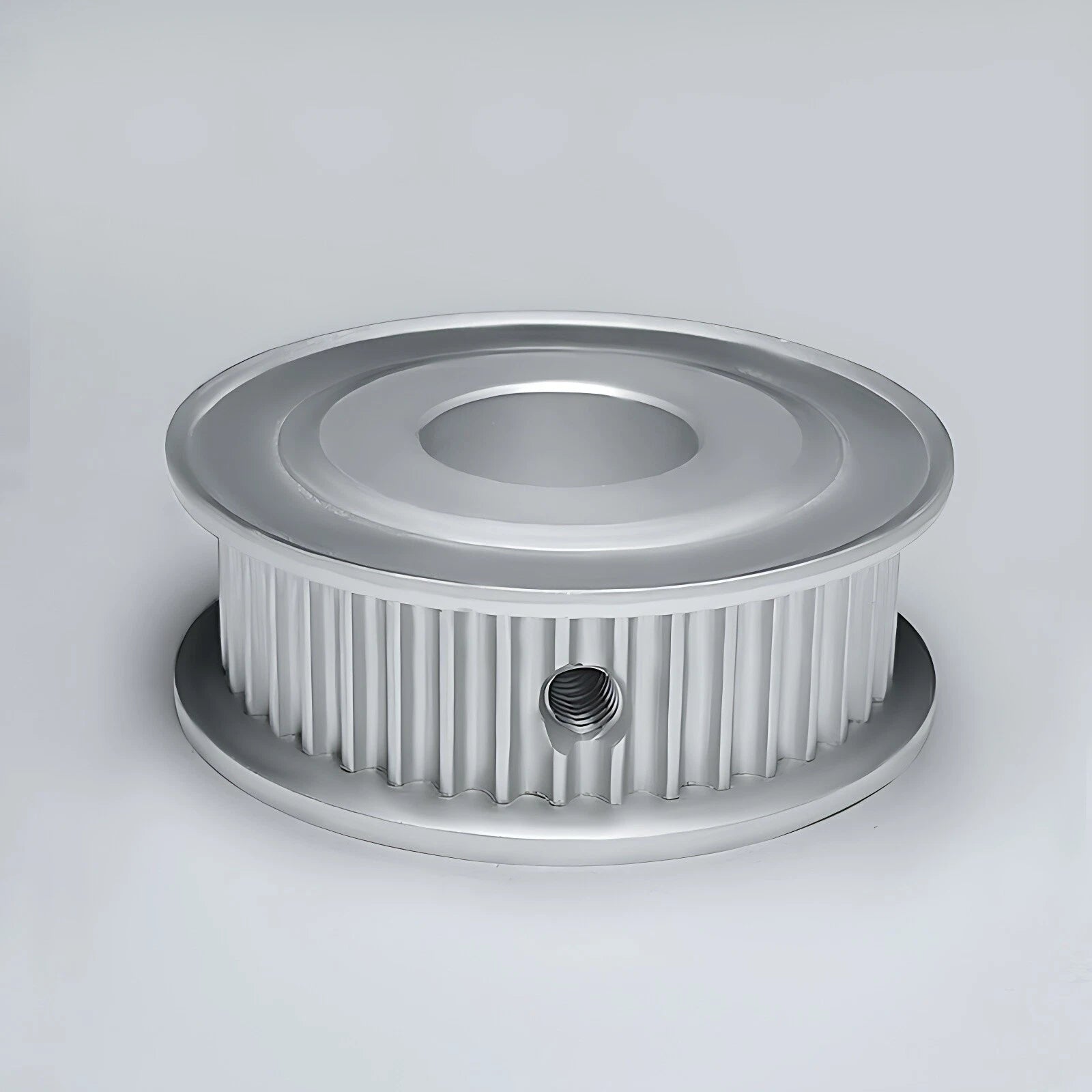

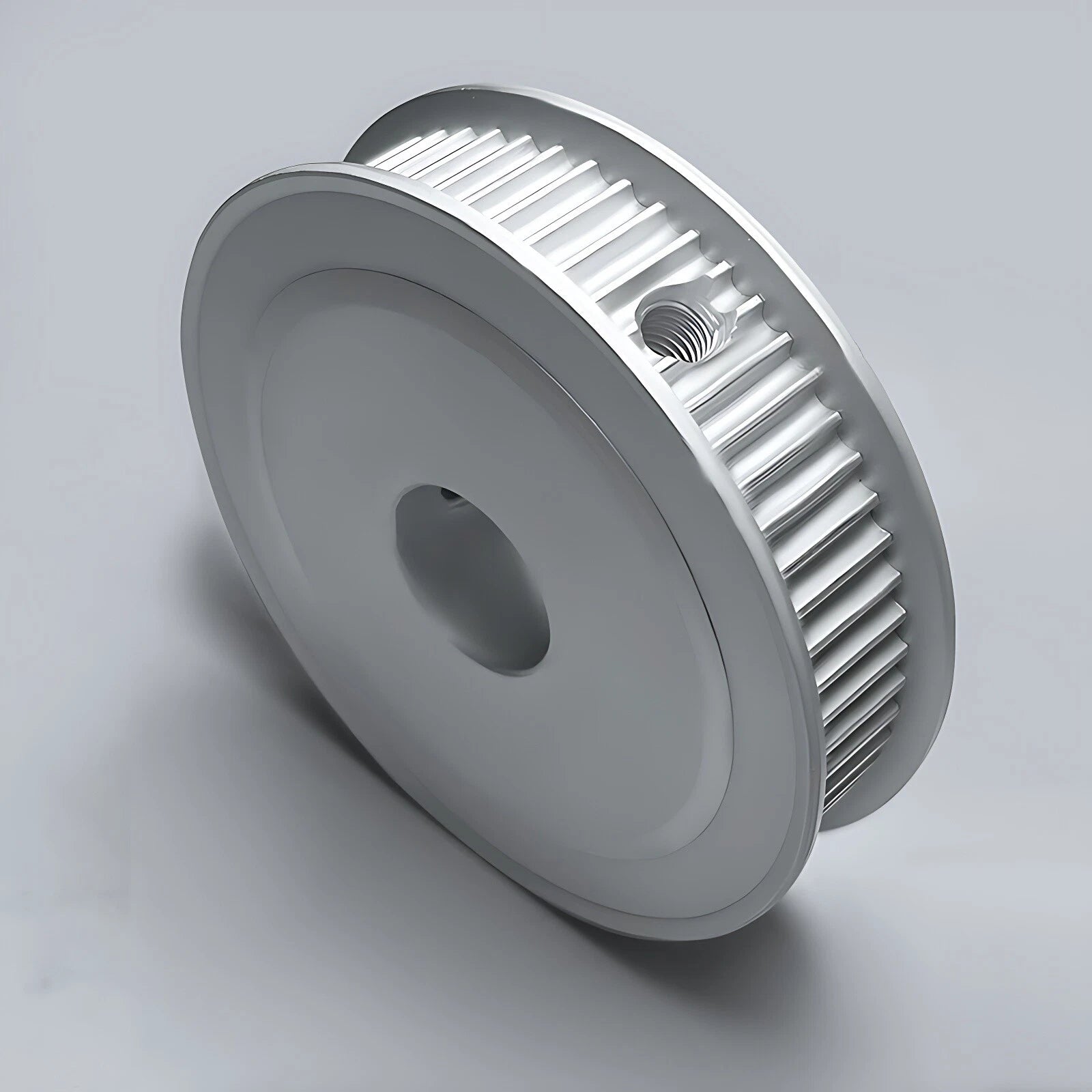

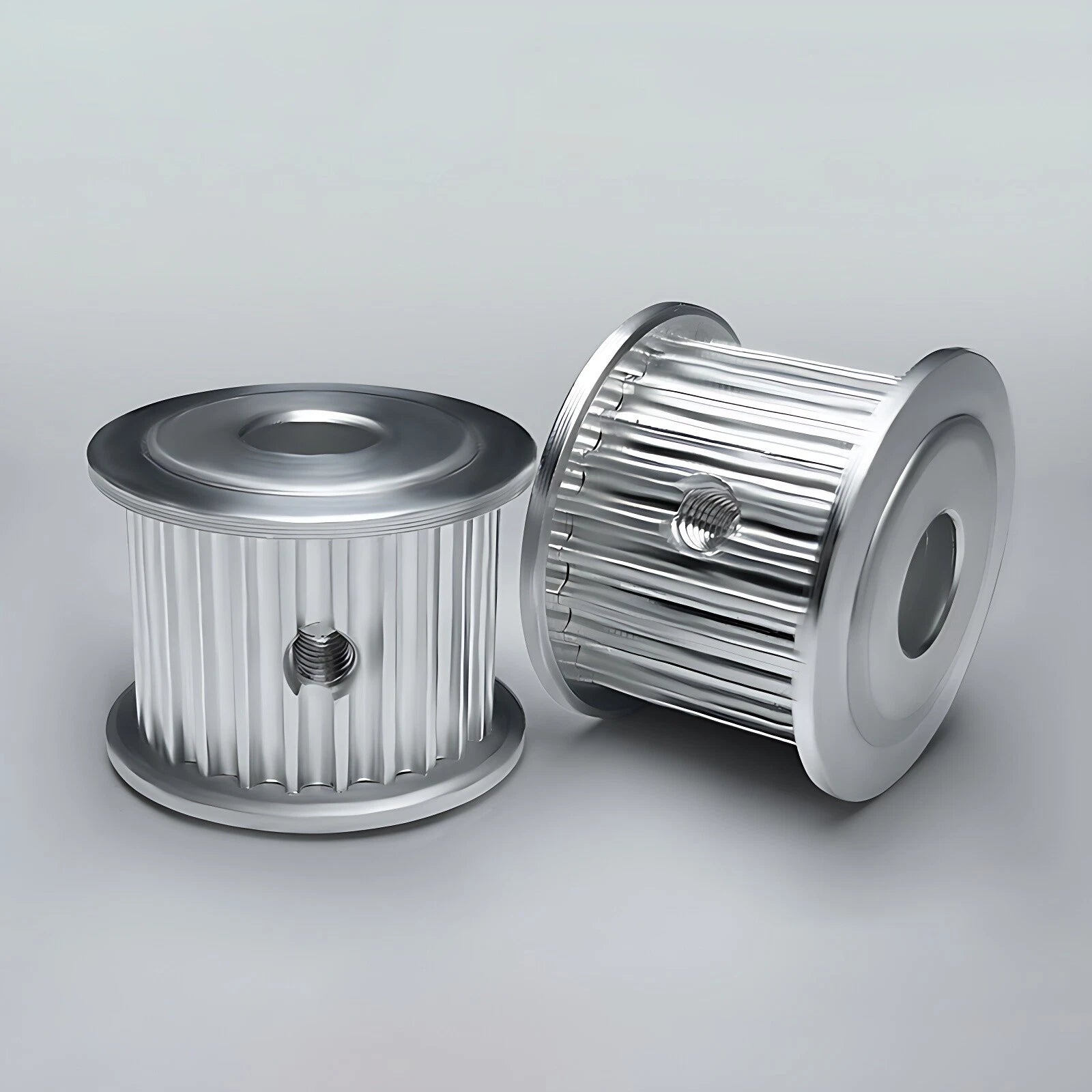

A through-hole (plain bore) pulley relies on set screws to grip the shaft. A keyway variant includes a machined slot that accepts a key inserted between the shaft and pulley, providing a positive mechanical lock that prevents rotational slip under high torque or reversing loads. Keyway variants are recommended for servo motors and applications with frequent direction changes.

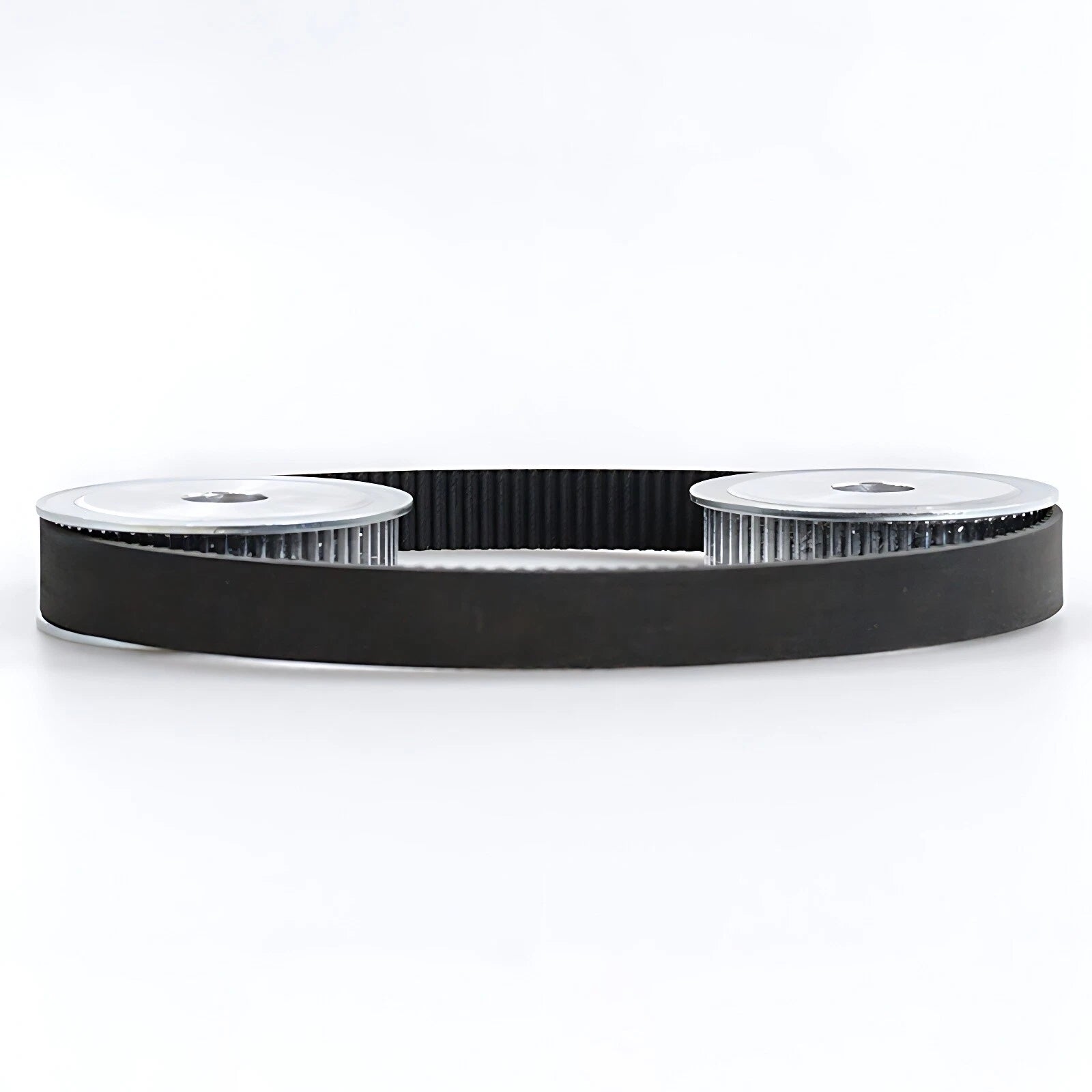

Yes — these pulleys are designed for standard 3M pitch (3mm tooth spacing) timing belts with 11mm width. Verify that your belt is labeled 3M and is 11mm wide. If your belt is a different pitch (e.g., GT2, HTD 5M, T5), these pulleys will not mesh correctly. The 3M profile is a trapezoidal tooth form, distinct from the GT2 curvilinear profile.
Aluminum alloy pulleys are well-suited for light-to-medium duty applications such as 3D printers, laser engravers, small CNC routers, and robotics. For heavy industrial loads or high-shock environments, steel pulleys may be more appropriate. The 3M belt system itself is rated for moderate torque; consult your belt manufacturer's load tables for specific tension limits.
Aluminum naturally forms a thin oxide layer that protects against further corrosion in most indoor environments. These pulleys are suitable for dry and lightly humid conditions. For outdoor or high-humidity environments, consider applying a light coat of machine oil or selecting an anodized variant if available. Avoid prolonged contact with salt water or strong acids.
In most cases, yes — provided the tooth count, bore diameter, and tooth width match your existing pulley. Measure your current pulley's tooth count, bore, and belt contact width before ordering. The 11mm tooth width is a standard dimension used across many open-source CNC and 3D printer designs. If your existing pulley has flanges, note that flange dimensions may vary.
