3M Timing Belt Pulley — Precision Drive for DIY Automation Projects

When your CNC router, 3D printer, or conveyor build demands slip-free synchronous motion, a mismatched or worn pulley becomes the weakest link in the entire drive train. Makers, hobbyists, and small-workshop engineers who need reliable, repeatable positioning will find these 3M pitch timing belt pulleys a straightforward drop-in solution for new builds and retrofits alike.

Each pulley is machined from aluminum alloy with a precisely formed tooth profile matching the 3M (3 mm pitch) synchronous belt standard. Available tooth counts run from 15T to 60T, bore diameters from 3 mm (0.12 in) to 15 mm (0.59 in), and applicable belt widths of 6 mm, 10 mm, or 15 mm — select the combination that matches your shaft and belt from the variant options above.

Typical use cases include open-loop stepper-driven linear axes on desktop CNC machines, belt-driven extruder and Z-axis assemblies on FDM 3D printers, and light-duty conveyor or pick-and-place mechanisms in educational robotics labs and maker-space automation rigs.

⚙️ Compatibility: Designed for 3M pitch (3 mm tooth pitch) synchronous timing belts. Confirm your belt pitch, width, and shaft bore before ordering. Belt width options: 6 mm, 10 mm, 15 mm. Bore options: 3–15 mm. See variant selector for all available combinations.

✅ Key Features of These 3M Timing Belt Pulleys

🔩

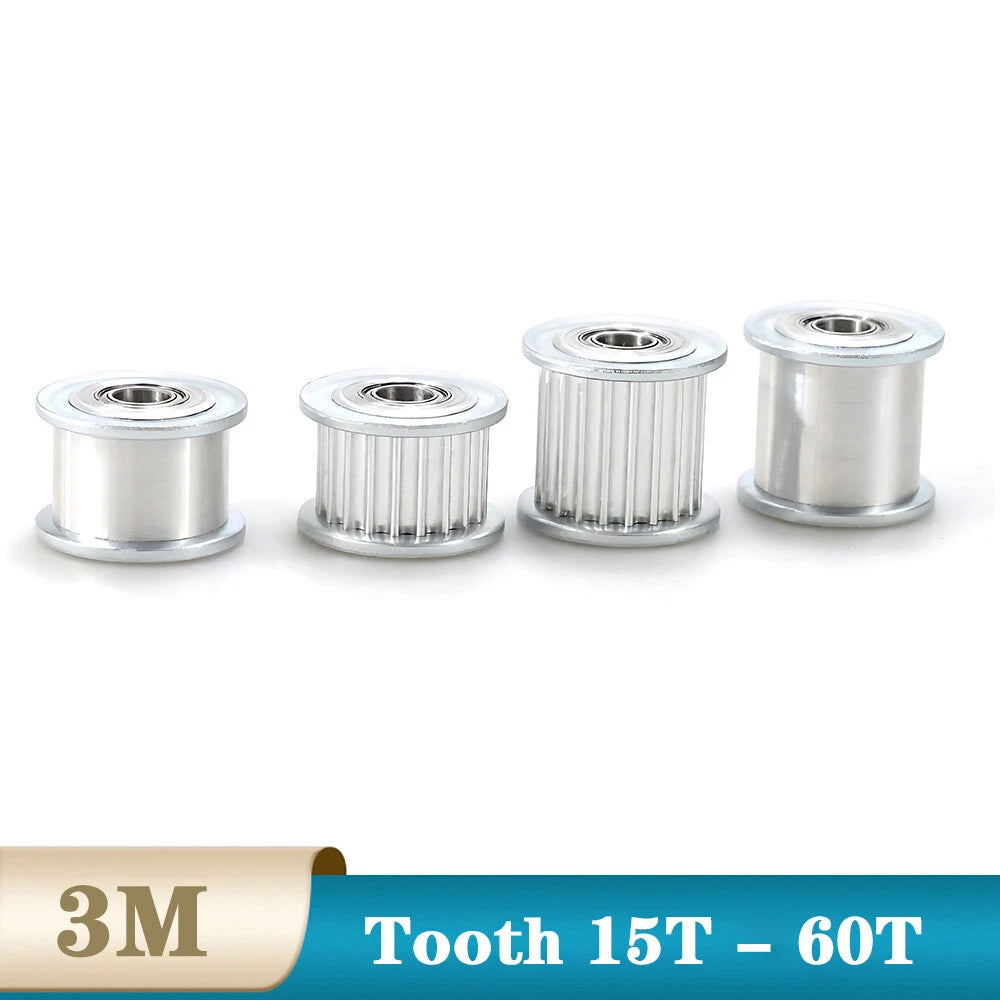

Wide Tooth Count Range

15T through 60T available, letting you dial in the exact gear ratio your drive system requires without custom machining.

📐
Multiple Bore Sizes

Bore diameters from 3 mm to 15 mm (0.12 in – 0.59 in) accommodate a broad range of motor and idler shaft sizes common in stepper and servo applications.

📏
Three Belt Width Options

6 mm, 10 mm, and 15 mm belt-width variants ensure the pulley flanges properly guide your belt and prevent lateral walk under load.

⚡

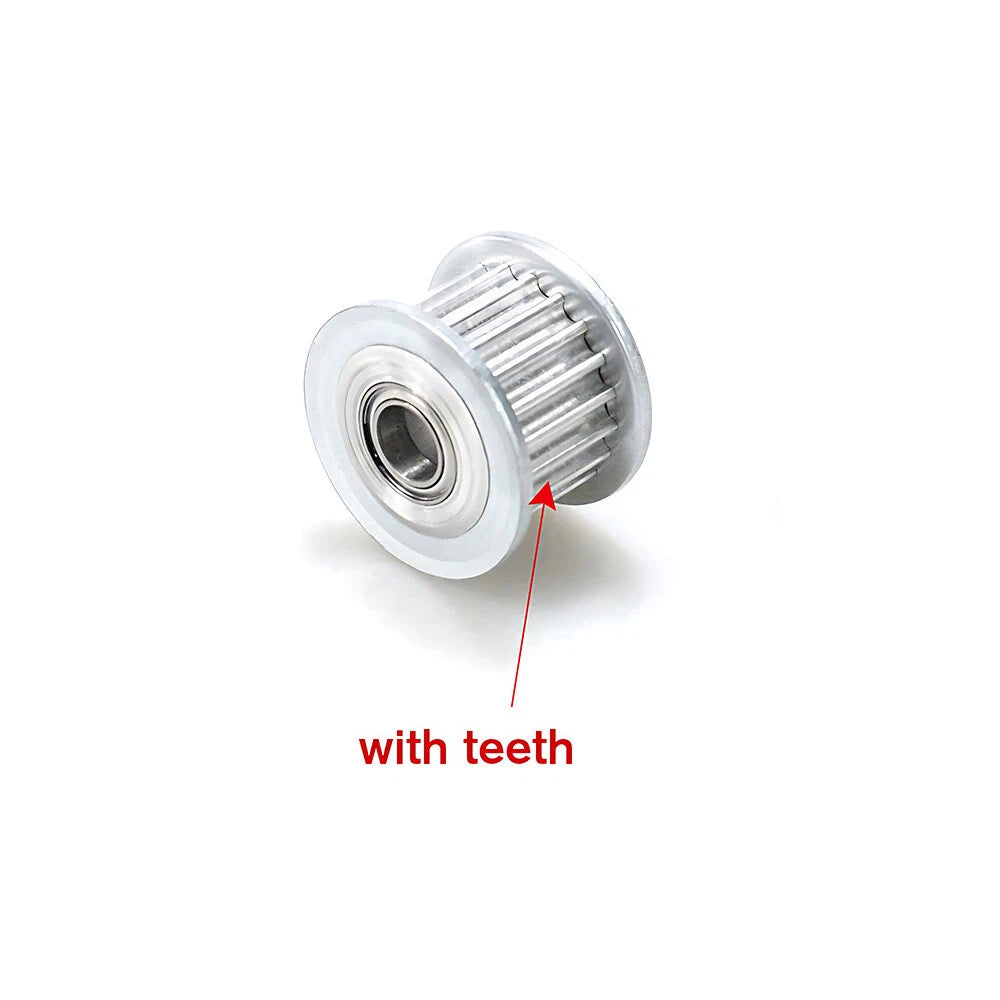

Synchronous 3M Tooth Profile

The 3 mm pitch tooth form provides positive engagement with no belt slip, maintaining accurate positioning in open-loop stepper systems and consistent speed ratios in driven assemblies.

🏗️
Aluminum Alloy Construction

Lightweight yet rigid aluminum alloy body keeps rotational inertia low — an advantage for rapid direction changes in CNC and 3D-printer axes.

🔧
Drop-In Replacement Friendly

Standard 3M pitch dimensions mean these pulleys interchange with other 3M-compatible components, simplifying repairs and upgrades on existing machines.

📐 Technical Specifications — 3M Timing Belt Pulley

Belt Pitch 3M (3 mm)
Tooth Count 15T, 16T, 18T, 20T, 22T, 24T, 25T, 26T, 28T, 30T, 32T, 35T, 36T, 40T, 50T, 60T
Applicable Belt Width 6 mm / 10 mm / 15 mm (see variant options)
Bore Diameter 3 mm – 15 mm (see variant options)
Material Aluminum alloy
Tooth Profile 3M synchronous (rounded trapezoidal)
Outer Diameter See variant options
Flange Flanged on both sides (standard)
Surface Finish Natural anodized / machined
Weight See variant options

❓ Frequently Asked Questions

How do I choose the right tooth count for my application?

The tooth count determines the pulley's pitch diameter and, when paired with a second pulley, the drive ratio. For a 1:1 ratio use identical tooth counts on both pulleys. To reduce speed (increase torque), use a larger tooth count on the driven pulley. Common starting points for desktop CNC and 3D printers are 20T or 24T on the motor shaft. Use the formula: ratio = driven teeth ÷ driver teeth.

What belt pitch do these pulleys require?

These pulleys are designed exclusively for 3M pitch synchronous timing belts — belts with a tooth pitch of 3 mm. Do not use them with 2M, 5M, HTD, or GT2/GT3 belts, as the tooth profiles are not interchangeable and will cause skipping or premature wear.

How do I select the correct bore size?

Measure your motor or idler shaft diameter with a caliper. Select the bore that matches your shaft exactly — available options are 3, 4, 5, 6, 7, 8, 9, 10, 12, and 15 mm. A bore that is too large will require a setscrew or loctite to secure, while a bore that is too small cannot be installed without machining. Most NEMA 17 stepper motors use a 5 mm shaft; NEMA 23 motors typically use an 8 mm shaft.

Which belt width should I choose — 6 mm, 10 mm, or 15 mm?

Belt width affects load capacity and lateral stability. 6 mm belts are common in lightweight 3D-printer axes and small plotters. 10 mm belts handle moderate loads in desktop CNC routers and medium-duty conveyors. 15 mm belts are suited for heavier-duty drives where higher torque transmission is needed. Match the pulley belt-width option to the width of the belt already in your system, or consult your belt's load rating if designing from scratch.

Are these pulleys suitable for high-speed applications?

Aluminum alloy construction keeps rotational inertia low, making these pulleys well-suited for moderate-to-high speed stepper and servo applications typical in desktop CNC and 3D printing. For very high-speed industrial drives (above approximately 3,000 RPM), verify dynamic balance requirements and belt tension limits with your system design. Contact us to confirm suitability for specific high-speed use cases.

Do these pulleys include a setscrew or keyway?

Standard variants include a setscrew for shaft retention. Keyway availability depends on the specific bore and tooth count combination — see variant options or contact us to confirm. For most DIY and maker applications, the setscrew provides sufficient holding force when properly torqued against a flat-ground shaft.

Can I use these pulleys as idler pulleys (non-driven)?

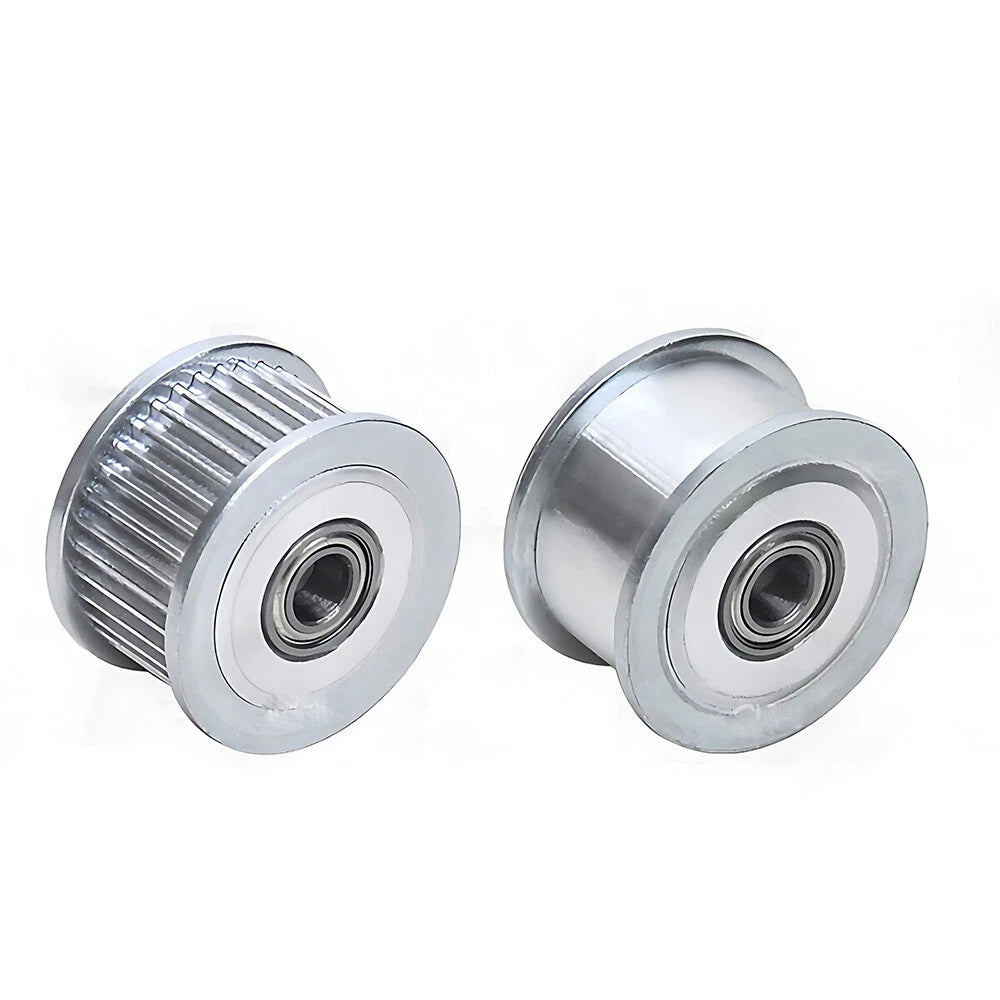

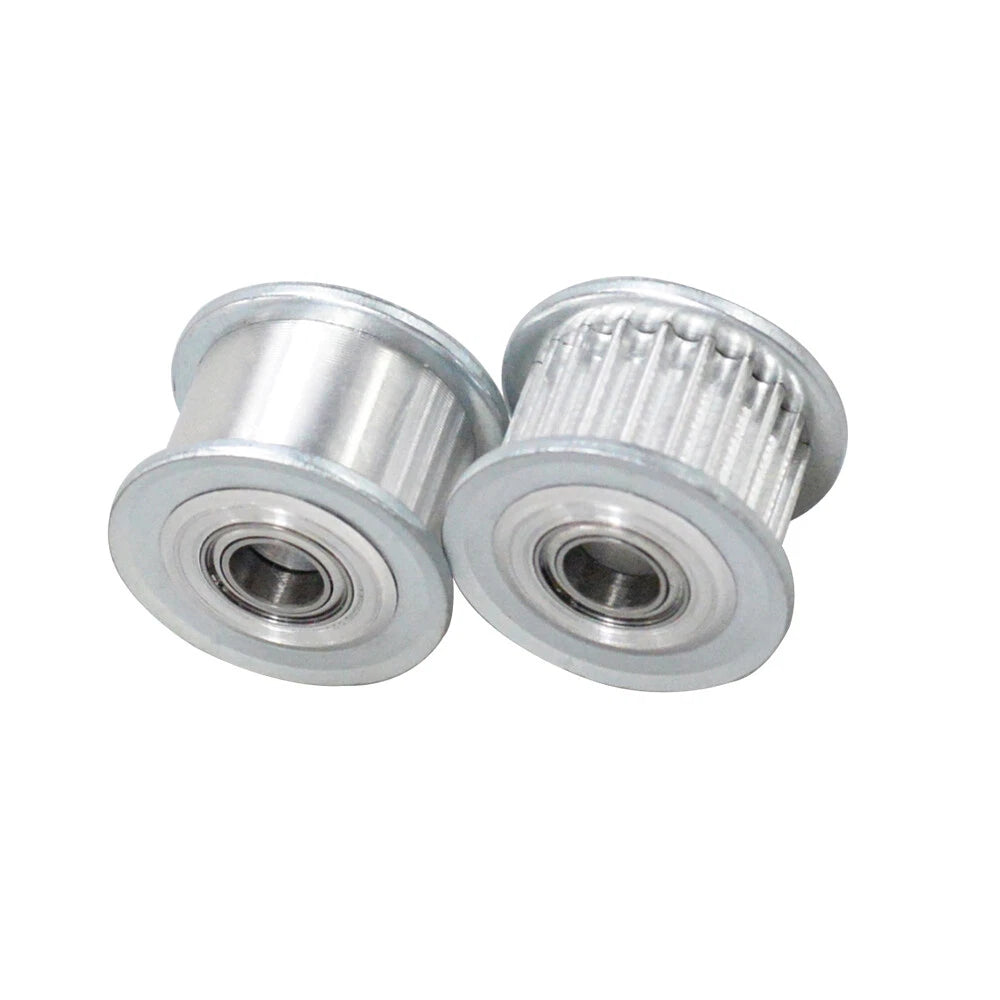

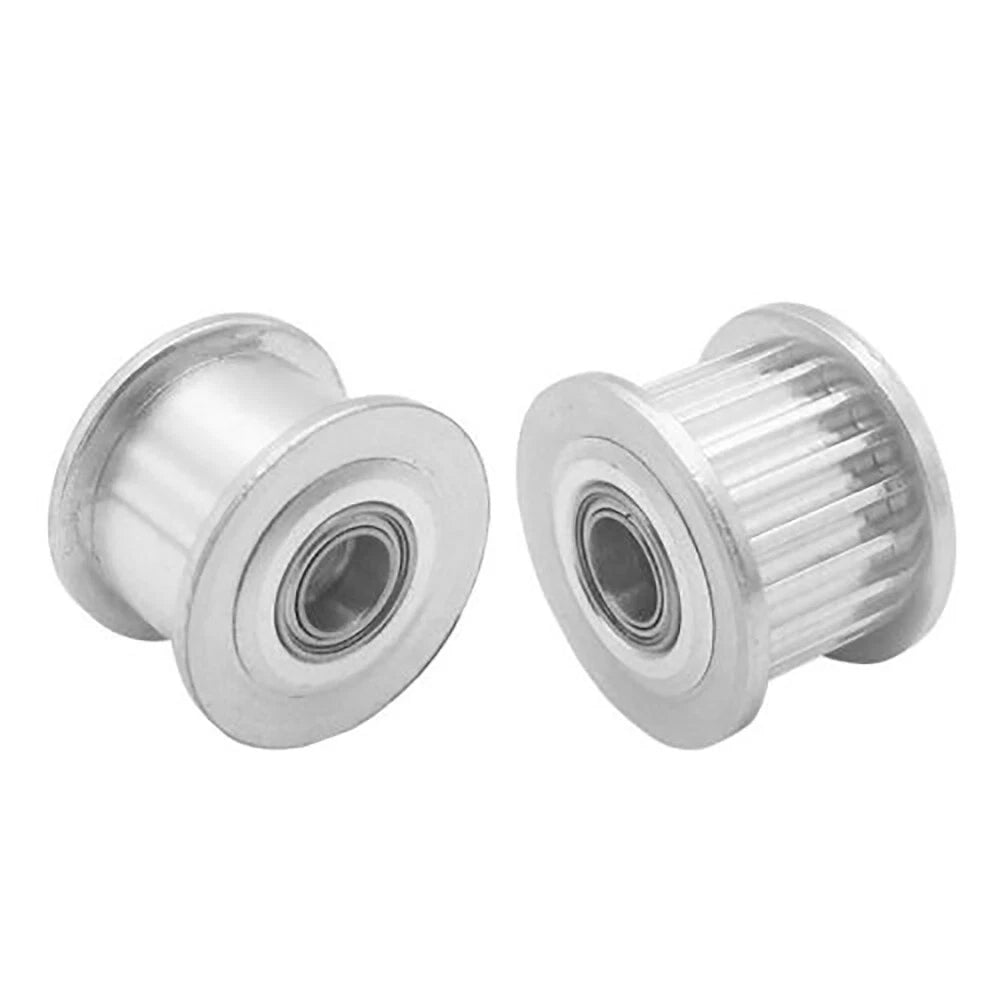

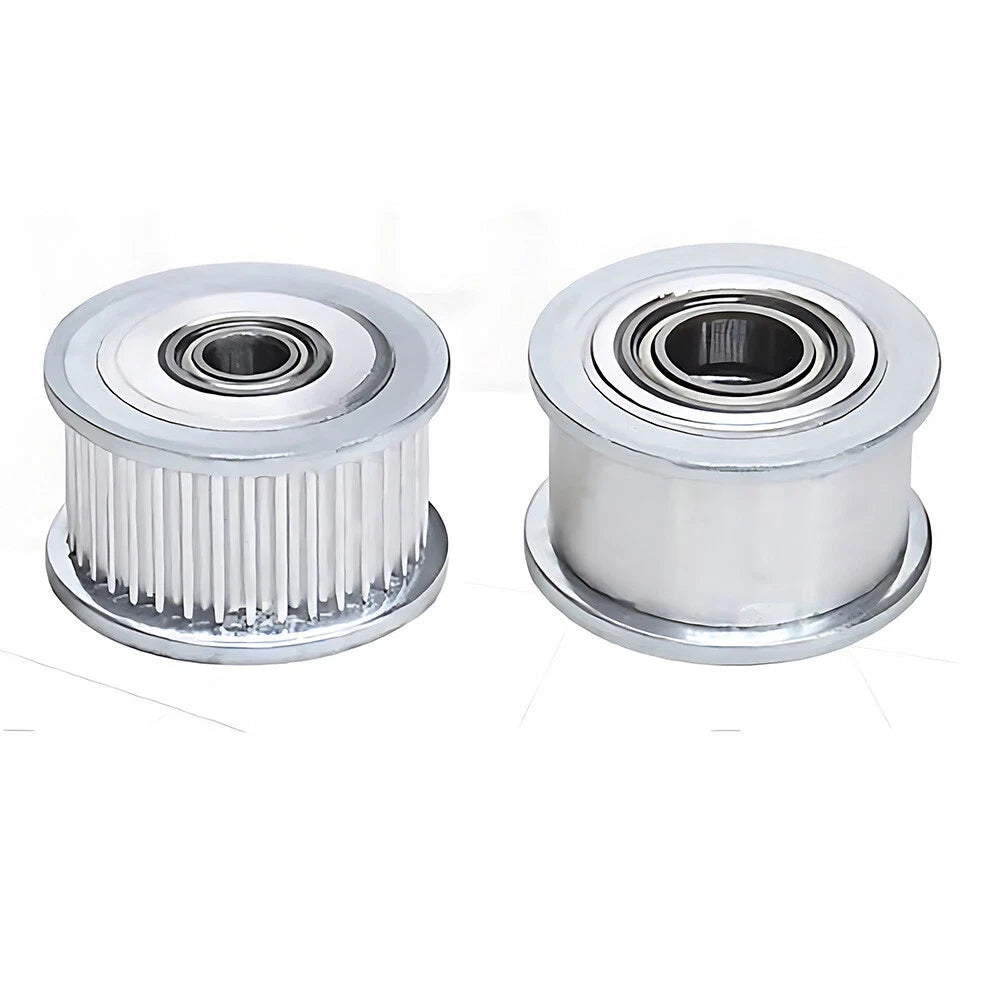

Yes. These pulleys can function as idler pulleys to guide or tension a 3M belt. When used as an idler, ensure the bore is fitted with an appropriate bearing on a fixed shaft, or that the pulley is mounted on a bearing-equipped idler post. The flanges help keep the belt tracked laterally during operation.

🛒 Select your Tooth count, Belt Width, and Bore size above, then add to cart.
