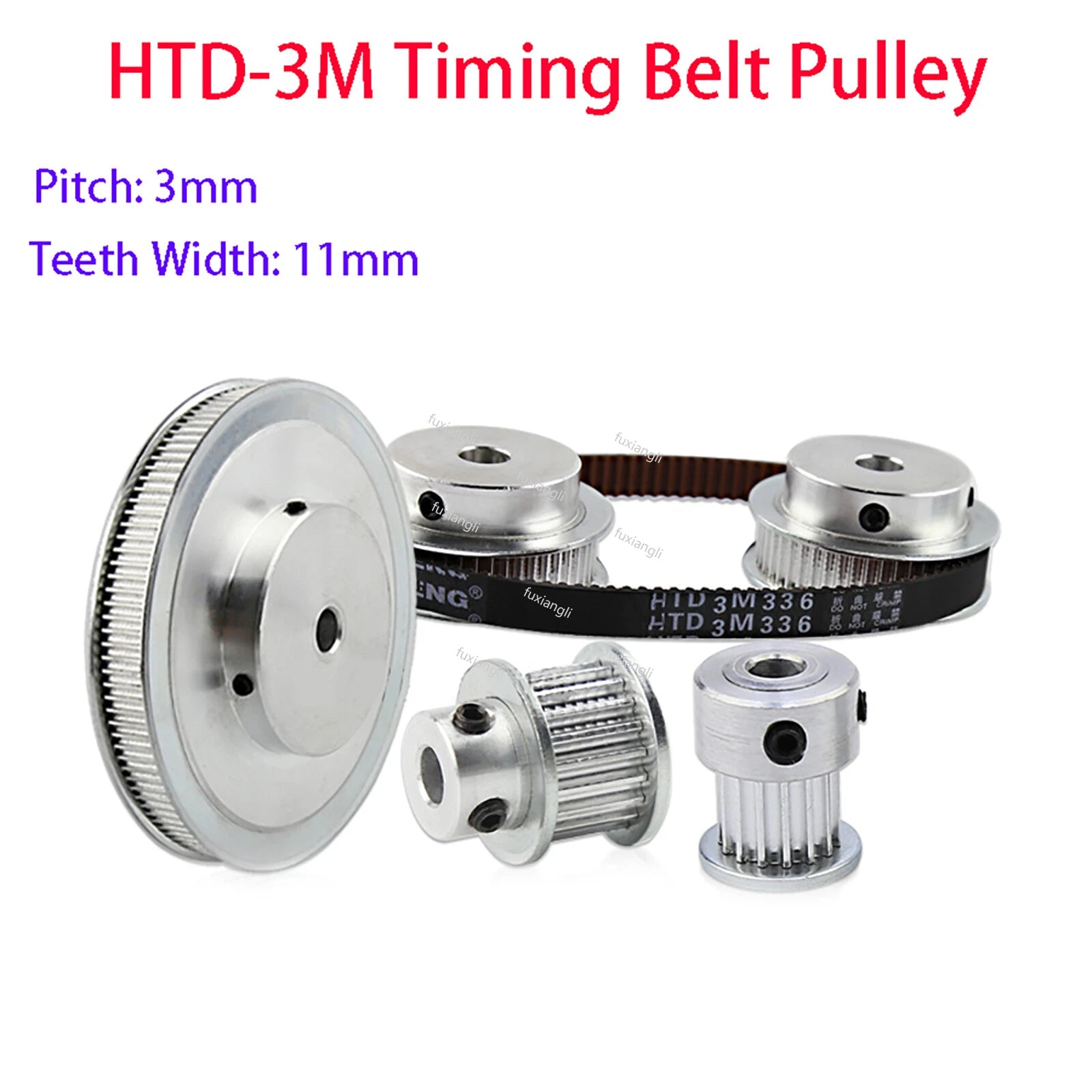

60PCS 3M40T Teeth Idler + 60PCS 3M40T Timing Belt Pulley Width 11mm

Measure your motor or drive shaft diameter with a caliper before ordering. The bore must match your shaft size exactly — a loose bore causes runout and belt skip, while an undersized bore cannot be installed without machining. Check the variant options on this listing for available bore sizes and select the one that matches your shaft.

No. These pulleys use a 3M tooth profile with a 3 mm pitch, which is specific to 3M timing belts. GT2 belts use a 2 mm pitch and a different tooth geometry, and HTD profiles differ in tooth depth and radius. Using mismatched belt-pulley profiles causes accelerated wear and unreliable positioning. Always pair 3M pulleys with 3M belts.

The drive pulleys (60 pcs) are toothed and mount directly on a motor or drive shaft to transmit motion to the belt. The idler pulleys (60 pcs) are typically smooth or toothed wheels used to guide, tension, or redirect the belt without being driven by a motor. Both are 3M40T profile in this combo, so toothed idlers can also serve as secondary drive points in multi-axis layouts.

Aluminum alloy offers an excellent strength-to-weight ratio for open-loop CNC and 3D printer gantry applications. Under normal belt tension loads — typically 20–80 N for light automation — aluminum pulleys perform reliably without deformation. For heavy-duty industrial drives with sustained high tension, steel pulleys may be more appropriate. For hobbyist CNC routers and desktop 3D printers, aluminum is the standard choice.

Aluminum alloy naturally forms a thin oxide layer that provides baseline corrosion resistance against humidity and light moisture. Anodized variants offer additional surface protection. These pulleys are not rated for submersion or continuous exposure to cutting fluids. For dry or lightly humid workshop environments, they perform well over extended periods without surface treatment.

Yes. With 60 drive pulleys and 60 idlers, this pack provides enough components for multiple axes on a single machine or for stocking spare parts across several builds. A typical 3-axis CNC gantry uses 2–4 drive pulleys and 2–6 idlers per axis, so this pack supports 3–5 complete machine builds depending on your design.

Check your machine's belt specification (pitch and width) and motor shaft diameter in the manufacturer's documentation or community forums. If your machine uses a 3M belt at 11 mm width and your shaft matches an available bore size in the variant options, this pulley is compatible. When in doubt, contact us to confirm before ordering.
