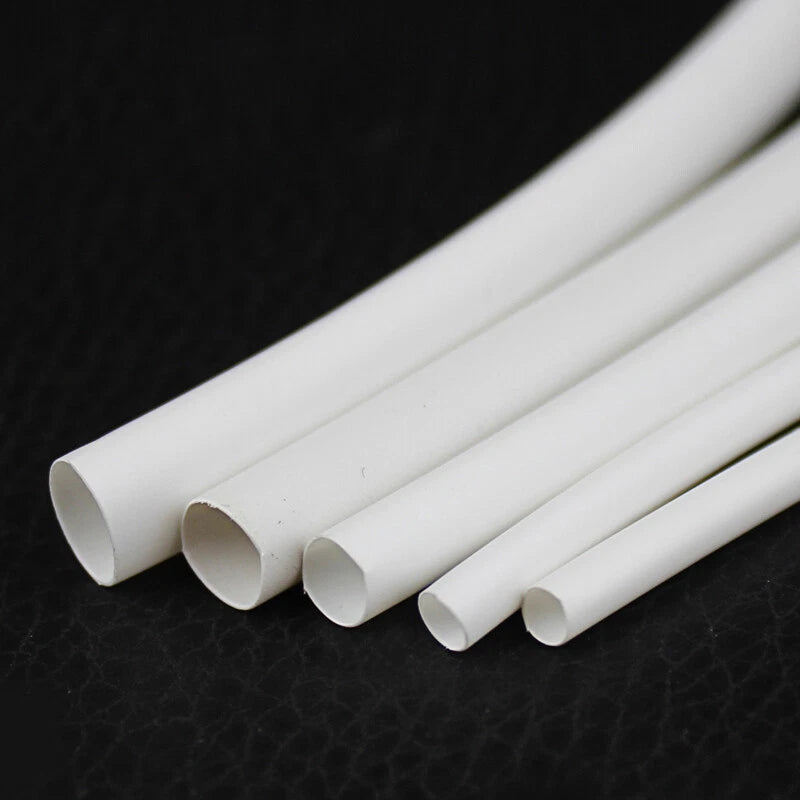

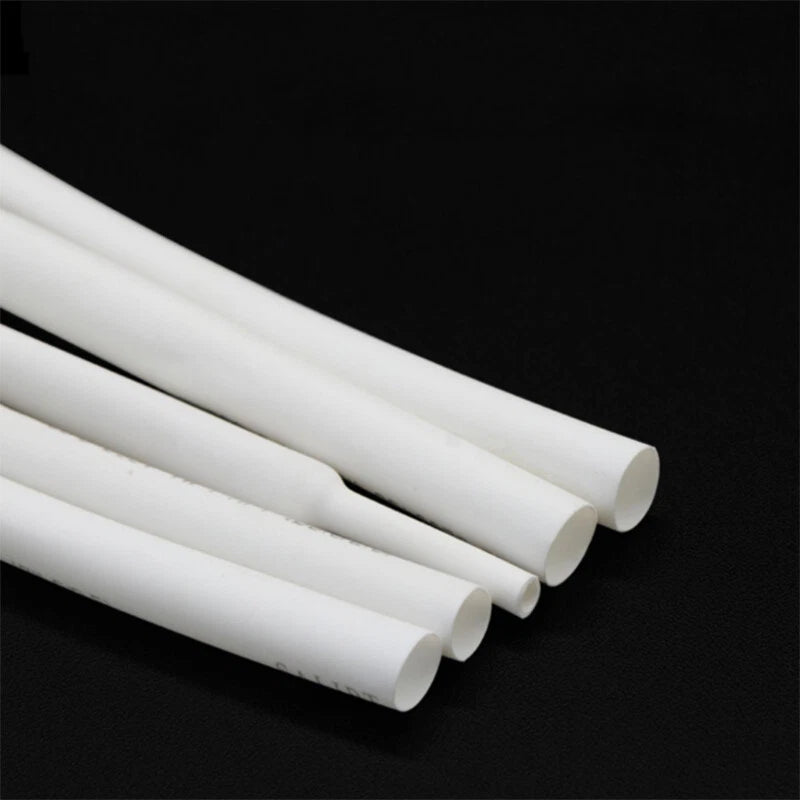

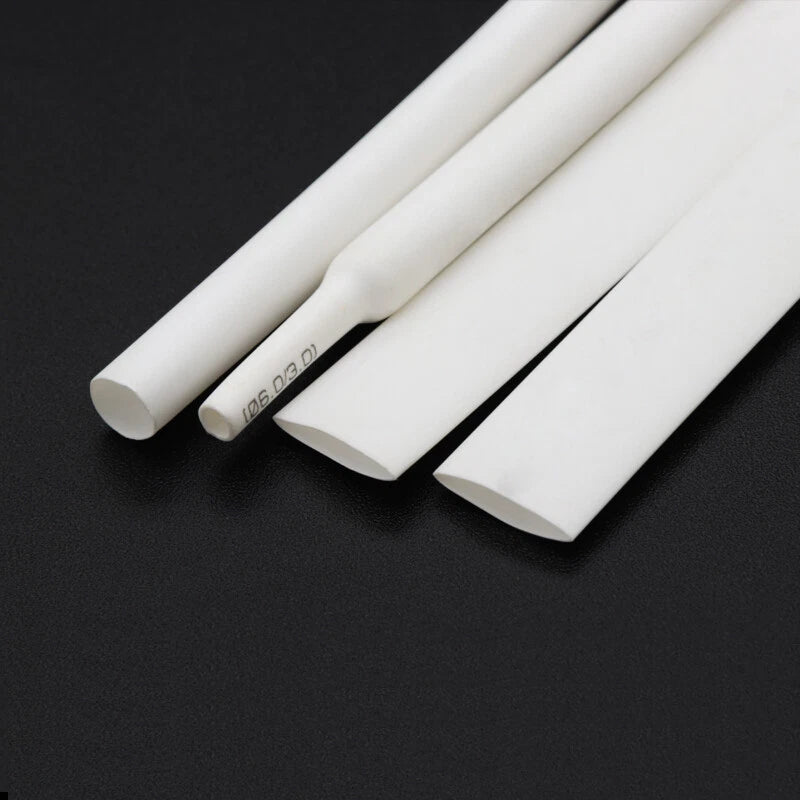

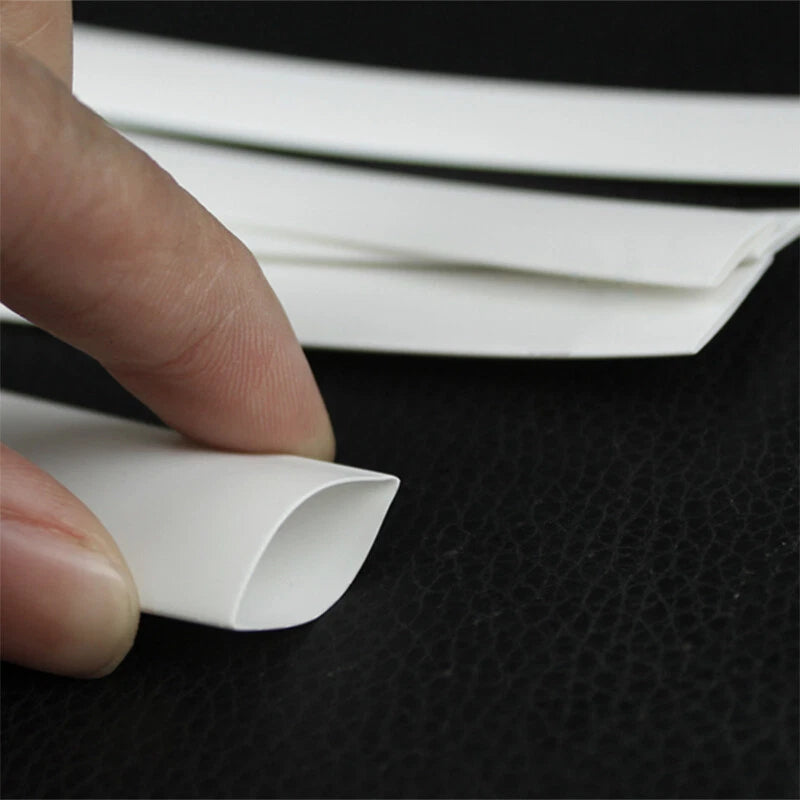

4:1 Ratio White Dual Wall Heat Shrink Tubing with Adhesive — Waterproof, φ4mm to φ20mm

Select a tubing diameter that is 20–30% larger than the outer diameter of the wire or connector you need to cover. For example, a wire with a 3mm outer diameter generally works well with the φ4mm size. Because this tubing has a 4:1 shrink ratio, it can accommodate a wide range of cable sizes within each diameter option. When in doubt, size up — you can always shrink more, but you can't expand a tube that's too small.

Quick inch reference (expanded diameter): φ4mm ≈ 5/32" | φ6mm ≈ 1/4" | φ8mm ≈ 5/16" | φ12mm ≈ 15/32" | φ16mm ≈ 5/8" | φ20mm ≈ 25/32"

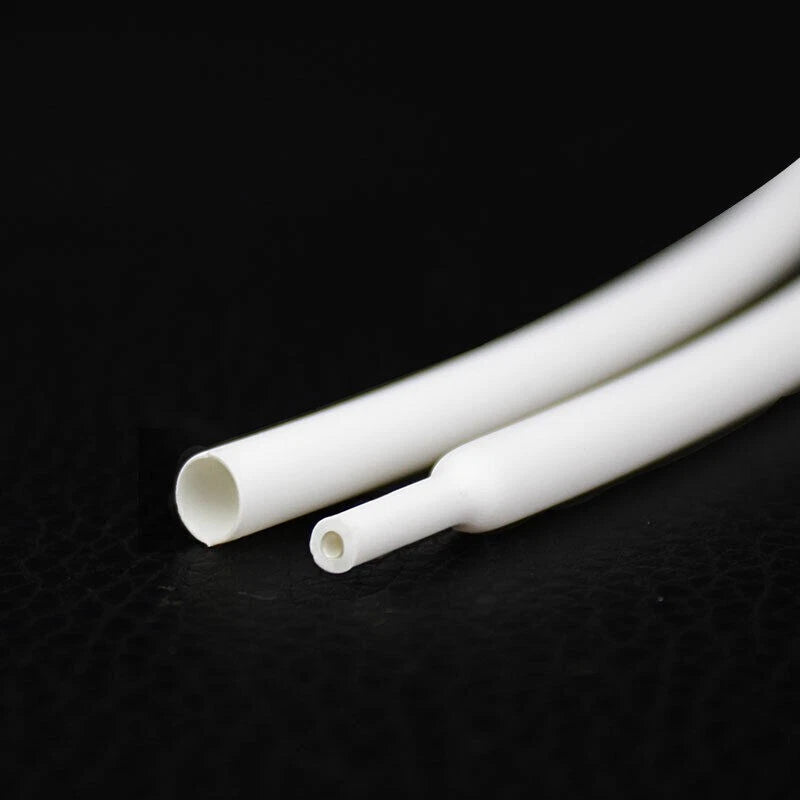

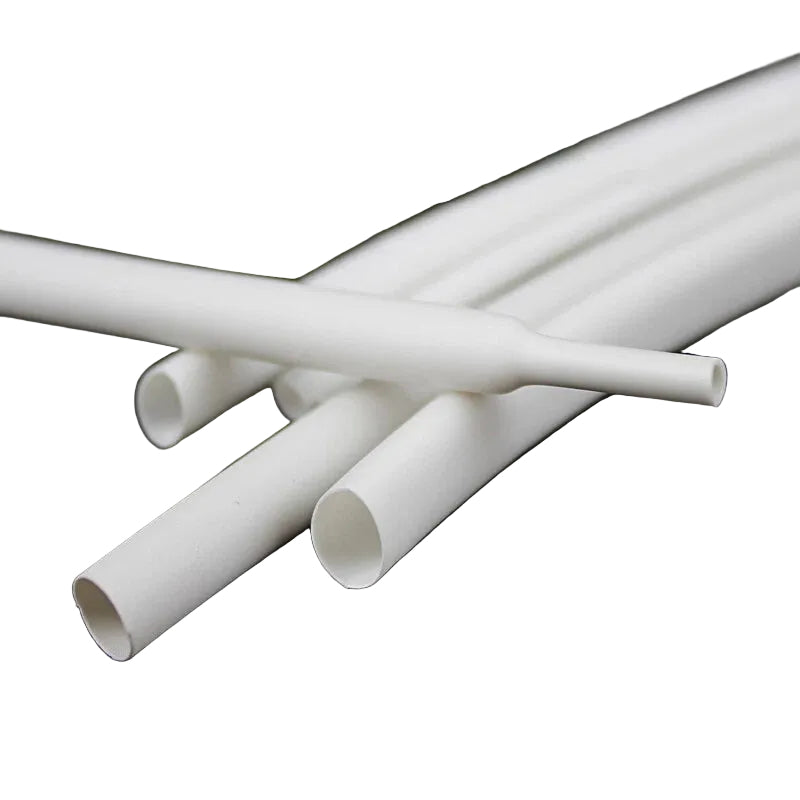

A 4:1 ratio means the tubing shrinks to one-quarter of its original expanded diameter when heat is applied. For example, the φ16mm (≈5/8") size will shrink down to approximately φ4mm (≈5/32"). This wide ratio makes dual wall 4:1 heat shrink tubing significantly more versatile than standard 2:1 tubing, especially for covering connectors, terminals, or irregular-shaped splices.

Yes. The dual wall construction — polyolefin outer layer plus hot-melt adhesive inner liner — creates a waterproof seal when properly shrunk. This makes it well-suited for marine wiring, outdoor electrical connections, underground splice protection, and other moisture-exposed environments. The adhesive liner flows into gaps and bonds to the cable jacket, blocking water ingress at the entry points.

When fully shrunk and the adhesive is properly activated, the tubing generally provides a mechanically secure bond that resists vibration-induced loosening. This is why dual wall adhesive heat shrink is commonly specified for automotive wiring harness repairs and marine applications where constant movement and vibration are present. The adhesive layer also helps prevent the tubing from sliding along the cable over time.

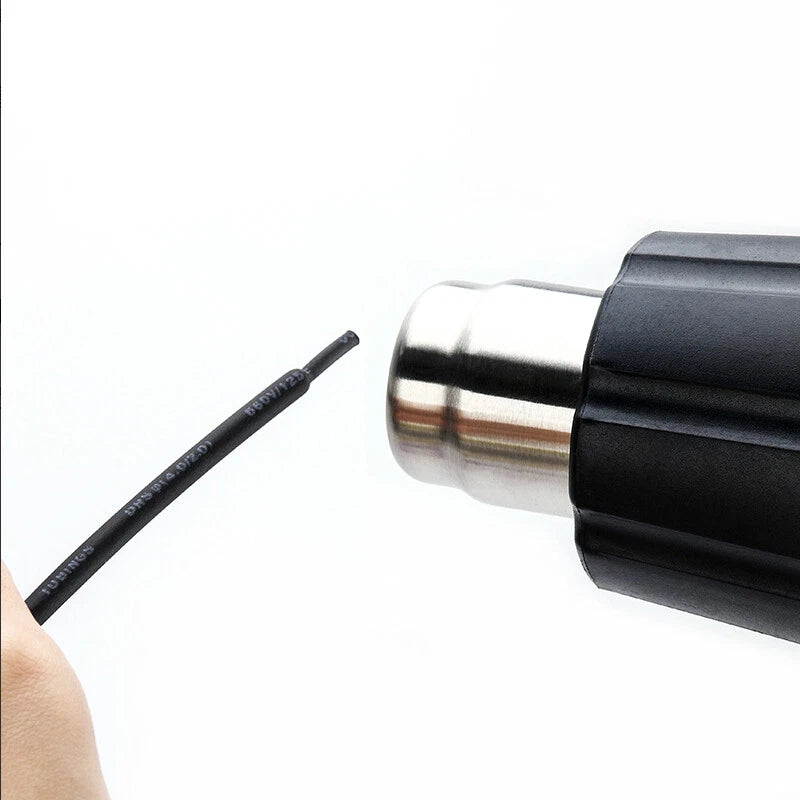

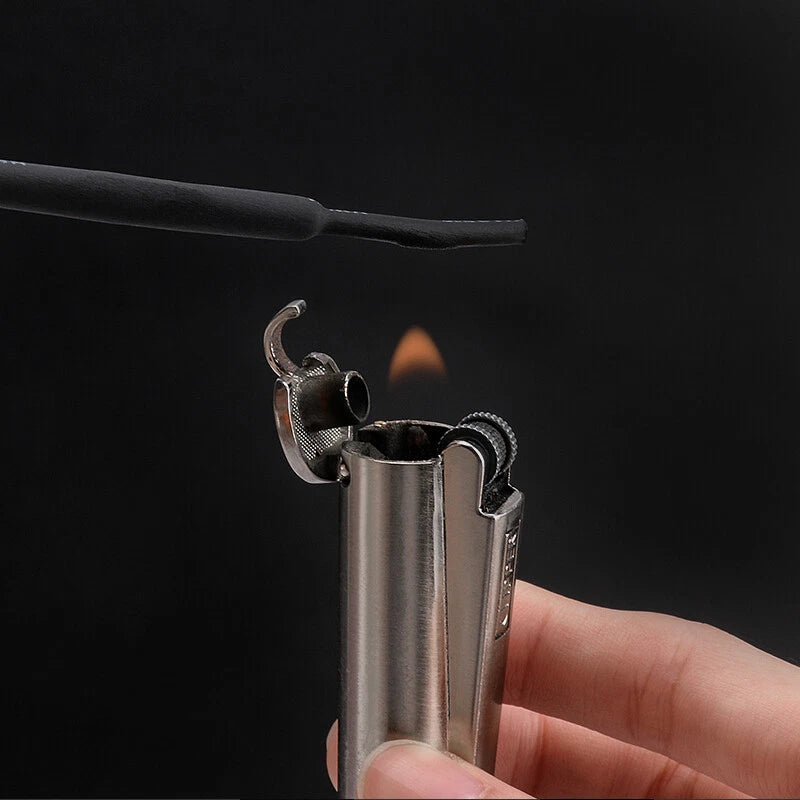

A heat gun is strongly recommended. Set it to approximately 120–150°C (248–302°F) and move it evenly along the tubing from one end to the other to avoid hot spots. Avoid using open flames (lighters, torches) as they can scorch or burn through the outer wall before the adhesive has time to activate evenly. For larger diameters (φ16mm and φ20mm), a heat gun with a concentrator nozzle helps direct heat more precisely.

Yes. The diameter options cover a broad range of wire gauges in both metric and AWG systems. As a general guide: φ4mm typically suits wires up to approximately 10–12 AWG; φ8mm suits up to approximately 6–8 AWG; φ12mm and larger are generally used for heavier cables, battery leads, or multi-conductor bundles. Always verify by measuring the actual OD of your cable or connector before selecting a size.

Color pigmentation can influence UV absorption, and white tubing typically reflects more UV radiation than black. However, for long-term outdoor UV exposure (years of direct sunlight), we recommend confirming the UV resistance rating with us before use in permanently exposed installations. For most standard outdoor and marine applications, white dual wall heat shrink tubing performs well within typical service life expectations.
