40mm PVC Heat Shrink Tubing for Battery Packs — Color-Coded Sleeve Wrap

Measure the total length of the battery pack or wire bundle you need to cover, then add at least 10–15% extra to account for slight lengthwise shrinkage. For a single 18650 cell (typically ~65mm / 2.6" long), 1 meter is more than enough for multiple wraps. For large battery packs or bulk wiring projects, the 10m, 20m, or 50m rolls offer the best value per meter.

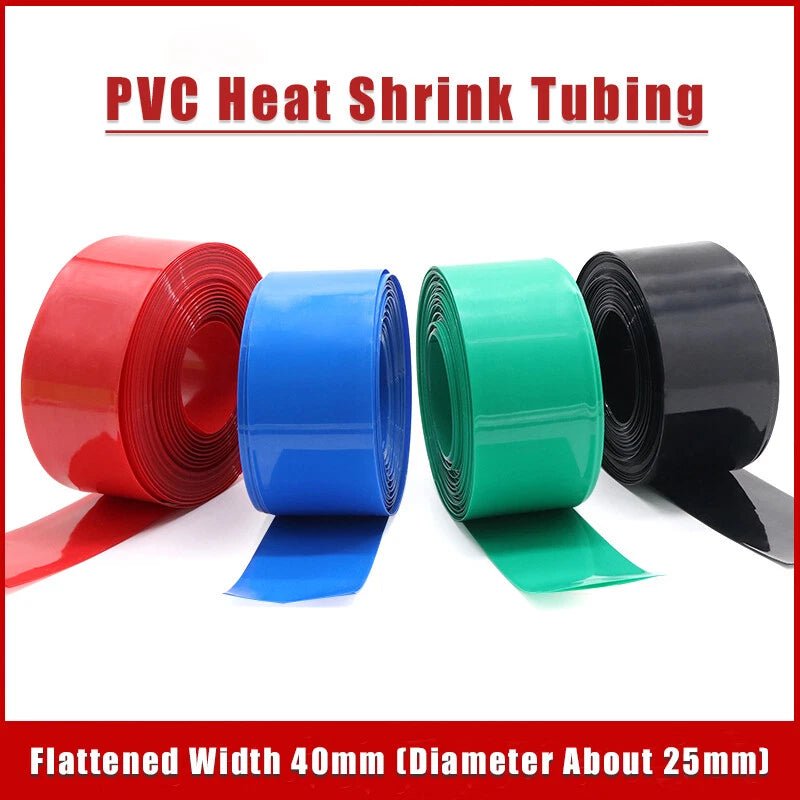

This tubing has a flat width of 40mm, which corresponds to a supplied inner diameter of approximately 25mm (≈1"). After applying heat, PVC heat shrink tubing typically recovers to roughly 50% of its original diameter — so the recovered diameter is generally around 12–13mm (≈0.5"). Always verify your battery or component diameter before ordering to ensure a snug fit.

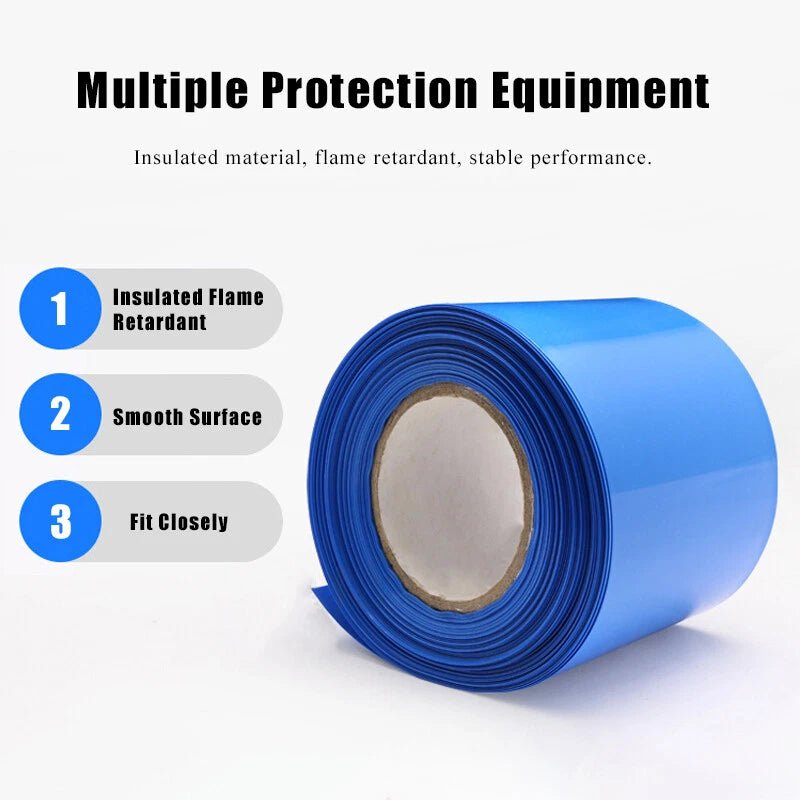

PVC heat shrink tubing provides a firm, snug sleeve that resists abrasion and minor impacts once shrunk. It is generally rated for light mechanical protection and electrical insulation in low-voltage DIY applications. For heavy-duty mechanical stress or high-vibration environments, a thicker-wall polyolefin or adhesive-lined tubing may be more appropriate.

Standard PVC heat shrink tubing offers basic moisture resistance and is suitable for indoor and mildly damp environments. For fully waterproof or outdoor applications exposed to UV, rain, or extreme temperatures, an adhesive-lined dual-wall heat shrink tubing is generally recommended instead. If you're unsure, contact us to confirm suitability for your specific application.

PVC heat shrink tubing typically activates at around 70–90°C (158–194°F). A standard heat gun is the most reliable tool for even, controlled shrinkage — especially important for battery sleeves where uniform coverage matters. A lighter can work for small sections in a pinch, but a heat gun is strongly recommended for longer runs or production use.

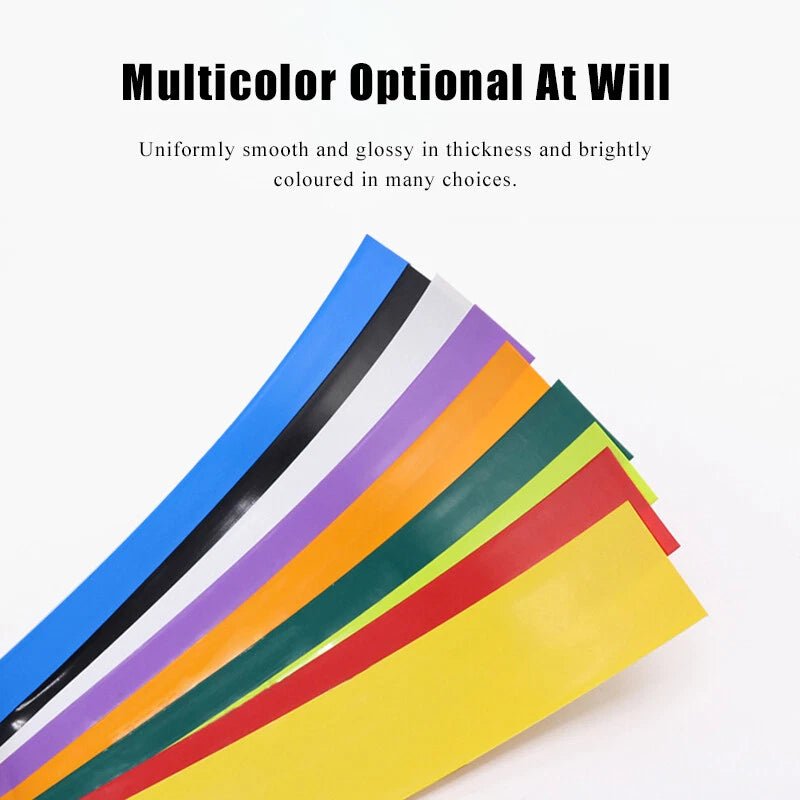

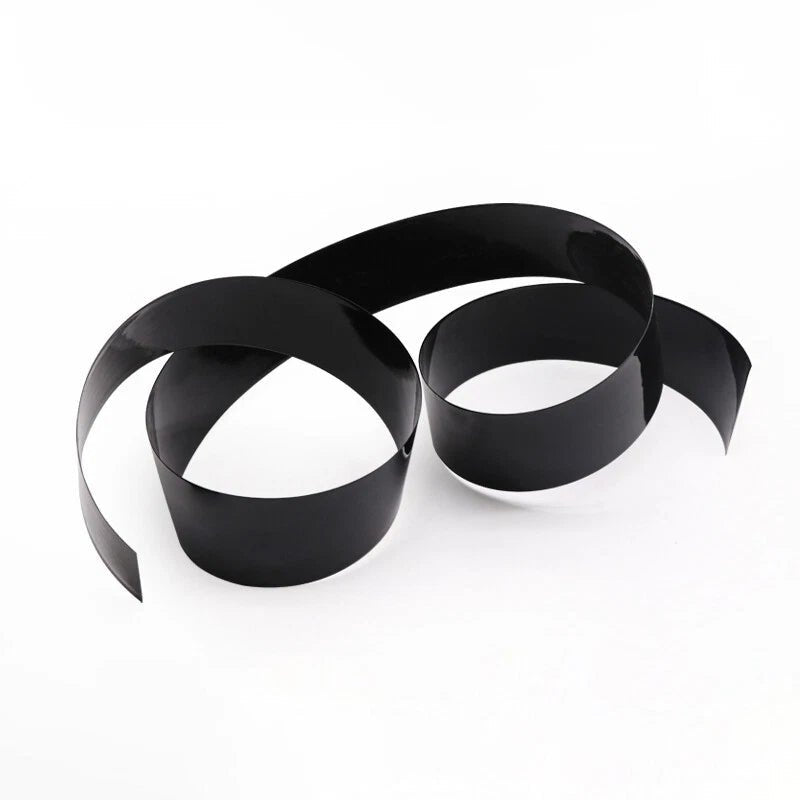

Color choice is largely a matter of preference and organization. Many builders use black for finished packs, transparent to show cell branding and date codes, and bright colors (red, blue, yellow, green) to color-code battery banks by voltage or capacity. Fruit Green is popular for high-visibility identification in tight enclosures or multi-bank setups.

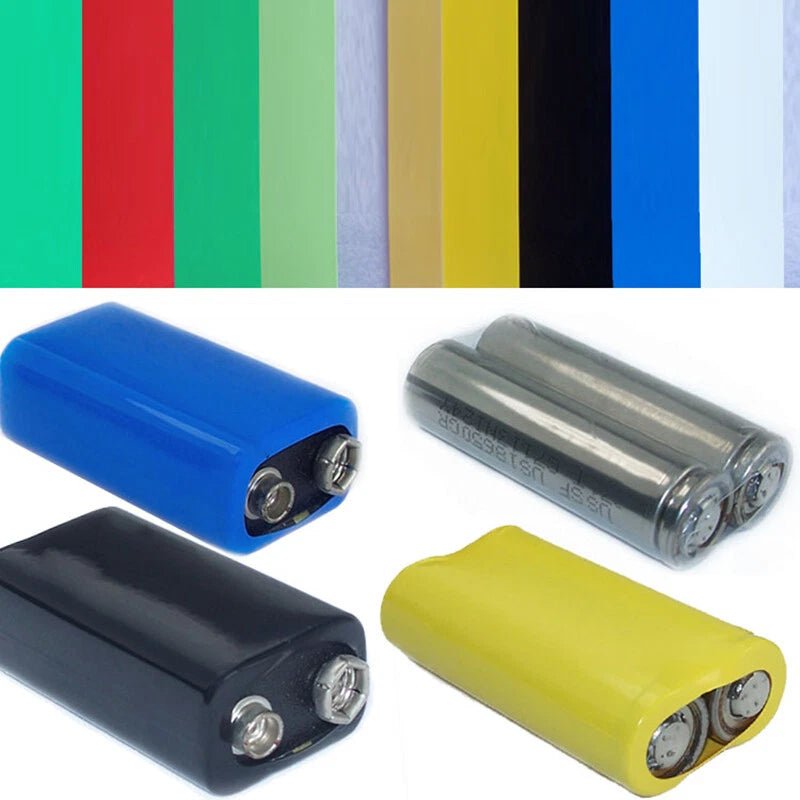

At 40mm flat width (≈25mm supplied inner diameter), this tubing is generally well-suited for wrapping single large-format cylindrical cells such as 18650 (18mm diameter) and 21700 (21mm diameter), as well as small battery packs assembled from a few cells side by side. For larger multi-cell packs, confirm the pack's outer diameter fits within the supplied inner diameter before ordering.
