4:1 Adhesive Heat Shrink Tubing — Waterproof Glue-Lined Protection for Cables & Connectors
When a standard heat shrink just won't cut it — when you need a true waterproof seal on marine wiring, automotive harnesses, or outdoor electrical connections — loose-fitting or thin-walled tubing leaves you exposed to moisture, corrosion, and eventual failure. DIYers, electricians, and automotive technicians who work in demanding environments need a solution that seals completely and stays put. This 4:1 adhesive heat shrink tubing is built for exactly those situations.

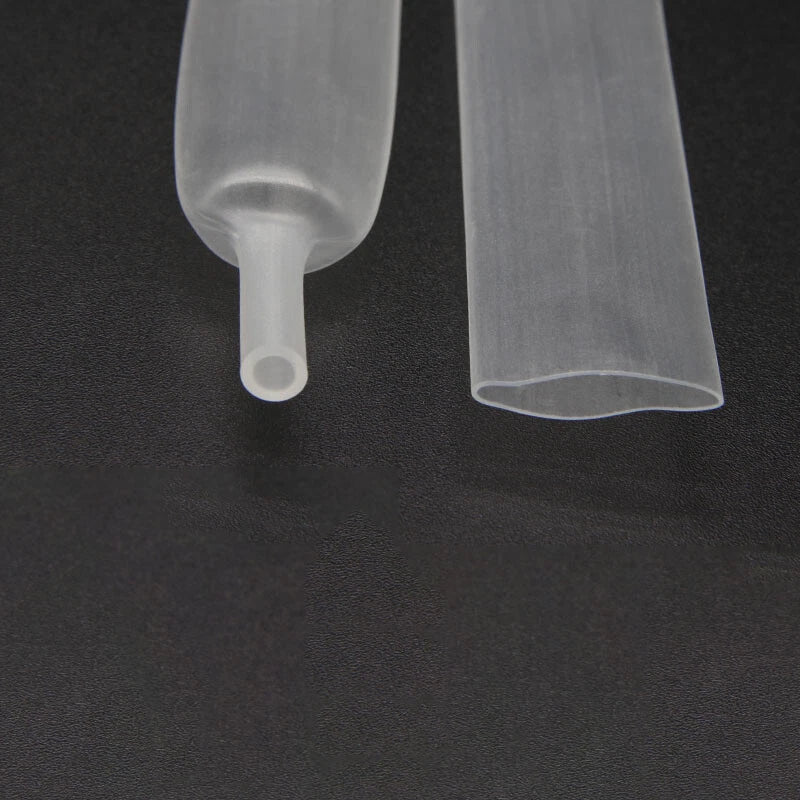

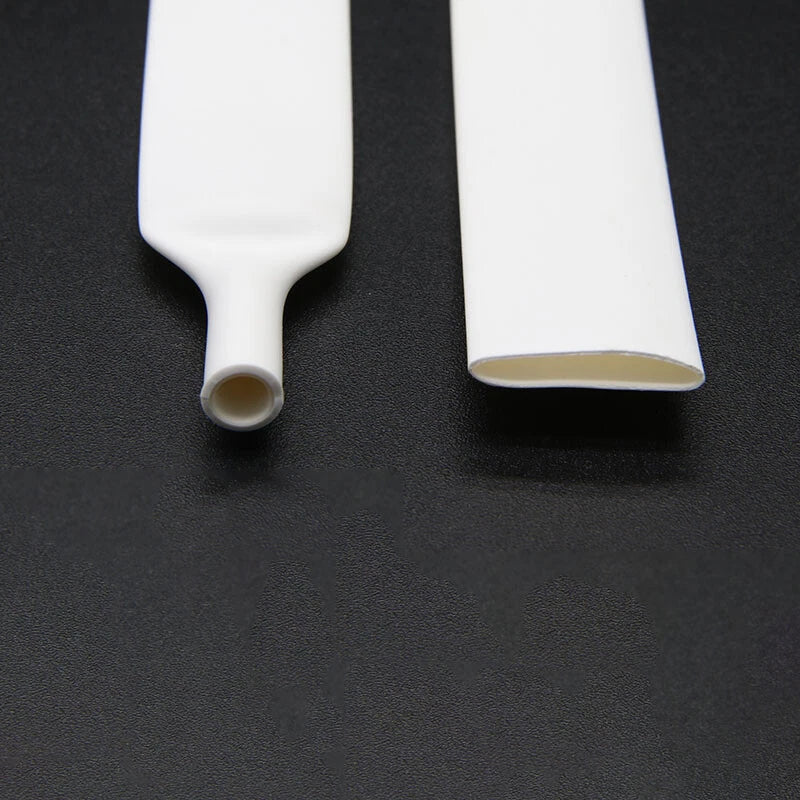

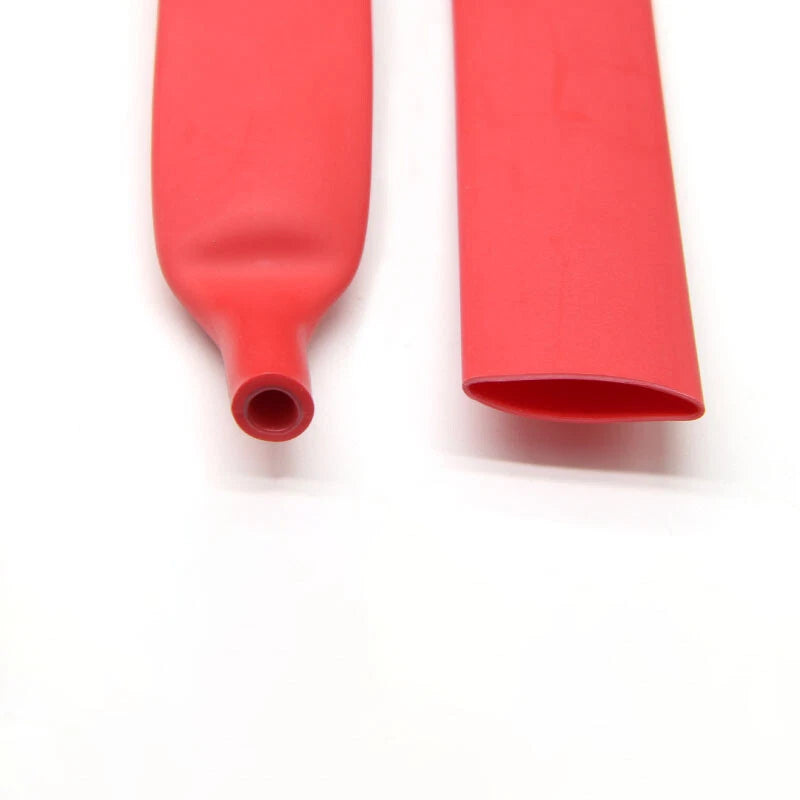

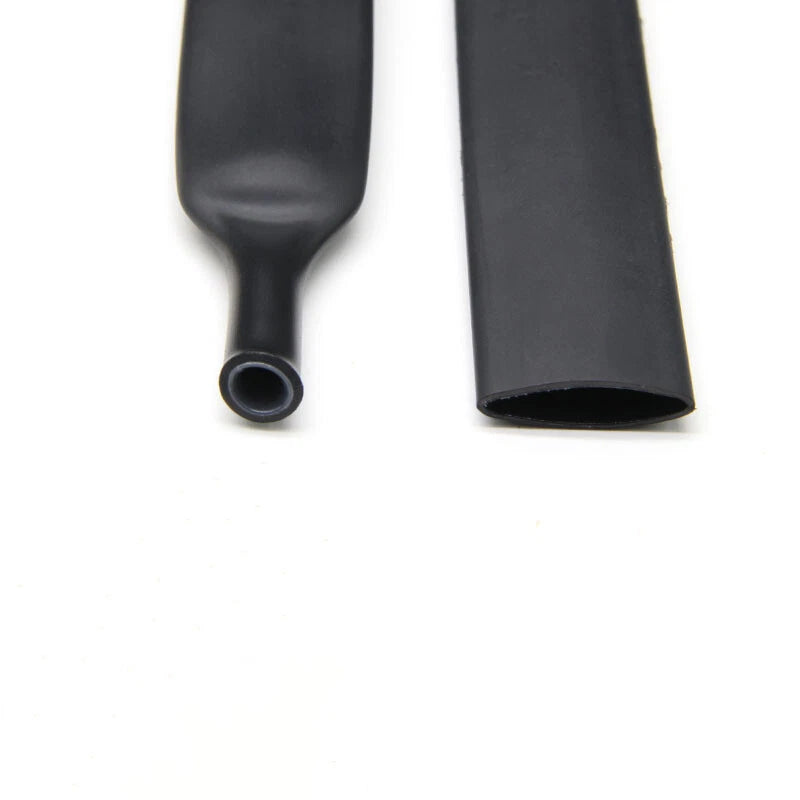

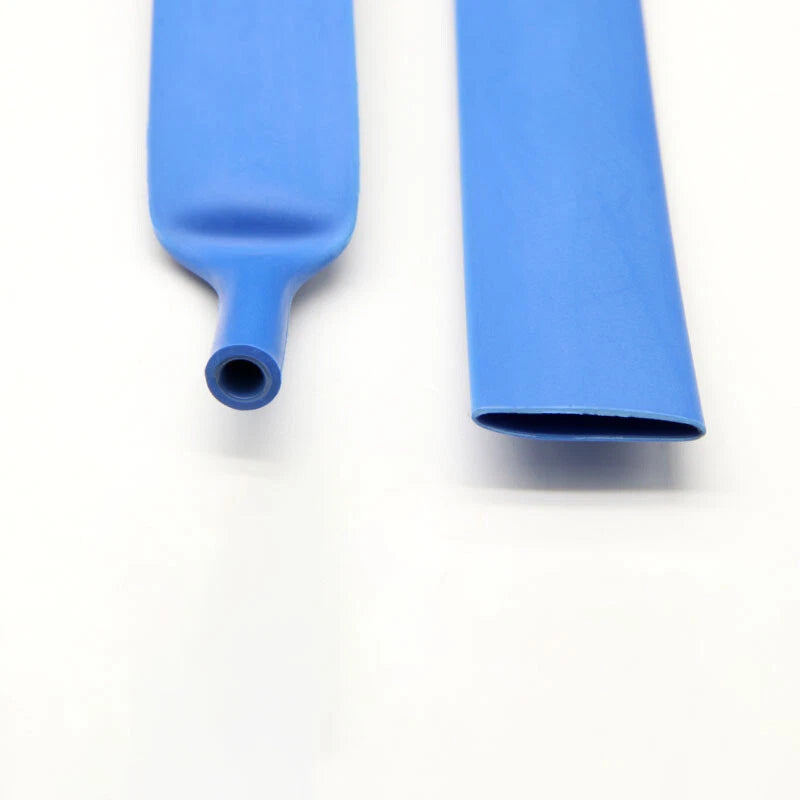

Each piece is a dual-wall, glue-lined heat shrink tube with a 4:1 shrink ratio. The outer polyolefin wall shrinks down to one-quarter of its original diameter, while the inner hot-melt adhesive layer melts and flows to fill gaps, creating a watertight, strain-relieving seal. Available in diameters from φ4mm (≈5/32") to φ52mm (≈2"), in lengths of 1M (≈3.3 ft) to 5M (≈16.4 ft) per piece, and in five colors — Black, White, Red, Blue, and Transparent — so you can color-code or match your installation.
Typical use cases include waterproofing marine wire splices and battery terminals, sealing automotive wiring connectors in engine bays, protecting outdoor low-voltage landscape lighting connections, and adding strain relief to industrial cable assemblies. The wide diameter range makes this 4:1 glue-lined heat shrink tubing suitable for everything from thin signal wires to large-gauge power cables.
🔌 Compatibility: Suitable for copper, aluminum, and tinned wire; compatible with most standard cable connectors, butt splices, ring terminals, and solder sleeves. Verify your cable's outer diameter against the pre-shrink diameter before ordering.
✅ Key Features of These 4:1 Glue-Lined Heat Shrink Tubes
-

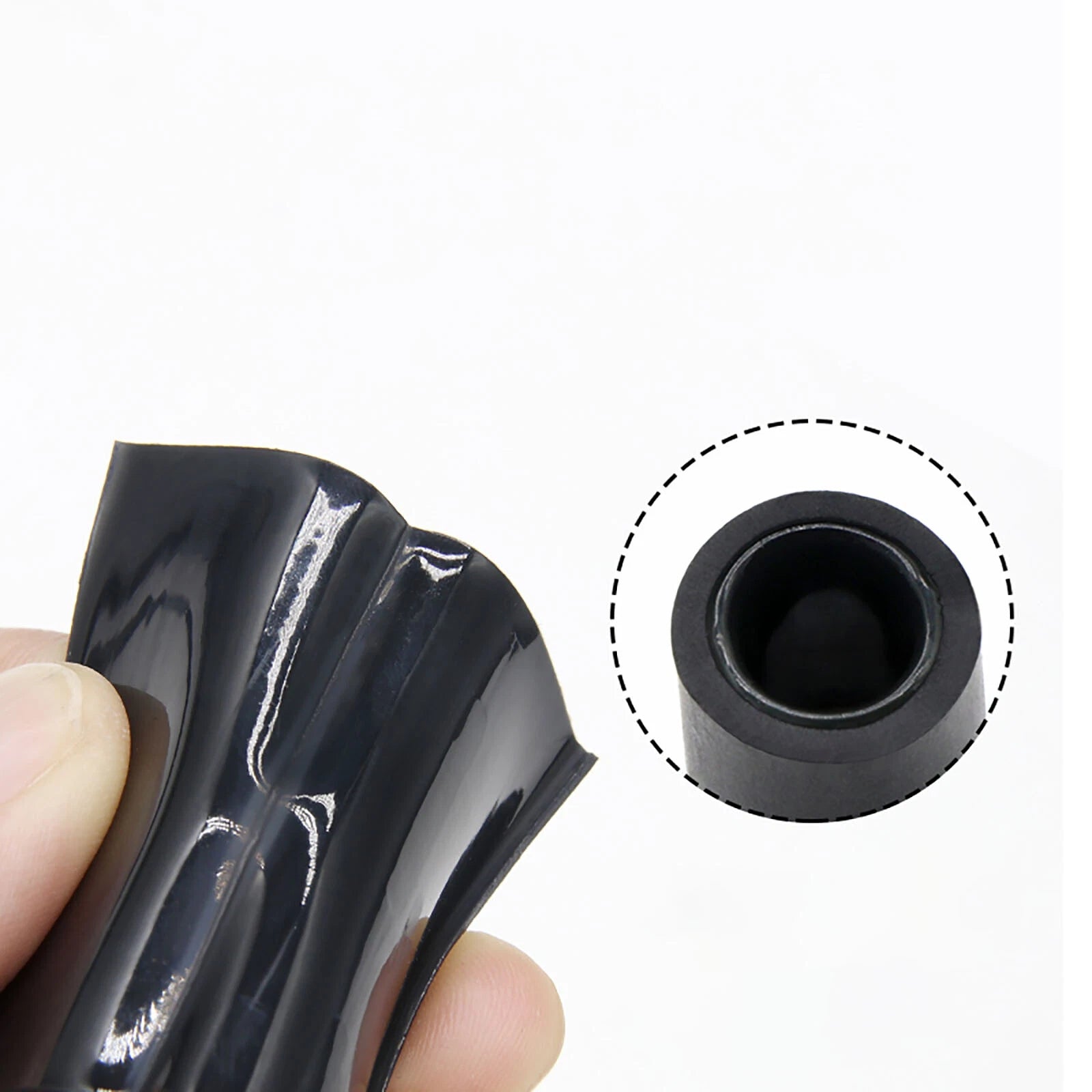

💧Waterproof Adhesive Inner Layer — The hot-melt glue lining melts during shrinking to seal around cables and connectors, blocking moisture ingress and preventing corrosion in marine, outdoor, and automotive wiring applications.
-
📐4:1 Shrink Ratio — Shrinks to one-quarter of its original diameter, giving you far more coverage flexibility than standard 2:1 tubing — ideal for irregular shapes, stepped connectors, and large-to-small transitions.
-
📏Wide Diameter Range (φ4mm–φ52mm) — Ten diameter options from φ4mm (≈5/32") to φ52mm (≈2") cover thin signal wires through large-gauge power cables and battery lugs in a single product line.
-

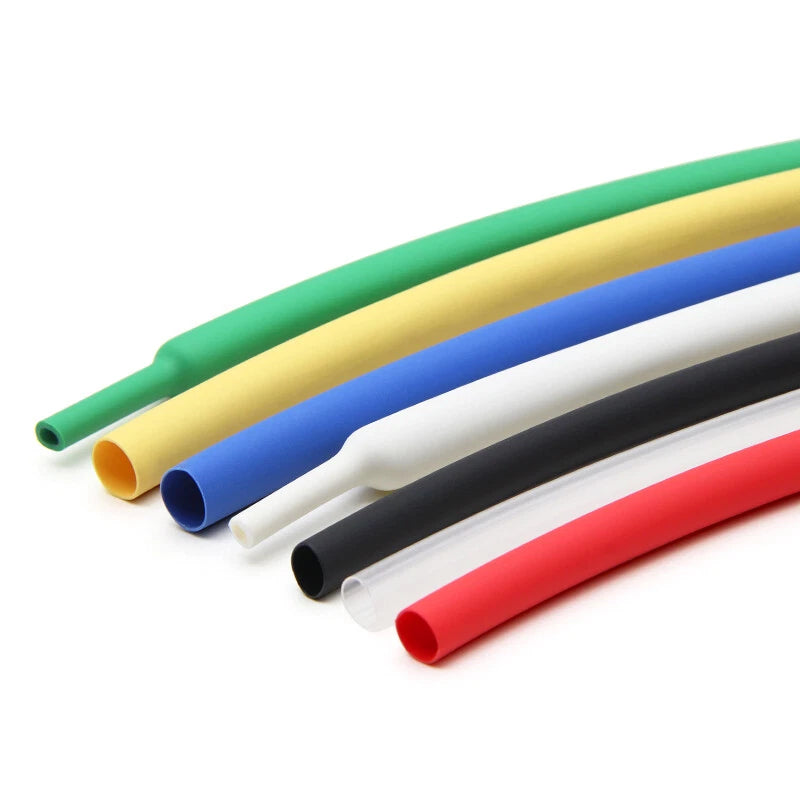

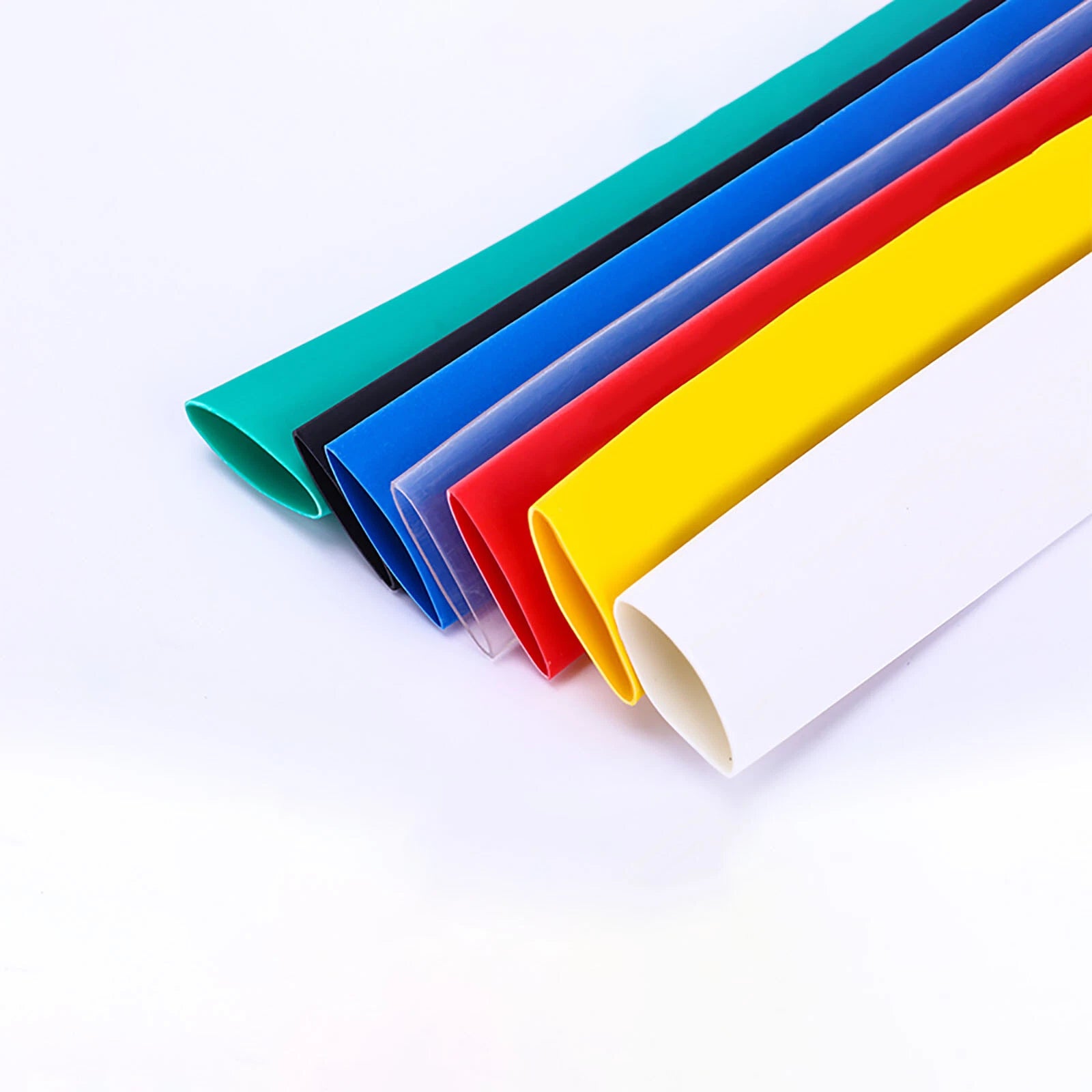

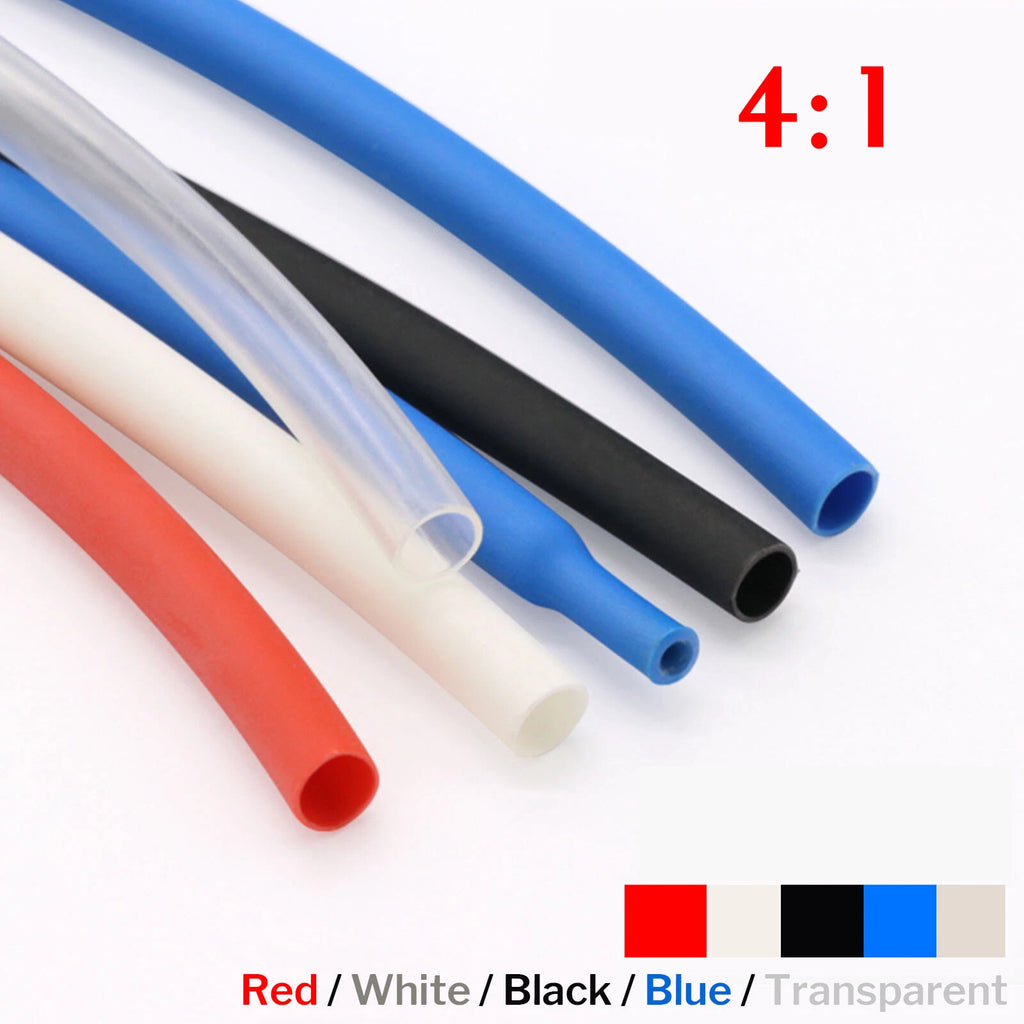

🎨5 Color Options for Circuit Identification — Black, White, Red, Blue, and Transparent allow color-coded wiring organization, making it easier to trace circuits in automotive harnesses and panel wiring.
-
🔧Strain Relief & Mechanical Protection — The dual-wall construction adds rigidity at connection points, reducing flex fatigue and protecting solder joints or crimps from vibration damage in vehicle and industrial environments.
-
✂️Cut-to-Length Flexibility (1M–5M) — Available in 1M to 5M lengths so you can buy exactly what your project needs — whether it's a single connector repair or a full wiring harness job.

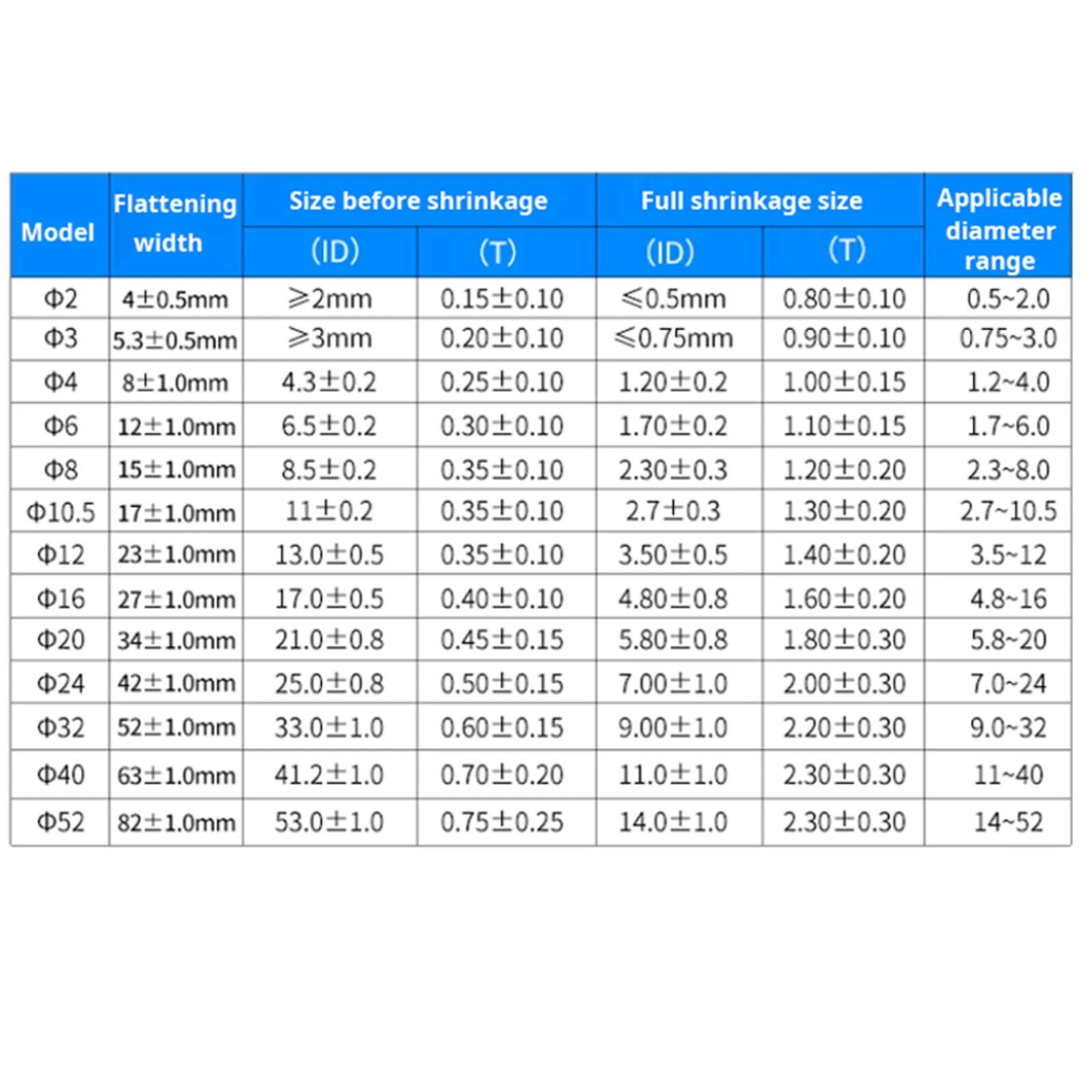

📐 Technical Specifications — 4:1 Adhesive Glue-Lined Heat Shrink Tubing
| Shrink Ratio |
4:1 |
| Construction |
Dual-wall: polyolefin outer layer + hot-melt adhesive inner layer |
| Available Diameters (Pre-Shrink) |
φ4mm (≈5/32"), φ6mm (≈1/4"), φ8mm (≈5/16"), φ12mm (≈1/2"), φ16mm (≈5/8"), φ20mm (≈3/4"), φ24mm (≈15/16"), φ32mm (≈1-1/4"), φ40mm (≈1-9/16"), φ52mm (≈2") |
| Available Lengths |
1M (≈3.3 ft), 2M (≈6.6 ft), 3M (≈9.8 ft), 4M (≈13.1 ft), 5M (≈16.4 ft) |
| Available Colors |
Black, White, Red, Blue, Transparent |
| Shrink Temperature |
Typically 120–150°C (248–302°F) |
| Adhesive Activation |
Hot-melt glue activates during heat application; see variant options |
| Operating Temperature Range |
See variant options / Contact us to confirm |
| Voltage Rating |
See variant options / Contact us to confirm |
| Material (Outer Wall) |
Polyolefin |
| Material (Inner Layer) |
Hot-melt adhesive (glue-lined) |
| Application |
Automotive wiring, marine electrical, outdoor cable protection, industrial harnesses |
⚠️ Note: Always verify your cable's outer diameter against the pre-shrink tube diameter before ordering. If you are unsure which size fits your application, contact us to confirm.
❓ Frequently Asked Questions
How do I choose the right diameter for my application?
Select a pre-shrink diameter that is larger than the cable or connector you need to cover. With a 4:1 ratio, a φ8mm (≈5/16") tube will shrink down to approximately φ2mm. As a general rule, choose a pre-shrink diameter that is 20–30% larger than your cable's outer diameter to ensure a snug, waterproof fit after shrinking. For example, a 6mm OD cable would typically work well with a φ8mm tube.
What temperature is needed to shrink this tubing?
This tubing typically requires a heat source of around 120–150°C (248–302°F) to begin shrinking, and the inner adhesive generally activates and flows at similar temperatures. A heat gun is strongly recommended over an open flame for even, controlled shrinkage and to avoid scorching the outer wall.
Is this heat shrink tubing suitable for outdoor or marine use?
Yes. The glue-lined adhesive creates a waterproof seal around the cable, making it suitable for outdoor, marine, and other moisture-exposed environments. It generally provides protection against water ingress, corrosion, and UV exposure when properly applied. For fully submerged applications, contact us to confirm suitability.
What is the difference between 4:1 and 2:1 heat shrink tubing?
A 4:1 shrink ratio means the tubing shrinks to one-quarter of its original diameter, offering much greater coverage flexibility than standard 2:1 tubing. This makes 4:1 glue-lined tubing ideal for irregular shapes, connectors, and applications where a tight, waterproof seal over a wide range of diameters is needed — such as covering a connector body that transitions from a large housing to a thin cable exit.
Can I use this tubing on automotive wiring?
Yes. This type of adhesive heat shrink tubing is commonly used in automotive wiring repairs and harness protection. It provides insulation, strain relief, and a moisture-resistant seal, making it suitable for engine bays and underbody wiring in most cases. The dual-wall construction also helps protect against vibration-induced fatigue at solder joints and crimps.

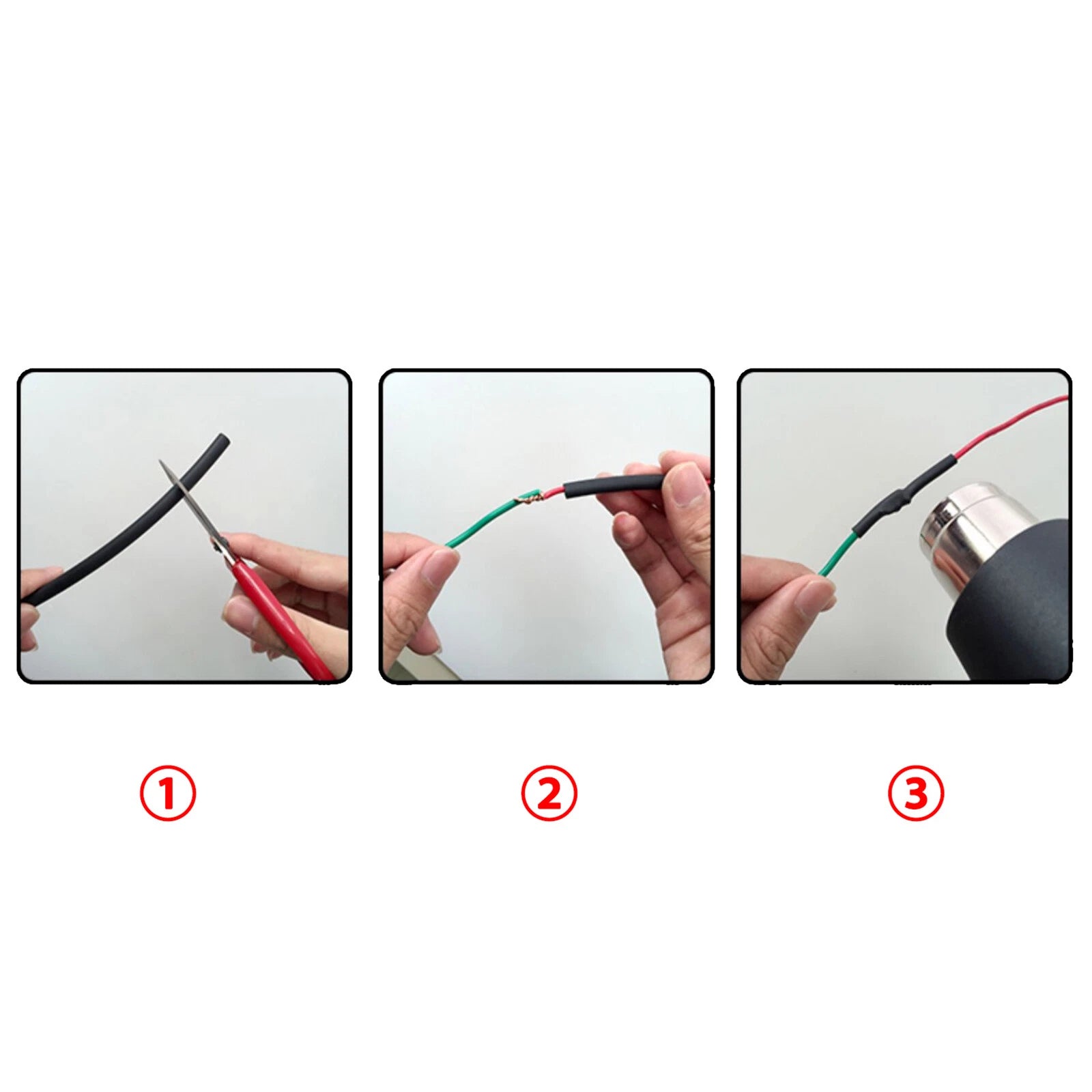

How do I cut the tubing to the right length?

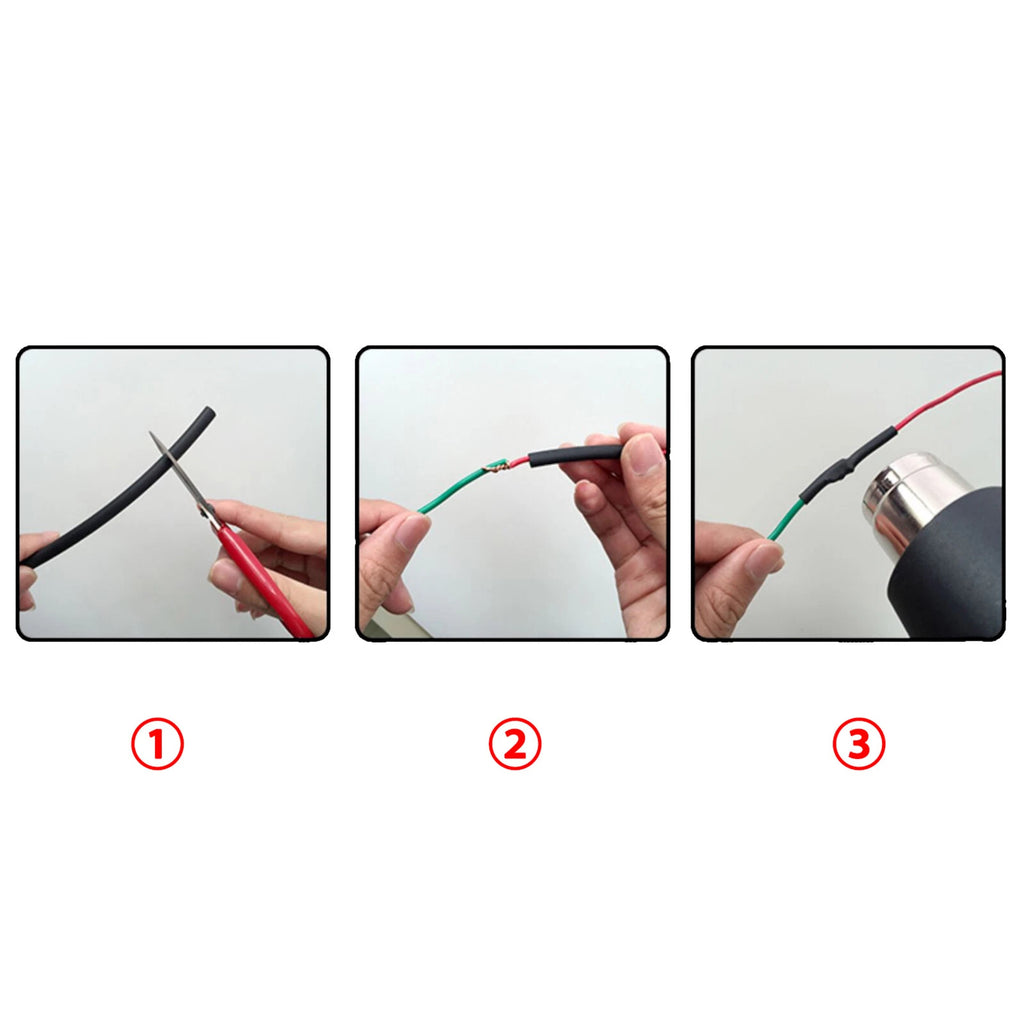

Use sharp scissors or a utility knife for a clean, straight cut. Generally, cut the tubing slightly longer than the area you need to cover — typically 5–10mm (≈1/4") of overlap on each side — to ensure the adhesive seals fully at both ends after shrinking. Avoid cutting at an angle, as this can cause uneven shrinkage at the ends.
What colors and lengths are available, and how do I select them?
This tubing is available in Black, White, Red, Blue, and Transparent. Lengths range from 1M (≈3.3 ft) to 5M (≈16.4 ft) per piece, and diameters range from φ4mm to φ52mm. Use the variant selectors above to choose your preferred diameter, color, and length combination before adding to cart.
🛒 Select your diameter, color, and length above, then add to cart — ships from our US warehouse.
