🛠️ Product Overview

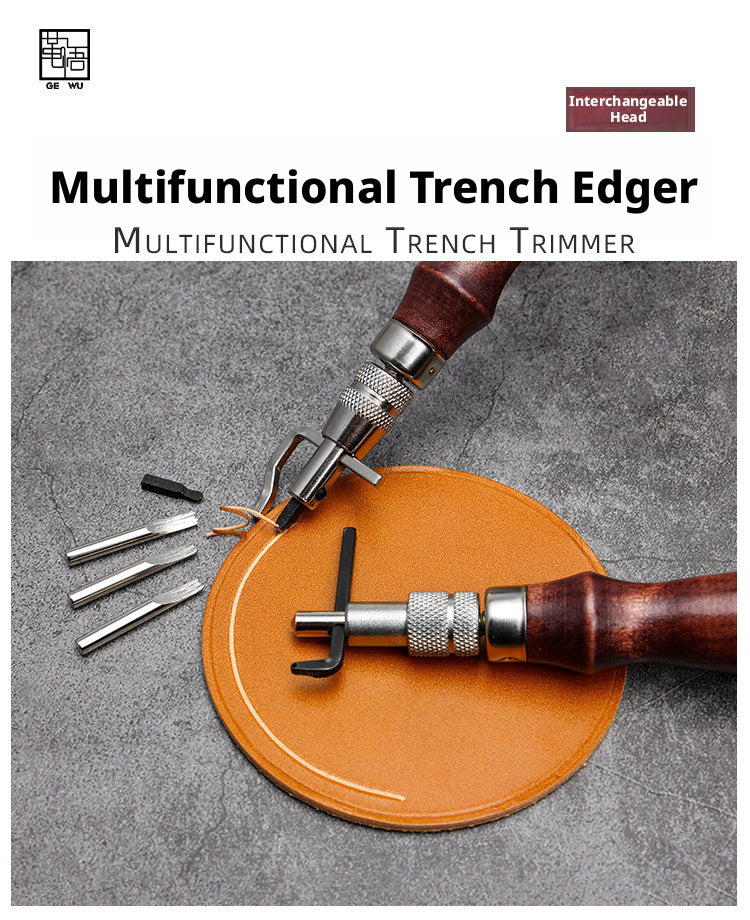

The Multi‑Function Grooving & Edge Trimming Tool (5-in-1) is a versatile hand tool for leathercrafters who want to cut stitching grooves, mark decorative lines, and trim edges – all with a single handle. It features interchangeable heads (grooving, edge trimming, marking) that lock into place with an L‑wrench, allowing you to switch between tasks in seconds. The tool is especially effective on vegetable‑tanned leather, crazy horse leather, and other firm leathers where a clean groove or bevel is essential for professional stitching results.
Available as a complete five‑head set or a basic single‑head groover, this tool gives you the flexibility to work on wallets, belts, bags, and larger projects. The groove widths are offered in 0.8mm, 1.0mm, and 1.2mm, matching common thread and chisel sizes. The adjustable blade depth is controlled by a screw, so you can set the cut precisely without tearing the leather.
✨ Key Features & Benefits

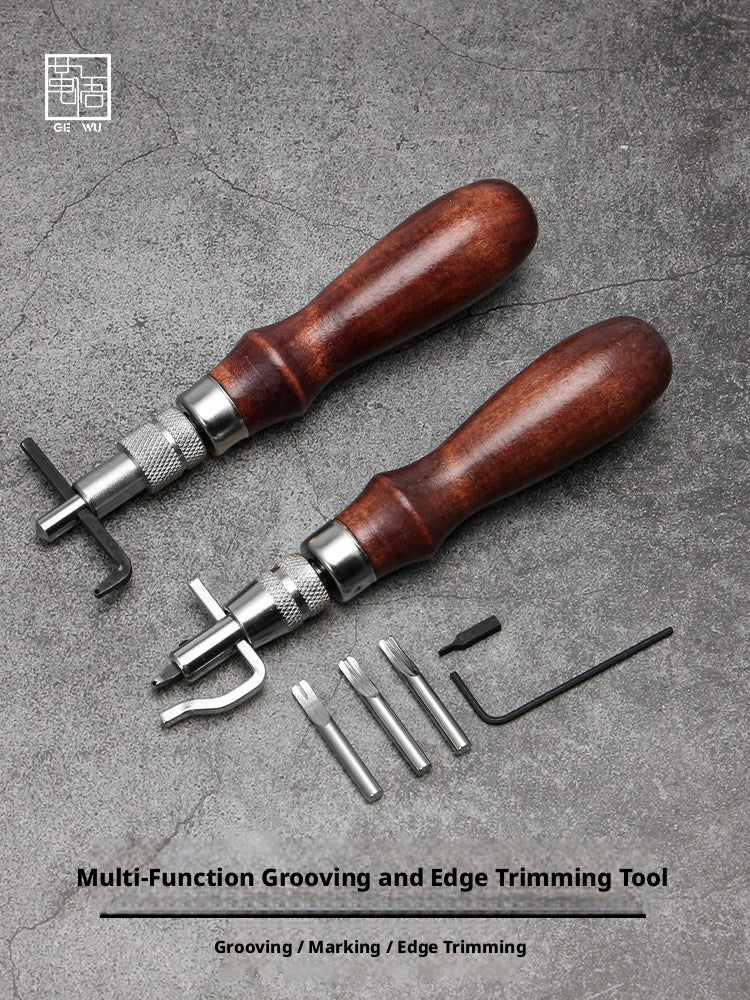

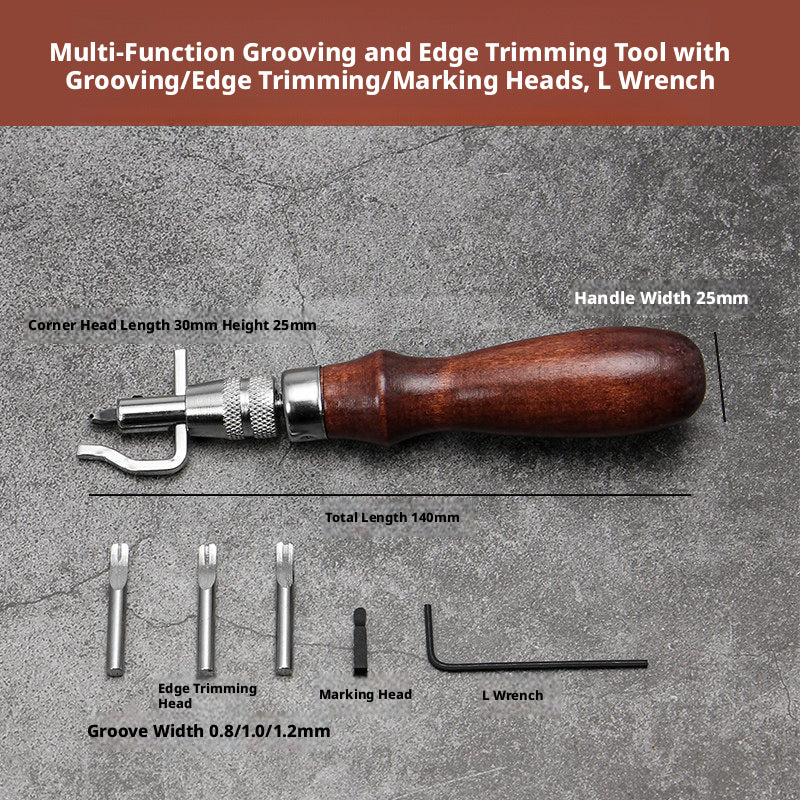

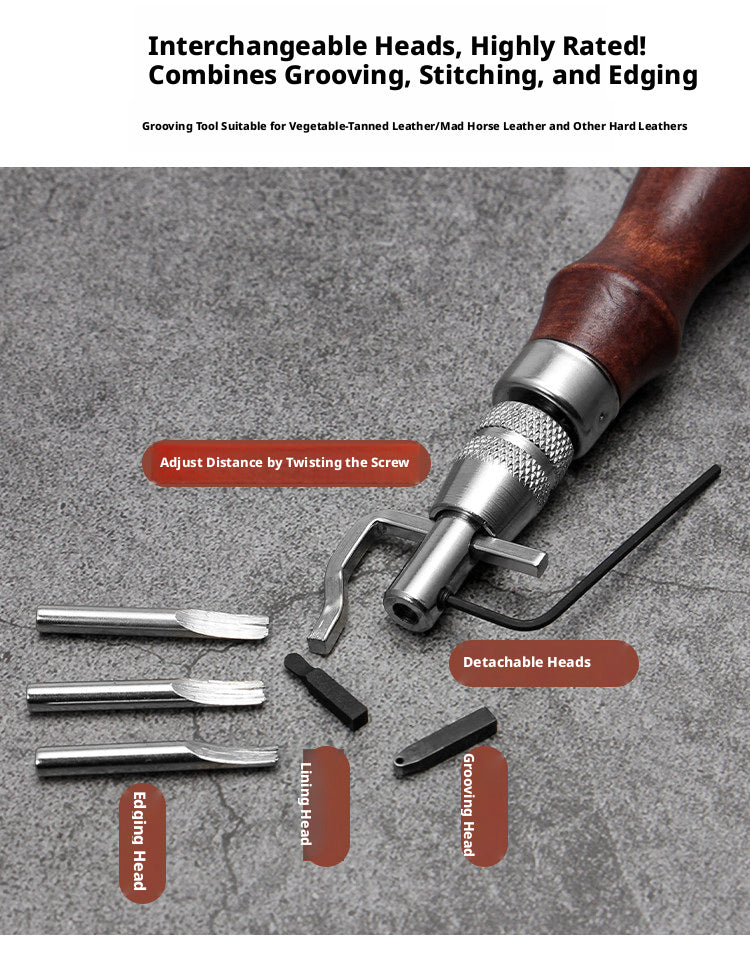

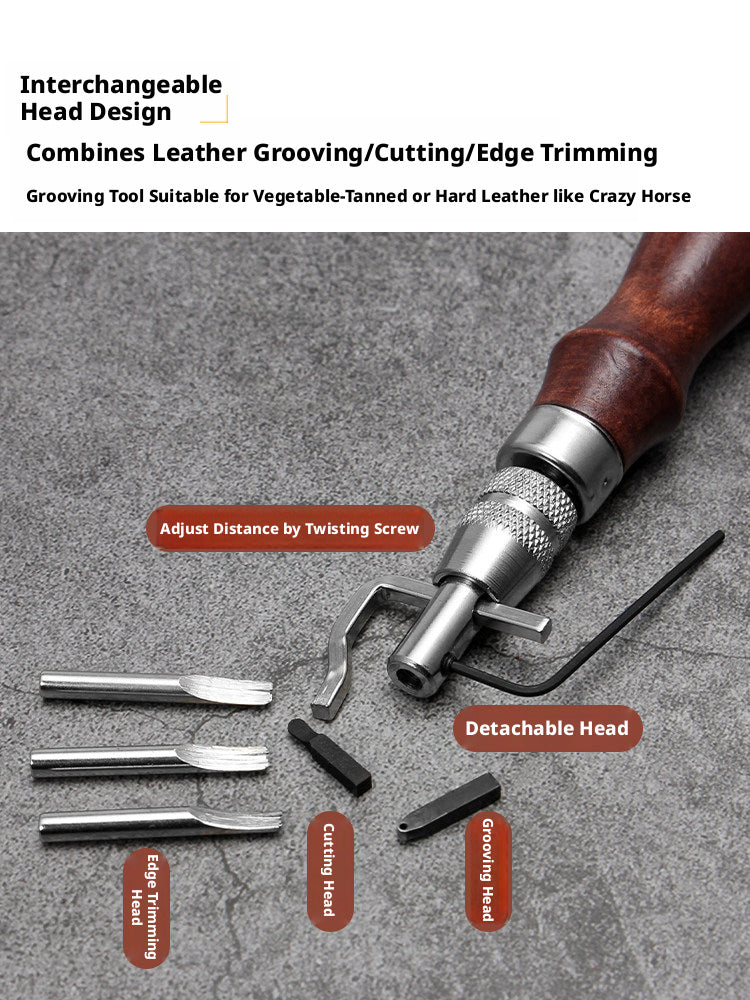

- ✔️ Interchangeable Head System (5-in-1) – One handle accepts grooving heads (0.8/1.0/1.2mm), an edge trimming head, and a marking/creasing head. Reduces clutter on your workbench and saves money.

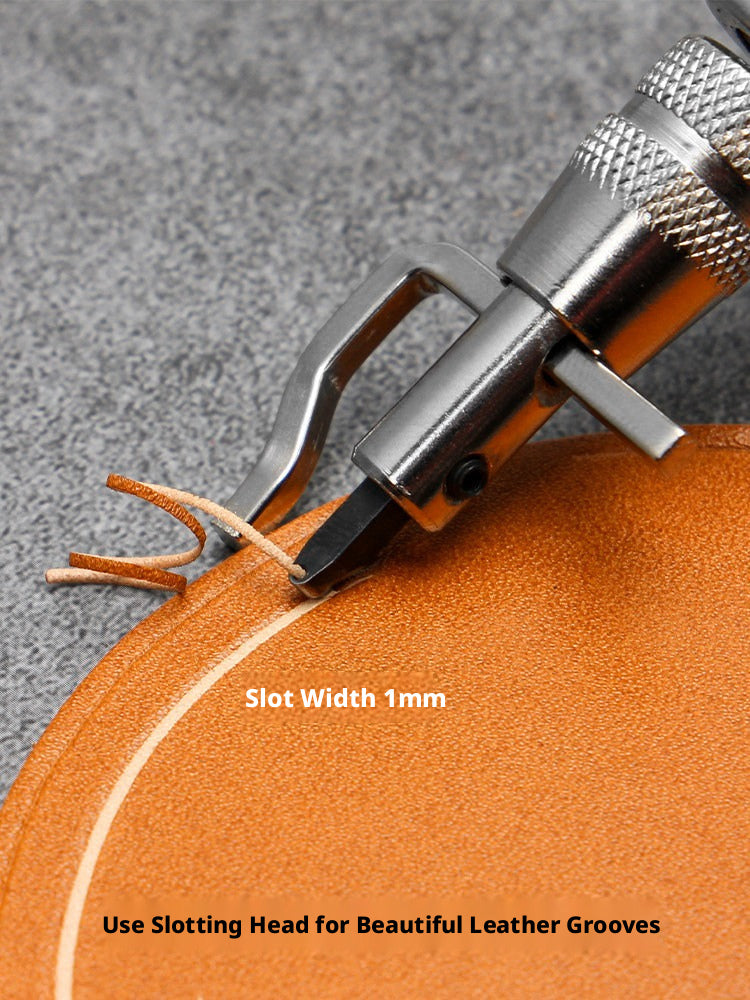

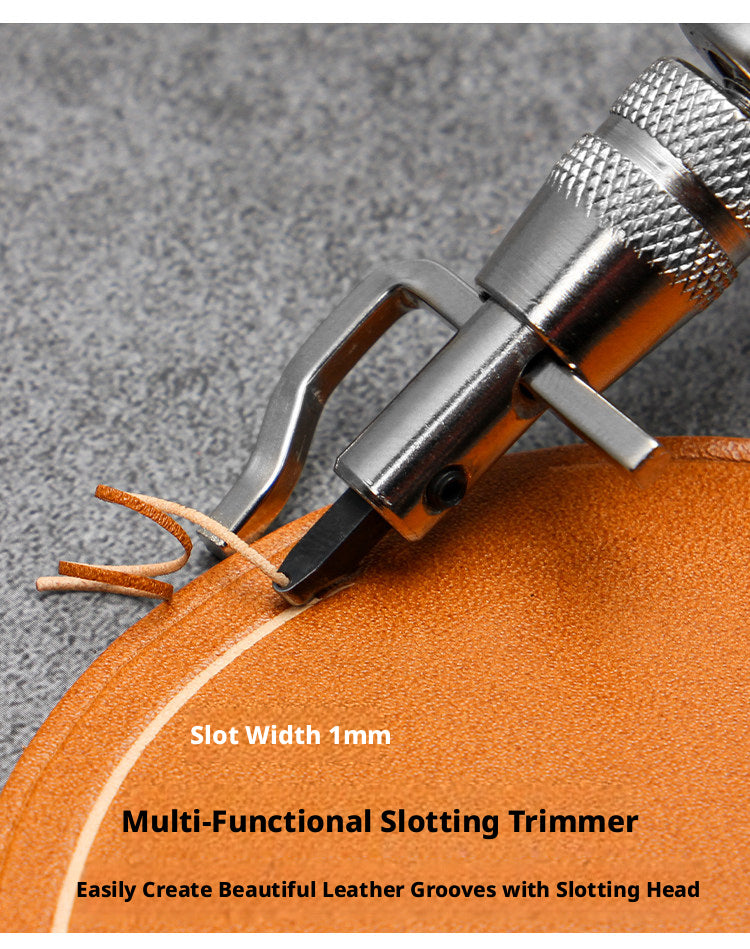

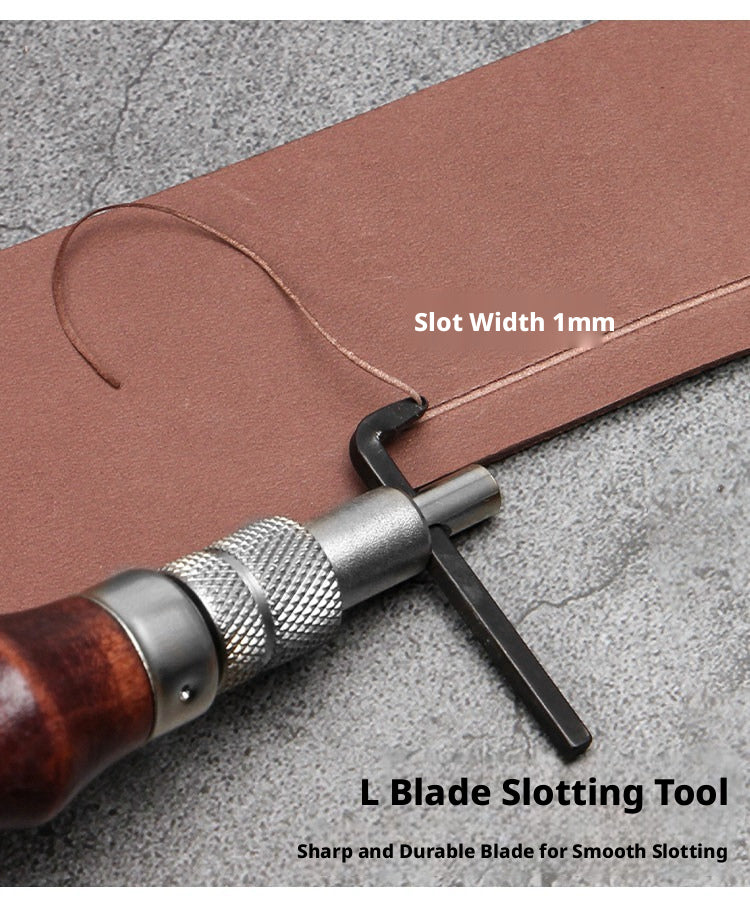

- ✔️ Precision Grooving for Straight Stitch Lines – The grooving head cuts a shallow trench that guides your stitching chisel. Keeps stitches perfectly aligned and recessed slightly below the leather surface for a refined look.
- ✔️ Adjustable Depth by Twisting Screw – Dial in the exact cut depth for different leather thicknesses. Prevents cutting too deep or too shallow.
- ✔️ Durable L‑Blade Construction – The blade is sharp, heat‑treated steel that stays sharp through many projects. Replaceable heads extend the tool’s life.

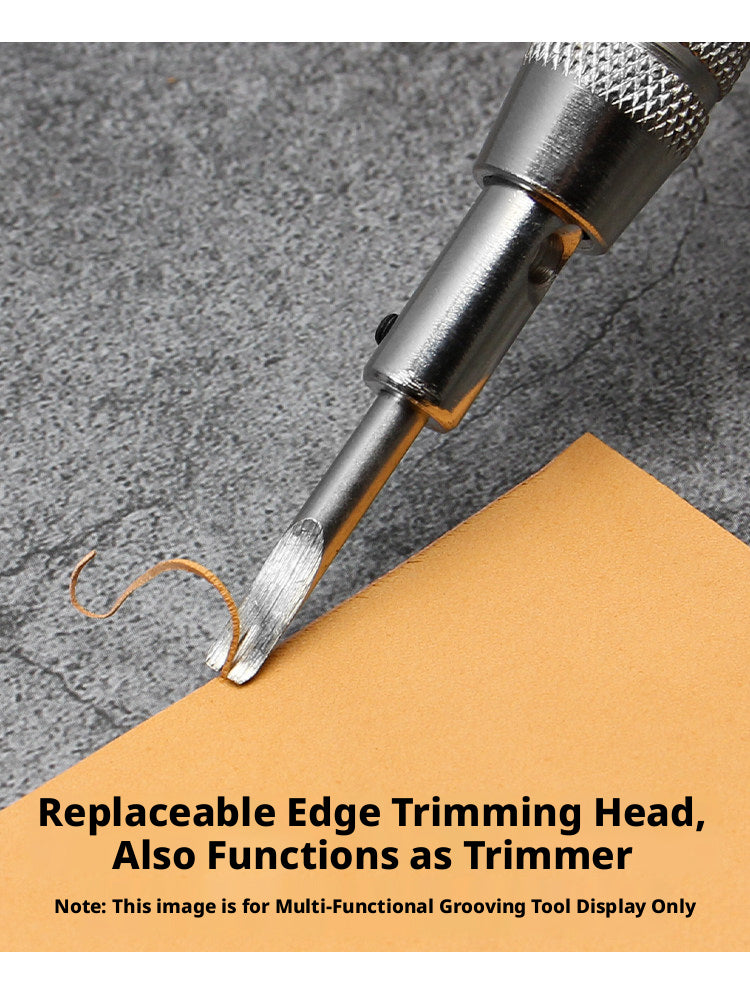

- ✔️ Edge Trimming Head for Beveling – Quickly bevel sharp leather edges before burnishing. Gives your work a smooth, rounded edge without an extra tool.
- ✔️ Marking Head for Decorative Lines & Creasing – Use the marking tip to press stitch lines, border lines, or decorative creases. Works well on both veg‑tan and chrome‑tan leather with light heat (optional).

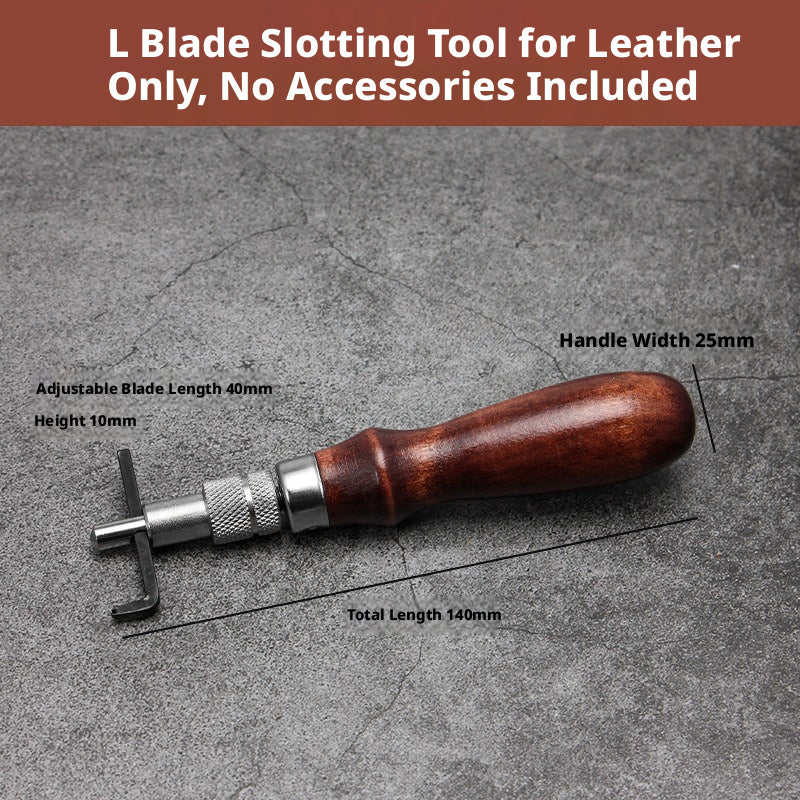

- ✔️ Comfortable Handle (25mm Width, 140mm Total Length) – Ergonomic wooden or plastic handle fits comfortably in the hand, reducing fatigue during long grooving sessions.
🧵 Ideal For These Leather Projects
Leather Wallet Grooving Belt Stitch Line Cutting Bag Edge Beveling & Trimming Card Holder Decorative Creasing Journal Cover Border Marking Watch Strap Grooving Holster Edge Finishing Key Fob Stitch Line Preparation Leather Repair – Re‑grooving Worn Stitch Lines Crazy Horse / Vegetable‑Tan Leather Projects
🔧 Compatibility Guide
✔ Compatible With:
- ✔️ Vegetable Tanned Leather (firm temper, ideal)
- ✔️ Crazy Horse / Mad Horse Leather
- ✔️ Other firm, natural leathers
- ✔️ Chrome Tanned Leather (softer – use lighter pressure, test first)
- ✔️ Leather thickness from 1.5mm to 5mm
✘ Not Recommended For:
- ✘ Extremely soft or stretchy leather (grooves may not stay open)
- ✘ Faux leather / PU (tears easily under blade)
- ✘ Wet leather (blade will drag and leave rough cuts)

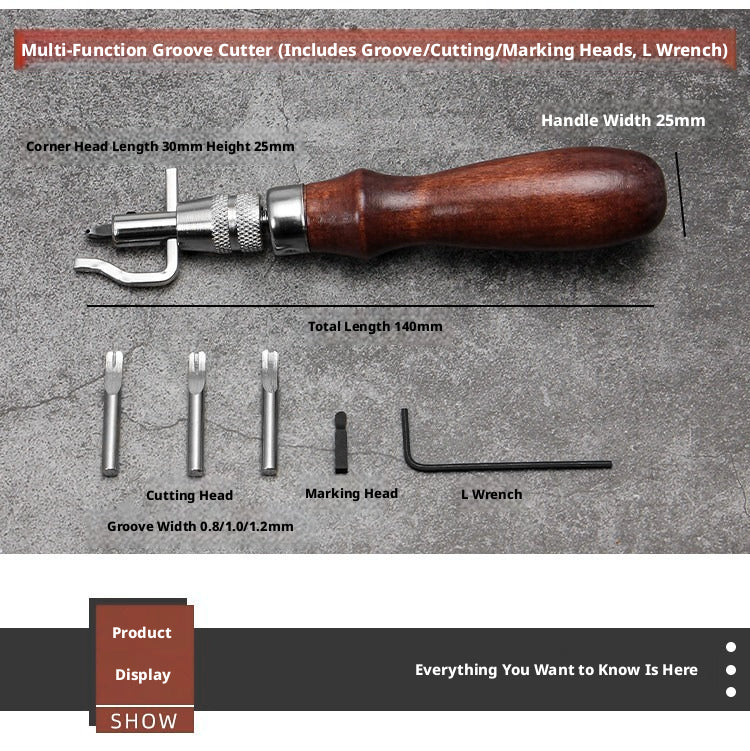

📐 Product Specifications
| Product Name |
Multi‑Function Grooving & Edge Trimming Tool (5-in-1 Interchangeable Head) |
| Handle Material |
Wood / plastic composite (varies by version) |
| Handle Width |
25mm |
| Total Length |
140mm (approx. 5.5 inches) |
| Blade Material |
High‑carbon steel, heat‑treated |

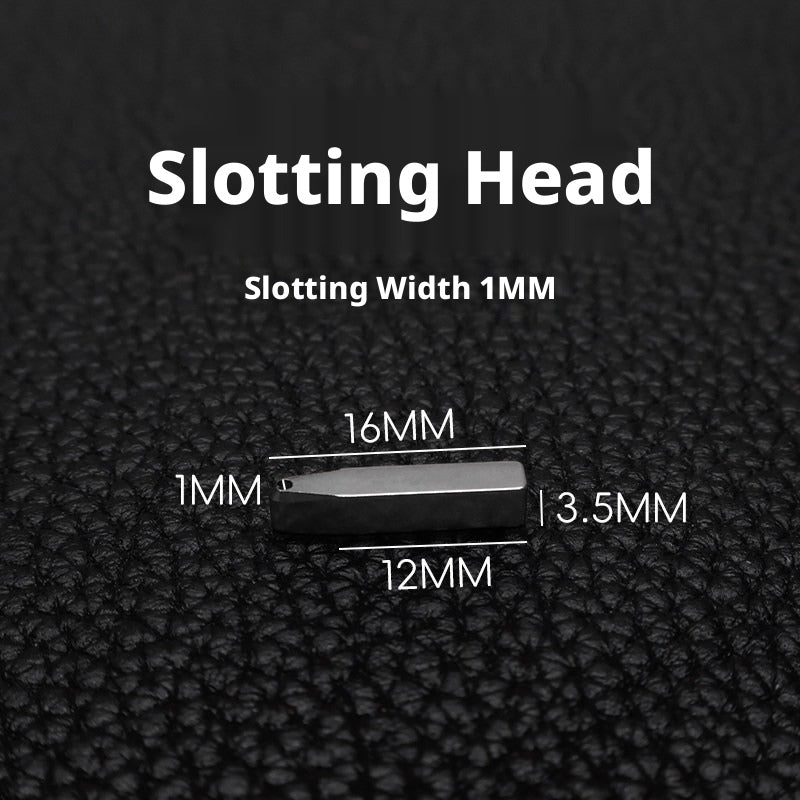

| Grooving Head Widths |
0.8mm / 1.0mm / 1.2mm (selectable) |
| Edge Trimming Head |
Curved beveling head, width approx. 3‑4mm |
| Marking / Creasing Head |
Single or double line (depending on version) |
| Adjustment |
Screw‑adjustable blade depth |
| Included Accessories |
L‑wrench (Allen key) for head changes |
| Available Sets |
Five‑head multi‑function slotter (full set), Single C groover (basic), Grooving heads 3 pieces (refill) |
✍️ How to Use – Grooving, Trimming & Marking
-
Select and attach the appropriate head – Use the L‑wrench to loosen the screw, remove the current head, and insert the desired head (grooving, edge trimmer, or marker). Tighten firmly.
-
Adjust the groove depth (for grooving head) – Turn the screw on the side of the head. For thin leather (1.5‑2mm), set shallow; for thicker leather (3‑4mm), set deeper. Test on a scrap piece.
-
Mark a reference line (optional) – Use a wing divider to mark a line from the edge (typically 3‑5mm). This will guide your grooving head.
-
Pull the tool along the leather – Hold the handle at a 30‑45° angle. Apply moderate, steady pressure and pull the tool toward you (never push). The blade will cut a clean groove or bevel.
-

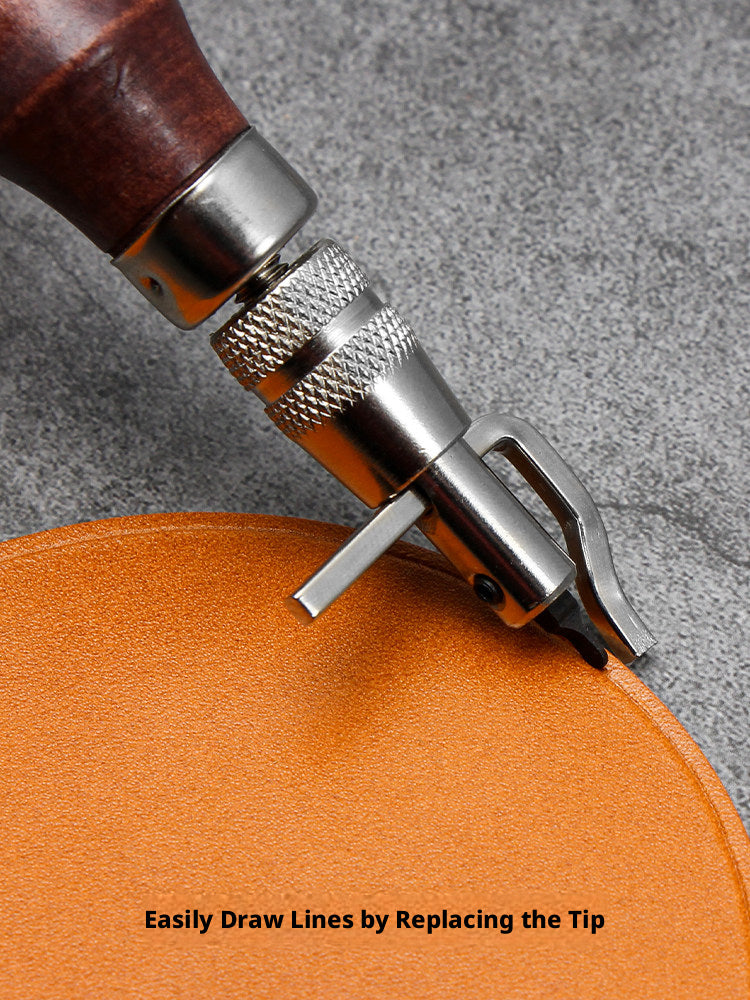

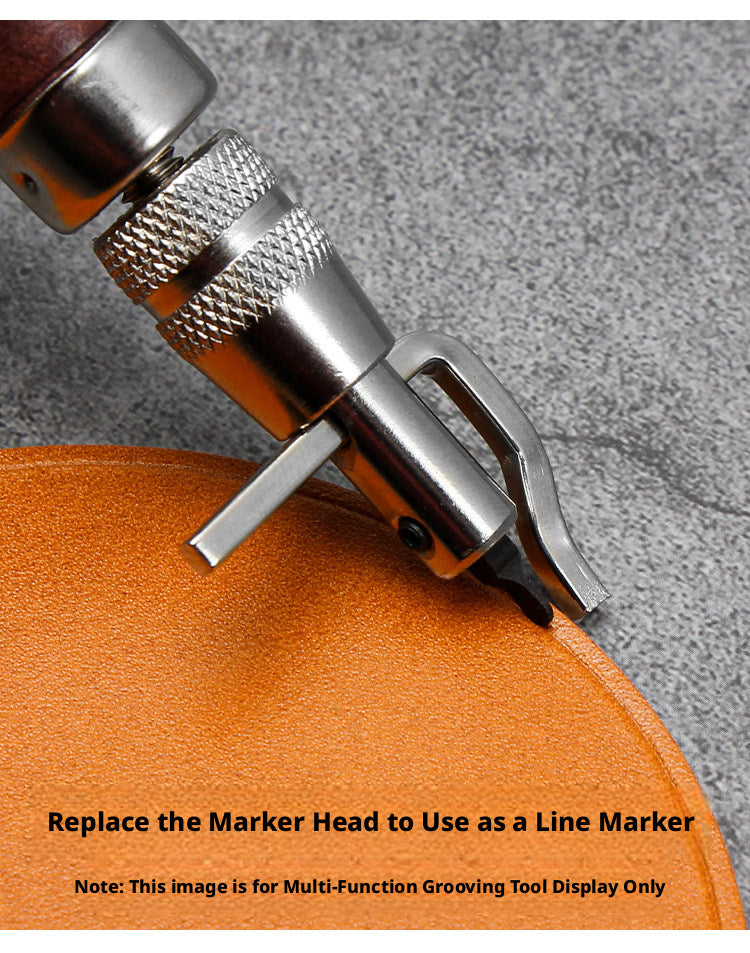

Switch to the marking head for decorative lines – Replace the grooving head with the marker. Run it along the same reference line to create a crease or stitch guide. For a deeper crease, warm the tool slightly (use a small alcohol lamp or electric creaser).
-

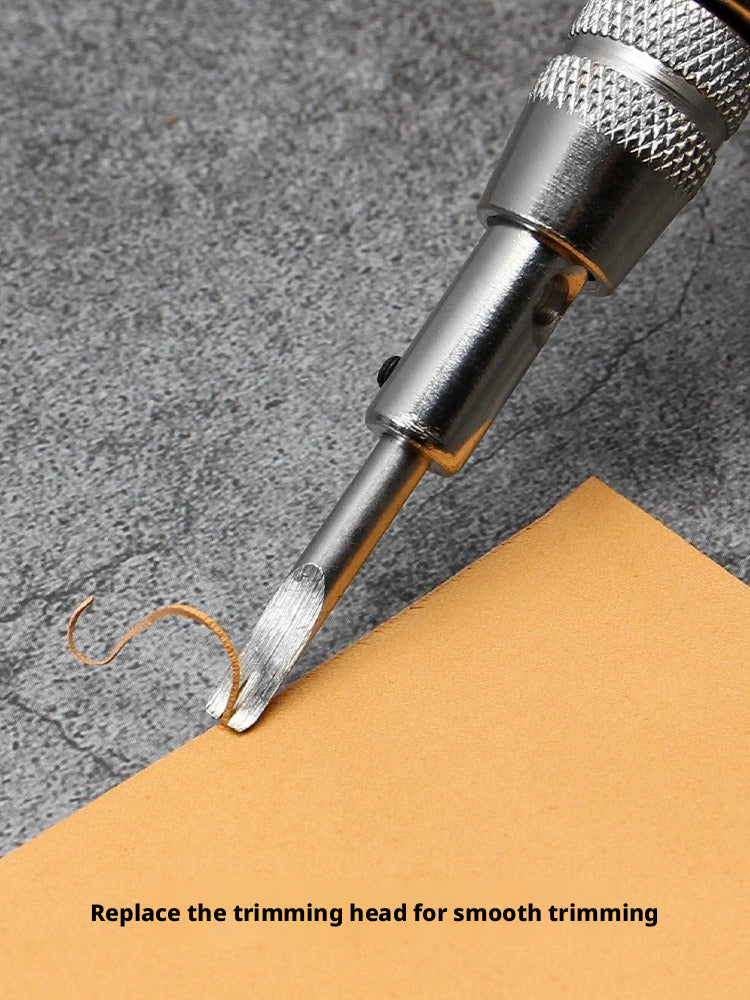

Finish with edge trimming – After cutting and stitching, use the edge trimming head to bevel the sharp corners of the leather. Run it along both sides of the edge at a consistent angle.
💡 Tip: Keep the blade clean by wiping away leather dust. If the blade becomes dull, it can be honed on a fine stone or replaced with a new head.
❓ Frequently Asked Questions
Q: What is the difference between the five‑head set and the single C groover?
A: The five‑head set includes multiple grooving heads (0.8/1.0/1.2mm), an edge trimming head, and a marking head, plus the L‑wrench. The single C groover is just the basic grooving head and handle – no interchangeable heads. Choose the set if you need versatility.
Q: Which groove width should I use for saddle stitching?
A: 0.8mm works well for fine thread (0.45‑0.55mm) on small goods like wallets. 1.0mm is the most common all‑purpose width for medium thread (0.6‑0.8mm). 1.2mm is for thicker thread (1.0mm) and heavy projects like belts or bags.
Q: Can I use this tool on chrome‑tanned leather?
A: Yes, but with lighter pressure. Chrome‑tan is softer and may not hold a groove as crisply as veg‑tan. The marking head works well for creasing chrome‑tan, especially if warmed slightly.
Q: How do I change the head? Do I need extra tools?
A: An L‑wrench (Allen key) is included. Loosen the set screw, pull out the old head, insert the new one, and tighten. The whole process takes 30 seconds.
Q: Is the blade replaceable when it gets dull?
A: Yes. You can purchase replacement grooving heads (3‑piece set) or individual heads. The blade is part of the head assembly – swap the entire head for a fresh one.
Q: The tool feels like it wants to wander off the line. What am I doing wrong?
A: Make sure you are pulling the tool, not pushing. Use a steel ruler or a stitching groover with a fence (not included with this model) for absolute straightness. Practice on scrap leather to find the right speed and pressure.
Q: Can I use the marking head as a creaser for edge lines?
A: Yes. The marking head creates a smooth, indented line. For a more permanent crease on vegetable‑tanned leather, you can heat the head gently over an alcohol lamp (do not overheat – test on scrap).
⭐ Why Leather Crafters Choose This Multi‑Function Tool
DIY Friendly – No complicated setup. Change heads in seconds.
Reliable Quality – Sharp steel blades and a solid handle for clean cuts every time.
Space‑Saving Design – One handle replaces three separate tools.
Perfect for Beginners & Pros – Essential for anyone who wants precise stitch lines and finished edges.
Affordable Versatility – Buy the 5‑head set once and have grooving, trimming, and marking covered.
