Solder Seal Wire Connectors — Waterproof Heat Shrink Butt Terminals, 500-Piece Kit
Dealing with exposed wire splices that corrode, loosen, or fail in wet environments? Whether you're rewiring a boat, repairing automotive harnesses, or securing outdoor electrical runs, unreliable connections are a real hazard. This 500-piece solder seal sleeve kit gives DIYers, mechanics, and marine technicians a fast, tool-free way to create permanent, waterproof butt connections that hold up under heat, vibration, and moisture.

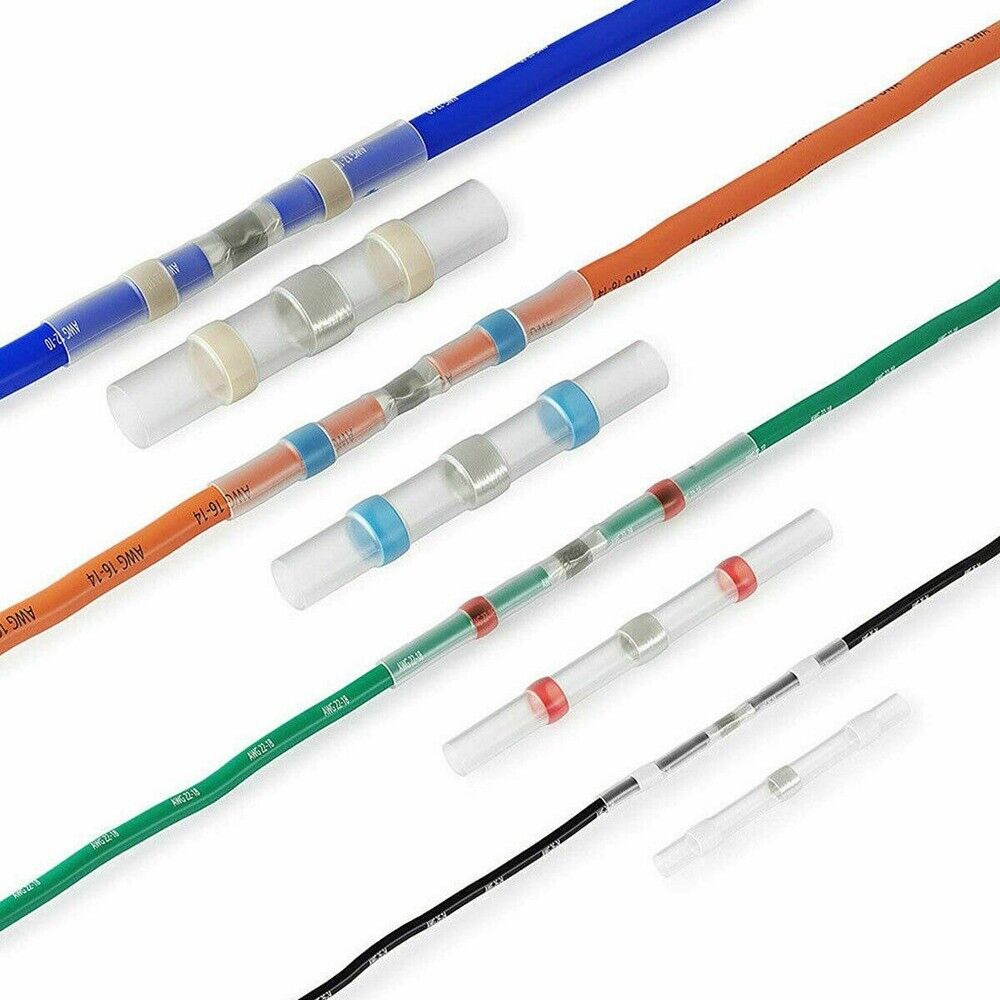

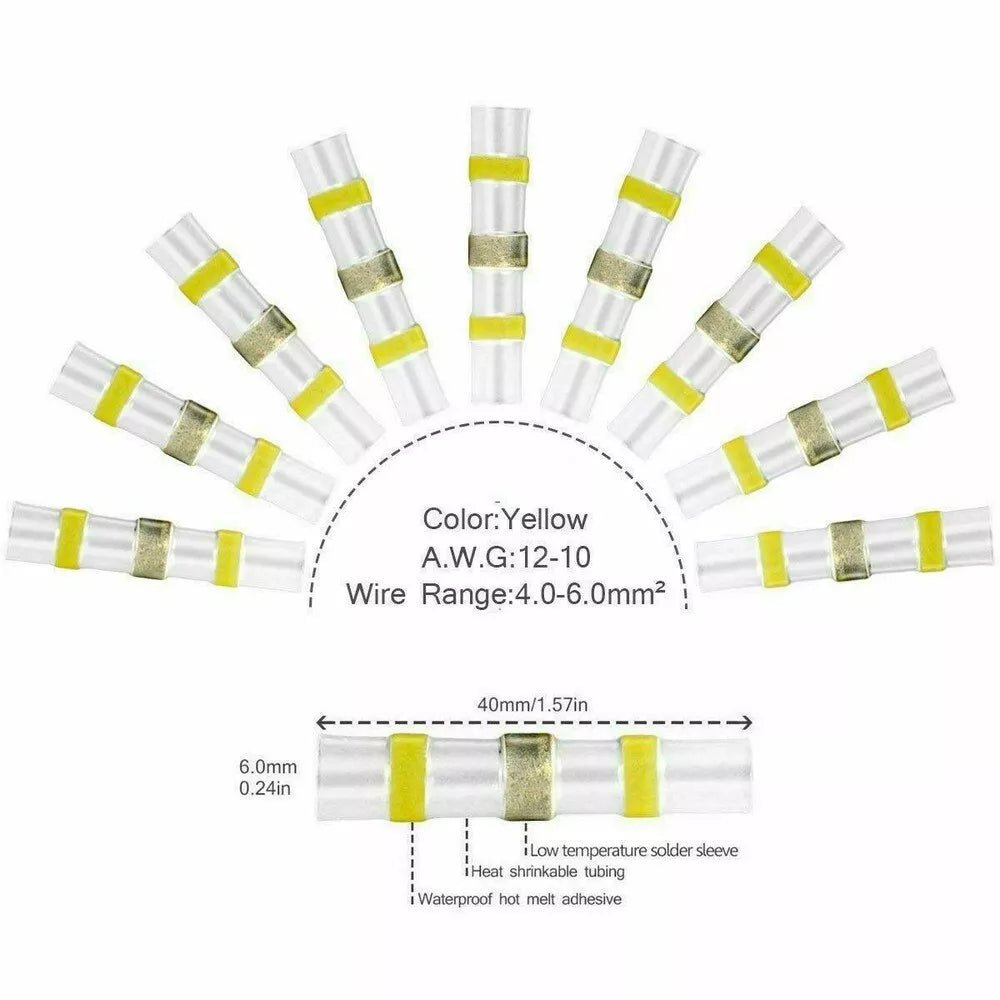

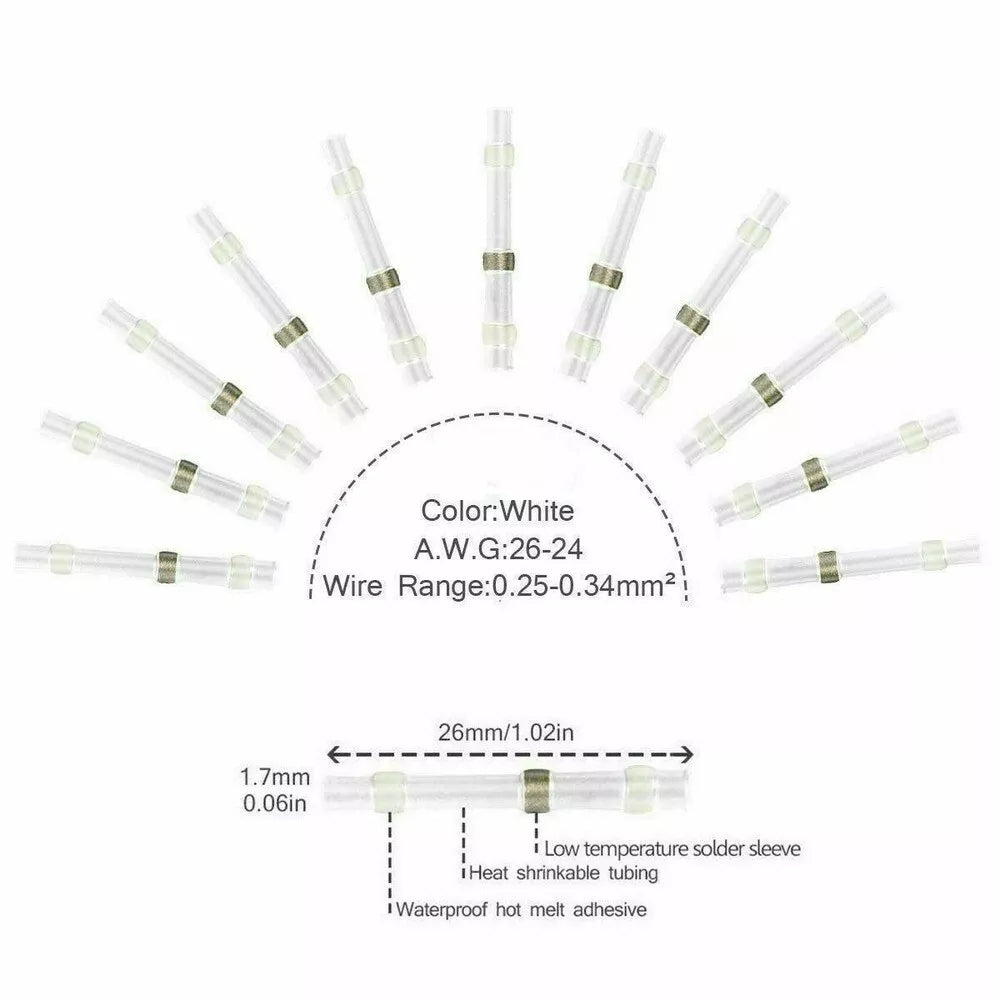

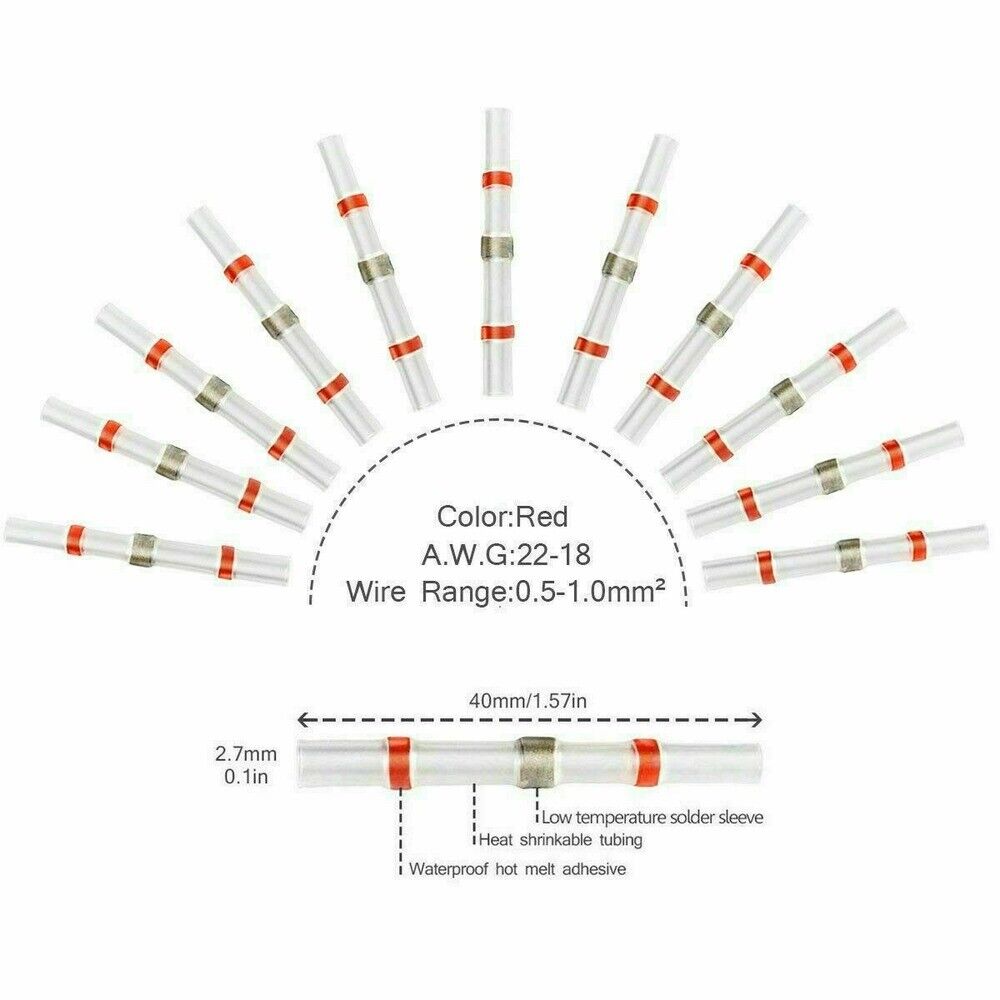

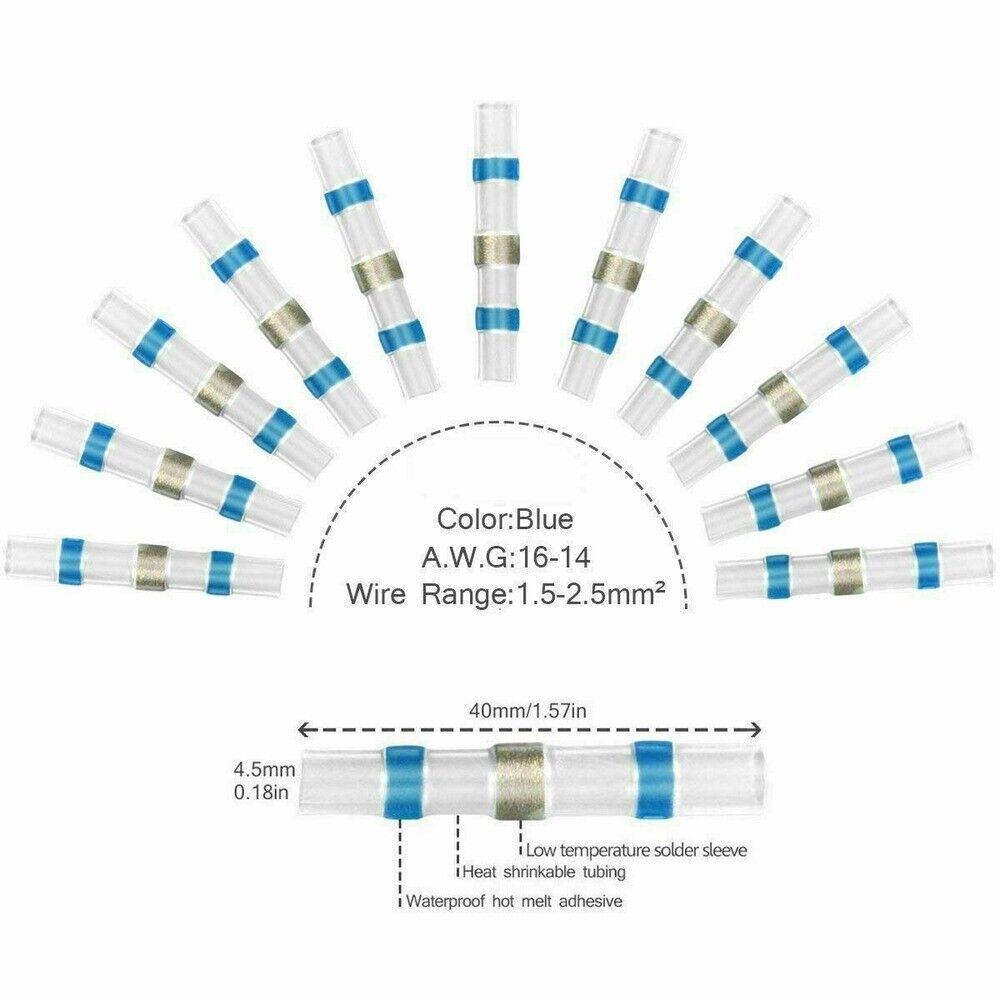

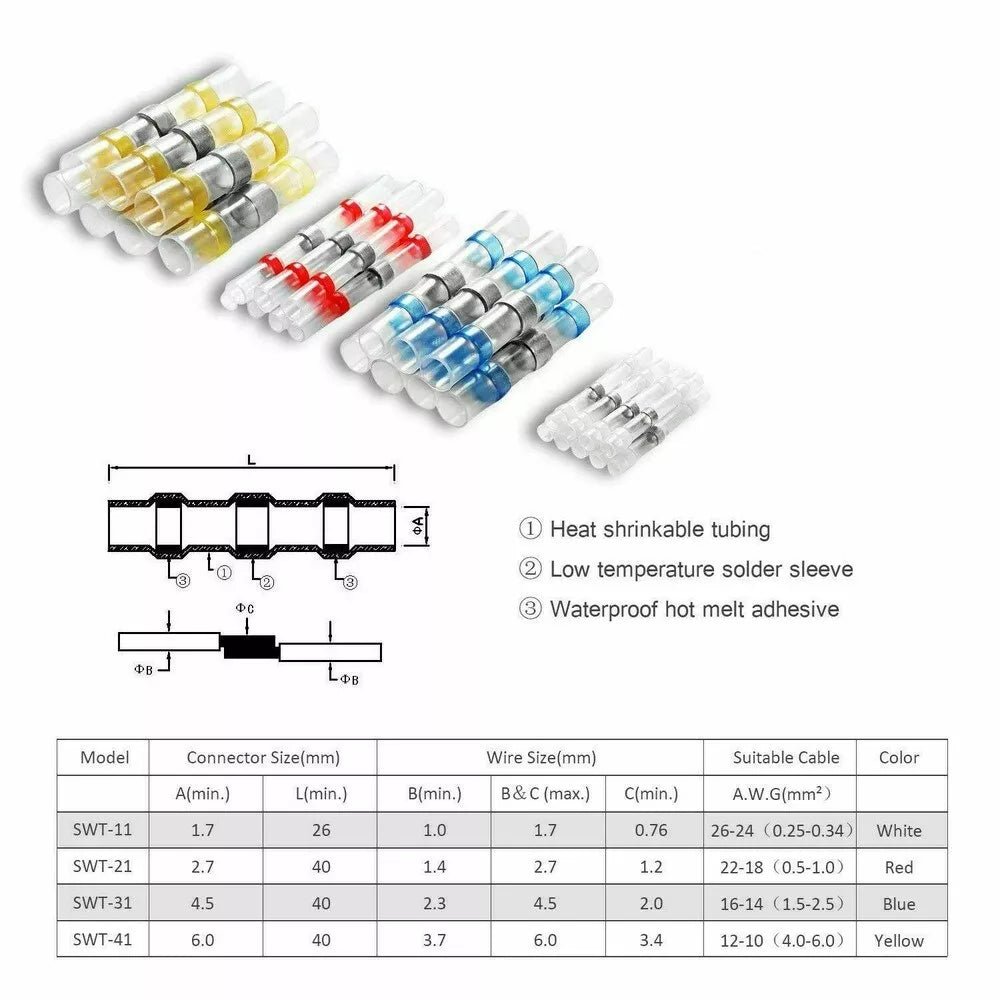

Each connector features a three-layer construction: a clear polyolefin heat shrink outer tube, a low-temperature solder sleeve at the center, and waterproof hot melt adhesive rings on both ends. The kit includes four color-coded sizes — White (AWG 26–24), Red (AWG 22–18), Blue (AWG 16–14), and Yellow (AWG 12–10) — covering wire cross-sections from 0.25 mm² up to 6.0 mm². All connectors are stored in an included plastic storage box for organized, portable access on the job.
From splicing trailer lighting and marine navigation wiring to patching control panel cables and small appliance repairs, these solder seal connectors deliver a soldered, crimped, and sealed joint in under 60 seconds — no soldering iron, no crimping tool, no tape required.
🔧 Automotive DIYers & Mechanics
Splice and repair wiring harnesses, trailer connectors, sensor leads, and accessory circuits under the hood or in the cabin — connections that stay secure despite engine vibration and temperature swings.
⛵ Marine & RV Technicians
Waterproof connections are non-negotiable on boats and RVs. These sleeves seal out salt water, bilge moisture, and road spray, making them ideal for navigation lights, bilge pumps, and shore power wiring.
💼 Electricians & Industrial Maintenance
Quickly terminate or repair low-voltage control wiring in panels, machinery, and outdoor enclosures without a soldering station — keeping downtime short and connections reliable.
🏠 Home DIYers & Small Appliance Repair
Fix broken lamp cords, outdoor lighting, garden equipment wiring, and small appliance leads with a clean, professional-looking splice that won't unravel or corrode over time.
What wire sizes does this kit cover?
The kit includes four sizes: White for AWG 26–24 (0.25–0.34 mm²), Red for AWG 22–18 (0.5–1.0 mm²), Blue for AWG 16–14 (1.5–2.5 mm²), and Yellow for AWG 12–10 (4.0–6.0 mm²). Always match the connector color to your wire gauge for a proper seal and connection.
Do I need a soldering iron to use these connectors?

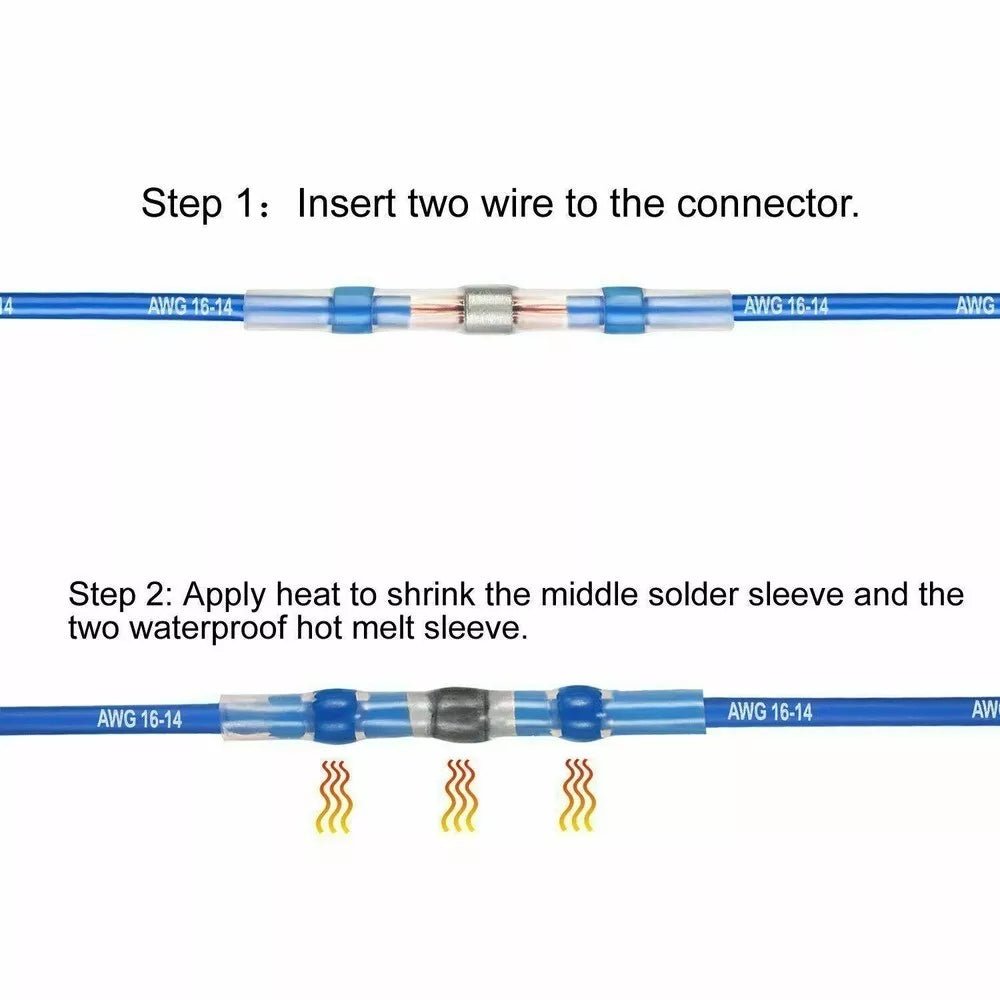

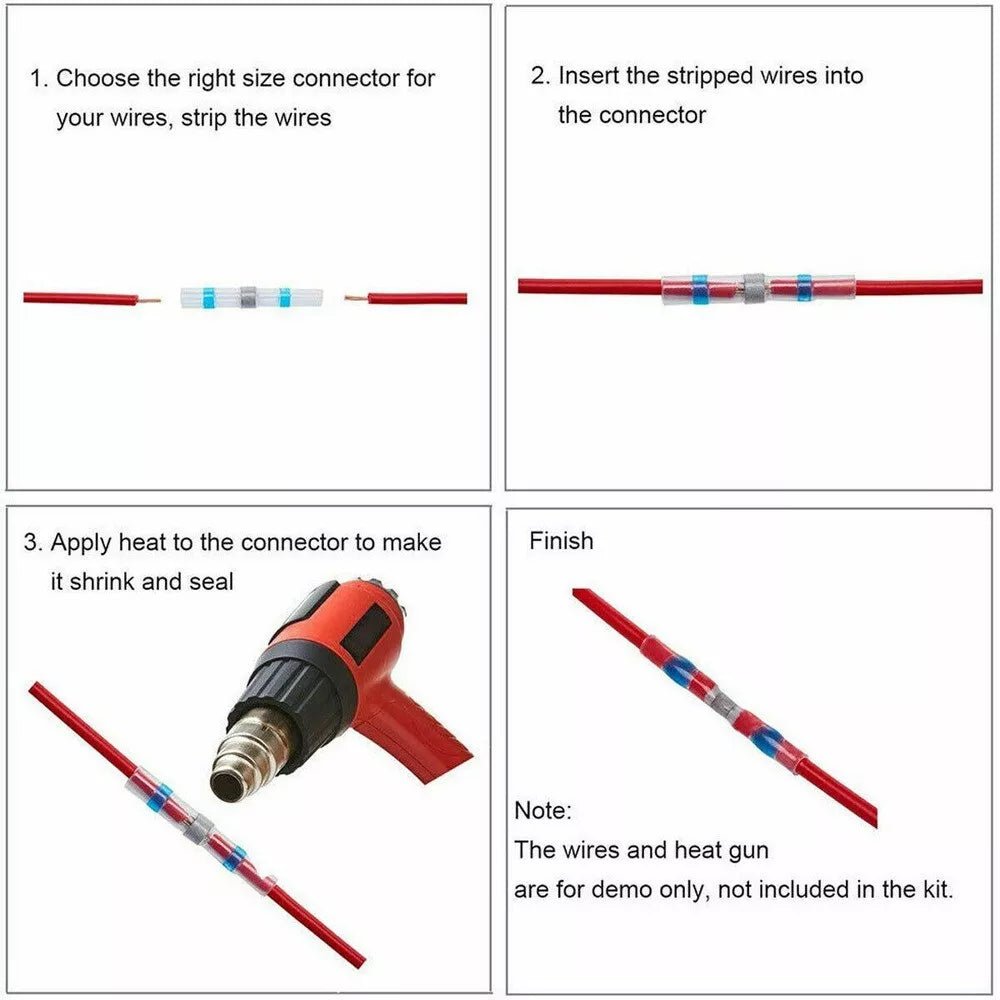

No soldering iron is required. A heat gun is recommended for consistent results, but a lighter or torch can also be used. Simply insert both wire ends into the connector and apply heat evenly until the sleeve shrinks and the solder ring melts — typically 10–20 seconds.
Are these connectors truly waterproof?

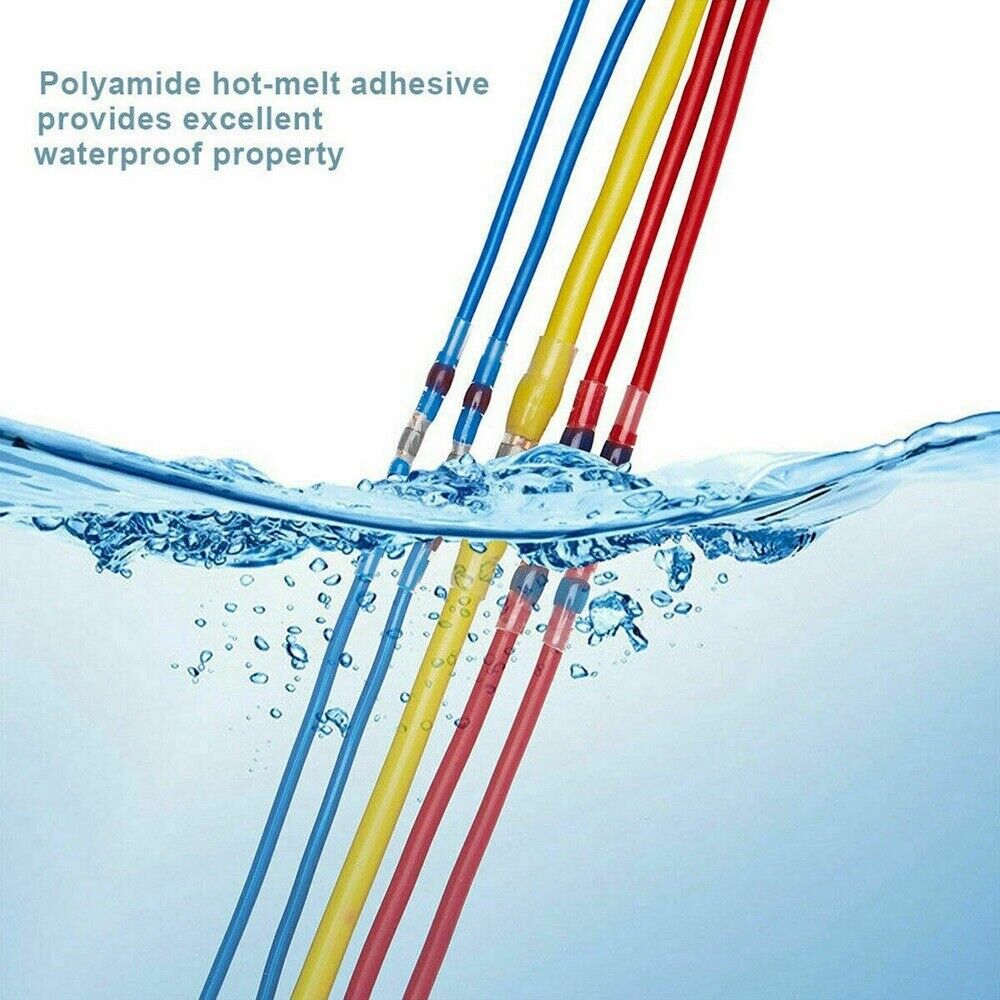

Yes. The hot melt adhesive rings on both ends flow around the wire insulation when heated, creating a moisture-resistant seal. They are suitable for automotive, marine, and outdoor applications where exposure to water, humidity, and salt spray is expected.
How many connectors of each size are included?

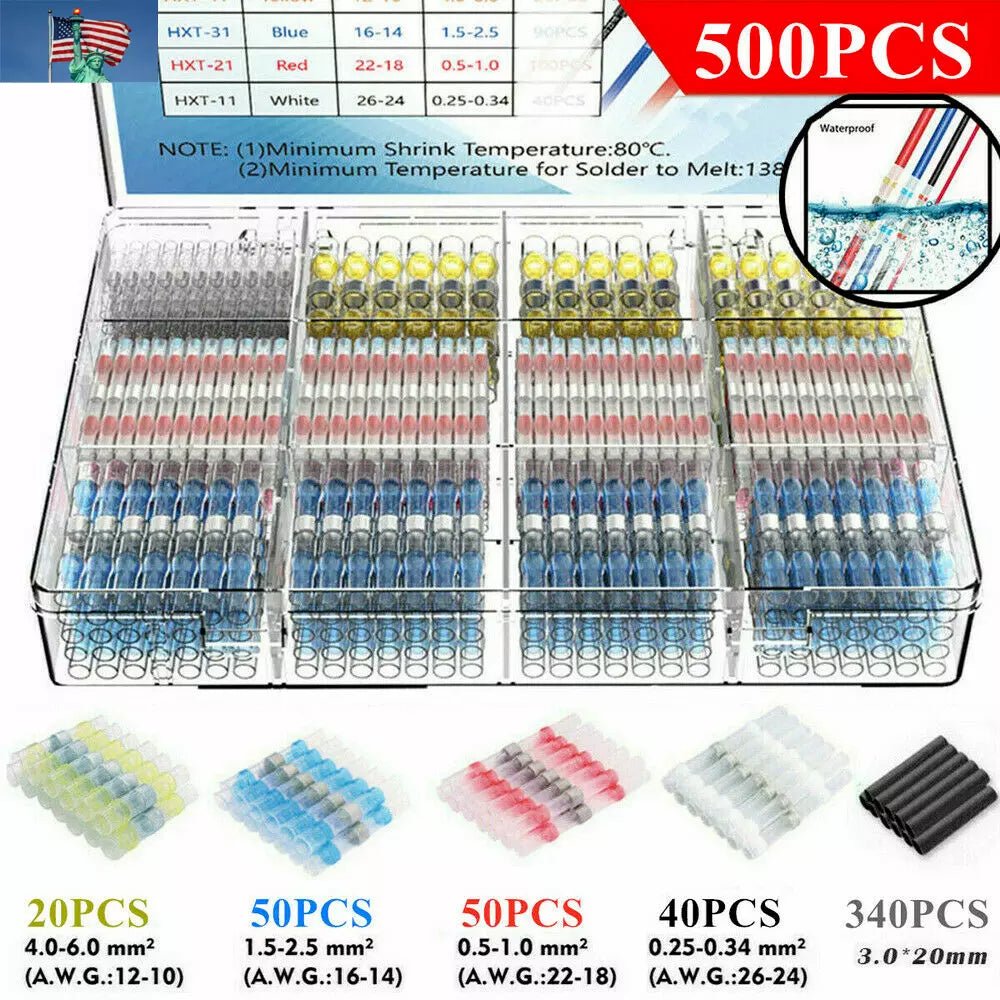

The kit contains 500 connectors total across all four sizes. The exact breakdown per size may vary by batch. The plastic storage box keeps all sizes organized and separated for easy access.
Can these be used on stranded and solid wire?
These connectors are designed primarily for stranded copper wire, which is standard in automotive and marine wiring. They can generally be used with tinned copper wire as well. Solid wire is not recommended as it may not seat properly in the solder sleeve.
What is the operating temperature range?
The polyolefin heat shrink tubing is rated for typical automotive and marine temperature ranges. The low-temperature solder sleeve activates at a lower heat threshold than standard solder, making it safe to use without damaging nearby insulation when a heat gun is used correctly.
Can I use these for 12V and 24V systems?
Yes, these solder seal connectors are suitable for 12V and 24V DC low-voltage wiring systems commonly found in automotive, marine, RV, and trailer applications. They are not rated for high-voltage AC mains wiring.
