5M Führungsrolle Ohne Zähne 32T Riemenscheibe Pulley für 3D Drucker CNC RepRap

Roll over image to zoom in Click on image to zoom

5M Führungsrolle Ohne Zähne 32T Riemenscheibe Pulley für 3D Drucker CNC RepRap

HomeDIYer

No reviews

By HomeDIYer®

Nummer des Zahns: 32 Zähne

Zahnform: Ohne Zahn

Breite der Bohrung & Anzahl: 8mm & 1 Stück

Price:

$12.23 USD

Stock:

In stock (500 units), ready to be shipped

Quantity:

Share this product

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

DIY Expert Support

Get fitment advice & recommendations

Mon–Fri 8:30 AM – 8:00 PM

WhatsApp Email Us

24-Hour Fast Ship

Arrives in 3–14 Days

Worldwide Shipping

30-Day Returns

1 tree planted with every purchase

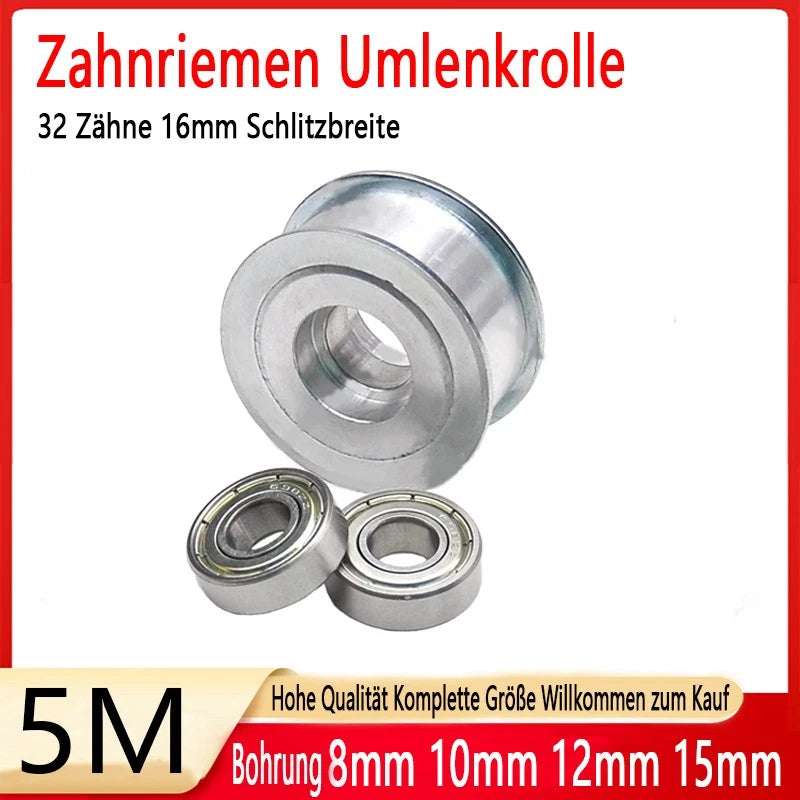

5M 32T Toothless Idler Pulley — Smooth Belt Tension Control for 3D Printers & CNC

Belt skip and uneven tension are among the most frustrating causes of print failures and CNC inaccuracies. Engineers, makers, and RepRap builders who demand repeatable motion need a reliable idler pulley that keeps the belt path smooth and consistent — without adding unwanted tooth engagement. This 5M 32-tooth profile toothless (smooth bore) idler pulley is designed for exactly that role.

Each pulley features a 32-tooth 5M profile flange geometry machined from aluminum alloy, with a smooth running surface that guides the belt without meshing. Bore widths range from 8 mm (0.31 in) to 15 mm (0.59 in) to suit a variety of shaft and bearing configurations. The compact, lightweight body keeps rotating mass low for responsive motion systems.

Typical use cases include 3D printer belt idler stations (CoreXY, Cartesian, delta), CNC router belt drive tensioners, and RepRap motion system upgrades where a toothless idler is required to redirect or tension a 5M HTD timing belt without tooth engagement.

🔗 Compatible with: 5M HTD timing belts | 3D printers (CoreXY, Cartesian, Delta) | CNC routers | RepRap motion systems | Bore shafts 8 / 10 / 12 / 15 mm

✅ Key Features of These 5M 32T Toothless Idler Pulleys

⚙️

Toothless Smooth Surface

The flat running face guides the belt without tooth engagement, ideal for idler and tensioner positions in 5M HTD belt systems.

📐

32-Tooth 5M Profile Flange

Flanged edges keep the belt centered on the pulley, preventing lateral drift during high-speed or high-load operation.

🔩

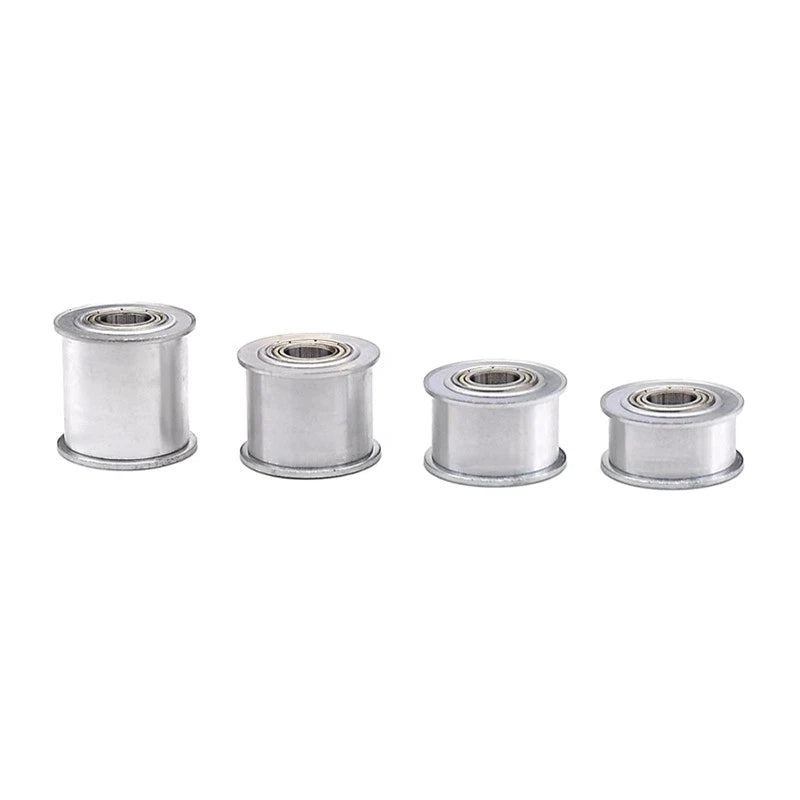

Multiple Bore Options

Available in 8 mm, 10 mm, 12 mm, and 15 mm bore widths to match your shaft or bearing OD without custom machining.

🏗️

Aluminum Alloy Construction

Lightweight yet rigid aluminum body minimizes rotational inertia while maintaining dimensional stability under continuous belt load.

🔄

Drop-In Replacement Fit

Standard 5M HTD dimensions ensure compatibility with existing belt drive assemblies — no modification required for most RepRap and CNC platforms.

📦

Single or Twin Pack

Order 1 or 2 pieces per listing to match your build requirements, whether replacing a single idler or outfitting a full CoreXY gantry.

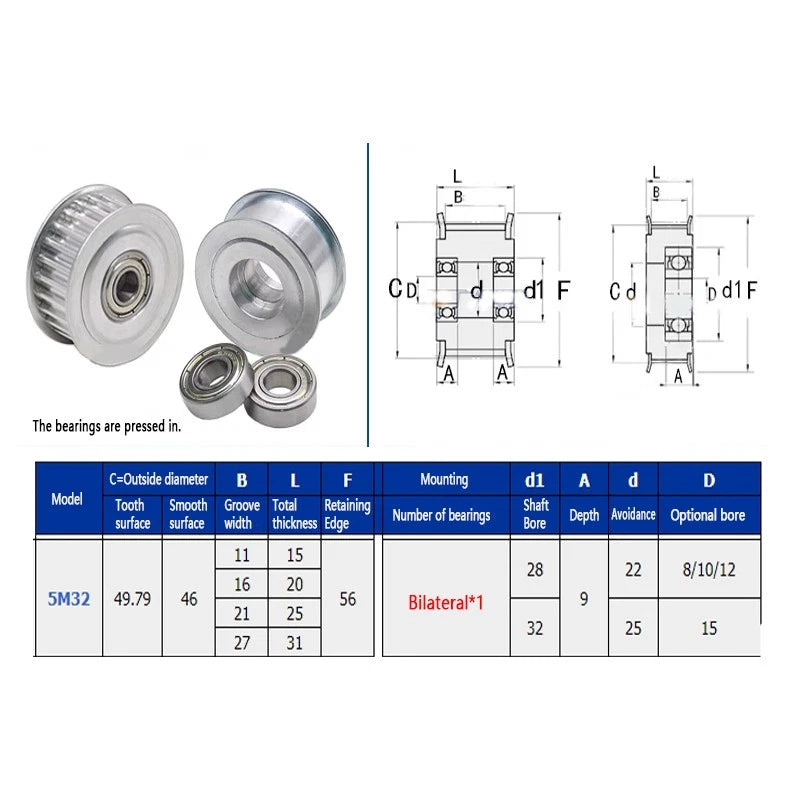

📐 Technical Specifications — 5M Toothless Idler Pulley

Belt Profile	5M HTD
Tooth Count	32T (toothless / smooth face)
Bore Width Options	8 mm / 10 mm / 12 mm / 15 mm
Quantity Options	1 piece / 2 pieces
Material	Aluminum alloy
Surface	Smooth (toothless idler)
Flange	Yes — dual flange for belt retention
Compatible Belt Width	See variant options

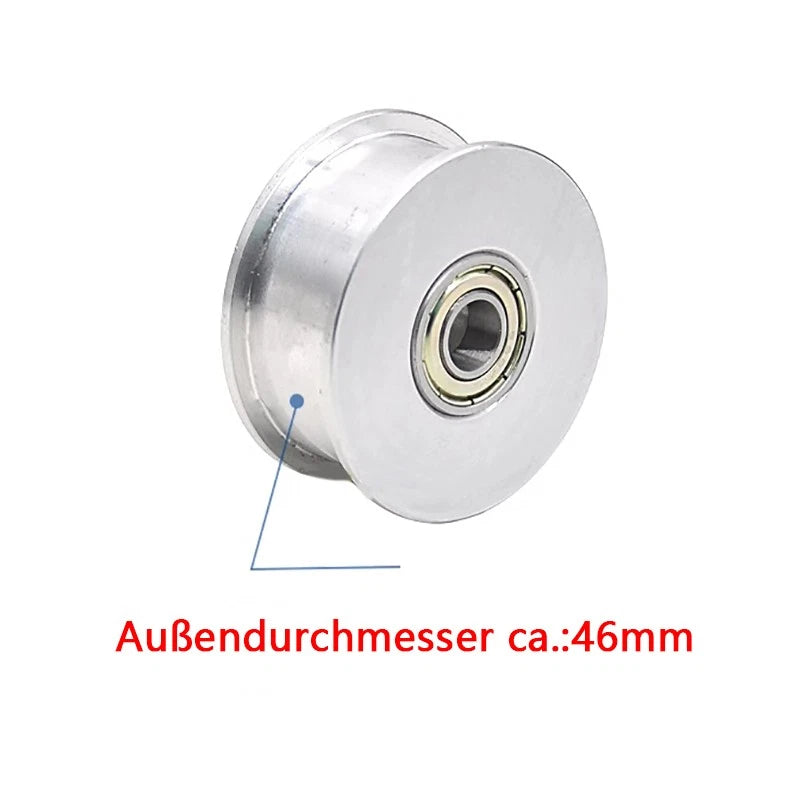

Outer Diameter	See variant options
Weight (per piece)	See variant options

❓ Frequently Asked Questions

What is the difference between a toothless and a toothed pulley?

A toothed pulley meshes directly with the belt teeth to transmit drive force. A toothless (smooth) idler pulley like this one is used to redirect or tension the belt without engaging the teeth — it simply guides the belt along a smooth surface. This is the correct choice for idler and tensioner positions in 5M HTD belt systems.

Which bore width should I choose for my build?

Select the bore width that matches your shaft diameter or the outer diameter of the bearing you plan to press into the pulley. Common choices: 8 mm for standard M8 shafts, 10 mm for 608-type bearing OD, 12 mm for larger bearing assemblies, and 15 mm for heavier-duty CNC setups. Check your motion system's BOM or CAD files if unsure.

Is this pulley compatible with my CoreXY 3D printer?

Yes — as long as your printer uses 5M HTD timing belts, this 32T toothless idler is a standard fit for CoreXY, Cartesian, and delta idler positions. Verify the bore width matches your idler shaft or bearing before ordering.

How corrosion-resistant is the aluminum body?

Aluminum alloy offers good natural corrosion resistance for indoor environments such as 3D printer enclosures and CNC workshops. For high-humidity or outdoor CNC applications, consider applying a light coat of dry lubricant or anodized-finish pulleys if available in your variant selection.

Can I use this pulley as a drive pulley instead of an idler?

No — this is a toothless (smooth face) pulley intended for idler and tensioner use only. It will not transmit drive torque to the belt. For a driven pulley position, you need a toothed 5M 32T drive pulley that meshes with the belt teeth.

Should I order 1 piece or 2 pieces?

Order 1 piece if you are replacing a single failed idler or adding one tensioner point. Order 2 pieces if you are building or upgrading a CoreXY gantry (which typically requires two idlers per axis) or want a spare on hand. The 2-piece option offers a lower per-unit cost.

What belt width is compatible with this pulley?

This pulley is designed for 5M HTD profile belts. Compatible belt width depends on the specific pulley body width — please refer to the variant detail page or contact us to confirm the exact belt width clearance for your chosen bore size.

🛒 Select your bore width & quantity above, then add to cart.
